USER MANUAL W1.5×1220Z Vevor

Affordable. Reliable. Home Improvement.

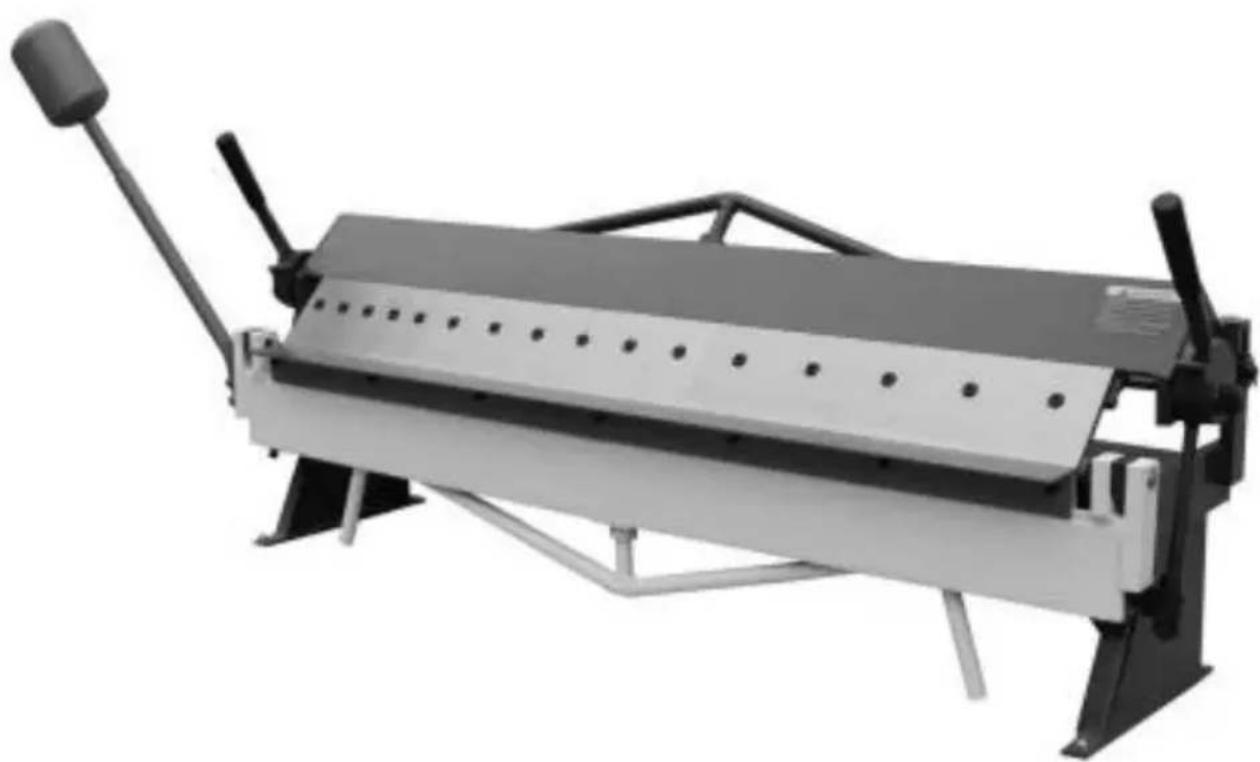

Bending Machine

MODEL: W1.5×610Z / W1.5×915Z / W1.5×1220Z / W1.5×1270Z / W1.0×305A

MODEL: W1.5×610Z / W1.5×915Z / W1.5×1220Z / W1.5×1270Z / W1.0×305A

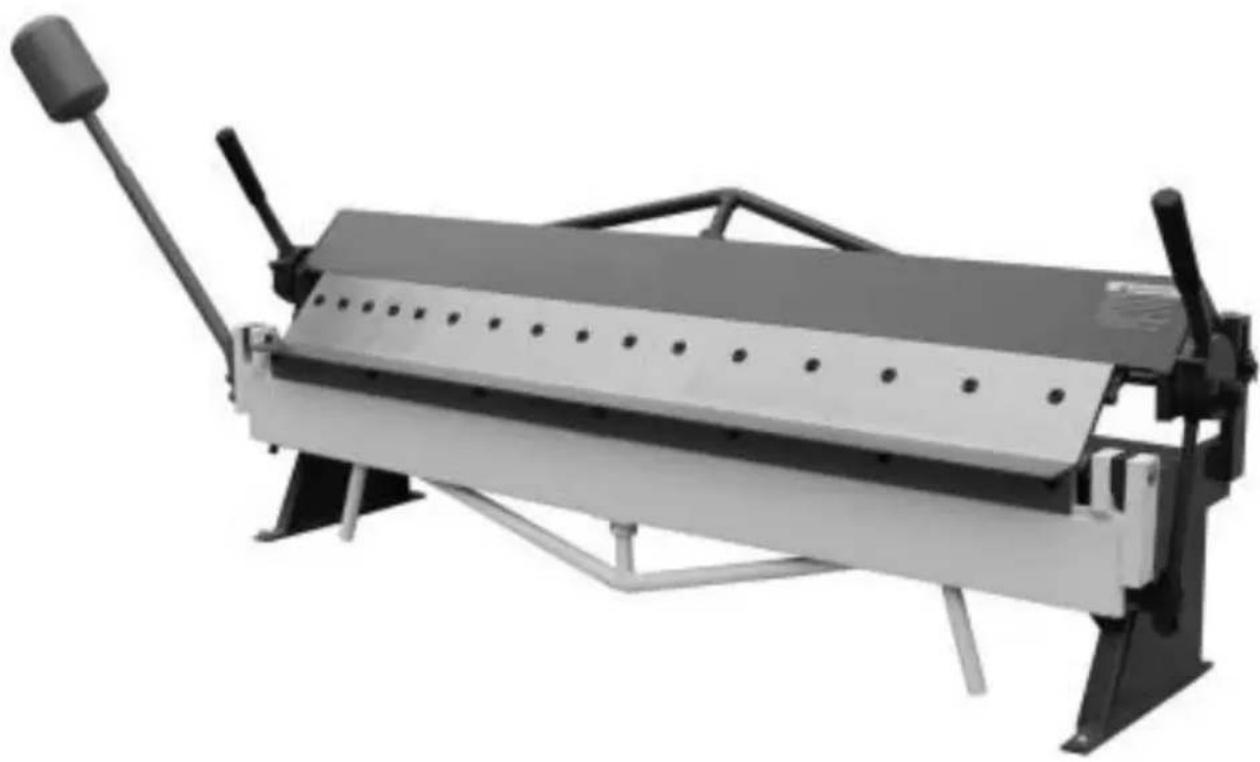

Industrial cutting machine with metal frame and handle (no visible text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Unpacking

The Pan & Box Brake is shipped from the manufacturer in a careful packed plywood case. Thoroughly inspect the product upon opening the package.

After unpacking the unit, carefully inspect for any damage that may have occurred during transit. Check for loose, missing, or damaged parts. Immediately report missing parts to dealer.

If damage has occurred, shipping damage claims must be filed with t carrier and are the responsibility of the user.

Specifications

Model	W1.5×610Z	W1.5×915Z	W1.5×1220Z	W1.5×1270Z	W1.0×305A
Bending Length	24" (610mm ±10mm)	36" (910mm ±10mm)	48" (1220mm ±15mm)	50" (1270mm ±15mm)	12" (305mm ±10mm)
Bending Thickness	1.5/16Ga				1/20Ga
Bending Angle	0—135°

SAVE THESE INSTRUCTIONS

Thank you for purchasing our Bending Machine. Before attempting to operate your new tool please read these instructions thoroughly. You need these instructions for the safety warnings, precautions, assembly, operation, maintenance procedures, parts list and diagrams. Keep your invoice number with these instructions. Write the invoice number on the inside of front cover. Keep the instructions and invoice in a safe, dry for future reference.

General Safety Information

CAUTION

For your own safety, read all of the instructions and precautions before operating tool.

SAFETY RULES

1. Wear proper apparel. Do not wear loose clothing, gloves, neckties, bracelets or other jewelry which may get caught in moving parts of machine.
2. Wear protective hair covering to contain long hair.
3. Wear safety shoes with non-slip soles.
4. Wear safety glasses. Everyday glasses have only impact resistant lenses. They are NOT safety glasses.
5. Be alert and think clearly. Never operate tools when tired, intoxication when taking medications that cause drowsiness.
6. Keep work area clean. Cluttered work areas invite accidents.
7. Work area should be properly lit.
8. Keep visitors at a safe distance from work area.
9. Keep children out of workplace. Make workshop childproof. Use padlocks to prevent any unintentional use of tools.
10. Assemble only according to these instructions. Improper assembly can create hazards.
11. When tools are not in use, store them in a dry, secure place of reach of children. Inspect the tools prior to storage and before reuse.
12. Maintain product labels and nameplates. These carry important safety information.

KNOW HOW TO USE TOOL

1. Use the right tool for the job. DO NOT attempt to force a small attachment to do the work of a large industrial tool. DO NOT use a purpose for which it was not intended.

2. Do not force tool. Your machine will do a better and safer job if it intended. DO NOT use inappropriate attachments in an attempt to excise the machines rated capacity.

3. Overloading machine. By overloading the machine you may cause injury from flying parts. DO NOT exceed the specified machine's capacities.

4. Machine usage. DO NOT use the brake as a press or crushing t

5. Dressing material edges. Before bending sheet metal, always chamf and deburr all sharp edges.

6 .Blade adjustments and maintenance.Always keep blades sharp and properly adjusted for optimum performance.7.Check for damaged parts. Before using any tool or machine, carefully check any part that appears damaged.Check for alignment and binding of moving parts that may be proper machine operation

WARNING

The warnings, cautions, and instructions discussed in this instruction ma cannot cover all possible conditions or situations that could occur. It mus understood by the operator that common sense and caution are factors cannot be built into this product, but must be supplied by the operator.

Important:

Your machine may be shipped with a rustproof waxy oil coating and on the exposed unpainted metal surfaces. To remove this protective coating, use a degreaser or solvent cleaner. For a thorough cleaning, parts will occasionally have to be removed. DO NOT USE acetone or cleaner as they may damage painted surfaces.

Follow manufacturer's label instructions when using any type of cleanir product. After cleaning, wipe unpainted metal surfaces with a light coat of quality oil or grease for protection.

WARNING

DO NOT USE gasoline or other petroleum products to clean the machine.

They have low flash points and can explode or cause fire.

CAUTION

When using cleaning solvents work in a well-ventilated area. Many cleaning solvents are toxic if inhaled.

Assembly

IMPORTANT: Consider the following when looking for a suitable location place the machine:

1. Overall weight of the machine.
2. Weight of material being processed.
3. Sizes of material to be processed through the machine.
4. Space needed for auxiliary stands, work tables, or other machinery
5. Clearance from walls and other obstacles.
6. Maintain an adequate working area around the machine for safety.
7. Have the work area well illuminated with proper lighting.
8. Keep the floor free of oil and make sure it is not slippery.
9. Remove scrap and waste materials regularly, and make sure the area is free from obstructing objects.
10. If long lengths of material are to be fed into the machine, make that they will not extend into any aisles.

Before beginning assembly, take note of the following precautions and suggestions.

1. Is the machine bolted to the pallet? Before attempting any of the assembly procedures remove all of the loose parts and hardware and unbolt the machine from the pallet.
2. LEVELING: The machine should be sited on a level, concrete floor. Provisions for securing it should be in position prior to placing the m. The accuracy of any machine depends on its precise placement on the mounting surface.
3. FLOOR: This tool distributes a large amount of weight over a small area. Make certain that the floor is capable of supporting the weight the machine, work stock, and the operator. The floor should also be a level surface. If the unit wobbles or rocks once in place, be sure eliminate it by using shims.
4. WORKING CLEARANCES: Take into consideration the size of the material to be processed. Make sure that you allow enough space fo to operate the machine freely.

Anchoring the Machine

1. Position the machine or firm and level concrete floor
2. Maintain a safe operatir distance around the machir

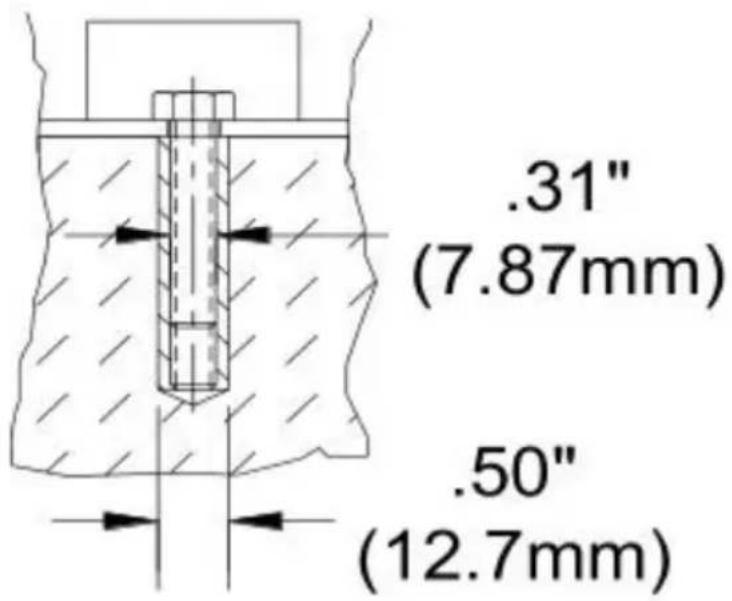

3. Anchor the machine to floor, as shown in the dia using bolts and expansion plugs or sunken tie rods to connect through holes in the base of the stand.(Pic.1)

.31" (7.87mm) .50" (12.7mm)

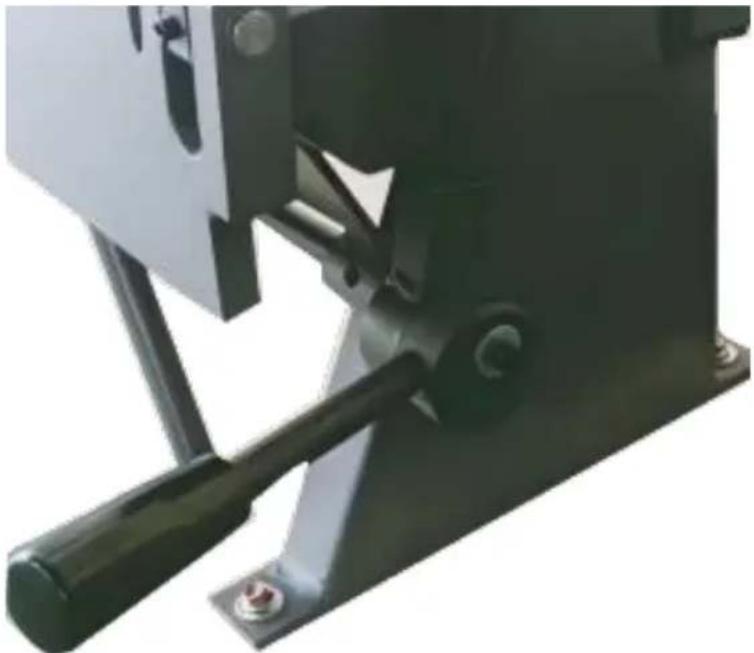

Attaching the Counterweight

1. Have a helper hold the counterweight.
2. Back off the two hex bolts and slide the counterweight rod into the receipt
3. When the rod is flush with the bottom of the receiver, tighten the hex bolts.(Pic.2)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

NOTE

DO NOT use the counterweight handle to raise the bending leaf. You damage the hinges or the bending leaf.

Adjusting the Stop Rod

The stop rod is used for repeat bending when you want the bending stop at the same position each time.

1. Loosen the stop nut and washer and make your bend, stopping a top of the bend.
2. Tighten the nut and washer up to the stop block.
3. The bending angle can now be repeated until reset by the operat

Adjusting the Setback

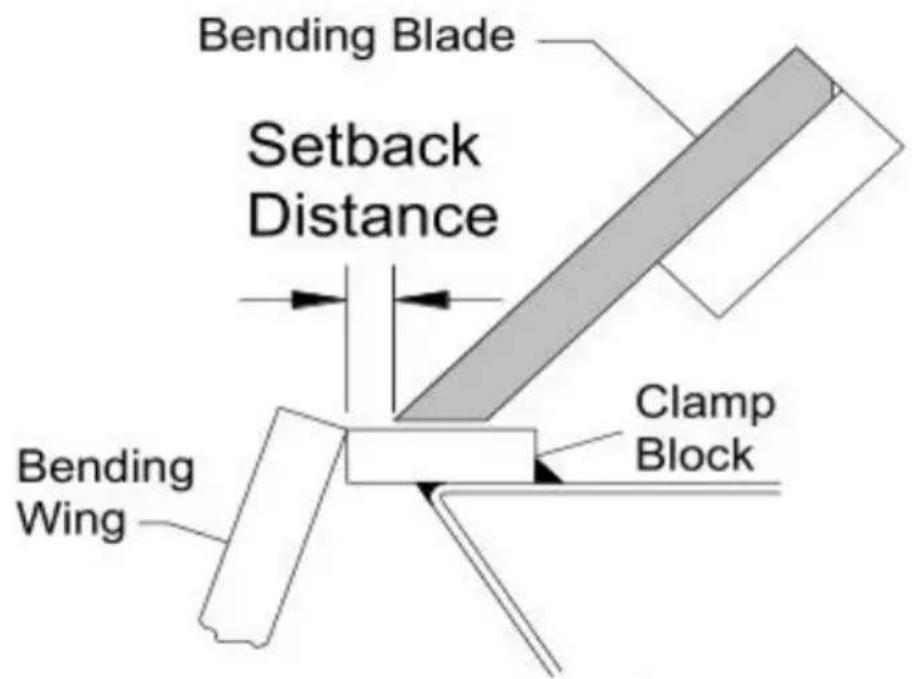

Setback is the distance from the front edge of the finger to the front the clamp block as shown in picture. This distance is determined by gauge (thickness) of the piece part and inside radius of the bend . setback is typically 1- 1/2-2 times the material thickness. (Pic.4)

Bending Blade Setback Distance Clamp Block Bending Wing

1. To adjust, make sure all the fingers are properly aligned with each and the hold down assembly is not locked in the down position.

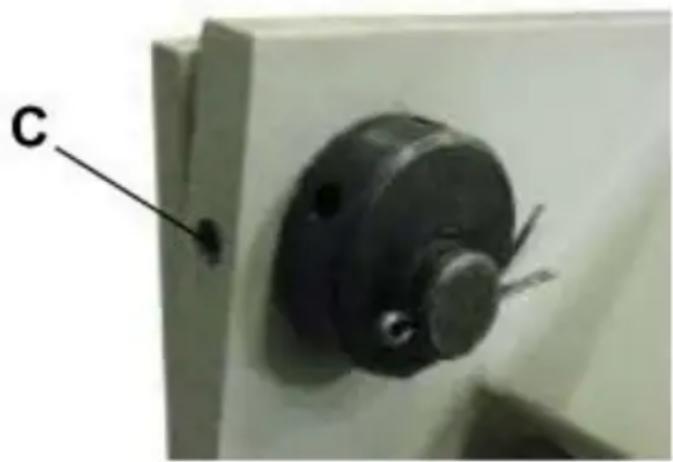

2. Loosen the setscrews (C) at the back of the hold down assembly 5).

3. Insert a tool, such as an Allen wrench, into one of the spoke holes eccentric hub and rotated it, which moves the hold down assembly either forward or back.

4. When the fingers are at the correct setback distance and parallel clamp block edge, tighten the setscrews (C).

Close-up of a mechanical component with a labeled point 'C' pointing to a small hole (no text or symbols beyond label)

Adjusting the Clamping Pressure

CAUTION

1. Excessive clamping pressure can "pre-load" and permanently distort the
   2.DO NOT bend material heavier than the rated capacity,even in short
2. Use material with square-sheared edges.(a rolled edge will cause bov
   4.Bending a round object will warp or nick the clamp edge.
   5.Adjust the clamp pressure accordingly for different metal gauges.
   6.Do not use a pipe extension on the clamp bars to get more levera

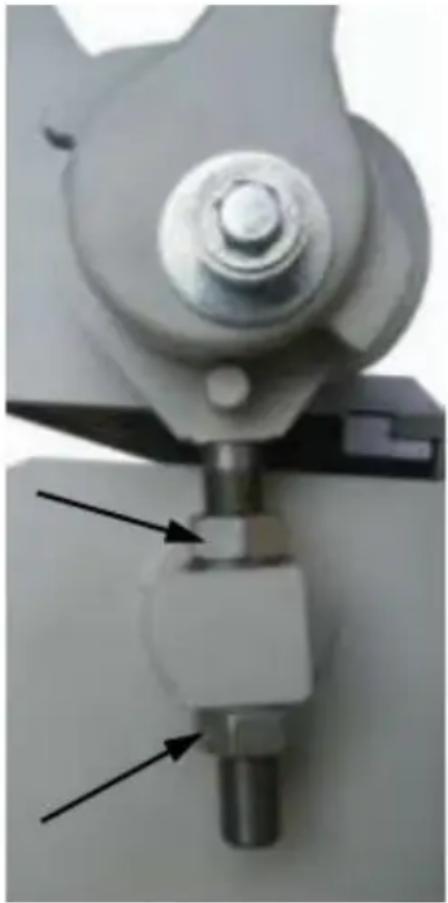

The clamping pressure may have to be adjusted as the thickness of piece part changes. A suitable pressure should have a medium resistor when pulling back on the hold down handle(s). At the end of the stro there should be a definite locking of the piece part under the clampi To adjust the pressure, move the nuts on the threaded link shaft either down.

1. To adjust the clamping pressure, tighten both sides of the clamping I with a piece part in the brake.

a. If the clamping pressure seems light and the piece part is loose clamp, move the adjusting nuts UP.

b. If the clamping pressure seems hard and you can't lock the hand move the adjusting nuts DOWN.

c. Once the pressure feels right, no further adjustments are necessary this thickness piece part. (When changing thickness it may become necessary to adjust again.)
2. Remove the piece part from under the clamping leaf, lock down tl with the handles, and loosen pressure on the top nut.
3. Unlock the clamping leaf and turn the bottom nut 12 turn in the direction.
4. Lock the clamping leaf, re-tighten the top nut, and repeat Step 1 until the desired pressure is reached.

Close-up of a mechanical assembly with a bolt and nut, showing no visible text or symbols.

Clamp Alignment(end to end)

Make a 90°test bend about 2"(50.8mm) from each end of the machine.Stack the bent strips on top of each other and check that the bent to the same degree.

If a strip is over bent, increase the setback distance on that side. If a under bent, decrease the setback distance on that side. Again, move the setback adjustment past the desired set back point, and then forward to remove the slack.

Bending Wing Alignment

Bending accuracy is dependent on the top surface of the bending leaf, the attached bending wing being flush with the top face of the clamp block when the bending leaf is in the lowered position. If it appears that adjustment is necessary, contact service team local, or manufacture.

Operation

When performing basic bending operations it is important that the fing of the brake are parallel with the edge of the clamping block. Also measure you have the proper setback and clamping pressure set for the thickness material being bent.

CAUTION

Always wear proper eye protection with side shields, safety footwear, a gloves to protect from burrs and sharp edges.

CAUTION

Keep hands and fingers clear of the clamping beam. Stand off to the machine to avoid getting hit with the bending apron as it comes up t

CAUTION

When handling large heavy sheets make sure they are properly suppo

Bending Sheet Metal

1. Lift and rotate the clamping handle (cw) clockwise to raise the clas assembly.
2. Insert the piece part between the clamp block and the brake finger
3. Align the fingers of the hold down assembly to the scribed bend the piece part and clamp in place by pulling the clamp handle back.

NOTE

DO NOT force the clamping handle. The holding pressure only needs tight enough to hold the sheet metal from moving when bending.

1. Pull up on the bending leaf handles until the piece part has reached desired bend angle.
2. Lower the bending leaf, raise the hold down assembly, and remove the bent piece part.
3. If you are doing box and pan bending, choose fingers that closely in the dimensions of the finished piece.

BENDING ALLOWANCE

In order to bend sheet me ta I accurately, you will need to consider length of each bend. This is referred to as bend allowance. Subtract the bend allowance from the sum of the outside dimensions of the piece obtain the actual overall length or width of the piece. Because of difference in sheet metal hardness, and whether the bend is made with the grade against it, exact allowances must sometimes be made by trial and er However bend allowances for general use can be obtained from meta working books or from the Internet.

UNDER STANDING SPRINGBACK

Spring back, also known as elastic recovery, is the result of the met wanting to return to its original shape after undergoing compression a stretch. After the bending leaf is removed from the metal and the I released, the piece part relaxes, forcing the bent portion of the metal return slightly to its original shape.

The key to obtaining the correct bend angle is to over bend the me and allow it to spring back to the desired angle. All metals exhibit amount of spring back.

MATERIAL SELECTION

CAUTION

It must be determined by the customer that materials being processed through the machine are NOT potentially hazardous to operator or per working nearby.

When selecting materials keep these instructions in mind:

1. Material must be clean and dry. (without oil)
2. Material should have a smooth surface so it processes easily.
3. Dimensional properties of material must be consistent and not exceed the machine capacity values.
4. Chemical structure of material must be consistent.
5. Buy certificated steel from the same vendor when possible.

LUBRICATION AND MAINTENANCE

WARNING

Maintenance should be performed on a regular basis by qualified pers Always follow proper safety precautions when working on or around a machinery.

1. Check daily for any unsafe conditions and fix immediately.
2. Check that all nuts and bolts are properly tightened.
3. On a weekly basis clean the machine and the area around it.
4. Lubricate threaded components and sliding devices.
5. Apply rust inhibitive lubricant to all non-painted surfaces.

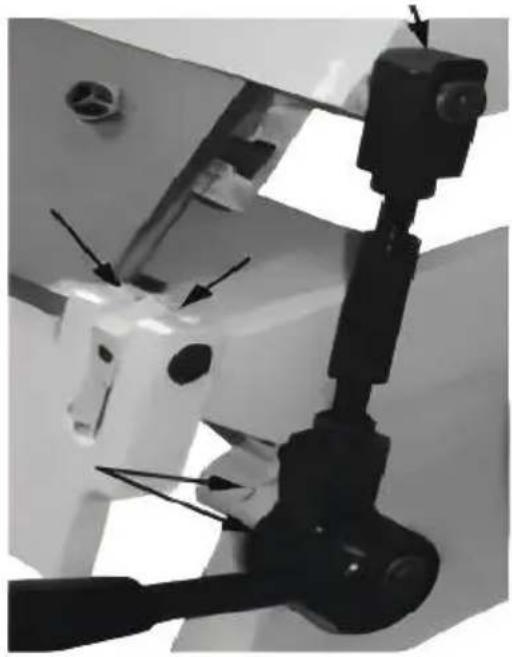

Oil Ports

Using an oil can with a good quality #30W oil, apply 5-6 drops into of the ports on both ends of the machine. Repeat weekly or more often depending on usage. Wipe off any excess oil.

Mechanical assembly diagram showing a robotic arm with black and white components and directional arrows indicating motion (no text or symbols)

NOTE

Proper maintenance can increase the life expectancy of your machine.

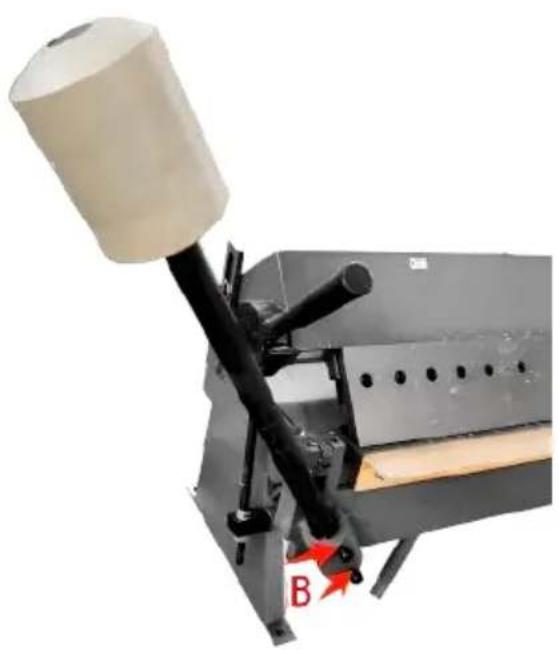

Machine assembly

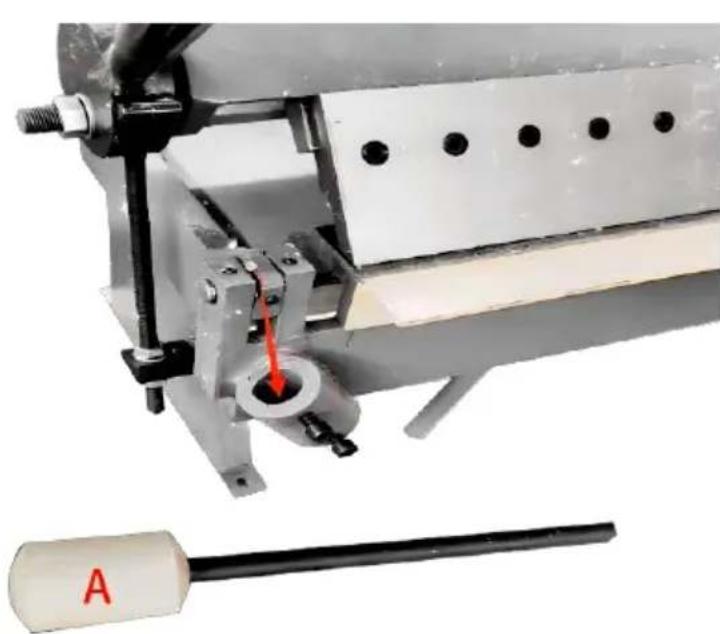

Place the counterweight hammer(A) at the position indicated by the arrow (as shown in the figure below).

Mechanical assembly with a red arrow pointing to a circular component and a labeled tool (A) in the foreground (no readable text or symbols)

Mechanical device with a cylindrical component and lever mechanism, labeled 'B' with red arrows (no readable text or symbols beyond label)

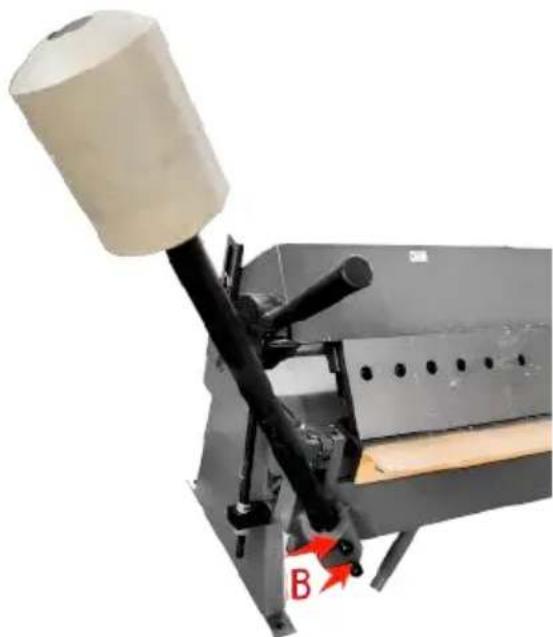

Tighten the two screws (B)

TROUBLESHOOTING

FAULT	PROBABLE CAUSE	REMEDY
INACCURATE BENDS	1. Fingers are not aligne2. Setback distance is no equal from one side to t other3. Clamping assembly is holding piece part secure	Follow proper finger alignment procedure.Accurately measure distand and set accordingly.Re-adjust the clamping pressure.
BENDING LEAF HARD TO LIFT AND BEND.	1. Exceeding the bending limits of the brake.2. Counterweight is not c leaf.	Do not bend material thic than the machine was designed for.Attach the counterweight t lessen force needed to lif bending leaf.

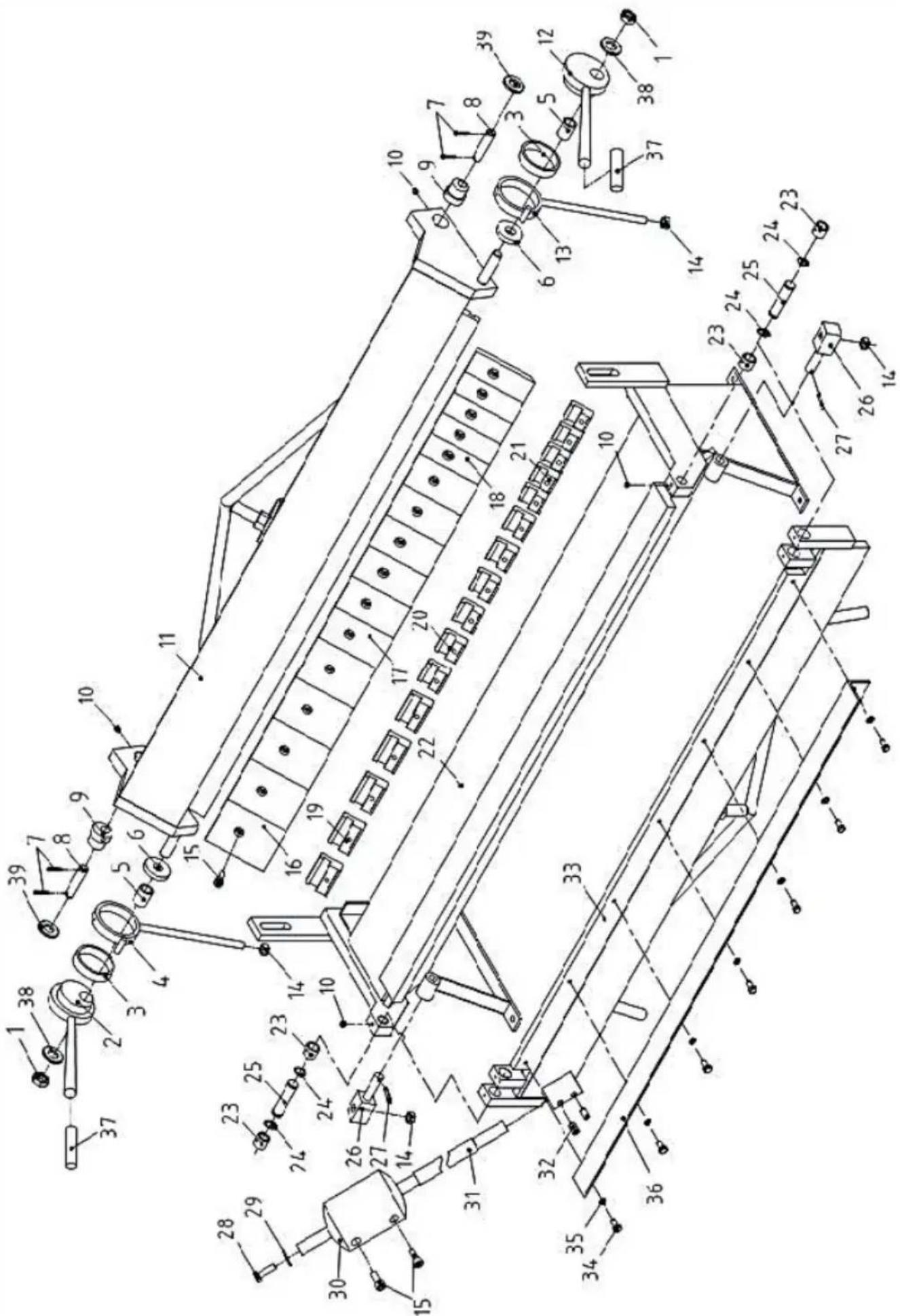

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

Ref.	Description	QTY.
1	Nut M18	2
2	Left Eccentric Handle	1
3	Big Washer	2
4	Left Connecting Rod	1
5	Washer	2
6	Spacer Bush	2
7	Cotter Pin φ4X25	4
8	Pin φ16X70	2
9	Eccentric Shaft	2
10	Set Screw M8X8	4
11	Upper Die Framework	1
12	Right Eccentric Handle	1
13	Right Connecting Rod	1
14	M12	4
15	M10X25	18
16	Brake Dies 4"	5
17	Brake Dies 3"	6
18	Brake Dies 2"	5
19	Clamp Plate 63mm	5
20	Clamp Plate 45mm	6

Ref.	Description	QTY.
21	Clamp Plate 34mm	5
22	Frame	1
23	Case	4
24	Shaft Ring Φ18	4
25	Shaft	2
26	Shaft	2
27	Cotter Pin φ5X25	2
28	Hex. Bolt M10X35	1
29	Flat Gasket Φ10	1
30	Counterweight	1
31	Counterweight Rod	1
32	Set Screw M12X20	2
33	Bending Leaf	1
34	Hex. Bolt M8X16	7
35	Φ8	7
36	Limit Angle plate	1
37	Handle Grip	2
38	Φ18	2
39	Φ16	2

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Model.	Description	Qty
W1.5×610Z	Counterweight	1
W1.5×915Z	Counterweight	1
W1.5×1220Z	Counterweight	1
W1.5×1270Z	Counterweight	1
W1.0×305A	-	-
W1.0×610A	-	-

VEVOR

Affordable. Reliable. Home Improvement.

Machine à cintrer

MODÈLE : W1,5 × 610Z / W1,5 × 915Z / W1,5 × 1220Z / W1,5 × 12 7 0Z / W1,0 × 305A

MODÈLE : W1,5×610Z / W1,5×915Z / W1,5×1220Z / W1,5 × 12 7 0Z / W1,0 × 305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

NOTE

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical assembly with a bolt and nut, showing no visible text or symbols.

Mechanical assembly diagram showing a robotic arm with black and white components and directional arrows indicating motion (no text or symbols)

NOTE

Mechanical assembly with a red arrow pointing to a circular component and a labeled tool (A) in the foreground (no readable text or symbols)

Industrial machine with a cylindrical component and black lever mechanism, labeled 'B' with red arrows (no readable text or symbols)

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Biegemaschine

MODELL : B1,5×610Z / B1,5×915Z / B1,5×1220Z / W1,5×12 7 0Z / W1,0×305A

MODELL: W1.5×610Z / W1.5×915Z / W1.5×1220Z / W1,5×12 7 0Z / W1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

.31" (7.87mm)

.50" (12.7mm)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

NOTIZ

Bending Blade Setback Distance Clamp Block Bending Wing

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical assembly with a bolt and nut, showing alignment arrows (no text or symbols)

Mechanical assembly diagram showing a robotic arm with black and white components and directional arrows (no text or labels)

NOTIZ

Mechanical assembly diagram showing two views of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Macchina piegatrice

MODELLO : L1,5×610Z / L1,5×915Z / L1,5×1220Z /

LARGHEZZA 1,5×12 7 0Z / LARGHEZZA 1,0×305A

MODELLO: W1.5×610Z / W1.5×915Z / W1.5×1220Z /

LARGHEZZA 1,5×12 7 0Z / LARGHEZZA 1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

Technical diagram of a mechanical assembly with internal components and directional arrows (no text or labels)

.31" (7.87mm)

.50" (12.7mm)

Close-up of a mechanical lever mechanism with black and metallic components (no visible text or symbols)

NOTA

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical assembly with a bolt and nut, showing no visible text or symbols.

Mechanical assembly diagram showing a bracket with arrows indicating force or movement (no text or symbols present)

NOTA

Mechanical assembly diagram showing two views of a mechanical device with labeled parts A and B (no text or symbols beyond labels)

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Máquina dobladora

MODELO : W1.5×610Z / W1.5×915Z / W1.5×1220Z /

ANCHO 1,5×12 7 0Z / ANCHO 1,0×305A

MODELO: W1.5×610Z / W1.5×915Z / W1.5×1220Z / ANCHO 1,5×12 7 0Z / ANCHO 1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

NOTA

Bending Blade Setback Distance Clamp Block Bending Wing

Close-up of a mechanical component with a labeled part 'C' pointing to a small hole (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and threaded shaft, showing no visible text or symbols.

Mechanical assembly with black components and arrows indicating motion direction (no visible text or symbols)

NOTA

Mechanical assembly with a red arrow pointing to a circular component and a labeled cable (A) on the side, no readable text or symbols present.

Industrial machine with a cylindrical component and black lever mechanism, labeled 'B' with red arrows (no readable text or symbols)

Technical schematic diagram of a mechanical assembly with numbered components for identification.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Maszyna do gięcia

MODEL : W1,5×610Z / W1,5×915Z / W1,5×1220Z / SZER. 1,5×12 7 0Z / SZER. 1,0×305A

MODELE: W1.5×610Z / W1.5×915Z / W1.5×1220Z / SZER. 1,5×12 7 0Z / SZER. 1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

Technical diagram of a mechanical assembly with no visible text or symbols

.31" (7.87mm)

.50" (12.7mm)

Close-up of a mechanical lever mechanism with black and metallic components (no visible text or symbols)

NOTATKA

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and threaded shaft, showing no visible text or symbols.

Mechanical assembly diagram showing linkage components and mounting points (no text or labels visible)

NOTATKA

Mechanical assembly with a red arrow pointing to a circular component and a labeled tool (A) in the foreground (no readable text or symbols)

Industrial machine with a cylindrical component and black lever mechanism, labeled 'B' with red arrows (no readable text or symbols)

Technical schematic diagram of a mechanical assembly with numbered components for identification.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Buigmachine

MODEL : W1,5×610Z / W1,5×915Z / W1,5×1220Z / B1,5×12 7 0Z / B1,0×305A

MODEL: B1,5×610Z / B1,5×915Z / B1,5×1220Z / B1,5×12 7 0Z / B1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

OPMERKING

Bending Blade Setback Distance Bending Wing Clamp Block

Close-up of a mechanical component with a labeled part 'C' and a circular housing (no text or symbols beyond label)

Close-up of a mechanical component with a bolt and threaded shaft, showing no visible text or symbols.

Mechanical assembly with black components and arrows indicating motion direction (no visible text or symbols)

OPMERKING

Mechanical assembly diagram showing two views of a mechanical device with labeled parts A and B, no readable text or symbols present.

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Bockningsmaskin

MODELL : W1,5×610Z / W1,5×915Z / W1,5×1220Z /

B1,5×12 " /7 "Z / B1,0×305A

MODELL: B1.5×610Z / B1.5×915Z / B1.5×1220Z /

B1,5×12 " /7 "Z / B1,0×305A

Industrial cutting machine with metal frame and handle (no visible text or symbols)

.31" (7.87mm) .50" (12.7mm)

Close-up of a mechanical lever mechanism with a black handle and metal frame (no visible text or symbols)

NOTERA

Bending Blade Setback Distance Clamp Block Bending Wing

Close-up of a mechanical component with a labeled point 'C' pointing to a circular feature (no text or symbols beyond label)

Close-up of a mechanical assembly with a bolt and nut, showing no visible text or symbols.

Mechanical assembly diagram showing a robotic arm with black components and directional arrows indicating motion (no text or symbols present)

NOTERA

Mechanical assembly diagram showing two views of a mechanical device with labeled parts A and B, no readable text or symbols present.

Technical schematic diagram of a mechanical device with numbered components for identification and assembly reference.

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP
