MACERATOR PUMP USER MANUAL

MODEL: FLO500-DE Pro

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

MACERATOR PUMP

MODEL: FLO500-DE Pro

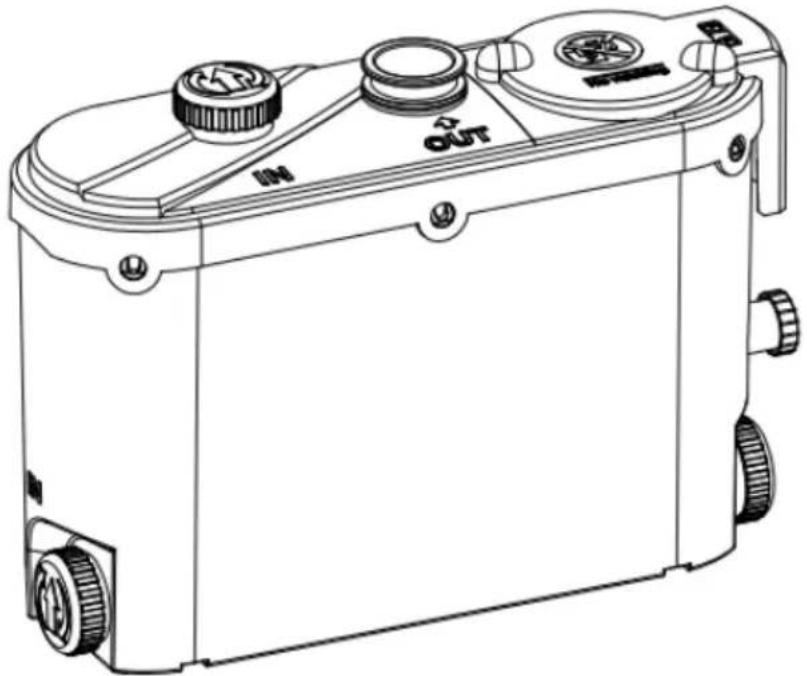

Line drawing of a mechanical device with labeled ports (IN, OUT) and scroll wheel (no text or symbols beyond labels)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Kindly Reminder

TESTWATER

The FLO500-DE Pro has been developed with the utmost care and it is tested in the factory. Therefore, it is possible that the test water remains in the appliance.

ACCESSORIES

A-B x1	[Cx3]	[Dx4]
Hx3	The accessory"H"is mounted on the pump

SPECIFICATIONS

The water temperature should be a minimum of 1^ C for it is important the unit does not freeze, and a maximum water temperature is 90^ C.

Model	Input	Max Power	Max Flow	Max Lift	Water Inlet	Water Outlet
FLO500-DE Pro (US)	AC110-120V 60Hz	0.7 HP	29GPM	26ft	WC+3	1
FLO500-DE Pro (EU)	AC220-240V 50Hz	500W	110 LPM	8m	WC+3	1

WARNING: Only installations conforming to the above specifications are acceptable.

NOTICE

If the product has a delay function, when the switch is turned off, the motor will be delayed for 4 seconds to stop working.

HOW THE UNIT FUNCTIONS

The macerator is simply a tank that is gravity fed from your toilet, with machine, shower, etc. with a built-in pressure switch that detects the incoming waste and starts a pump combined with cutting blades. This reduces the effluent to an easy-to-pump fluid which is then pumped as small-diameter pipes into the drains. A non-return valve is fitted as standard so enabling the unit to pump up to 8 m vertically.

INSTALLATION

- ELECTRICS

The unit must be installed to current electrical regulations with a fused spur mounted outside the room fused at 3 amps. We advise it is done by a registered electrician.

- Connection

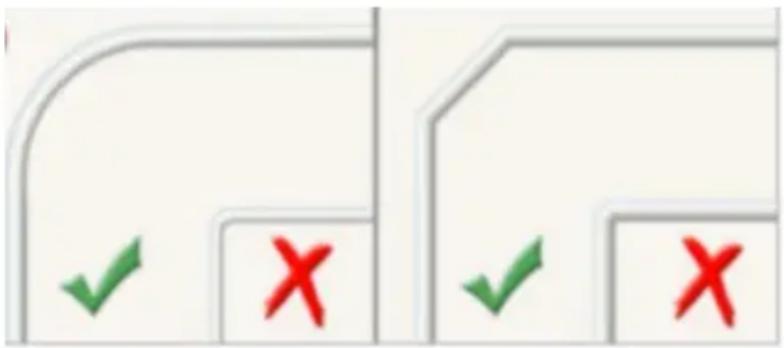

The unit is designed for a horizontal toilet with an outlet of the standard European 18 cm to the outlet centre from the floor. All other inlets I gravity fed into the unit. The outlet comes as standard with a 32 mm connection, however, 22 mm can be used with a reducer. What is very important is that the pipe run uses radius bends and is forbidden to 90-degree (right-angle elbows) bends as blockages can occur.

Two identical document icons with checkmarks and red X marks, likely indicating approval or cancellation status.

If the water outlet is discharged horizontally, the water pipe must have 1% inclination.

If the sewage is discharged upwards, the horizontal pipe should not exceed 1 ft (80h).

- Inlet

The unit can be used just for one input such as a toilet or shower all at once and blanking covers are provided to allow for this.

WARNINGS

(1) Electrical Installation:

- The connection shall be carried out by a qualified technician and the for electrical installations (NEN 1010) shall be met.

- If the power cord of the appliance is damaged, it shall be replaced manufacturer or supplier of the appliance. This will avoid creating dan - The connection of your appliance is Class 1.

Connect the appliance to a socket with a protective conductor connec

(2) Thermal Protection:

·This appliance is equipped with thermal protection which switches off power supply of the appliance for 2 hours after overheating for safety reasons.

- Power on the electrical connection only when the appliance is fully installed.

·In case of prolonged absence (e.g. vacation), the water supply to the appliance shall be closed.

·Do not expose the appliance to temperatures below 0^ C or above 5

(3) If the indications are not followed, it could cause personal security risks.

(4) Wrong Use

Use only for human excrement+soluble toilet paper. Some examples of damage caused by improper use include grinding cotton wool, tampons, sanitary napkins, panty liners, food, condoms, towels hair and rinsing liquids, and solvents or oils.

TROUBLE SHOOTINGS

Some malfunctions of the grinder are not practically serious. You can correct it by yourself. To diagnose and find a solution to the Trouble to the diagram below. For other malfunctions, get contact the supplier qualified professional.

MALFUNCTIONS POSSIBLE CAUSES SOLUTIONS
The appliance occasionally starts to work	The connected pipelines are leaking	Check the installation in front of the appliance
	The check valve is leaking	Clean or replace the check
The motor is running properly but the water runs slowly away.	The aerator in the lid is blocked	Clean the aerator
The engine is running properly but non-stop or run for a long time	The height or length of the drain is too large,or too many bends are used(power failure)	Check the installation
	The pump is blocked	Turn off the power, disassemble the pump and unblock
The motor is not switched	on The power supply is not switched on	Switch the on power supply (repeat)
	The plug is defective	Repair the plug
	The trouble with the motor or sensor	Remove the lid,flush clean,and dry the sensor up(hair dryer)
The motor rattles with a noise motor	There's a strange object	Remove the lid,clean it and remove the object
The motor is buzzing and does not rotate	The condensator is broken or trouble with the motor	hat in contact with a qualified specialist or the supplier
	There's a strange object in the Remove the lid,clean it and motor	Remove the lid,clean it and remove the object
	FCC Information:CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:1) This product may cause harmful interference.2) This product must accept any interference received, including interference that may cause undesired operation.WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules, These limits are designed to provide reasonable protection against harmful interference in a residential installation.This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception,which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.Reorient or relocate the receiving antenna.· Increase the distance between the product and receiver.· Connect the product to an outlet on a circuit different from that to which the receiver is connected.· Consult the dealer or an experienced radio/TV technician for assistance.
	Correct DisposalThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.
