BDM8 - Food Processor Vevor - Free user manual and instructions

USER MANUAL BDM8 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

BLENDER

MODEL: BMD8 BMD10

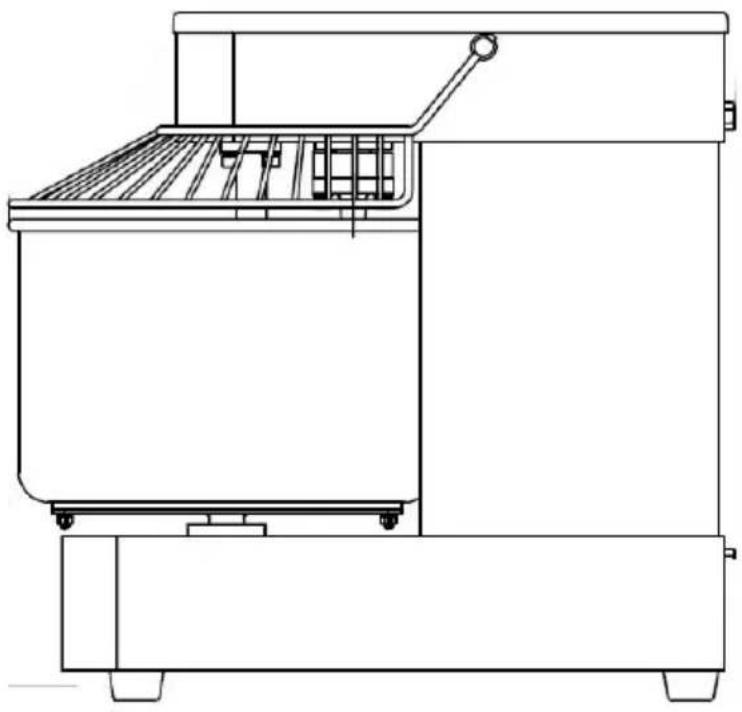

Technical line drawing of a mechanical device with no visible text or symbols

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

CORRECT DISPOSALThis product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

TECHNICAL SPECIFICATIONS

Model	Bowl Volume (L)	Voltage (V)	Rated Frequency (Hz)	Power (kW)	Mixing Speed (r/min)	Size(mm)
BMD8	8	220-240	50/60	0.55	159	495×302×385
BMD8	8	120	60	0.55	159	495×302×385
BMD10	10	220-240	50/60	0.65	159	495×302×460
BMD10	10	120	60	0.65	159	495×302×460

WARNING :

Read all safety warnings, instructions, illustrations and specifications provided with this electrical appliances. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

1. There shouldn't be anything else on the counter.
2. There is no abnormal phenomenon after the power is switched on
3. It must be placed on the horizontal plane in order to avoid danger shaking back and forth during use.
4. Because of the chain saw rotates at high speed, it is also necessary to develop the habit of turning off the switch when the operation is sustained. Do not plug the power cord into the socket when not in use. Please note that the power cord after use and before cleaning or maintenance.
5. If iron nails or other metal items are included in the cut items, it cause jagged crack or damage. So, please pay attention to the cutting surface during operation to ensure the safety of work.
6. Please unplug the power of the machine before cleaning, assembling disassembling.
7. Do not place the product in the reach of children. Children should supervised to ensure that they do not play with the appliance.
8. This appliance can be used by children aged from 8 years and ab and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleani and user maintenance shall not be made by children without supervisi 9. Don't unplug the machine before it stops operation.
9. If the supply cord is damaged, it must be replaced by the manufacture of its service agent or similarly qualified persons in order to avoid a hazard.
10. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When

failures happen, it should be repaired by a qualified maintenance personnel.

1. WARNING! It is strictly prohibited to put the main body into the w clean. Only can be scrubbed with wet towel. The machine must be 1 cool before cleaning.

2. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).

3. Avoid power cords damage. Do not squeeze, bend or friction it, keep away from heat sources and open fires. Power cord do not touch the

4. Power cord should be laid fiat. Do not pull the power cord and r product fall down, which may cause damage.

5. Do not use the product on wet ground. Do not touch the product power cord plug with wet hands.

6. Do not disassemble the product at will. Do not let something enter insert into the product, which may cause damage.

7. Only accessories provided by the seller or manufacturer can be us for the product. We will not be responsible for any failure caused by of accessories from other manufacturers, which are not covered by warranty.

8. Do not use the product on uneven, damp, not heat-resistant surface avoid damage or failure.

9. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger.

10. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.

11. Do not leave the product to work with no one watching. If the I is overheating, please stop working immediately and unplug the power.

12. Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.

13. Please store the plastic bags and not allow children to play with the prevent a risk of suffocation.

14. It is prohibited to put the main body of the machine and the pow

into any liquid.

1. DO NOT open the case door and the hands are strictly forbidden touching the saw blade while the machine is operating.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the pa responsible for compliance could void the user's authority to operate t equipment!

This device complies with Part 15 of the FCC Rules. Operation is such the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the lir a Class B digital device pursuant to Part 15 of the FCC Rules, The are designed to provide reasonable protection against harmful interferer in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, user is encouraged to try to correct the interference by one or more following measures.

- Reorient or relocate the receiving antenna.

• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for assista

OPERATION AND NOTES

Before use, check that power supply corresponds to that required by machine. Check that the extern earthing wire is reliably connected. The machine which 3 phase motor must be checked that the machine rotates in the direction indicated by the rotation mark .If the rotation direction is wrong, change the two of the three livewires each other. For test of machining tools should never be installed otherwise the would fall out in case of wrong rotation direction and cause damage machine parts.

SELECT SPEED AND AGITATOR

a) Dough arm: It is frequently used for heavy bread through weight of flour indicated by the mark, the weight of water is 47%\~50% of the fill flour, and preferable to be used at low speed.

b) Beater: It is commonly used for thin batters, cakes and mashing potatoes, like stuffing and preferable to be used at middle speed.

c) Wire whip: It is best for whipping cream and beating eggs, and preferable to be used at high speed.

Important notice: Stop the machine to change speed, don't mix dough middle or high speed.

BOWL LIFT

a) When mixing, rotate the hand wheel to raise the bowl until you find touch the stop, this also makes the bowl more accessible for filling. b) After mixing rotate the hand wheel to lower the bowl. It is necessary lower the bowl to change agitators, avail to remove the bowl or agita. Note: When assembling an agitator the bowl must be in the down point Slip the agitator up on the shaft and turn until the driving pin in the reaches the L-shaped slot in the agitator shank, avoid the agitator to

fallen down in running.

Maintenance

After use each time carefully the bowl agitators make sure to keep the machine clear.

Lubricate the bowl slide ways occasionally by applying a small amount of oil or grease with the tip of linger.

TROUBLE SHOOTING

Trouble	Probable cause	Remedy
The mixing shaft don't rotates after switch or	Electric connectors are loose	Check he electric circuit, tighten those loose connectors
Oil leakage	Oil seals are worn ou	Replace those oil seals
The raising handle is too tight	Guide ways are corroded	Clean and oil the guide ways
	The lead screw, bevel gear and hand wheel shaft etc is dry	Oil them
Temperature rise of motor is too high, be speed	Lack of voltage	Check the supply voltage
	Over load	Less load
	The working speed selected is too high of agitator is not suitable	Select a suitable speed and agitator
The noise of the gearbox is serious, its temperature is too high	Lubrication is insufficient	Add or replace the
The agitator knocks with the bowl	The agitator or the bo is deformed	Repair or replace deformed part

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/0 YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX
