USER MANUAL B30-BT Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

BLENDER

INSTRUCTIONS

MODEL:B10B / B15B / B20B / B20BJ / B30B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL: B10B / B15B / B20B / B20BJ / B30B

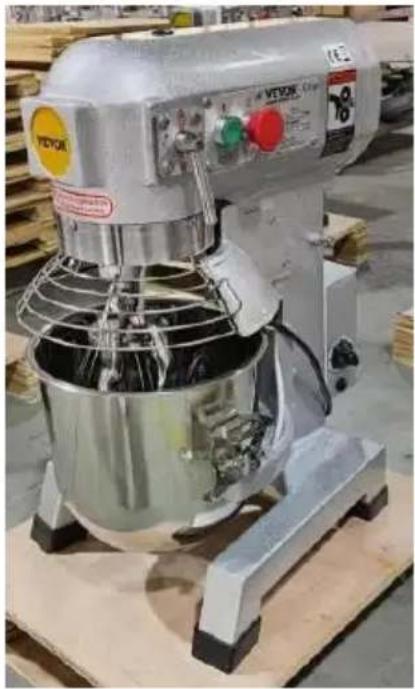

Exterior view of a modern kitchen mixer on a wooden pallet (no visible text or symbols)

MODEL: B10B / B15 B20B / B30B

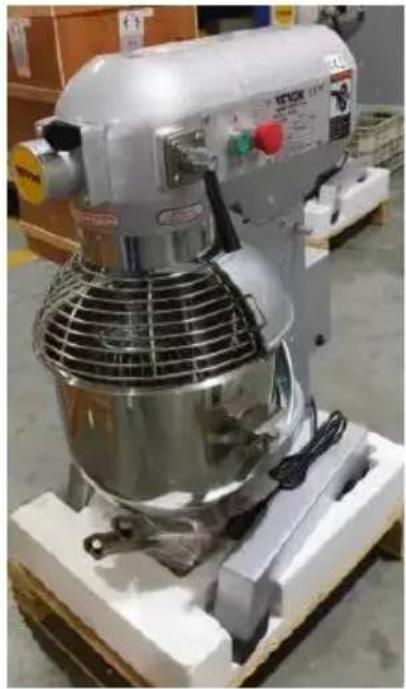

Exterior view of a modern kitchen mixer on a white platform (no visible text or symbols)

MODEL: B20BJ

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
FC	This device complies with Part 15 of the FCC Rules. Operat subject to the following two conditions:(1)This device may not harmful interference, and (2)this device must accept any inter received, including interference that may cause undesired oper
	This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

PRODUCT DESCRIPTION

Main Specialty:

According to the planet movement theory, beater moves like planets in the bowls so that the food is mixed completely.
✨ They have three-range rotation speed.
All the spare parts in the machines are made of premium stainless steel to ensure that they meet the national hygiene standard for food.
The machine is good looking, easy operable and high in efficiency.

TECHNICAL SPECIFICATIONS

Model	B10B	B15B	B20B	B30B	B20BJ
Input	AC220-240V 50/60Hz
Power	550W	550W	1100W	1100W	1100W
Bowl Capacity	10L	14L	18.7L	26L	18.7L

OPERATION AND NOTES

Before use, check that power supply corresponds to that required by the machine. Check that the extern earthing wire is reliably connected.
The machine which 3 phase motor must be checked that the machine rotates in the direction indicated by the rotation mark. If the rotation direction is wrong, change the two of the three live wires each other. Note For test of machine, mixing tools should never be installed otherwise they would fall out in case of wrong rotation direction and cause damage to machine parts.

SELECT SPEED AND AGITATOR

Dough arm: It is frequently used for heavy bread dough, the weight of flour indicated by the mark, the weight of water 47%\~50% of the fill flour, and preferable to be used at low speed.
Beater: It is commonly used for thin batters, cakes and mashing potatoes, like stuffing, and preferable to be used at middle speed.

✿ Wire whip: It is best for whipping cream and beating eggs, and preferable to be used at high speed.
Important notice: Stop the machine to change speed, don't mix dough at middle or high speed.

BOWL LIFT

When mixing, rotate the hand wheel to raise the bowl until you feel it touch the stop, this also makes the bowl more accessible for filling.
After mixing, rotate the hand wheel to lower the bowl. It necessary to lower the bowl to change agitators, avail to remove the bowl or agitators.
Note: When assembling an agitator the bowl must be in th down position, Slip the agitator up on the shaft and turn until the driving pin in the shaft reaches the L-shaped slot the agitator shank, avoid the agitator to be fallen down in running.

MAINTENANCE

After use each time, an carefully the bowl agitators etc, make sure to keep the machine clear.
✿ Lubricate the bowl slide ways occasionally by applying a small amount of oil or grease with the tip of linger.

TROUBLE SHOOTING

Trouble	Probable cause	Remedy
The mixing shaft don't rotates after switch on	Electric connectors are loose	Check he electric circuit, tighten those loose connectors
Oil leakage	Oil seals are worn o	Replace those oil seals
The raising handle is too tight	Guide ways are corroded	Clean and oil the guide ways
	The lead screw, beve gear and hand wheel shaft etc is dry	Oil them
Temperature rise of motor is too high, below speed	Lack of voltage	Check the supply voltage
	Over load	Less load
	The working speed selected is too high agitator is not suitable	Select a suitable speed and agitator
The noise of the gearbox is serious, it temperature is too high	Lubrication is insufficient	Add or replace the
The agitator knocks with the bowl	The agitator or the bowl is deformed	Repair or replace deformed part

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

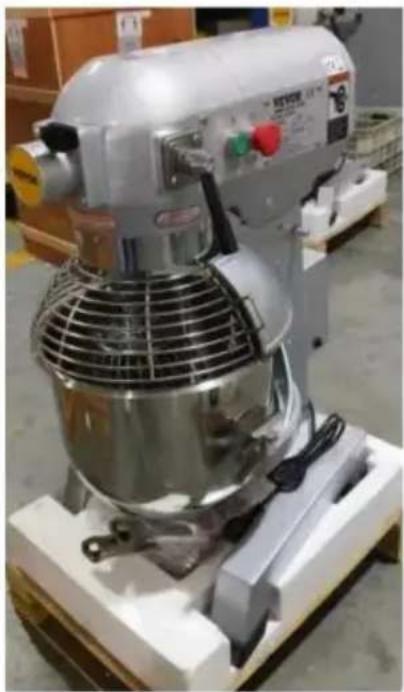

Exterior view of a modern kitchen mixer on a wooden pallet (no visible text or symbols)

MODÈLE : B10B / B15B

B20B / B30B

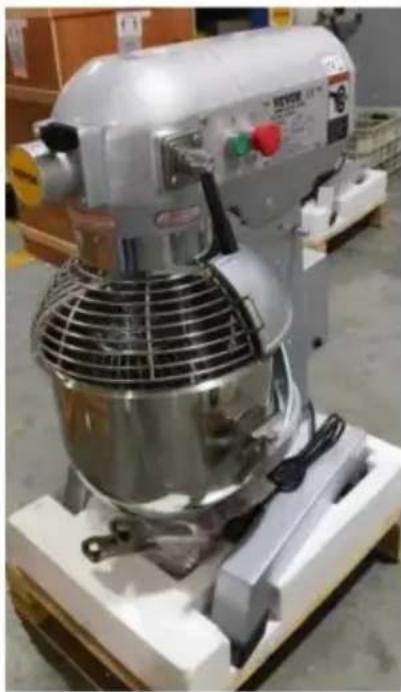

Exterior view of a modern kitchen mixer on a wheeled platform (no visible text or symbols)
