USER MANUAL ETC-1C Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
ELECTRIC SAUCE MAKING MACHINE
MODEL:ETC-1C
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR®
TOUGH TOOLS, HALF PRICE

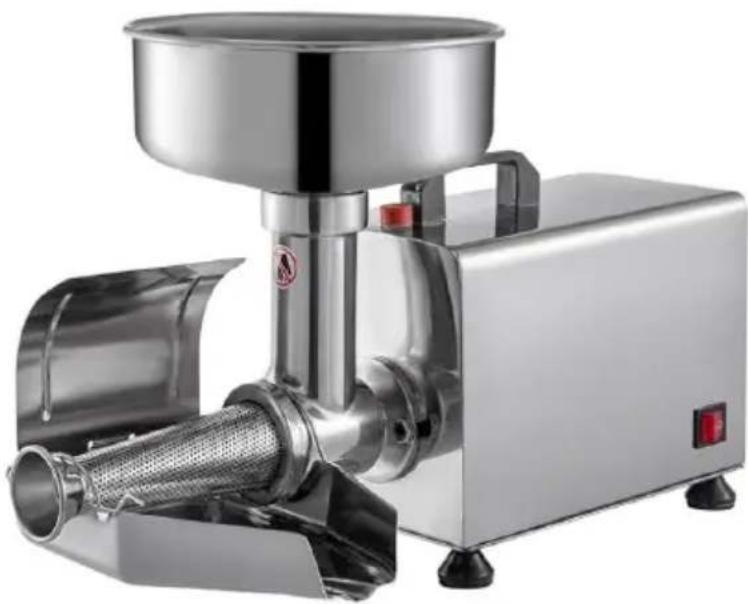

Electric sauce making machine
MODEL:ETC-1C
Have product questions? Need technical support? Please feel from contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
 | Warning-To reduce the risk of injury, user must read instructions manual carefully. |
 | Indoor Use Only |
IMPORTANT SAFEGUARDS
When using electrical appliances, basic safety precautions should be followed, including the following.
- READ ALL INSTRUCTIONS.
- Unplug from outlet when not in use, before putting on or taking parts, and before cleaning.
- Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).
- This appliance can be used by children aged from 8 years and a and persons with reduced physical, sensory or mental capabilities or I of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and unders the hazards involved.
- Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.
- To protect against electrical hazards, do not put the Drink Mixer in or other liquids
- Avoid contact with moving parts.
- Do not operate the Electric sauce making machine or any other equipment with a damaged cord or plug, or after the unit malfunction dropped or damaged in any manner. Return it to the nearest authorized service facility for examination, repair, or adjustment.
- Do not use outdoors. FOR HOUSEHOLD USE ONLY
-
Do not let the cord hang over the edge of the table or counter hot surfaces.
-
Put this instruction manual in a safe place. Do not discard.
- If the supply cord is damaged, it must be replaced by the man's service agent or similarly qualified persons in order to avoid a ha
-
Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.
-
WARNING! It is strictly prohibited to put the main body of the machine and the power cord into any liquid. The machine must be fully cool cleaning.
-
Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger. Once of the product is on fire, do not directly use water to extinguish the a wet cloth to cover the fire site.
-
When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.
-
Do not leave the product to work with no one watching. If the i is overheating, please stop working immediately and unplug the power
SAVE THESE INSTRUCTIONS
CORRECT DISPOSAL
 | This product is subject to the provision of european Di 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products r as such may not be discarded with normal domestic w must be taken to acollection point for recycling electrica electronic devices. |
Technical Specifications
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.

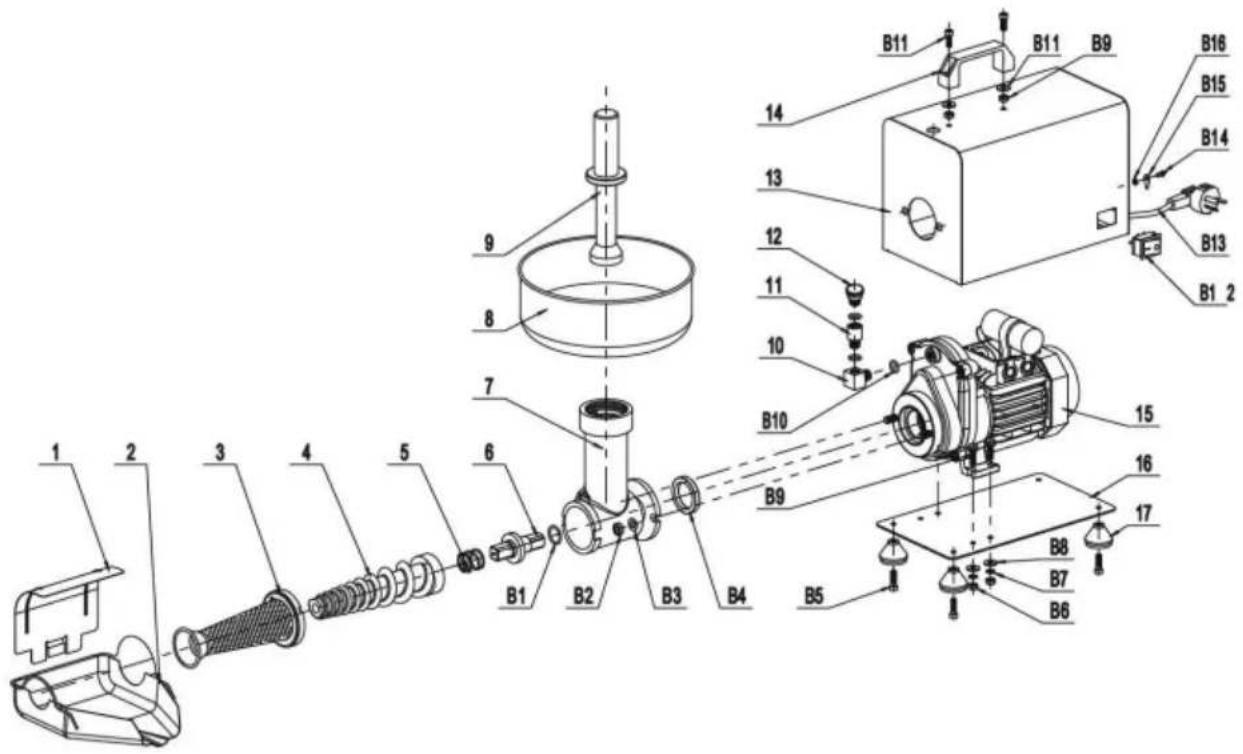

ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Address : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
Made In China
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Support and E-Warranty Certificate
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Specifications
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.

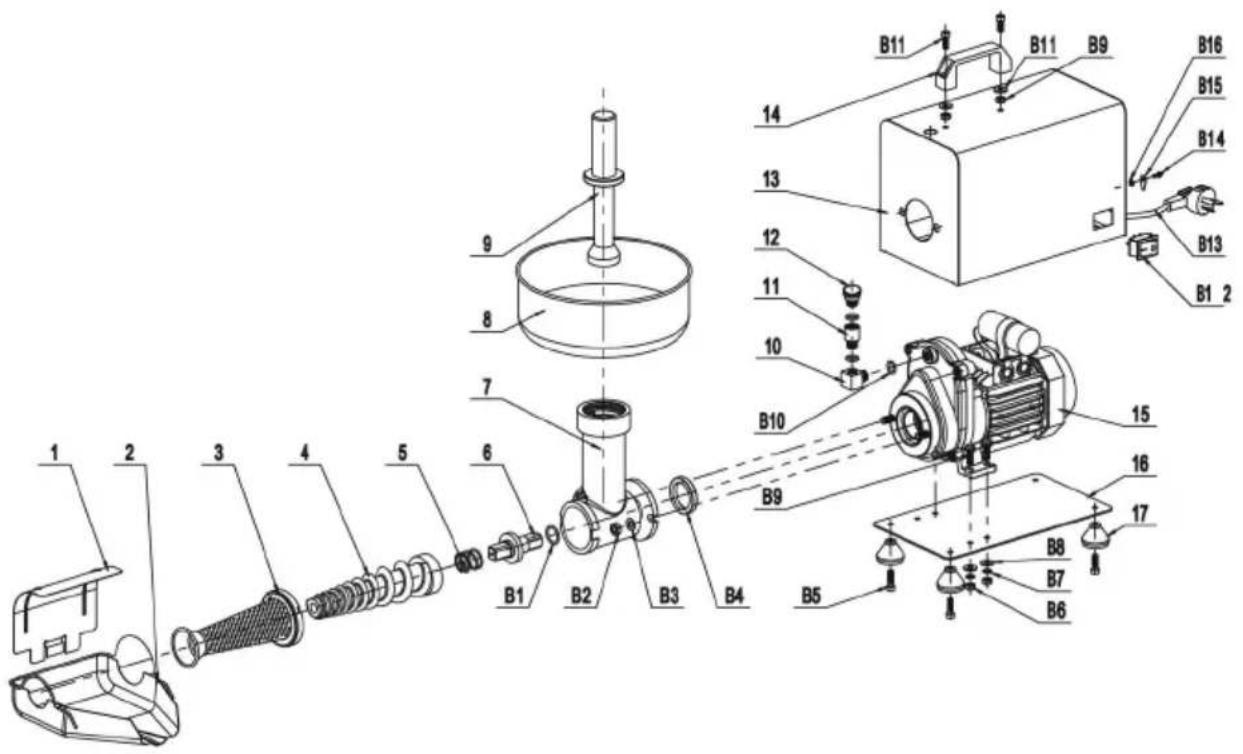

ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi
Shanghai
SHUNSHUN GmbH
Römeräcker 9 Z2021,76351
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Adresse : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Schanghai
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Indirizzo : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Sciangai
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
Made in China
VEVOR®
TOUGH TOOLS, HALF PRICE
elettronica www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Technical Specifications
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Adres: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Szanghaj
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
Technical Specifications
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Adres : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Sanghai
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
Gemaakt in China
VEVOR®
TOUGH TOOLS, HALF PRICE
Technische ondersteuning en e-garantiecertificaat www.vevor.com/support
VEVOR®
TOUGH TOOLS, HALF PRICE
Technical Specifications
| Style | SAUCE MACKING MACHINE |
| Nominal power, HP | 450 W |
| Gearing | 2 - speed gearbox |
| Dimensions WxHxD, cm | 490 x 230 x 345 |
| Rated voltage | 110 V / 220V / 240V 50/60Hz |
| Gross weight, kg | ETC-1: 9.0KG; ETC-1C: 10.6KG |
Safety notices
- Please read these instructions carefully and use the device only for food processing.
- Persons with physical, sensory or mental abilities may not use the device unless they are supervised and instructed by a person responsible for your safety.
● Only place the unit out of the reach of children. - To prevent hair, clothing or chains from getting into the moving parts, do not wear jewelry or tie long hair together while working. Always work in a concentrated manner.
- Keep all parts of the unit and accessories clean as they come into contact with food. Thoroughly clean all parts of the unit before each use.
- Do not use solvents, benzene or alcohol to clean the unit.
- Please note the maximum operating time (without interruption) of 15 minutes. Allow the unit to cool down for 5 minutes before further use.
Intended use
IMPORTANT:
! If you forget to turn off the unit before unplugging the power cord, wait at least 10 seconds before restoring power.
! Never leave the unit unattended when the power plug is plugged in. Always unplug the power cord if you do not use the unit, move the unit, remove individual components or clean the unit.
Cleaning and care instructions
The machine must be thoroughly cleaned before first use. Pay particular attention to cleaning the parts that come into direct contact with food.
After use, the machine must be thoroughly cleaned to prevent the formation of bacteria. We recommend that the gears, gasket and cylinder interior are lightly moistened with cooking oil after each cleaning.
Always disconnect the mains plug before cleaning.
ETC-1C PART LIST
| 1 | Trough Brace | 1 | B1 | O Ring | 1 |
| 2 | Trough | 1 | B2 | Hex Nut M8 | 2 |
| 3 | Filter | 1 | B3 | Flat Washer 8 | 2 |
| 4 | Screw Feeder | 1 | B4 | Oil Seal | 1 |
| 5 | Drive Spring | 1 | B5 | Hexagon Screw | 4 |
| 6 | Drive Shaft | 1 | B6 | Hex Nut M6 | 4 |
| 7 | Body | 1 | B7 | Standard Spring Washer | 4 |
| 8 | Funnel | 1 | B8 | Flat Washer 6 | 6 |
| 9 | Pestle | 1 | B9 | Hexagon Bolt with Flange | 4 |
| 10 | Conector1 | 1 | B10 | O Ring | 3 |
| 11 | Conector2 | 1 | B11 | Hexagon Screw | 6 |
| 12 | Oil Hole Bolt | 1 | B12 | Switch | 1 |
| 13 | Motor Cover | 1 | B13 | Power Line | 1 |
| 14 | Square Handle | 1 | B14 | Hexagon Screw M14×10 | 1 |
| 15 | Gearbox Assembly | 1 | B15 | Card | 1 |
| 16 | Bottom Panel | 1 | B16 | Hex Nut M4 | 1 |
| 17 | Rubber Feet | 4 |
Adress : Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai
SHUNSHUN GmbH Römeräcker 9 Z2021,76351 Linkenheim-Hochstetten, Germany euvertreter@gmail.com +49 1727041930
Tillverkad i Kina
VEVOR®
TOUGH TOOLS, HALF PRICE
www.vevor.com/support
