USER MANUAL YGTJ-SBS-001 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DROP-IN DRAIN Installation Kit

MODEL:YGTJ-PVC-001 / YGTJ-SBS-001

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: YGTJ-PVC-001 / YGTJ-SBS-001

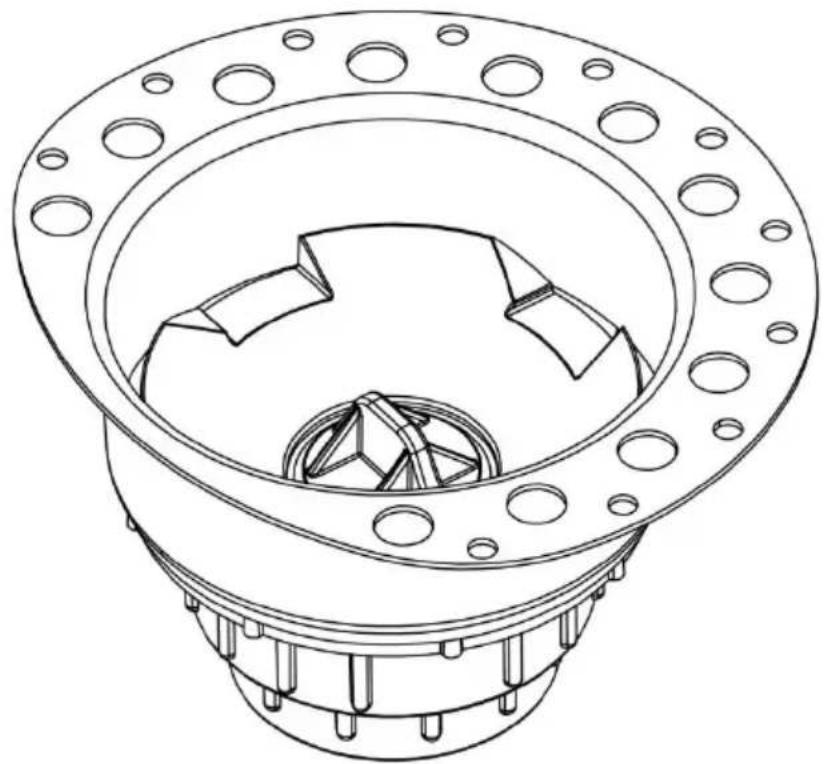

Technical line drawing of a mechanical component with flanged ends and internal cavities (no text or symbols).

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Part List

NO.	Name	Picture	QTY
1	Drain Installation Kit		1
2	Fine threaded copper pip		1
3	Copper nut		1
4	Flange copper pipe		1
5	Sealing ring		1
6	Drainage Adapter of Flo		1
7	Adopter of Tailpiece		1
8	Protective Film Cover		1
9	Plumbers tape		1
10	Nylon Bolt Cap		6
11	Screw		6

Installation kit

Connect to drainpipes:

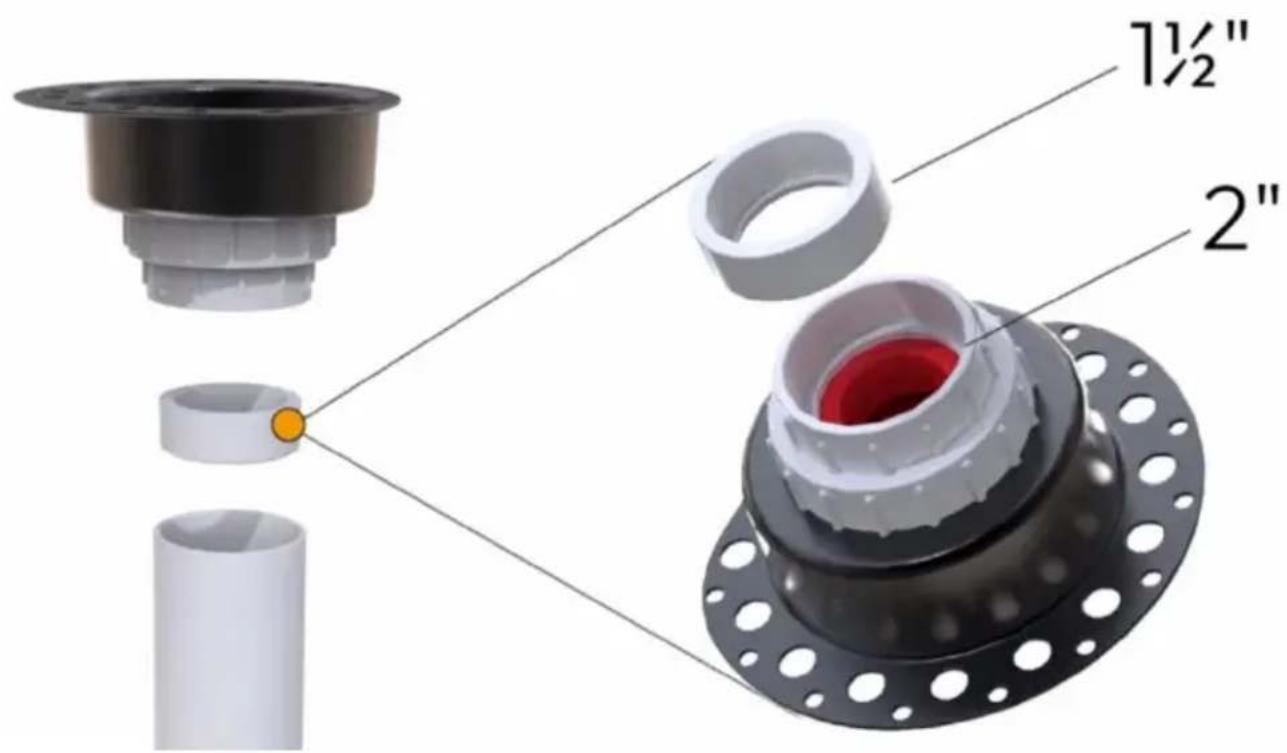

1½" 2"

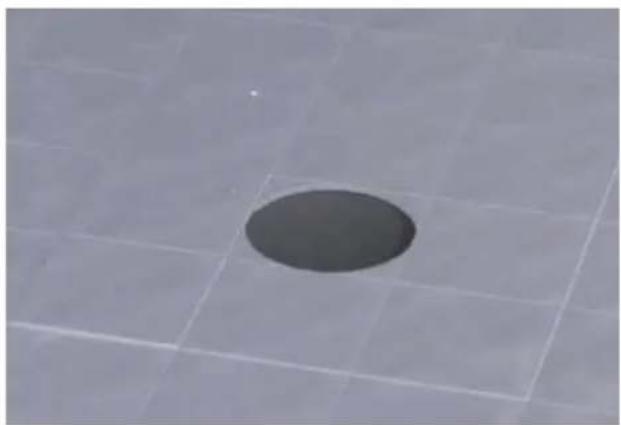

Step 1:Cut 5 inch hole into sub	Step 2:Remove the surface layer appropriately.Place components and trace points.

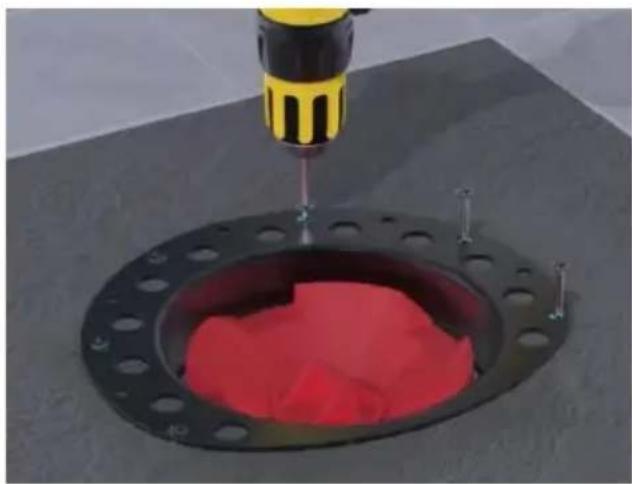

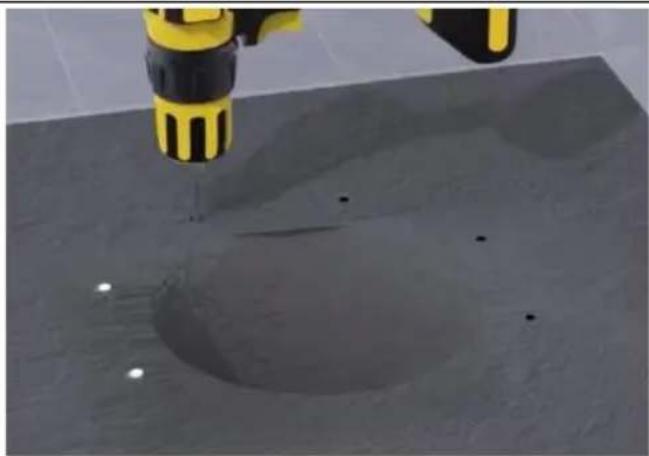

Step 3:Drill holes.	Step 4:Put the Nylon Bolt Cap hole.

Step 5:Tighten the screws.	Step 6:Fill the surface and remo center tab.

Step 7:Put protective film cover
to avoid clogging from falling impurities.

Bathtub connection

Notice: The component installation needs to be selected according to the different bathtub drain.

The first form:

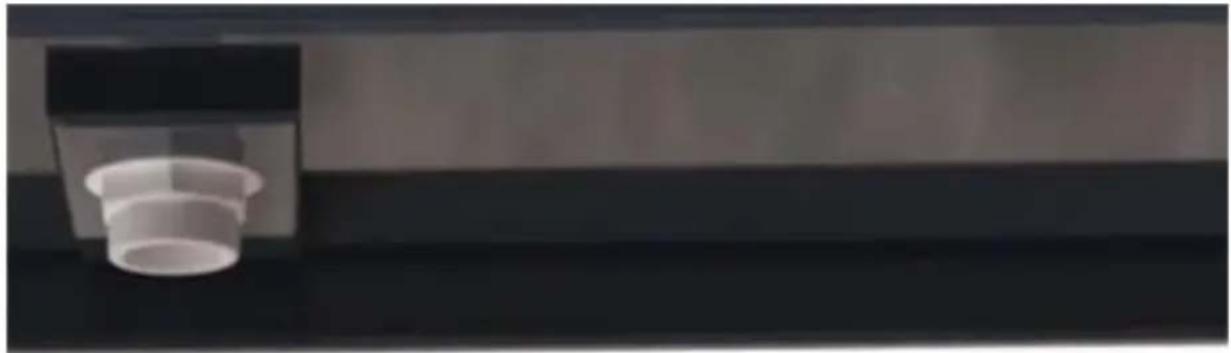

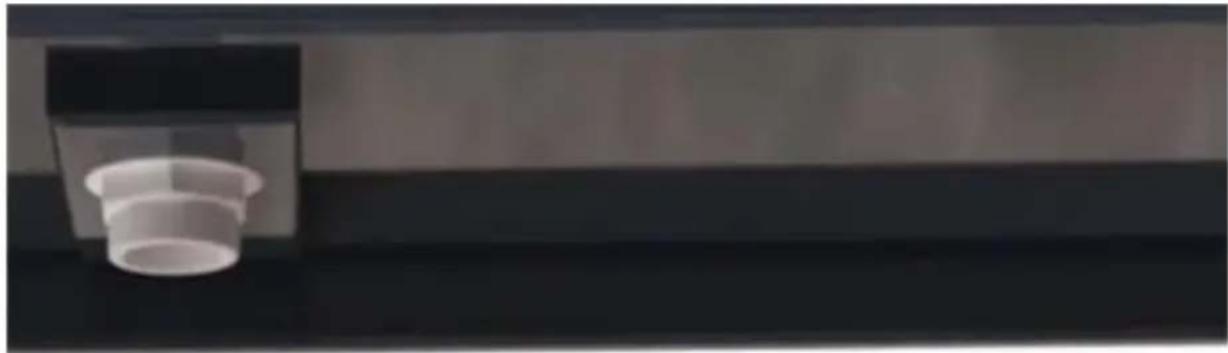

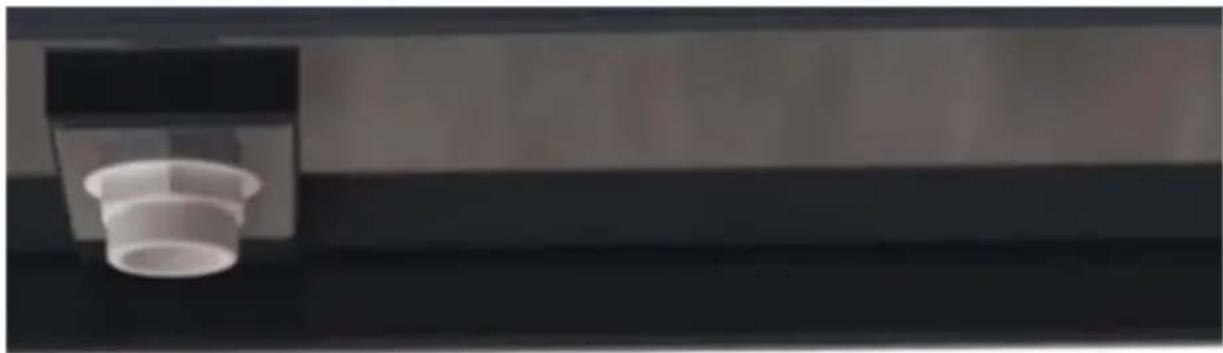

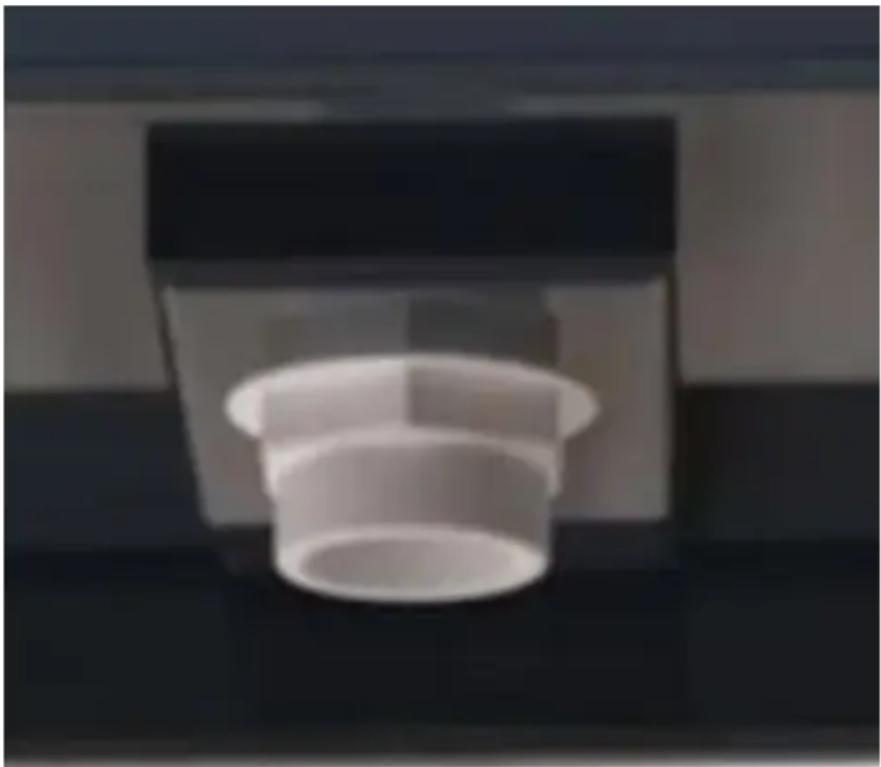

Close-up of a white plastic cup mounted on a black surface, no visible text or symbols.

Exterior view of a modern office building (no signage).

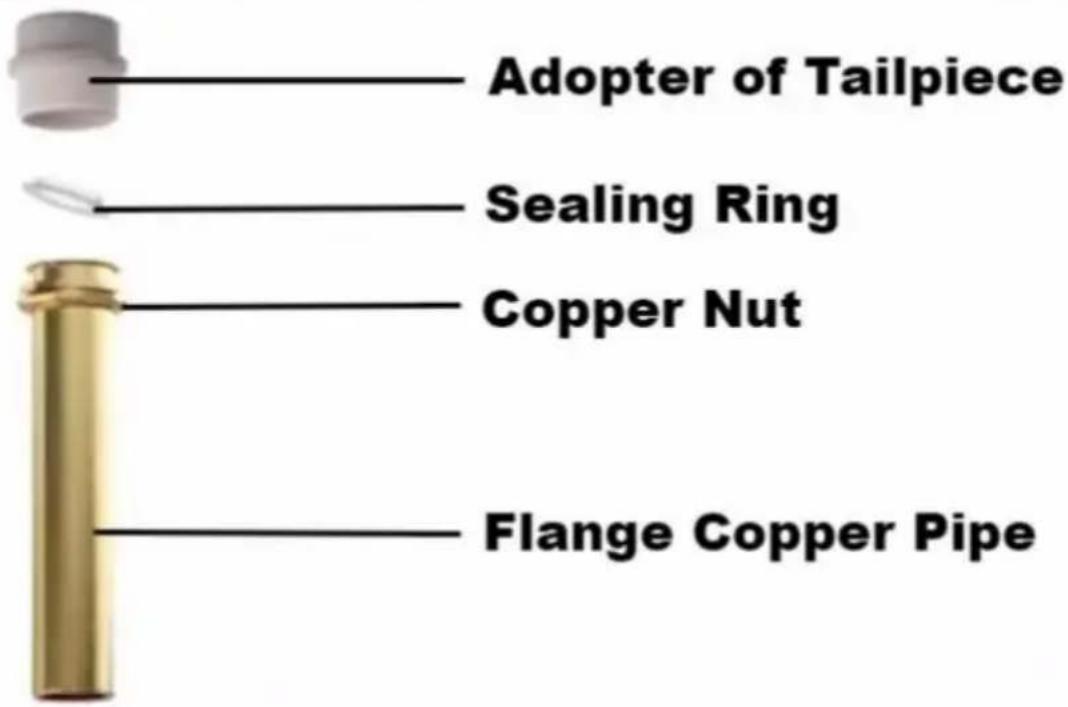

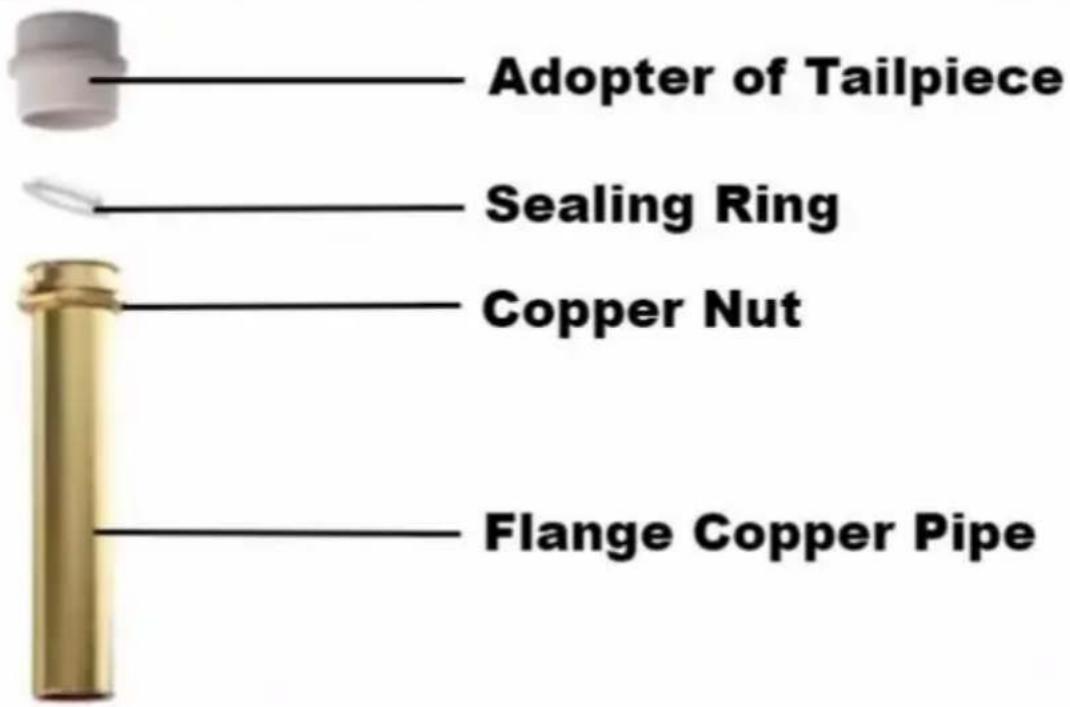

Adopter of Tailpiece, Sealing Ring, Copper Nut, Flange Copper Pipe.

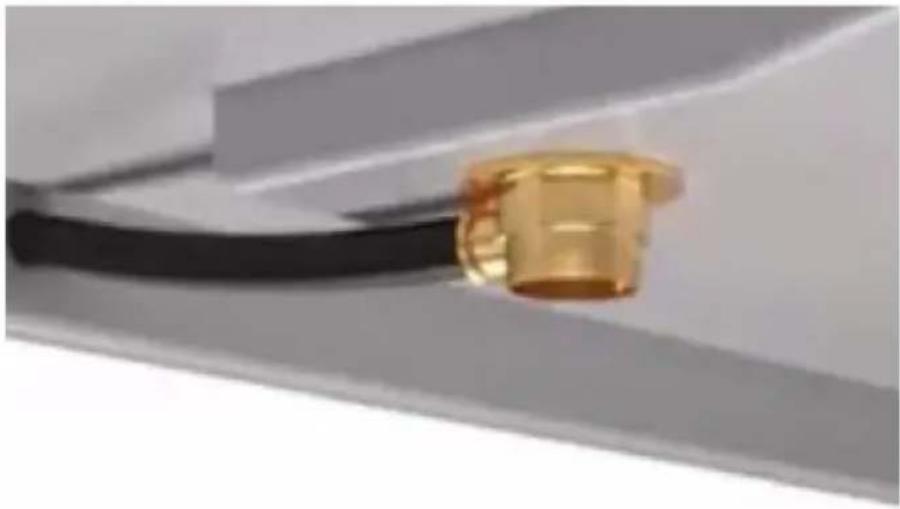

Second form: Close-up of a golden-colored threaded pipe fitting (no text or symbols visible).

Close-up of a golden cylindrical object with a black line pointing to it, against a plain background (no text or symbols).

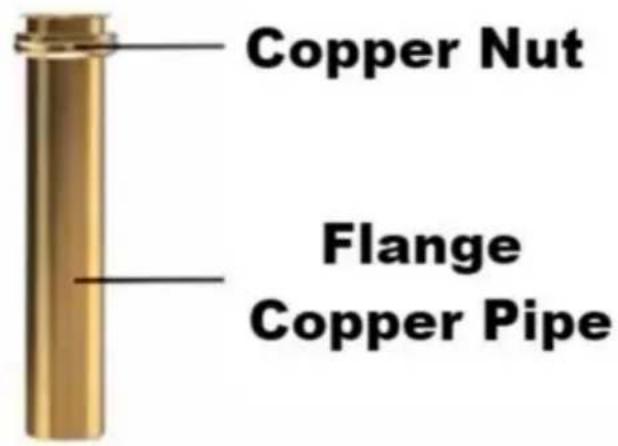

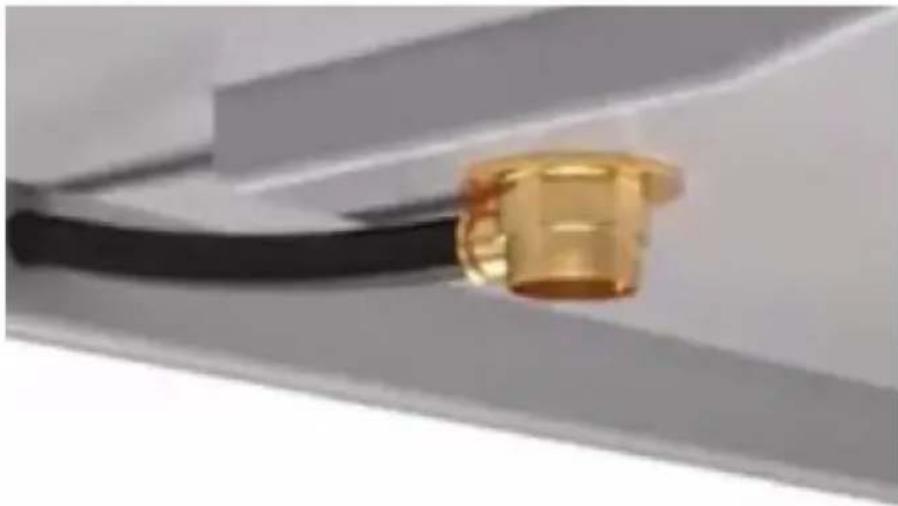

Fine Threaded Copper Pipe

The third form:

Close-up of a golden mechanical component attached to a black cable (no visible text or symbols).

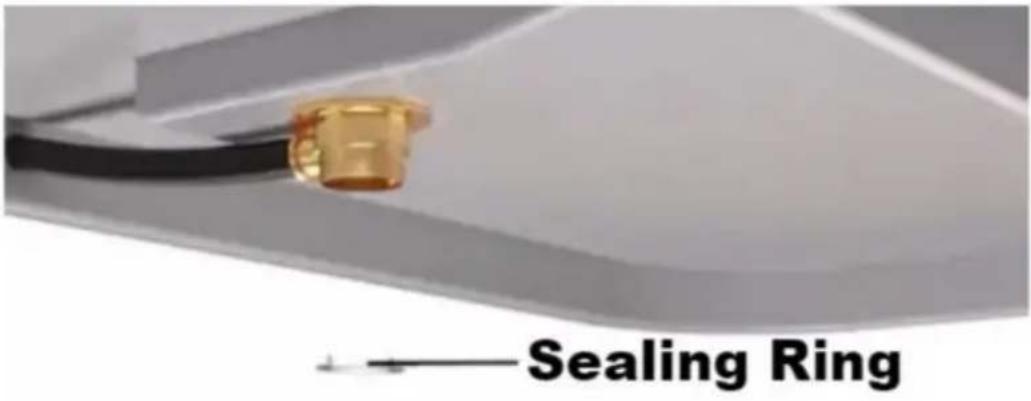

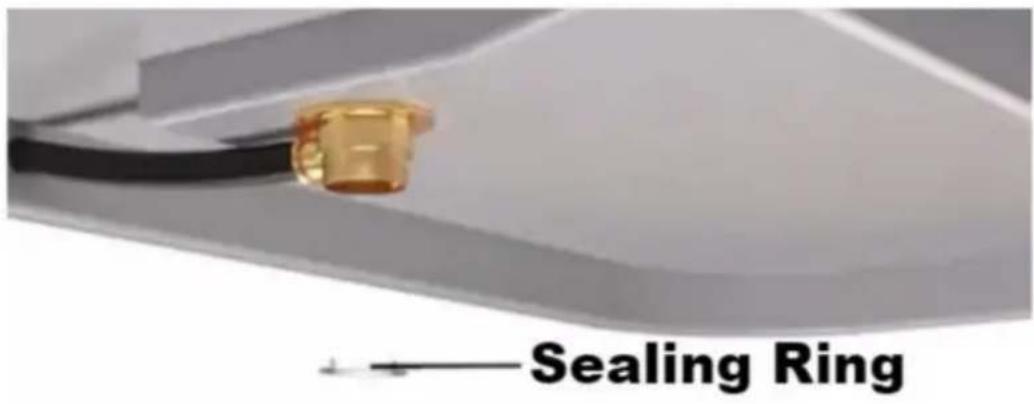

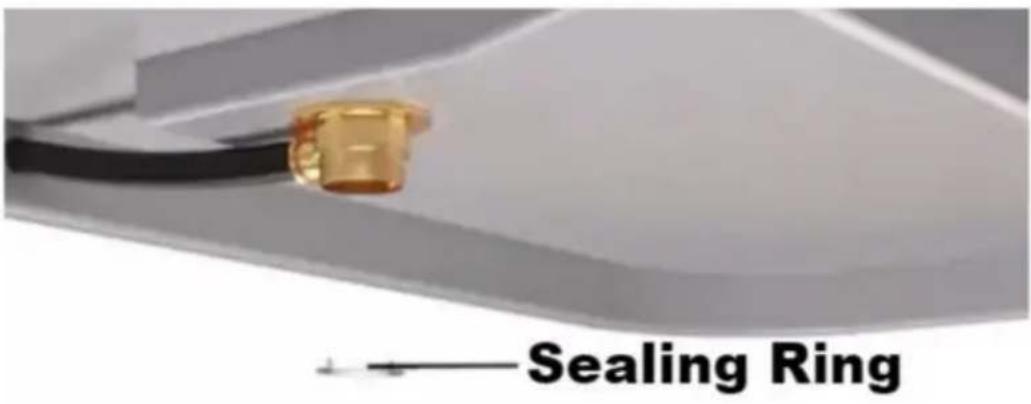

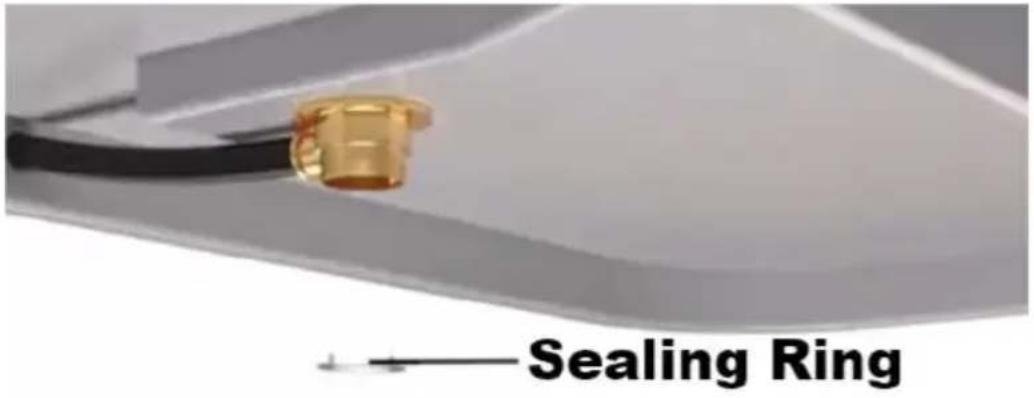

Sealing Ring.

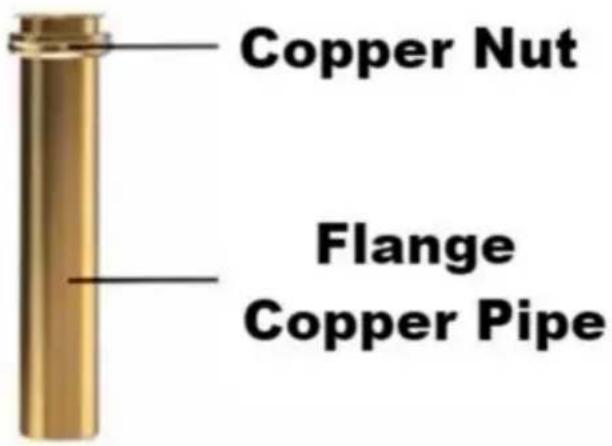

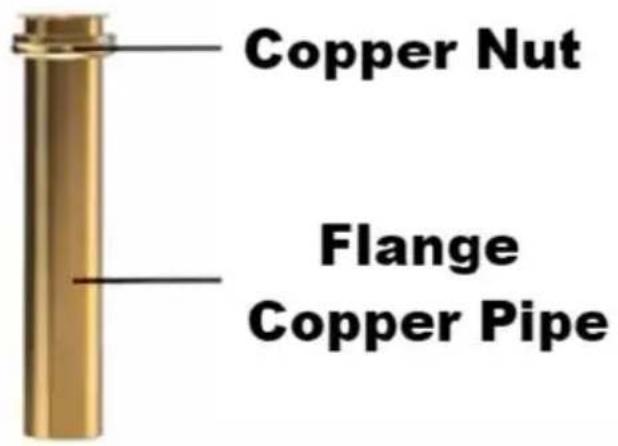

Copper Nut, Flange, Copper Pipe.

WARM NOTE:

Don't cut the supplied brass tailpiece. Doing so may cause a leak.

Illustration of a kitchen sink with a hammer, a red prohibition symbol, and a pair of cutlery tools (no text or symbols present).

Final step:

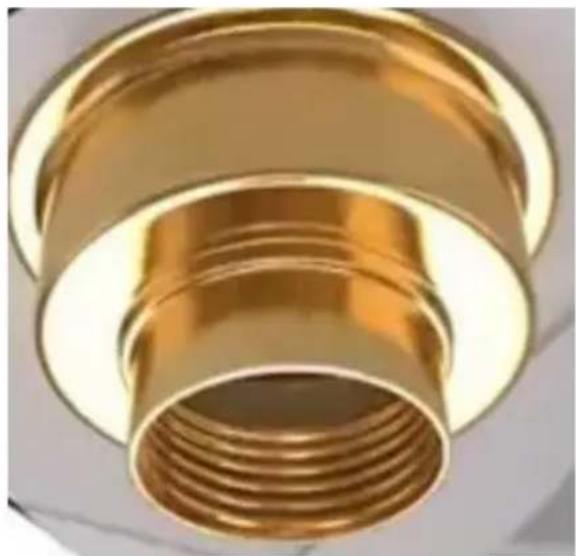

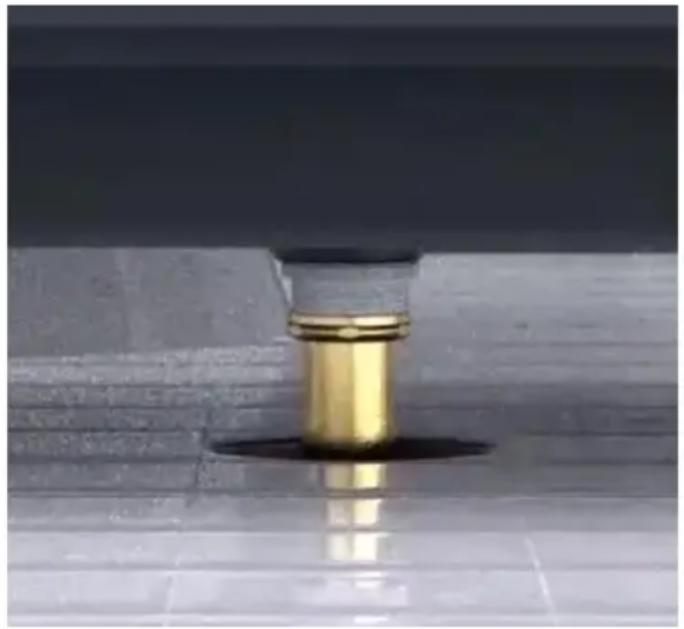

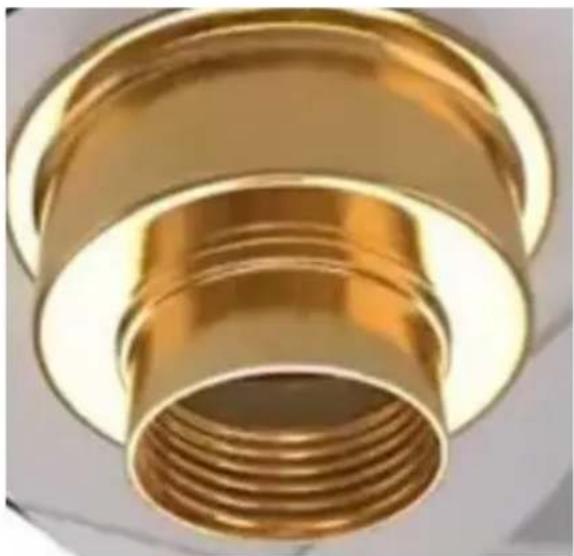

Remove the protective film cover. Carefully lower the tub with installed brass tailpiece into the red collar drain assembly. Ensure tailpiece is fully engaged with seal.

Close-up of a metallic cylindrical component with a gold cap, resting on a reflective surface (no text or symbols visible).
