Product Type	Stunt scooter (non-electric)
Brand	Vevor
Model	YTN-38
Use	Leisure, tricks and stunts
Recommended age	From 6 years (with supervision)
Maximum user weight	100 kg (estimated)
Handlebar height	Adjustable (not specified)
Wheels	2 wheels with bearings
Brake	Rear brake with pad
Deck material	Aluminum
Folding	Yes, folding mechanism
Weight	Approximately 4-5 kg
Dimensions (unfolded)	Approximately 90 x 40 x 100 cm (L x W x H)
Maintenance	Clean with damp cloth, lubricate bearings
Spare parts	Handlebar, wheels, brake, bearings available
Warranty	Minimum legal warranty of the country

Frequently Asked Questions - YTN-38 Vevor

How to assemble the Vevor YTN-38 scooter?

Slide the handlebar onto the fork tube, aligning the fork and handlebar. Tighten the three clamp bolts with a 5 mm Allen key, turning clockwise. Do not overtighten.

What protective gear is needed?

Always wear a helmet, wrist guards, knee pads and elbow pads. Closed-toe shoes are also recommended.

How to adjust the handlebar height?

The handlebar height is adjustable. Unlock the clamping system, adjust to the desired height, then tighten firmly.

How to lubricate the bearings?

Remove the wheels by taking out the axles with a 5 mm Allen key. Clean the bearings with a damp cloth, then apply 3 to 4 drops of bicycle bearing oil directly onto the covers.

How to clean the scooter?

Use a damp cloth and warm water. Never use alcohol or harsh chemicals. Avoid wetting the grip tape and do not immerse the scooter in water.

Can the scooter be used at night?

No, the scooter does not have lighting. Use it only during the day and in good visibility.

How to brake correctly?

The brake is at the rear. Press gently to avoid skidding. Perform braking tests at low speed in an open area.

What to do if the handlebar shakes?

This indicates the compression is loose. Remove the handlebar and tighten the compression bolt with an Allen key. Turn clockwise until you feel slight resistance.

What is the maximum recommended weight?

The maximum recommended weight is approximately 100 kg. Do not exceed this limit to avoid any risk of breakage or injury.

How to replace the wheels?

Loosen the axle nuts with two 5 mm Allen keys, remove the wheel. Replace bearings if necessary. Reassemble in reverse order.

USER MANUAL YTN-38 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

STUNT SCOOTER

MODEL:YTN-38

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:YTN-38

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

This manual contains crucial information about safety, warranty, and care. Please read this manual carefully and instruct your children before use.

Safety instructions

Like any other moving products, scooter riding can be a hazardous activity and it is possible to get into dangerous situations. This scooter should be used with caution, since skill is required to avoid falls or collisions that may cause injury to user or third parties. Be sure to read the entire manual before riding, in particular, pay attention to the following:

LIKE ANY OTHER VEHICLE, USING A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT YOUR OWN RISK AND USE COMMON SENSE.

• We advise any user to check the limitation of use according to the regulations of national road safety.
• For safety and respect of others, stay at a safe distance from pedestrians and other street users.
• To be used preferably on flat and clear surfaces, free of gravel and grease. Avoid bumps and drains as they are potential accident hazards. Warning: when using the scooter, protective gear must be worn at all times, including at least: wrist guard, helmet, knee pads, and elbow pads.
• Check the steering mechanism before and after each use, i.e., the tightness of the handlebar, tightness of nuts, right angle of handlebar and front wheel.

Check that all connection elements such as the brake, handlebar quick lock system, wheel axles, and level of wheel wear are well-adjusted.

Use: stand on the scooter with a hand on each handle and push with one foot to go forward; proceed with caution at the start.

Braking: the brake is located at the back of the scooter; when necessary, apply the brake to slow down. The brake should be applied gradually to avoid skidding or loss of balance.

Scooter assembly, disassembly, and setting up instructions: see attached sheet with diagram. To avoid trapping fingers, keep hands outside of the handlebar tube and footrest whenever unfolding and folding.

We strongly advise that shoes be worn when using your scooter, also pants, long-sleeved shirts, and of course complete protective gear to avoid injury in case of a fall.

The scooter does not have any lights. Therefore, it should not be used at night or at times when visibility is low.

The metal or aluminum brake can heat up after several uses. Avoid touching it during and after use.

TIGHTENING YOUR COMPRESSION:

If your bars start to shake or move sideways, this means your compression needs to be tightened. Do so by removing your handlebar and using an Allen key to tighten the compression bolt. Turn it in a clockwise direction until some pressure is felt from the bolt. You want to be able to still spin your forks; however, if over-tightened, you can restrict movement and damage your compression headset. This should be done by an adult professional mechanic.

LUBRICATING YOUR BEARINGS: You will need to take off your wheel to lubricate your wheel bearings. Insert 5mm Allen keys into each axle and turn them counter-clockwise.

The wheels may need some encouragement to slide out. Using a dry cloth, wipe off any dirt or grime on your wheels and bearings. Using bearing oil, place 3 to 4 drops directly on the bearing covers and allow the oil to sink in. If the wheels do not spin freely after this, you may replace the bearings.

CLEANING YOUR SCOOTER: Never use alcohol or any strong cleaning agents to clean your scooter. Doing so may damage paint or fragile materials. Warm water and a damp cloth should be enough. Avoid pouring water directly on the grip tape and never submerge your scooter in water.

Limited Warranty: The product applies to the minimum statutory warranty of the particular country on material and production defects. During the time, it is at VEVOR's discretion if products are repaired or replaced. This warranty does not cover defects originated from improper use such as incorrect assembling, careless handling, modified in any way, or common wear out.

Warranty adjustments: Warranty claim is solely coming into effect with proof of purchase. Due to that, it is absolutely necessary to keep your receipt. In case of warranty claim, VEVOR or the responsible dealer is deciding if the product will be repaired or replaced.

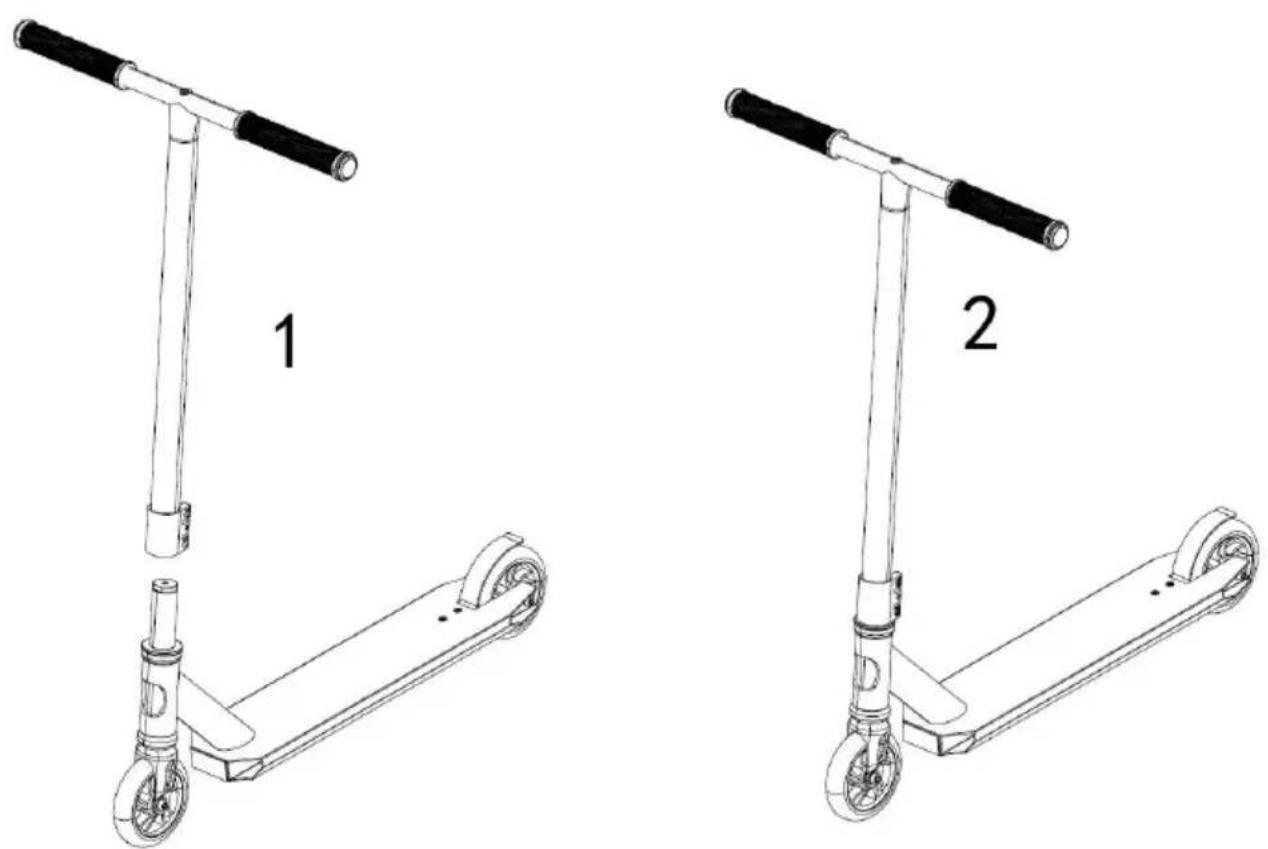

Scooter assembly

(Ensure all wrapping and packing materials are taken off your scooter before you start)

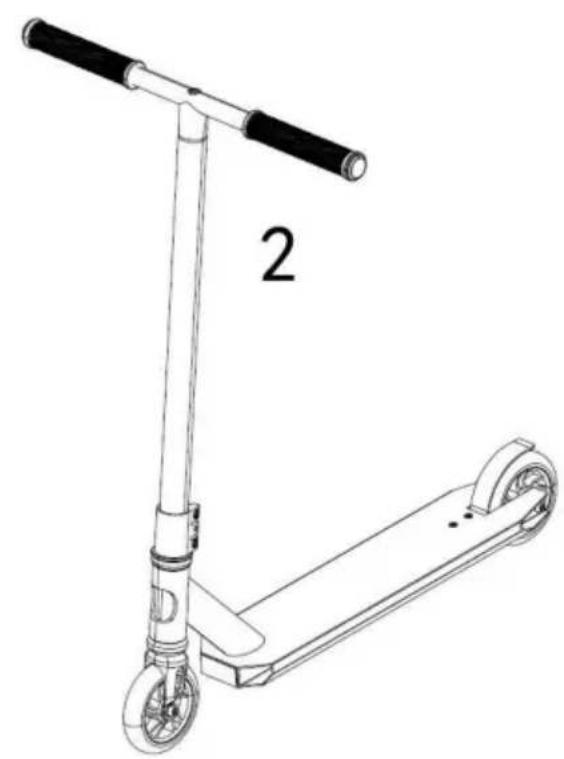

Slide the handlebars onto the fork tube (figure 1), ensure the fork are lined up before doing so. Avoid twisting/turning the bars as you go down, doing so may loosen the compression. Ensure both the bars and the clamp are touching the top of the headset.

When you are satisfied that your front wheel and your handle bars are in line, use your 5mm allen key to tighten the bolts from the bottom (2). Do this by turning the allen key in a clockwise rotation. Repeat action until the 3 bolts are tightened securely. Take care not to over-tighten your clamp bolts. Failure to tighten or install properly may result in loss of control and injury. If you have trouble understanding these instructions, seek assistance from a qualified mechanic.

SAFETY

• Observe all valid traffic rules for the use of scooters in your country.
• Use only by one person at a time.
• Use the scooter only on suitable surfaces that are flat, clean, dry, and as free as possible from other road users.
• For your own safety, always pay attention to suitable protective clothing. Never ride without a helmet, hand/wrist, elbow and knee protection.
• Before you start: Check all components for integrity and firm fit.
• Avoid sloping terrain or routes with steep slopes.
• Only ride with suitable shoes that ensure a secure, firm stand.
• Do not drive in the dark and/or in poor visibility. Always pay attention to pedestrians and other road users. Always be considerate of other people. Always be aware that any kind of feats/stunts will reduce control of the scooter. The risk of injury and the demands on the user increase with the degree of difficulty of the tricks.
• The user is responsible for all risks associated with feats/stunts driving. WARNING: CHOKING HAZARD - small parts. Not for children under 3 years.

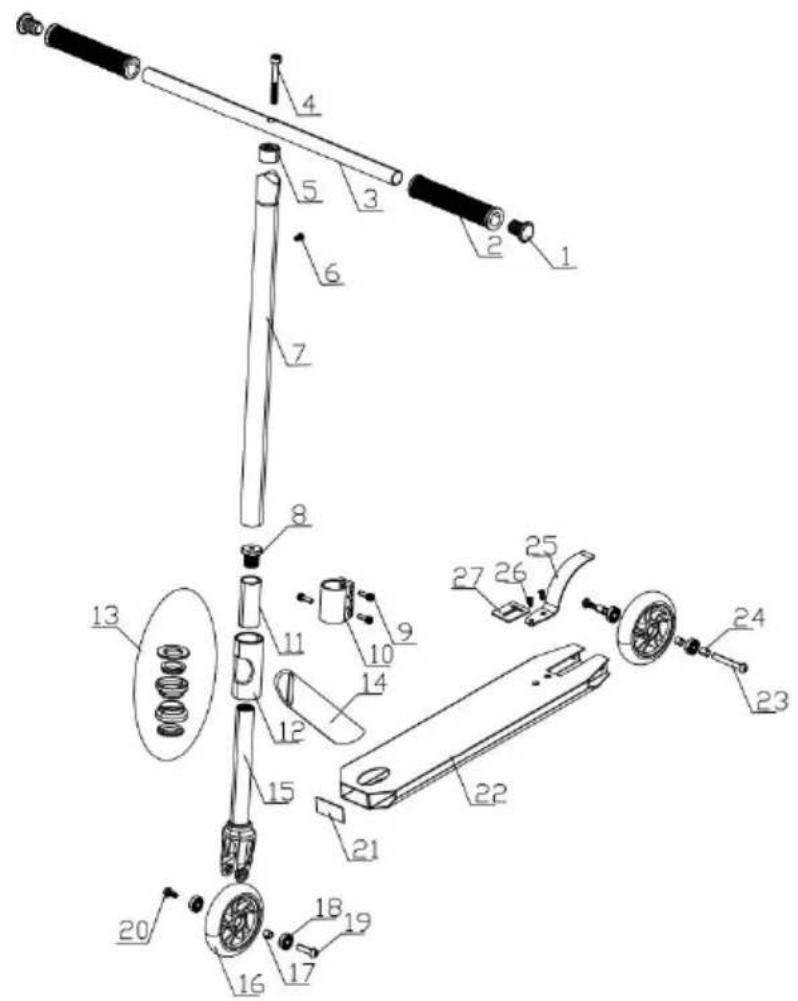

PARTS LIST

NO.	PART NAME	QTY	NO.	PART NAME	QTY
1	Handle beads	2	15	Fork	1
2	Handle grip	2	16	Wheels	2
3	Handle tube	1	17	Spacer 1	2
4	Screw M6	1	18	Bearing	4
5	Plastic parts	1	19	Screw M5 3	1
6	Screw M5 1	1	20	Screw M5 4	2
7	Steering tube	1	21	Deck cover	1
8	Fork tightening screw	1	22	Deck	1
9	Screw M5 2	3	23	Screw M5 5	1
10	3-bolts Clamp	1	24	Spacer 2	2
11	Aluminum bushing	1	25	Brake	1
12	Head tube	1	26	Screw M5 6	2
13	Headset	1	27	Rubber pad	1
14	Connector tube	1

DRIVING INSTRUCTIONS

Place one foot securely on the tread bed (deck) of the scooter and push yourself off the ground with the other foot.

Hold both hands firmly on the handlebars.

Perform initial steering tests at low speeds. For better cornering, shift your body weight in the desired direction of travel.

To stop, apply the rear brake by pressing it. Perform initial braking at different speeds in a quiet environment. Note that wetness significantly reduces the braking effect and the braking distance is drastically extended.

Attention: The brake may get hot during use. Do not touch after use.

Beginners should practice with a friend or parents.

Surely you will see acquaintances, friends, or videos of drivers performing tricks/stunts. Never assume that you can recreate the same feats without practice and without the risk of injury. These people have practiced for a long time, are accordingly experienced, and know the dangers of performing these tricks.

A good driver exercises reason and caution, always paying attention to himself and others.

MAINTENANCE AND STORAGE

Under normal circumstances and under normal use, the wheels and wheel bearings are maintenance-free. Nevertheless, you should regularly check the condition of the wheels, the fixed fit of the axles, and the wheel bearings. To protect against corrosion, you can grease the bearings from the outside with suitable bearing grease. Pay attention to loose parts. If a wheel or wheel bearing shows wear, a replacement is required. Worn tires are wear articles and therefore no reason for complaint. To change the wheels, loosen the axle screw connection with two wrenches size 5 and remove the wheel from the axle. Remove the bearings from the wheel (e.g., eject with a screwdriver). These can be reused. However, it is usually advisable to renew the bearings as well. Do not use harsh detergents to clean the scooter. Use a damp cloth. Allow the scooter to dry completely after cleaning. Check the product for damage and wear before and after use. Store the scooter in a dry and safe place protected from the weather to avoid damage and prevent injuries to other people. Do not make any changes that could compromise safety! For your own safety, use only original spare parts.

DISPOSAL

Return and collect the packaging and the product at the end of its life. Contact your local waste management company for more information.

Manufacturer: Yongkangshi Yongtai Industrial & Trade Co., Ltd.

Address: No.1355 West Songshi Road, Yongkang, Zhejiang, China

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET EASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
