KNEE SCOOTER

Model: HFK-9277KD

Black electric scooter with four wheels and a seat, displayed on tiled floor against plain wall (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

INTRODUCTION

Read and follow all instructions, warnings, and notes in this manual before attempting to operate your Knee Scooter for the first time. If there is any information in this manual which you do not understand, or if you require additional assistance for assembly or operation, please contact with your authorized local provider.

Your safety to operate this product depends upon whether you completely follow the instructions, cautions and warnings in this manual. Vevor Corporation is liable for any damages and/or injuries resulting from individual unsafe operations or failure to follow the instructions, cautions and warnings in this manual.

WARNING! Failure to heed the warnings in the manual ma result in personal injury.

CAUTION! Failure to heed the cautions in the manual may result in damage to the Knee Scooter.

The Knee Scooter is suitable for everyday use. It can be used for both indoor outdoor purposes. The all in one folding compact design is perfect for easy storage and transportation.

The knee glider comes with solid black puncture proof tyres. We have also included great features such as contoured knee pad, ergonomic handgrips and dual brake function.

Our products are always manufactured to the highest quality standards and comply with CE/FDA approval.

Parts Description

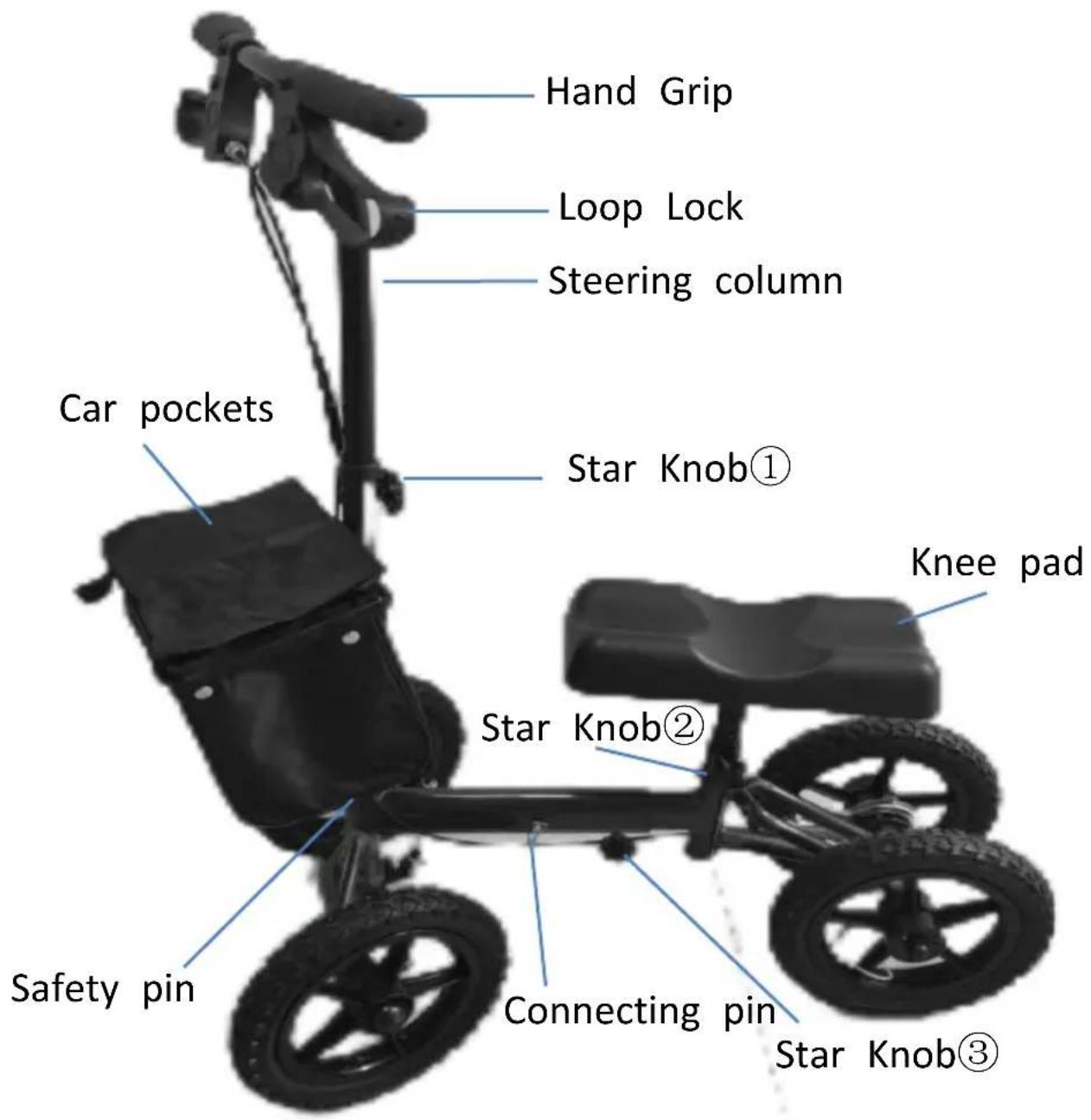

Hand Grip Loop Lock Steering column Car pockets Star Knob① Knee pad Star Knob② Safety pin Connecting pin Star Knob③

Product parameter

Table 1	SPECIFICATIONS
Overall size (L*W*H)	930*535*1130 mm
Color	Black
Handle height	925-1135mm
Knee pad height	480-605mm
wheelbase	580mm-625mm(adjustable)
Load capacity	≤350 LB
Front wheels	ODxW (12"x2.215")
Rear wheels	ODxW (12"x2.215")

Assembly

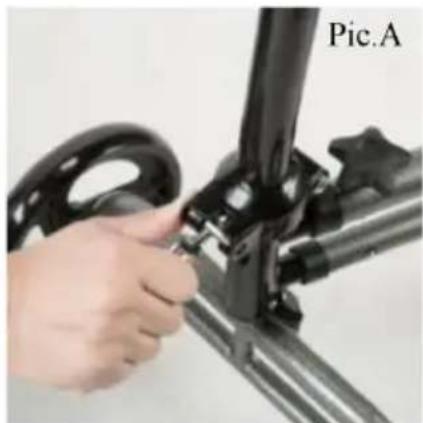

1. Steering column setup

(1) Push the lever to the left and downward at the same time to disengage and push the steering column upward until it is in the full upright position. (
(2) Release the lever to make the safety pinto engage the right hole. (Pic. I Now, release the handle, the steering column will stand in the upright position

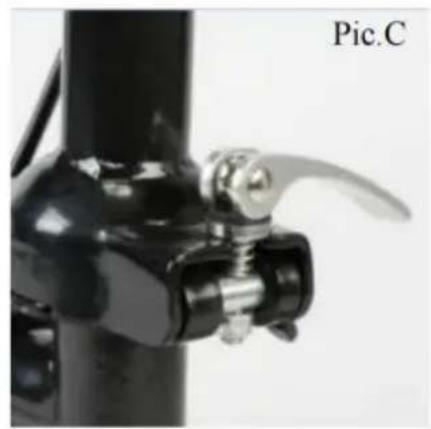

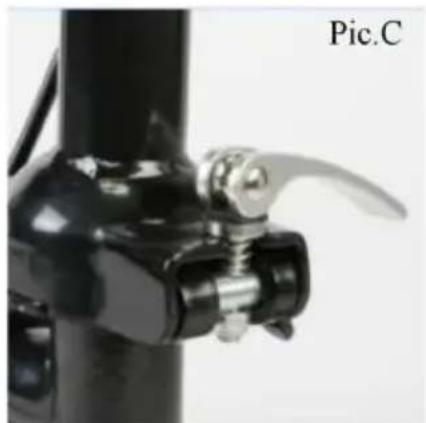

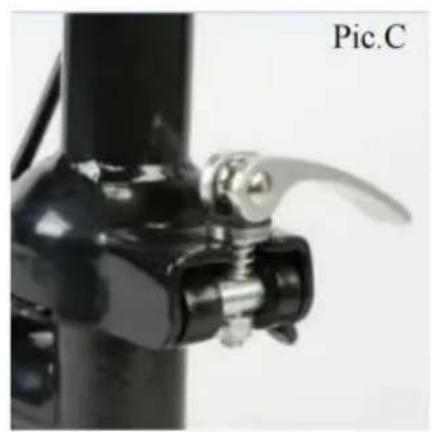

(3) Pull the lever up and clockwise to make the end of the lever pointing to the ground to lock the steering column in the upright position. (Pic. C)

Note: Rotate the lever counter clockwise to loosen and clockwise to tighten 1 pressure on the lever.

Close-up of a hand adjusting a bicycle wheel handle assembly (no text or symbols visible)

Close-up of a black faucet handle with a transparent glass droplet, labeled 'Pic.B' in the top right corner (no other text or symbols visible)

Close-up of a black mechanical component with a metallic handle and a propeller, labeled 'Pic.C' in the top right corner (no other text or symbols visible)

2. Combine Steering column and frame

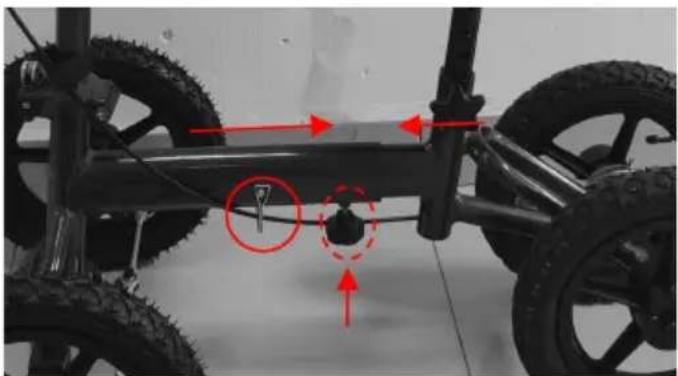

Insert the rear frame into the front frame, and use the connecting pin through front frame and rear frame mounting holes, and screw in the star nut to loc

Mechanical vehicle chassis with red arrows indicating motion or force directions, no visible text or symbols

3. Adjust the handle height

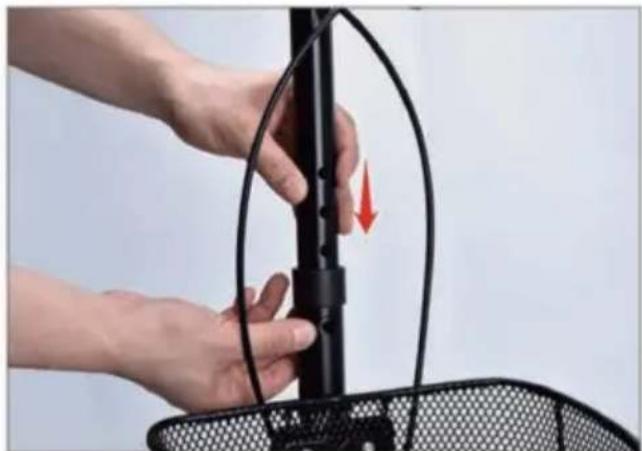

(1) Extend handlebars up to desired height, align holes in tiller.
(2) Insert star screw through the steering tiller.
(3) Tighten Knob securel

Handlebars should be set at wrist level to keep your backstraight.

Close-up of hands using a bicycle lift to lift a black bucket, with a red arrow indicating the motion direction (no text or symbols visible)

Close-up of hands installing a bicycle tire on a wire basket (no text or symbols visible)

4. Adjust the knee pad height

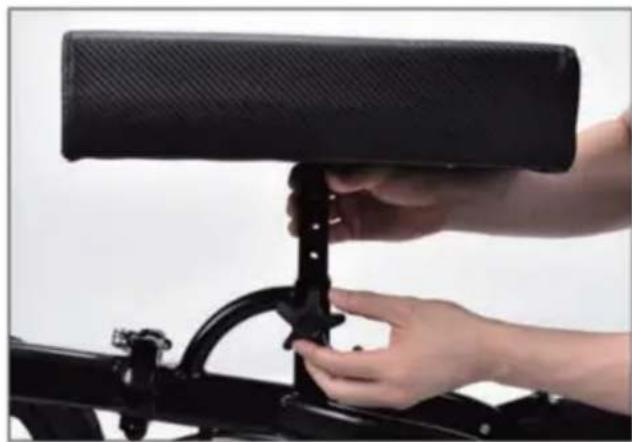

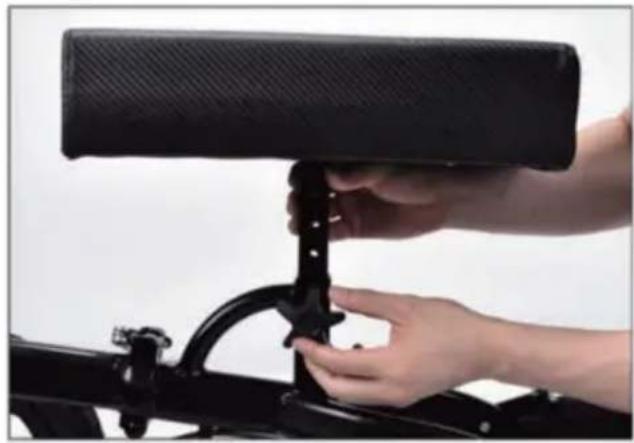

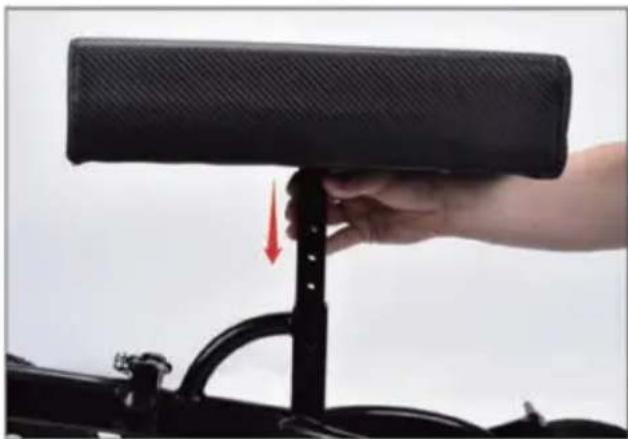

Insert the knee platform to desired height. Insert star screw and tighten knob securely.

Double check it is firmly installed.

Close-up of a hand holding a black rectangular object with a red arrow pointing to it, against a plain background (no text or symbols visible)

Close-up of hands assembling a black bicycle seat frame (no text or symbols visible)

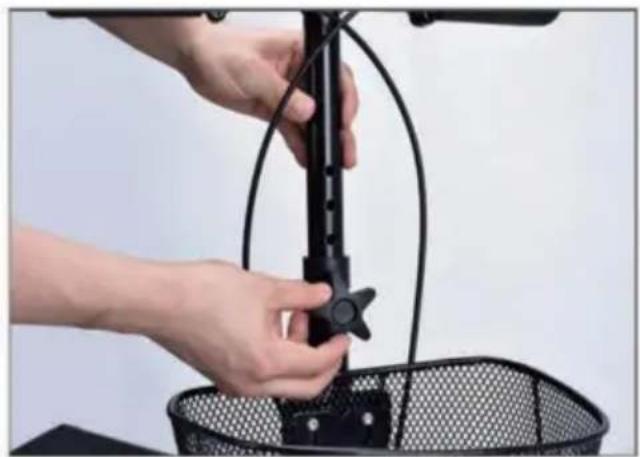

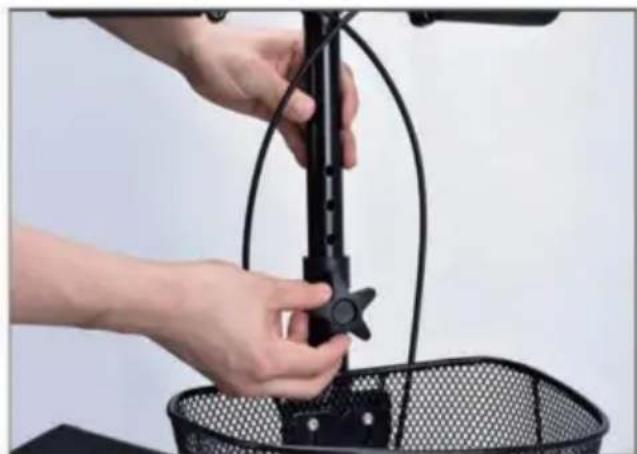

5. Install the basket

Install the basket in front of the steering column.

Loop Lock Operation

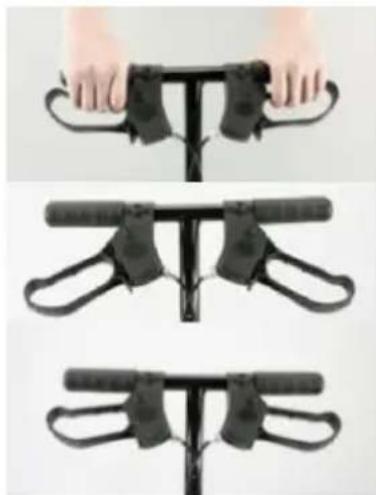

USING Loop Lock Operation- Always engage and disengage wheel locks on both sides simultaneous

(1) To Slow Down or Come to a Temporary Stop up slowly on the loop locks with four fingers until slows down or comes to a temporary stop.

(2) To Temporarily Lock Wheels in Position — Pr

Three views of a black mechanical device with handles, shown from top to bottom (no text or symbols visible)

down on both loop locks with palms until you hear a "click" that will tell y wheels are locked.

(3) To Release Wheel Locks — Push up on both loop locks with palms of original position.

How to adjust brakes?

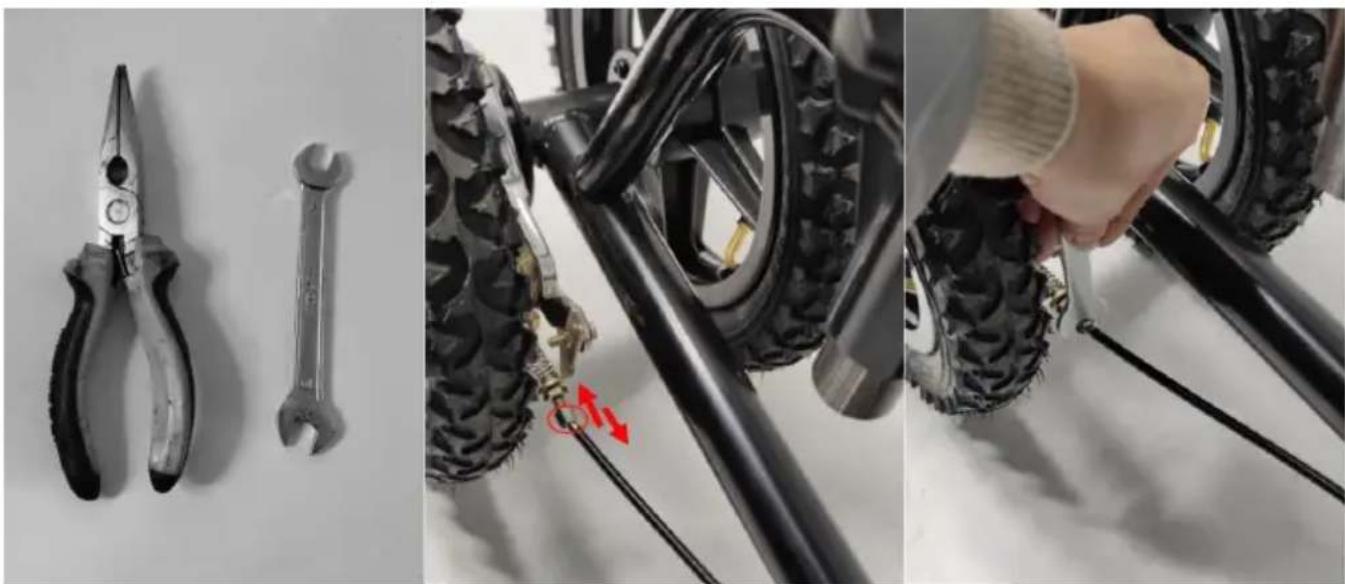

Tools: Plier or 8mm wrench

Use pliers (or 8mm wrench) to screw M6 nuts, adjust in the direction of the the brake can be adjusted a little loose, away from the direction of the whe be adjusted a little tighter.

Three-panel image showing a pair of pliers and a car tire repair procedure: tool, screwdriver, and tool (no text or symbols visible)

Movement

The knee walker is a mobility device that provides strength and comfort to a who may have injury below the knee. It allows an even distribution of body by supporting half of the weight on the device and the other half on the no injured leg.

The device has a cushioned platform to support both the injured leg and an make certain that no weight will be placed on the lower leg.

The device is designed for easy steering and stopping.

• Place your hands on the handlebars.
• Place the knee of your injured foot on the front pad so that the top of y or cast is directly over the space between the pads. Your lower leg is then on the rear pad.

• Release the parking brake and propel yourself forward or backward with your pushing foot, keeping the knee of your injured foot centered on the front packet.

• Move slowly so that you can stop safely using your pushing foot.

• The hand brake may be used if needed but is primarily designed to maintain stopped stance.

Additional Cautions

• Do not operate on loose gravel or uneven surfaces.
• Do not travel over large cracks or fissures.
• Stop and move forward slowly when encountering cracks or separations in walkway surfaces.
• Do not operate in excess of 3 miles per hour (slow-to-moderate walking speed).
• Do not turn unless one foot is on the ground.
• Never make a sharp turn at high speed.
• Do not turn at speeds over 1 mph (very slow walking speed).
• Do not operate on inclines above 15 degrees (slight incline).
• Do not travel over drops or barriers such as curbs or parking stops.
• This is a medical device, not a toy. Do not allow children or adults to us as a toy or for entertainment.
• Always check the fasteners on the tiller, wheels, brakes, and seat for tighter before use.
