USER MANUAL YTN-46 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

STUNT SCOOTER

MODEL: YTN-46

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

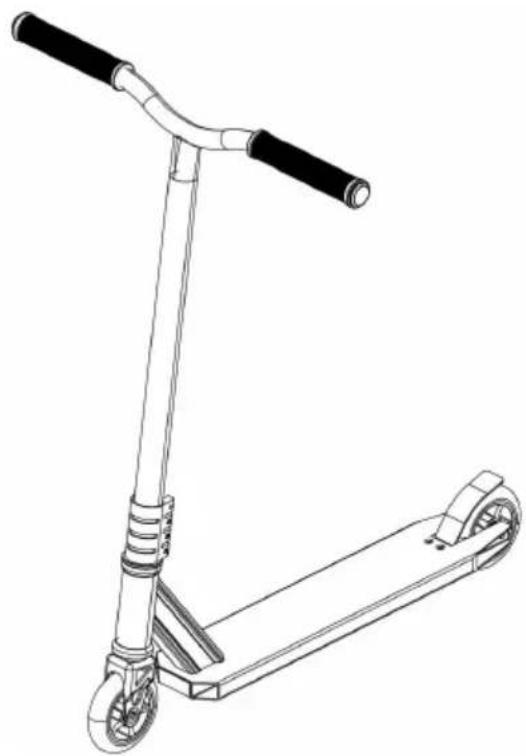

MODEL:YTN-46

Line drawing of a scooter with black handle and wheels (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

INSTRUCTIONS

This manual contains crucial information about safety, warranty, and ca. Please read this manual carefully and instruct your children before us

Safety instructions

Like any other moving products, scooter riding can be a hazardous a and it is possible to get into dangerous situations. This scooter should used with caution, since skill is required to avoid falls or collisions that cause injury to user or third parties, Be sure to read the entire man before riding, in particular, pay attention to the following:

LIKE ANY OTHER VEHICLE, USING A SCOOTER CAN BE A DANGERC ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVENWHEN USED WITH PROPER SAFETY PRECAUTIONS, USE AT YOUR OWN RISK AND USE COMMON SENSE.

• We advise any user to check the limitation of use according to regulations of national road safety.
• For safety and respect of others, stay at a safe distance from pedestrians and others street users.
• To be used preferably on flat and clear, gravel and grease-free Avoid bump and drains as they are potential accident hazards.
  ● Warning: when using the scooter, protective gear must be worn at all times, including at least: wrist guard, helmet knee pads, and elbow
• Check the steering mechanism before and after each use, i.e. he of handle bar, tightness of nuts, right angle of handle bar and front

check that all connection elements such as the brake, handle bar t quick lock system, wheels axles and level of wheel wear are well-adjusted.

- Use: stand on the scooter with a hand on each handle and push with one foot to go forward; proceed with caution at the start.

- Braking: the brake is located at the back of the scooter; when necessary, apply the brake to slow down. The brake should be apparently to avoid skidding or loss of balance.

- Scooter assembly, disassembly, and setting up instruction, see attached sheet with diagram to avoid, trapping fingers, keep hands or outside of the handle bar tube and footrest whenever unfolding and folding.

- We strongly advise that shoes be worn when using your scooter also pants, long sleeves shirts, and of course complete protective g to avoid injury in case of a fall.

- The scooter does not have any lights. Therefore, it should not be at night or at time when visibility is low.

- The metal or aluminum brake can heat up alter several uses. A touching it during and after use.

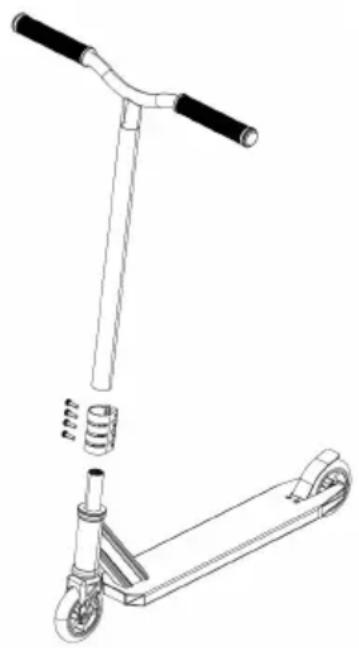

TIGHTENING YOUR COMPRESSION:

If your bars start to shake or move side this means your compression needs to be tightened. Do so by removing your handlebar and using allen key to tighten the compre bolt. Turning it in a clockwise direction, tig until some pressure is felt from the bolt. You to be able to still spin your forks freely, over tightened, you can restrict the movement and damage your compression or headset. should be done by an adult or a professi mechanic.

Line drawing of a scooter with handle and wheels, shown from top and side views (no text or symbols)

LUBRICATING YOUR BEARINGS: You will need to take off your who to lubricate your wheel bearings. insert 5mm allen keys, in each axle and turn them counter clock-wise.

The wheels may need some encouragement to slide out. Using a day cloth wipe off any dirt or grime on your wheels and bearings. Using bearing oil, place 3 to 4 drops directly on the bearing covers and oil to sink in. If the wheels do not spin freely after this, you may replace the bearings.

CLEANING YOUR SCOOTER: Never use alcohol or any strong clean agents to clean your scooter. Doing so may damage paint or fragile materials. Warm water and a damp cloth should be enough. Avoid pu water directly on the grip tape and never submerge your scooter in

Limited Warranty: The product applies to the minimum statutory warranty of the particular country on material and production defects. During the time, it is an in VEVOR 's discretion if products are repaired or repl. This warranty is not covering defects originated in improperly use such incorrect assembling, careless handling, modified in any way, or common wear out.

Warranty adjustments: Warranty claim is solely coming into effective proof of purchase. Due to that it is absolutely necessary to keep your receipt. in case of warranty claim VEVOR or the responsible dealer is deciding if the product will be repaired or replaced.

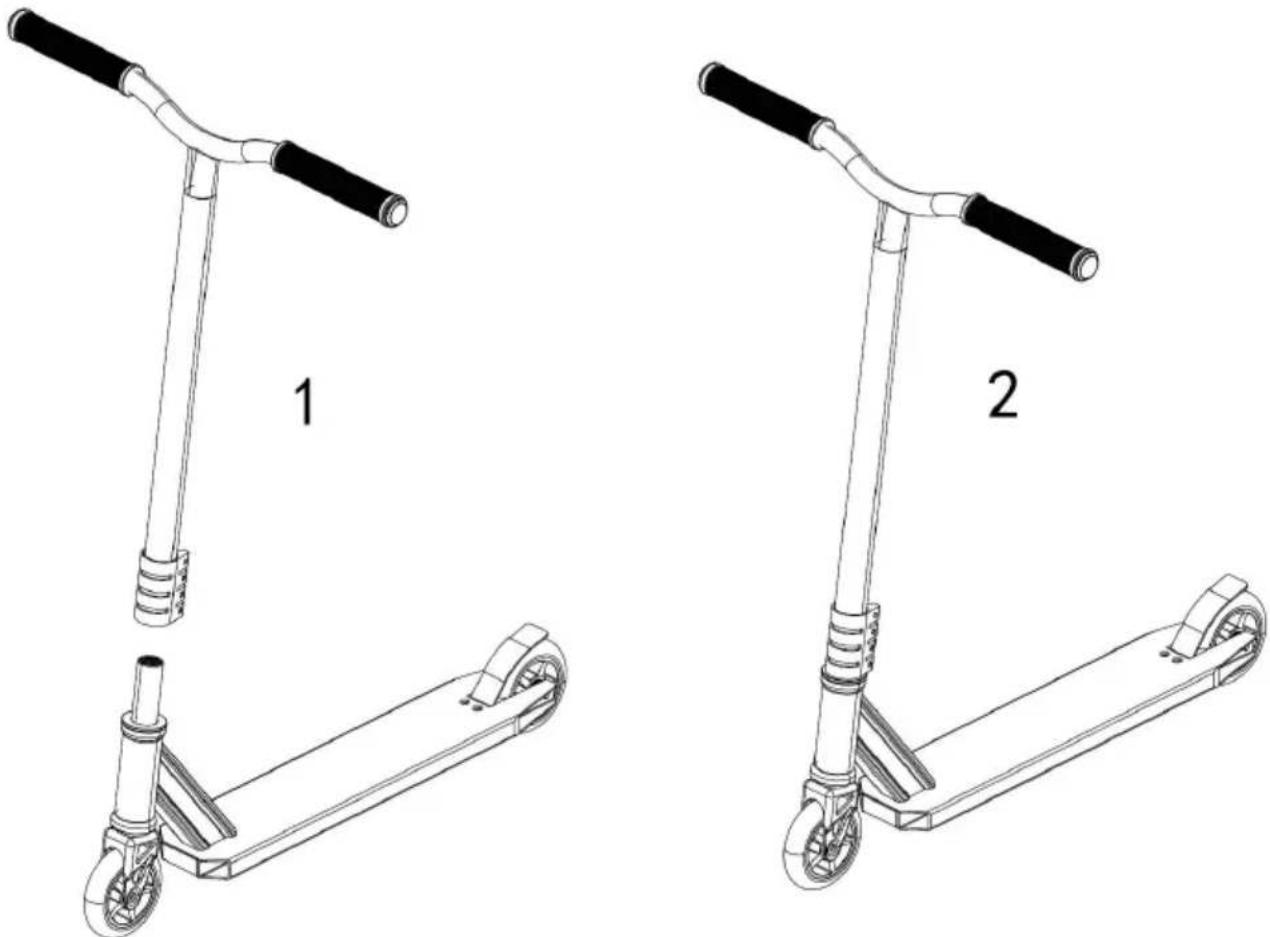

Scooter assembly

(Ensure all wrapping and packing materials are taken off your scooter before you start)

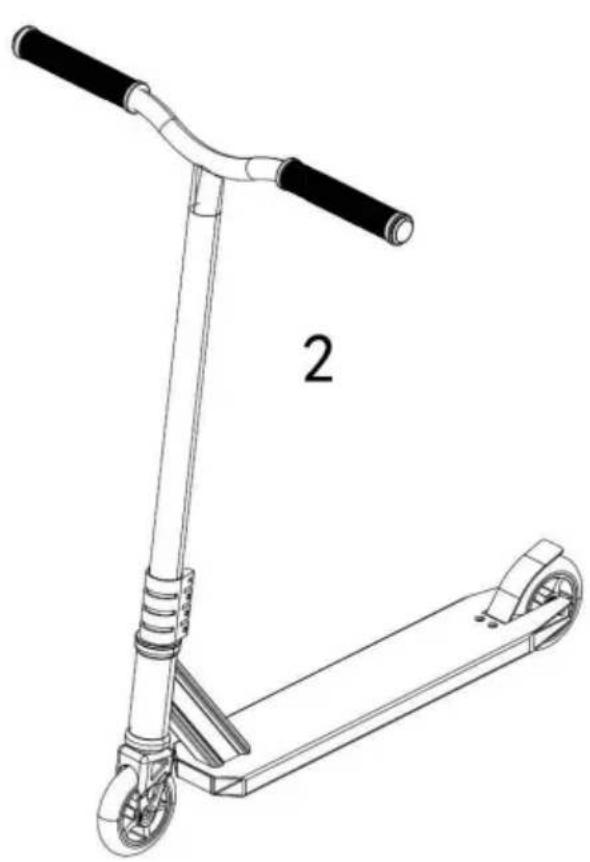

Slide the handlebars onto the fork tube (figure 1), ensure the fork are lined up before doing so. Avoid twisting/turning the bars as you down, Doing so may loosen the compression. Ensure both the bars and the clamp are touching the top of the headset.

Line drawings of two scooter scooters with black handlebars, shown from different angles (no text or symbols)

When you are satisfied that your front wheel and your handle bars are line. Use your 5mm allen key, to tighten the bolts from the bottom (2). Do this by turning the allen key in a clockwise rotation. Repeat action until the 4 bolts are tightened securely. Take care not to over your clamp bolts. Failure to tighten or install properly may result in lo control and injury. If you have trouble understanding these instructions, seek assistance from a qualified mechanic.

SAFETY

• Observe all valid traffic rules for the use of scooters in your coun
• Use only by one person at a time.
• Use the scooter only on suitable surfaces that are fiat, clean, dry free as possible from other road users.
• For your own safety, always pay attention to suitable protective cloak. Never ride without a helmet, hand/wrist, elbow and knee protection.
• Before you star: Check all components for integrity and firm fit.
• Avoid sloping terrain or routes with steep slopes.
• Only ride with suitable shoes that ensure a secure, firm stand.
• Do not drive in the dark and/or poor visibility.
  ● Always pay attention to pedestrians and other road users. Always considerate of other people.
  ● Always be aware that any kind of feats/stunts will reduce control of scooter. The risk of injury and the demands on the user and the main increase with the degree of difficulty of the tricks.
• The user is responsible for all risks associated with feats/stunts driving.
  ● WARNING: CHOKING HAZARD-small parts. Not for children under 3 years.

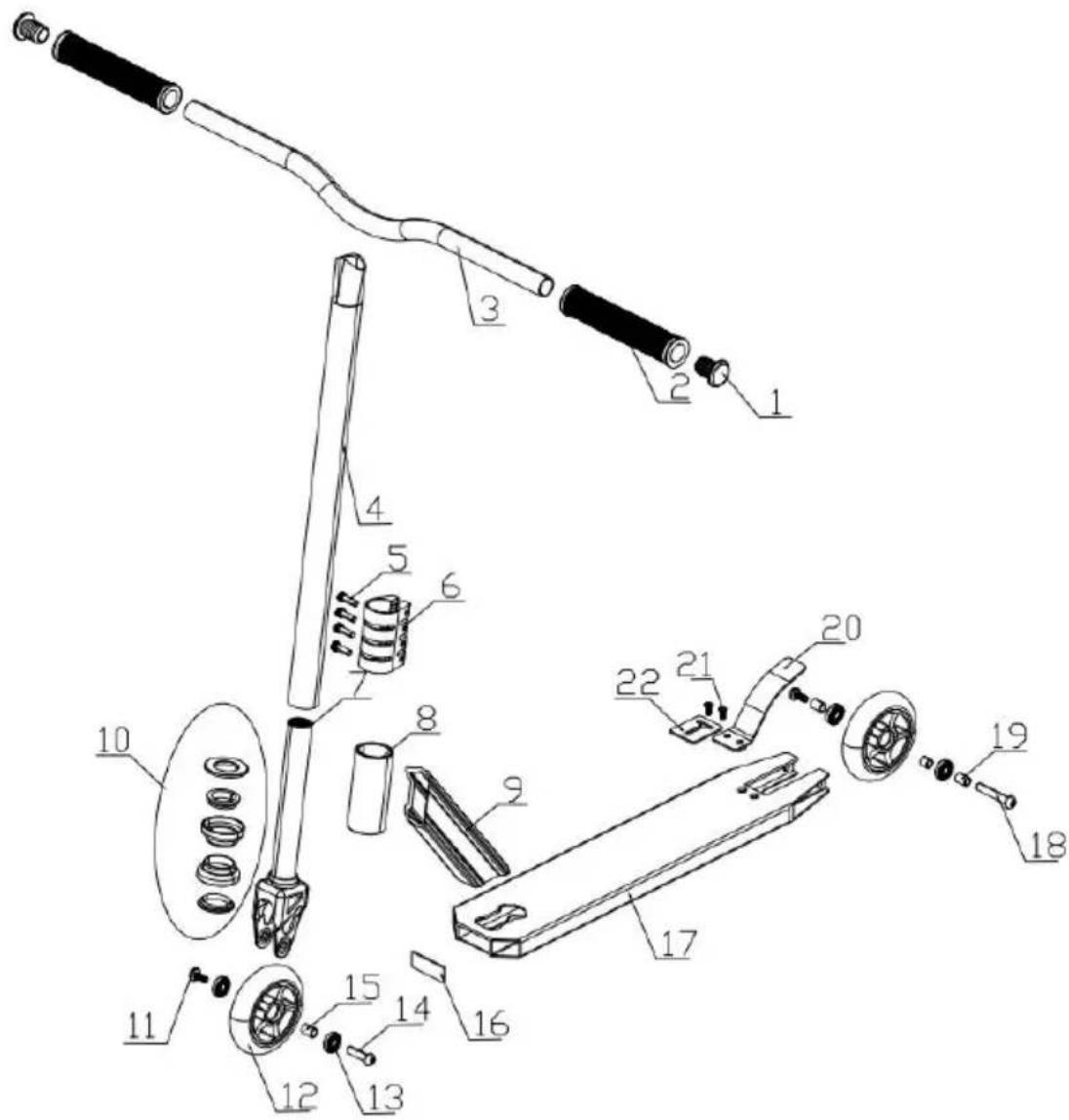

PARTS LITS

NO.	PART NAME	QTY	NO.	PART NAME	QTY
1	Handle beads	2	12	Wheels	2
2	Handle grip	2	13	Bearing	4
3	Handle tube	1	14	Screw M5 3	1
4	Steering tube	1	15	Spacer 1	2
5	Screw M5 1	4	16	Deck cover	1
6	4-bolts Clamp	1	17	Deck	1
7	Fork	1	18	Screw M5 4	1
8	Head tube	1	19	Spacer 2	2
9	Connector tube	1	20	Brake	1
10	Headset	1	21	Screw M5 5	2
11	Screw M5 2	2	22	Rubber pad	1

Exploded view diagram of a mechanical assembly with numbered parts for identification

DRIVING INSTRUCTIONS

- Place one foot securely on the tread bed (deck) of the scooter and yourself off the ground with the other foot.

- Hold both hands firmly on the handlebars.

- Perform initial steering tests at low speeds. For better cornering, shift your body weight in the desired direction of travel.

- To stop, apply the rear brake by pressing it. Perform initial braking at different speeds in a quiet environment, Note that wetness significance reduces the braking effect and the braking distance is drastically extended

- Attention: The brake may get hot during use. Do not touch after I

- Beginners should practice with a friend or parents.

- Surely you will see acquaintances, friends or videos of drivers performing tricks/stunts. Never assume that you can recreate the same feats without practice and without the risk of injury. These people have practiced for a long time, are accordingly experienced and know the dangers of performing these tricks.

- A good driver exercises reason and caution, always paying attention himself and others.

MAINTENANCE AND STORAGE

● Under normal circumstances and under normal use, the wheels and wheel bearings are maintenance-free. Nevertheless, you should regularly check the condition of the wheels, the fixed fit of the axles and the the wheel bearings. To protect against corrosion, you can grease the bearings from the outside with suitable bearing grease. Pay attention to loose and loose parts. If a wheel or wheel bearing shows wear, a replacement is required. Worn tyres are wear articles and therefore no reason for complaint.
- To change the wheels, loosen the axle screw connection with two wrenches size 5 and remove the wheel from the axle. Remove the bearings from the wheel (e.B. eject with a screwdriver). These can be reused. However, it is usually advisable to renew the bearings as well.
- Do not use harsh detergents to clean the scooter. Use a damp c Allow the scooter to dry completely after cleaning.
- Check the product for damage and wear before and after use.
- Store the scooter in a dry and safe place protected from the wea avoid damage and prevent injuries to other people.
- Do not make any changes that could compromise security!
- For your own safety, use only original spare parts.

DISPOSAL

Return and collect the packaging and the product at the end of its I Contact your local waste management company for more information

Manufacturer: Yongkangshi Yongtai Industrial & Trade Co., Ltd.

Address: No.1355 West Songshi Road, Yongkang, Zhejiang, China

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
