YTN-44 - Electric scooter Vevor - Free user manual and instructions

Brand	Vevor
Model	YTN-44
Product Type	Stunt Scooter
Users	Children and teenagers (from 3 years old under supervision)
Foldability	Yes
Brake	Metal rear brake
Wheels	2 wheels with ball bearings
Handlebar	Height adjustable
Safety - Protection	Helmet, knee pads, elbow pads and wrist guards mandatory
Safety - Usage	Flat, dry, clean surfaces; avoid slopes and night
Safety - Minimum Age	3 years (choking hazard)
Maintenance	Clean with damp cloth; lubricate bearings with bicycle bearing oil; tighten handlebar compression
Assembly	Required: slide handlebar, tighten bolts with 5 mm Allen key
Spare Parts	List included (handlebar beads, grips, tubes, wheels, etc.)
Warranty	Limited warranty on defects in materials and workmanship
Included Accessories	5 mm Allen key (not specified but required)
Country of Origin	China
Importer	Sanven Technology Ltd. (USA), SIHAO PTY LTD (Australia)
Customer Service	www.vevor.com/support

Frequently Asked Questions - YTN-44 Vevor

How to assemble my Vevor YTN-44 scooter?

Slide the handlebar onto the fork tube, align the fork and handlebar, then tighten the three clamp bolts from bottom to top using a 5 mm Allen key. Do not overtighten.

How to adjust the handlebar height?

The handlebar is height adjustable. However, the manual does not detail the adjustment. Ensure the handlebar and clamp touch the top of the headset during initial assembly.

What protective gear should I wear?

Always wear a helmet, knee pads, elbow pads and wrist guards. Full protective equipment is mandatory to avoid injuries.

How to maintain the wheel bearings?

Remove the wheels with a 5 mm Allen key, clean dirt with a damp cloth, then apply 3 to 4 drops of bicycle bearing oil directly onto the bearing covers. Let the oil seep in.

Can I use the scooter in the rain or at night?

No, the scooter has no light and the brake may lose efficiency on wet ground. Use it only during the day in dry weather with good visibility.

How to tighten the handlebar compression if the bars wobble?

Remove the handlebar and use an Allen key to tighten the compression bolt clockwise until resistance is felt. Be careful not to overtighten to avoid blocking fork rotation. This operation must be done by an adult.

Is the scooter suitable for adults?

The manual mainly targets children (from 3 years old) and teenagers. No maximum weight is specified, but use by adults can be dangerous without protective gear and on suitable surfaces.

How to fold and unfold the scooter?

The scooter is foldable. To unfold, hold the handlebar and deck keeping fingers outside the handlebar tube to avoid pinching. The manual includes a diagram (not provided here) for details.

Where to find spare parts for the YTN-44?

The parts list is provided in the manual (handlebar beads, grips, tubes, wheels, etc.). Contact Vevor via www.vevor.com/support to order spare parts.

What to do if the brake becomes hot?

Do not touch the brake immediately after use as it can get hot. Wait for it to cool down. Check the wear and adjustment of the brake. A well-adjusted brake is crucial for safety.

USER MANUAL YTN-44 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

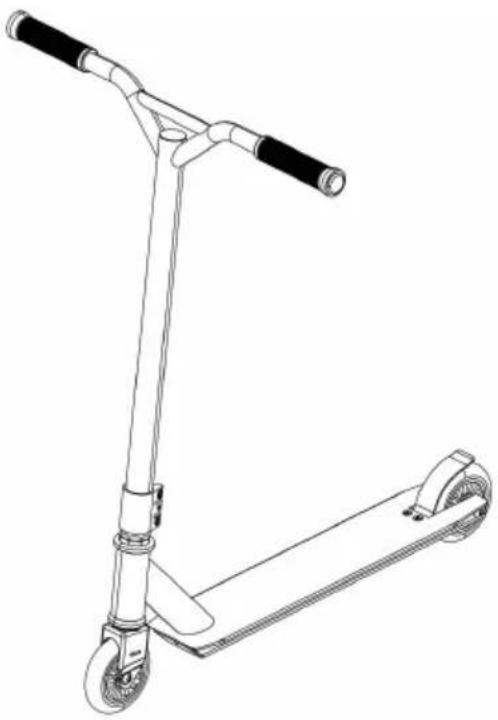

STUNT SCOOTER

MODEL:YTN-44

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

MODEL:YTN-44

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

INSTRUCTIONS

This manual contains crucial information about safety, warranty, and care. Please read this manual carefully and instruct your children before use.

Safety instructions

Like any other moving products, scooter riding can be a hazardous activity and it is possible to get into dangerous situations. This scooter should be used with caution, since skill is required to avoid falls or collisions that may cause injury to the user or third parties. Be sure to read the entire manual before riding, in particular, pay attention to the following:

LIKE ANY OTHER VEHICLE, USING A SCOOTER CAN BE A DANGEROUS ACTIVITY AND MAY RESULT IN INJURY OR DEATH EVEN WHEN USED WITH PROPER SAFETY PRECAUTIONS. USE AT YOUR OWN RISK AND USE COMMON SENSE.

• We advise any user to check the limitation of use according to regulations of national road safety.
• For safety and respect of others, stay at a safe distance from pedestrians and other street users.
• To be used preferably on flat and clear surfaces, free of gravel and grease. Avoid bumps and drains as they are potential accident hazards. ● Warning: when using the scooter, protective gear must be worn at all times, including at least: wrist guard, helmet, knee pads, and elbow pads.
• Check the steering mechanism before and after each use, i.e., the tightness of the handlebar, the tightness of nuts, the right angle of the handlebar and front wheel.

Check that all connection elements such as the brake, handlebar quick lock system, wheel axles, and level of wheel wear are well-adjusted.

- Use: stand on the scooter with a hand on each handle and push with one foot to go forward; proceed with caution at the start.

- Braking: the brake is located at the back of the scooter; when necessary, apply the brake to slow down. The brake should be applied gradually to avoid skidding or loss of balance.

- Scooter assembly, disassembly, and setting up instructions: see attached sheet with diagram. To avoid trapping fingers, keep hands outside of the handlebar tube and footrest whenever unfolding and folding.

- We strongly advise that shoes be worn when using your scooter, also pants, long-sleeved shirts, and of course complete protective gear to avoid injury in case of a fall.

- The scooter does not have any lights. Therefore, it should not be used at night or at times when visibility is low.

- The metal or aluminum brake can heat up after several uses. Avoid touching it during and after use.

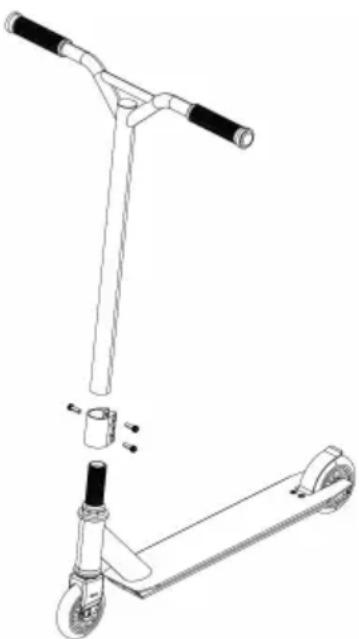

TIGHTENING YOUR COMPRESSION:

If your bars start to shake or move side to side, this means your compression needs to be tightened. Do so by removing your handlebar and using an Allen key to tighten the compression bolt. Turning it in a clockwise direction, tighten until some pressure is felt from the bolt. You should be able to still spin your forks freely; however, if over-tightened, you can restrict the movement and damage your compression or headset. This should be done by an adult or a professional mechanic.

LUBRICATING YOUR BEARINGS: You will need to take off your wheels to lubricate your wheel bearings. Insert 5mm Allen keys into each axle and turn them counter-clockwise.

The wheels may need some encouragement to slide out. Using a dry cloth, wipe off any dirt or grime on your wheels and bearings. Using bearing oil, place 3 to 4 drops directly on the bearing covers and allow the oil to sink in. If the wheels do not spin freely after this, you may need to replace the bearings.

CLEANING YOUR SCOOTER: Never use alcohol or any strong cleaning agents to clean your scooter. Doing so may damage paint or fragile materials. Warm water and a damp cloth should be enough. Avoid putting water directly on the grip tape and never submerge your scooter in water.

Limited Warranty: The product applies to the minimum statutory warranty of the particular country on material and production defects. During the warranty period, it is at VEVOR's discretion if products are repaired or replaced. This warranty does not cover defects originating from improper use such as incorrect assembly, careless handling, modification in any way, or common wear and tear.

Warranty adjustments: Warranty claims are solely effective upon proof of purchase. Therefore, it is absolutely necessary to keep your receipt. In case of a warranty claim, VEVOR or the responsible dealer will decide if the product will be repaired or replaced.

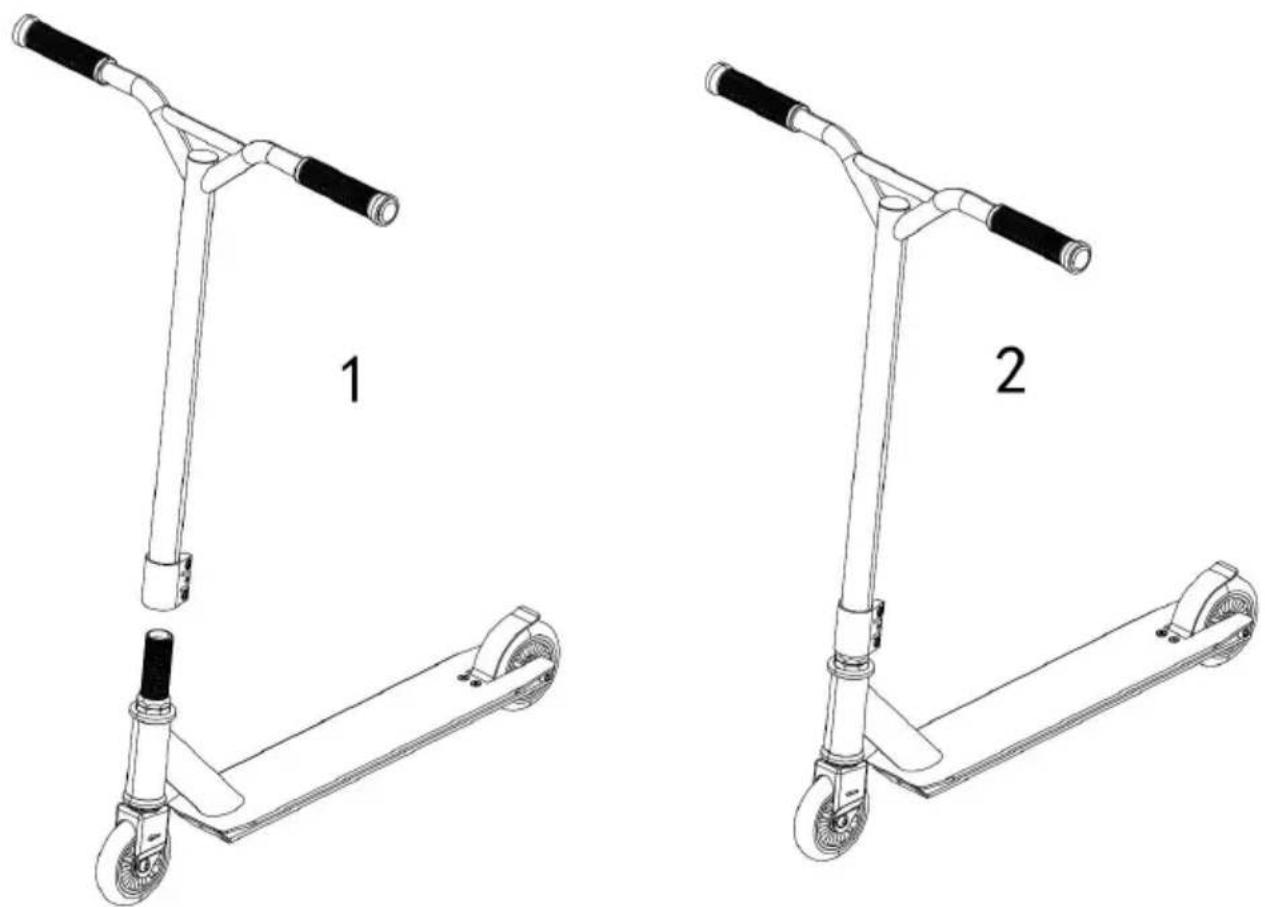

Scooter assembly

(Ensure all wrapping and packing materials are taken off your scooter before you start)

Slide the handlebars onto the fork tube (figure 1), ensuring the fork is lined up before doing so. Avoid twisting or turning the bars as you slide them down, as doing so may loosen the compression. Ensure both the bars and the clamp are touching the top of the headset.

When you are satisfied that your front wheel and your handlebars are aligned, use your 5mm Allen key to tighten the bolts from the bottom (2). Do this by turning the Allen key in a clockwise rotation. Repeat this action until the 3 bolts are tightened securely. Take care not to overtighten your clamp bolts. Failure to tighten or install properly may result in loss of control and injury. If you have trouble understanding these instructions, seek assistance from a qualified mechanic.

SAFETY

• Observe all valid traffic rules for the use of scooters in your country.
• Use only by one person at a time.
• Use the scooter only on suitable surfaces that are flat, clean, dry, and as free as possible from other road users.
• For your own safety, always pay attention to suitable protective clothing. Never ride without a helmet, hand/wrist, elbow, and knee protection.
• Before you start: Check all components for integrity and firm fit.
• Avoid sloping terrain or routes with steep slopes.
• Only ride with suitable shoes that ensure a secure, firm stand.
• Do not drive in the dark and/or poor visibility. Always pay attention to pedestrians and other road users. Always be considerate of other people. Always be aware that any kind of feats/stunts will reduce control of the scooter. The risk of injury and the demands on the user increase with the degree of difficulty of the tricks.
• The user is responsible for all risks associated with feats/stunts driving. ● WARNING: CHOKING HAZARD - small parts. Not for children under 3 years.

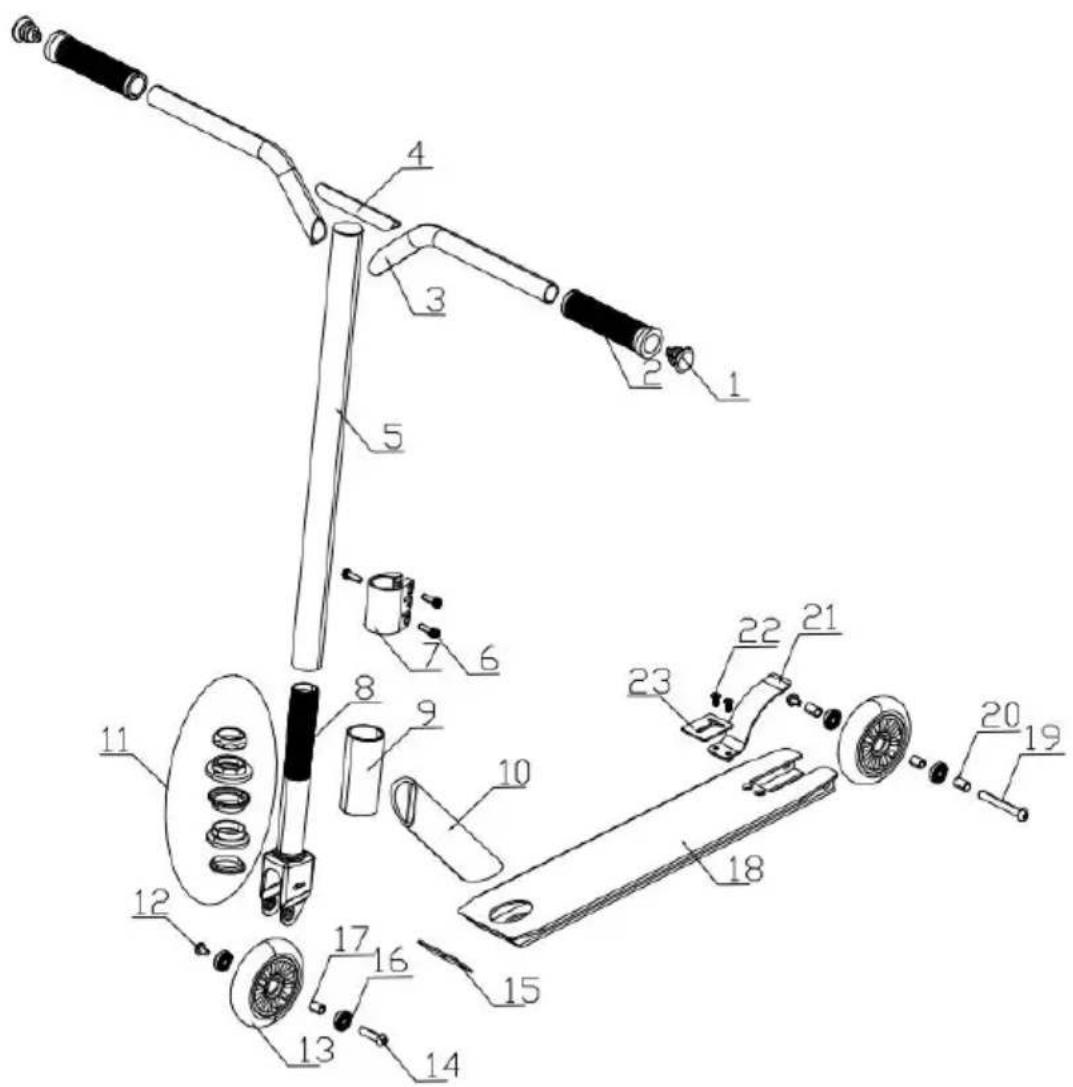

PARTS LIST

NO.	PART NAME	QTY	NO.	PART NAME	QTY
1	Handle beads	2	13	Wheels	2
2	Handle grip	2	14	Screw M5 3	1
3	Handle tube	2	15	Deck cover	1
4	Reinforcing tube	1	16	Bearing	4
5	Steering tube	1	17	Spacer 1	2
6	Screw M5 1	3	18	Deck	1
7	3-bolts Clamp	1	19	Screw M5 4	1
8	Fork	1	20	Spacer 2	2
9	Head tube	1	21	Brake	1
10	Connector tube	1	22	Screw M5 5	2
11	Headset	1	23	Rubber pad	1
12	Screw M5 2	2

DRIVING INSTRUCTIONS

- Place one foot securely on the tread bed (deck) of the scooter and push yourself off the ground with the other foot.

- Hold both hands firmly on the handlebars.

- Perform initial steering tests at low speeds. For better cornering, shift your body weight in the desired direction of travel.

- To stop, apply the rear brake by pressing it. Perform initial braking at different speeds in a quiet environment. Note that wetness significantly reduces the braking effect and the braking distance is drastically extended.

- Attention: The brake may get hot during use. Do not touch after use.

- Beginners should practice with a friend or parents.

- Surely you will see acquaintances, friends or videos of drivers performing tricks/stunts. Never assume that you can recreate the same feats without practice and without the risk of injury. These people have practiced for a long time, are accordingly experienced and know the dangers of performing these tricks.

- A good driver exercises reason and caution, always paying attention to himself and others.

MAINTENANCE AND STORAGE

● Under normal circumstances and under normal use, the wheels and wheel bearings are maintenance-free. Nevertheless, you should regularly check the condition of the wheels, the fixed fit of the axles and the wheel bearings. To protect against corrosion, you can grease the bearings from the outside with suitable bearing grease. Pay attention to loose and worn parts. If a wheel or wheel bearing shows wear, a replacement is required. Worn tyres are wear articles and therefore no reason for complaint. - To change the wheels, loosen the axle screw connection with two wrenches size 5 and remove the wheel from the axle. Remove the bearings from the wheel (e.g., eject with a screwdriver). These can be reused. However, it is usually advisable to renew the bearings as well. - Do not use harsh detergents to clean the scooter. Use a damp cloth. Allow the scooter to dry completely after cleaning. - Check the product for damage and wear before and after use. - Store the scooter in a dry and safe place protected from the weather to avoid damage and prevent injuries to other people. - Do not make any changes that could compromise safety! - For your own safety, use only original spare parts.

DISPOSAL

Return and collect the packaging and the product at the end of its life. Contact your local waste management company for more information.
