BLIND BEARING PULLER SET

MODEL:ZX-J022

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:ZX-J022

Blue toolbox containing a collection of mechanical tools and fasteners (no visible text or labels)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warning and instructions can cause personal injury or damage to valuable property.

- Avoid children using the product. And this product is not a toy. Do not a children to play.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly c create hazards.
2. Wear ANSI-approved safety goggles and heavy-duty work gloves during assembly and using.
3. Keep assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol drugs or medication.
6. Product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.
8. Assemble and use this product ONLY in accordance with these instructions and for its intended purpose of bearing removal and bear housing separation.
9. DO NOT overreach. Keep proper footing and balance at all times.
10. Maintain this product. Check for misalignment, binding, wear, or damage before use. If any damage is detected, repair or replace the problematic components before further use.

SAVE THESE INSTRUCTIONS

SPECIFICATION

Model	ZX-J022
Material(Split Collet)	Cr40
Applicable part size	6-59mm
Split collet specification	Φ5.8, Φ9, Φ16, Φ21.6, Φ27.1, Φ32.6, Φ37.9, Φ42.9, Φ47.8, Φ52.6mm

PACKAGE LIST

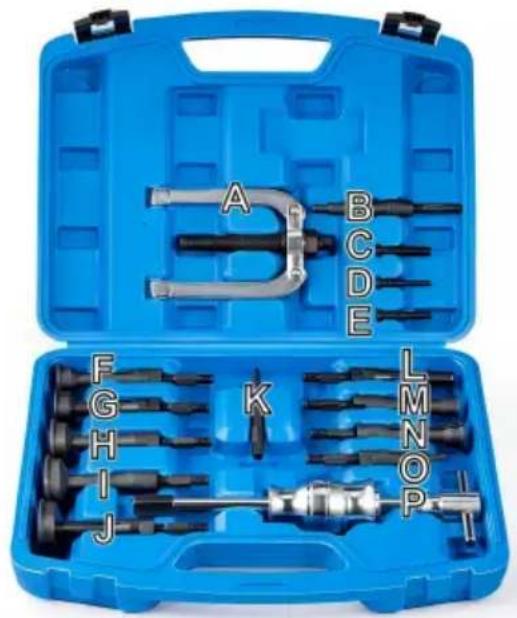

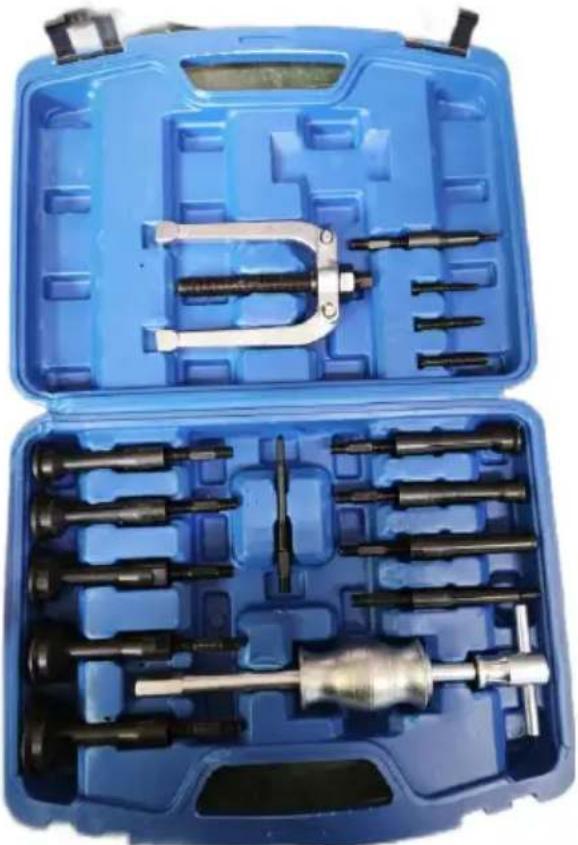

A B C D E F G H I J K L M N O P

No.	Name	Qty
A	Counter stay	1
B	10-17 mm Split Collet	1
C	M10×1.5 Screw Adapter	1
D	M10×1.5 to M6×1.0 Screw Adapter	1
E	M10×1.5 to M8×1.25 Screw Adapte	1
F	35.5–39 mm Split Collet	1
G	38.5–45 mm Split Collet	1
H	42.5–49 mm Split Collet	1
I	48.5–55 mm Split Collet	1
J	52.5–59 mm Split Collet	1
K	Spare Pin Bolt	1
L	15.5–22 mm Split Collet	1
M	22–29 mm Split Collet	1
N	28.5–35 mm Split Collet	1
O	6– 13 mm Split Collet	1
P	Sliding Hammer	1

OPERATION

CAUTION:

1, this product is a manual tool, do not use (electric or pneumatic) impact wrench for screw operation, there is a rise in damage to the pulling head.
2, it is recommended to add lubricating oil on the screw bed, disassembling the bearing, and spray rust remoster (such as WD-40) on the disassembled bearing for adequate lubrication, is recommended to stand for more than 30 minutes after spraying before disassembling.

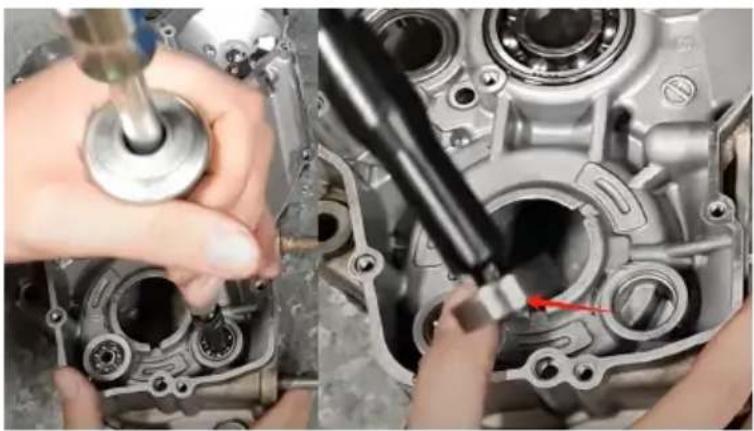

Close-up of a hand using a tool to adjust internal components of a mechanical engine (no visible text or symbols)

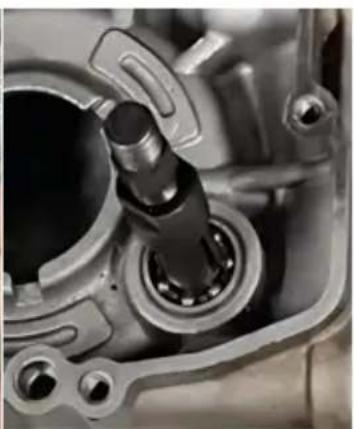

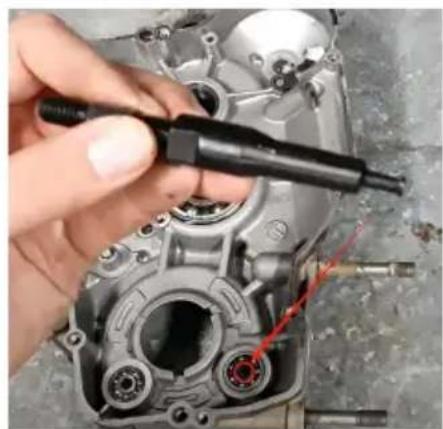

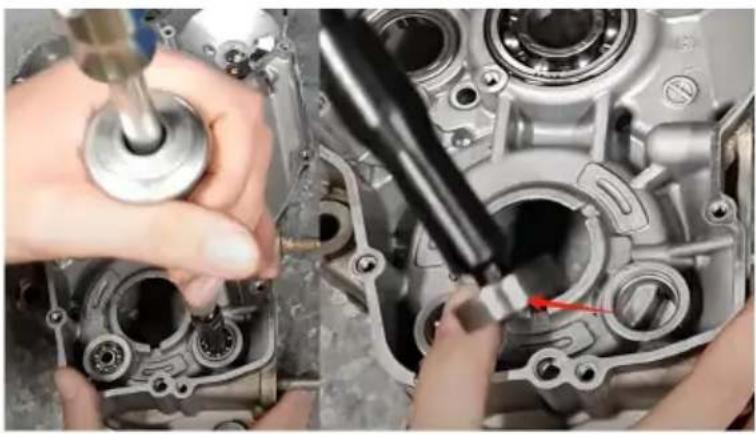

1. Select the appropriate chuck according to the bearing hole size.(Select part: B/F/G/H/I/J/L/M/N/O)

Close-up of hands assembling a mechanical component with a metallic tool (no visible text or symbols)

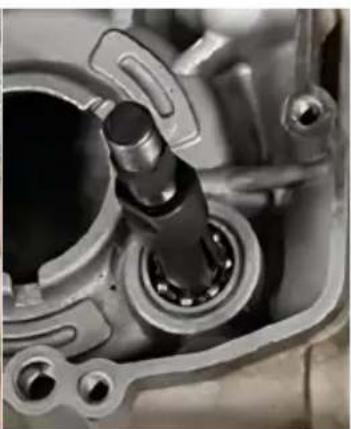

Close-up of a mechanical component with a cylindrical shaft inserted into a housing (no visible text or symbols)

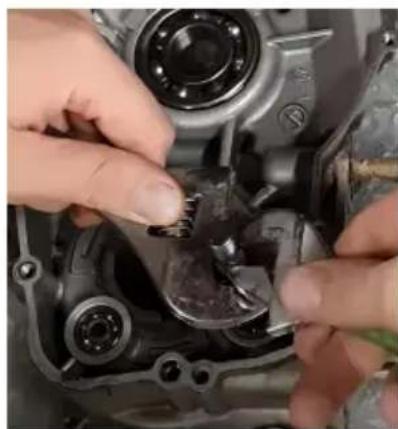

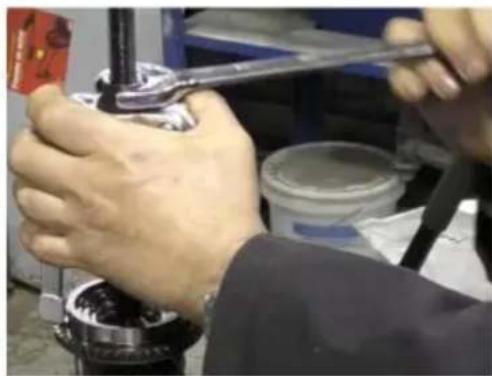

1. Use two wrench to expand the ch to roughly clamp the bearing inner hole.(Wrench is not included in this product)

Close-up of hands assembling a mechanical component with a metallic cylindrical part (no visible text or symbols)

Close-up of hands using a tool to adjust mechanical components in an engine cylinder (no visible text or symbols)

1. Screw the hammer in the clamp connection thread.(Select part: P )

2. The sliding hammer strikes the be out.

FOR LARGE INTERFERENCE BEARING OR SLEEVE

Close-up of a mechanical gear assembly with a cylindrical shaft and flanged base (no visible text or symbols)

Close-up of hands assembling a mechanical component, showing a tool and gear assembly (no visible text or symbols)

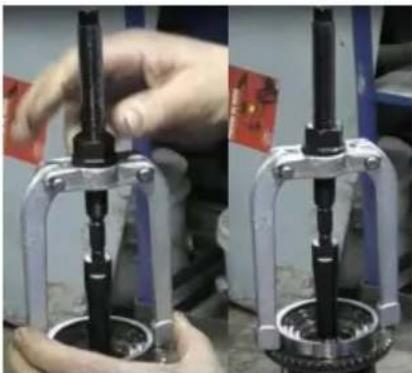

1. Select the appropriate chuck according to the bearing hole size.(Select part: B/F/G/H/I/J/L/M/N/O)

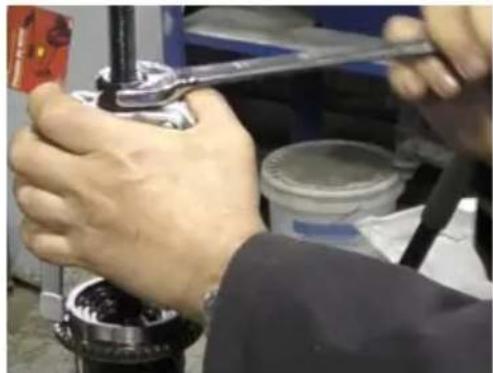

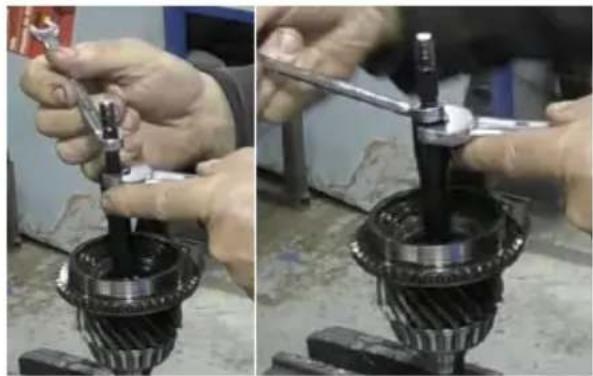

2. Use two wrench to expand the to roughly clamp the bearing inner hole.(Wrench is not included in this product)

Close-up of hands operating a mechanical device with black shafts and metal frame (no visible text or symbols)

Close-up of hands assembling a mechanical component with a tool (no visible text or symbols)

1. Install bracket(part: A) chuck head and tighten.

2. Use a wrench to twist the brack and the bearing or sleeve will be pulled out.

MAINTENANCE

• Clean these tools with a clean moist cloth after each use. Do not caustic chemicals or harsh abrasives. Rinse entirely clean and allow t to dry completely before further use.
  ● Lubricate attachments as needed to ensure smooth operation.
• Replace components if their threading begins to wear and cannot be used smoothly and safely.
