YT-28 - Potter's wheel Vevor - Free user manual and instructions

Product Type	Pottery Wheel
Brand	Vevor
Model	YT-28
Turntable Diameter	280 mm (Φ280 mm)
Maximum Load (Clay)	3 kg
Power Supply	AC 100-240 V ~ 50/60 Hz
Maximum Power	350 W
Rated Current (Leakage Protector)	16 A
Speed Range	50 – 300 rpm
Sound Power Level	≤ 60 dB (at 1 m)
Main Functions	Forward/reverse rotation, speed control by pedal and manual, touch screen, leakage protection
Included Accessories	Apron, removable splash pan, set of 8 tools (knife, sponge, scrapers, needle, etc.), aluminum turntable
Maintenance and Cleaning	Clean clay and water stains on the turntable with a dry cloth after each use; do not rinse with water; periodically check tightness of parts
Safety	Use indoors, on a flat and dry floor; unplug before any repair; do not change motor rotation direction while running; check leakage protector monthly
Spare Parts and Repairability	Damaged power cord must be replaced by a professional; loose fasteners can be tightened; for any other issues, contact Vevor support
General Information	Use reserved for clay modeling; suitable for children over 8 years old under supervision; FCC Class B certified

Frequently Asked Questions - YT-28 Vevor

How to change the rotation direction of the turntable?

Use the forward/reverse switch (7A on the diagram). Always stop the motor before changing direction to avoid damage.

What to do if the machine does not start?

First check that the power plug is properly connected. Then ensure the leakage protector (8) is activated (indicator light on). If the light is off, press the reset button.

Can the pedal and screen be used at the same time?

Yes, you can choose the speed control mode: manual via the touch screen or regulation pedal. Switch 7B allows toggling between the two.

How to clean the turntable and splash pan after use?

Remove clay residues, then wipe the turntable and pan with a dry towel. Never rinse with water to avoid oxidation and infiltration.

What to do if water leaks from the splash pan?

Check that the pan is properly installed and the water level does not exceed the sealing edge. If necessary, readjust the pan.

Why does my clay crack during turning?

This may be due to excessive force when lifting or speed too slow for the shaping. Try to lift the clay evenly and reduce speed.

How to test the leakage protector?

Press the test button (8A) once a month. If the indicator goes off, the protector works normally. Then press the reset button to restore power.

The machine makes an abnormal noise, what to check?

Ensure the splash pan is not in contact with the turntable. Also check that the machine is level (adjust the feet) and that fasteners are not loose.

What tools are included with the wheel?

A set of 8 tools: clay cutting wire, small yellow sponge, wooden knife, wooden scraper, stainless steel scraper, large circular flat wire knife, steel needle, ribbon flat wire knife. They are used to cut, shape and smooth clay.

Can I use the wheel outdoors?

No, this equipment is designed for indoor use only, on a cool, ventilated, dry and flat floor. Exposure to moisture or water could damage electrical components.

USER MANUAL YT-28 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POTTERY WHEEL MACHINE

MODEL: YT-19/YT-28/YT-37

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

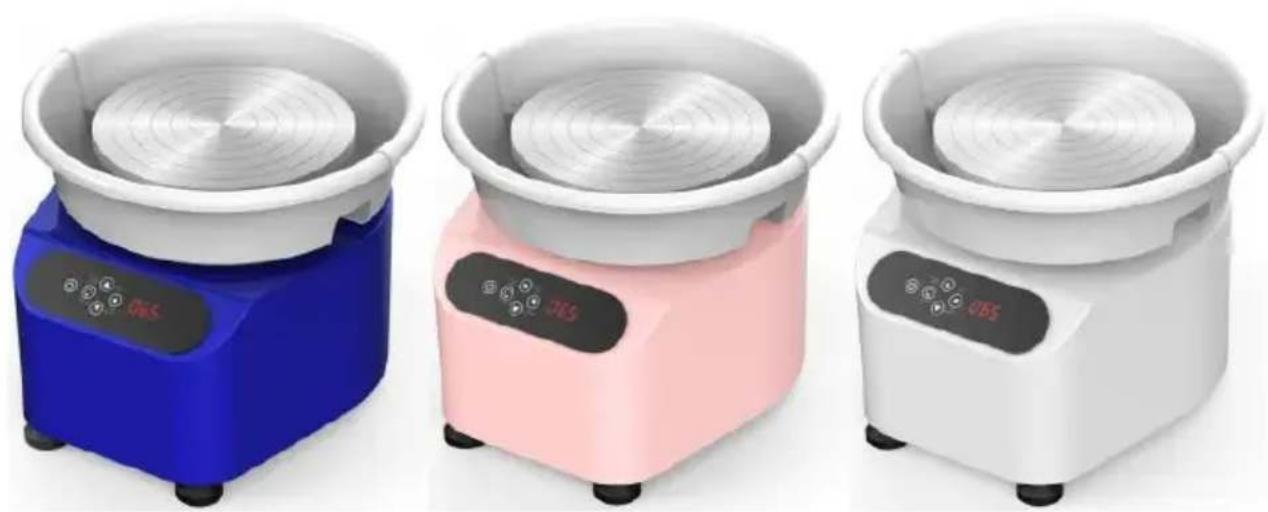

POTTERY WHEEL MACHINE

MODEL: YT-19/YT-28/YT-37

NOTE: The appearance color is subject to your purchase!

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read all safety warnings, instructions, illustrations and

specifications provided with this electrical equipment. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

	Warning - To reduce the risk of injury, the user must instructions manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. To reduce the risk of injury, fire, electrocution, please always follow the recommendation shown below.
	INDOOR USE ONLY
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic v must be taken to acollection point for recycling electric electronic devices.

When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This equipment is only applicable to ceramic drawings and cannot be used for other purposes. Do not use the equipment brutally.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof and level ground.
3. Users must wire and install according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change rotation direction, stop it first, and start it after the motor completely stops.
5. Please use a towel or sponge to clean the machine body, and do not use water to wash it to avoid water immersion in the motor, switch, bearing, and parts, causing failure.
6. Before use, make sure that the switch and pedal are in the stop position before inserting the power.
7. When repairing or replacing parts, the switch must be turned off and the power supply must be unplugged.
8. If the supply cord is damaged, it must be replaced by the manufacturer, service agent, or similarly qualified persons in order to avoid a hazard.
9. Children should use this equipment with adults. (Note: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.)
10. Periodically check whether the power cable is damaged and the connector is loose.
11. Press the button on the leakage protector once a month to check whether leakage protection can work normally!

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and the receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

MODEL AND PARAMETERS

Model	YT-19	YT-28	YT-37
Aluminium Turntable	Φ250mm	Φ280mm	Φ280mm
Maximum Payload(Clay)	3 KG	3 KG	5 KG
Input	AC 100-240V~ 50/60Hz
Maximum power	350W	350W	450W
Rated current(Leakage protector)	16A	16A	16A
Speed	50-300r/min	50-300r/min	50-300r/min
Sound power level	≤ 60dB(1m distance)
Color	Blue / Pink / White

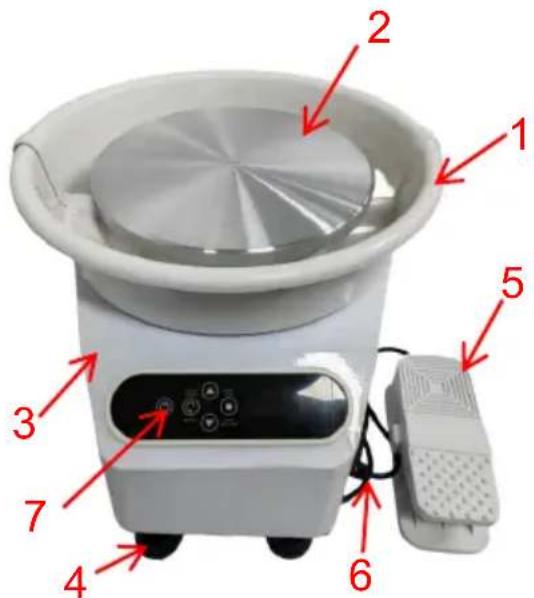

STRUCTURE DIAGRAM

1. Removable dirt basin
2. Aluminum turntable
3. Equipment body
4. Foot Pad

5. Speed regulating pedal

6. Power line

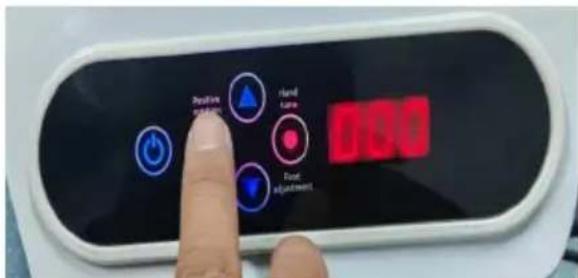

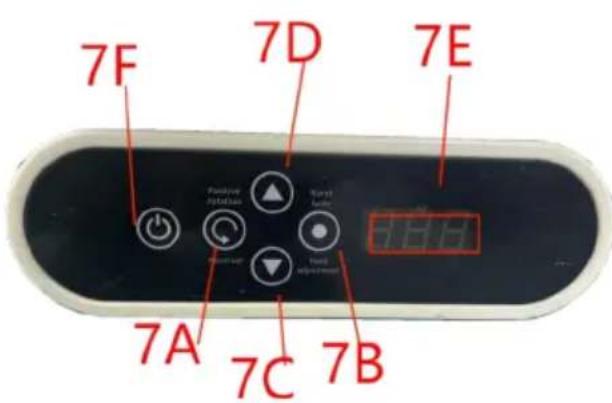

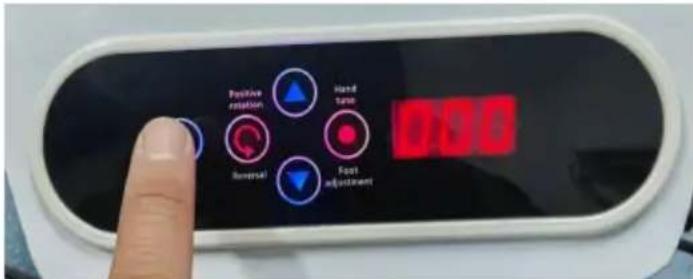

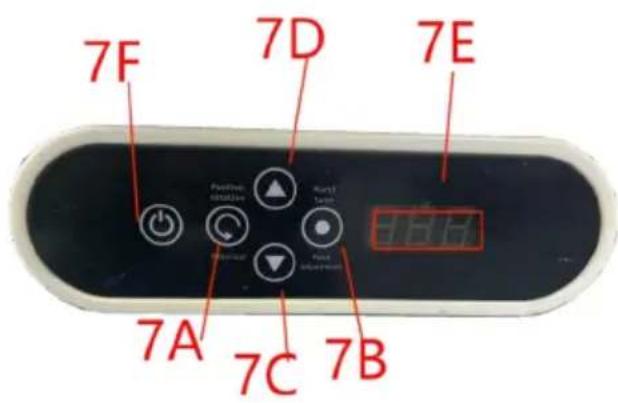

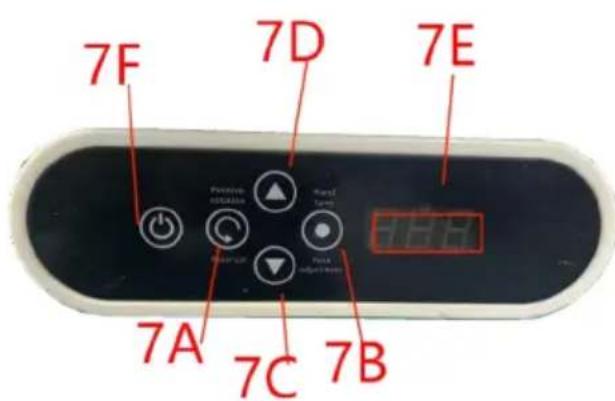

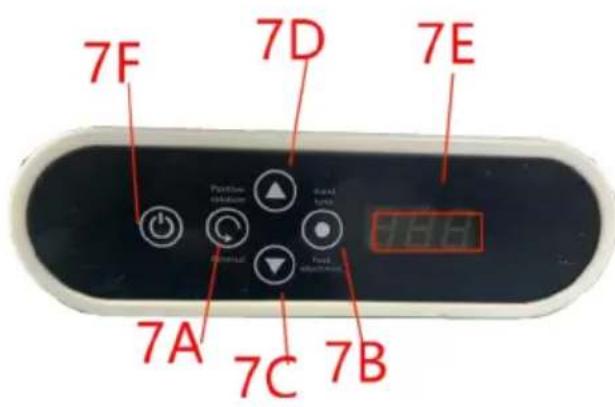

1. Touch panel

7A: Forward/Reverse switch 7B: Manual/Pedal switch

7C: Slow down 7D: Acceleration

7E: Display 7F: Touch switch

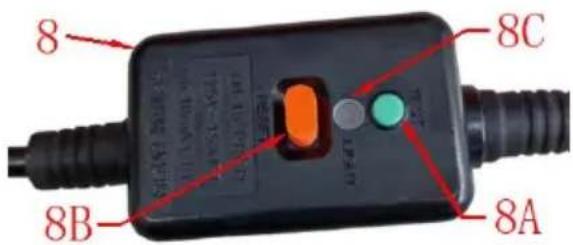

8. Leakage protector

8A: Test button

(Press once a month. It is normal if the indicator goes off after you press it.) 8B: Reset button

(If the power is off, please first remove the leakage danger, and then press this key to restore the power.)

8C: Indicator light (Power on when the light is on.)

TOOL ACCESSORIES AND USE

1. Apron (x1): Prevents clothes from getting dirty.

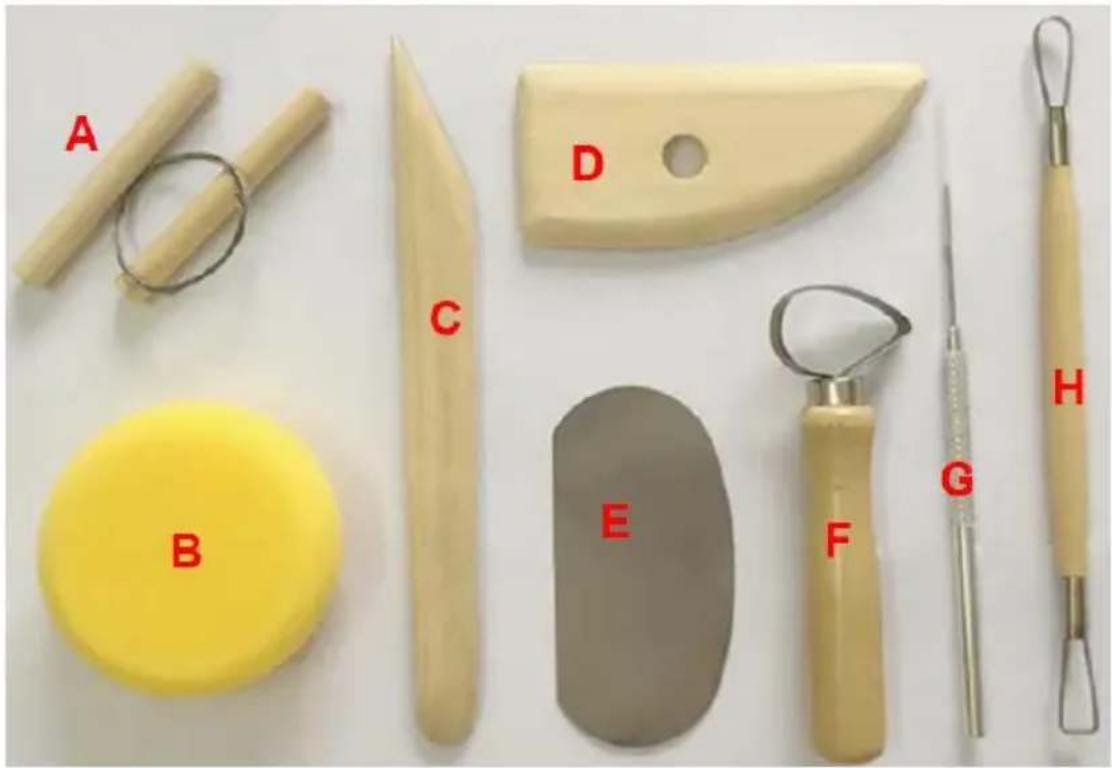

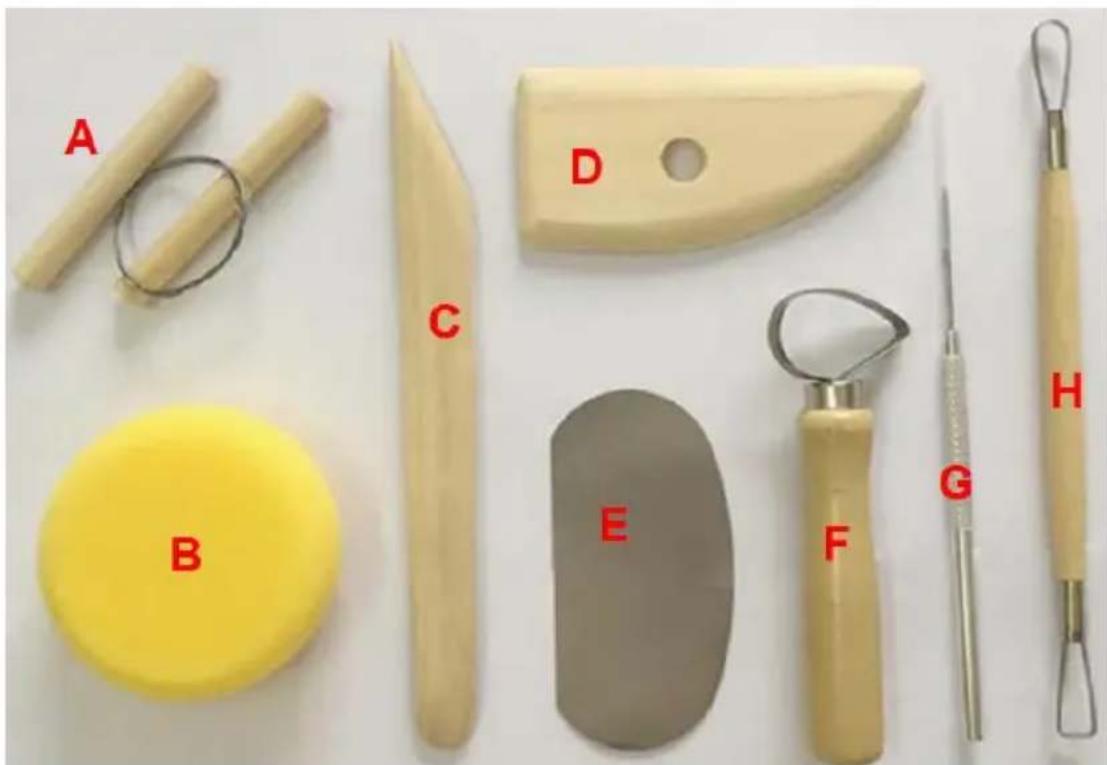

1. 8-Piece Tool Set (x1)

A (Clay cutting line): Assists in precisely cutting clay (cutting surface is very smooth), repairing and leveling the mouth of the work, and taking away the finished product.

B (Small yellow sponge): Adds water or absorbs water, trims the surface or mouth edge to make it smooth.

C (Wooden knife): Trims the bottom for later removal or trimming.

D (Wooden scraper): Trims the opening or shape and removes excess clay on the surface to make it smooth.

E (Stainless steel scraper): Removes excess clay on the surface to make it smooth.

F (Circular large flat wire knife): Trims the surface of the vessel, controls the thickness, and trims out the bottom ring foot.

G (Steel needle): Scrapes off excess clay from the mouth edge, removes air bubbles, and punches holes.

H (Ribbon flat wire knife): Finely trims the surface of the utensil or circles the

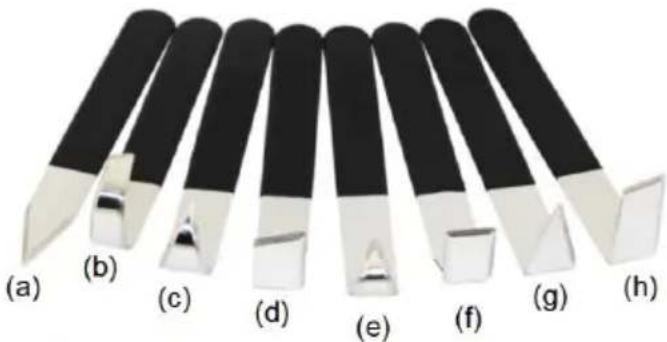

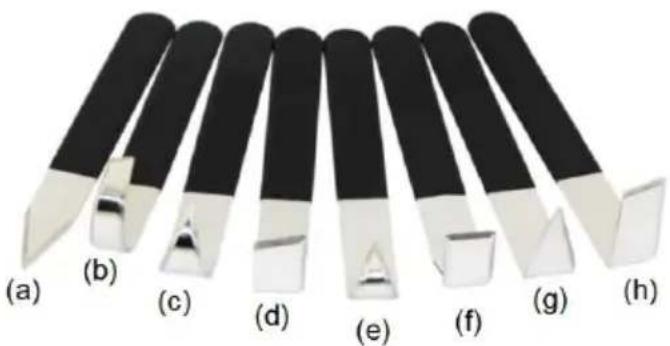

1. Stainless steel clay-repair knife 8-piece Set (x1): Repairs clay molds as shown below.

(a)

(b)

(c)/(e)

(g)

(g)

(d)/(f)/(h)

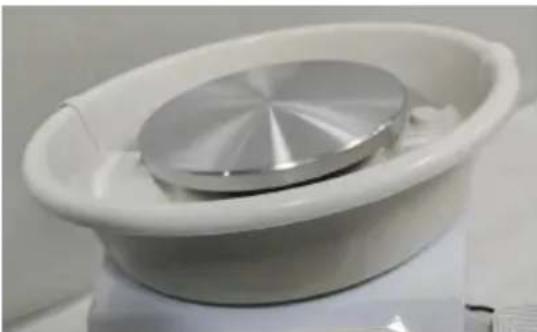

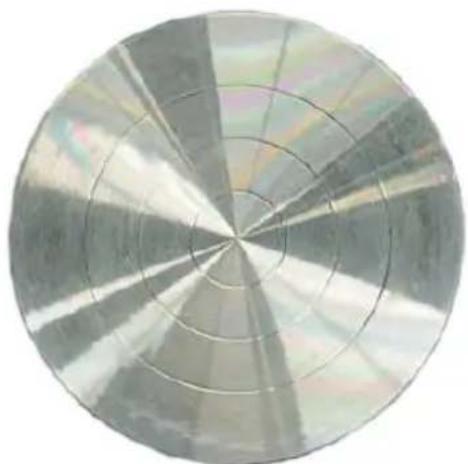

1. Aluminum turntable: The size of the turntable depends directly on the maximum diameter we can achieve.

(Loosen the bolts with a wrench and replace it)

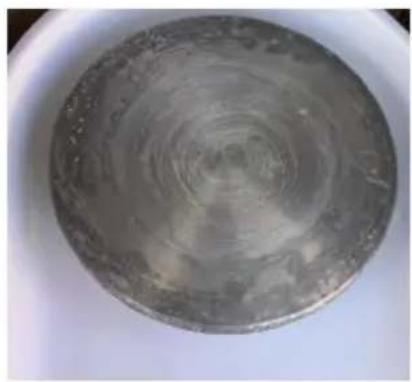

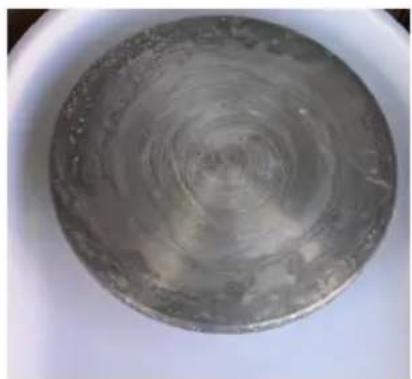

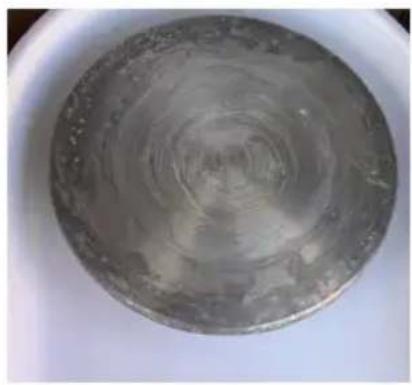

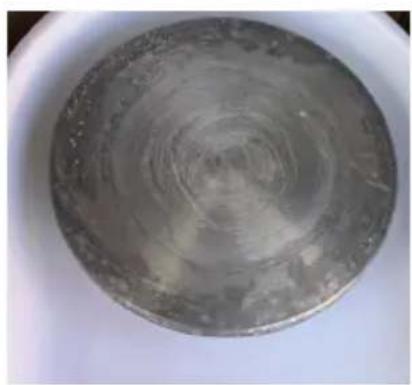

If not cleaned in time, the turntable will oxidize as shown.

NOTE: After the work, please clean the sludge on the turntable and in time, and wipe it with a dry towel to avoid oxidation on the surface of the turntable!

OPERATING STEPS

Step1: Take out a proper amount of clay, throw the mud ball in the center wheel, and press it (wet your hands).

Step2: Plug in the power (If the water basin is not installed, install the water first).

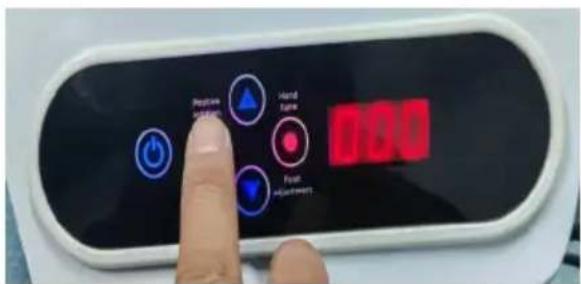

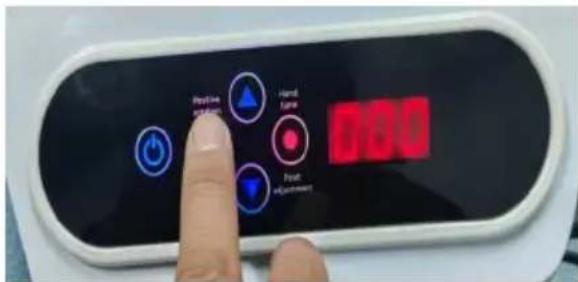

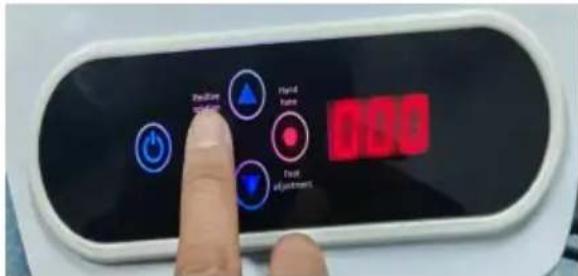

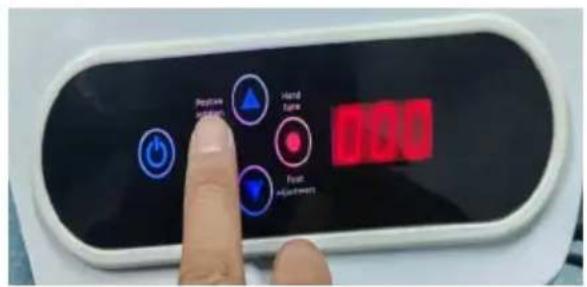

Step3: Turn on the switch and choose the direction of forward (clockwise)/rev (counterclockwise) rotation according to your needs.

Step4: Adjust the speed and start clay molding with tools (You can also choose to pedal the speed control).

Step5: Clay-mold repairs with tools.

Step6: Creative painting and coloring can be carried out according to their own needs.

After the work is completed, stop the machine in reverse order.

Remove the molding with a scraper/clay cutting line.

Place in a cool place for a period of time before firing.

SKILLS GUIDANCES

Problem	Reason	Solution
Fracture of clay	Excessive force during lifting	The lifting process should be small and even.
Clay is in a spiral shape.	The clay molding speed exceeds the machine speed	Turn the mold a few times advance.
Clay unevenly stressed presses	Abnormal posture of clay molding.	Sit firmly and keep your back neck, shoulders, upper arms, forearms, wrists and palms s Coordinate your whole body Strength.
Clay off center	Got wrong and unstable for on hands when looking for center.	The left palm must be place the eight o 'clock position or the turntable and applied downward oblique pressure with even force.
The opening is uneve and off-center.	1.The center is not found correctly.2.Not opening in the center3.Hands shake when pressir down, uneven force.	The opening of the middle t the left finger or thumb mus assisted by the right finger a must be pressed down vertically from the center point
Hollow at the bottom	Pressing down too fast and too hard.	1.The bottom thickness of the hole should be left about 202.Pause the machine, add no clay, start the machine, and smooth the surface.
Bubbles.	The clay has not been kneaded properly.	Pause the machine and prick the air bubbles with a need fill the hole with clay, then the machine to smooth the surface.
Uneven thickness when lifted.	Hands are not on parallel or uneven force.	The inner and outer fingertip must move synchronously in straight line when lifting the clay.
Mold collapsed.	1.There was too much water and the clay was too soft hold.2.Opening rapidly expands, deforms, and collapses.3.The wall is thick on the and thin on the bottom, wh cannot be supported.4.Clay is used for too long its viscosity decreases.	1. Use as little water as possible when drawing.2. Keep your hands moving from the bottom to the top.3. Never press down.4. Rapid prototyping.
Bottom break	1.Knead clay is not uniform clay dry and wet is not uniform.2.Water at the bottom, no water absorption after	1.Knead the clay evenly.2.Sponge up the water inside the vessel when finished.3.Let dry on a solid board.4.Keep out of the sun.

forming.3.When dry, not placed on absorbent boards.4.Sun exposure.5.Too thick at the bottom.

5.The bottom thickness is less than 2cm.

TROUBLESHOOTING INSTRUCTION

Problem	Reason	Solution
Does not work.	The power supply is not connected.	1.Check whether the power plug is properly inserted.2.Check whether the leakage protector is on.
Shaking of the machine	The machine is not level with the ground.	Adjust the four feet of the machine so that the machine is level with the ground.
The turntable makes a sound.	The water basin against t turntable.	Check whether water basin is properly installed.
Water basin is leaking.	1.The water exceeds the waterproofing edge of the basin.2.The water basin is not installed properly.	1.Check whether the storage of mud water exceeds the waterproof edge.2.Check that water basin properly installed.
The turntable jumps too much.	The fastener is loose.	Check whether the fastene is loose. If not, ask a professional to debug it.

CLEAN AND CARE RULES

1. After finishing the equipment operation, it is necessary to clean the clay surface of the turntable and wipe the water stains on the surface of the turn (Do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.
