YT-19 - Potter's wheel Vevor - Free user manual and instructions

Product Type	Electric Pottery Wheel
Brand	Vevor
Model	YT-19
Turntable Diameter	250 mm (Φ250 mm)
Maximum Load Capacity (Clay)	3 kg
Power Supply	AC 100-240 V ~ 50/60 Hz
Maximum Power	350 W
Rated Current (Leakage Protector)	16 A
Speed Range	0 to 300 rpm
Sound Power Level	≤ 60 dB (at 1 m)
Available Colors	Blue, Pink, White (depending on purchase)
Rotation Direction	Forward (Clockwise) / Reverse (Counterclockwise)
Speed Control	Pedal and Touch Screen
Electrical Protection	Leakage Protector with Monthly Test Button
Included Accessories	Removable Splash Pan, Apron, 8-Piece Tool Set
Plate Material	Aluminum
Maintenance	Clean after use, wipe the plate to prevent oxidation
Safety	Cut off power before repair, do not wash with large amounts of water
Recommended Use	Indoor Only

Frequently Asked Questions - YT-19 Vevor

What is the maximum clay capacity for the Vevor YT-19?

The maximum clay load is 3 kg. It is important not to exceed this limit to avoid damaging the motor.

How to change the rotation direction of the plate?

Use the forward/reverse switch (7A) located on the control panel. Do not change direction while the motor is running, stop the machine first.

Can the speed be adjusted?

Yes, the speed is adjusted via the regulation pedal or the + and - buttons on the touch screen (7C/7D). The range is 0 to 300 rpm.

What to do if the machine does not start?

First check that the power plug is properly connected. Then ensure the leakage protector (8) is activated (indicator light on). If the protector has tripped, press the reset button.

How to prevent clay from becoming off-center?

Place the palm of your left hand at the eight o'clock position on the plate and apply oblique downward pressure with uniform force. Keep hands steady and avoid shaking.

What tools are included with the Vevor YT-19 wheel?

The set includes 8 tools: a clay cutting line, a small yellow sponge, a wooden knife, a wooden scraper, a stainless steel scraper, a large flat wire circular knife, a steel needle, and a ribbon flat wire knife.

How to maintain the turntable?

After each use, clean the mud on the plate and basin, then wipe with a dry towel to prevent oxidation of the aluminum surface.

What to do if the water basin leaks?

Check that the water does not exceed the sealing edge of the basin. Ensure the water basin is properly installed and there is no overflow.

Is it possible to use the wheel outdoors?

No, the device is designed for indoor use only. Place it on a cool, ventilated, dry, and flat floor.

How to test the leakage protector?

Press the test button (8A) once a month. The indicator light should go out. To restore power, first eliminate any leakage risk, then press the reset button (8B).

USER MANUAL YT-19 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POTTERY WHEEL MACHINE

MODEL: YT-19/YT-28/YT-37

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent the savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

POTTERY WHEEL MACHINE

MODEL: YT-19/YT-28/YT-37

NOTE: The appearance color is subject to your purchase!

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

WARNING: Read all safety warnings, instructions, illustrations and

specifications provided with this electrical equipment. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

	Warning - To reduce the risk of injury, the user must instructions manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicates of precaution, warning, or danger. Ignoring this warning lead to an accident. To reduce the risk of injury, fire, electrocution, please always follow the recommendation shown below.
	INDOOR USE ONLY
	CORRECT DISPOSALThis product is subject to the provision of european D 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic v must be taken to acollection point for recycling electric electronic devices.

When using electrical appliances, basic safety precautions should be followed, including the following.

READ ALL INSTRUCTIONS BEFORE USING THIS APPLIANCE

1. This equipment is only applicable to ceramic drawings and cannot be used for other purposes. Do not use the equipment roughly.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof, and level ground.
3. Users must wire and install according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change rotation direction, stop it first, and start it after the motor completely stops.
5. Please use a towel or sponge to clean the machine body, and do not use water to wash it to avoid water immersion in the motor, switch, bearing, and parts, causing failure.
6. Before use, make sure that the switch and pedal are in the stop position before inserting the power.
7. When repairing or replacing parts, the switch must be cut off and the power supply must be unplugged.
8. If the supply cord is damaged, it must be replaced by the manufacturer, service agent or similarly qualified persons in order to avoid a hazard.
9. Children should use this equipment with adults (Note: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision).
10. Periodically check whether the power cable is damaged and the connector is loose.
11. Press the button on the leakage protector once a month to check whether leakage protection can work normally!

SAVE THESE INSTRUCTIONS

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference.

2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses, and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures.

- Reorient or relocate the receiving antenna.

- Increase the distance between the product and the receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for help.

MODEL AND PARAMETERS

Model	YT-19	YT-28	YT-37
Aluminium Turntable	Φ250mm	Φ280mm	Φ280mm
Maximum Payload(Clay)	3 KG	3 KG	5 KG
Input	AC 100-240V~ 50/60Hz
Maximum power	350W	350W	450W
Rated current(Leakage protector)	16A	16A	16A
Speed	50-300r/min	50-300r/min	50-300r/min
Sound power level	≤ 60dB(1m distance)

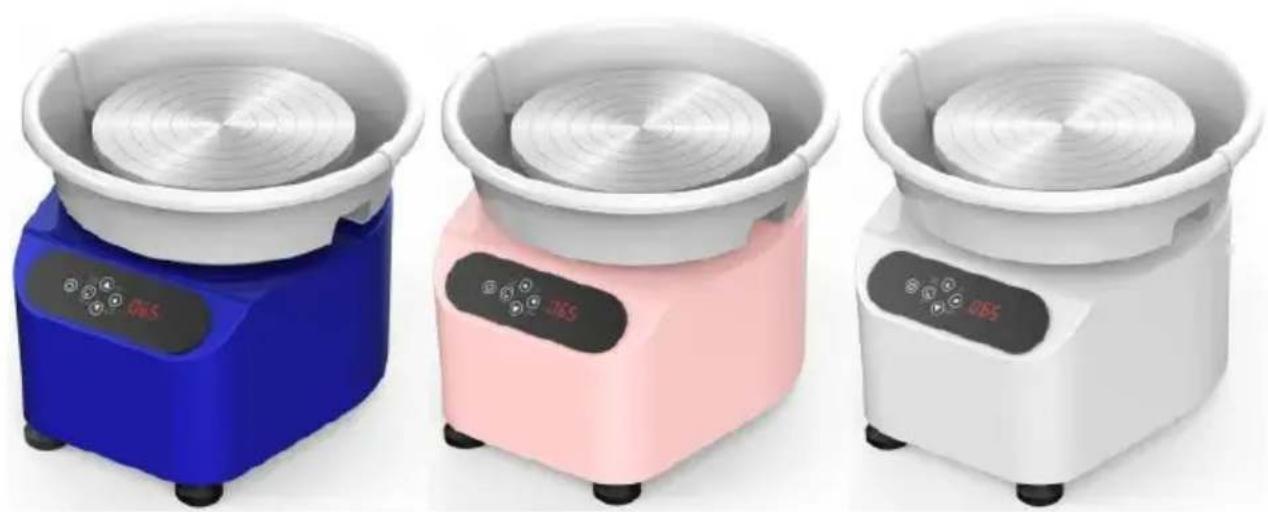

Color	Blue / Pink / White

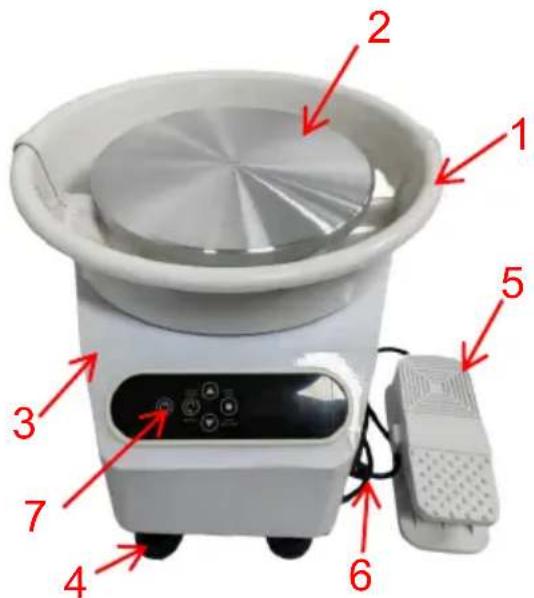

STRUCTURE DIAGRAM

1. Removable dirt basin
2. Aluminum turntable
3. Equipment body
4. Foot Pad

5. Speed regulating pedal

6. Power line

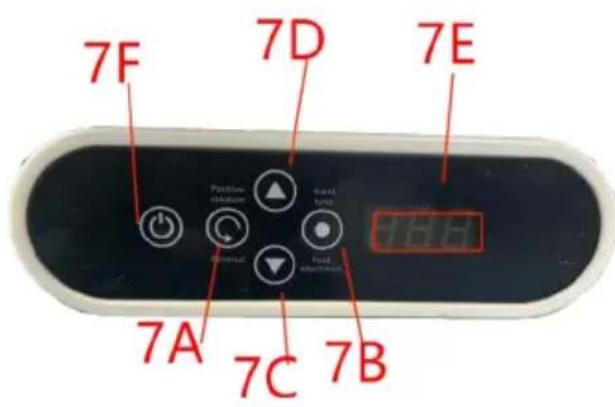

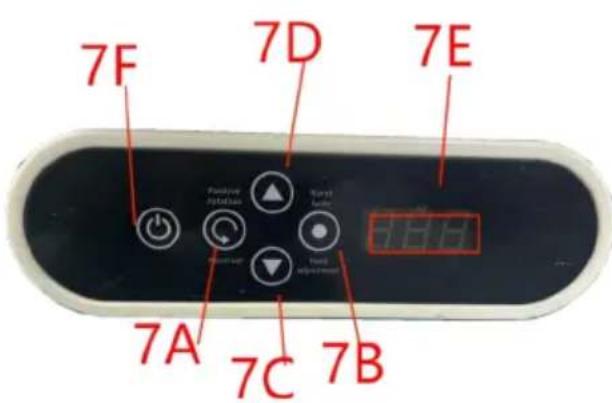

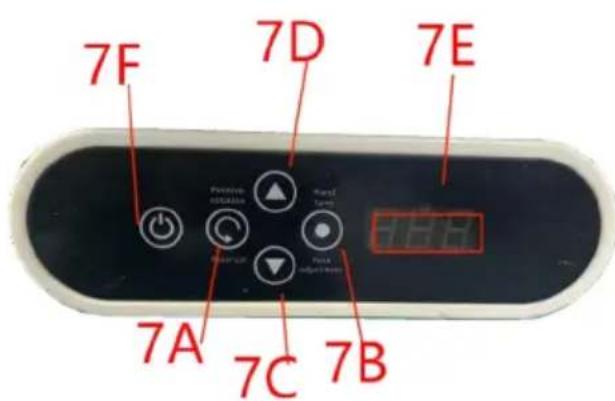

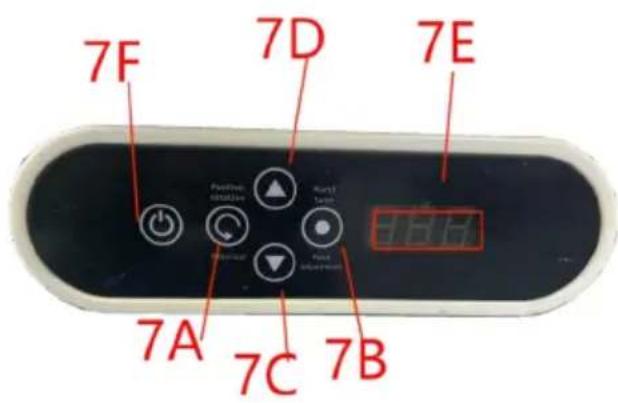

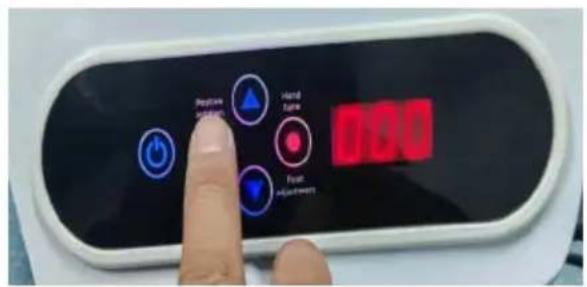

1. Touch panel

7A: Forward/Reverse switch 7B: Manual/Pedal switch

7C: Slow down 7D: Acceleration

7E: Display 7F: Touch switch

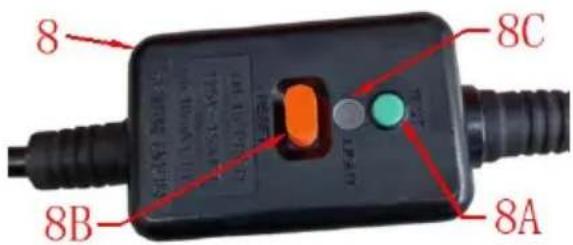

8. Leakage protector

8A: Test button

(Press once a month. It is normal if the indicator goes off after you press it.) 8B: Reset button

(If the power is off, please first remove the leakage danger, and then press this key to restore the power.)

8C: Indicator light (Power on when the light is on.)

TOOL ACCESSORIES AND USE

1. Apron (x1): Prevents clothes from getting dirty.

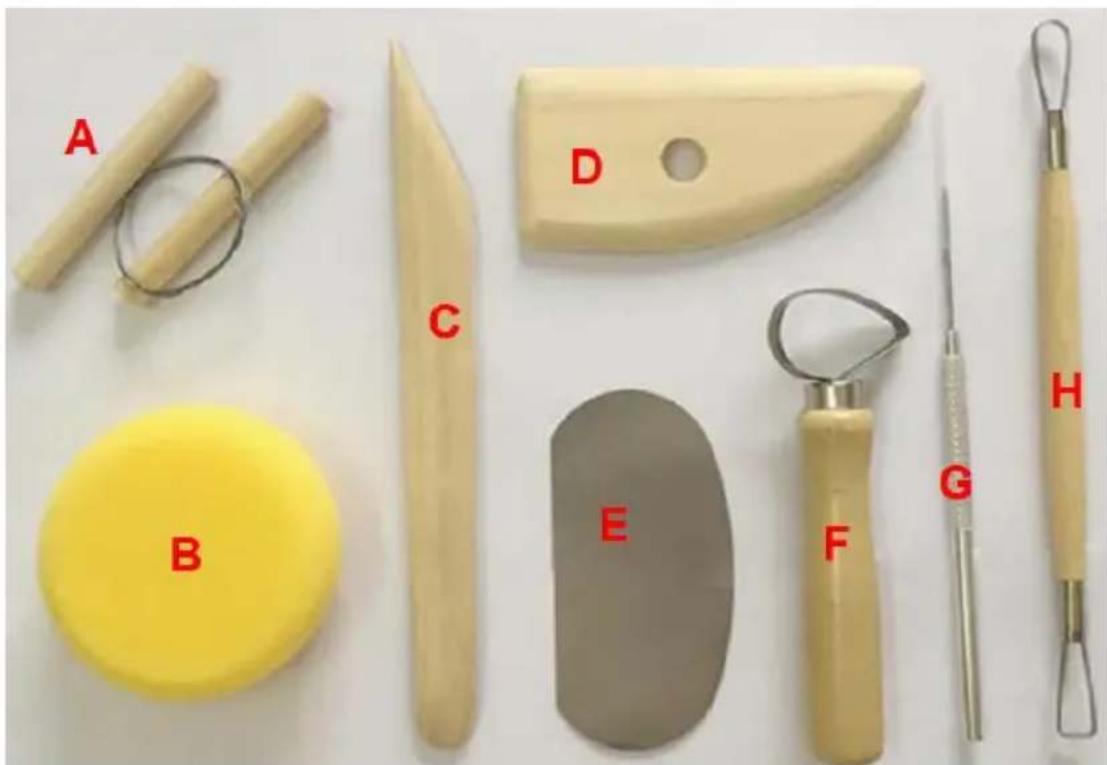

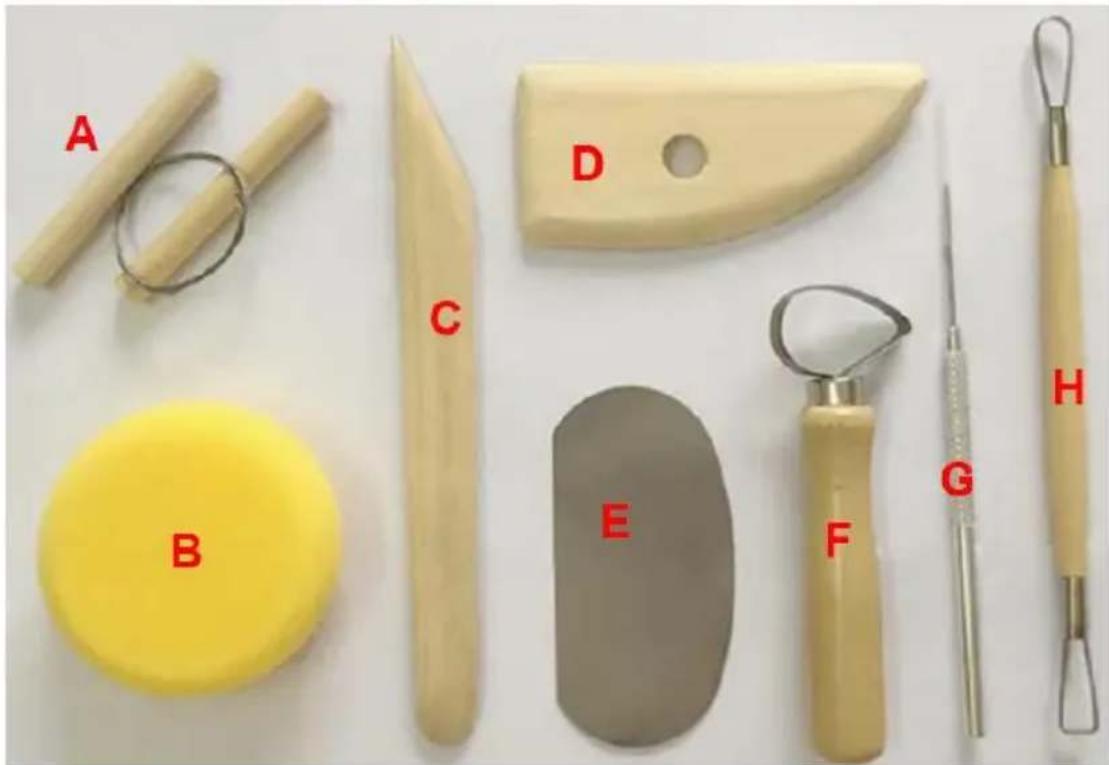

1. 8-Piece Tool Set (x1)

A (Clay cutting line): Assists in precisely cutting clay (cutting surface is very smooth) / repairing and leveling the mouth of the work / taking away the finished product.

B (Small yellow sponge): Add water or absorb water / trim the surface or mouth edge to make it smooth.

C (Wooden knife): Trim the bottom for later removal / trimming.

D (Wooden scraper): Trim the opening / shape and remove the excess clay on the surface to make it smooth.

E (Stainless steel scraper): Remove the excess clay on the surface to make it smooth.

F (Circular large flat wire knife): Trim the surface of the vessel / control the thickness / trim out the bottom ring foot.

G (Steel needle): Scrape off excess clay from the mouth edge / remove air bubbles / punch holes.

H (Ribbon flat wire knife): Finely trim the surface of the utensil or circle the

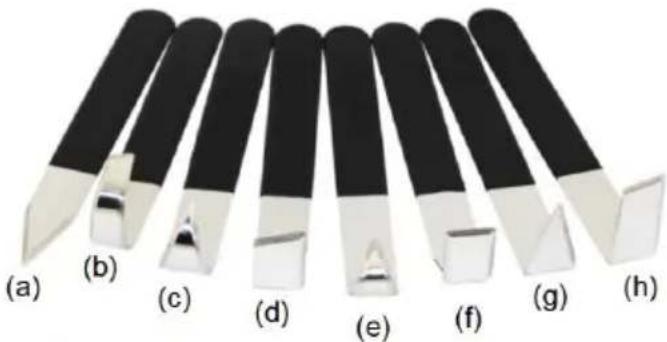

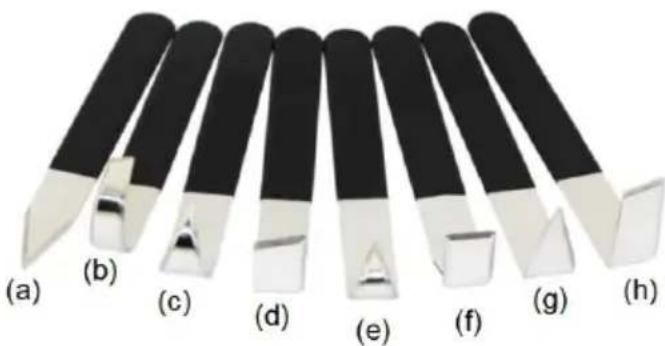

1. Stainless steel clay-repair knife 8-piece Set (x1): Repair clay molds as shown below.

(a)

(b)

(c)/(e)

(g)

(g)

(d)/(f)/(h)

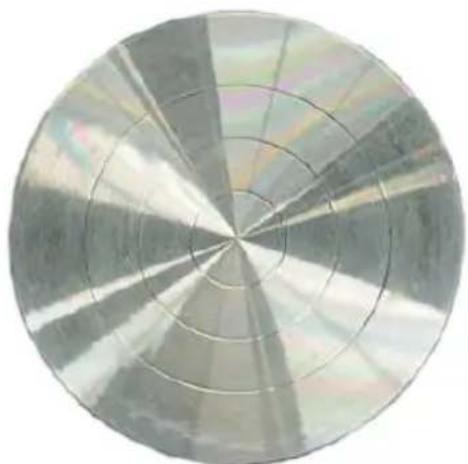

1. Aluminum turntable: The size of the turntable depends directly on the maximum diameter we can achieve.

(Loosen the bolts with a wrench and replace it)

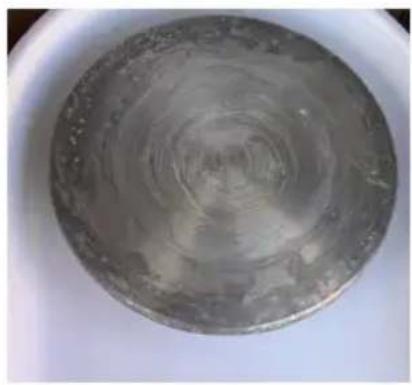

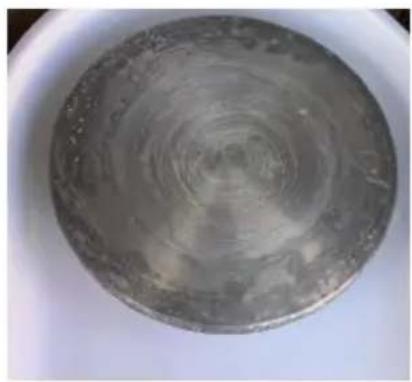

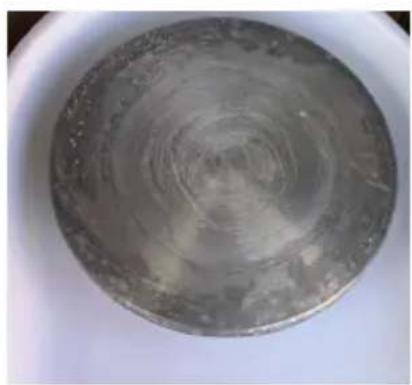

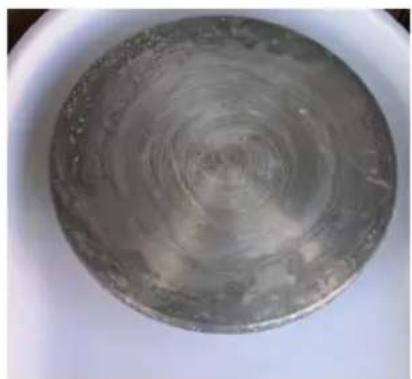

If not cleaned in time, the turntable will oxidize as shown.

NOTE: After the work, please clean the sludge on the turntable in time, and wipe it with a dry towel to avoid oxidation on the surface of the turntable!

OPERATING STEPS

Step 1: Take out a proper amount of clay, throw the mud ball in the center wheel, and press it (wet your hands).

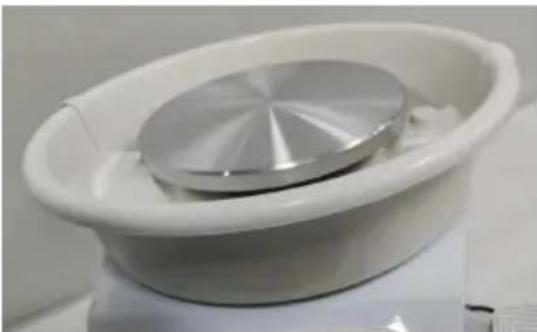

Step 2: Plug in the power (If the water basin is not installed, install the water first).

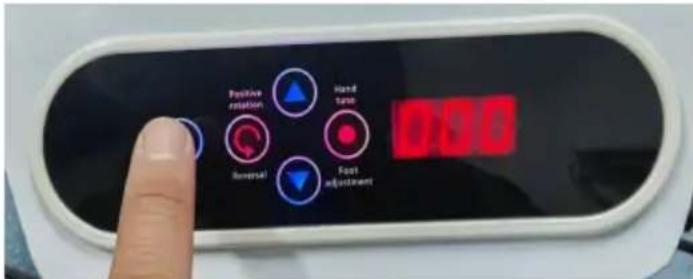

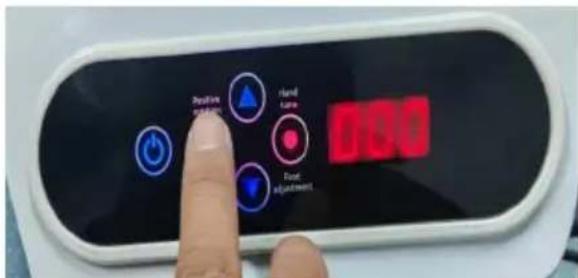

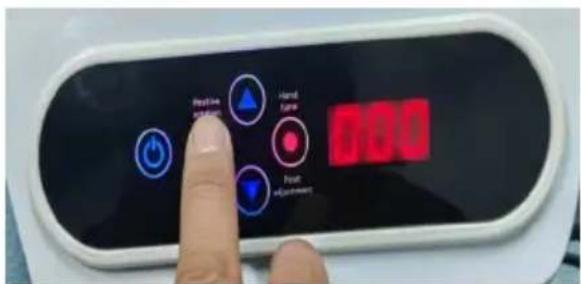

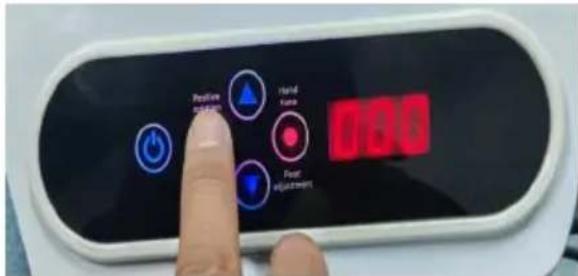

Step 3: Turn on the switch and choose the direction of forward (clockwise)/reverse (counterclockwise) rotation according to your needs.

Step 4: Adjust the speed and start clay molding with tools (You can also choose to pedal the speed control).

Step 5: Clay-mold repairs with tools.

Step 6: Creative painting and coloring can be carried out according to their own needs.

After the work is completed, stop the machine in reverse order.

Remove the molding with a scraper/clay cutting line.

Place in a cool place for a period of time before firing.

SKILLS GUIDANCES

Problem	Reason	Solution
Fracture of clay	Excessive force during lifting	The lifting process should be small and even.
Clay is in a spiral shape.	The clay molding speed exceeds the machine speed	Turn the mold a few times advance.
Clay unevenly stressed presses	Abnormal posture of clay molding.	Sit firmly and keep your back neck, shoulders, upper arms, forearms, wrists and palms s Coordinate your whole body Strength.
Clay off center	Got wrong and unstable for on hands when looking for center.	The left palm must be place the eight o 'clock position or the turntable and applied downward oblique pressure with even force.
The opening is uneve and off-center.	1.The center is not found correctly.2.Not opening in the center3.Hands shake when pressir down, uneven force.	The opening of the middle t the left finger or thumb mus assisted by the right finger a must be pressed down vertically from the center point
Hollow at the bottom	Pressing down too fast and too hard.	1.The bottom thickness of the hole should be left about 202.Pause the machine, add no clay, start the machine, and smooth the surface.
Bubbles.	The clay has not been kneaded properly.	Pause the machine and prick the air bubbles with a need fill the hole with clay, then the machine to smooth the surface.
Uneven thickness when lifted.	Hands are not on parallel or uneven force.	The inner and outer fingertip must move synchronously in straight line when lifting the clay.
Mold collapsed.	1.There was too much water and the clay was too soft hold.2.Opening rapidly expands, deforms, and collapses.3.The wall is thick on the and thin on the bottom, wh cannot be supported.4.Clay is used for too long its viscosity decreases.	1. Use as little water as possible when drawing.2. Keep your hands moving from the bottom to the top.3. Never press down.4. Rapid prototyping.
Bottom break	1.Knead clay is not uniform clay dry and wet is not uniform.2.Water at the bottom, no water absorption after	1.Knead the clay evenly.2.Sponge up the water inside the vessel when finished.3.Let dry on a solid board.4.Keep out of the sun.

forming.3.When dry, not placed on absorbent boards.4.Sun exposure.5.Too thick at the bottom.

5.The bottom thickness is less than 2cm.

TROUBLESHOOTING INSTRUCTION

Problem	Reason	Solution
Does not work.	The power supply is not connected.	1.Check whether the power plug is properly inserted.2.Check whether the leakage protector is on.
Shaking of the machine	The machine is not level with the ground.	Adjust the four feet of the machine so that the machine is level with the ground.
The turntable makes a sound.	The water basin against t turntable.	Check whether water basin is properly installed.
Water basin is leaking.	1.The water exceeds the waterproofing edge of the basin.2.The water basin is not installed properly.	1.Check whether the storage of mud water exceeds the waterproof edge.2.Check that water basin properly installed.
The turntable jumps too much.	The fastener is loose.	Check whether the fastene is loose. If not, ask a professional to debug it.

CLEAN AND CARE RULES

1. After finishing the equipment operation, it is necessary to clean the clay surface of the turntable and wipe the water stains on the surface of the turn (Do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.
