LSMNSP-515 - Potter's wheel Vevor - Free user manual and instructions

Product type	Pottery wheel
Brand	Vevor
Model	LSMNSP-515
Power supply voltage	AC 100-240 V ~ 50/60 Hz
Power	30 W
Variable speed	0 to 330 RPM
Maximum clay load	1 kg
Sound power level	55 dB
Rotation direction	Forward (clockwise) / Reverse (counterclockwise)
Turntable material	Aluminum
Plate diameters	Φ65 mm and Φ100 mm
Included accessories	Apron, 8-piece tool set, 8-piece stamp set
Speed control	By rotary knob (clockwise: acceleration, counterclockwise: deceleration)
Protective basin	Removable splash-proof basin
Usage	Household only
Electrical safety	Cut-off switch, leakage protection
Cleaning	Wipe water stains; do not rinse with water
Periodic maintenance	Check fixings; run at least once a month
Compliance	FCC Part 15, WEEE Directive 2012/19/EU
Warranty	Electronic warranty certificate (Vevor support)

Frequently Asked Questions - LSMNSP-515 Vevor

How to center the clay on the turntable?

Place your left palm at the eight o'clock position and apply downward oblique pressure with uniform force. Wet your hands to facilitate centering.

How to adjust the wheel speed?

Turn the control knob clockwise to increase speed, counterclockwise to decrease it. The speed ranges from 0 to 330 RPM.

How to change the rotation direction?

Use the forward/reverse switch. Stop the motor first before changing direction to avoid damage.

What to do if the machine does not start?

Check that the power plug is properly inserted and the leakage protector is not tripped. Ensure the switch and pedal are in the off position before powering on.

How to clean the pottery wheel after use?

Wipe clay and water stains on the turntable surface with a cloth. Never rinse the machine with water to avoid damaging the motor, switch, and bearings.

Why does the turntable jump or make noise?

Check that the machine is level and the four feet are adjusted. If the noise persists, ensure the water basin is not in contact with the plate and the fixings are tight.

How to avoid air bubbles in the clay?

Knead the clay properly before using. If bubbles appear, pause the machine, poke the bubbles with a needle, fill the hole with clay, and smooth the surface.

What accessories are included with the wheel?

The kit includes an apron, an 8-piece tool set (cutting wire, sponge, wooden knife, scrapers, needle, etc.) and an 8-piece stamp set for decoration.

What is the maximum clay load?

The maximum payload is 1 kg of clay. Do not exceed this limit to avoid damaging the motor.

How to maintain the machine if it is rarely used?

Run the machine at least once a month to prevent seizing. Regularly check that all fixings are tight.

USER MANUAL LSMNSP-515 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

POTTERY WHEEL MACHINE

MODEL:LSMNSP-515

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent savings you might benefit from buying certain tools with us compared to top brands and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

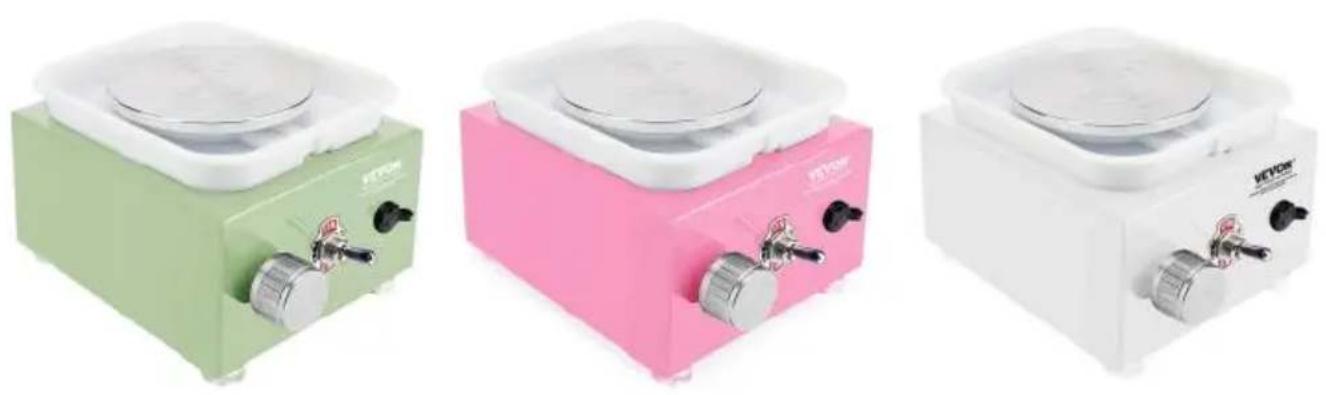

POTTERY WHEEL MACHINE

MODEL:LSMNSP-515

NOTE: The color is subject to your purchase.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you if there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING: Read all safety warnings, instructions, illustrations, and specifications

provided with this electrical equipment. Failure to follow all instructions listed below may result in electric shock, fire, and/or serious injury.

Save all warnings and instructions for future reference.

	Warning - To reduce the risk of injury, user must read inst manual carefully.
	Alternating current
	This symbol, placed before a safety comment, indicates a ki precaution, warning, or danger. Ignoring this warning may lea accident. To reduce the risk of injury, fire, or electrocution, always follow the recommendation shown below.
	HOUSEHOLD USE ONLY
	CORRECT DISPOSALThis product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed throl indicates that the product requires separate refuse collection European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to acollection point for recycling electrical and electronic devices.

1. This equipment is only applicable to ceramic drawings and cannot be used for other purposes. Do not use the equipment roughly.
2. The equipment shall be placed on a cool, ventilated, dry, dust-proof and level ground.
3. Users must wire and install according to electricity safety standards.
4. Do not change the rotation direction when the motor is running. To change the rotation direction, stop it first, and start it after the motor completely stops rotating.
5. Please use a towel or sponge to clean the machine body, and do not use a lot of water to wash it to avoid water immersion in the motor, switch, bearing, and other parts, which may cause failure.
6. Before use, make sure that the switch and pedal are in the stop position before plugging in the power.
7. When repairing or replacing parts, the switch must be cut off and the power supply must be unplugged.
8. Children should use this equipment with adult supervision. (Note: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.)
9. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

NOTE: Rotating the switch clockwise will increase the speed, and the power and sound will gradually increase as well. This is a normal phenomenon.

FCC Information

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a

particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.

- Connect the product to an outlet on a circuit different from that to which the receiver is connected.

- Consult the dealer or an experienced radio/TV technician for assistance.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	LSMNSP-515
Maximum Payload(Clay)	1KG
Voltage	AC 100-240V~ 50/60Hz
Power	30W
Speed	0-330r/min
Sound power level	55dB

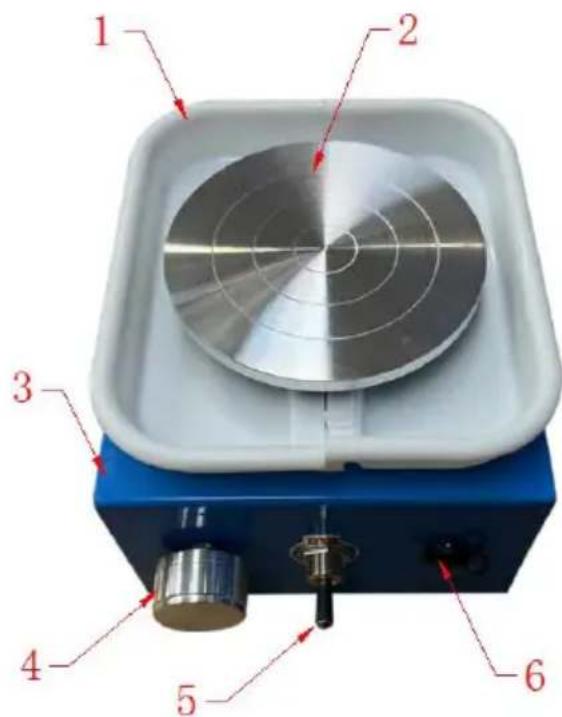

STRUCTURE DIAGRAM

1. Removable dirt basin★Prevents clay from splashing and does not hold water. 2. Aluminum turntable 3. Equipment body 4. Speed regulation switch 5. Forward/reverse switch 6. Power plug

TOOL ACCESSORIES AND USE

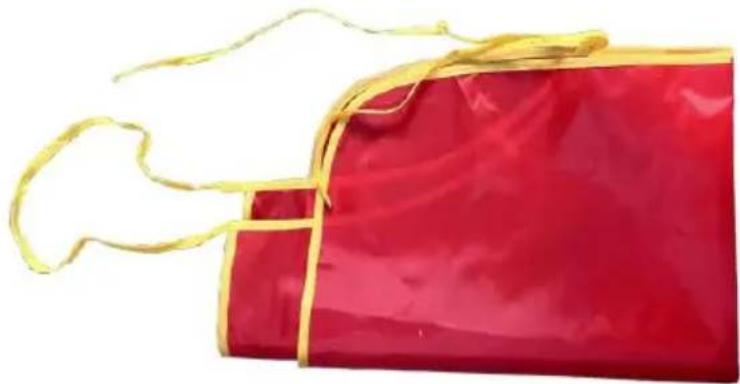

1. Apron (x1): Prevents clothes from getting dirty.

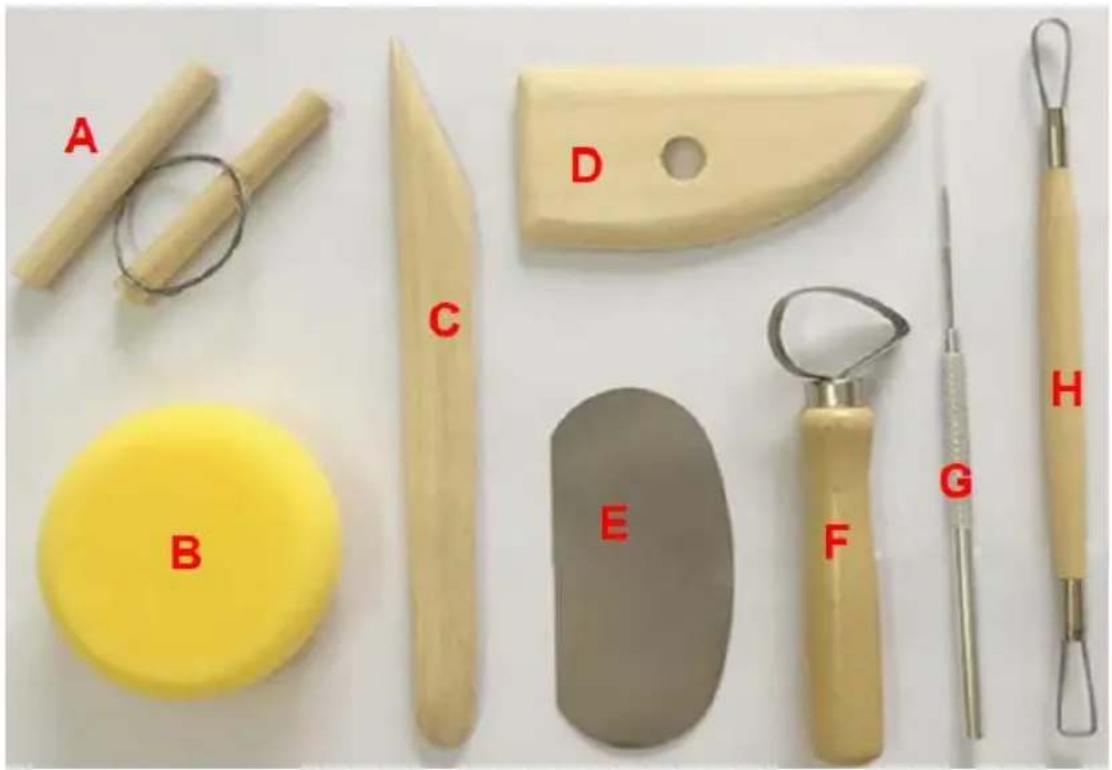

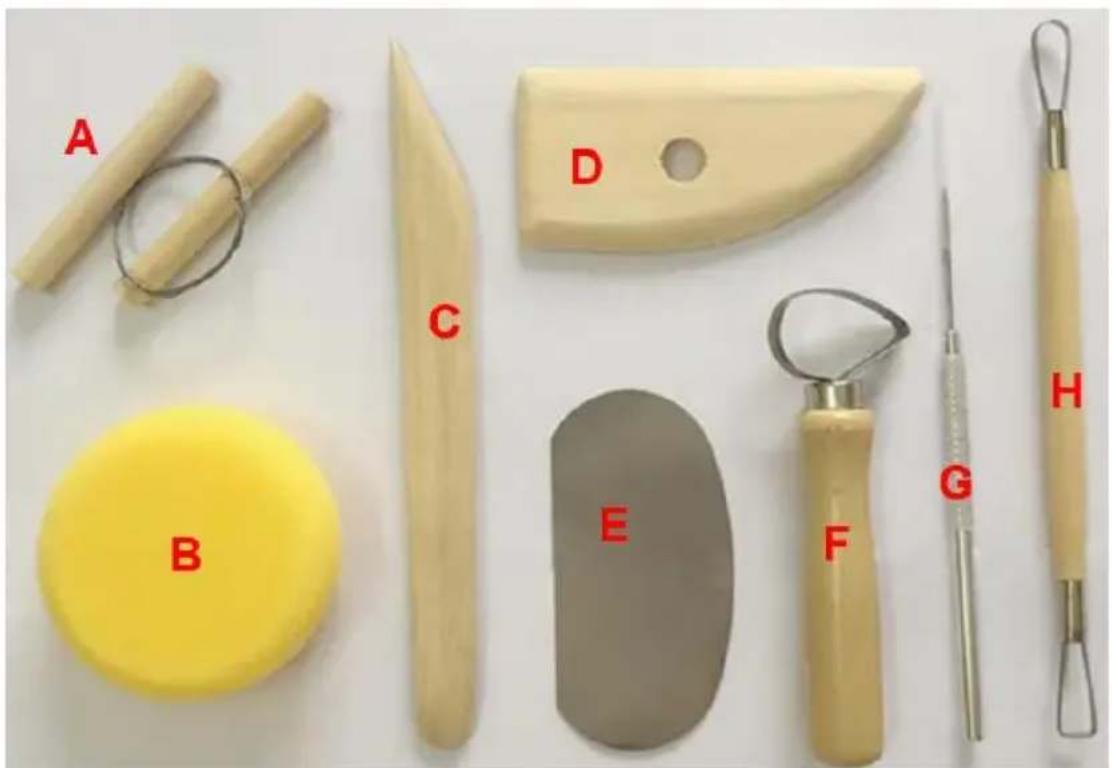

2. 8-Piece Tool Set (x1)

A (Clay cutting line): Assists in precisely cutting clay (cutting surface is very smooth)/repairing and leveling the mouth of the work/taking away the finished product.

B (Small yellow sponge): Add water or absorb water/trim the surface or mouth edge to make it smooth.

C (Wooden knife): Trim the bottom for later removal/trimming.

D (Wooden scraper): Trim the opening/shape and remove the excess clay on the surface to make it smooth.

E (Stainless steel scraper): Remove the excess clay on the surface to make it smooth.

F (Circular large flat wire knife): Trim the surface of the vessel/control the thickness and cut out the bottom ring foot.

G (Steel needle): Scrape off excess clay from the mouth edge/remove air bubbles/pinholes.

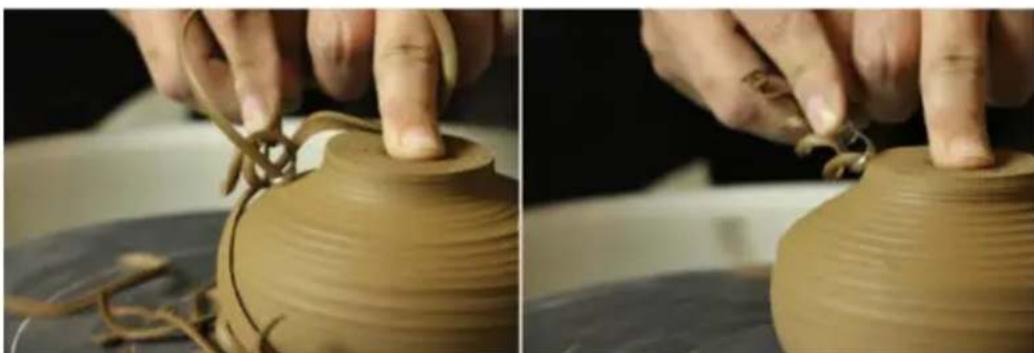

H (Ribbon flat wire knife): Finely trim the surface of the utensil or circle the foot.

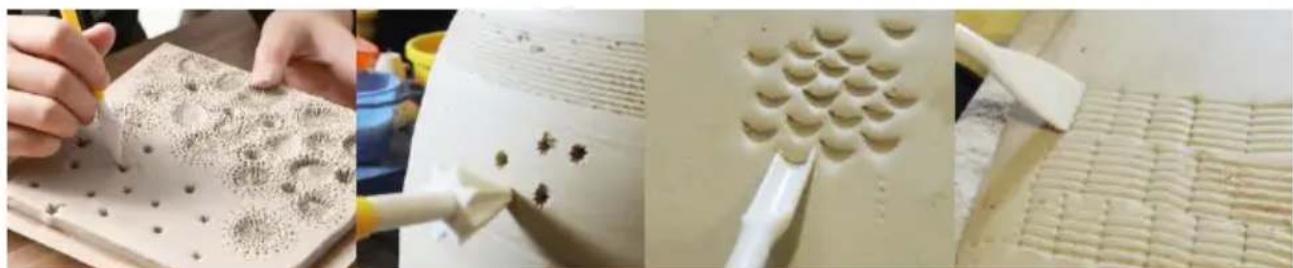

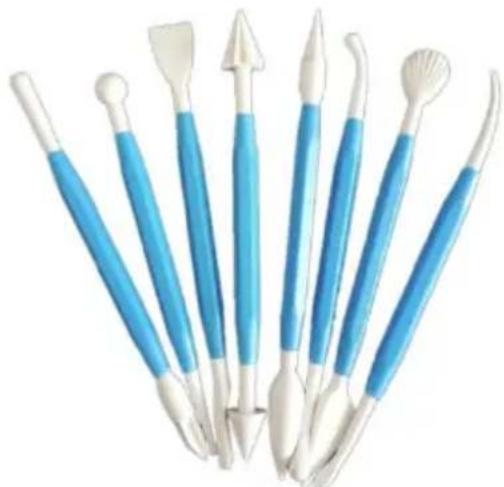

1. Plastic Printing 8-piece Set (x1): Texture decoration, bonding, clay modeling, and so on (as shown below).

1. Aluminium turntable (Φ65mm+Φ100mm): The size of the turntable depends directly on the maximum diameter we can achieve.

(Loosen the bolt with a wrench and replace it)

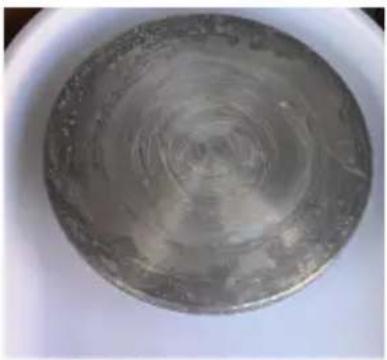

If not cleaned in time, the turntable will oxidize as shown.

OPERATING STEPS

Step 1: Take out a proper amount of clay, knead it into a cone shape, fix it at the center of the rotary table, and press it (wet your hands).

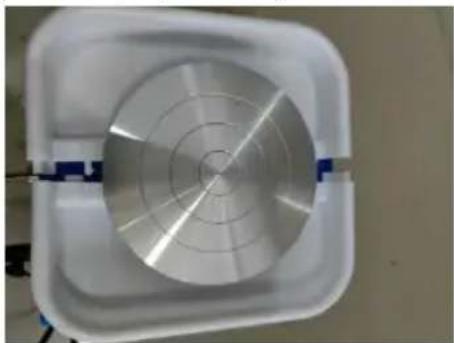

Step 2: Plug in the power (If the water basin is not installed, install the water basin).

Step 3: Choose the direction of forward (clockwise) or reverse (counterclockwise) rotation according to your needs.

Step 4: Turn the knob to adjust the proper speed. (Clockwise acceleration, reverse deceleration)

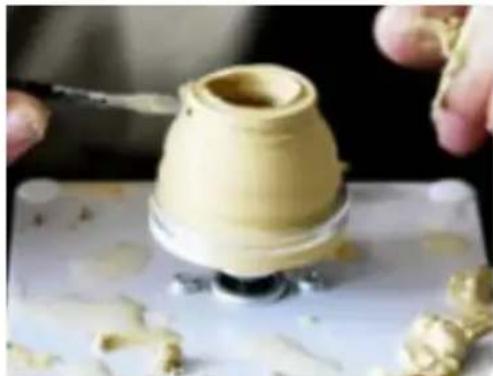

Step 5: Clay molding with tools.

Step 6: Dry the body surface quickly with a hot air gun (1-3 minutes).

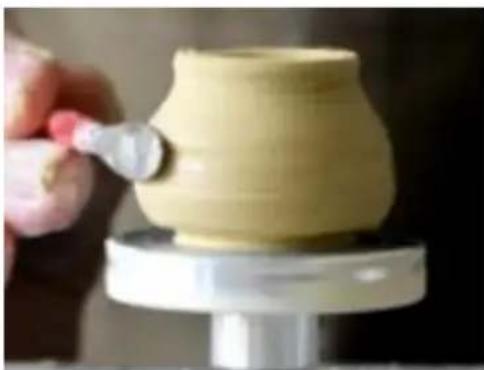

Step 7: Clay-mold repairs with tools.

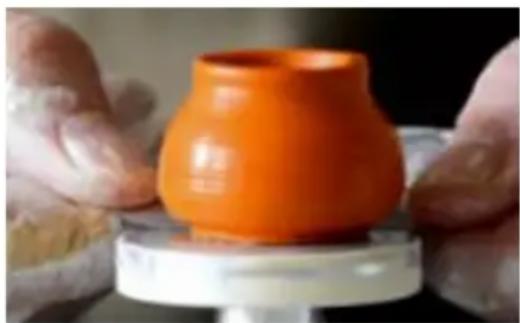

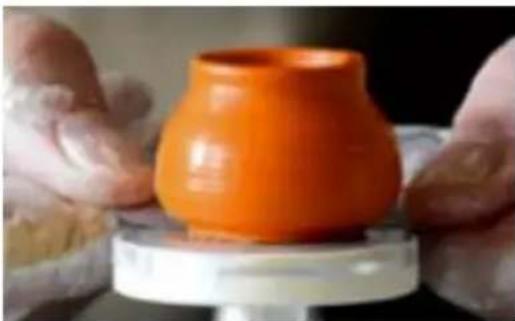

Step 8: Creative painting and coloring can be carried out according to your own needs.

After the work is completed, stop the machine in reverse order.

Remove the molding with a scraper/clay cutting line.

Place in a cool place for a period of time before firing.

SKILLS GUIDANCE

Problem	Reason	Solution
Fracture of clay	Excessive force during lifting	The lifting process should be small and even.
Clay is in a spiral shape.	The clay molding speed exceeds the machine speed.	Turn the mold a few time advance.
Clay unevenly stressed presses	Abnormal posture of clay molding.	Sit firmly and keep your back, neck, shoulders,upper arms, forearms, wrists and palms still. Coordinate your whole bo Strength.
Clay off center	Got wrong and unstable force on hands when looking for the center.	The left palm must be placed in the eight o 'clo position on the turntable a applied downward oblique pressure with even force.
The opening is uneven ar off-center.	1.The center is not found correctly.2.Not opening in the cent3.Hands shake when pressing down, uneven force.	The opening of the middle tip of the left finger or th must be assisted by the right finger and must be pressed down vertically from the center point.
Hollow at the bottom	Pressing down too fast ar too hard.	1.The bottom thickness of the hole should be left a 2cm.2.Pause the machine, add new clay, start the machi and smooth the surface.
Bubbles.	The clay has not been kneaded properly.	Pause the machine and prick the air bubbles with needle, fill the hole with clay, then start the machi to smooth the surface.
Uneven thickness when lifted.	Hands are not on parallel lines or uneven force.	The inner and outer fingertips must move synchronously in a straight line when lifting the clay.
Mold collapsed.	1.There was too much wa and the clay was too sof hold.2.Opening rapidly expands, deformation and collapse.3.The wall is thick on the and thin on the bottom, which cannot be supported4.Clay is used for too long and its viscosity decreases	1. Use as little water as possible when drawing.2. Keep your hands movifrom the bottom to the to 3. Never press down.4. Rapid prototyping.
Bottom break	1.Knead clay is not uniform clay dry and wet is not uniform.2.Water at the bottom, no water absorption after forming.3.When dry, not placed o absorbent boards.4.Sun exposure.5.Too thick at the bottom.	1.Knead the clay evenly.2.Sponge up the water inside the vessel when finished.3.Let dry on a solid board.4.Keep out of the sun.5.The bottom thickness is less than 2cm.

TROUBLESHOOTING INSTRUCTION

Problem	Reason	Solution
Does not work.	The power supply is not connected.	1.Check whether the power plug is properly inserted.2.Check whether the leakage protector is on.
Shaking of the machine	The machine is not level with the ground.	Adjust the four feet of the machine so that the machine is level with the ground.
The turntable makes a sound.	The water basin against t turntable.	Check whether water basin is properly installed.
Water basin is leaking.	1.The water exceeds the waterproofing edge of the basin.2.The water basin is not installed properly.	1.Check whether the storage of mud water exceeds the waterproof edge.2.Check that water basin properly installed.
The turntable jumps too much.	The fastener is loose.	Check whether the fastene is loose. If not, ask a professional to debug it.

CLEAN AND CARE RULES

1. After finishing the equipment operation, it is necessary to clean the clay on the surface of the turntable and wipe the water stains on the surface of the turntable (Do not rinse directly with water).
2. Check the parts regularly for looseness.
3. If you use it sparingly, run it at least once a month.
