Product type	Water distiller
Brand	Vevor
Model	YMK40101
Tank material	304 stainless steel
Cover material	Polypropylene
Tank capacity	4 L (1.1 gal)
Power supply voltage	220-240 V AC
Frequency	50-60 Hz
Rated power	750 W
Collection bottle volume	4 L
Processing rate	1 L/h
Safety shut-off temperature	150 °C (300 °F)
Anti-dry protection	Yes (automatic shutdown when tank is dry)
Fan	Quiet, super cooling technology
Included accessories	Bottle, bottle cap, citric acid, silicone tube, activated charcoal bags (4), power cord
Maintenance	Cleaning with citric acid after each use; monthly cleaning of tank and bottle
Activated charcoal replacement	Every 25 days for optimal water quality
Intended use	Domestic and similar (kitchen, offices, hotels)
Compliance standards	FCC Part 15, European WEEE directive

Frequently Asked Questions - YMK40101 Vevor

What is the tank capacity of the Vevor YMK40101 distiller?

The tank has a capacity of 4 liters (1.1 gallon).

How long does it take to distill 4 liters of water?

The processing rate is about 1 liter per hour, so it takes about 4 hours to distill 4 liters.

How to clean the distiller for first use?

Add 1 liter of water and 2 tablespoons of citric acid to the tank, boil for 20 minutes, then rinse with clean water. The distilled water obtained during this first cycle should not be drunk.

How often should the activated charcoal bag be replaced?

The activated charcoal bag should be replaced every 25 days to ensure odorless and good-tasting water.

What to do if there is abnormal noise coming from the top of the device?

Abnormal noise may be due to dirt buildup on the motor. Clean the motor and reassemble the top. If the problem persists, contact customer service.

Does the device shut off automatically when the tank is empty?

Yes, the Vevor distiller is equipped with anti-dry protection: it automatically turns off when the water in the tank has completely evaporated.

Can hot water be used to speed up distillation?

Yes, using hot or boiling water can reduce distillation time.

How to install the silicone tube and outlet nozzle?

Insert the silicone tube into the outlet nozzle. Before installing the nozzle into the head, place an activated charcoal bag in the nozzle. Make sure the O-ring is properly positioned.

Is it safe to leave the device unattended?

The device has safety protections, but it is recommended not to leave it unattended during operation. Unplug it after use.

What to do if water leaks from the top during distillation?

Check that the rubber gasket is properly installed and not hardened. Make sure the fan is working and the cooling duct is not blocked. Adjust or replace parts as needed.

USER MANUAL YMK40101 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

OPERATING MANUAL OF DISTILLED WATER MACHINE

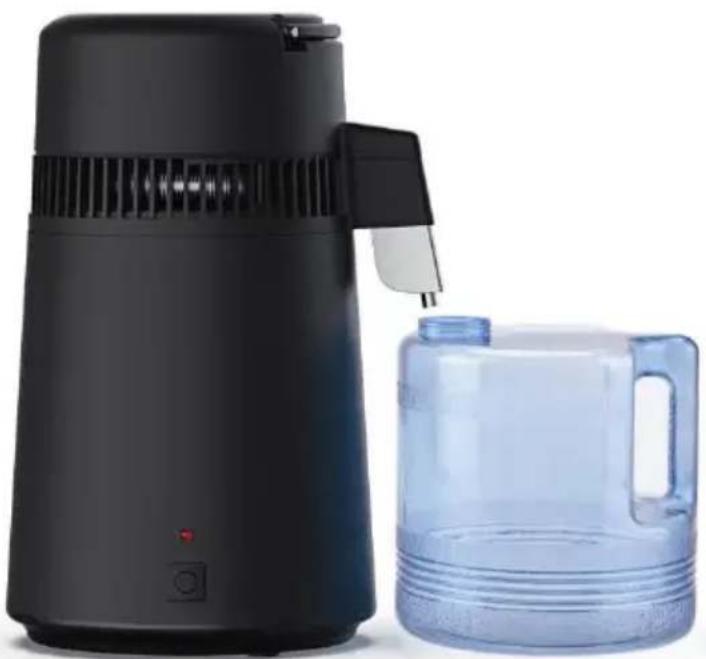

MODEL:YMK40101

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. We are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:YMK40101

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

This device complies with Part 15 of the FCC Rules. is subject to the following two conditions:(1)This device not cause harmful interference, and (2)this device must any interference received, including interference that may cause undesired operation.

This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cross through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electronic devices

PARAMETER

Model	YMK40101
Material	304 Stainless Steel,
	Polypropylene
Input Power	AC 220-240V, 50-60Hz
RatedPower	750W
DistillerVolume	4.2Qt 1.1gal 4L
Bottle Volume
Processing Rate	1.1 qt./hr. 0.26 gph 1L/H
Safety Cutoff Temperatu	300°F 150°C

Thank you for purchasing VEVOR water distiller. Before using our dist please confirm all parts are in good condition and read the instruction carefully.

SAFETY INSTRUCTIONS - Read Before Operating SCALDING DANGER!

IMPORTANT SAFETY INSTRUCTIONS

(WARNING: To reduce the risk of burns, electrocution, fire or injury persons!)

Do not immerse the head and base in water or other liquid, nor flus.
fucet.

After the water in the distillation barrel is dried and automatically prot by the anti-dry protection system, the machine assembly shall be open after an interval of about 15 minutes to avoid possible hurt caused t steam in the barrel.

Before the product is connected to the power supply, confirm whether marked voltage is consistent with the local used voltage.

If the plug, socket or product is damaged, do not remove the machin repair without permission, to avoid the wrong connection of the internal circuit, resulting in power short circuit and other dangers.

This appliance can be used by children aged from 8 years and abovethey have been given supervision or instruction concerning use of the

appliance in a safe way and if they understand the hazards involved. Cleaning and user maintenance shall not be made by children unless are older than 8 and supervised. Keep the appliance and its cord outreach of children aged less than 8 years. This product is not suitable people with physical or mental disorders, to avoid harm caused by w use.

Do not touch hot surface without any protection

ELECTRICAL PRECAUTIONS

Do not disassemble the unit except for the authorized serviceman. Unthe unit before filling it Do not exceed the MAX mark.

Do not touch the socket with a wet hand to reduce the risk of elec. If the plug, socket, or product is damaged, do not remove the machi repair without permission, to avoid the wrong connection of the internal circuit, resulting in a power short circuit and other dangers.

When taking the head components or cleaning products, press the OFF switch first, and unplug the power plug of the head components and host power plug.

Do not share the same outlet with other high-wattage appliances while operating in order to prevent overloading

Always unplug the Main Power Cord before filling or cleaning the unit whenever not in use

INSTRUCTIONS BEFORE FIRST USE

Due to the brand-new stainless steel in the still tank, you may percevery slight "new smell" or faint taste from the first couple of cycles or so.

However, the water is completely pure and safe to consume. Any rescent or taste dissipates with each use until the water becomes comj

odorless and tasteless. After the first few cycles, there should be har any taste at all and in fact, it will "taste" better than any other filtered or bottled water.

Remove the head of the stiller or clean the stiller, press the OFF switch and unplug the power cord

For the first time, add 1.0L of water and 2 tablespoons of citric acid tank of the main engine, boil water for about 20 minutes, after pouring the water, rinse the tank and the distillation cover with clean water (distilled water made for the first time cannot be drunk).

When cleaning the interior, it is forbidden to use steel wire brush (ve) and other hard articles to scrub the inner tank of the main engine a inner tank of the machine head, so as to avoid scratches formed on surface of the inner tank, which will cause dirt accumulation in the g fine scratches.

When it is necessary to stop the production, you can press the OFF. There is no need to wait for the water in the tank of the host mac up completely.

This product can continuously produce distilled water, press the OFF switch and turn on the head component after an interval of about 15 minutes. Add the water with the largest scale into the inner tank of machine, and press the ON switch to restart the distilling.

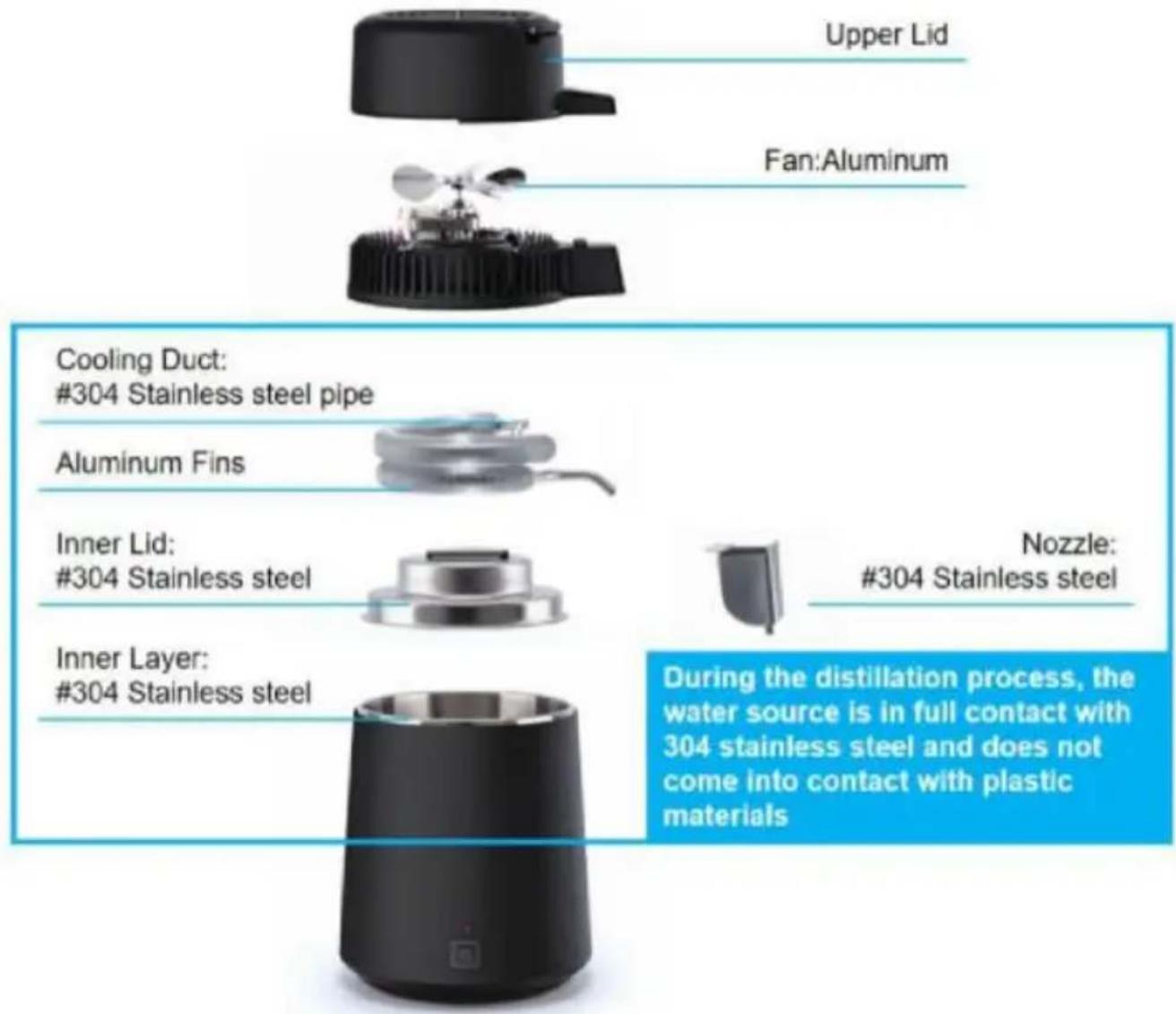

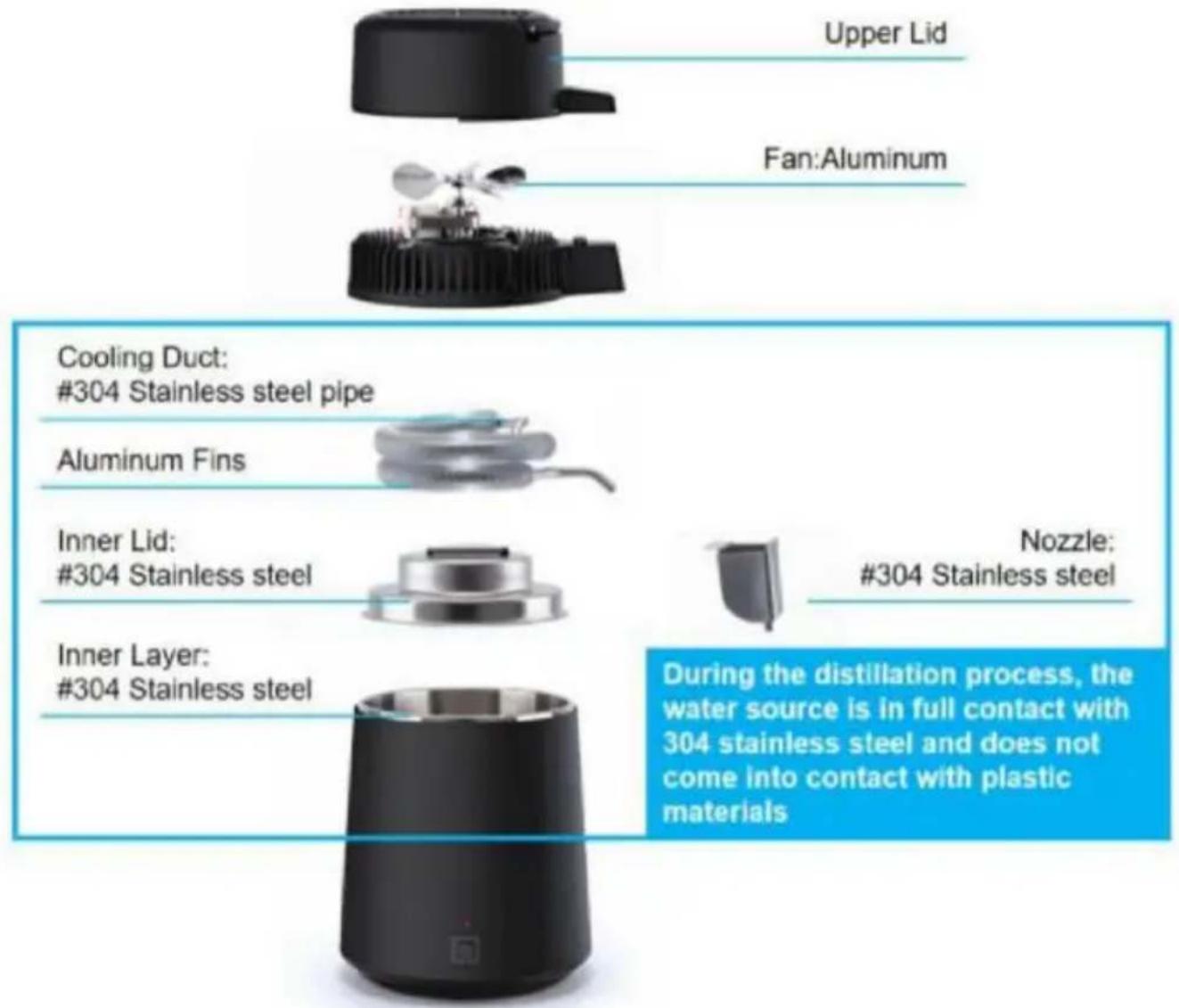

PRODUCT FEATURES

VEVOR Water Distiller Boils the water to kill Bacteria and Parasites, collects the purified steam, and leaves behind impurities. Cools and condenses the steam into pure distilled water.

VEVOR still tank and nozzle are made of 304 stainless steel, equipped with a food-grade silicone tube and high-quality Carafe. At no point did the water touch plastic. 100 % boiled and sterilized, pure, and safe. Drinking distilled water on a daily basis can keep you hydrated and Advanced silent fan + Super cooling technology: Steam supercooling. ON/OFF switch: Start or stop condensate production at any time.

Anti-dry protection function: When the water in the still tank completely evaporates, the temperature control will automatically turn off the power protect the machine.

PACKAGE CONTENT

No.	Name	Qty.		No.	Name	Qty.

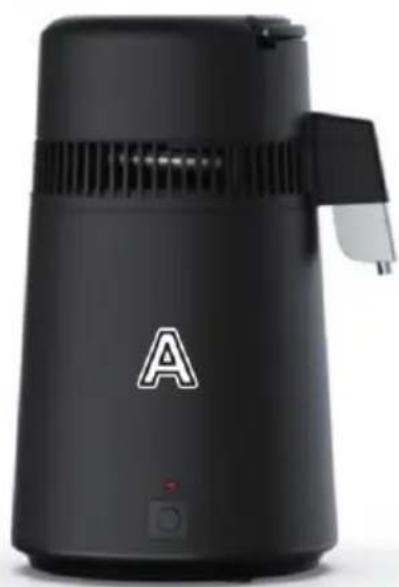

A	Water Distiller	1		E	Bottle cover	1
B	Bottle	1		F	Citric Acid	1
C	Power Cord	1		G	Silicone tube	1
D	Stainless steel du cover	1		H	Activated Charcoal Sachet (The one in the Nozzle)	4

OPERATING INSTRUCTIONS

Install water storage tank	Placing activated carbon	Installing silicone tubing
Put citric acid cleaner agent into the bucke and clean the inner bucket	Fill water into the distiller tank, do not exceed the water lev	Insert the head power cord into the head power cord socket
Connect the powercord of the bod to the main body	Connect the power cord plug of the bod the wall socket hole a suitable cable tray	Place the water storage tank properly

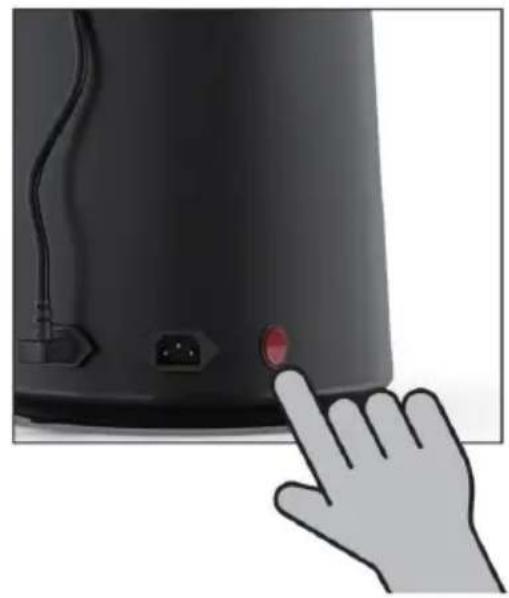

Press the reset switch to start distillation. (in the front of the body)

Turn off the ON/OFF-switch to stop the distillation. (the red on the back of the main box When you turn off the switch, indicator light of it will go out

Do not share the same outlet with other high-wattage appliances while operating in order to prevent overloading, and make sure the surface and the unit is completely assembled

1. Fill water into the distiller tank, do not exceed the water max level

※Using hot or boiled water can reduce the distillation time

1. Place the top of the distiller tank back, Position the collection jar u the distilled water outlet

※ Check whether the sealing ring of the machine head is properly or leaking

3.Connect the power cords with the socket and distiller machine

※ Please make sure power cords are properly connected and fasten

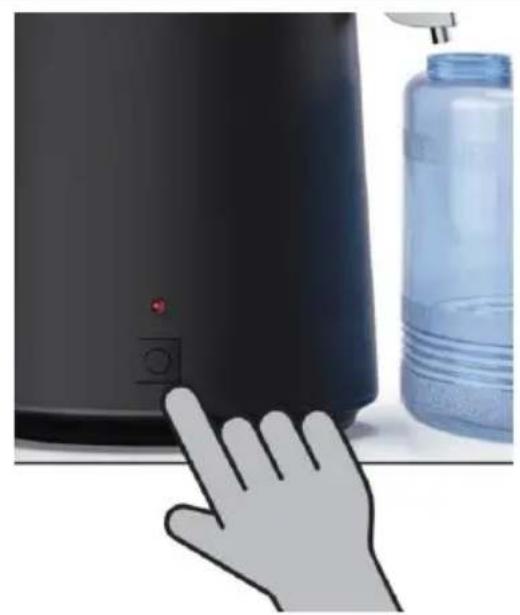

1. Press the GREEN switch on the distiller machine. The indicator of 1 start button lights up, the head fan starts to turn, and the distiller m starts to heat up.

5.The distiller machine is heated for about 30 minutes, and the distille

water starts to drip out slowly from the distiller to the Carafe
6. Stop the distillation by pressing the RED switch or disconnecting the main power cord from the socket

※ VEVOR distiller is specially equipped with anti-dry protection syster automatically stops when the still tank is dry to ensure safety

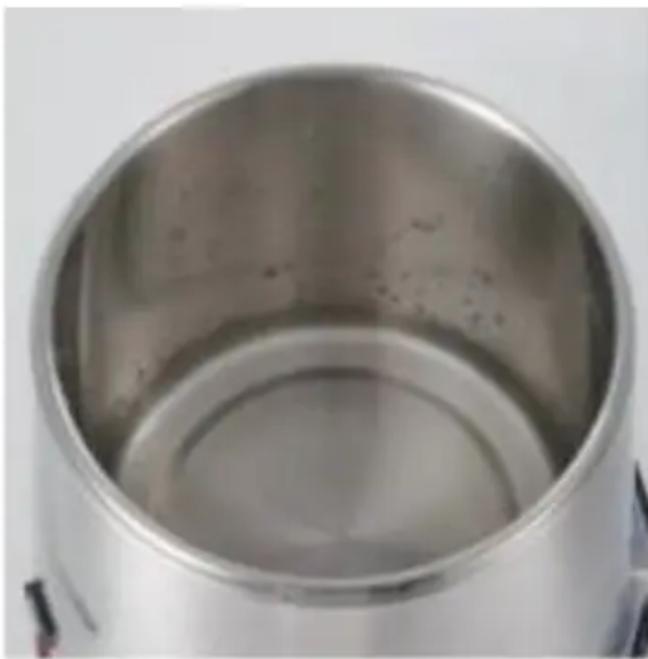

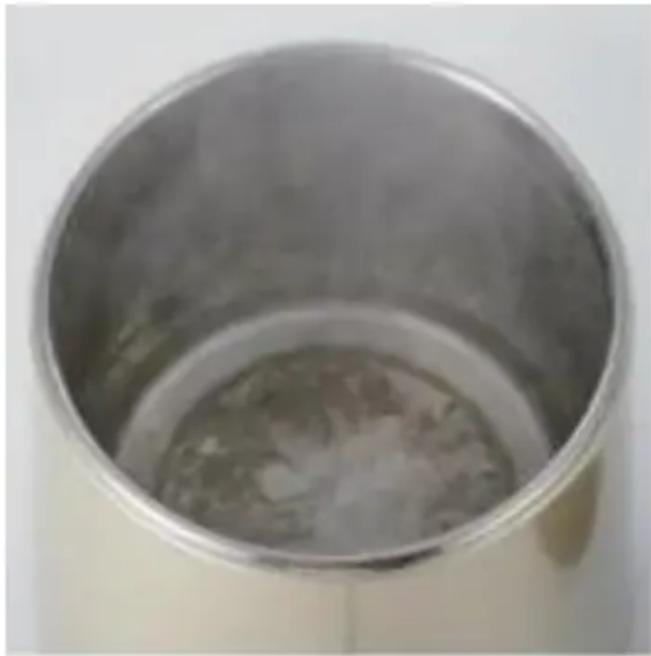

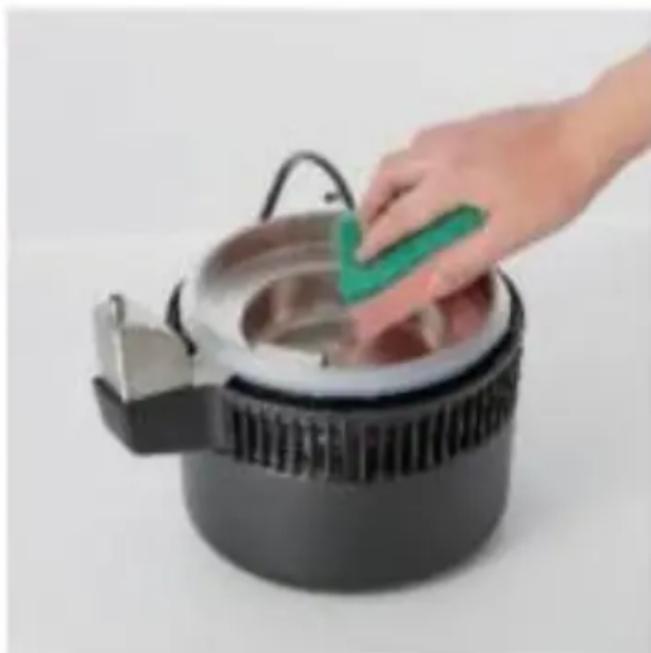

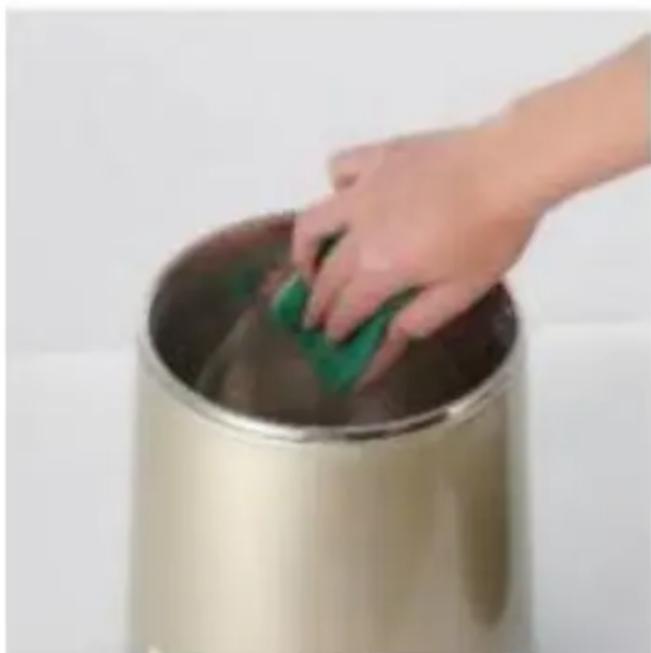

CLEANING INSTRUCTION

※When using it for the first time, please boil it with citric acid and and then clean it.

1. Add 1.0L of water and 2 tablespoons of citric acid into the still tar the top back on, and boil water for about 20 minutes.
2. After pouring out the water, wash the distiller's tank and cap with cloth (the distilled water made for the first time cannot be drunk).
   3.Rinse these parts with clean water while not allowing any electrical components to become wet.

WARM TIPS:

Clean the inside of the boiling tank after each cycle has ended and has cooled for at least 30 minutes. Disconnect the distiller from power allow time for it to fully cool before any cleaning, maintenance, or re- Never use caustic chemicals or harsh abrasives, which might damage steel lining.

Rinse and wipe the distiller's tank daily using clean water and a sc. Clean the distiller's tank and cap at least monthly to remove mineral deposits and other buildup from the stainless steel lining.

Clean the collection bottle at least monthly with warm soapy water and rinse it thoroughly afterward to remove any soap residue. Never alter the between hot and cold water quickly as this may damage the bottle. If this device will not be used for an extended period of time, remove collection cap from the lid, install the storage cap in its place, and s a distiller in a cool dry location out of direct sunlight and inaccessible for children.

※ This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

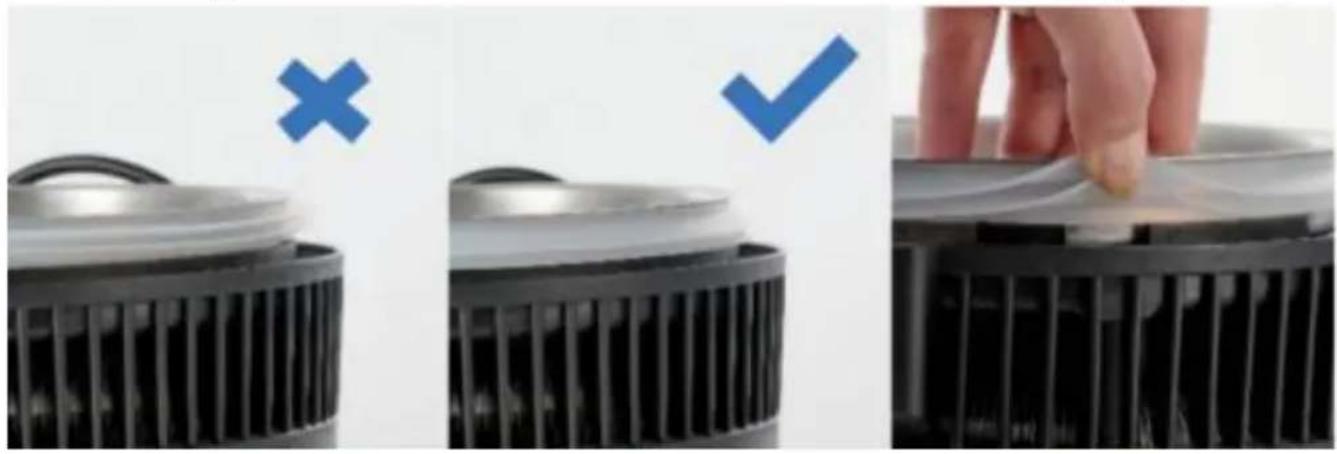

SILICONE SEAL ASSEMBLY

The silicone seal prevents water from escaping the distiller. When placed or replacing it, ensure that the rounded side is facing up.

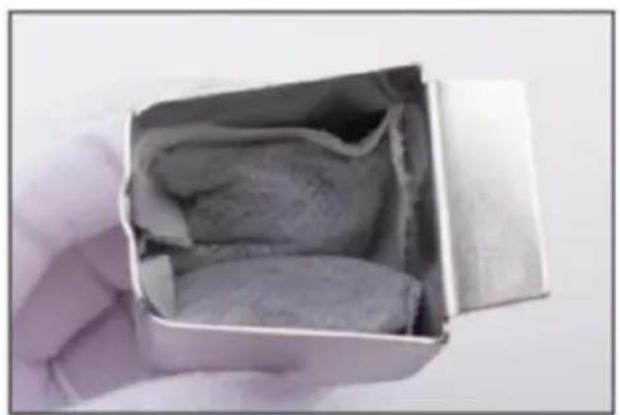

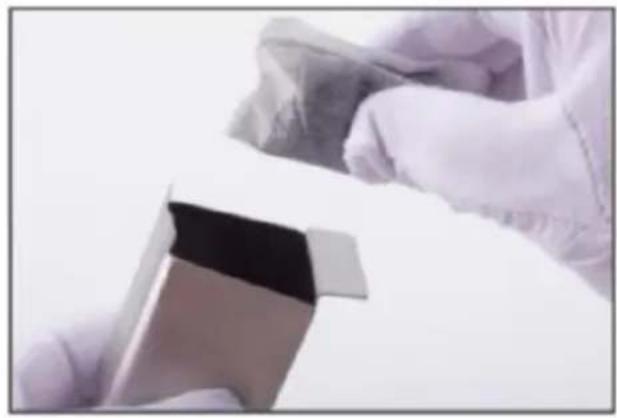

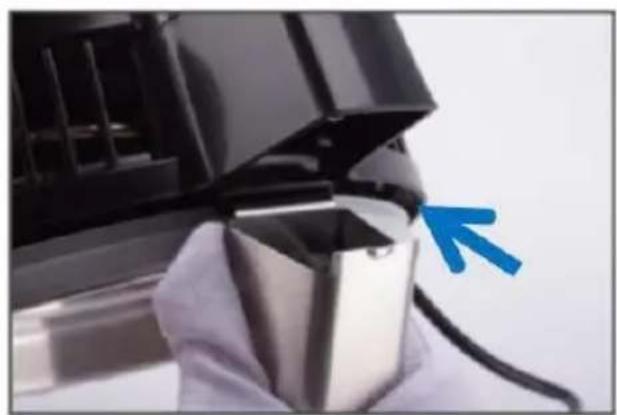

ACTIVATED CHARCOAL & NOZZLE ASSEMBLY

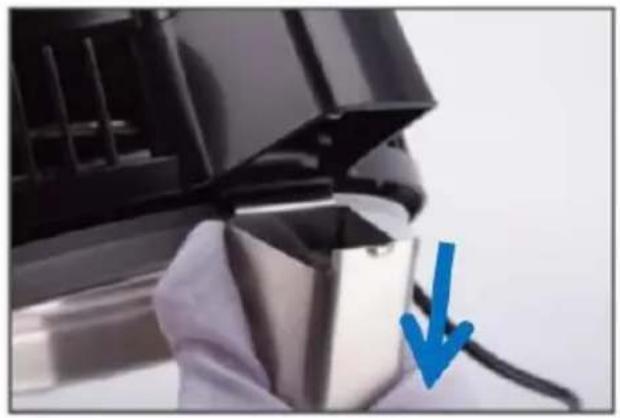

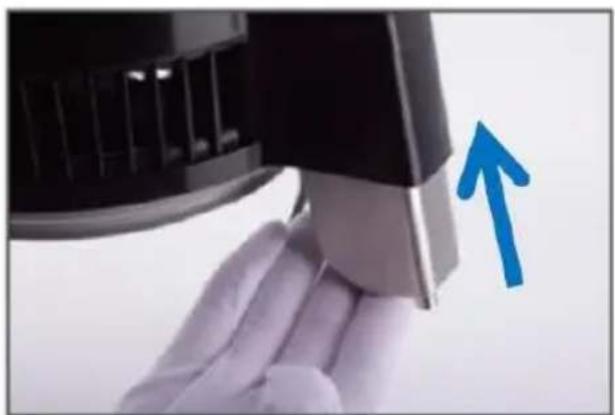

Installation and disassembly of outlet nozzle are shown in the diagram the right. Before the water outlet nozzle is installed into the machine the activated carbon shall be installed into the stainless steel water o nozzle first. Check that the seal remains in place.

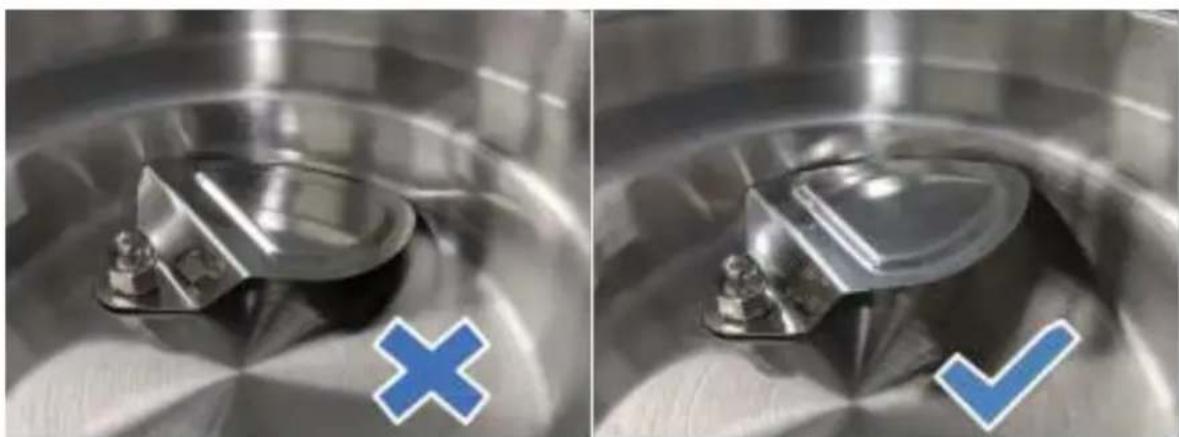

※ If the steam baffle is deformed, please correct it manually, otherwise it will affect the water outlet efficiency.

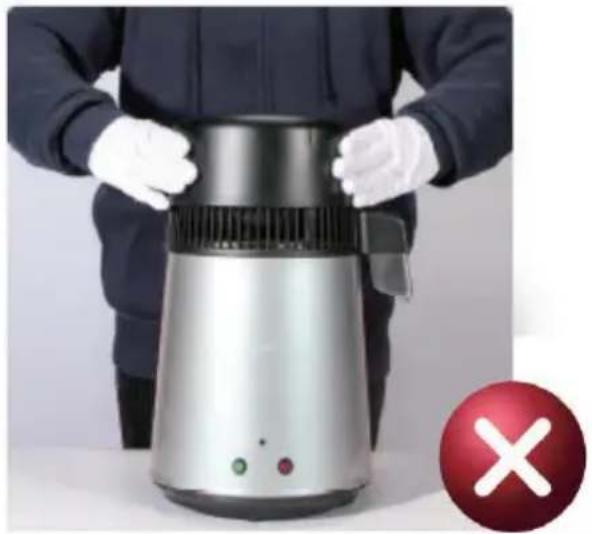

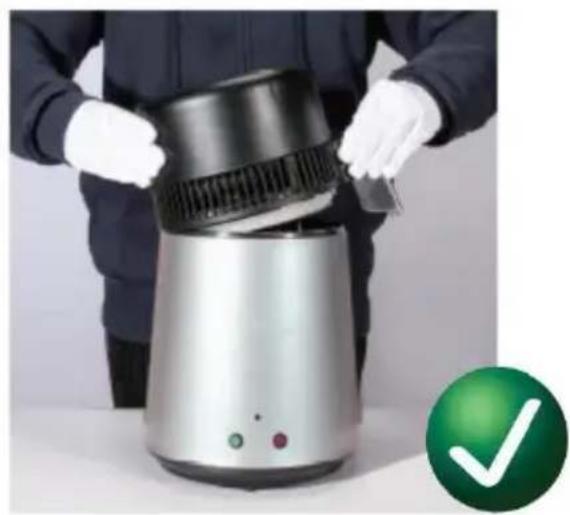

DISTILLER LID OPEN INSTRUCTION

Wait 15 minutes after stop the distillation before removing the lid. Ca open the lid from the side to avoid scald

※ Remove the upper lid 15 minutes after stop distillation

ACTIVATED CHARCOAL SACHET

Activated charcoal ingredients: Natural coconut shell. Functions: Remove odors and improves taste.

Validity date: Each activated charcoal sachet should be replaced within period of 25 days.If a strange taste or odor is discovered in the dist water, please replace the activated charcoal sachet immediately

Water will be tastier if you use 2 sachets at a time.

Please do not place an unused or currently used activated charcoal in the refrigerator to avoid odor absorption that would result in poor water taste.

Used activated charcoal sachet can be re-used for odor removal by p it in shoes or refrigerator. New activated charcoal sachets can release small trace of black powder, which is completely harmless to human body. It is just powdered charcoal. Please use at ease.

New activated charcoal sachets are sealed in sealed plastic bags and should be kept in a cool place.

The stored lifespan of a new activated charcoal sachet is 2 years

DISTILLER CLEANERS

Cleaner ingredients: Food-grade citric acid (made of natural crops such potatoes and corn). Functions: Can dissolve dirt and hard residues, an inhibit the growth of bacteria.

Objective: Cleaning the remaining residue after a distillation process

TROUBLE SHOOTING

Problems	Causes	Solutions
1. Weird noise occurs in the top	(1)Too much dirt on the Motor that cause this part to become defective or weird nois	clean motor and reassemble top
2. Top has function	(1)Motor shaft is stuck	Seeking customer service assistance
	(2)Motor wire connection error	Check the motor wire connection
	(3)Motor fuse malfunction	Replace motor and reassemble
	(4)Power disconnected from the body	Distiller body reexamination
3.Water leakage from the top during the distillation process	(1)Top has bad heat dissipation problem	Be sure the main power coil plug into the wall outlet
	(2)Fan stops running excessive dust	Re-examine the top's function and clean dust
	(3)Cushion rubber ring has hardened	Replace the cushion rubber ring
	(4)Cushion rubber ring has incorrectly installed	Please recheck cushion rubber ring

(5)Cooling duct is clogged or the distilled water doesn't drips smoothly	Re-examine the cooling duct and remove foreign matter. Check the distilled water flow back
(6)The nozzle has incorrectly installed and causing distilled water leak	Please install correctly after confirmation
(7)Other Water leakage	The nozzle and the spout water container did not align properly

Problems	Causes	Solutions
4. Body heating problem	(1)No power supply to the body, power cords and sockets have connection problem.	Check 2 sides of power cord and sockets having any bad connection problem or not. Check the function of wall or is normal or not.Check the Ma power switch is in“ON” position or not.
	(2)Blown fuse( It sometimes happens in the middle of the distillation process)	Replace fuse
	(3)Main Power cord malfunction	Replace the main power co
5.Burnt sockets	The power cords were not properly plugged in that results in a poor connection ar it's melted	Replace sockets
6.Burnt main power cord	Power cord is deform due to improper operation	Replace main power cord
7.Water leakage from the body	(1)The stainless steel tank is broken	Replace the stainless steel tank
	(2)Water drips from 7 to thebottom	Check the Top during the distillation
8.Collected distilled waterless than 4 liters	(1)Poured less than liters ofwater	Pour the water till the “FULL”
	(2)The fan stops running that causes to lose the steam	Check the function of fan a power is normal or not
9.Main power switch is malfunctioned	Unable to switch	Replace Main power switch

NOTE

This appliance is intended to be used in household and similar applications such as:
- staff kitchen areas in shops, offices and other working environments. 100 houses.

by clients in hotels, motels and other residential type environments. be and breakfast type environments.

If the manufacturer wants to limit the use of the appliance to less than above, this is clearly stated in the instructions. Before using this product please read this instruction carefully and keep it for future reference.
