USER MANUAL YKF-618 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ICE CREAM MACHINE

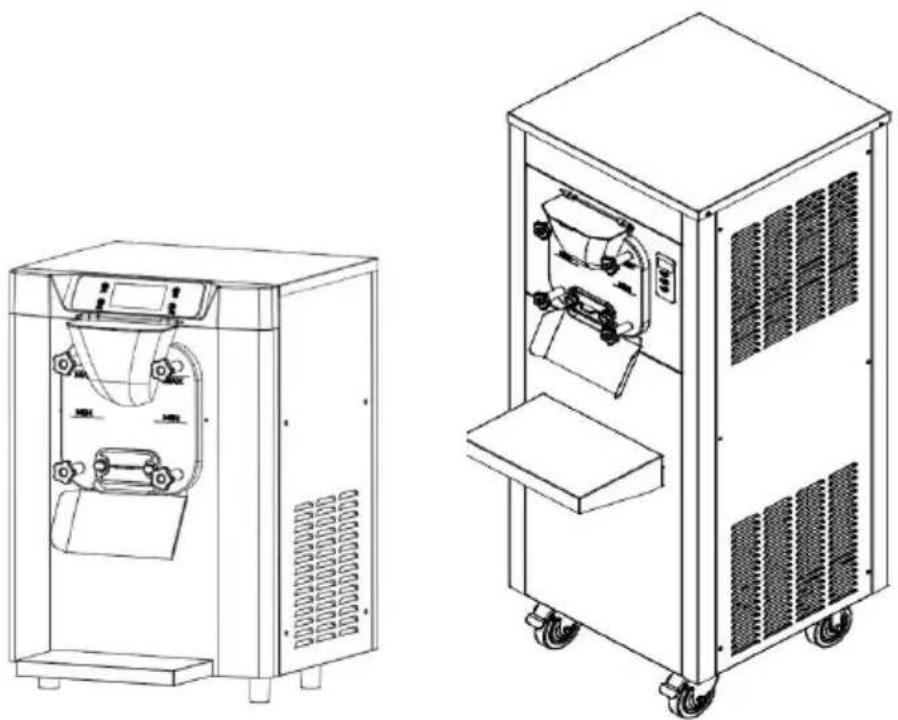

MODEL:YKF-618 MODEL:BQL-128YH

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only reprice estimate of savings you might benefit from buying certain tools with us compared top brands and doses not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:YKF-618 BQL-128YH

YKF-618 BQL-128YH

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

CORRECT DISPOSAL This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refu collection in the European Union. This applies to the p and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling electri electronic devices

Table of Contents

I.Purposes and Features II.Precautions III.Product Structure IV. Installation V. How to Make an Ice-cream VI. Electrical Wiring Diagram VII.Troubleshooting

I.Purposes and Features

YKFseries hard ice cream machine is our latest design for

making of hard ice cream.Its primary advantages are compact

size, elegant appearance, easy operation and simple

installation. If coupled with a freezer, it will become a small ice cream

plant, extensively applicable for booths, workshops,

canteens and restaurants. Its secondary advantages are elegant and live

outlines and easiness for cleaning. In addition, its premium compressor and

reducer ensure safe, reliable and

highly efficient operation at the lowest cost, bringing you significant economic return.

II. Important safeguards and precautions

Important safeguards

• Before using the appliance, please read this user manual to ensure you gain the maximum benefit from it.

WARNING:

1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. 2. Children should be supervised to ensure that they do not play with the appliance.
2. This appliance can be used by children aged from 8 years and a person with reduced physical, sensory or mental capabilities or less of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. 4. If the supply cord is damaged, it must be replaced by the manufacturer's service agent or similarly qualified persons in order to avoid a hazard. 5. To avoid a hazard due to instability of the appliance, it must be positioned in accordance with the instructions.
3. When positioning the appliance, ensure the supply cord is not trapped or damaged.
4. Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance.
5. Keep ventilation openings, in the appliance enclosure or in the building structure, clear of obstruction.
6. Do not damage the refrigerant circuit.
7. Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
8. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.
9. Note: This appliance contains flammable refrigerant R290 and foaming agent cyclopentane.

Please avoid contact with fire when you transport and use it.

Please ask a professional for servicing when the machine breaks down.

Please send it to your local appointed disposal station when you discard it. During using, servicing, and disposal of the appliance, please pay

attention to symbols similar to the one on the left side, which is located at the rear of the appliance (rear panel or compressor) and is white, yellow, or orange in color. It is a risk of fire warning symbol. There are flammable materials in refrigerant pipes and

compressor. Please stay away from fire sources during use, service, and disposal.

FCC Information

CAUTION: Changes or modifications not expressly approved by the parties responsible for compliance could void the user's authority to operate the equipment!

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

1) This product may cause harmful interference. 2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party responsible for compliance could void the user's authority to operate the product.

Note: This product has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, and if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for assistance.

Precautions

The inclination of the machine shall not exceed 45° during moving and handling.

2. Use a single phase 3-pole receptacle with a dedicated

earthing wire. Never share a receptacle with other electric appliances.

1. The voltage of power supply shall comply with the value on the nameplate with an allowed variation less than 10%.
2. During installation, a clearance of at least 20 inches shall be kept at the fan to ensure heat dissipation.
3. An interval of more than 3 minutes shall be guaranteed before starting the compressor.

6. Upon finish of operation, the power supply shall be cut off and the machine shall be cleaned. To clean the cylinder, you may take out the stirrer, re-install the seal ring and wash with water, followed by wiping dry with a towel. The surface of the machine may be

cleaned with moist wipes. Never rinse with water.

III. Product Structure

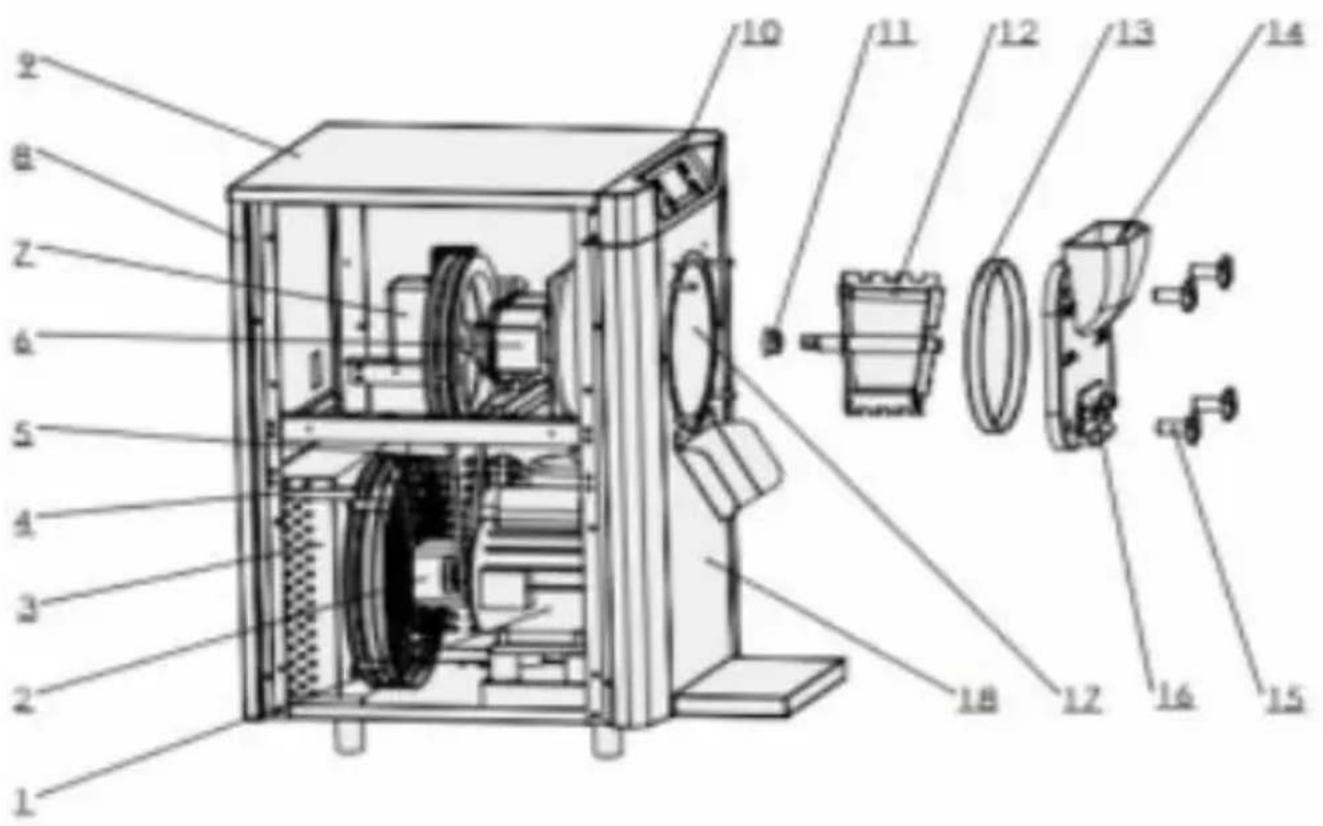

1. motor 2. pan 3. condenser 4. compressor 5. belt 6. reducer 7. control panel 8. rear panel 9. top panel

10. screen 11. seal ring 12. stirrer 13. type seal ring 14. outlet base 15. screw 16. outlet cover 17. cylinder 18. front panel

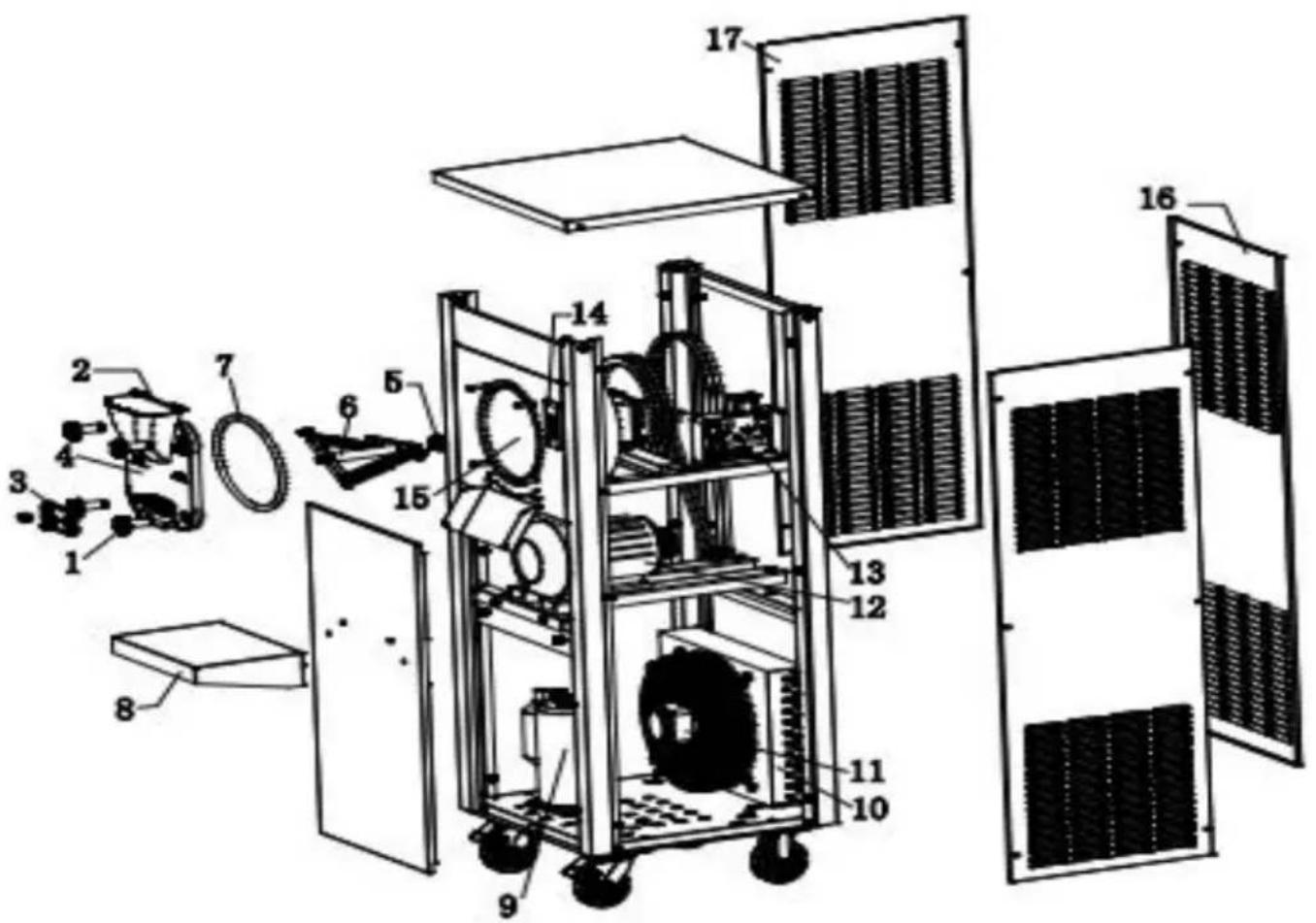

1. screw for distributor 2. pin 3. screw 4. cover for hopper 5. seal ring 6. beater 7. seal for distributor 8. tray 9. compressor

10. condenser 11. fan 12. motor 13. mother board 14. panel 15. hopper 16. rear plate 17. side plate

IV. Installation

Clean the supplied parts (discharge block, stirrer, seal rings, etc.) and assemble them onto the machine in turns as follows:

1. Lead the trumpet-shaped ring onto the square shaft of the stirrer from the smaller opening before inserting the square shaft into the hole of the cylinder. Turn the stirrer with your hand. If you feel some resistance, it means the shaft has been assembled to its place.
2. Attach the oval seal ring to the slot on the discharge cover before mounting the cover onto the discharge block. Tighten the spherical nut with the supplied socket spanner. Don't exert extreme force. 3. Put the O-ring into the O-shaped slot of the discharge block. Then attach the discharge block to the screw of the evaporator by tightening the four knobs. Now it's ready for making ice cream.

V. How to Make an Ice-cream - Model: YKF-618

1. Put the ice cream powder into a clean container and add 40°C water. (The rate of powder and water is 1:2.5-3.0, i.e., add 2.5-3.0 kg water for 1 kg powder.) If necessary, put in a proper amount of milk, sugar, and essences. Mix them evenly. 2. Turn on power. Move the prepared ice cream slurry to the hopper so it can flow into the cylinder gradually. Be sure not to exceed the mark when replenishing. 3. Hold down the "key" to set up the time value between 10-35 minutes. (Tips: The value for setup may be recycled. Save the value and quit the system automatically by leaving the key untouched for 5 seconds.) 4. Hold down the key to start the motor. The digital display screen will start counting down. One minute later, the compressor starts by itself and the process of ice cream making begins. 5. A few minutes later, "End" is seen on the digital display screen and the

machine stops running. That means the ice cream is ready.

1. Loosen the nut on the discharge cover and remove it. Hold down the key. The stirrer will push out the ready ice cream slowly. Put the ice cream into a freezer for cold storage.
2. Re-attach the discharge cover. Replenish the ice cream raw materials and repeat the process.

How to Make an Ice-cream - BQL-128YH

1. Put the ice cream powder into a clean container and add 40°C water. (The rate of powder and water is 1:2.5-3.0, i.e., add
2. 2.5-3.0 kg water for 1 kg powder. If necessary, put in a proper amount of milk, sugar, and essences. Mix them evenly.
3. Turn on power. Move the prepared ice cream slurry to the hopper so that it can flow into the cylinder gradually. Be sure not to exceed the mark upon replenishing.

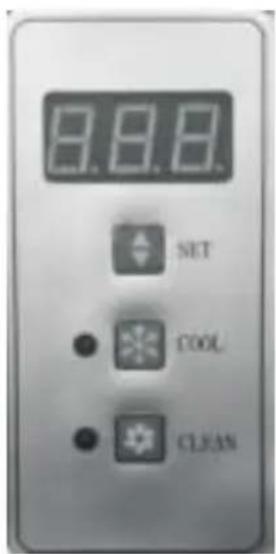

4. Hold down the "key" to set up the time value between 10-30 minutes. (Tips: The value for setup may be recycled. Save the value and quit the system automatically by leaving the key untouched for 5 seconds.)
5. Hold down the "key" to start the motor. The digital display screen will start counting down. One minute later, the compressor starts by itself, and the process of ice cream making begins.
6. A few minutes later, "End" is seen on the digital display screen and the machine stops running. That means the ice cream is ready.
7. Loosen the nut on the discharge cover and remove it. Hold down the key. The stirrer will push out the ready ice cream slowly. Put the

cream into a freezer for cold storage.

1. Re-attach the discharge cover. Replenish the ice cream raw materials to repeat the process.

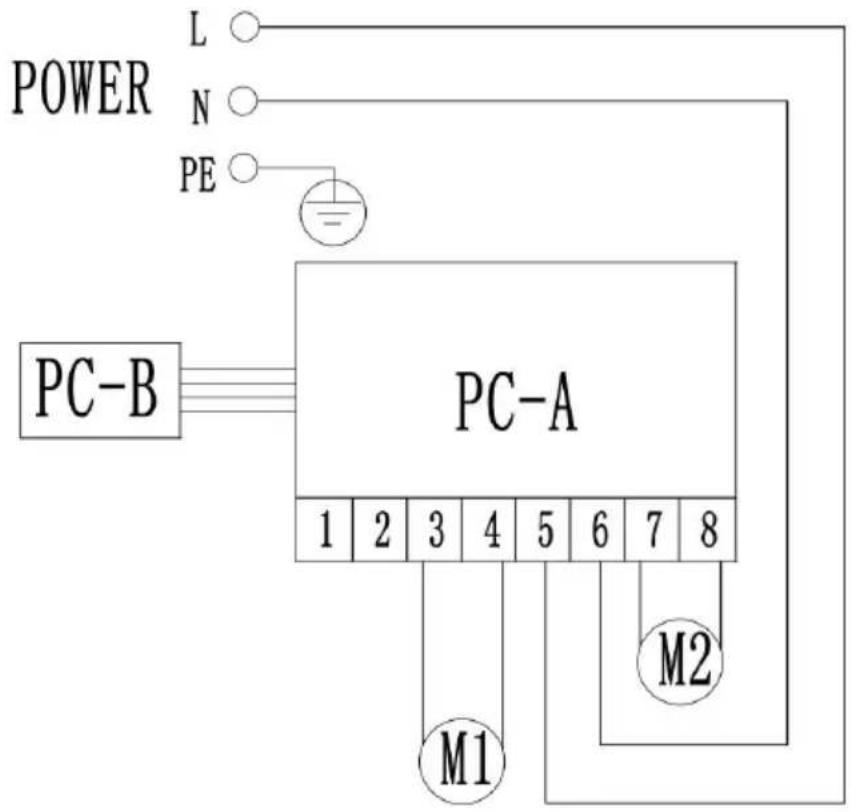

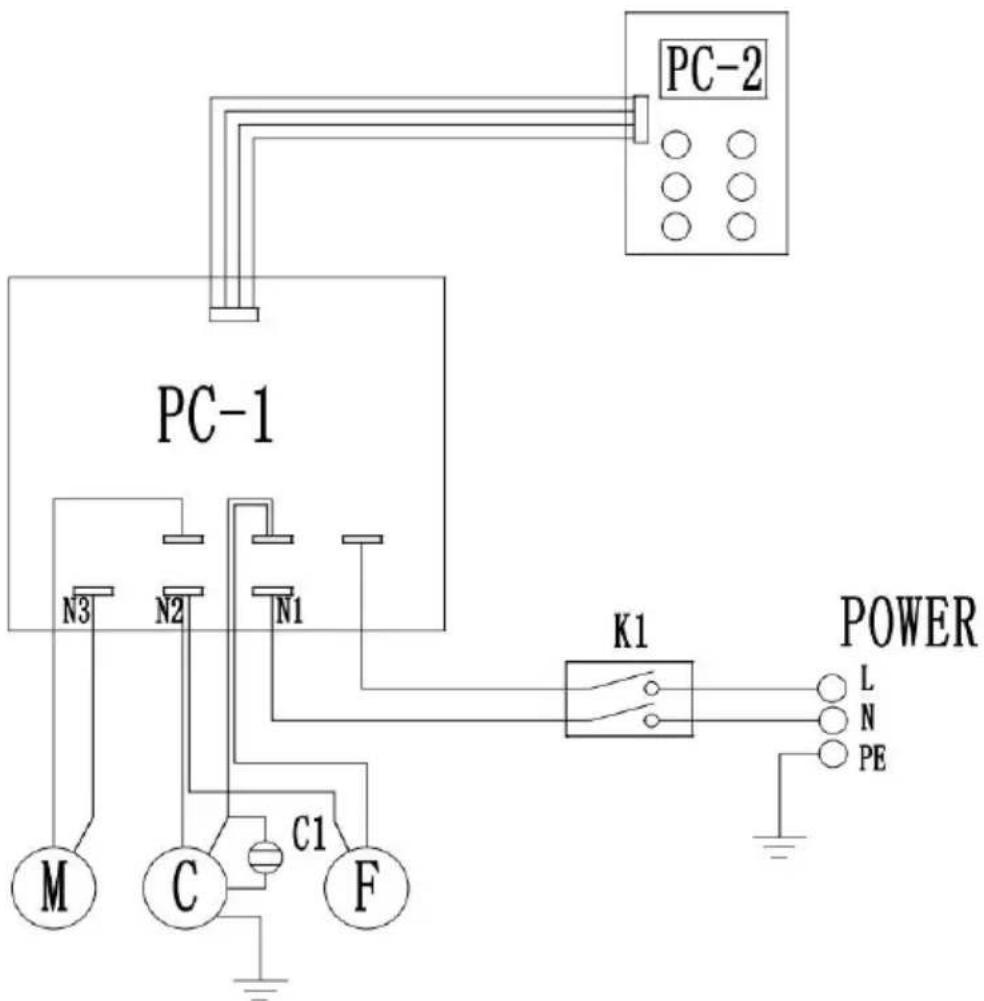

VI. Electrical Wiring Diagram

VII. Troubleshooting

Problems	Causes	Solutions
The machine fails to run	1.The power supply has improper voltage.	1.Re-adjust the power supply
	2.Whether the unit has been connected to the power supp or whether the fuse has burnt	2.Re-connect the wire or replace the fuse.
	3.Whether re-start the machine within 3 minutes.	3.Wait for at least minutes before re-starting.
Tripping off frequently	1.The power supply has improper voltage.	1.Re-adjust the power supply
	2.Whether the air inlet/outlet been blocked.	2.A clearance of 50 am for air inlet and outlet shall be kept.
	Whether the temperature of i air becomes too high due to some causes.	3 Eliminate the causes.
Abnormal noise and vibration	1.The machine has not been flatly placed.	1.Place the machine flatly
	2.Stirrer blade has been damaged.	2 replacing the blade
	3.Reducer is short of oil or oils dirty.	3.Add oil or replace the oil
	4.Some parts get loosened	4.Tighten them
	5.Belt is too loosen or too t	5. Re-adjust the be
