MURPHY BED KIT

MODEL:YFHTW241

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:YFHTW241

Collection of black metal automotive parts laid out on a concrete floor, including brackets, sensors, and a small inset image (no visible text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

1. Please read and understand this manual carefully before using the Murphy Bed Kit.

The installation should be done by an adult, and children should not without supervision.

1. Please install the Murphy Bed Kit completely before using the bed, otherwise it may cause serious harm to people.
2. Check the stability and safety of the kit for regular intervals and use should be stopped immediately in case of damage or suspicious problems.
3. Children should not use the kit alone to spread out or store the b不需要 they may be harmed.

Thank you very much for choosing this Murphy Bed Kit.

If there is any difference between the color of this product and the the instruction manual, please refer to the physical object.

PARAMETER LIST

Model	YFHTW241
Adapted models	Twin-Horizontal
Mattress size	W×L:39×75in(990×1900mm)
mattress thickness	6-10in(152-254mm)
Maximum mattress weight	44lbs(20kg)

INSTRUCTIONS

Murphy Bed Kit suitability Twin-Horizontal

Note: The Murphy Bed Kit does not include bed and bed cabinets, need to be equipped by users themselves.

Standard Twin Mattress

Max Weight: 44lbs

Max Depth : 10"

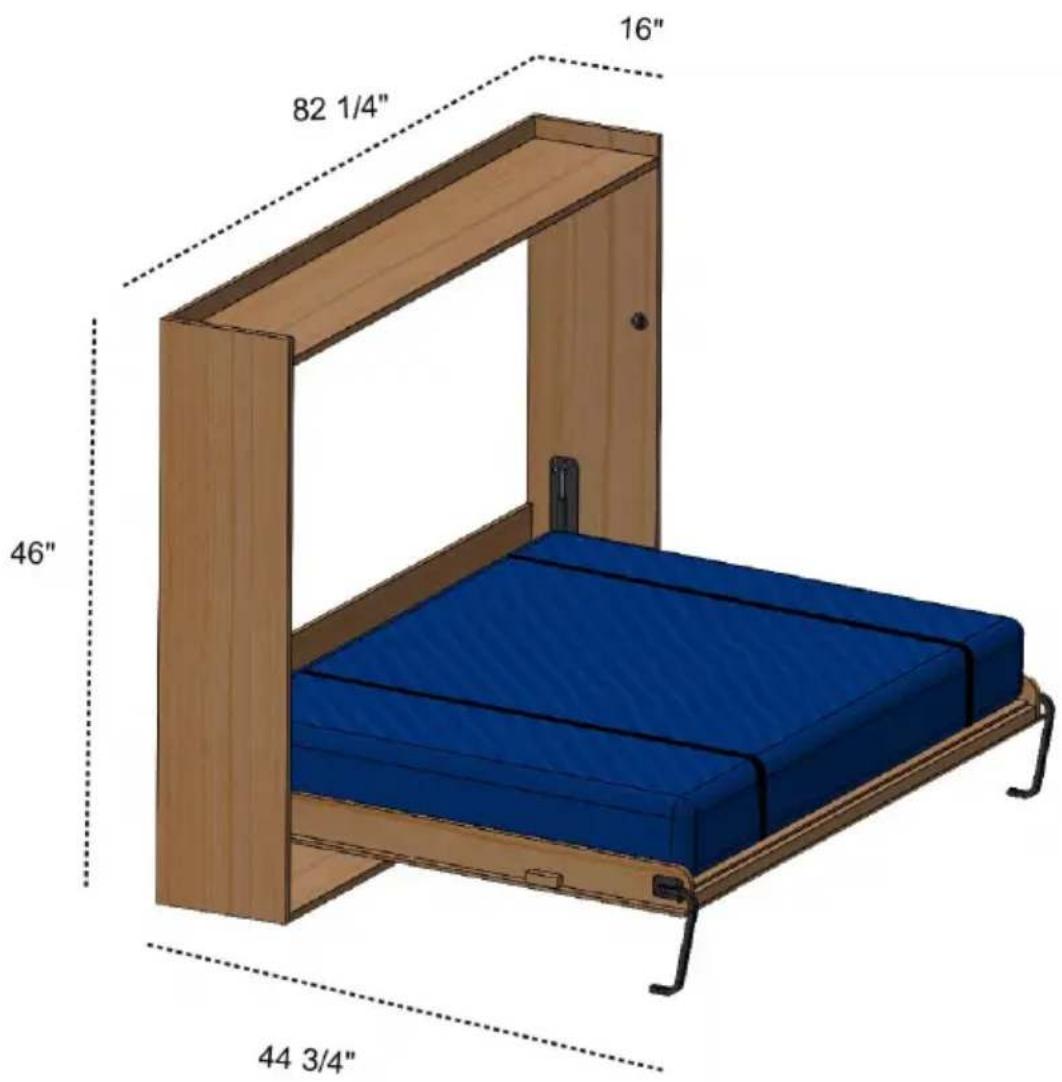

82 1/4" 16" 46" 44 3/4"

Max Weight capacity: 900lbs

1. General description

Use

The murphy bed system allows to bring the bed spring from its verti-position inside the cabinet in a horizontal positions, to be used as a a absolutely quick and easy way, with very low efforts.

Before using the Murphy bed, the user must be sure of its good co and the good condition of its accessories.

Before using the Murphy bed, the user must make sure that on the sleeping surface there is only the mattress and bed linens.

2. Safety

Safety standard

Compliance with the Safety standards puts the user in terms of working productively, without danger of harm to himself to others.

It's forbidden to use the product without any mattress on the be spring surface.

It's forbidden to use the bed for a different use, than the one described previously in section USE.

Non correct installation or not made by specialized craftsmen, make cause detachments, breaking or dysfunctions with possible damages to persons, things or animals. All given instructions have to be strictly observed.

Before starting to use the product the users shall be aware of its fu and its technical features, learn through an accurate and complete rea of the present user's guide.

Tampering or replacement of bed parts that are not allowed.

The use of accessories or spare parts other than those recommended the supplier, present a non proper and hazardous use of the product

It's strictly forbidden to remove any safety device and protection (labels) on the set; periodically check the incidental position on the mechanism of blankets or else. Before starting any maintenance, repair work or cleaning the operator must have read and understood all tec information contained in this guide. Any maintenance and repair shall performed by qualified personnel only.

WARNING !!!

Never place the product near any heat sources.Position and lock the system to be maintained clear of objects that may hinder its move. The instructions and rules contained in this manual must be observed times.

Suggest using below materials for wooden cabinets and bed fram

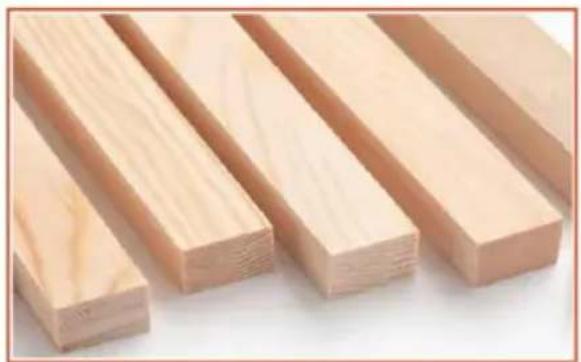

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

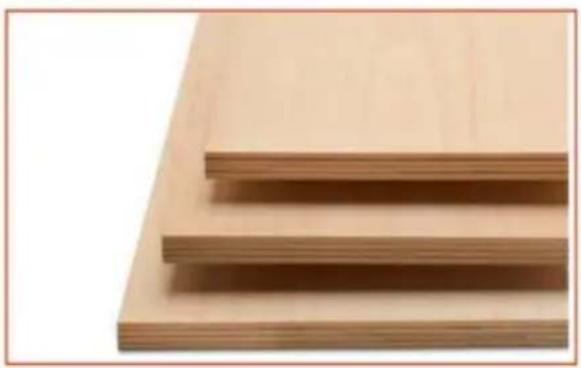

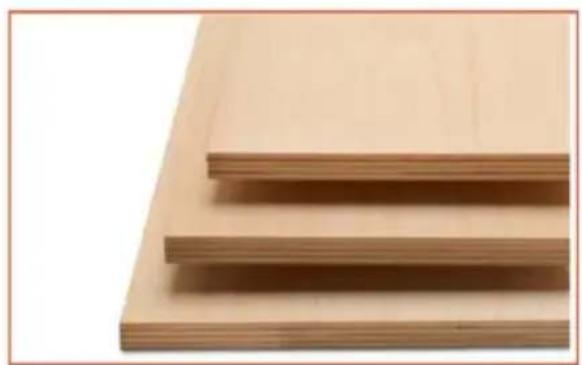

Stack of three beige wooden panels or sheets, no text or symbols visible

Wooden Sticks Plywood Sheet

Technical features

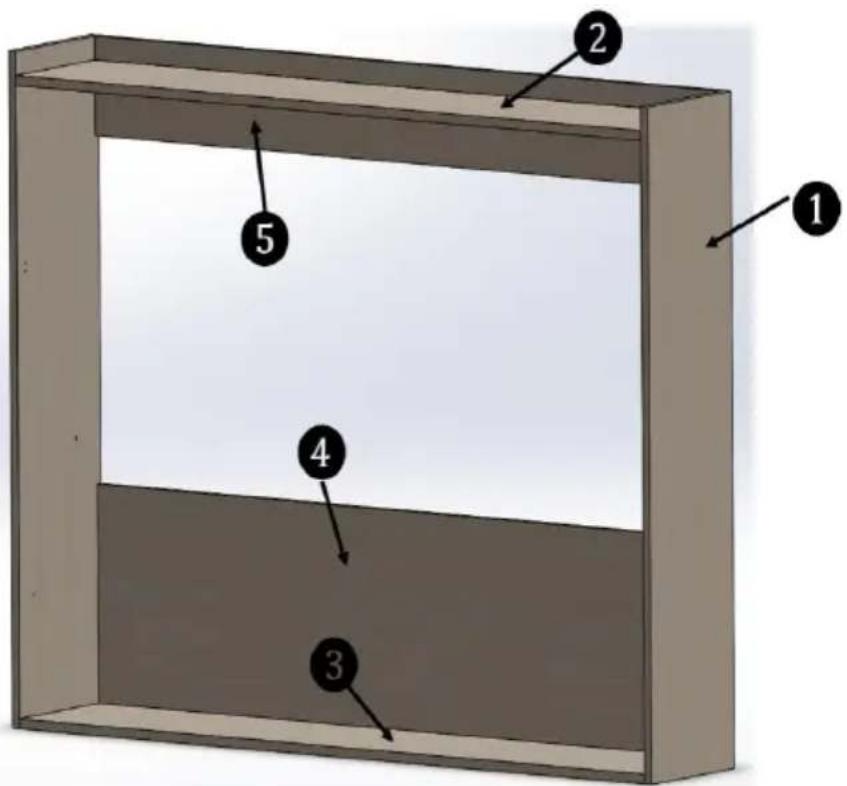

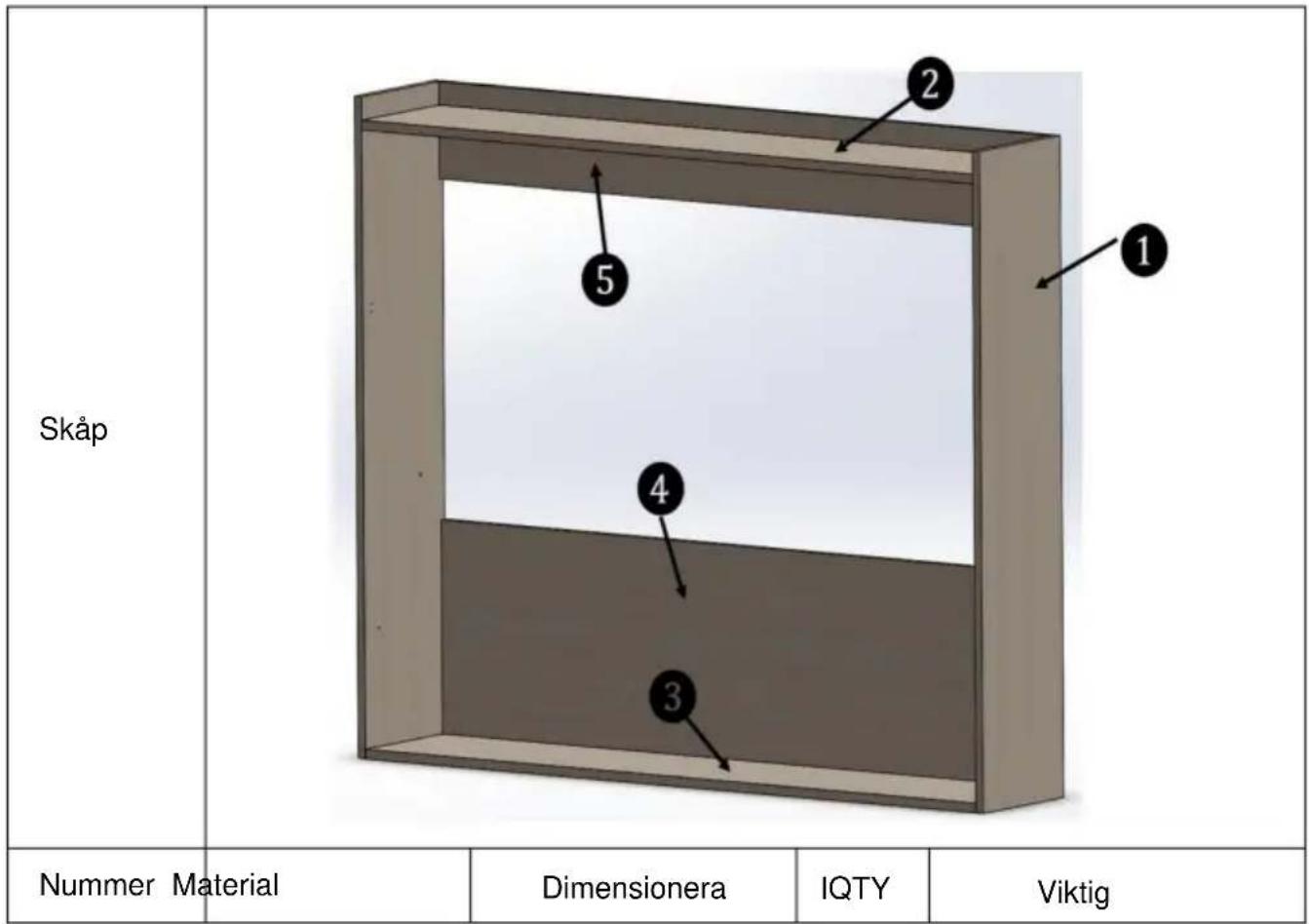

Cabinet
Number	Material	Dimension	IQTY	Important
1	1inch Plywood	1170*406*25m m	2	Internal dimensions of cabinet: 2036*388*1060m m
2	1inch Plywood	2036*388*25m m	1
3	1inch Plywood	2036*406*25m m	1
4	3/4 inch Plywood	2036*550*18m m	1
5	3/4 inch Plywood	2036*250*18m m	1

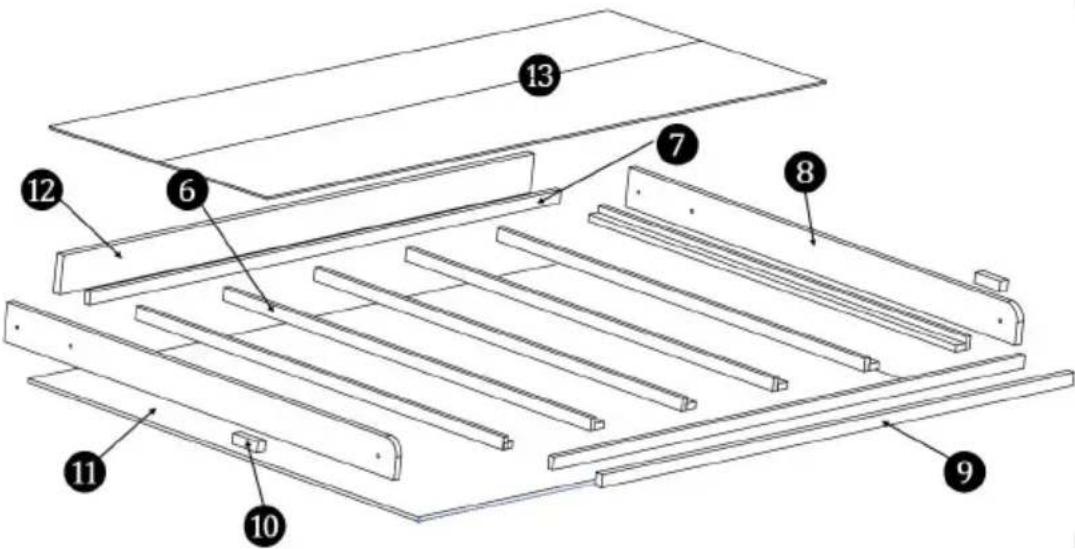

Bed frame
Number	Material	Dimension	IQTY	Important
6	3/4 inch wood	40*20*945mm	12	Weight of the bed frame : 40.5kgs(89lbs) Dimensions of bed frame : 2016*1035*132 mm
7	3/4 inch wood	40*20*1902 mm	2
8	1inch Plywood	1035*120*25 mm	2
9	1inch Plywood	1902*50*25 mm	1
10	1-1/2 wood	32*32*100mm	1
11	1/2 inch Plywood	2016*1035*12 mm	1
12	1inch Plywood	1902*120*25 mm	1
13	3/8inch Plywood	980*1898*9 mm	1
Bed frame
Number	Material	Dimension	IQTY	Important
14	mattress	990*1900*(152-25 4mm (39*75*(6-10)inch)	1	Weight of mattress: 20kg (44lbs)
TOTAL WEIGHT OF BED FRAME AND MATT NEED TO BE:				61-64kgs (134lbs-141lbs)

Safety and Care Advice

• Check you have all the components and tools listed on the following pages.
• Remove all fittings from the plastic bags and separate them into the groups.
• Keep children and animals away from the work area, small parts c

choke if swallowed.

• Make sure you have enough space to layout the parts before start
- During assembly do not stand or put weight on the product, this cause damage.
- Assemble the item as close to its final position (in the same room possible.
- Assemble on a soft level surface to avoid damaging the unit or yc
- Parts of the assembly will be easier with 2 people.

• To reduce the likelihood of damaging your product please ensure that your power drill is set on a low torque setting

Install the required tools

			13mm OpenEnd Wrench
	Screws Drive Bit	Wood Drill BitDia 6mm	Wood Drill BitDia11mm
Horizontal adjustment tool

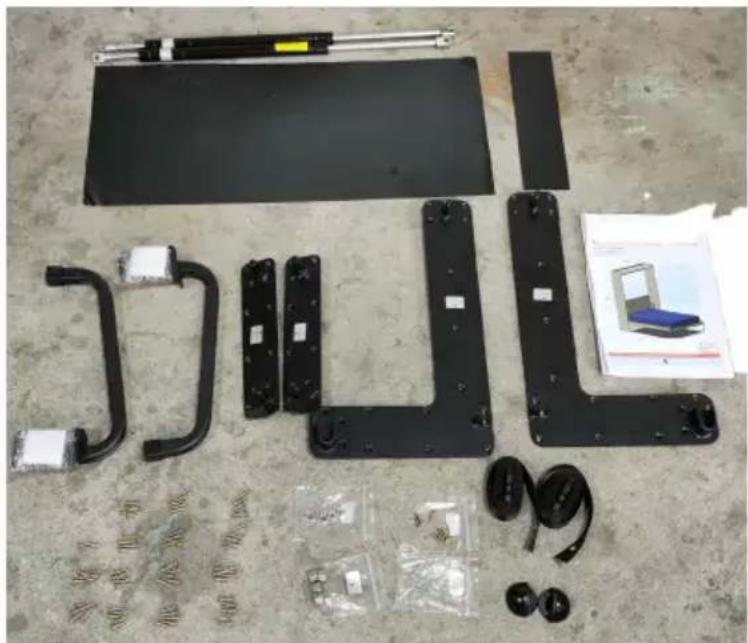

List of kit parts

Note: The quantities below are the correct amount to complete the assembly. In some cases more fittings may be supplied than are required.

A:Side Bracket x 2pc	B:Connect Bracket x 2pc	C:Leg x 2pcs
D:YFGS100180A x 2pcs	E:Mattress Strap x 2pc	F:Bearing x 4pcs
G:Stopper x 2pcs	H:Metal Nut M8x 4pcs	ScrewI:M5x20mm x72pcs
J:Screw M4x20mm x8pcs	Drilling template: 710*294mm	Drilling template: 306*82mm

Construction guide

Step1: Make the cabinet

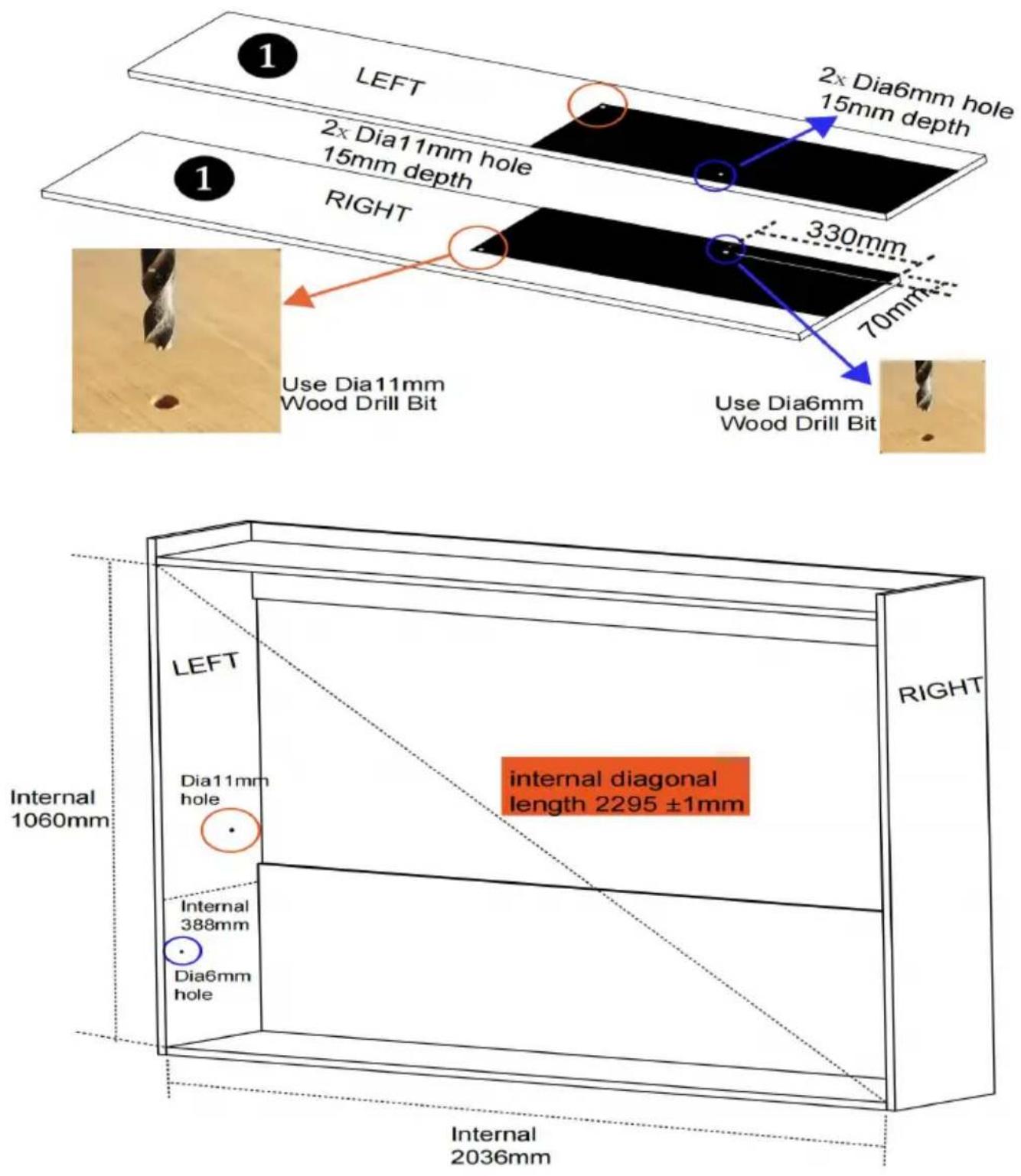

Put the drilling template of 710*294mm on the side panel and ensure edge of the template are flush with the side panel as the picture.

Mark the circular hole of the template on the side panel, then remove template and drill Dia11mm hole & Dia6mm hole as the picture, dept hole is 15mm.

Make the cabinet with screws and waterproof wood glue, ensure the internal dimension as the picture, ensure the cabinet is stable and sa

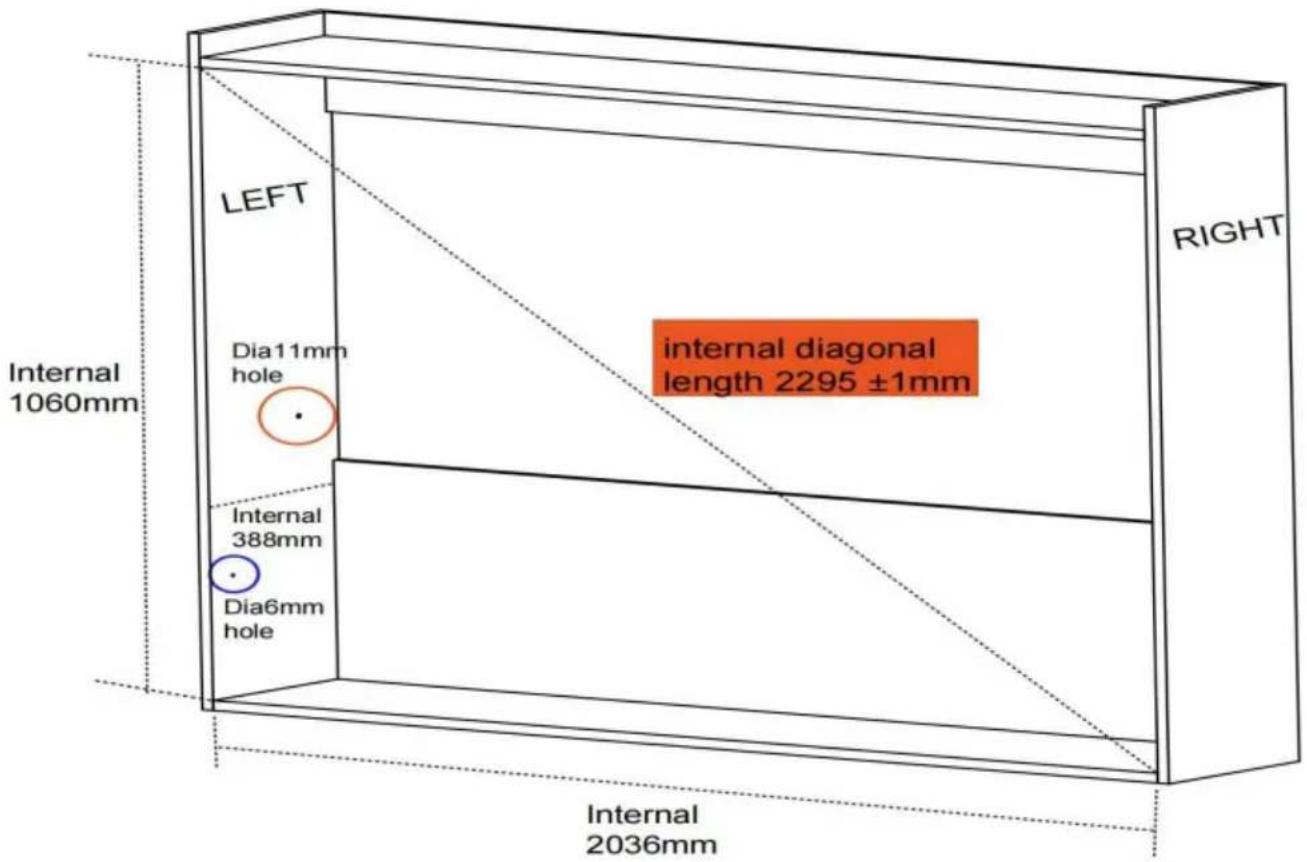

LEFT 2x Dia6mm hole 15mm depth 2x Dia11mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole RIGHT Internal 2036mm

Step 2:

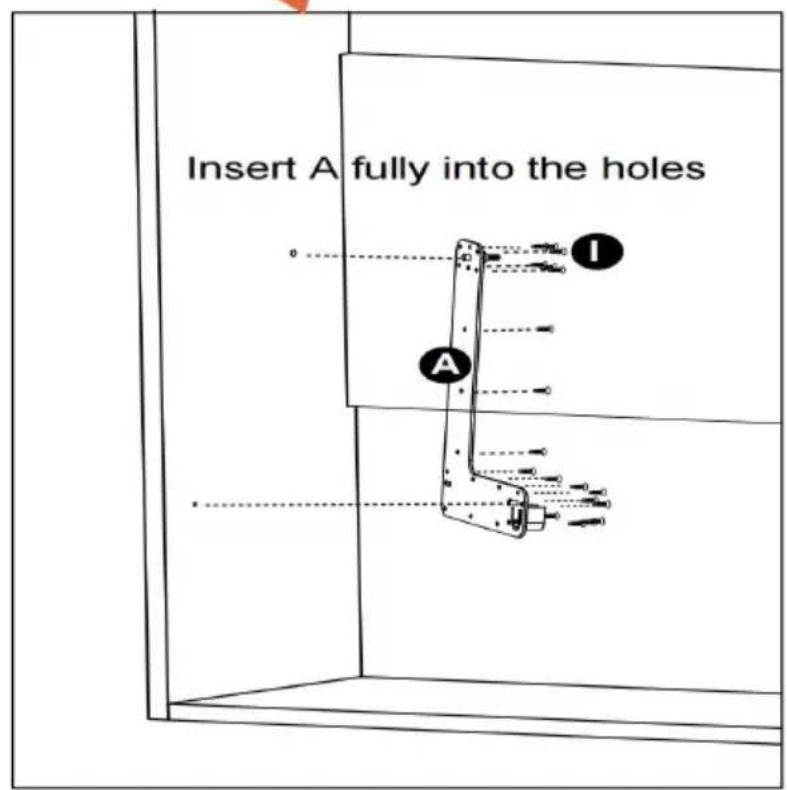

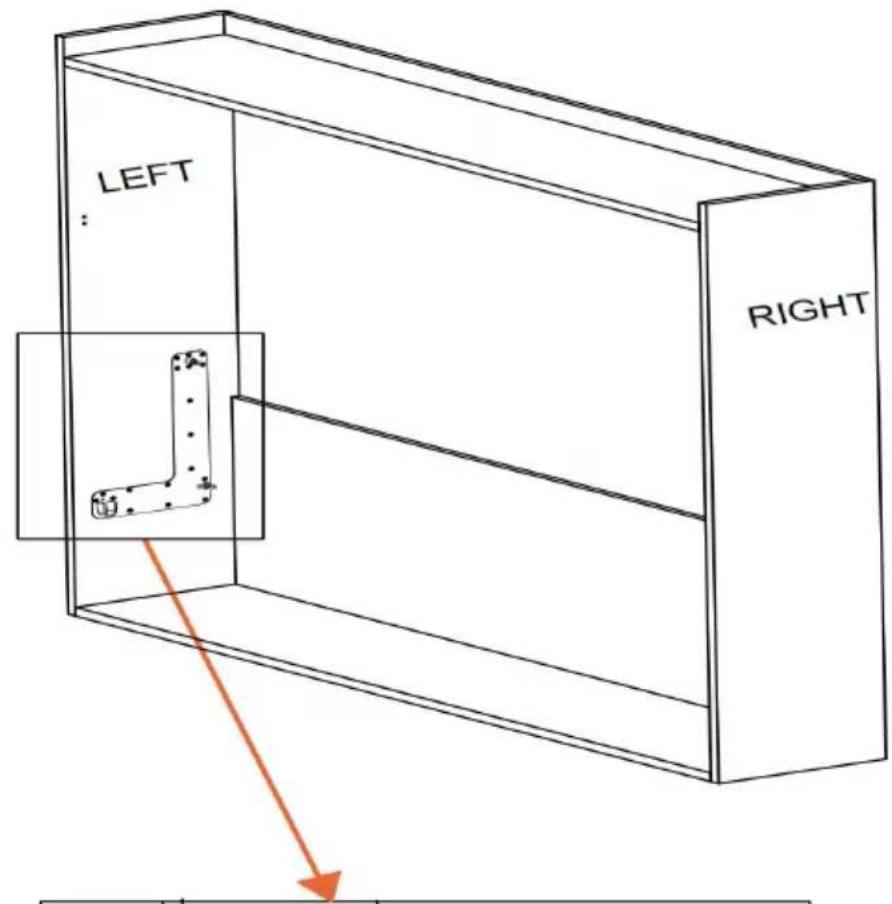

Insert the pin on the side bracket A fully into the Dia11mm hole and hole, fix A to cabinet with screws I.

Repeat the above installation on the other side.

LEFT RIGHT

Insert A fully into the holes 0 A I

Step 3:

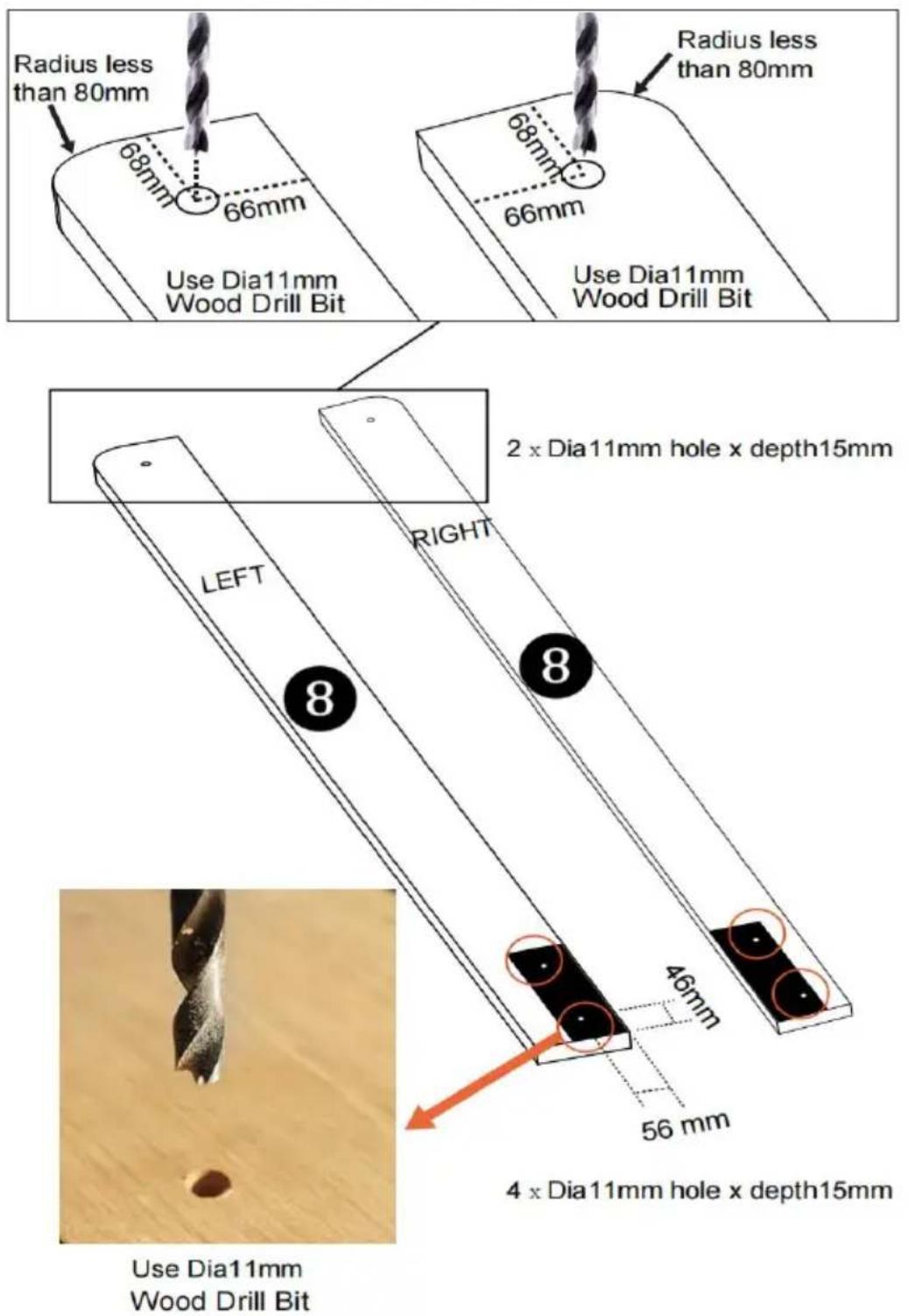

Put the drilling template of 306*82mm on the panel 8 and ensure the of the template are flush with the panel as the picture.

Mark the circular hole of the template on the panel 8, then remove template and drill Dia11mm hole as the picture, depth of hole is 15n. Mark the drilling holes according to the dimensions as the picture on another side of the panel, then drill Dia11mm hole, depth of hole is

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Step 4:

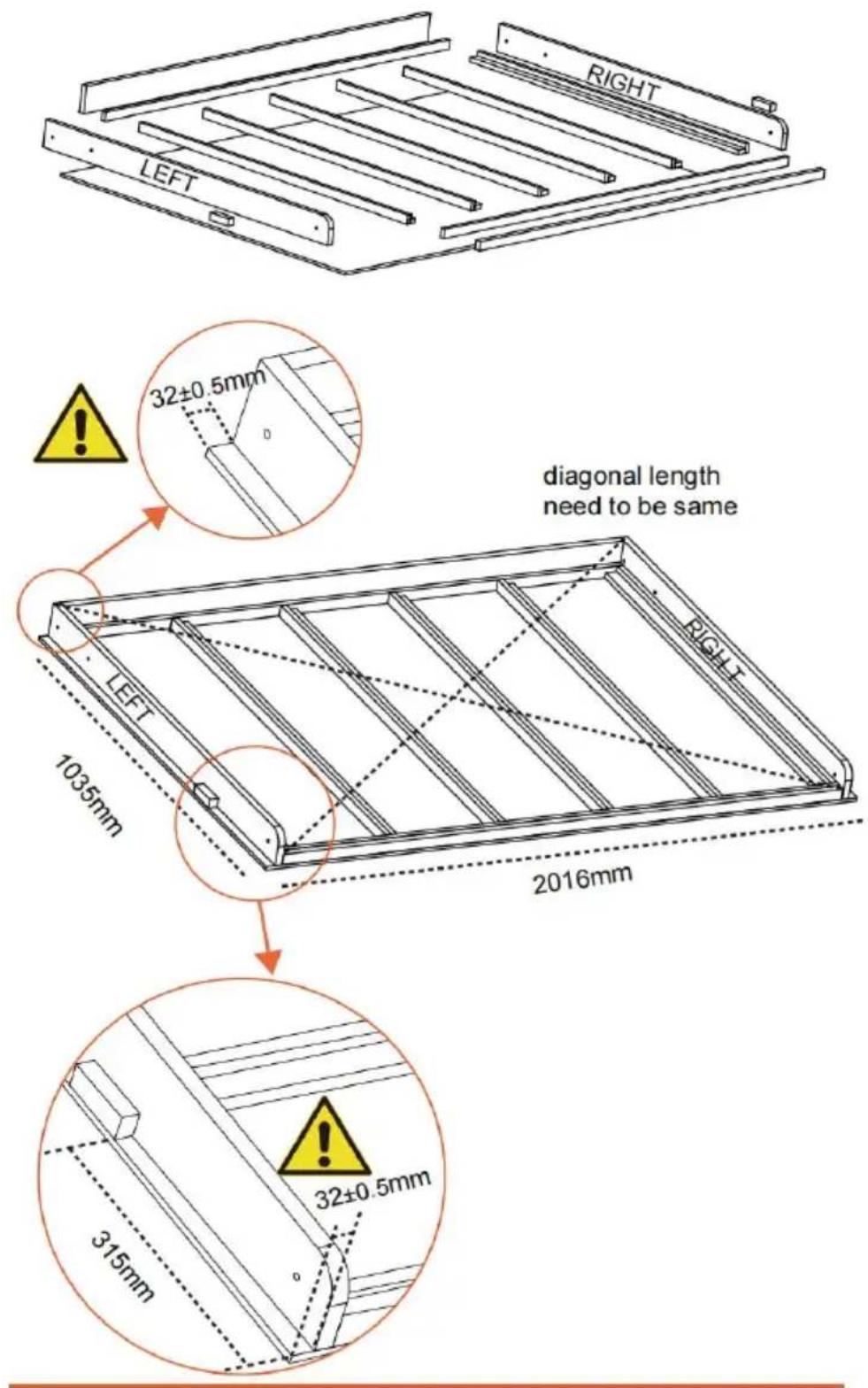

Make the bed frame with screws and waterproof wood glue as picture. Ensure the dimension from the apron panel to the edge of the door are 32mm as picture.

Keep the diagonal length as picture are same.

Ensure the cabinet is stable and safety.

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 32±0.5mm 315mm

Step 5:

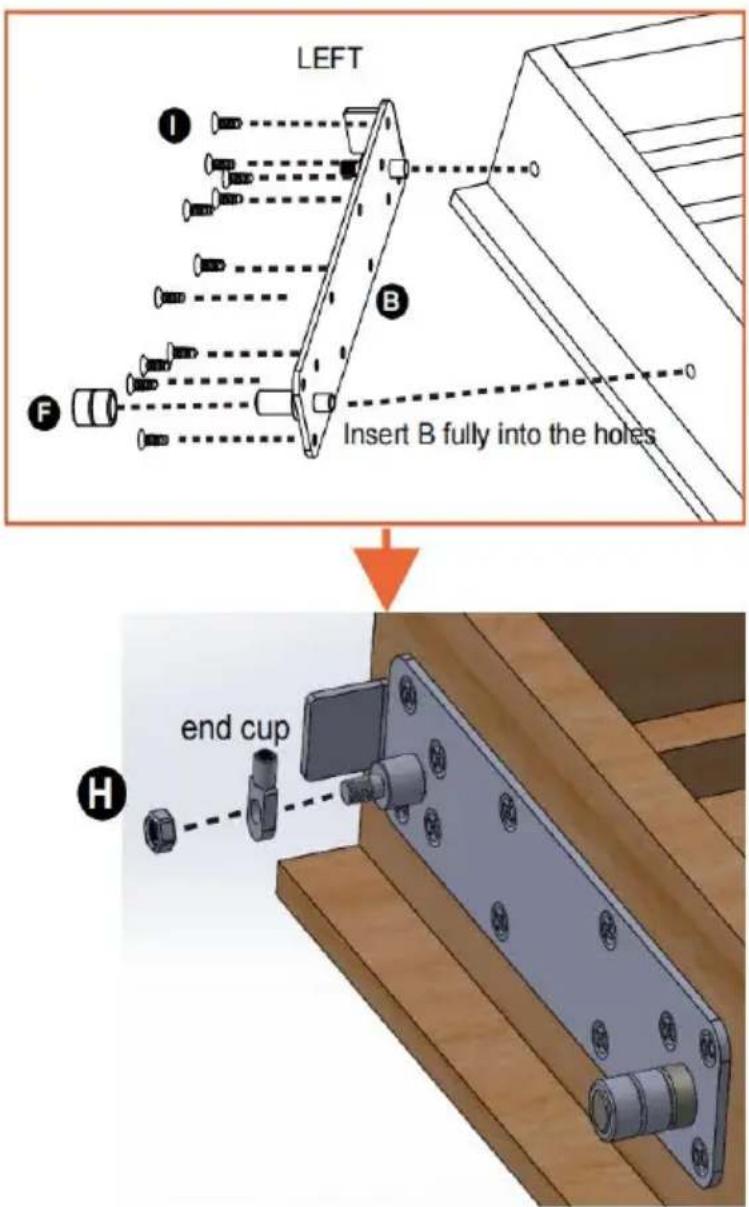

Insert the pin on the connect bracket B fully into the Dia11mm holes fix B to the bed frame with screws I.

Insert 2pcs bearing F to the connect bracket B as the picture.

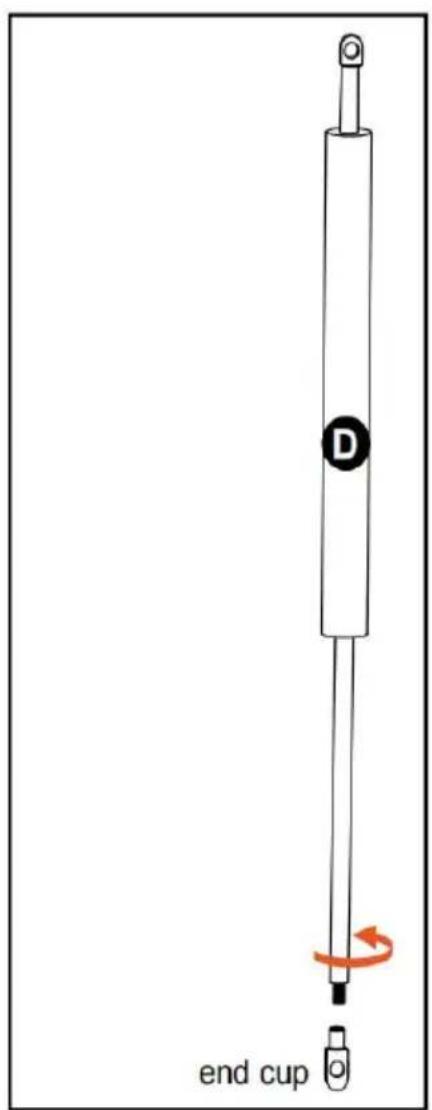

Turn the end cap of the gas spring out as the picture, then install connect bracket B and fix it with nut H as the picture.

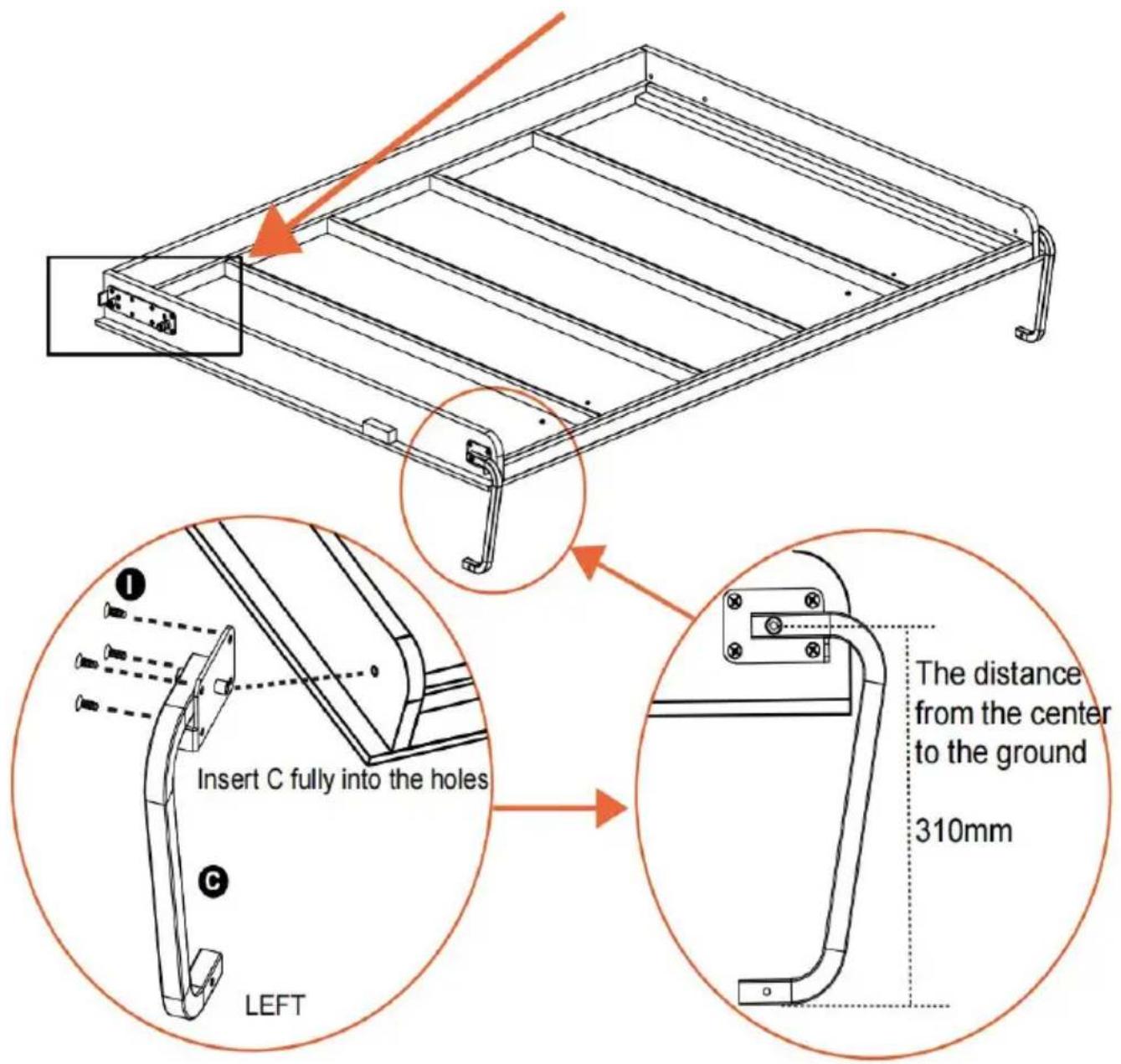

Insert the pin on the leg C fully into the Dia11mm holes, then fix C bed frame with screws I. Keep the distance from the center to the 310mm as the picture.

Repeat the above installation on the other side.

D end cup

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Step 6:

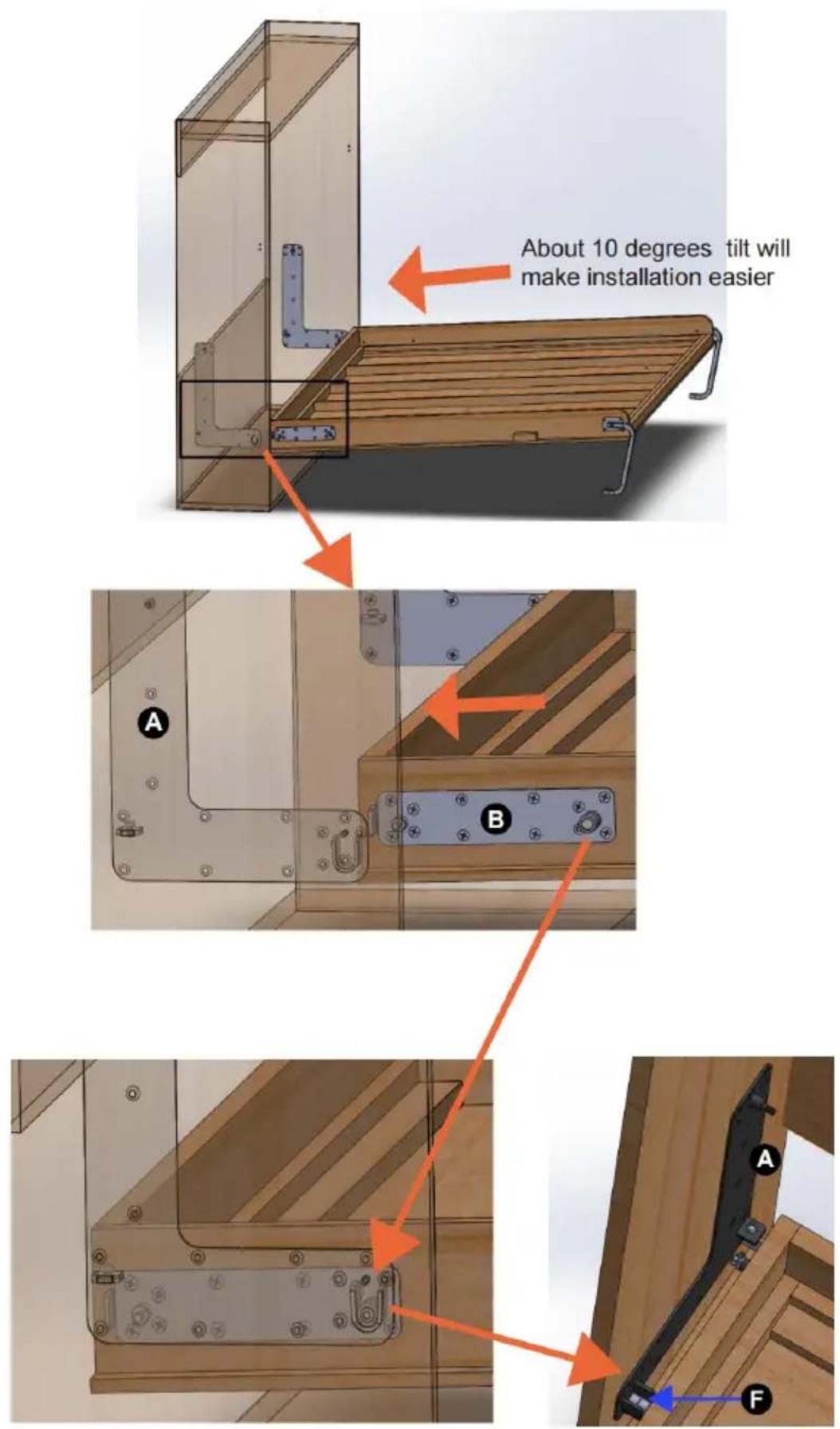

Insert the bed frame with a little angle to the cabinet as the picture. Put the connect bracket B with bearing F on the side bracket A as picture. Install the handle to the bed frame.

About 10 degrees tilt will make installation easier A B A F

Step 7:

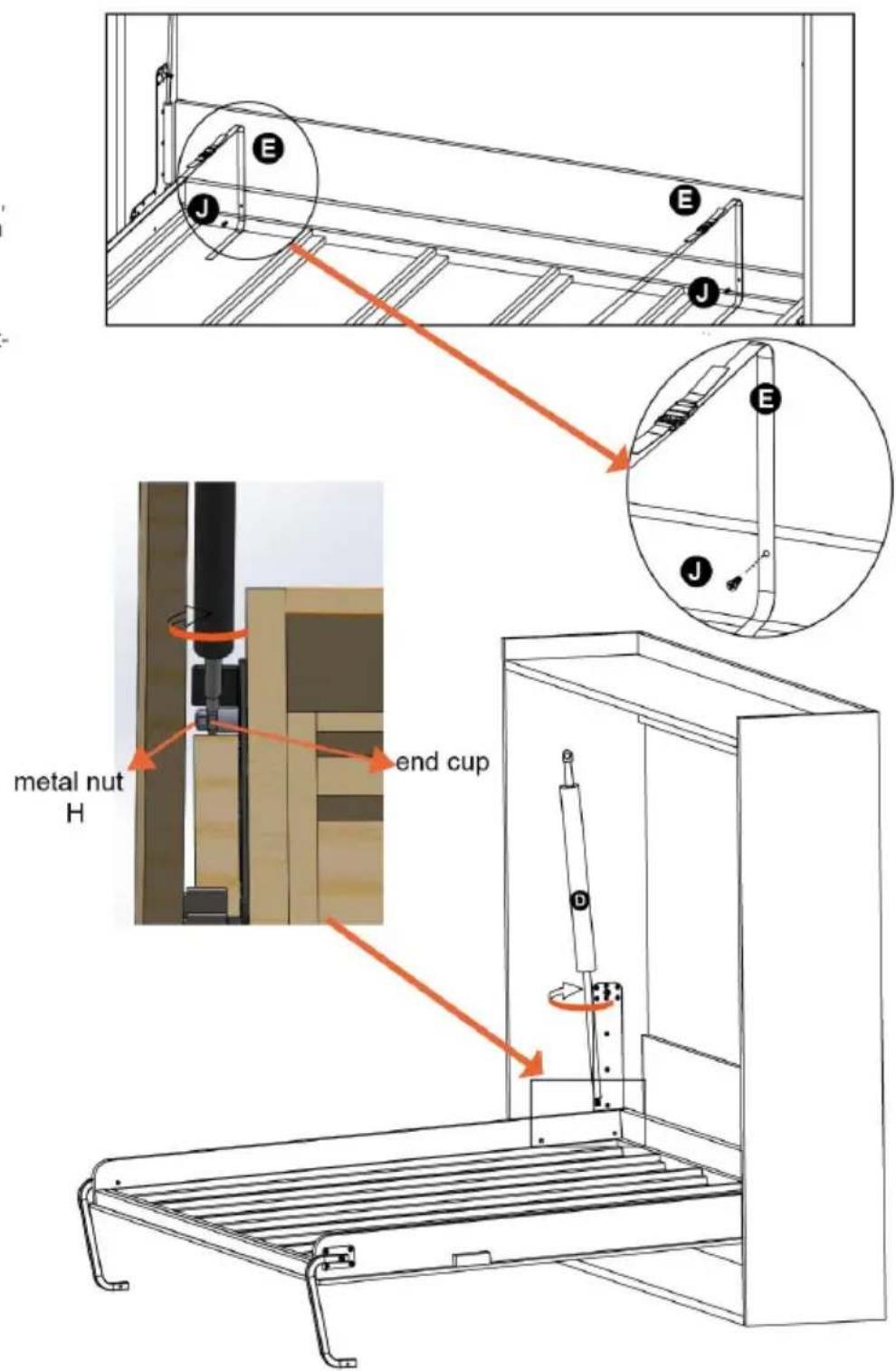

First, attach the two mattress straps E to the bed frame with a scre. Then turn the gas spring D into the end cap as the picture, tighten spring with the end cap;

Repeat the above installation on the other side.

metal nut H end cup

Step 8:

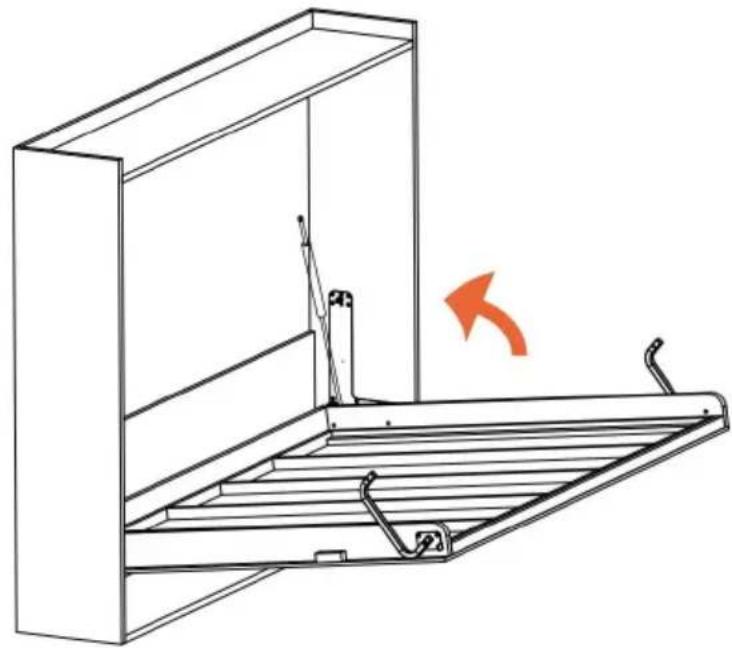

Close the bed frame into the cabinet as the picture.

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols present)

Step 9:

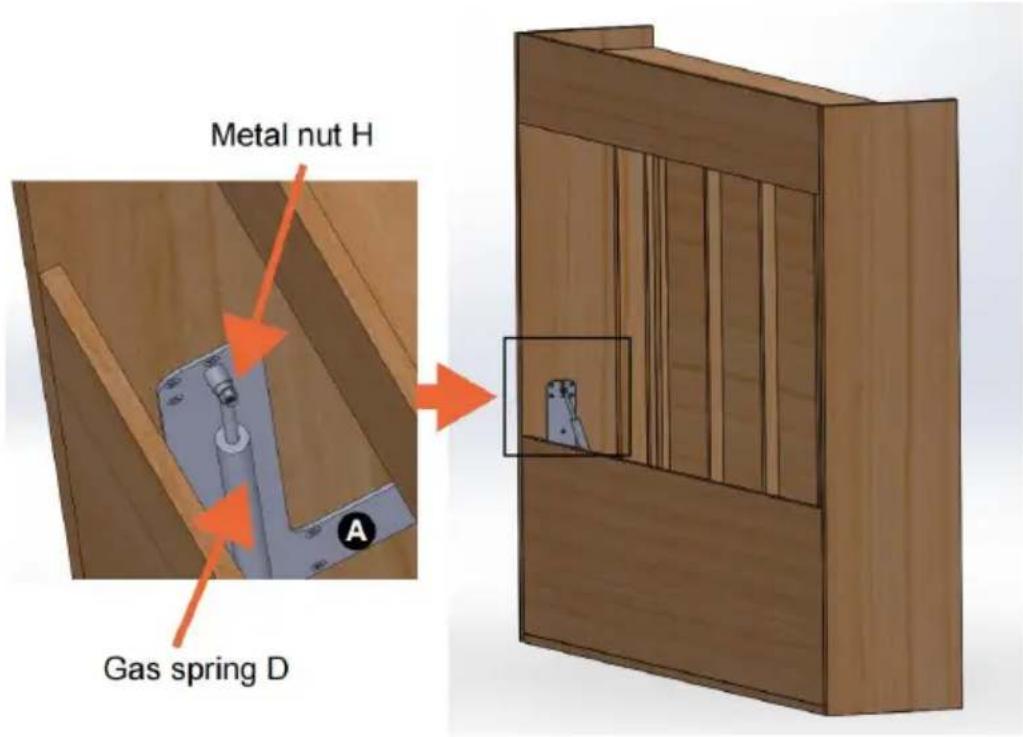

Install the gas spring D to the A bracket from the back of cabinet, metal nut H.

Repeat the above installation on the other side.

Metal nut H Gas spring D

Step 10:

Fix the cabinet to solid wall. The cabinet must be fixed to the wall open it.

Diagram showing a wooden cabinet with warning sign and an arrow indicating upward motion, alongside a safety warning symbol.

Step 11:

Open the bed, put the panel 13 on the bed frame.

Put the mattress on the bed frame and fix by the straps E.

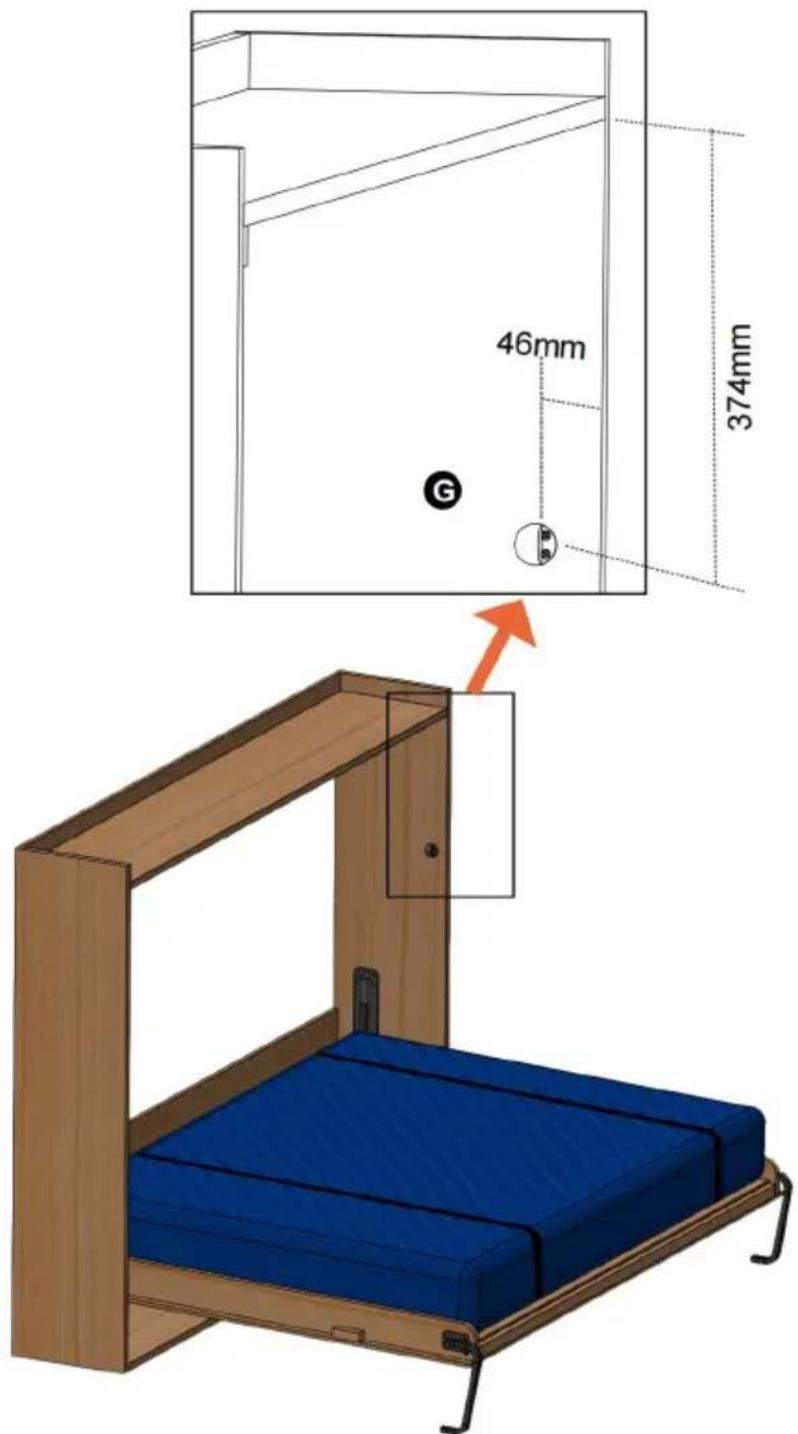

Install the stopper G to cabinet with screws J.

Repeat the above installation on the other side.

46mm 374mm

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

BESOIN D'AIDE? CONTACTEZ-NOUS!

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Des bâtons de bois

Stack of three beige wooden panels or sheets, no text or symbols visible

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Étape 2 :

Insert A fully into the holes 0 A I

Étape 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 8 46mm 56 mm 4 x Dia11mm hole x depth15mm

Use Dia11mm
Wood Drill Bit

Étape 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 315mm 32±0.5mm

Étape 5 :

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Étape 6 :

About 10 degrees tilt will make installation easier A B A F

Étape

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols present)

Étape 9 :

Diagram showing a wooden cabinet with warning sign and an arrow pointing to it, alongside a safety warning symbol.

Étape 11 :

46mm 374mm

Fabricant : Shanghaimuxinmuyeyouxiangongsi Adresse :

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importé en Australie : SIHAO PTY LTD. 1 ROKEVA STREETASTWOOD NSW 2122 Australie

YH CONSULTING LIMITÉE. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Holzstäbchen

Stack of three beige wooden panels or sheets, no text or symbols visible

Sperrholzplatte

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Schritt 2:

Insert A fully into the holes 0 A I

Schritt 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Schritt 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 315mm 32±0.5mm

Schritt 5:

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Schritt 6:

About 10 degrees tilt will make installation easier A B A F

Schritt

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols present)

Schritt 9:

Diagram showing a wooden cabinet with warning sign and an arrow pointing to it, alongside a safety warning symbol.

Schritt 11:

46mm 374mm

Hersteller: Shanghaimuxinmuyeyouxiangongsi Adresse:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, Shanghai 200000 CN.

Nach AUS importiert: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importiert in die USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

HO BISOGNO DI AIUTO? CONTATTACI!

Close-up of five wooden planks arranged diagonally on a white surface (no text or symbols visible)

Bastoni di legno

Stack of three beige wooden panels or sheets, no text or symbols visible

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Insert A fully into the holes 0 A I

Passaggio 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Passaggio 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 315mm 32±0.5mm

Passaggio

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Passaggio

About 10 degrees tilt will make installation easier A B A F

Passo

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols present)

Passo

Diagram showing a wooden cabinet with warning sign and an arrow indicating safety or hazard, alongside a warning symbol.

Passaggio 11:

46mm 374mm

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

Australia

YH CONSULENZA LIMITATA. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Stainesupon-Thames, Surrey, TW18 4AX

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Palitos de madera

Stack of three beige wooden panels or sheets, no text or symbols visible

Hoja de madera contrachapada

1 LEFT 2x Dia6mm hole 15mm depth 2x Dia11mm hole 15mm depth 330mm 70mm 1 RIGHT Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm

Paso 2:

Insert A fully into the holes 0 A I

Paso 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Etapa 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 315mm 32±0.5mm

Paso 5:

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

About 10 degrees tilt will make installation easier A B A F

Paso 7:

Line drawing of a mechanical device with a lever and bracket, showing an orange arrow indicating direction (no text or symbols)

Paso 9:

Diagram showing a wooden cabinet with warning sign and an arrow indicating upward motion, alongside a safety warning symbol.

Paso 11:

46mm 374mm

YH CONSULTING LIMITADO. C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Drewniane patyki

Stack of three beige wooden panels or sheets, no text or symbols visible

Arkusz sklejki

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Krok 2:

Insert A fully into the holes 0 A I

Krok 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Krok 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm 2016mm 315mm 32±0.5mm

Krok 5:

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Krok 6:

About 10 degrees tilt will make installation easier A B A F

Krok 7:

Line drawing of a cabinet with an arrow indicating rotation (no text or symbols present)

Krok 9:

Diagram showing a wooden cabinet with warning sign and an arrow pointing to it, alongside a safety warning symbol.

Krok 11:

46mm 374mm

Producent: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, szanghaj 200000 CN.

Import do AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Import do USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

ODPOWIEDZIALNOŚCIA. C/O YH Consulting Limited

Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW1

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e-garantiecertificaat www.vevor.com/support

MURPHY BEDKIT

MODEL: YFHTW241

Collection of metal automotive components laid out on a concrete floor, including frame plates, lockers, and accessories (no visible text or symbols)

HULP NODIG? NEEM CONTACT MET ONS OP!

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Houten stokken

Stack of three beige wooden panels or sheets, no text or symbols visible

Multiplex blad

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Stap 2:

Insert A fully into the holes 0 A I

Stap 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Stap 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm RIGHT 2016mm 315mm 32±0.5mm

Stap 5:

LEFT I B F Insert B fully into the holes end cup H

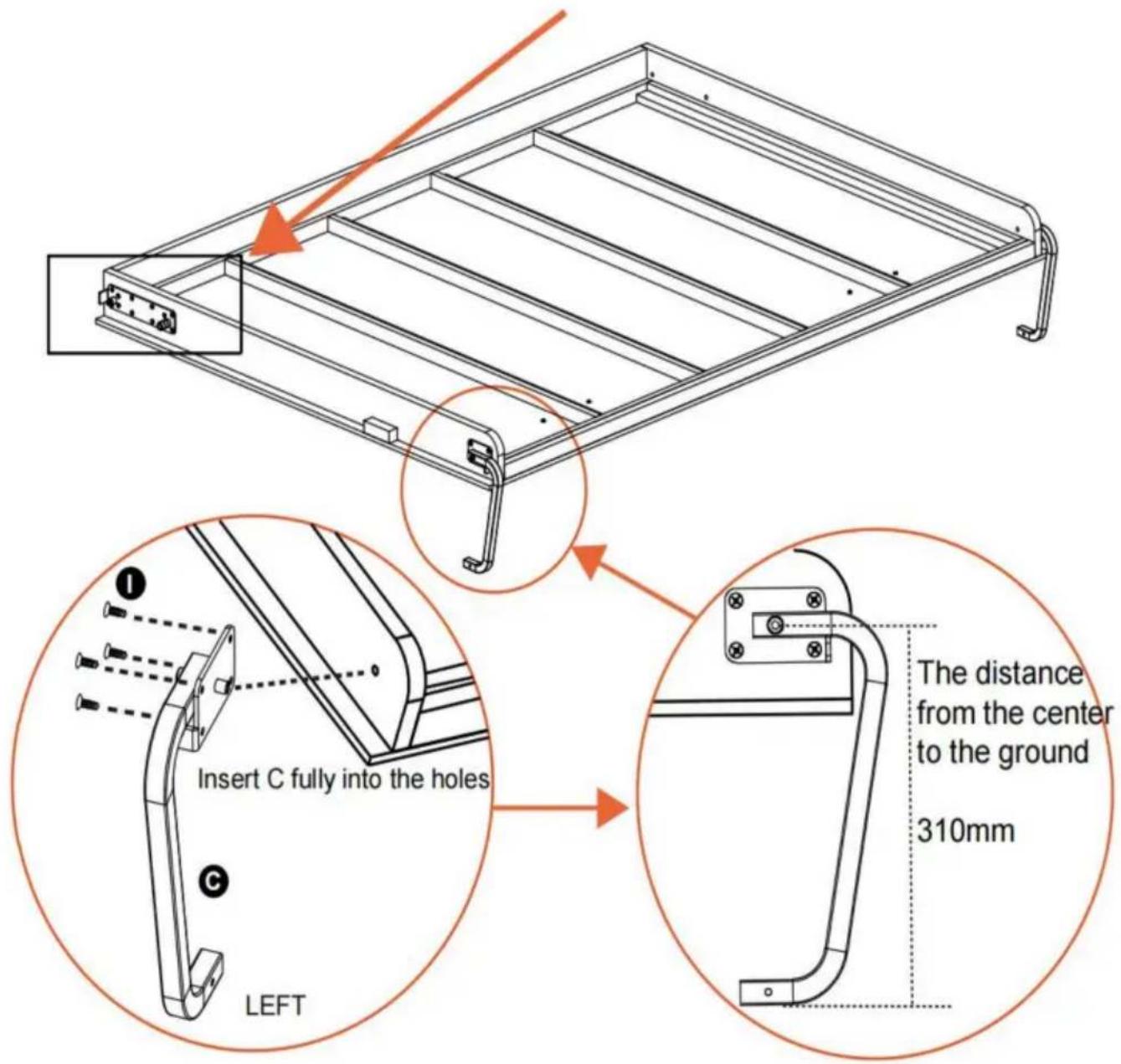

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Stap 6:

About 10 degrees tilt will make installation easier A B A F

Stap 7:

Technical line drawing of a mechanical device with a red arrow indicating direction (no text or symbols)

Stap 9:

Diagram showing a wooden cabinet with warning sign and an arrow indicating safety or hazard, alongside a safety warning symbol.

Stap 11:

46mm 374mm

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG REP

garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of metal automotive components laid out on a concrete floor, including frame plates, limit switches, and accessories (no visible text or symbols)

BEHÖVS HJÄLP? KONTAKTA OSS!

Close-up of five wooden plank bars arranged diagonally (no text or symbols visible)

Träpinnar

Stack of three beige wooden panels or sheets, no text or symbols visible

Plywood ark

Tekniska funktioner

Skåp Nummer Material Dimensionera IQTY Viktig

1	1 tumPlywood	1170*406*25mm	2	Inredimensioner avskåp:2036*388*1060mm
2	1 tumPlywood	2036*388*25mm	1
3	1 tumPlywood	2036*406*25mm	1
4	3/4 tumPlywood	2036*550*18mm	1
5	3/4 tumPlywood	2036*250*18mm	1

Sängram
Nummer Material		Dimensionera	IQTY	Viktig
6	3/4 tum trä	40*20*945 mm	12	Vikt på sängramen: 40,5 kg (89 lbs)Mått på sängram : 2016*1035*132 mm
7	3/4 tum trä	40*20*1902 mm 2
8	1 tum Plywood	1035*120*25 mm 2
9	1 tum Plywood	1902*50*25 mm 1
10	1-1/2 trä	32*32*100 mm	1
11	1/2 tum Plywood	2016*1035*12 mm	1
12	1 tum Plywood	1902*120*25 mm 1
13	3/8 tum Plywood	980*1898*9 mm 1
Säng ram
Nummer	Material	Dimensionera	IQTY	Viktig
14	madrass	990*1900*(152-25 4mm (39*75*(6-10)tum)	1	Madrass vikt: 20 kg (44 lbs)
TOTALVIKT PÅ SÄNGRAM OCH MADRASS BEHÖVER VARA:				61-64 kg (134 lbs-141 lbs)

LEFT 2x Dia11mm hole 15mm depth 2x Dia6mm hole 15mm depth RIGHT 330mm 70mm Use Dia11mm Wood Drill Bit Use Dia6mm Wood Drill Bit

LEFT Dia11mm hole internal diagonal length 2295 ±1mm Internal 1060mm Internal 388mm Dia6mm hole INTERNAL 2036mm RIGHT

Steg 2:

Insert A fully into the holes 0 A I

Steg 3:

Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit Radius less than 80mm 68mm 66mm Use Dia11mm Wood Drill Bit 2 x Dia11mm hole x depth15mm LEFT RIGHT 8 46mm 56 mm Use Dia11mm Wood Drill Bit 4 x Dia11mm hole x depth15mm

Steg 4:

RIGHT LEFT 32±0.5mm diagonal length need to be same LEFT 1035mm RIGHT 2016mm 315mm 32±0.5mm

Steg 5:

LEFT I B F Insert B fully into the holes end cup H

Insert C fully into the holes LEFT The distance from the center to the ground 310mm

Steg

About 10 degrees tilt will make installation easier A B A F

Steg

Line drawing of a cabinet with an arrow indicating direction (no text or symbols present)

Steg 9:

Diagram showing a wooden cabinet with warning sign and an arrow indicating upward motion, alongside a safety warning symbol.

Steg 11:

46mm 374mm

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Importerad till AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

www.vevor.com/support
