USER MANUAL WT-179 Vevor

Technical Support and E-Warranty Certificate www. vevor. com/support

WELDING TABLE

Model: WT-179

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared major top brands and does not necessarily mean to cover all categories of tools us. You are kindly reminded to verify carefully when you are placing an order where are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

WELDING TABLE

HOB USER MANUAL

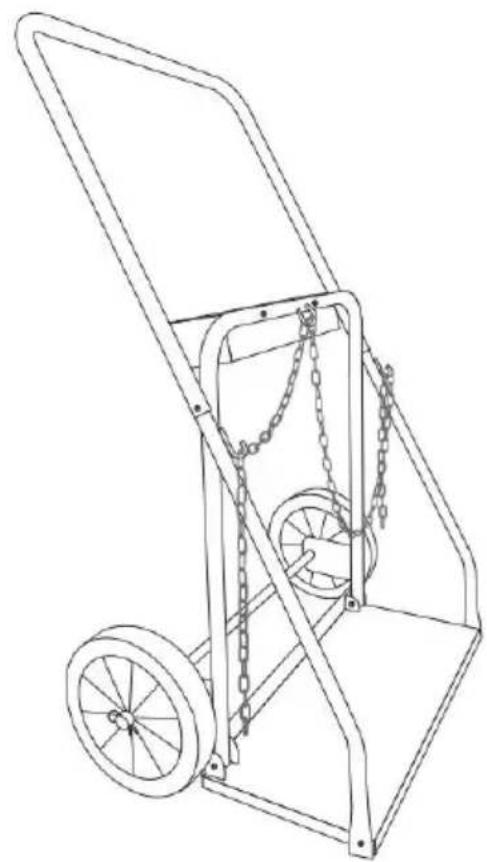

Line drawing of a handwheel with wheels and chains (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING:

Read this material before using this product. Failure to do so can result in injury.

Assembly precautions

1. Assemble only according to these instructions. Improper assembly can create hazards.
2. Wear safety goggles and heavy-duty work gloves during assembly.
3. Keep the assembly area clean and well-lit.
4. Keep bystanders out of the area during assembly.
5. Do not assemble when tired or when under the influence of alcohol, drugs medication.
6. The product capabilities apply to properly and completely assembled product only.
7. For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap and separate a parts in a clean work area.

Use precautions

1. Use with products heavier than the rated weights indicated may result in instability causing possible injury.
2. Mounts must be attached as specified in assembly instructions. Improper installation may result in damage or serious personal injury.
3. Make sure that the supporting surface will safely support the combined we of the equipment and all attached hardware and components.
4. Use the mounting screws provided and DO NOT OVER TIGHTEN mounting screws.
5. This product is not a toy. Do not allow children to play with or approach item.
6. Use as intended only. Do not sit or stand on table.
7. Inspect before every use. Do not use if parts are loose or damaged.
8. Use only on flat, level, hard surface.
9. Do not exceed listed weight capacity. Tighten all knobs securely before applying load.
10. Be aware of dynamic loading! Sudden load movement may briefly create excess load causing product failure.

ASSEMBLY INSTRUCTIONS

For additional information regarding the parts listed in the following pages, refi the Assembly

Diagram of this manual. Unwrap and separate all parts on a clear work area

PRODUCT PARAMETERS

Model	WT-179
Maximum load-bearing	440lb
Product Size (mm)	500*720*1120

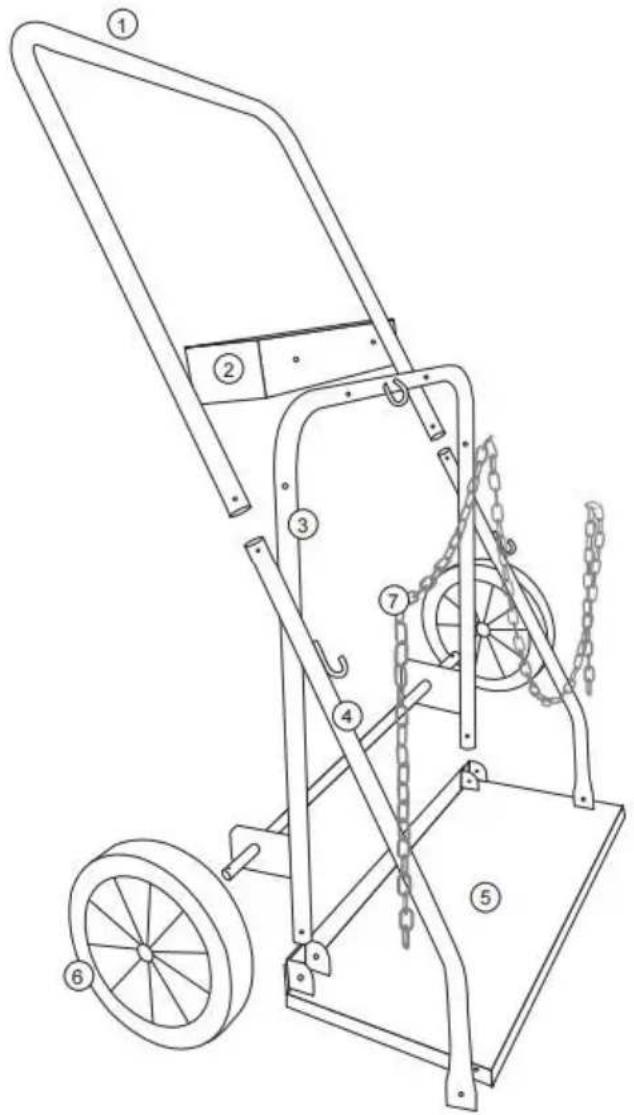

PACKING LIST

Item	Part Name	QTY	Picture
1	Handle	1 PCS
2	Tool Groove	1 PCS	2
3	Caster Frame	1 PCS
4	Skeleton	2 PCS
5	Base Plate	1PCS
6	Caster Frame	2PCS	6
7	Chain	1PCS	7
8	Screw	2PCS	A M8x25
9	Washer	8PCS	B ∅ 8
10	Spring Washer	8 PCS	C ∅ 8
11	Nut	8PCS	D ∅ 8
12	Washer	2PCS	E ∅ 12
13	Coiled Spring Pin	2PCS	F ∅ 2.5
14	Screw	2PCS	G M8x40
15	Screw	4PCS	H M8x65

ASSEMBLY STEP

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Plea forgive us that we won't inform you again if there is any| technology or soft updates on our product.

Technical diagram of a manual push cart with numbered components and labeled parts

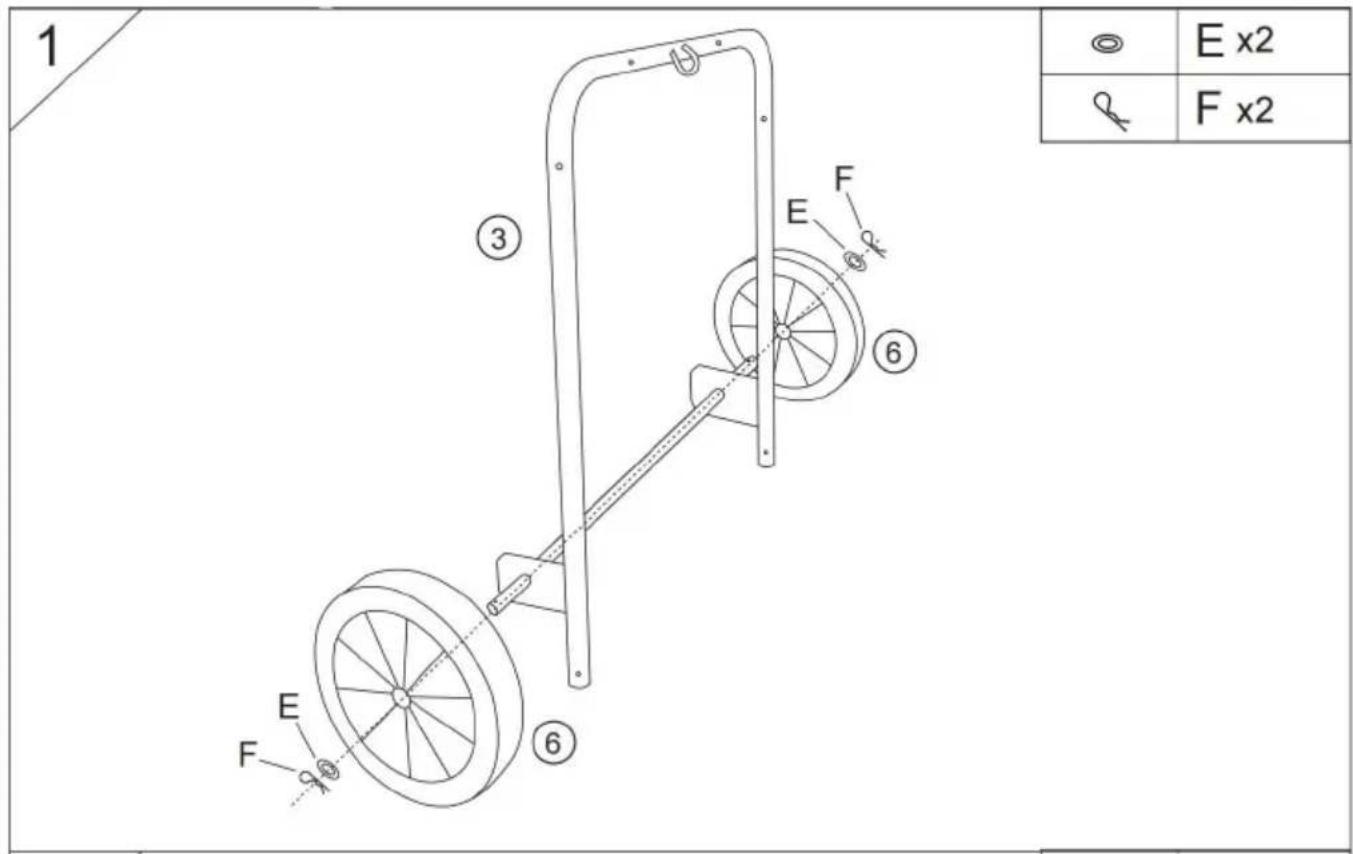

1. Install the casters as shown in the figure.

1 ③ ⑥ ⑥ ⑥ E x2 F x2

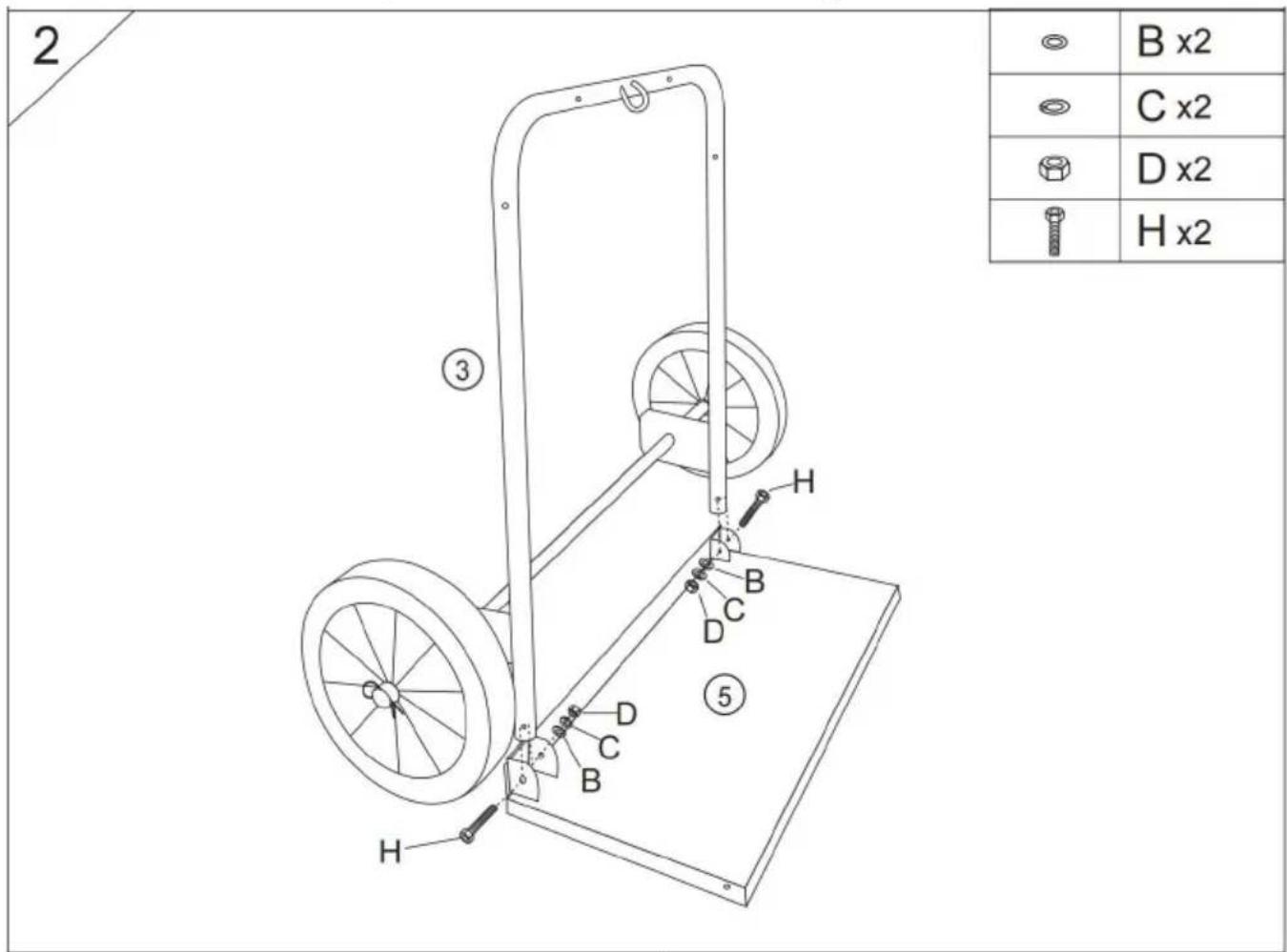

1. Install the bottom plate as shown in the figure.

2 B x2 C x2 D x2 H x2 ③ H H B C D D C B ⑤

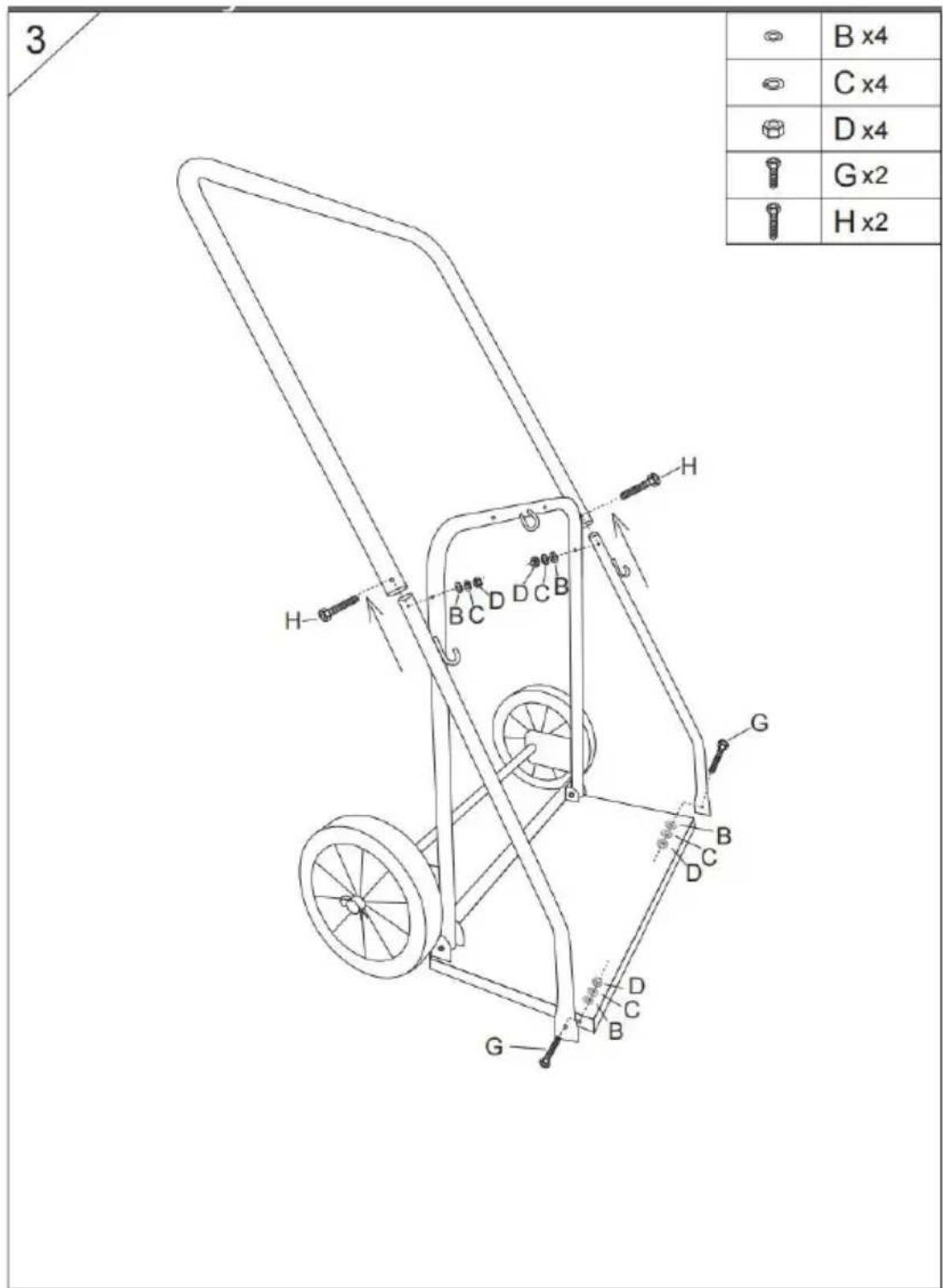

1. Install the skeleton and handle as shown in the figure.

3 B x4 C x4 D x4 G x2 H x2 H BC D DC B G B C D D C B G

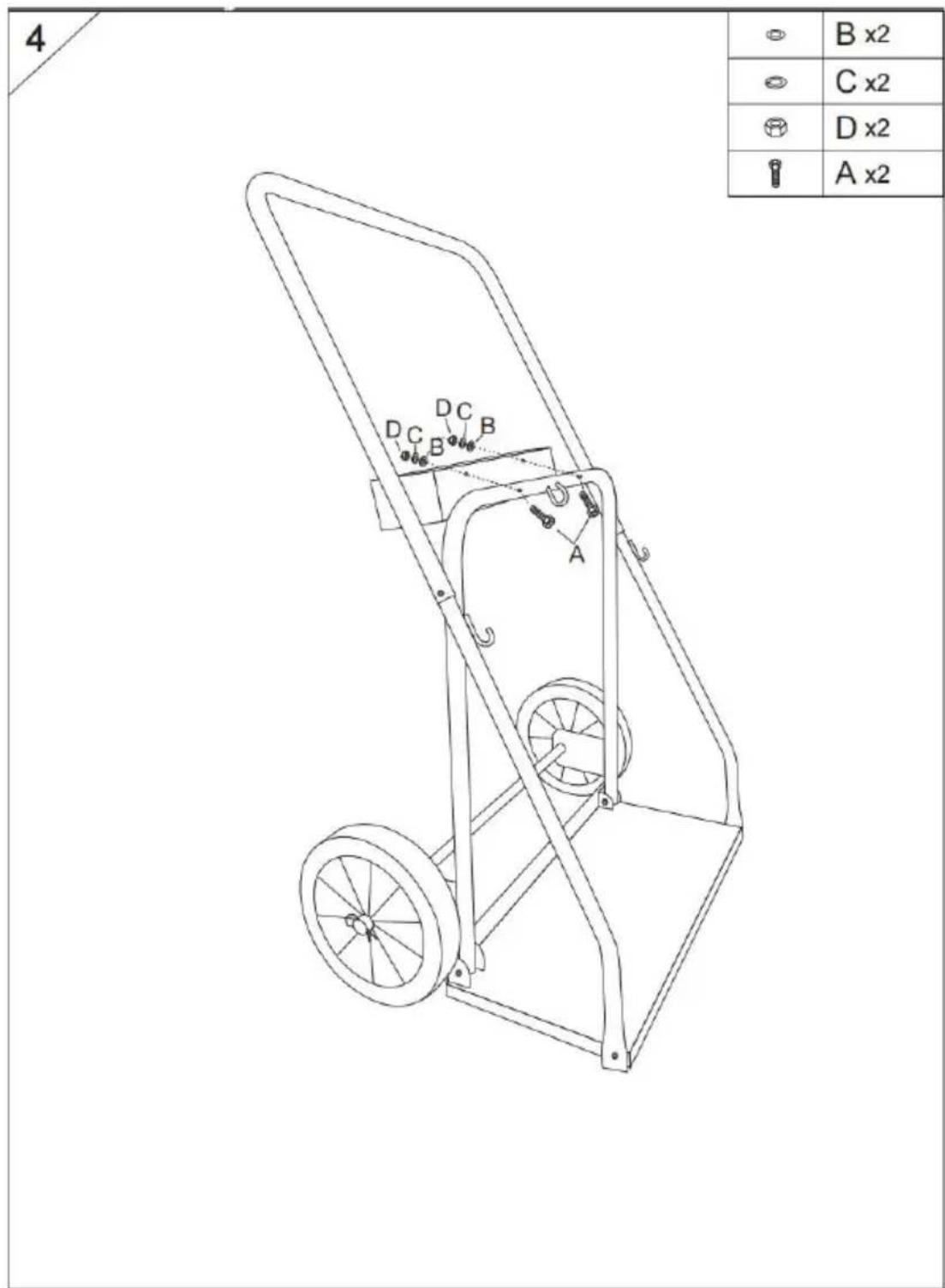

1. Install the tool groove as shown in the figure.

4 B x2 C x2 D x2 A x2

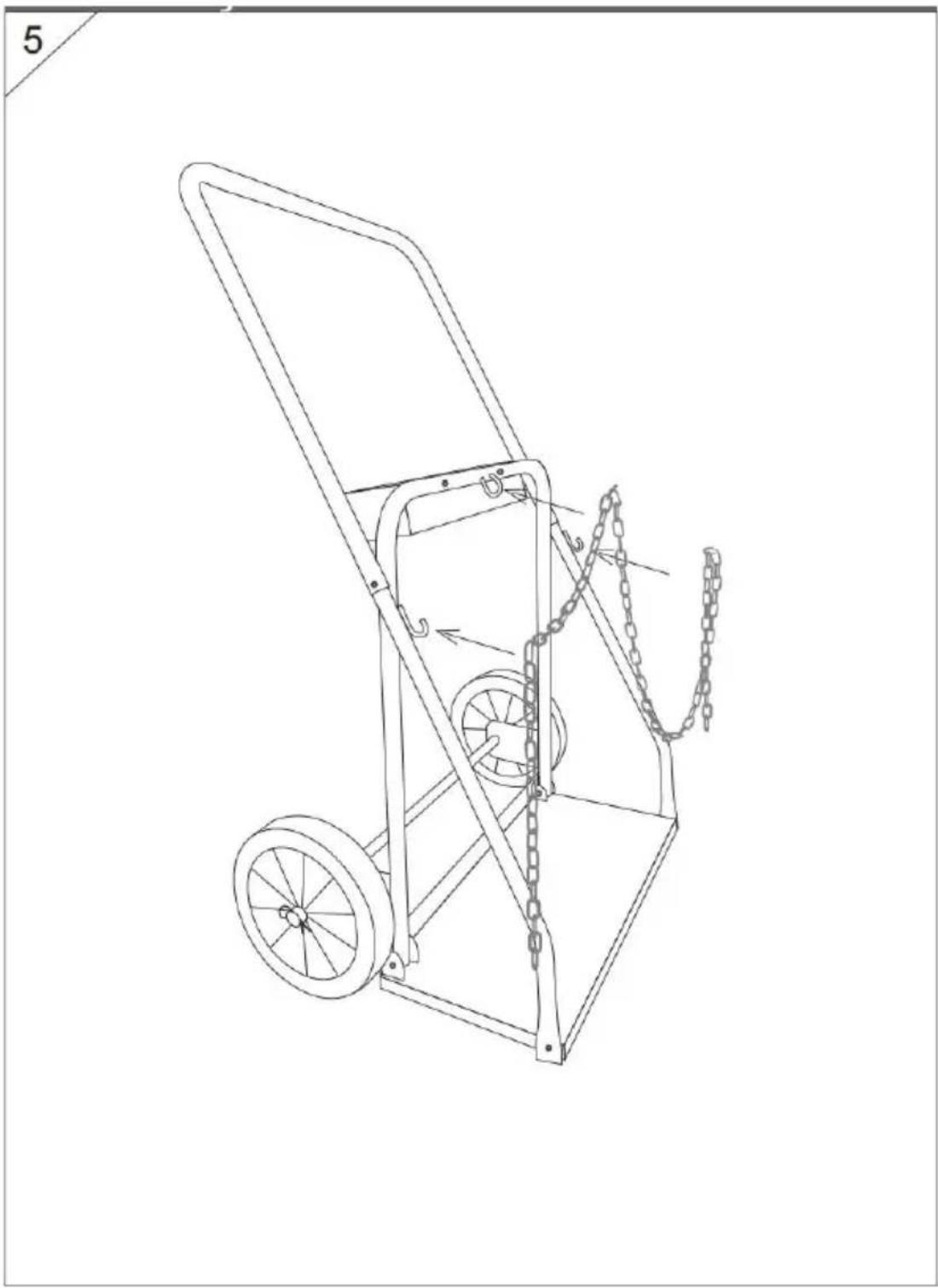

1. Install the chain as shown in the figure.

Line drawing of a handwheel cart with wheels and chains, no text or symbols present
