USER MANUAL XSJ23-F07 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
BOAT TRAILER GUIDES
MODEL: XSJ23-F07
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
VEVOR
TOUGH TOOLS, HALF PRICE

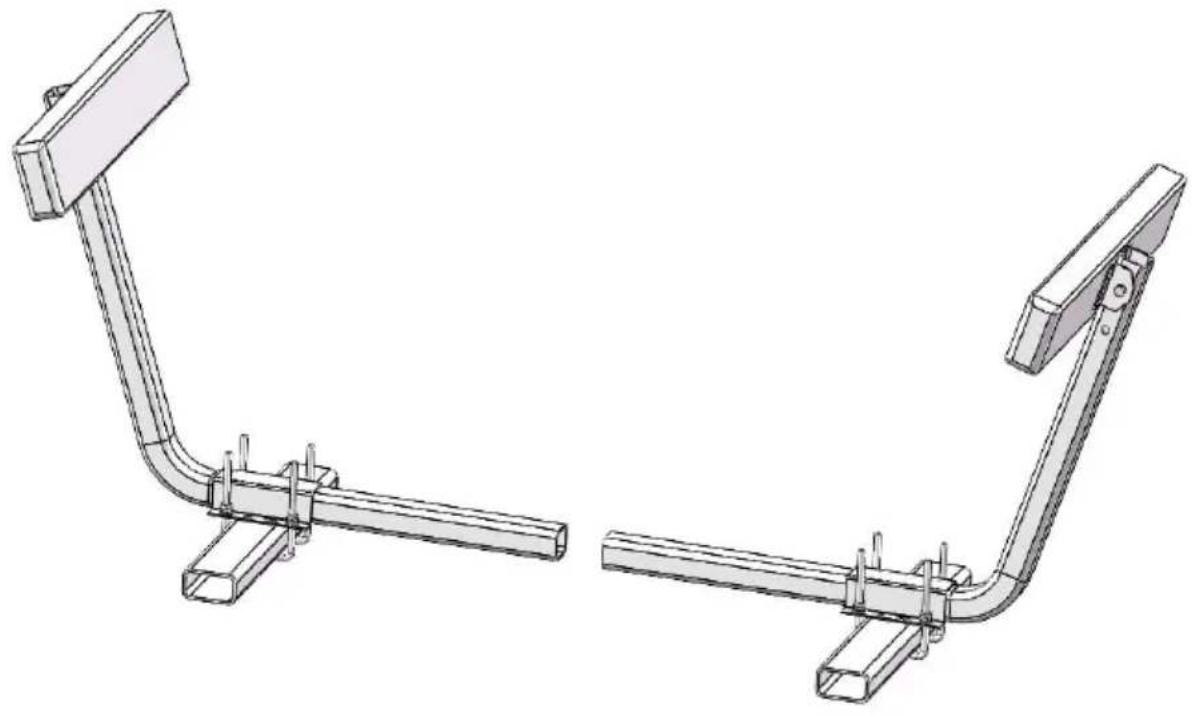

BOAT TRAILER GUIDES
MODEL: XSJ23-F07
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
IMPORTANT SAFEGUARDS
WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.
- Avoid children using boat trailer guides. And this product is not a not allow children to play.
-
Keep away from sharp points,blades and other items.
Assembly precautions. -
Assemble only according to these instructions. Improper assembly c create hazards.
- Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
- Keep assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- Do not assemble when tired or when under the influence of alcohol drugs or medication.
- Product capabilities apply to properly and completely assembled pro only.
- For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare parts children's reach.
SAVE THESE INSTRUCTIONS

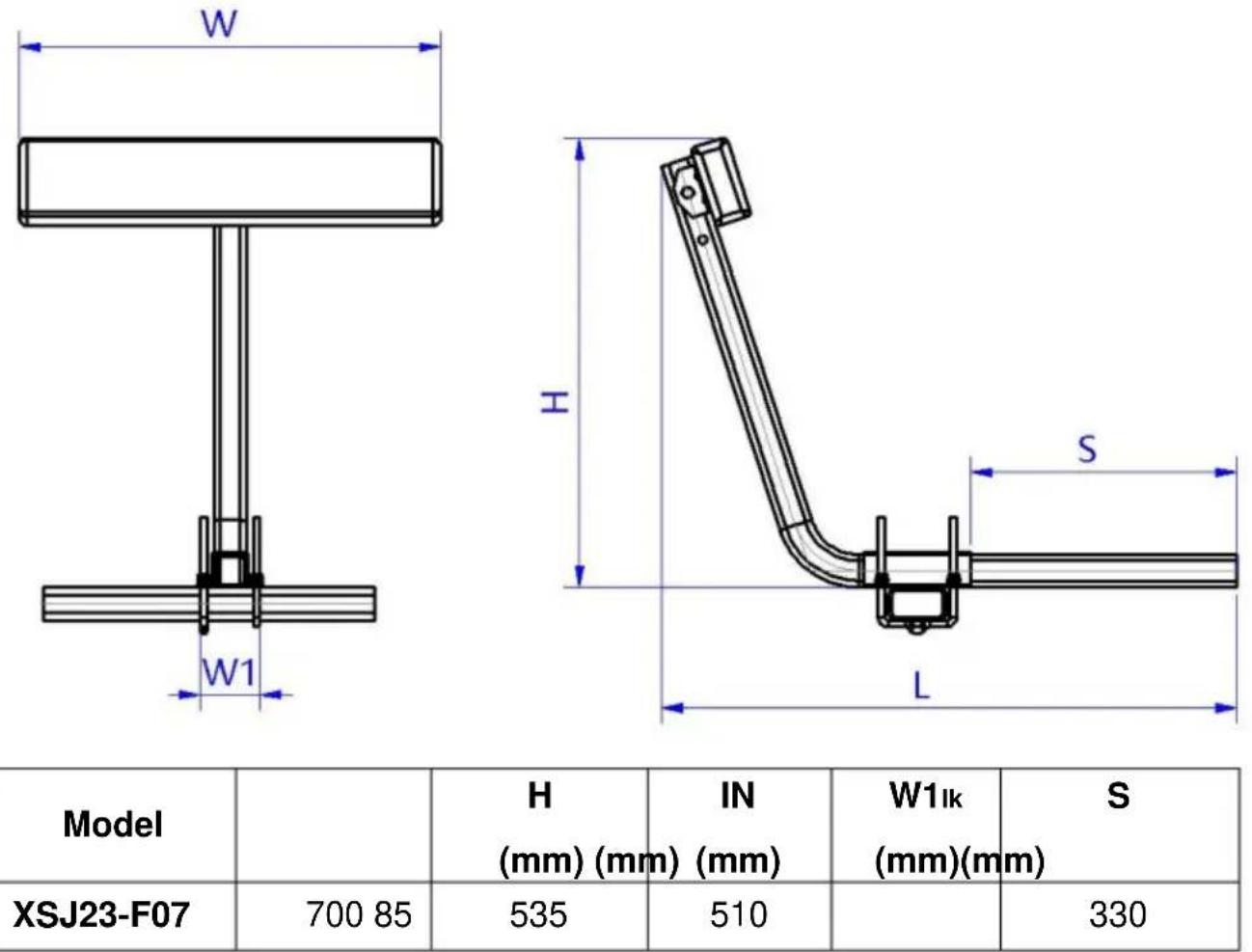

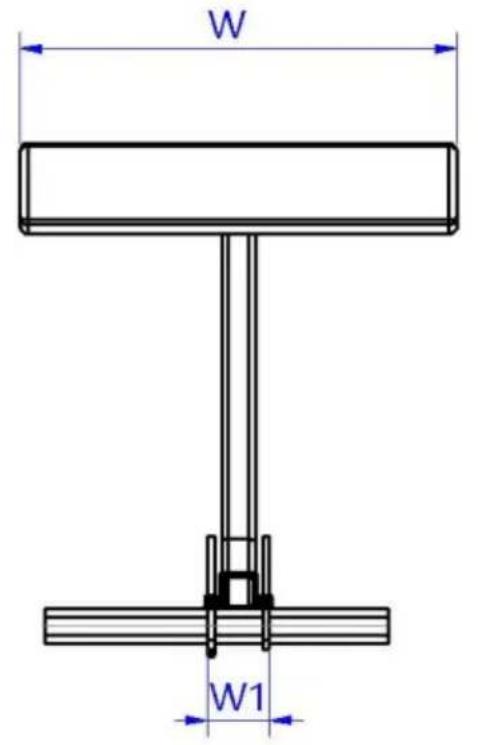

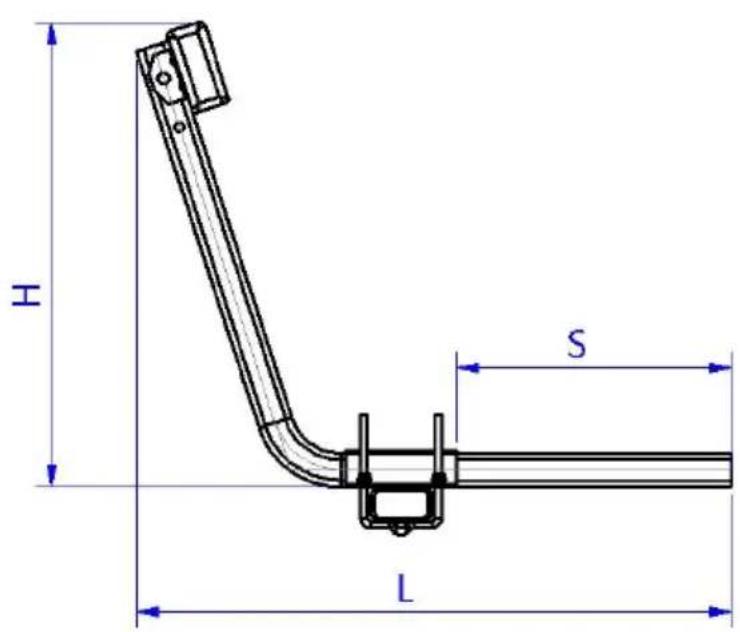

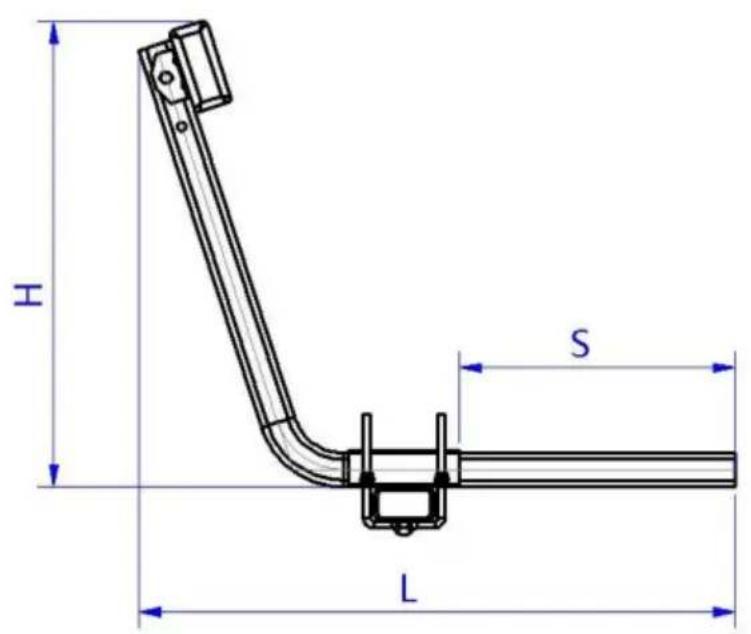

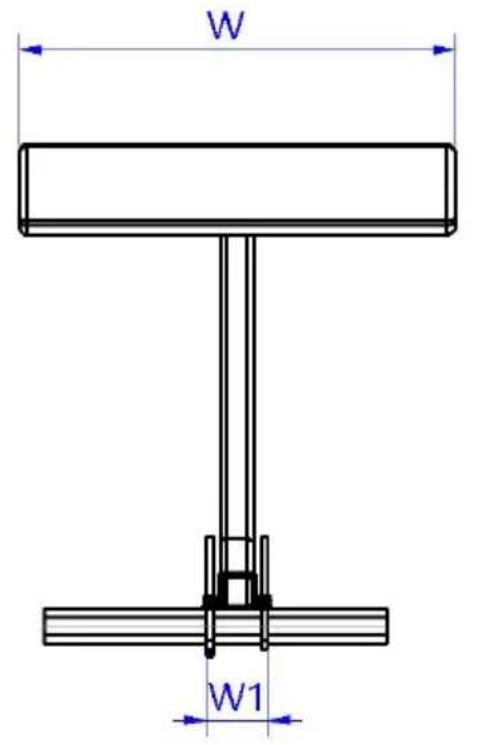

PRODUCT SPECIFICATIONS:
| Model | L (mm) | H (mm) | W (mm) | W1 (mm) | S (mm) |
| XSJ23-F07 | 700 | 535 | 510 | 85 | 330 |

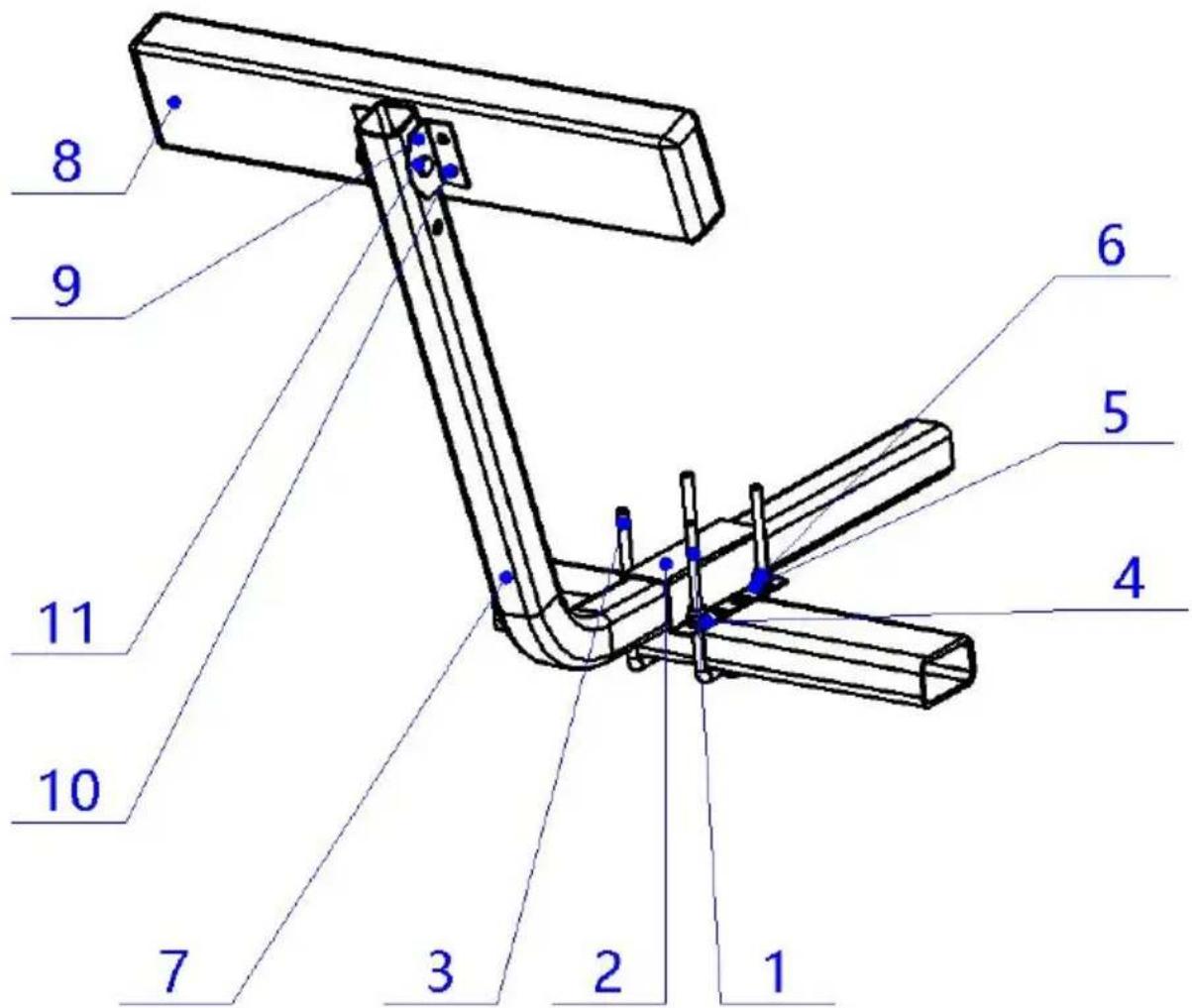

PACKAGE INCLUDE
| No | Components | Picture | QTY |
| 1 | u-bolt-2 | 2pcs | |
| 2 | U-shaped slot plate | 2pcs | |
| 3 | u-bolt-1 | 2pcs | |
| 4 | flat washer | 10pcs | |
| 5 | Spring washer | 10pcs | |
| 6 | nut | 10pcs | |
| 7 | L-bracket | 2pcs | |
| 8 | Wood pad | 2pcs | |
| 9 | L-shaped support plate | 4pcs | |
| 10 | Tapping screw | 8pcs | |
| 11 | bolt | 2pcs | |
| 12 | wrench | 1pcs |
SIMPLE INSTRUCTION
Step 1: Assemble parts 8 and 9, fix on the cushion with 4 parts 10, pay attention to fix them to the middle of cushion, and control the distance between the two L-shaped support plates to 40-42mm
Step2: Install the components from step 1 into part7 and tighten using parts 11, 4,5,6

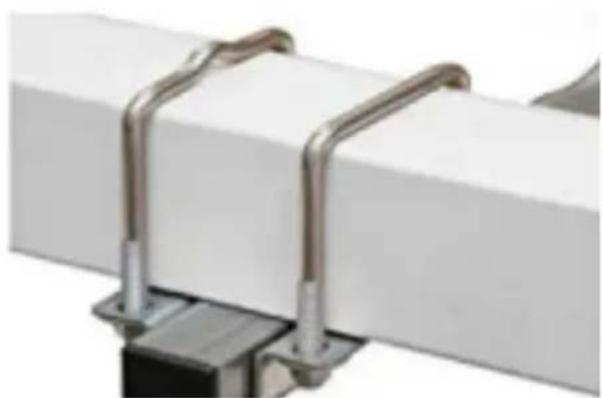

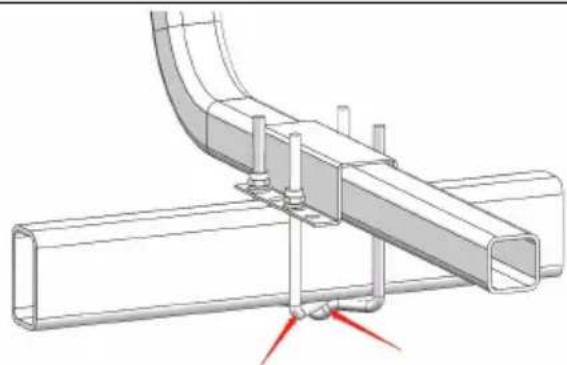

Step3: Fix the component carrier frame in Step 2 to the beam frame carrier with U-shaped bolts. You can install U-bolts in the two ways s figure according to the actual situation. It has an adjustment distance of 330mm on one side depending on w rail needs to be installed for the width of your boat
You can also mount the rail assembly under the trailer beam
ATTENTION:
- It is recommended to find someone to assist with the installation.
- Ensure that the guide rail is installed in the correct position, and fasten the screws with the plate handle.
