USER MANUAL XFL-QX-YW02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Patient Transfer Chair

MODEL:XFL-QX-YW02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

MODEL:XFL-QX-YW02

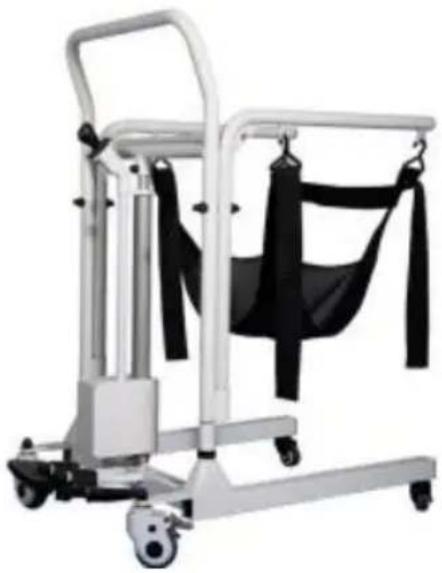

Medical mobility device with black bandages and handle, no visible text or symbols

Note: The product picture is for reference, the actual details shall pre

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Thank you very much for choosing this Patient Transfer Chair Please read all of the instructions before using it. The information will you achieve the best possible results.

Operation safety

Please put this manual in a place easy to check and keep it properly. This instruction manual clearly indicates how to use the equipment safely and correctly, so asto prevent any harmor property loss caused from you and others.

Warning

1. Must use matched adapter with this product when charging.2. This chair is not recommended to use for showering, if you have to must turn off the power and put the waterproof cover on the charging port.
2. The light on adapter will be on red while charging, it will stop charging automatically when the battery is fully charged, and the light will turn green.4. The maintenance of this machine must be carried out by professionals.

Prohibition

1. Do not open the battery box when it is charging
2. Do not use the product during the charging process
3. Do not use it if the weight over 300 lbs(150kg)
4. Do not put it in the place that the kids can touch it to avoid injury5. I strictly forbidden to operate the machine when there are objects blocking it, otherwise the machine will be damaged

*Our company will not be responsible for any loss or damage caused by operation neglecting warning and attention. Please pay attention on.

Product introduction

Intended use

Electric lift transfer chair is the nursing device which helps disabled people moving without barrier, it is designed for short distance transferring and rehabilitation nursing. The caregivers can transfer the patients easily by controlling the lift button, which improve the nursing efficiency greatly. It help the caregivers to transfer patient who is immobile to car, living room, toilet, and bath room. In summary, it can greatly reduce the nursing intensity for caregivers and lower the nursing risk of secondary injury during the transfer process.

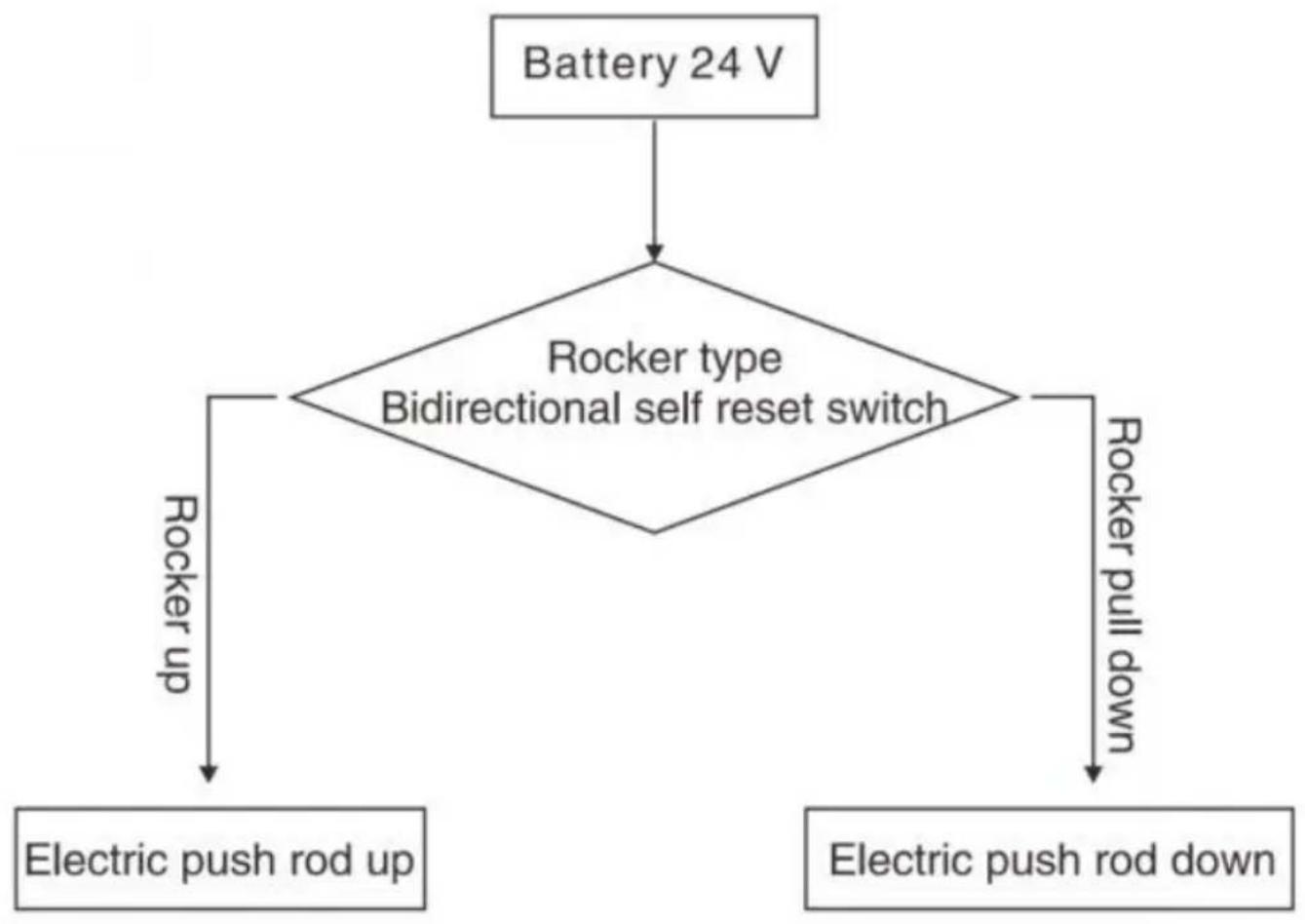

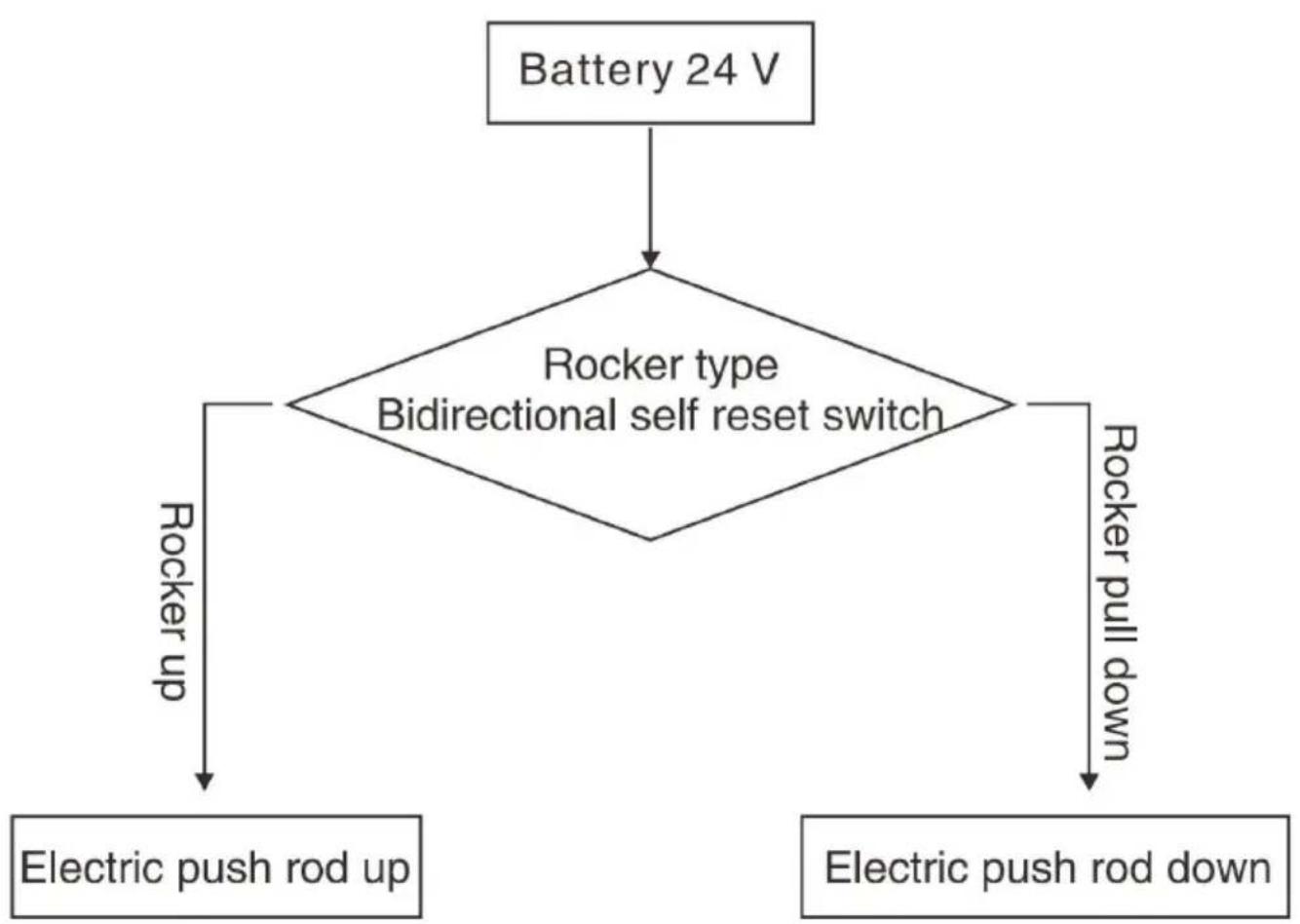

Circuit principle block diagram

Environmental requirements

◆Use environment:

Ambienttemperaturerange: +10°C \~ +40°C Relative humidity

range:30%\~75%Atmospheric pressure range: 700hPa\~1060hPaNo corrosive and combustible materials, dry and less dust indoor

◆Storage environment:

Ambient temperature:0°C\~+50°C relative humidity: s93%Atmospheric pressure:500hPa\~1060hPaNo corrosive gas, well ventilated room.

◆During transportation and storage, handle with care, and do not throw drop objects.

Do not store the equipment in a place where liquid may splash. Do not store the equipment under the risk of combustible gas.

Product parameter

Model	XFL-QX-YW02
Colour	White + black
Lift Range	330mm
Waterproof Class	IPX44
Maximum Load	≤150 KG (330 lbs)
Product Size	860 x 550x 980 t

Modern medical mobility device with adjustable arm and black bandage (no text or symbols visible)

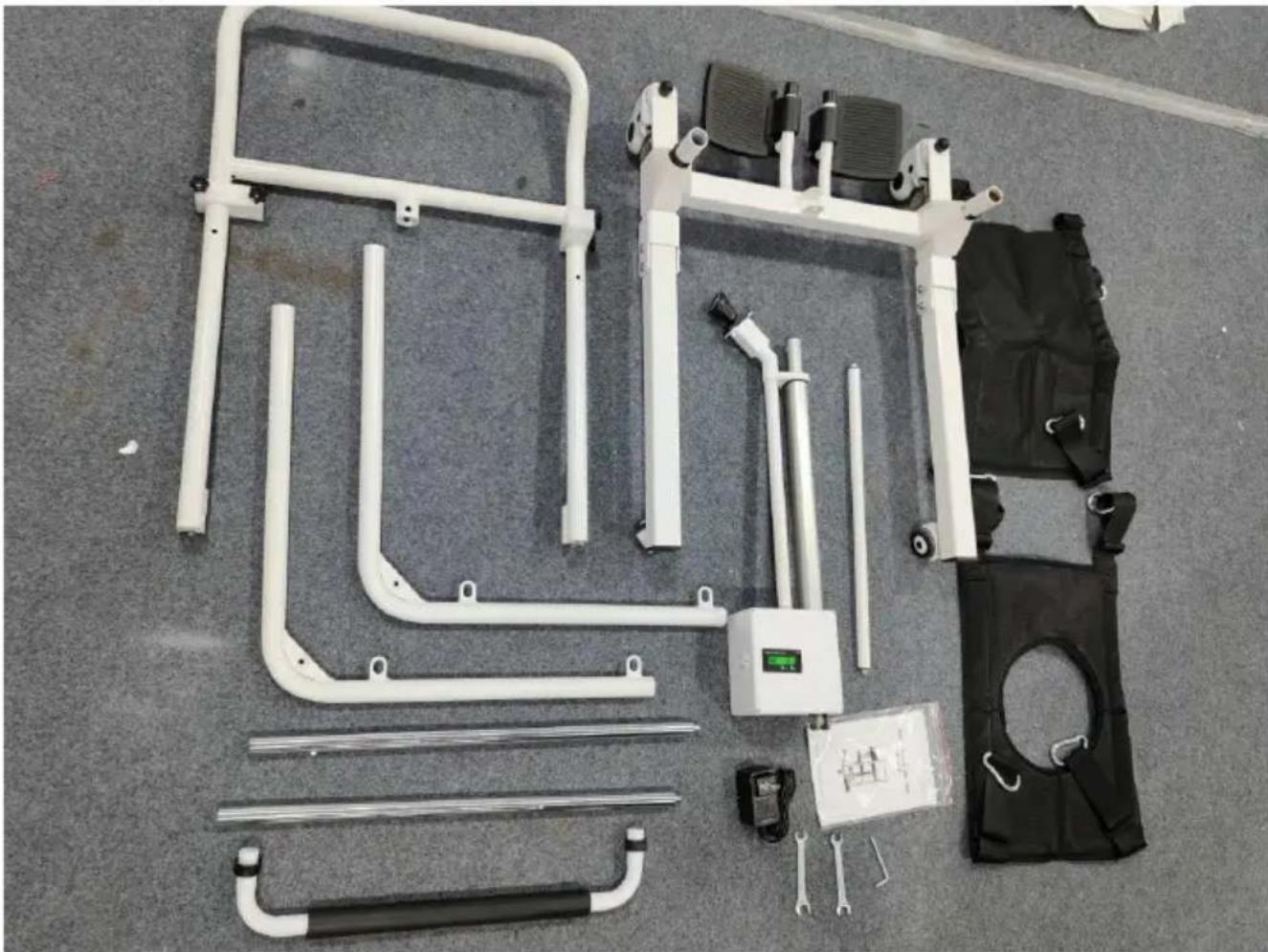

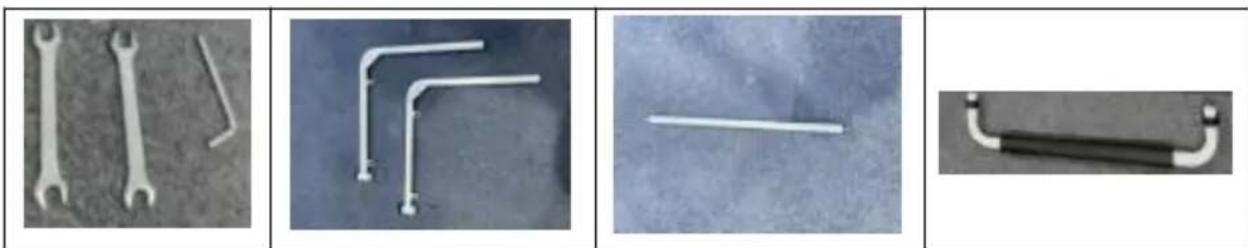

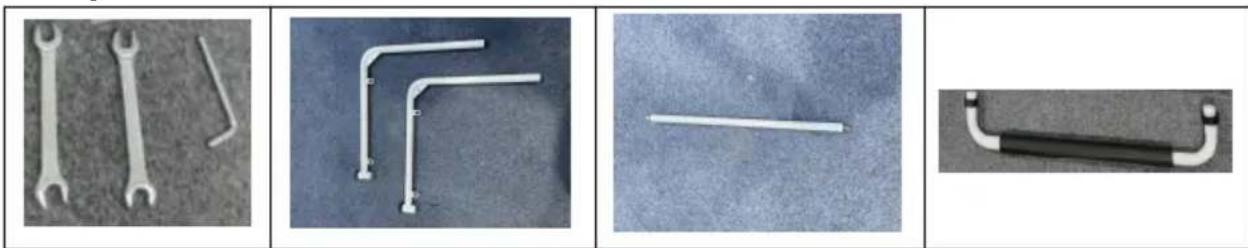

Part List

Overhead view of a white exercise chair with adjustable arms and a digital display unit, laid on carpet (no text or symbols visible)

1.Base frame x1	2.Handrail frame x1
3.seat pocket x1	4.seat pocket (with holes) x1
5.Seat left bracke tx1	6.Seat right bracket x1
7.Mandrel x2	8.Power adapter x1
9.Electric push rod assembly x1	10.Connecting rod x1
11.Back rest lever x1	12. Mounting fittings x 1set

Installation instructions

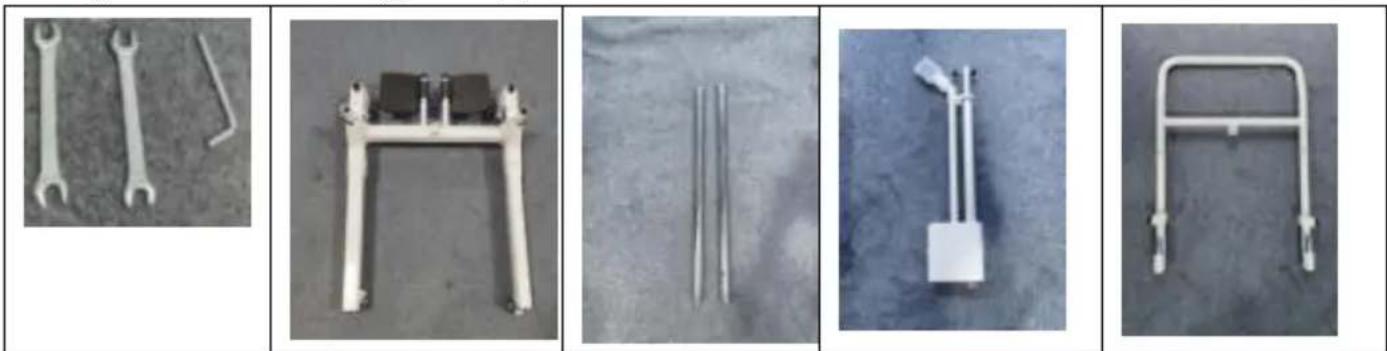

Step 1: Mounting body

Three metal wrenches on a textured surface, one with a separate angle (no text or symbols visible)

Mechanical bracket with two black components and mounting holes (no visible text or symbols)

Two parallel metal rods placed on a textured gray surface (no text or symbols visible)

Close-up of a laboratory instrument with two rods and a central base, lying on a dark surface (no visible text or symbols)

Metallic frame with two side connectors, no visible text or symbols

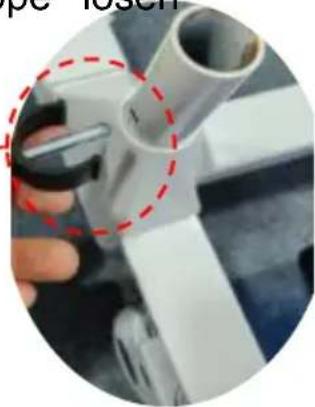

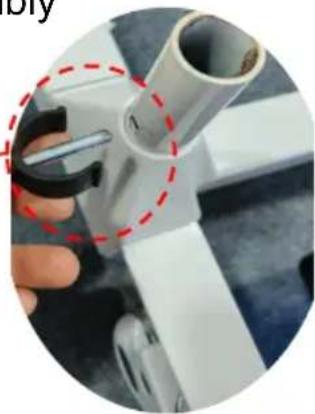

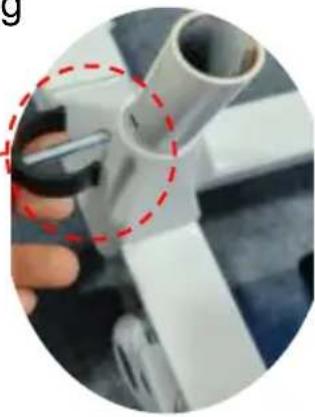

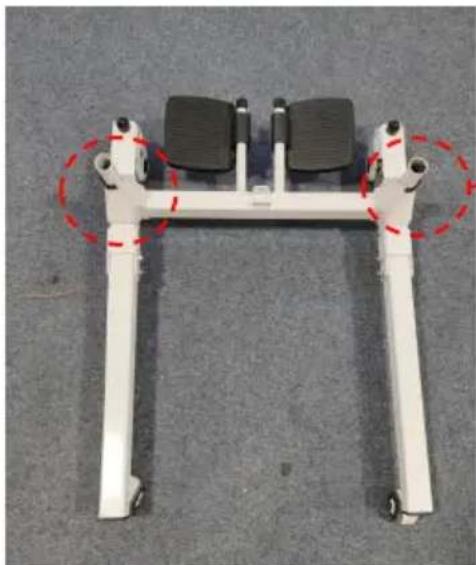

1.1 Pre-unplug the latch on the frame assembly

White mechanical support frame with black buttons and red dashed circles highlighting two positions (no text or symbols)

Close-up of a hand holding a white cylindrical object with a black handle, marked by a red dashed circle (no text or symbols visible)

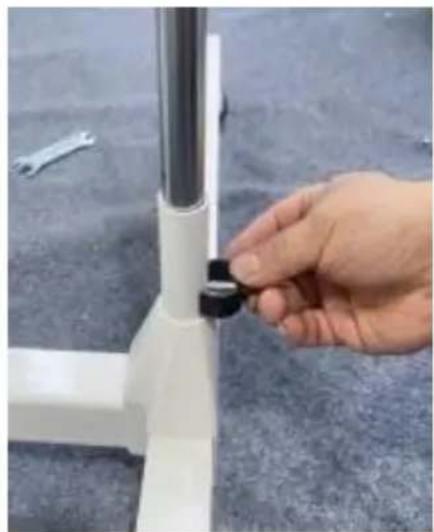

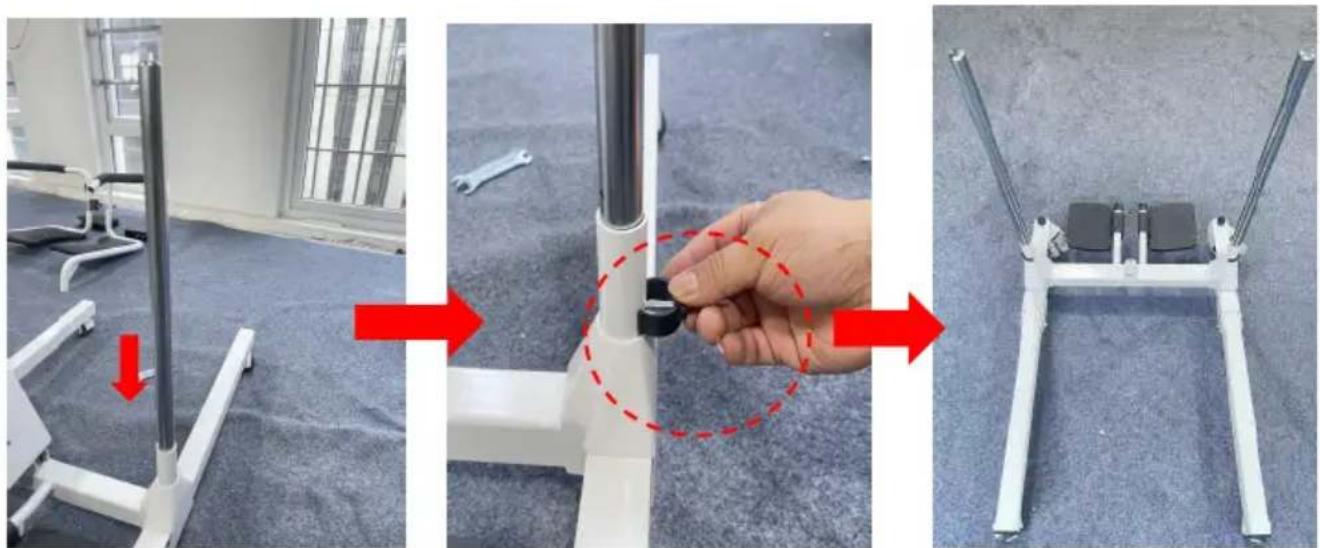

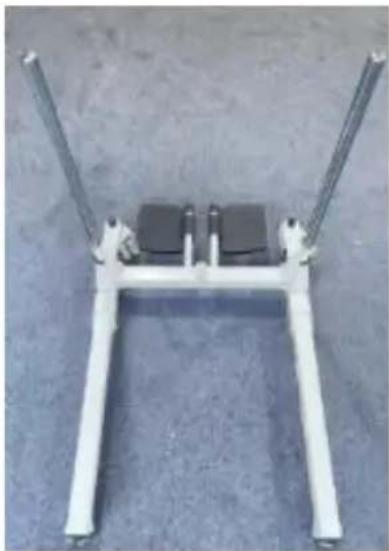

1.2 Insert the mandrel into the mounting holes on the left and right the frame assembly and insert the latch

(Note: The perforated end of the mandrel is the insert end)

Three-panel image showing a hand adjusting a white mechanical device with red arrows indicating motion, no text or symbols present.

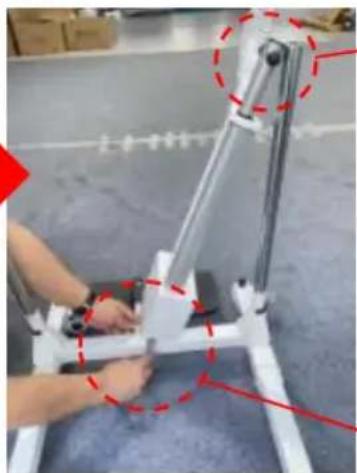

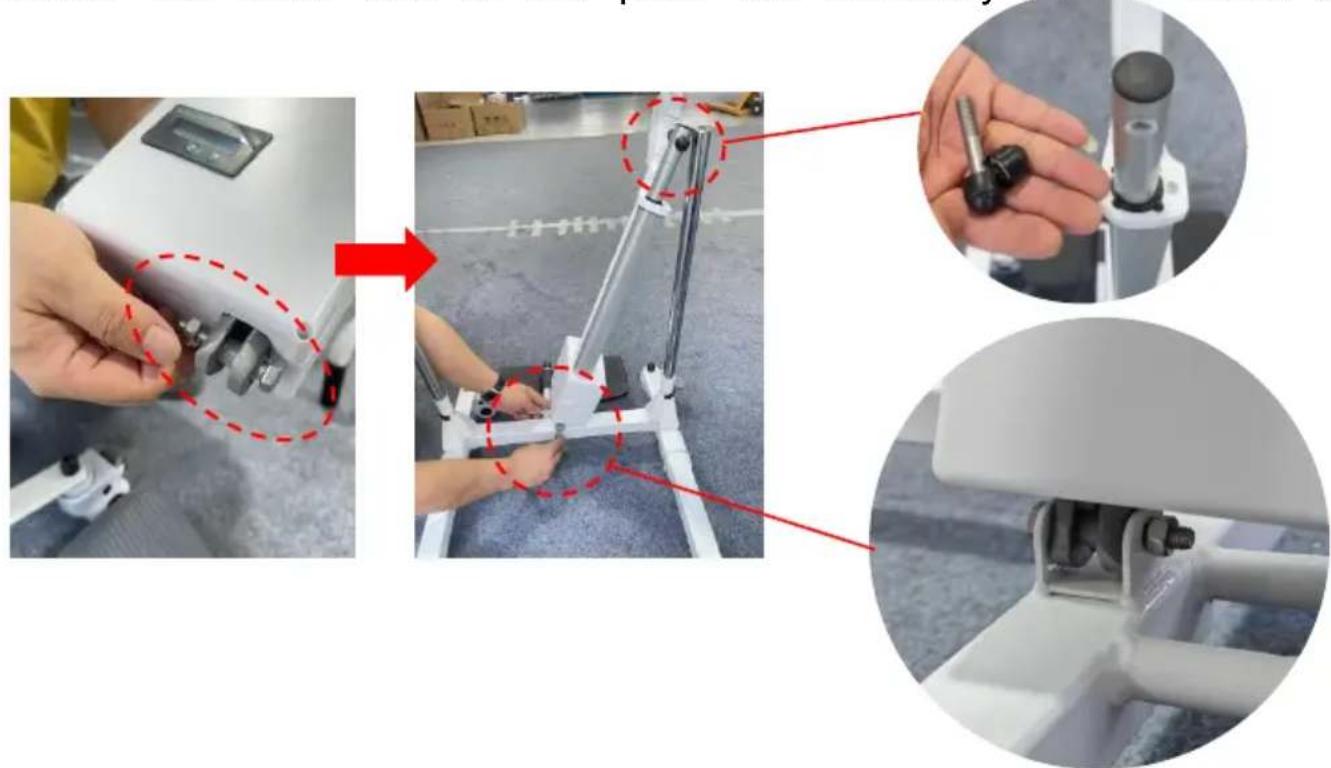

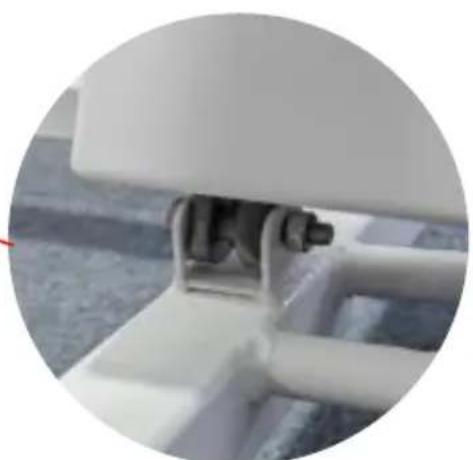

1.3 Unscrew the upper and lower ends of the push rod assembly ar attach the lower end of the push rod assembly to the frame assemb

Close-up of a white robotic device with metal components being adjusted, showing red dashed lines indicating adjustment (no text or symbols visible)

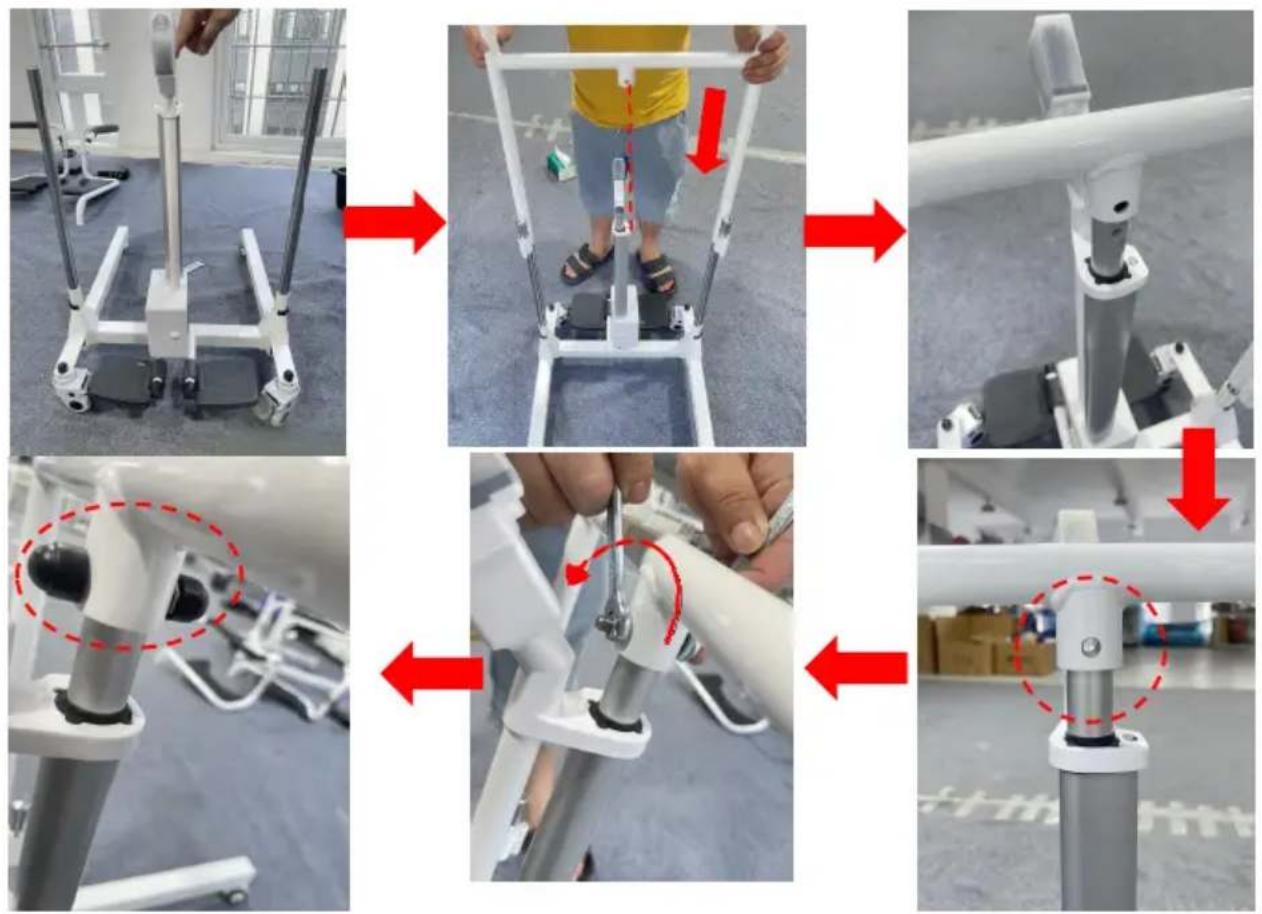

1.4 After installation, the push rod assembly is kept upright and then inserted into the handrail gantry. Align the mounting holes and lock the screws.

Step 2: Install the cushion frame

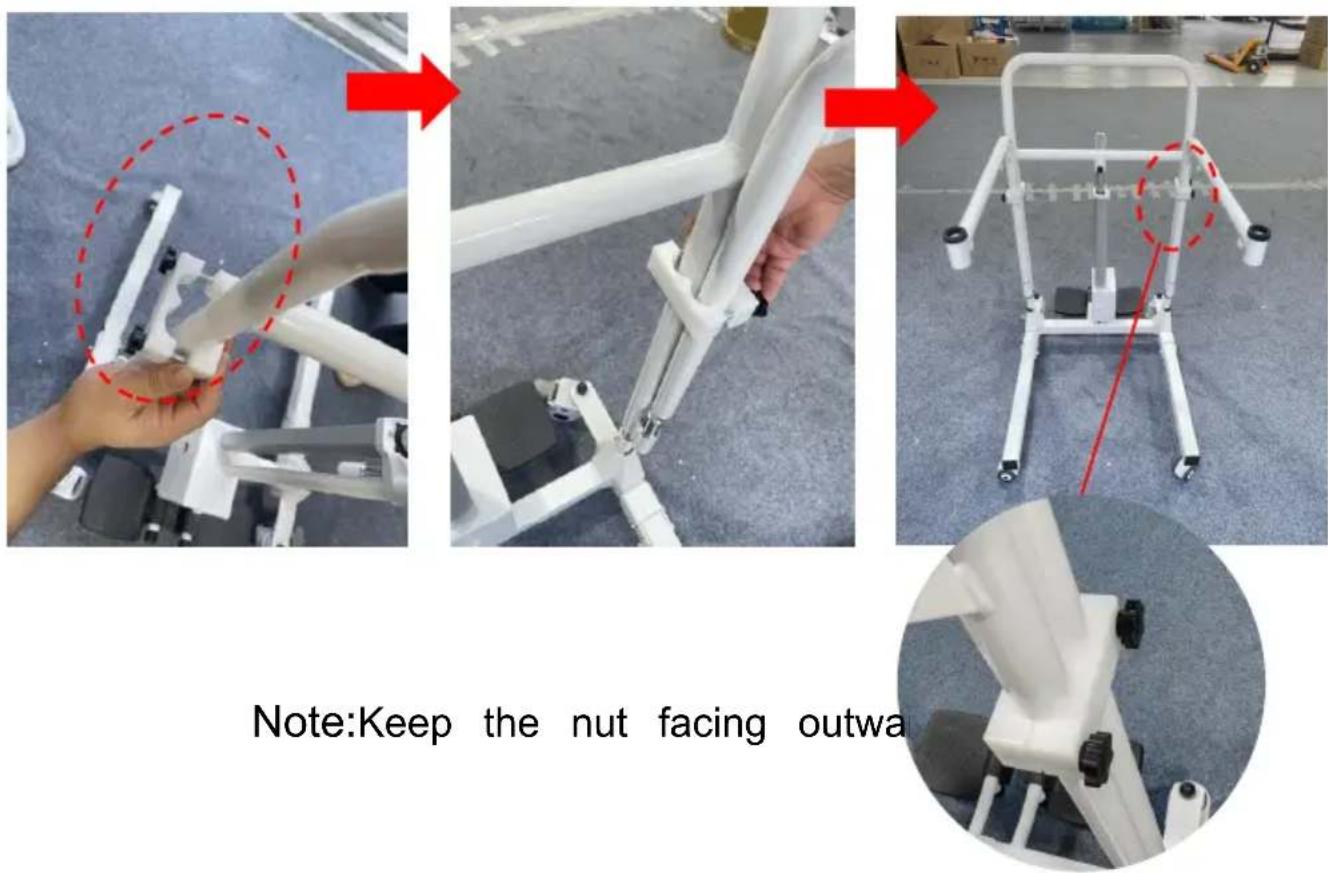

2.1 Loosen the M-lock screws on the frame, insert the left and right s frames of the seat cushion and tighten the screws.

Note:Keep the nut facing outwa

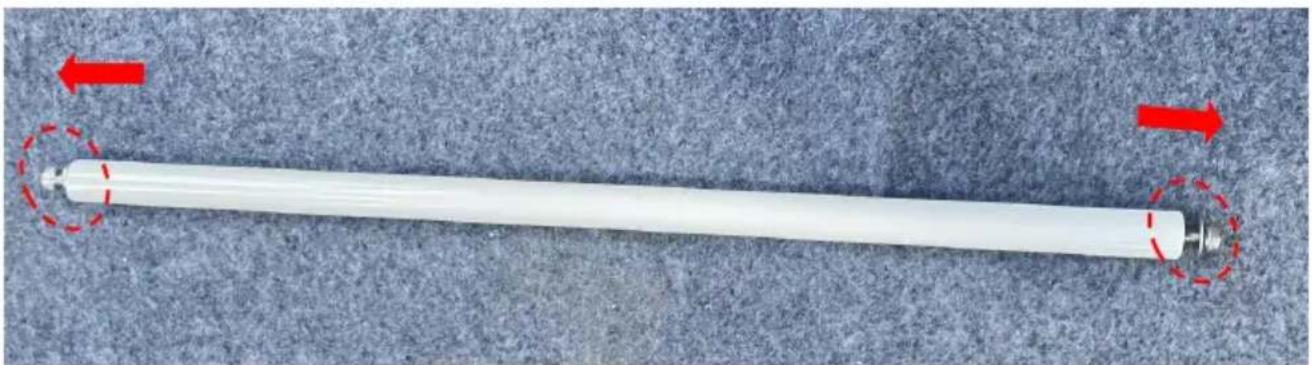

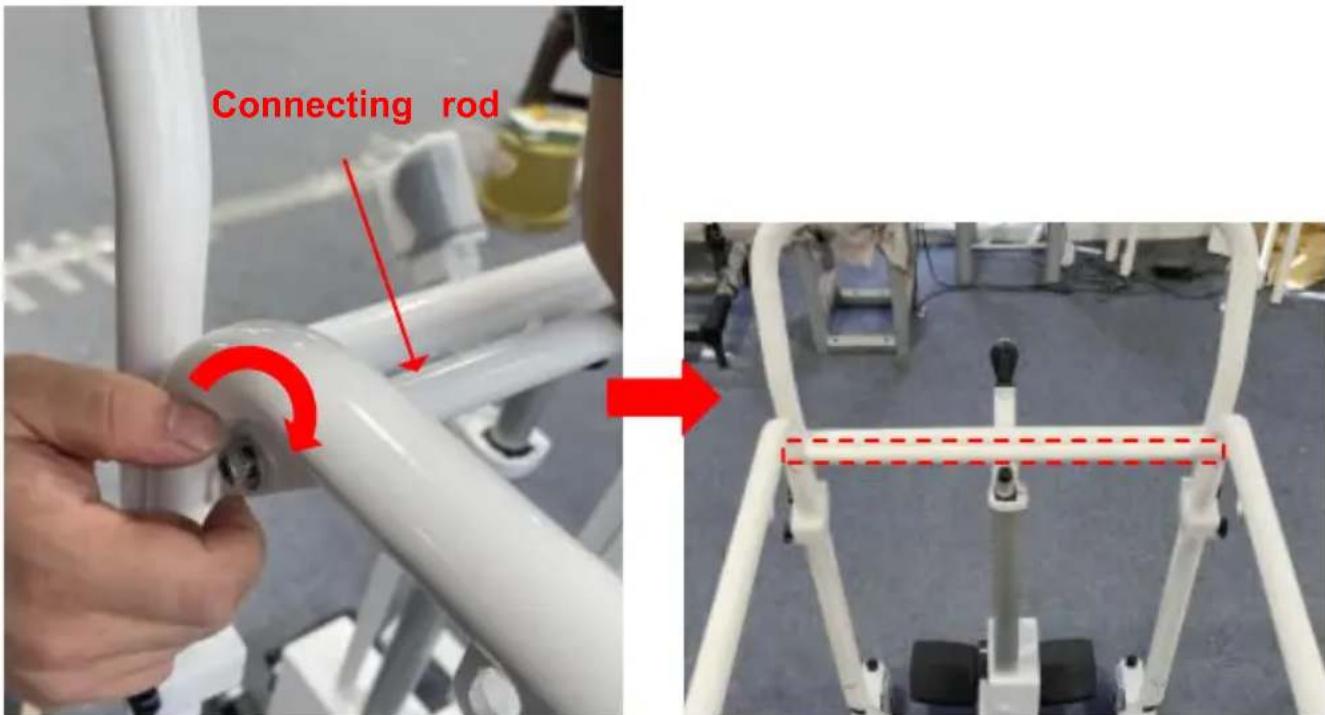

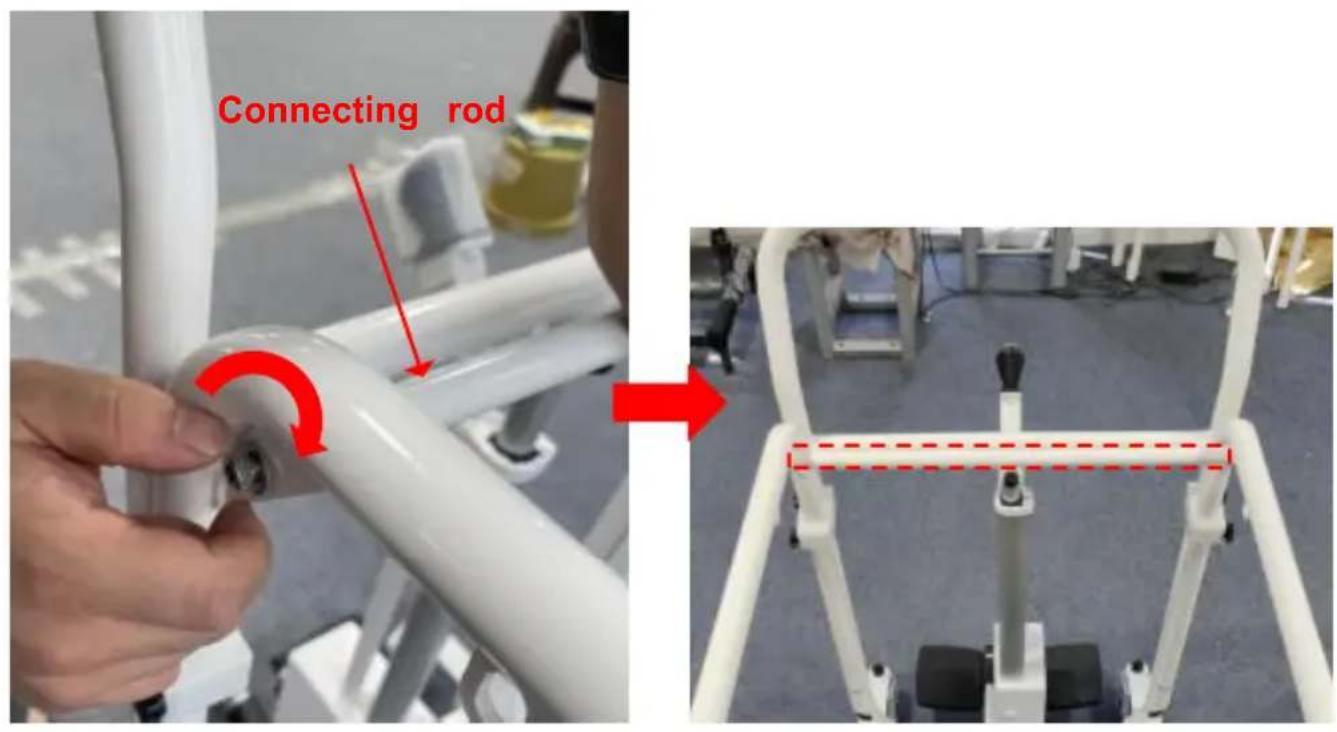

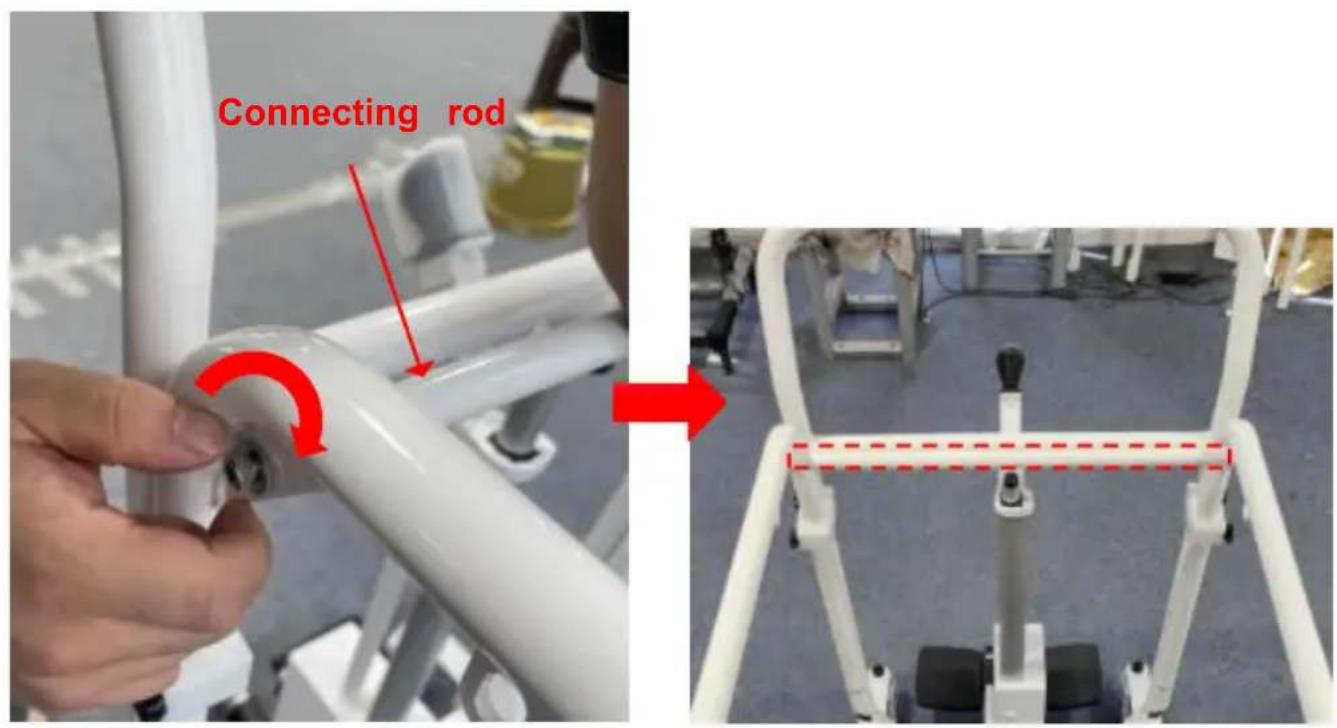

2.2 Loosen the screws of the connecting rod. The two ends of the connecting rod are connected with the frame of the left and right sid the seat cushion by screws.

White cylindrical object with red arrows indicating direction, placed on a textured gray surface (no text or symbols)

Connecting rod

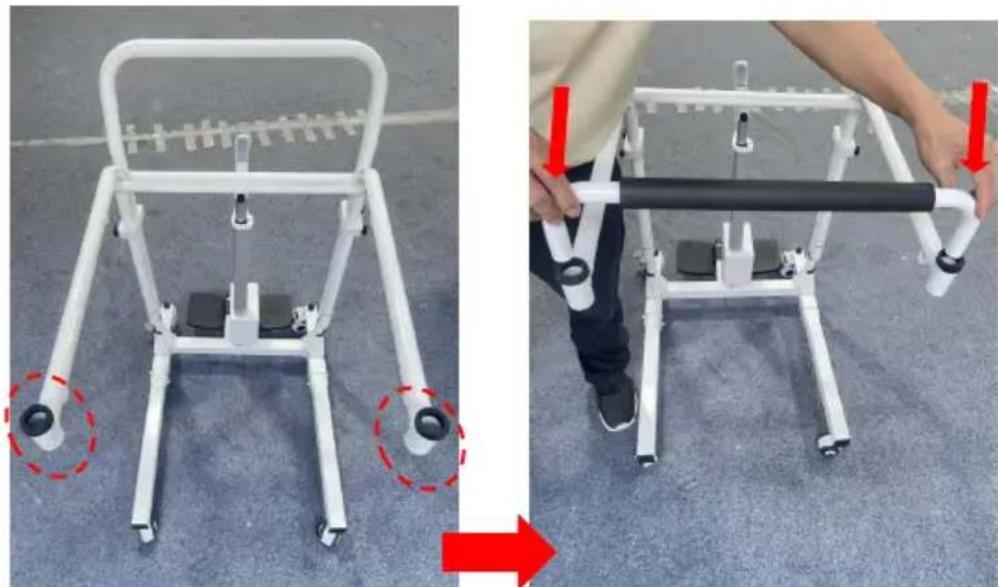

2.3 Insert both ends of the backrest rod into the mounting holes on side of the seat cushion and the right side of the frame.

Two-panel image showing a white exercise machine with red dashed circles and a person adjusting the base frame, both without any text or symbols.

Step 3: Mounting seat pocket

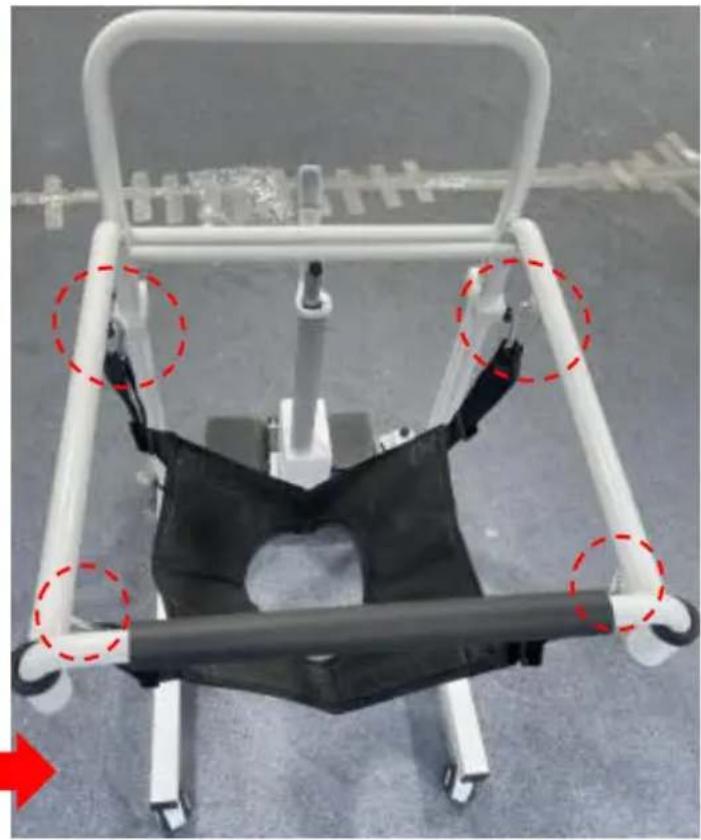

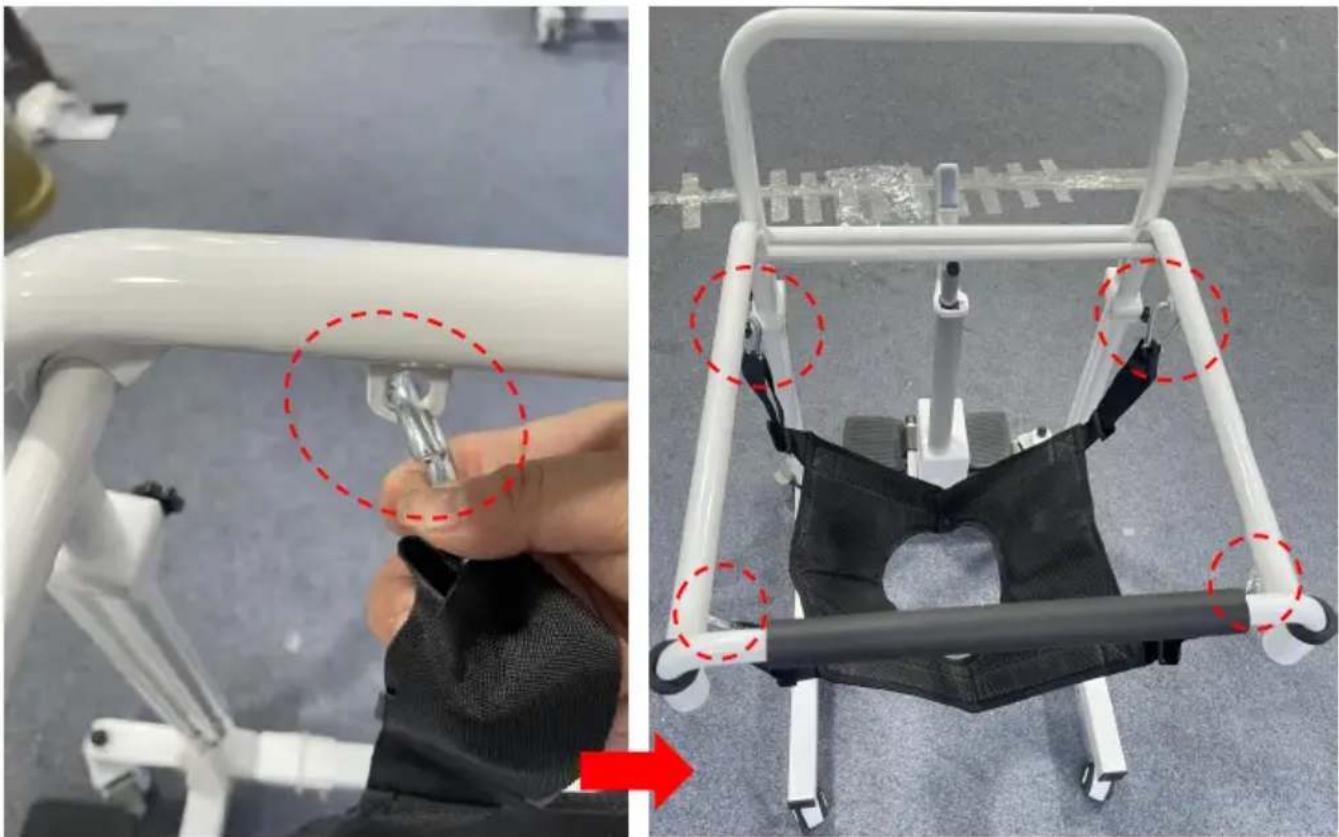

3.1 Install the four locks on both sides of the seat pocket on the mo holes of the left and right side frames of the seat cushion to adjust height of the seat pocket, finished.

Two-panel image showing a hand adjusting a white ergonomic chair frame and a black safety harness with red dashed circles highlighting the handle (no text or symbols present)

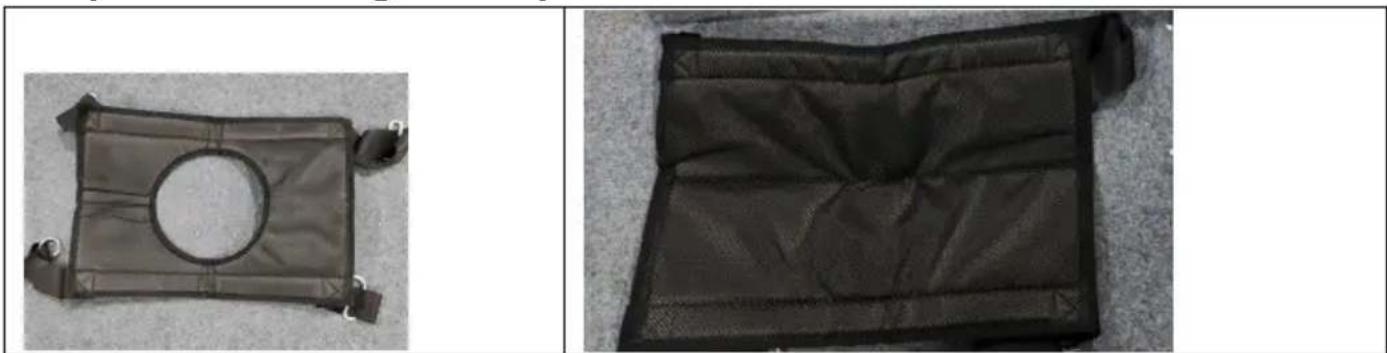

Warm TipThis product provides two seat pockets, please install or replace as needed.

Instructions

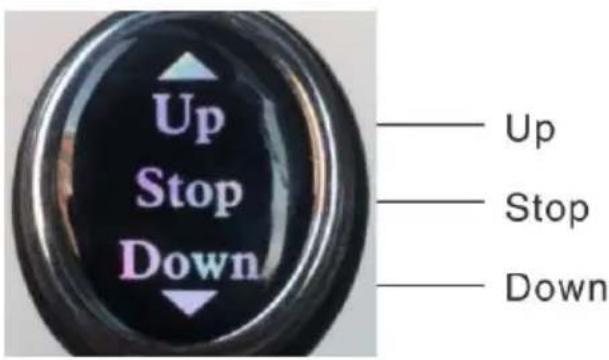

Up Stop Down — Up — Stop — Down

Product Controller Diagram

After charging, it can be used normally. It can be adjusted up and of the proper height can be moved. Before use, it must be confirmed to spindle of the frame is inserted to ensure safety. According to the he the product, press the up button to the appropriate height, release an If the key is not released, the product automatically stops at its high point. The power supply designed for this product is low voltage power supply, please rest assured.

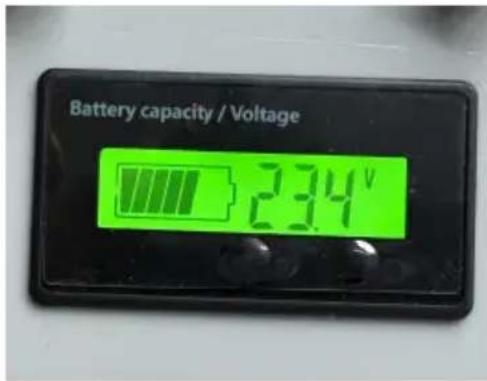

Note :There is a power display on the battery box. Please check the display on the monitor regularly and charge it in time

Battery capacity / Voltage 234V

Troubleshooting

In the event of a failure, please contact our after-sales personnel or to our official website for contact information. With the trust of our test staff, we will solve the problem. If we can't solve this problem, we visit to the manufacturer free of charge. If the warranty period ends or

caused by personnel, our company will not give you a free warranty. Materials and shipping are required.

Maintenance

Warning: Do not disassemble and repair the machine without the permission of the manufacturer.

Cleaning and disinfection

It is recommended to wipe the seat ring with a soft cotton cloth and before use, and disinfect it after cleaning. The conveyor shell and accessories should be scrubbed with medical alcohol or other non-corrosive disinfectants.

Warning:

When cleaning and disinfecting, do not charge or use the machine.

It is forbidden to wash or disinfect the transfer machine and accessor liquid.

It is forbidden to use corrosive detergent to clean the shifter and accessories.

It is forbidden to use corrosive disinfectant to disinfect the moving ma and accessories.

Only after the detergent and disinfectant are dried, can the shifter an accessories be used.

When the machine is not used for a long time, please take it out a charge it regularly to avoid battery failure

Safe use and maintenance

1. Do not always plug in power supply during the process. At least week, the battery should be used to work, and until the battery is exhausted, it is necessary to ensure that the battery is recharged when battery is exhausted. Although the lithium battery has no memory effect can prolong the life span of the battery.2. Please destroy the battery according to the relevant local regulations when the machine is scrapped.3. After using the machine, it is not necessary to clean and maintain every time. It can be used normally after charging when the battery

powered. If it is found that there will be jitter when the machine is falling, touch the electric lubricating oil on both long shafts.

1. After using the product for a period of time, check whether the set each part are loose. If there is any looseness, it should be tightened time.
2. The internal power supply of this product is DC low voltage powe If there is water on the surface of the body, it can be dried with to not bubble in water directly.

CORRECT DISPOSAL

This product is subject to the provision of european Directive 2012/19/EU. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may be discarded with normal domestic waste, but must be taken to acoll point for recycling electrical and electronic devices.

BATTERY DISPOSAL

To minimize hazards to health and the environment at the this product's life, laws dealing with Waste Electrical and

Electronic Equipment (WEEE) and The Waste Battery Directive

require you to dispose of this product at a suitable collection facility it will be sent in order to remove the batteries and for appropriate recycling. Please contact your local authorities for more details on recycle and safe disposal of these in your area.

XIANG FALI TECHNOLOGY(XIAMEN) CO.LTD

Address: Floor 5th, No. 63, Pingcheng North Road, Haicang District

Xiamen Fujian, CN 361026

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House,

London Road, Staines-upon-Thames, Surrey

TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt a

Main.
