USER MANUAL SYTCSS11 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

UTILITY CARTS USER MANUAL

MODEL: SYTCSS10 / SYTCSS11

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands

MODEL: SYTCSS10 / SYTCSS11

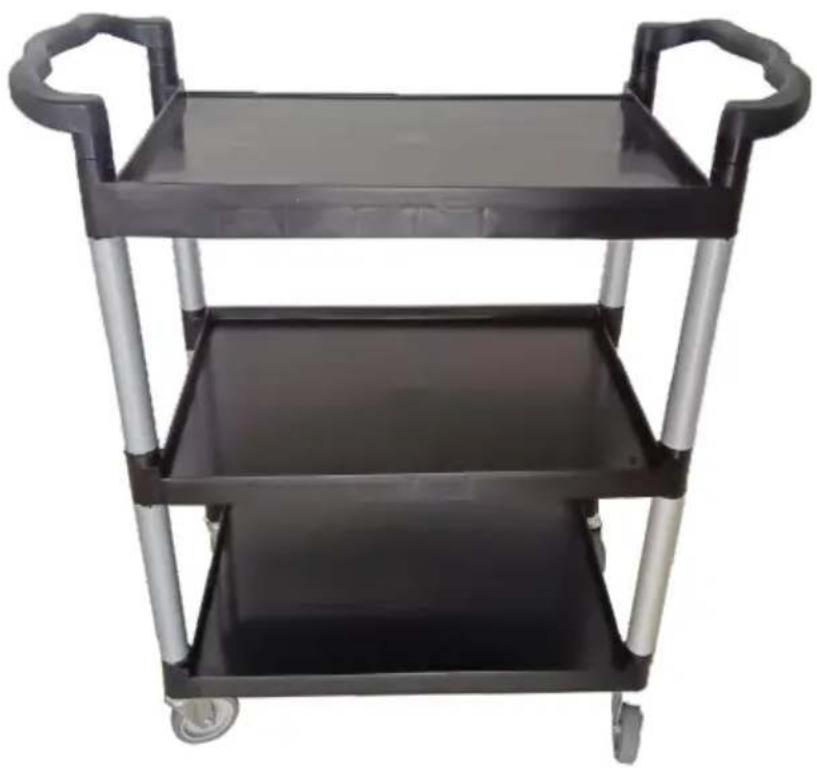

Black and silver plastic service cart with two handles, no visible text or symbols

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PARAMETERS

Specifications of SYTCSS10		Specifications of SYTCSS11
Load Capacity:	136kg	Load Capacity:	226kg
Upper Platform Size:	620*410*60mm	Upper Platform Size:	790*490*55 mm
Castor Size:	100mm	Castor Size:	100mm
Dimensions (L x W x H)	880*410*990 mm	Dimensions (L x W x H)	1060*490*980 mm

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Improper assembly car cause personal injury and/or property damage
2. Do not assemble when tired or under the influence of alcohol, drug medication.
3. Weight capacity and other product capabilities only apply to a who correctly assembled product.
4. Do not overload the cart. See specifications for load capacity (Distributed evenly).
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of the plate is heavy; pay attention to the installation hurting it, and if necessary, find someone to assist with the installation

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FRC TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or dan
4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary whether the screw is loose to avoid the body shaking when moving.

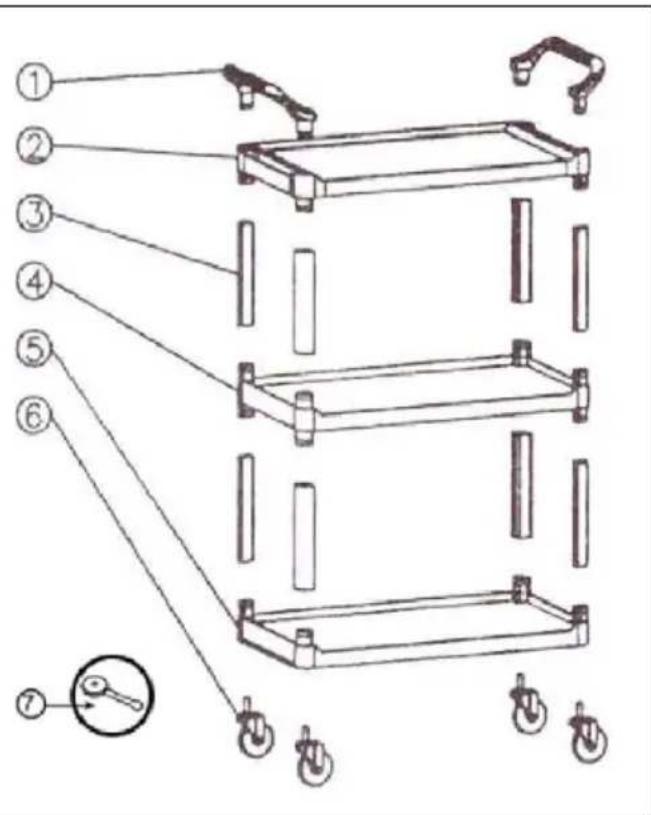

Part list

KEY	Description	QTY
1	Handle	2
2	Top shelf	1
3	Aluminium rod	8
4	Middle shelf	1
5	Bttom shelf	1
6	Caster	2
	Caster with break 2PCS	2
7	ASSEMBLY CAP	7

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

ASSEMBLY STEPS

Remarks:

Before assembly, please:1. Red this instruction carefully. 2. Prepare A rubber hammer (Not included). 3. The three shelves are different. Note the corner on each and match them to the assembly diagram. Ensure all shelves face same way. Ensure all joints are flush - a rubber mallet may be required.

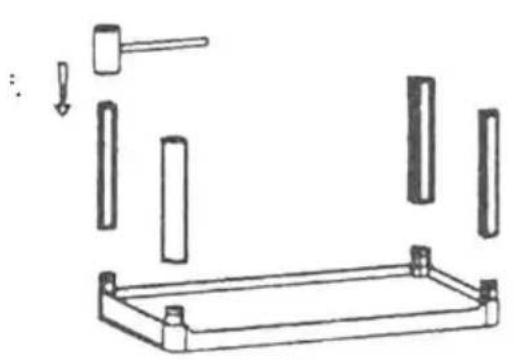

Step 1. Wedge 4PCS aluminium rod above the bottom shelf.

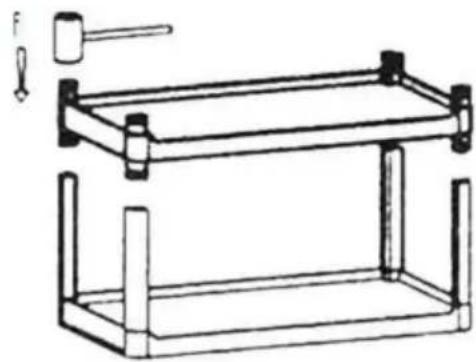

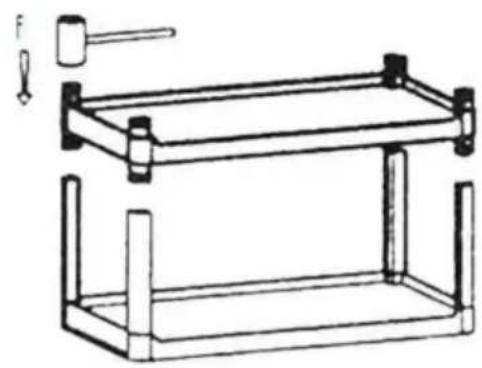

Step 2. Wedge middle shelf on an aluminium rod

Simple line drawing of a wooden tray with a hammer and three vertical bars, no text or symbols present

Line drawing of a rectangular metal frame with supports and a handle, no text or symbols present

Step 1 Step 2

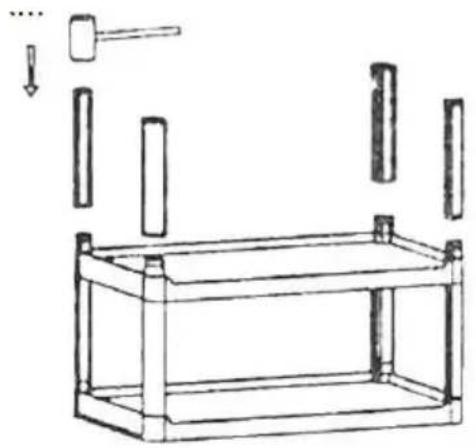

Step 3. Wedge the other 4Pcs aluminium rod above the middle shelf.

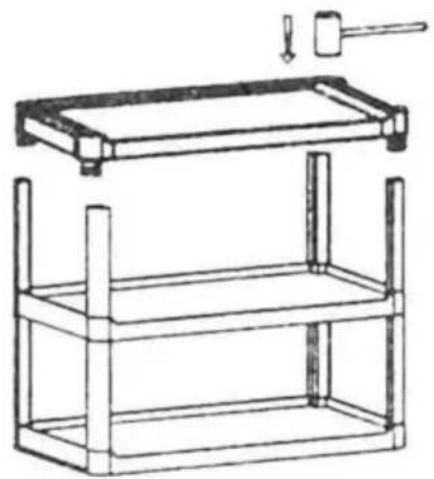

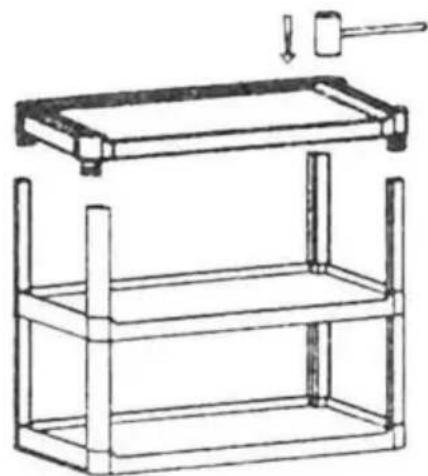

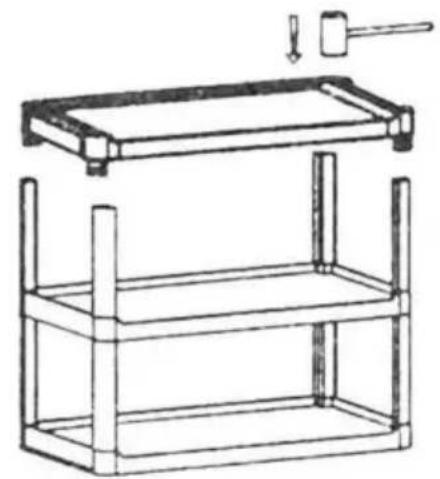

Step 4. Wedge top shelf.

Line drawing of a wooden crate with hammers and a hammer, no text or symbols present

Technical line drawing of a two-tiered storage unit with a hammer and drop head (no text or symbols)

Step 3 Step 4

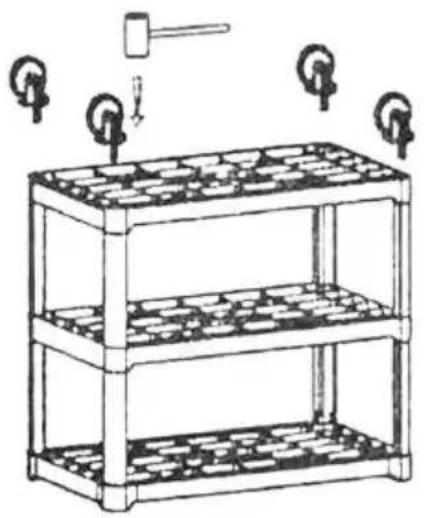

Step 5. Wedge the 4pcs caster.

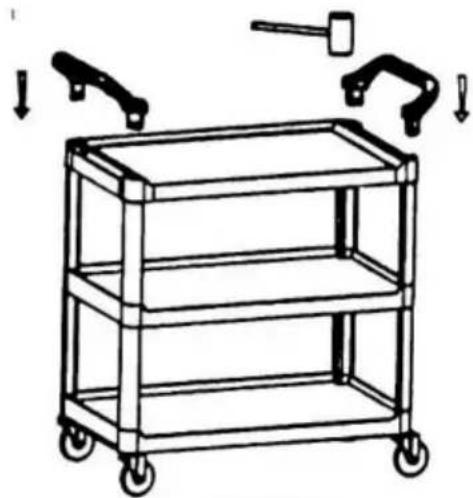

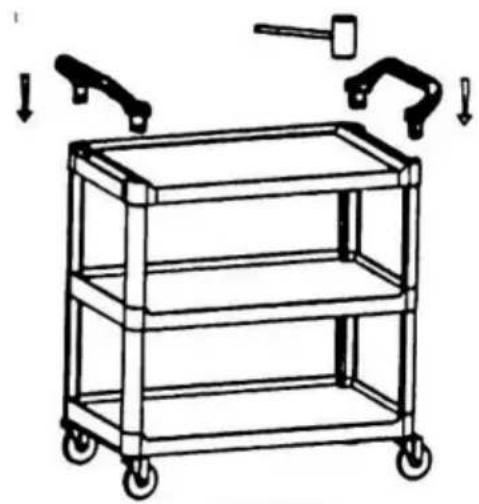

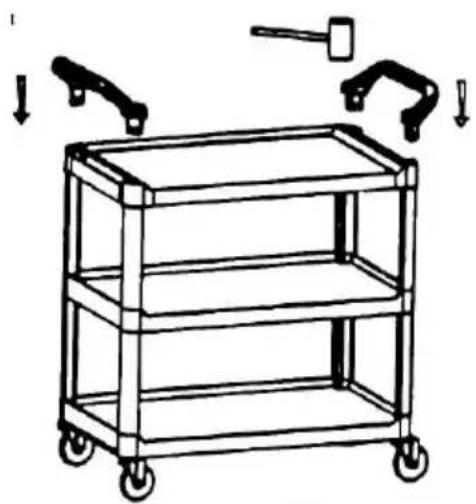

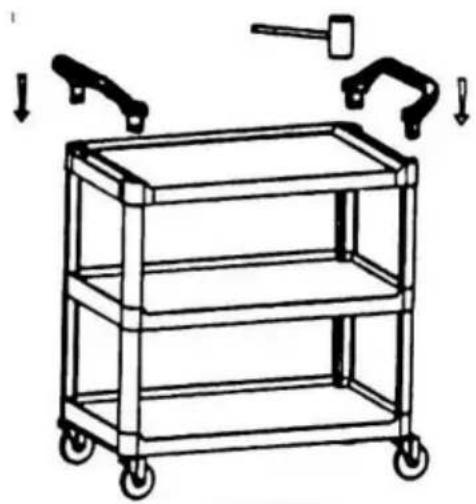

Step 6. Turn over the cart, then plug in the 2PCS handle.

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered cart with robotic arms and downward arrows indicating motion (no text or symbols)

Step 5 Step 6

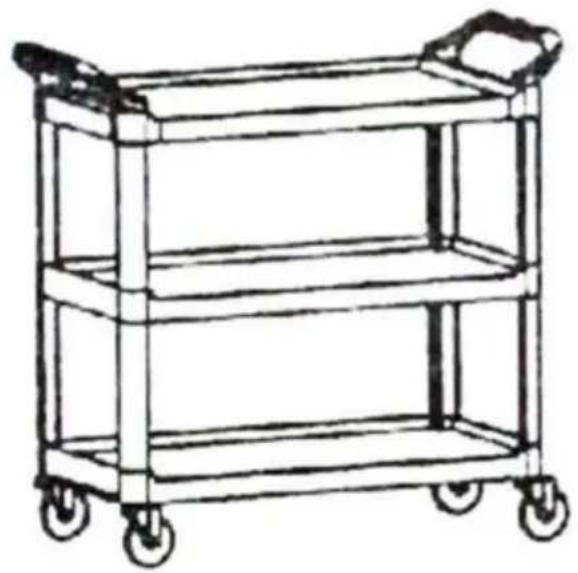

Step 7. Assembly completed.

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

ASSEMBLY NOTES

- Use a soft rubber mallet to assembly pressure-fit interlocking components. This may require significant force.

- Orient the TOP SHELF and BOTTOM SHELF so that the shorter-lipped edge are on the same side of the Cart.

- Place ASSEMBLY CAP on top of VERTICAL POSTS and SHELF comers before striking with a mallet to avoid damage.

- Alternate between posts when striking with a mallet to seat all components evenly. This will ensure product integrity and secure fit between parts.

• Snug HANDLES by alternating from side to side of each handle until fully seated in position.
• Position CASTERS with Brakes in corners of the Cart with the easiest acc to the foot-activated Brakes.

Tools required: Cross-point screwdriver and rubber or wood mallet.

Use the mallet to tap down the parts to ensure they are seated pro before fastening them with screws.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

PARAMÈTRES DU PRODUIT

Technical diagram of a multi-level mechanical device with numbered components and a magnified view of the bottom part.

ÉTAPES D'ASSEMBLAGE

Remarques :

Simple line drawing of a wooden tray with a hammer and three vertical bars, no text or symbols present

Étape 1

Line drawing of a mechanical setup with a handle and base frame (no text or symbols)

Étape 2

Line drawing of a wooden box with hanging weights and a hammer, no text or symbols present

Étape 3

Technical line drawing of a two-tiered storage unit with a handle and a gavel above (no text or symbols)

Étape 4

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Étape 5

Line drawing of a three-tiered cart with two articulated arms and directional arrows indicating motion (no text or symbols)

Étape 6

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

NOTES D'ASSEMBLAGE

C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

BENUTZERHANDBUCH FÜR ALLZWECKWAGEN

MODELL: SYTCSS10 / SYTCSS11

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Foto als Referenz

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

MONTAGEANLEITUNG

Bemerkungen:

Simple line drawing of a wooden tray with a hammer and three vertical supports, no text or symbols present

Schritt 1

Line drawing of a mechanical setup with a handle, frame, and support structure (no text or symbols)

Schritt 2

Line drawing of a wooden box with hanging weights and a hammer, no text or symbols present

Schritt 3,

Technical line drawing of a two-tiered storage unit with a handle and top shelf (no text or symbols)

Schritt 4

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered shelving unit with two articulated arms and directional arrows indicating motion (no text or symbols)

Schritt 6Schritt 5.

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

MONTAGEANLEITUNG

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

elettronica www.vevor.com/support

CARRELLI PORTAUTENTI MANUALE D'USO

MODELLO: SYTCSS10 / SYTCSS11

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Foto di riferimento

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

FASI DI MONTAGGIO

Osservazioni:

Simple line drawing of a wooden tray with a hammer and three vertical supports, no text or symbols present

Passo 1

Line drawing of a mechanical frame with supports and a tool, no text or symbols present

Passo 2

Simple line drawing of a rectangular container with vertical supports and a hanging hammer, no text or symbols present

Technical line drawing of a two-tiered storage unit with a hammer striking the top panel (no text or symbols)

Passo 4Fase 3

Fase 5. Incastrare le 4 rotelle.

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Fase 5

Line drawing of a multi-tiered shelving unit with handles and wheels, no text or symbols present

Passo 6

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

NOTE DI MONTAGGIO

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Foto de referencia

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

PASOS DE MONTAJE

Observaciones:

Simple line drawing of a wooden tray with a hammer and three vertical bars, no text or symbols present

Paso 1

Line drawing of a mechanical setup with a handle and base frame (no text or symbols)

Paso 2

Line drawing of a wooden box with hanging weights and a hammer, no text or symbols present

Paso 3

Technical line drawing of a two-tiered storage unit with a handle and base, no text or symbols present

Paso 4

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered shelving unit with two articulated arms and directional arrows indicating motion (no text or symbols)

Paso 6 Paso 5

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

NOTAS DE MONTAJE

C/O YH Consulting Limited Oficina 147, Centurion House,

Carretera de Londres, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

KROKI MONTAŻU

Uwagi:

Simple line drawing of a wooden tray with a hammer and three vertical supports, no text or symbols present

Krok 1

Line drawing of a mechanical frame with a hammer and lever, no text or symbols present

Krok 2

Simple line drawing of a wooden crate with hanging weights and a hammer, no text or symbols present

Krok 3

Technical line drawing of a two-tiered storage unit with a handle and top shelf (no text or symbols)

Krok 4

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered shelving unit with two articulated arms and directional arrows indicating motion (no text or symbols)

Krok 6Krok 5

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

UWAGI DOTYCZĄCE MONTAŻU

C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Foto ter referentie

HULP NODIG? NEEM CONTACT MET ONS OP!

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

MONTAGESTAPPEN

Opmerkingen:

Simple line drawing of a wooden tray with a hammer and three vertical bars, no text or symbols present

Line drawing of a mechanical frame with a handle and base supports (no text or symbols)

Stap 1 Stap 2

Stap 3. Klem de overige 4 aluminium staven boven de middelste plank.

Line drawing of a wooden box with hanging weights and a hammer, no text or symbols present

Stap 3

Technical line drawing of a two-tiered storage unit with a handle and base, no text or symbols present

Stap 4

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered shelving unit with two articulated arms and directional arrows indicating motion (no text or symbols)

Stap 6Stap 5

Stap 7. Montage voltooid.

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

MONTAGE OPMERKINGEN

C/O YH Consulting Limited Kantoor 147, Centurion House, Londen Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technische ondersteuning en e- garantiecertificaat www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

UTILITY CARTS ANVÄNDARHANDBOK

MODELL: SYTCSS10 / SYTCSS11

Black plastic multi-tiered cart with two handles and wheels (no text or symbols visible)

Foto för referens

BEHÖVER HJÄLP? KONTAKTA OSS!

Technical diagram of a multi-level mechanical device with numbered components and a magnified inset showing a hand tool.

MONTERINGSSEG

Anmärkningar:

Simple line drawing of a wooden tray with a hammer and three vertical supports, no text or symbols present

Line drawing of a mechanical setup with a handle and base frame (no text or symbols)

Steg 1 Steg 2

Line drawing of a wooden box with hanging weights and a hammer, no text or symbols present

Technical line drawing of a two-tiered storage unit with a handle and base, no text or symbols present

Steg 4Steg 3

Steg 5. Kila fast de 4 st hjulen.

Diagram of a multi-tiered storage unit with hanging weights and a hammer, no text or symbols present

Line drawing of a multi-tiered shelving unit with two articulated arms and directional arrows indicating motion (no text or symbols)

Steg 6Steg 5

Line drawing of a three-tiered cargo cart with wheels and handle (no text or symbols)

MONTERINGSANMÄRKNINGAR

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE
