USER MANUAL SYTCSS03 Vevor
Technical Support and E-Warranty Certificate
www.vevor.com/support
UTILITY CARTS USER MANUAL
MODEL:SYTCSS03
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

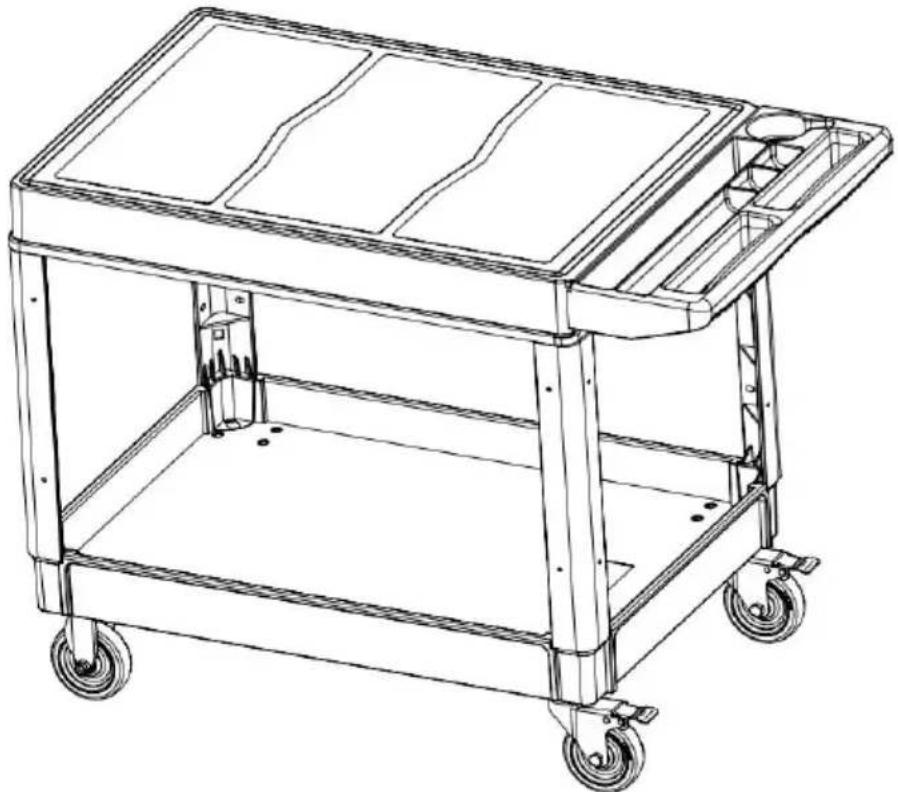

MODEL:SYTCSS03
Photo for reference
NEED HELP? CONTACT US!
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
PRODUCT PARAMETERS
| Specifications | |
| Load Capacity: | 250kg |
| Upper Platform Size: | 940*645*100mm |
| Castor Size: | 125mm |
| Dimensions (L x W x H) | 1180mm x 650mm x 865mm |
WARNING:
Please read this manual carefully before using the product. Failure to may result in serious injury.
ASSEMBLY PRECAUTIONS
- Assemble needs to follow these instructions. Improper assembly can cause personal injury and/or property damage
- Do not assemble when tired or under the influence of alcohol, drug medication.
- Weight capacity and other product capabilities only apply to a who correctly assembled product.
- Do not overload the cart. See specifications for load capacity (Distributed evenly).
- Keep the assembly area clean and well-lit.
- Keep bystanders out of the area during assembly.
- The weight of the plate is heavy; pay attention to the installation hurting it, and if necessary, find someone to assist with the installation
USE PRECAUTIONS
WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:
-
This product is not a toy. Do not allow children to play with or in this item.
-
Use as intended only. Do not sit or stand on the product.
- Inspect before every use. Do not use it if parts are loose or dan
- Use on flat, level, and hard surfaces only.
- Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
- When the heavy load is moving for a long time, it is necessary whether the screw is loose to avoid the body shaking when moving.

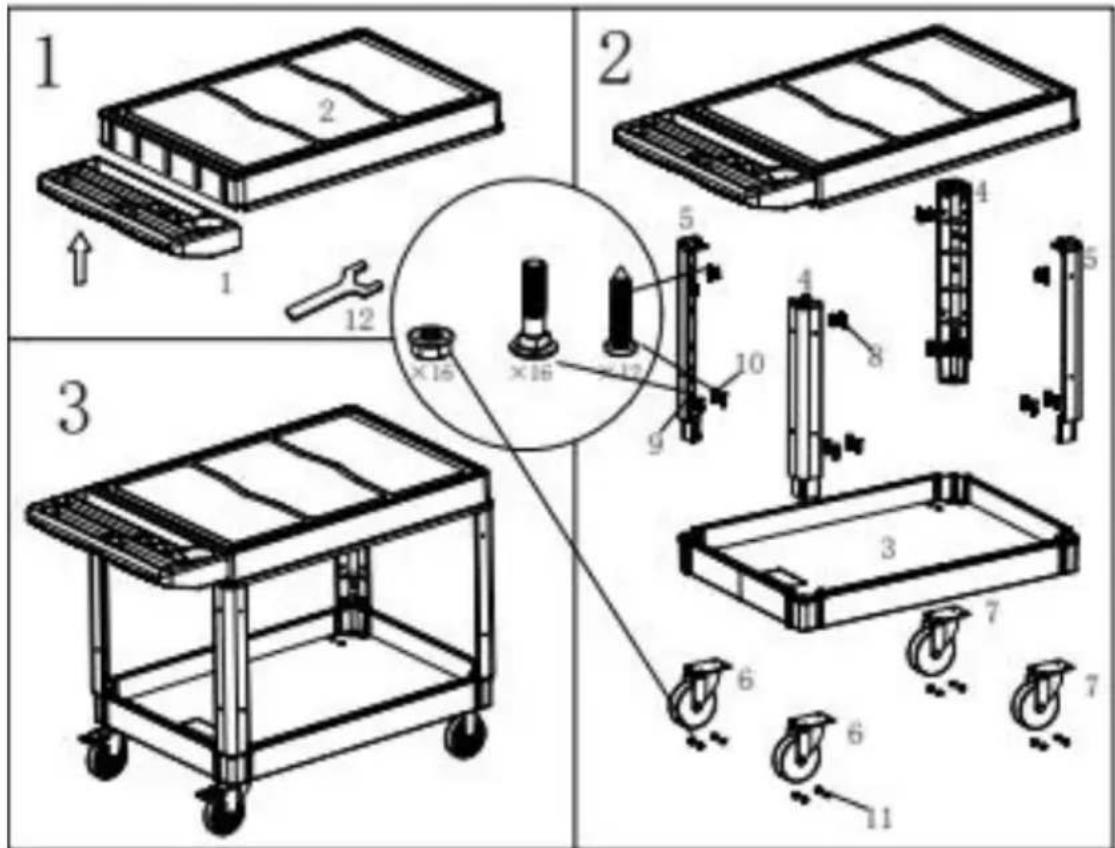

ASSEMBLY STEPS
Tools required: Cross-point screwdriver and rubber or wood mallet. Use the mallet to tap down the parts to ensure they are seated pro before fastening them with screws.
- Turn the upper platform upright (#2) and install the handle (#1).
- Turn the upper platform assembly upside down and install legs (tw and two right, #4 and #5)
- Install lower platform (#3) and castors (#6, #7). Tighten all screws hex nuts. (#8, #9, #10)
Manufacturer: Shanghaiuxinmuyeyouxianggsi
Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia
Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Plac Rancho Cucamonga, CA 91730
E-CrossStu GmbH
Mainzer Landstr.69, 60329 Frankfurt am Ma
YH CONSULTING LIMITED.
C/O YH Consulting Limited Office 147, Centurion H, London Road, Staines-upon-Thames, Surrey, TW18 4
