USER MANUAL SYTCSS09 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

UTILITY CARTS USER MANUAL

MODEL:SYTCSS09

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

UTILITY CARTS

MODEL:SYTCSS09

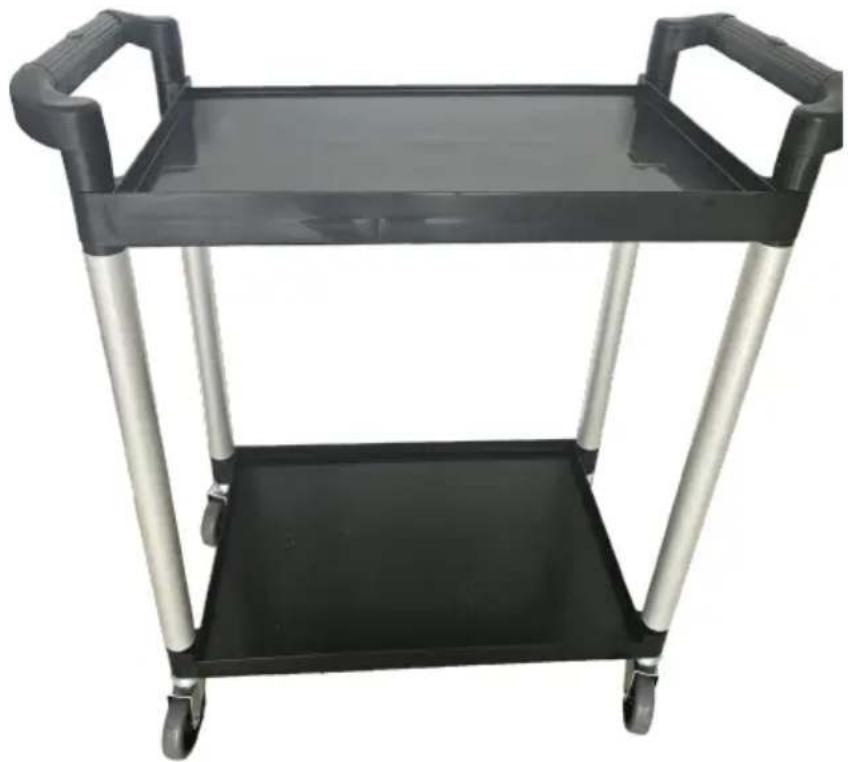

Black and silver plastic table with two handles, no visible text or symbols

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

PRODUCT PARAMETERS

Specifications
Load Capacity:	136kg
Upper Platform Size:	620x410x53mm
Castor Size:	100mm
Dimensions (L x W x)	800*410*945 mm

WARNING:

Please read this manual carefully before using the product. Failure to may result in serious injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Improper assembly car cause personal injury and/or property damage
2. Do not assemble when tired or under the influence of alcohol, drug medication.
3. Weight capacity and other product capabilities only apply to a who correctly assembled product.
4. Do not overload the cart. See specifications for load capacity (Distributed evenly).
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of the plate is heavy; pay attention to the installation hurting it, and if necessary, find someone to assist with the installation

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FRC TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.

2. Use as intended only. Do not sit or stand on the product.

3. Inspect before every use. Do not use it if parts are loose or dan
4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary whether the screw is loose to avoid the body shaking when moving.

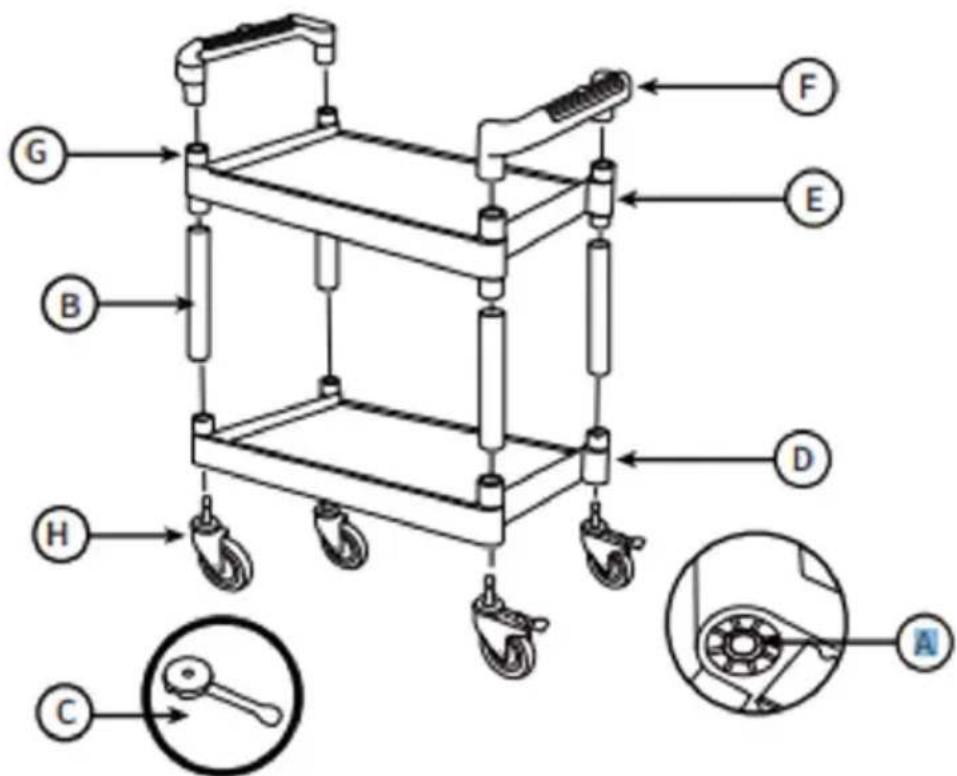

Part list

	PARTS IDENTIFICATION	QTY
A	BOTTOM SHELF Caster Port Close up	4
B	VERTICAL POSTS	4
C	ASSEMBLY CAP	1
D	BOTTOM SHELF Attachment Points	4
E	TOP SHELF Attachment Points	4
F	HANDLES	2
G	HANDLE Attachment Points	4
H	CASTERS	4

Technical diagram of a multi-level mechanical device with labeled parts and internal components, including a close-up inset showing a hand tool.

ASSEMBLY NOTES

• Use a soft rubber mallet to assembly pressure-fit interlocking components. This may require significant force.
• Orient the TOP SHELF and BOTTOM SHELF so that the shorter-lipped edge are on the same side of the Cart.
• Place ASSEMBLY CAP on top of VERTICAL POSTS and SHELF comers before striking with a mallet to avoid damage.
• Alternate between posts when striking with a mallet to seat all components evenly. This will ensure product integrity and secure fit between parts.
• Snug HANDLES by alternating from side to side of each handle until fully seated in position.
• Position CASTERS with Brakes in corners of the Cart with the easiest access to the foot-activated Brakes.

Tools required: Cross-point screwdriver and rubber or wood mallet. Use the mallet to tap down the parts to ensure they are seated pro before fastening them with screws.

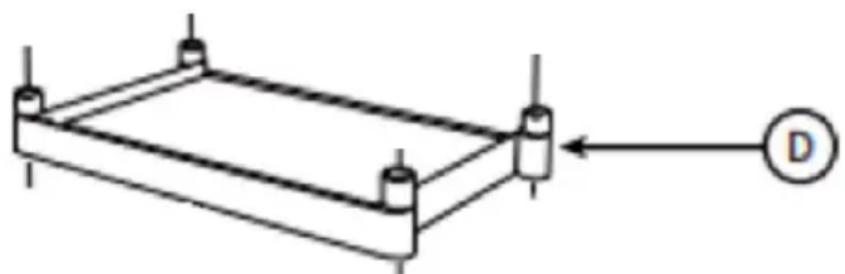

1. Identify the Ⓓ(BOTTOM SHELF) by Caster Port feature and place this side an floor or work surface.

Simple line drawing of a rectangular frame with four vertical posts and a circular indicator labeled D (no text or symbols on the frame itself)

Step 1

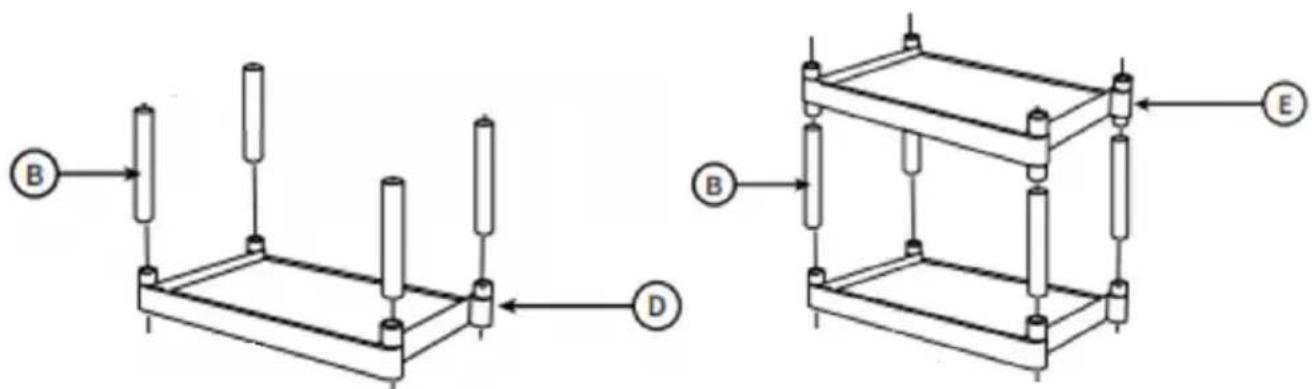

1. Insert 4 VERTICAL POSTS into BOTTOM SHELF Attachment Points by ha Place ASSEMBLY CAP over each POST before striking with a mallet and ro from POST to POST until each is fully seated.

Technical diagram showing two mechanical or electrical assembly setups with labeled components A, B, C, D, and E.

Step 2 Step 3

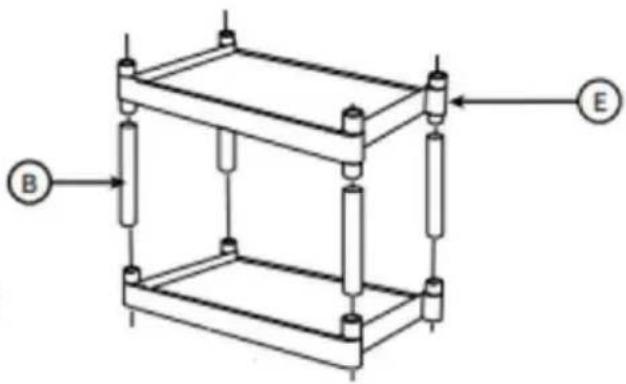

1. Place TOP SHELF squarely on VERTICAL POSTS, lining up Attachment P by hand. Place ASSEMBLY CAP over TOP SHELF corners before striking with mallet, alternating from corer to corer until TOP SHELF is fully seated.

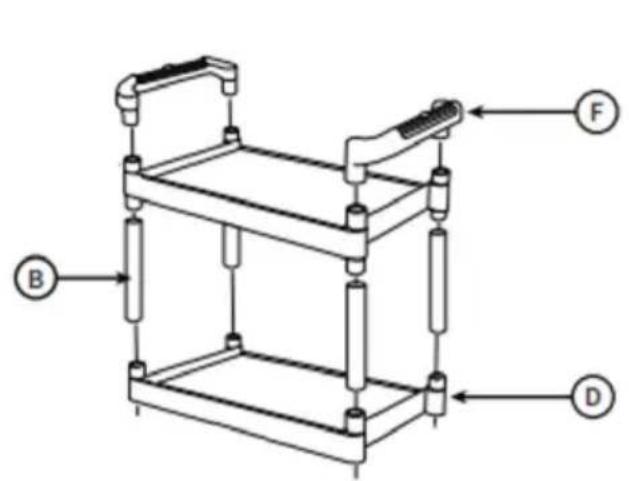

2. Place HANDLES over HANDLE Attachment Points with grips facing outward away from the Cart center. Place ASSEMBLY CAP over HANDLE comers be striking with mallet and rotate from side to side of each HANDLE until fully

Technical diagram of a multi-tiered mechanical device with labeled components B, D, and F

Technical diagram of a multi-level mechanical cart with labeled parts H, B, D, E, and F

Step 4 Step 5

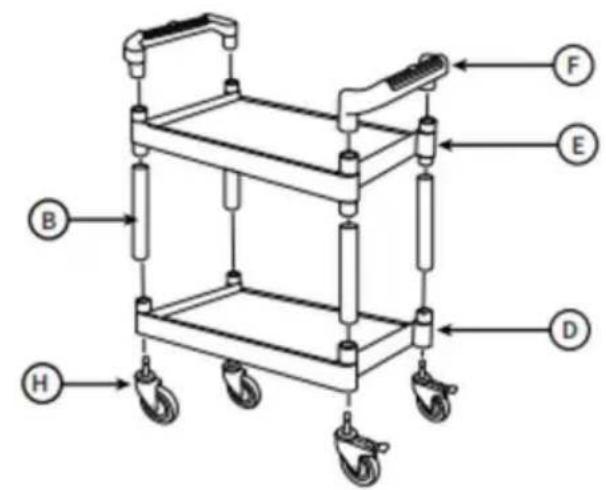

5 Carefully lay the Cart on its side for CASTER installation. Place the CAST Caster Ports and strike with a mallet to fully seat into place.

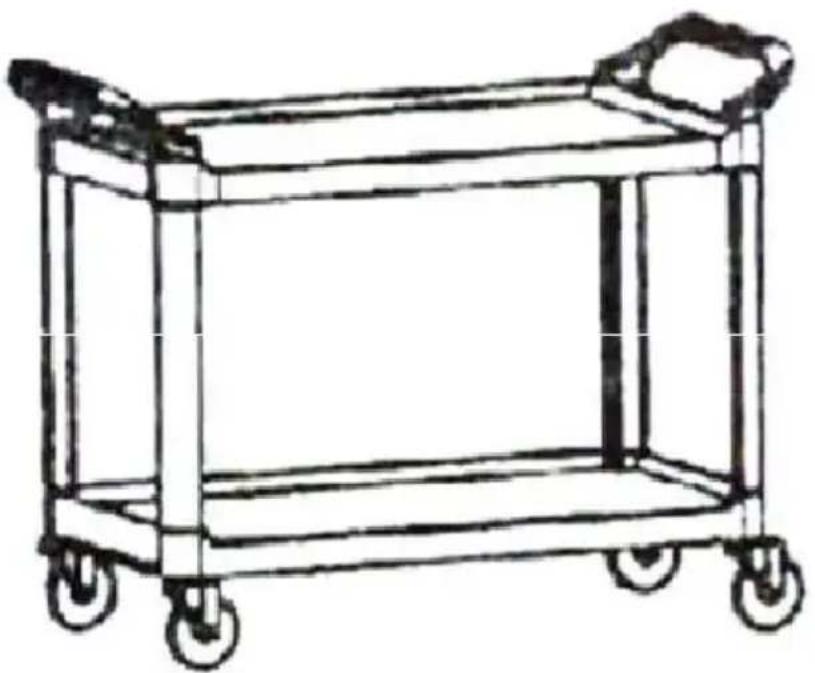

6. Return the Cart to an upright position and begin using this versatile and product.

Line drawing of a four-wheeled cart with handles and wheels (no text or symbols)

Step 6

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place Rancho Cucamonga, CA 91730
