USER MANUAL JYUP2 Vevor

Technical Support and E-Warranty Certificate

www.vevor.com/support

UTILITY CARTS USER MANUAL

MODEL:JYUP2

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

UTILITY CARTS

MODEL:JYUP2

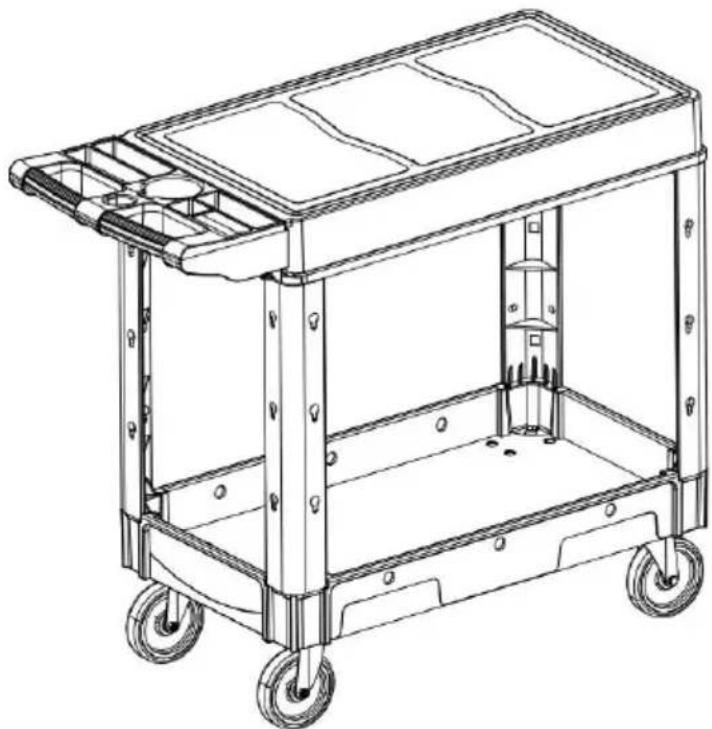

Line drawing of a multi-wheeled cart with wheels and internal compartments (no text or symbols)

Photo for reference

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

PRODUCT PARAMETERS

Specifications
Load Capacity:	250kg
Castor Size:	123mm
Dimensions (L x W x H)	1015mm x450mm x 850mm

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

ASSEMBLY PRECAUTIONS

1. Assemble needs to follow these instructions. Improper assembly car cause personal injury and/or property damage
2. Do not assemble when tired or under the influence of alcohol, drug medication.
3. Weight capacity and other product capabilities only apply to a who correctly assembled product.
4. Do not overload the cart. See specifications for load capacity (Distributed evenly).
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. The weight of the plate is heavy; pay attention to the installation hurting it, and if necessary, find someone to assist with the installation

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or dan
4. Use on flat, level, and hard surfaces only.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.
6. When the heavy load is moving for a long time, it is necessary whether the screw is loose to avoid the body shaking when moving.

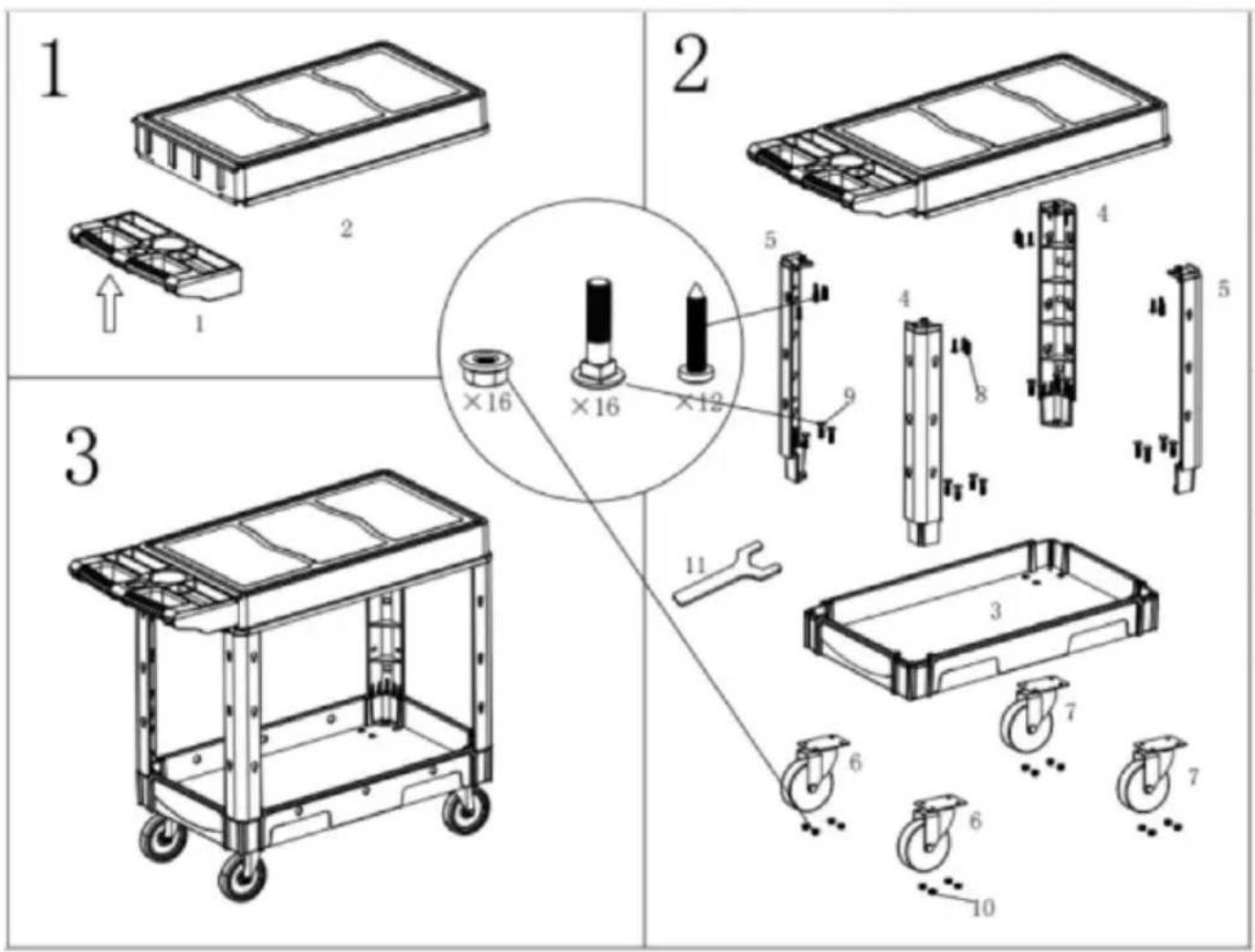

ASSEMBLY STEPS

Tools required: Cross-point screwdriver, and rubber or wood mallet. Use the mallet to tap down the parts to ensure they are seated pro before fastening them with screws.

1. Turn the upper platform upright (#2) and install the handle (#1).

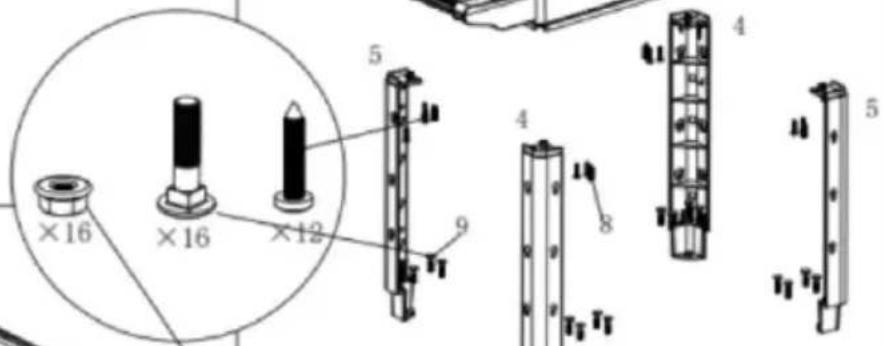

2. Turn the upper platform assembly upside down and install legs (tw and two right, #4 and #5)

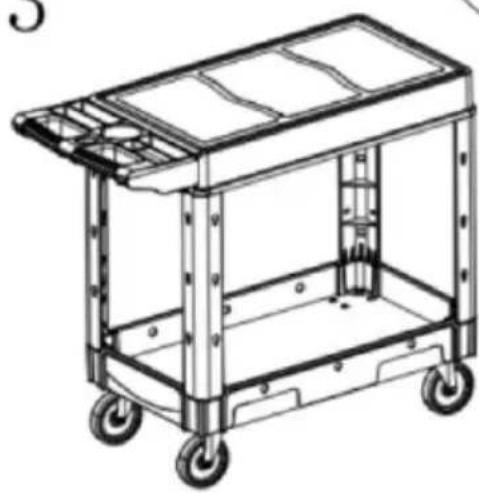

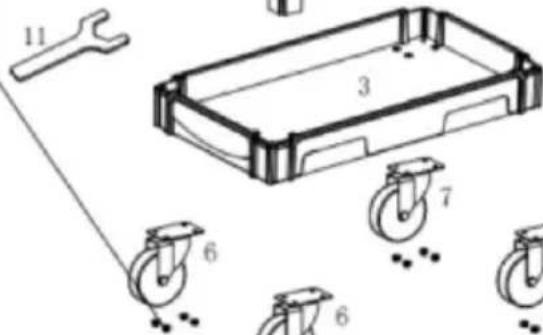

3. Install lower platform (#3) and castors (#6, #7). Tighten all screws a hex nuts. (#8, #9, #10)

Technical diagram showing exploded and assembled views of a mechanical assembly with labeled components and dimensions

Parts Breakdown
1ndex NO.	Description	Qty
1	Handle	1
2	Upper Platform	1
3	Lower Platform	1
4	left Leg	2
5	Right Leg	2
6	Brake Castor AssemblyΦ5in	2
7	Fixed Castor AssemblyΦ5in	2
8	Tapping Screw 16*24mm	12
9	Screw Bolt l8*33lm	16
10	Hex Nut l8	16
11	Trench	1

Isometric line drawing of a rectangular electronic component with internal channels (no text or symbols)

×16 ×16 ×12 5 9 4 8 4 5 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1 T1

Line drawing of a multi-wheeled cart with wheels and internal compartments (no text or symbols)

Technical line drawing of a rectangular electronic component with internal compartments and mounting feet (no text or symbols)

×12 5 9

Technical diagram of a mechanical assembly with labeled components and numbered parts

Technical diagram showing labeled components of a mechanical assembly with numbered parts and tool tips

6 10
