DRILL BITS SHARPENER

MODEL: MR-2G

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

DRILL BITS SHARPENER

TOUGH TOOLS, HALF PRICE

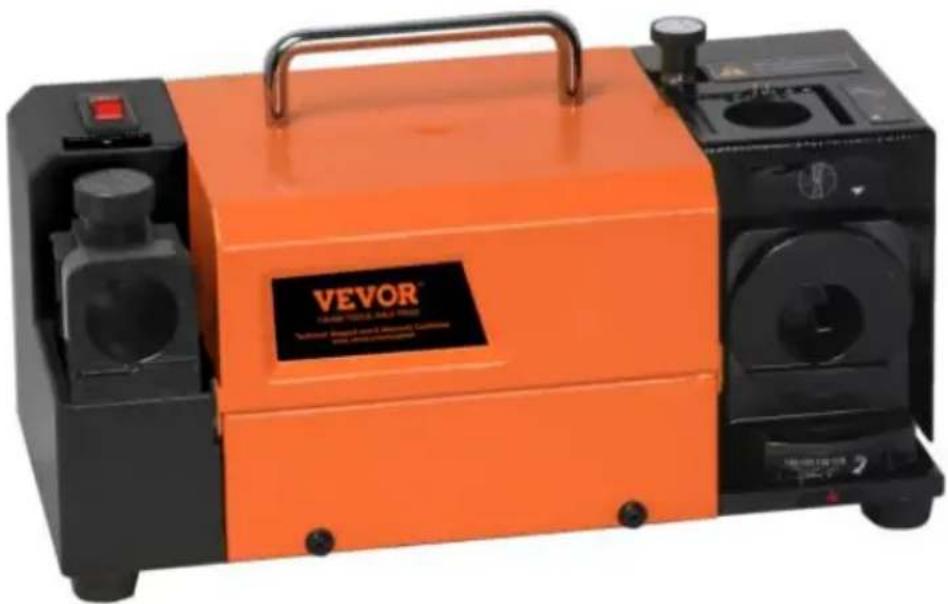

MODEL: MR-20G

Orange VEVOR industrial machine with black housing and control panel (no visible text or symbols on device body)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www. vevor. com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you and if there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	Always wear ANSI approved safety goggles when work with tools and equipment.
	Wear eye protection.
	Wear ear protection. Wear protective gloves.
	Compliance is a EC & UK security certification.
	CORRECT DISPOSALThis product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin crosse through indicates that the product requires separate ref collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal dc waste, but must be taken to a collection point for rec electrical and electronic devices

Safety Warnings and Precautions

Thank you for using this product. In order to make sure that you can operate the machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to the precautions and safety rules in this page to ensure your safe use manual will outline safety warnings and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in the manual cannot cover all possible conditions and situations that may of Caution and common sense are not built into this product, since we that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Keep work area clean. Cluttered areas invite injuries.

2. Observe work area conditions. Do not use machines or power to damp or wet locations. Don't expose to rain. Keep work area well lig Do not use electrically powered tools in the presence of flammable g or liquids.

3. Keep children away. Children must never be allowed in the work area, Do not let them handle machines, tools, or extension cords.

4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust. Always lock up tools and keep out of reach of children.

5. Use the right tool for the job. Do not attempt to force a small attachment to do the work of a larger industrial tool. There are certain applications for which this tool was designed. It will do the job better more safely at the rate for which it was intended. Do not modify this and do not use this tool for a purpose for which it was not intended

6. Dress properly. Do not wear loose clothing or jewelry as they can be caught in moving parts.

Protective, electrically non-conductive clothes and no-skid footwear are recommended when working. Wear restrictive hair covering to contain hair

1. Use eye and ear protection. Always wear ANSI approved impact goggles. Wear a full face shield if you are producing metal filings or chips.

2. Do not overreach. Keep proper footing and balance at all times. reach over or across running machines.

3. Maintain tools with care. Keep tools sharp and clean for better safer performance. Follow instructions for lubricating and changing accessories. Inspect tool cords periodically and if damaged, have them repaired by an authorized technician. The handles must be kept clean and free from oil and grease at all times. Please power off and unpure before maintenance and cleaning.

4. Avoid unintentional starting. Be sure the switch is in the Off position when not in use and before plugging in.

5. Stay alert. Watch what you are doing, use common sense. Do I operate any tool when you are tired.

6. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment and binding of moving parts; any broken parts or mounting fixtures; a any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced by a qualified techn Do not use the tool if any switch does not turn On and Off properly
7. Guard against electric shock. Prevent body contact with ground surfaces such as pipes, radiators, ranges, and refrigerator enclosures.
8. Replacement parts and accessories. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. Only use accessories intended for use with tool.
9. Do not operate tool if under the influence of alcohol or drug. Read warning labels on prescriptions to determine if your judgment or reflexes are impaired while taking drugs. If there is any doubt, do not operate the tool.
10. Maintenance. For your safety, maintenance should be performed regularly by a qualified technician.
11. Never use the machine around flammable materials.
12. Do NOT immerse the appliance in water or any other liquid.
13. This product cannot be used for other purposes. Not suitable for commercial use. INDOOR USE ONLY.
14. Do not use alcohol, gasoline, etc. as coolant.
15. Keep bystanders a safe distance away from work area. Anyor entering the work area must wear personal protective equipment. Fragments of work piece or of a broken accessory may fly away and injury beyond immediate area of operation.
16. Operations for which the power tool was not designed may cause a hazard and cause personal injury.

17. Do not use accessories which are not specifically designed a recommended by the tool manufacturer. Just because the accessory can be attached to your power tool, it does not assure safe operation

18. The rated speed of the accessory must be at least equal to maximum speed marked in the user manual. Accessories running fat than their rated speed can break and fly apart.

19. This appliance is not intended for use by young or infirm person unless supervised by a responsible person to ensure that they can use appliance safely. Young children should be supervised to ensure that do not play with the appliance. Children and pets should stay away from the product.
20. Do not apply this unit to any other purposes than the indicated
21. Do not use it outdoors or for commercial purposes. 29. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
22. Never leave it unattended while in use.

Note: Performance of this tool (if powered by line voltage) may depending on variations in local line voltage. Extension cord usage may also affect tool performance.

Warning: The warnings, cautions, and instructions discussed in this instruction discussed in this instruction manual cannot cover possible conditions and situations that may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into this product, but must be sup by the operator of the tool.

1. If the grinding wheel comes loose, turn off the machine immediat and check that it is mounted securely, and that is not damaged.

2. Never try to stop the grinding wheel with your hands, even if you wearing safety gloves. The wheel will cut through gloves and your hand causing serious injury. Never operate tool without the Grinding Wheel Cover in place.

3. If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

SAVE THESE INSTRUCTIONS

MAIN APPLICATION AND CHARACTERISTICS

1. Grinding is accurate and rapid, easy operation with no skill to grir
2. Economical price that greatly reduces the cost and improves the u effect.
3. With diamond grinding wheel, it can be equipped directly with an accurate angle and long service life.
4. The electrically controlled and powerful DC motor: stable frequency, strong horsepower and long service life.
5. The machine is set up with the function of adjusting a point (censize, which can effectively coordinate with the material of drill hole ar rotation speed. It can control the quality precision and prolong the se life of the drill bit.

PRODUCT PARAMETERS

MODEL	Voltage	Motor Power	GRINDING RANGE	POINT ANGLE	GRINDING WHEEL
MR-20G	North America: AC120V 60Hz	120W	Φ3~Φ20mm	95°~135°	CBN (for HSS)×1SD (for Carbide)×1
	European Union: AC220-240V 50Hz				CBN (for HSS)×1SD (for Carbide)×1

PARTS: ER20 collets: φ3-φ13 (11pcs), ER25 collets: φ14-φ20 (7pcs) collet chuck (ER20) ×1 Collet chunck(ER25)×1 Electric wire×1

2 pcs hexagon wrench

1.Collet 3.Handle 2.Collet chuck 4.Center adjustment 5.Pin 6.Lip relief angle shelf 7.Point angle shelf 8.Point angle adjustment 9.Alignment base 10.Adjustment scale 11.Motor switch

OPERATIONS

A. Setup the drill bit to the ER collet chuck.

*Please follow step 1,2 to set up the drill bit to the chuck (without tightening)

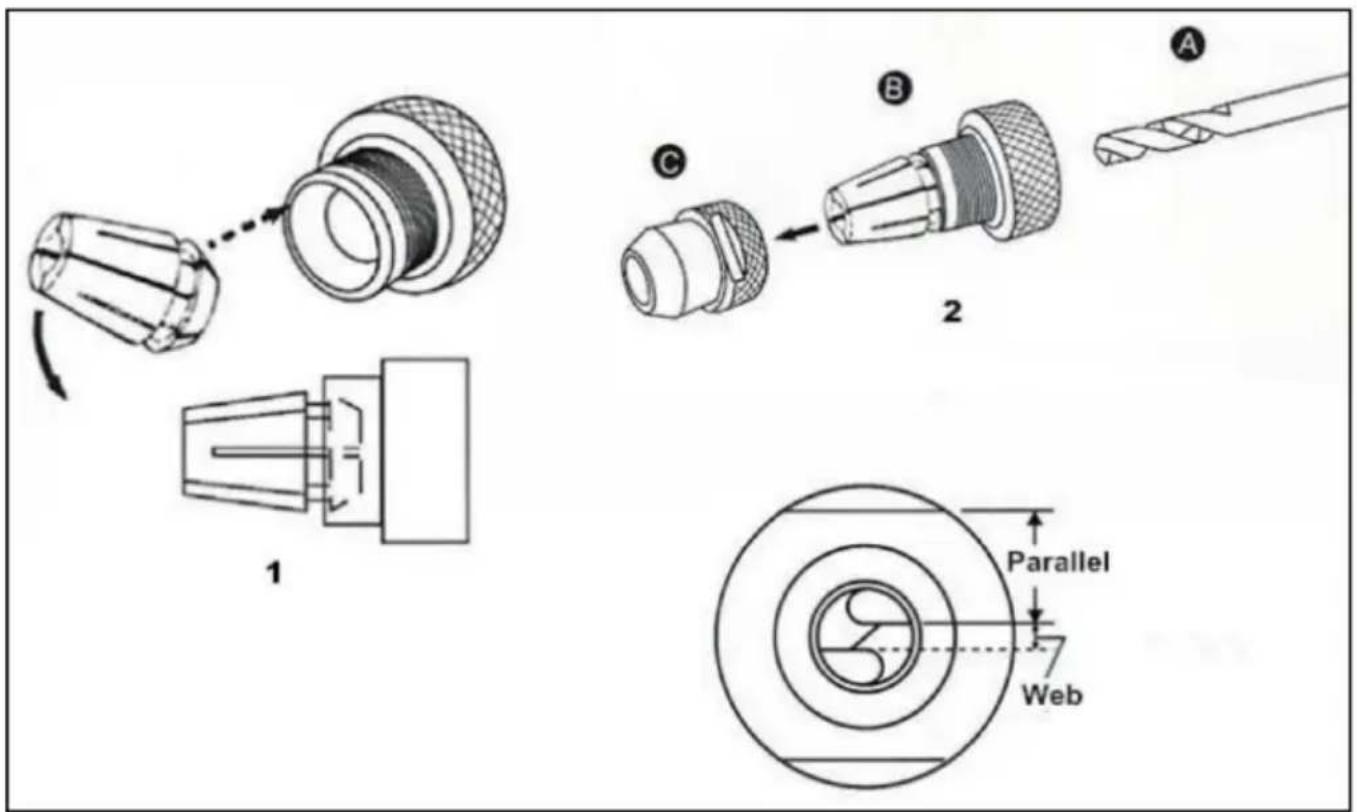

1. Determine diameter of your drill bit, and then select the proper collet chuck.
2. Insert collet into collet chuck by 45^ angle, and tighten nut slightly
3. Insert drill bit into collet chuck and nuts out 35mm or so from the chuck, but do not tightened the drill too tight.

※ Do not fully fasten the clamping nut with collet chuck, keep the drill able to be adjusted.

1 2 C B A Parallel Web

B. Align drill bit

1. Reset the scale ring: turn the ring all the way clockwise, and the anti-clockwise to the number same as the drill's size.

2. Insert the chuck set into the web adjustment shelf. Then connect Turn it clockwise to the end.

3. Plug the drill to the end and turn it clockwise to the end.

4. Turn the chuck set clockwise to the end and tightens it.
5. Turn the chuck set a little to the anti-clockwise and taking it out ※ Make sure the cutting lip of drill is parallel with the slot of clam nut before grinding job started. If it is not parallel, adjust it again.

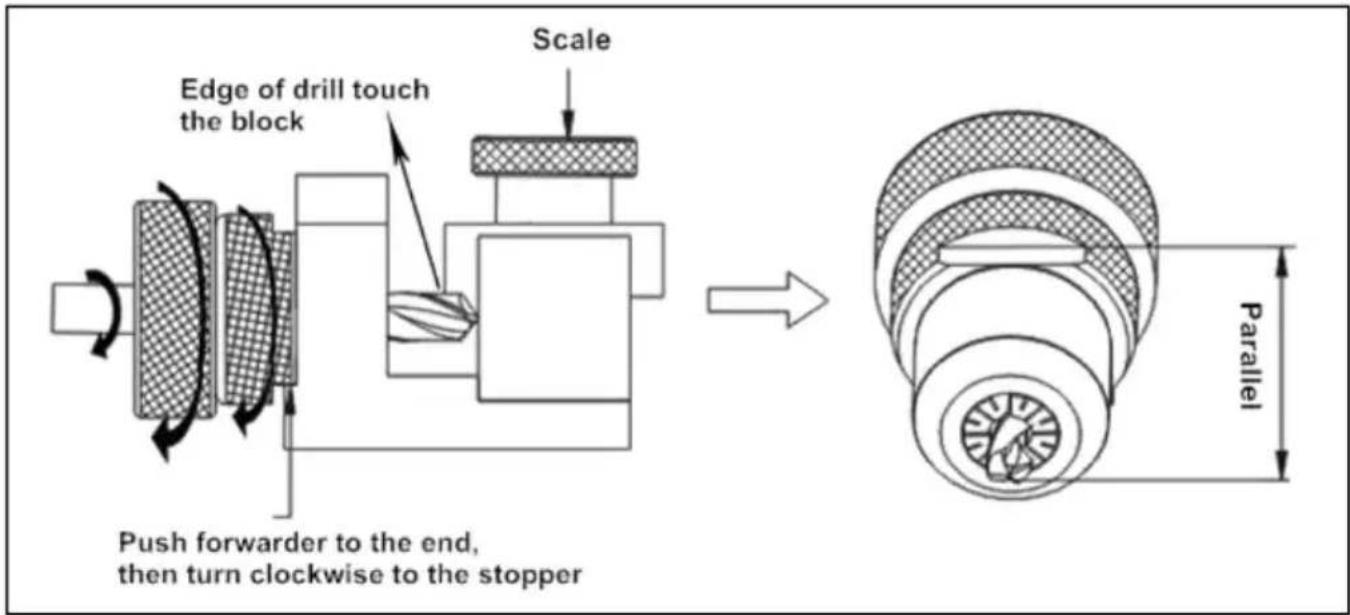

Scale Edge of drill touch the block Push forwarder to the end, then turn clockwise to the stopper Parallel

Attention: If the cutting lip is downward, must increase the scale of v adjustment shelf. If it is upward, please decrease the scale of the w adjustment shelf.

When the flute length of a drill becomes shorter, the web thickness would become thicker. So, for the same diameter of drills, the shorter length of a drill, the higher scale of web adjustment shelf need to be increased.

C. Grind the point angle

Turn the power switch on and wait until the motor rotation is stable (10 seconds), put the chuck set into the point angle grinding shelf. The slot of clamping nut must fit with the two pins of the grinding s Insert the drill gently into grinding shelf until reach the grinding wheel Grind the drill by moving left and right until the grinding sound disap And then turn to the other side, do the same to grind the drill.

* The grinding size of drill is 2mm-13mm(15mm)
* The point angle of drill is from 95° to 135°.
* While grinding, don't hold the stem of drill, it will affect the accuracy

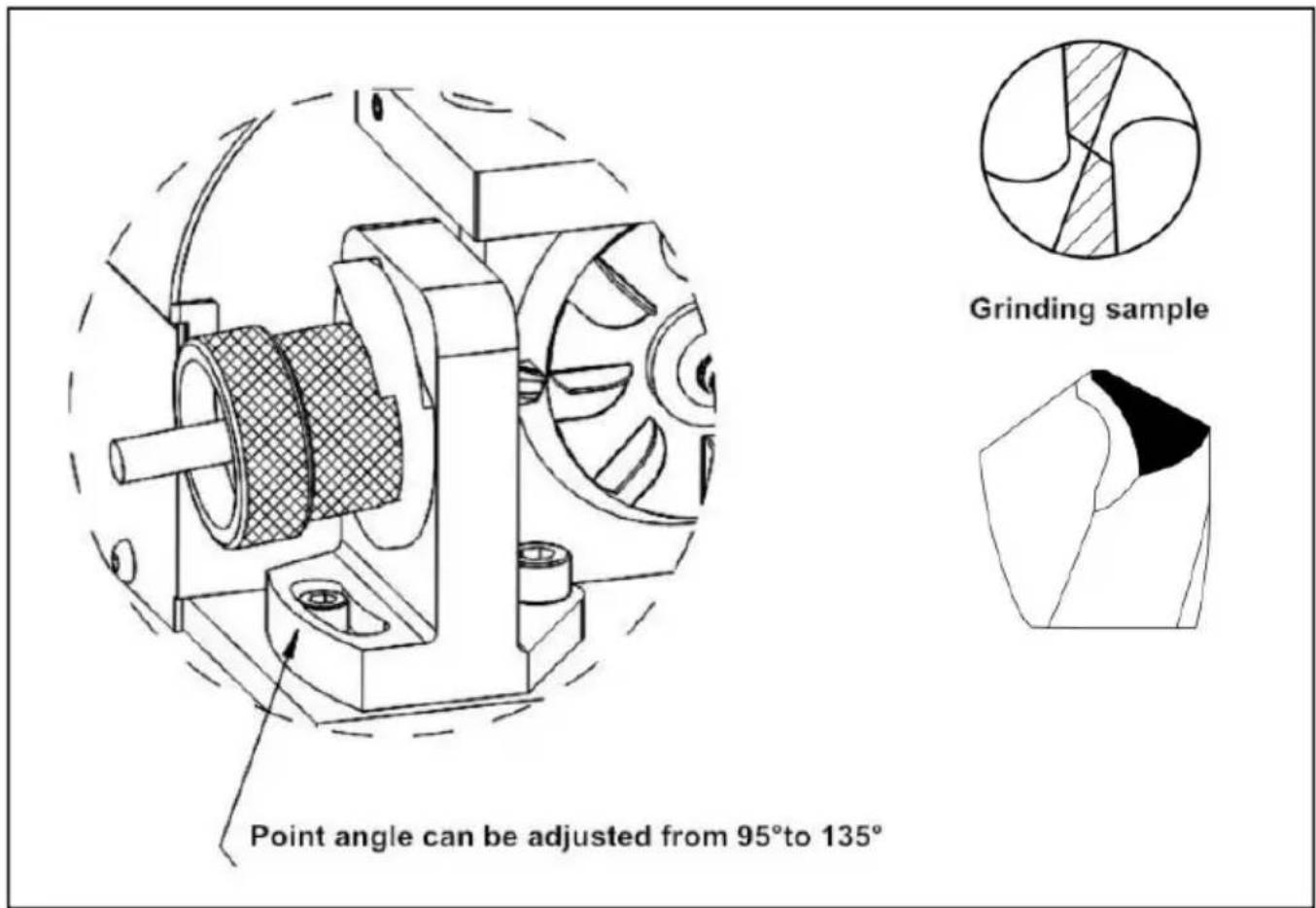

Point angle can be adjusted from 95° to 135° Grinding sample

D. Grind the lip relief angle

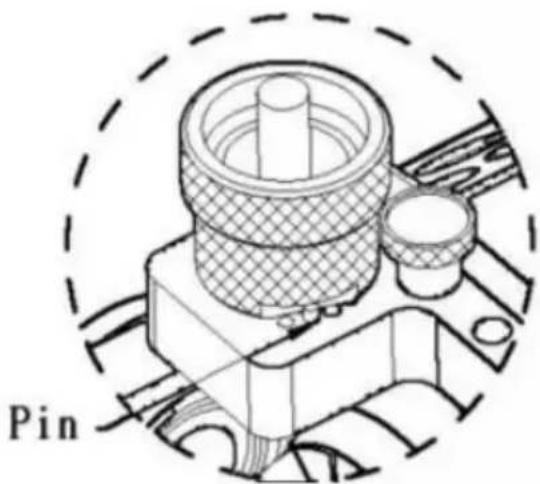

Put the chuck set into the point splitting shelf. The slot of clamping fit with the pin of the grinding shelf. Insert the drill gently into grinding until reach the grinding wheel.Grind the drill by moving left and right the grinding sound disappears. Turn back to the center of pin and ta then turn to the other side, do the same to grind the drill.

Pin

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

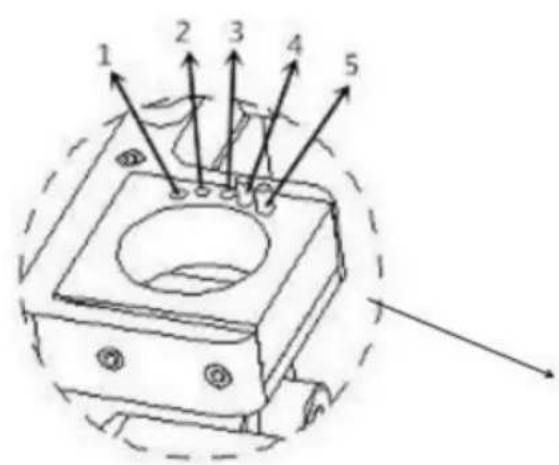

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric patterns arranged in a row (no text or symbols)

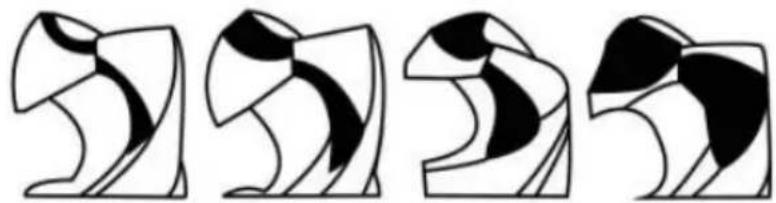

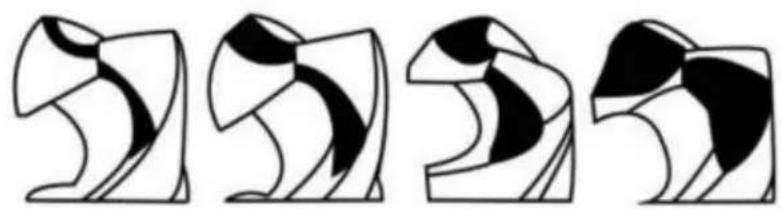

Four types of lip relief face

CLEAN AND MAINTENANCE

Please clean the whole unit with an air blow gun, especially the hole before and after use.

REPLACING THE WHEEL

A. Open the wheel cover

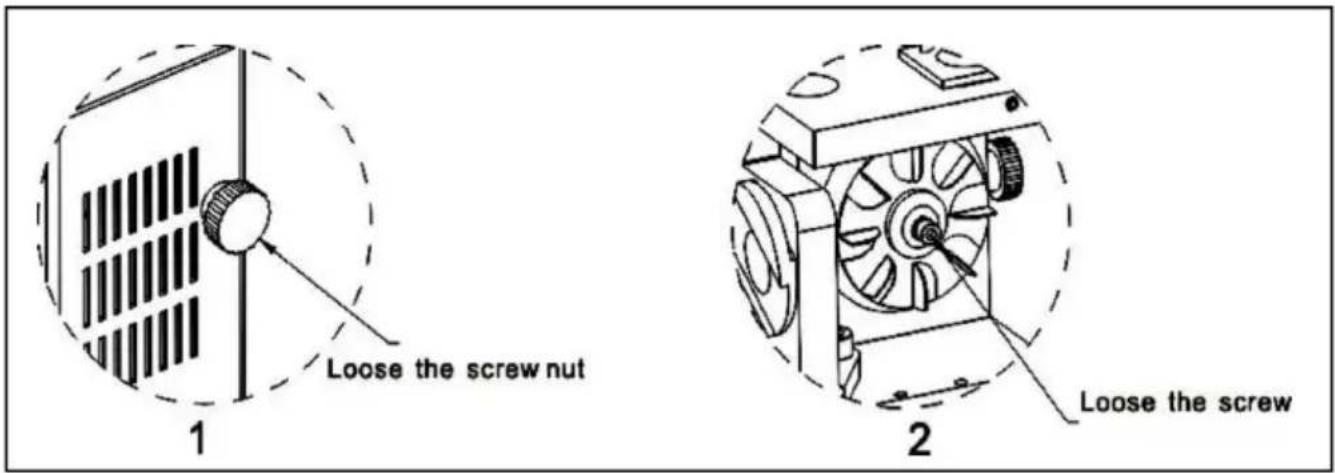

Loose the screw nut 1 2 Loose the screw

1. Make sure it is safe that the power cord is unplugged
2. Then use the 4mm hex wrench to loose the screw to open the o

B. Take out the grinding wheel

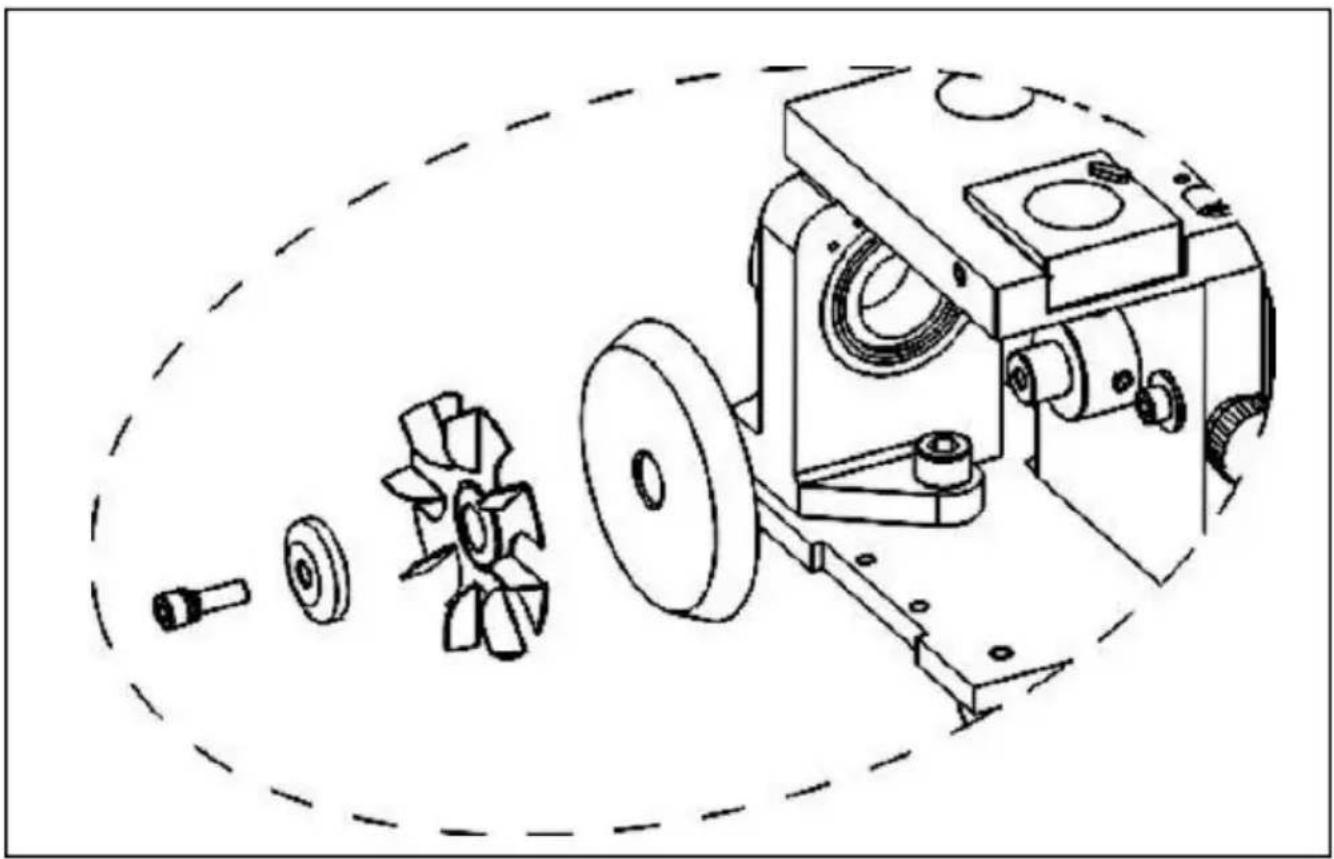

Technical line drawing of a mechanical assembly with gears and shafts, enclosed in a dashed circular boundary (no text or symbols)

1. Use the brush to clean the machine, then use dry cloth to clean surface.
2. If you just use the machine, please wait 3 minutes after the temperature is fall.
3. Use the left hand to hold the wheel, then use the 4mm hex wire loose thescrew counterclockwise by right hand.
4. Take out the diamond grinding wheel on the machine.
5. Replace the new grinding wheel.
6. Put the wheel into the principal axis of motor, and tighten the screen the wheel cover to complete.

Notice: motor principal axis is very precise, if wrong work may be left the damage, thus affecting grinding wheel position.

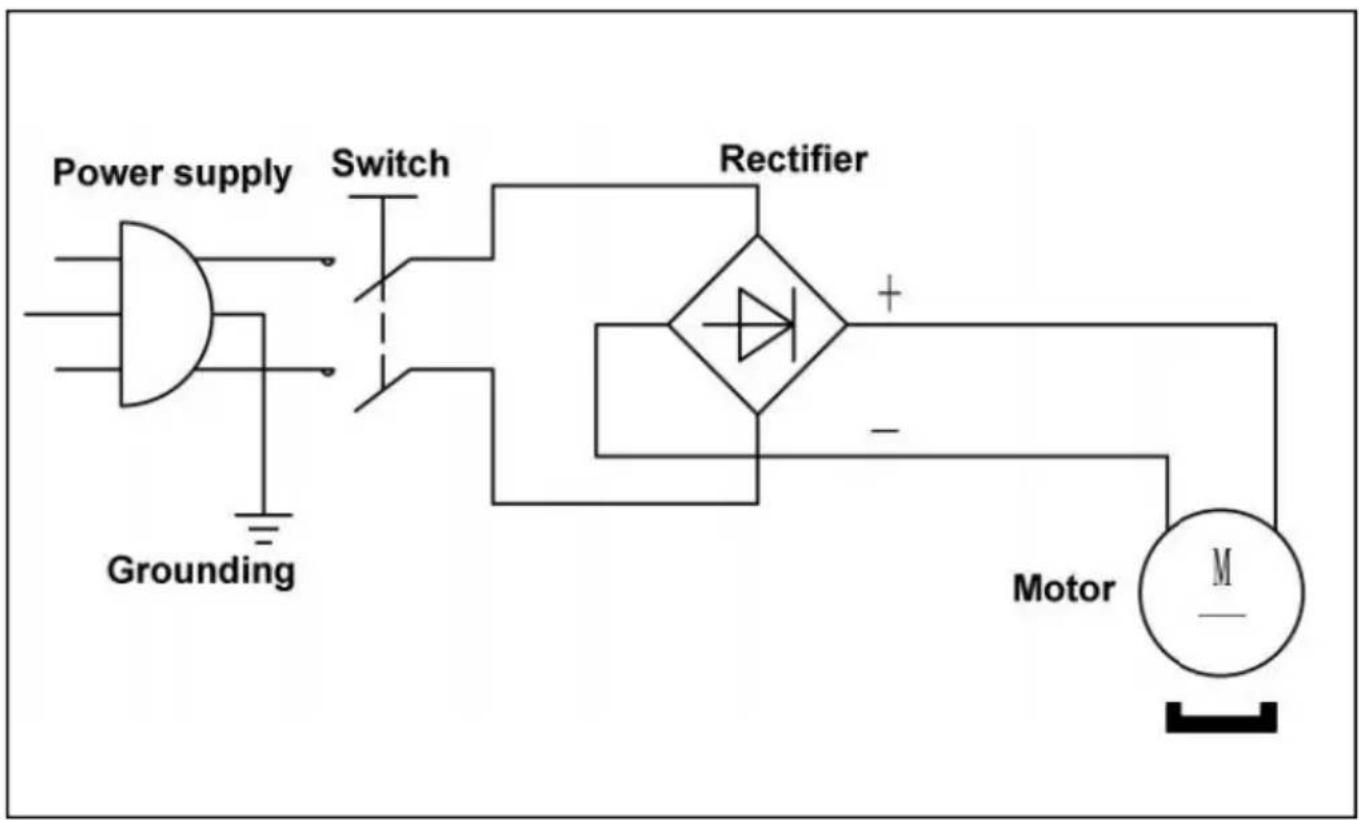

Power supply Switch Rectifier Grounding + - Motor M

Address: Baoshanqu Shuangchenglu 803long 11hao 1602A-1609shi Shanghai

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

Pooledas Group Ltd

Unit 5 Albert Edward House, The Pavilion

Preston, United Kingdom

EC

REP

SHUNSHUN GmbH

Römeräcker 9 Z2021, 76351

Technical Support and E-Warranty Certificate www. vevor. com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Orange VEVOR industrial machine with control panel and external ports (no visible text or symbols on device body)

BESOIN D'AIDE? CONTACTEZ-NOUS!

PARAMÈTRES DU PRODUIT

MODÈLE Tension		Moteur Pouvoir	AFFÛTAGE GAMME	INDIQUER ANGLE	LE CADRE ROUE G
MR-20G	Amérique du Nord: AC120V 60Hz	120W	3 20mm	95°~135°	CBN (pour HSS)×1SD (pour Carbure)×1
	européen Syndicat: AC220-240V 50 Hz				CBN (pour HSS)×1SD (pour Carbure)×1

Edge of drill touch the block Scale Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric shapes arranged in a row (no text or symbols)

Four types of lip relief face

NETTOYAGE ET ENTRETIEN

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

Power supply Switch Rectifier Grounding + - Motor M

Orange VEVOR industrial machine with control panel and mechanical components (no visible text or symbols on device body)

BRAUCHEN SIE HILFE? KONTAKTIERE UNS!

Edge of drill touch the block Scale Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric shapes arranged in a row (no text or symbols)

Four types of lip relief face

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

Machine Translated by Google

Orange VEVOR industrial machine with control panel and external ports (no visible text or symbols on device body)

HO BISOGNO DI AIUTO? CONTATTACI!

Scale Edge of drill touch the block Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric patterns arranged in a row (no text or symbols)

Four types of lip relief face

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

Orange VEVOR industrial machine with control panel and ports (no visible text or symbols on body)

Scale Edge of drill touch the block Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric shapes arranged in a row (no text or symbols)

Four types of lip relief face

LIMPIEZA Y MANTENIMIENTO

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with gears and a wheel, enclosed in a dashed circular boundary (no text or symbols)

Orange VEVOR industrial machine with control panel and external ports (no visible text or symbols on device body)

POTRZEBUJE POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Edge of drill touch the block Scale Push forwarder to the end, then turn clockwise to the stopper Parallel

Machine Translated by Google

Point angle can be adjusted from 95° to 135° Grinding sample

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric shapes arranged in a row (no text or symbols)

Four types of lip relief face

CZYSTOŚĆ I KONSERWACJA

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

Machine Translated by Google

Orange VEVOR industrial machine with control panel and external ports (no visible text or symbols on device body)

HULP NODIG? NEEM CONTACT MET ONS OP!

Edge of drill touch the block Scale Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

D. Slijp de lipontlastingshoek

Grinding sample

1 2 3 4 5

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric patterns arranged in a row (no text or symbols)

Four types of lip relief face

SCHOON EN ONDERHOUD

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with exploded view and component details (no text or symbols)

Orange VEVOR industrial machine with control panel and ports (no visible text or symbols on device body)

BEHÖVS HJÄLP? KONTAKTA OSS!

Edge of drill touch the block Scale Push forwarder to the end, then turn clockwise to the stopper Parallel

Point angle can be adjusted from 95° to 135° Grinding sample

Two identical circular diagrams with internal curved segments and shaded regions, no text or symbols present.

Grinding sample

1 2 3 4 5

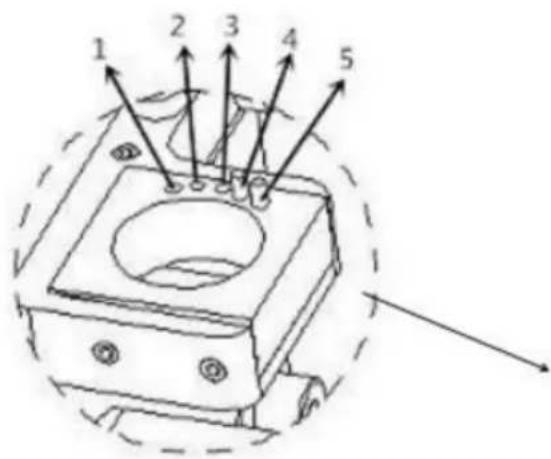

Notice: The lip relief angle is adjustable by taking out the pin to the another holes. Our standard is the smallest (in the position of No.4&5) for grinding the lip relief face. If need big size for the relief face, put the pin near to the grinding wheel, then grind. There are four positions such as: NO.4&5, No.3&4, No.3, No.1&2.

Four abstract black-and-white geometric shapes arranged in a row (no text or symbols)

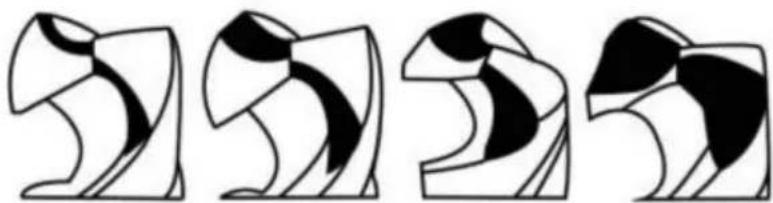

Four types of lip relief face

RENGÖRING OCH UNDERHÅLL

Loose the screw nut 1 2 Loose the screw

Technical line drawing of a mechanical assembly with gears and shafts, enclosed in a dashed circular boundary (no text or symbols)

Enhet 5 Albert Edward House, The Pavilions
