IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to persons or property. Read all instructions before operating the machine for the time.

CAUTION: ICE CAN'T BE STORED IN THE ICE BIN DURING NIGHT-TIME, IT'S NOT FRIDGE, ICE WILL BE MELTED TO WATER FLOW OUT OF THE MACHINE.

1.If connect with water supply, CAUTION: must connect the potable water supply;
2. The machine is intended to be used in household and similar

applications such as:

• staff kitchen areas in shops, offices, and other working environments;
  -farmhouses

-by clients in hotels, motels, and other residential type environments;
-Catering industry and similar industries.

1. The machine should be used indoors and without obstacles surrounding good ventilation place. There is must be 50cm at least between the sides of the machine with the wall.

2. When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock, and injury to pers property. Read all instructions before using any appliance.

5.Don't operate this or any other appliance with a damaged cord.

1. Connect to properly polarized outlets only. No other appliance should be plugged into the same outlet. Be sure that the plug is fully inserted in the socket.

7.Don't place the machine and power cord near flammable material. I cover the cord. Do not submerge it in water.

1. We do not recommend the use of an extension cord, as it may on and become a risk of fire.

9.Unplug the ice maker before cleaning or making any repairs or ser

1. Exercise caution and supervision when the appliance is used near children.

11.Don't use your ice maker outdoors. Avoid direct sunlight and make that there is at least 5 inches of space between the back and sides your unit and the wall.

12.Don't use any liquid other than water in the unit to make the ice

1. Do not clean your ice maker with flammable detergents. The fumes create a fire hazard or explosion.

14.Do not tip the machine over.

15.If the ice maker is brought indoors from outdoors during the winter give it a few hours to warm up to room temperature before plugging power source.

1. This unit should be properly grounded for your safety. The power

equipped with a three-prong plug mated with standard three-prong wall outlets to minimize the possibility of electric shock.

17.Plug your appliance into a dedicated, properly installed, and ground wall outlet. Do not, under any circumstance power and/or grounding should be directed toward a certified electrician.
18. The foaming materials inside are combustible which must be kept away from fire.
19.It's forbidden to pull the cable to unplug the plug, pull the plug is IMPORTANCE: To avoid hazards due to instability, the unit must be pl on an even and flat surface.

IMPORTANCE: To avoid hazards due to instability, the unit must be placed on an even and flat surface.

WARNING: This appliance must be grounded.

1) The fuse on the PCB is 15A, if change, must be operated by a tech.
2) Voltage fluctuation can't be exceeded ± 10% than the rated voltage, or Voltage stabilizer is needed.

IMPORTANCE: To avoid hazards due to instability, the unit must be placed on an even and flat surface.

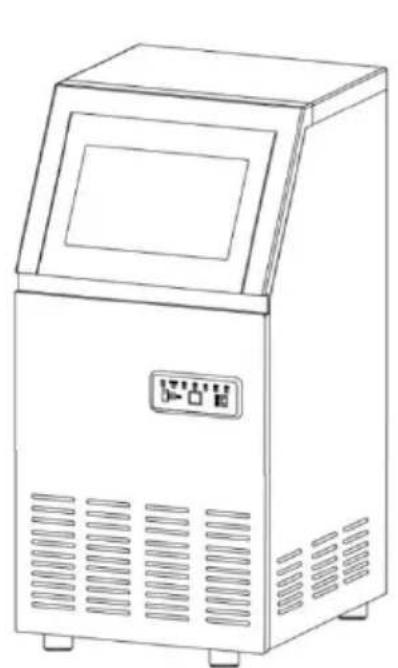

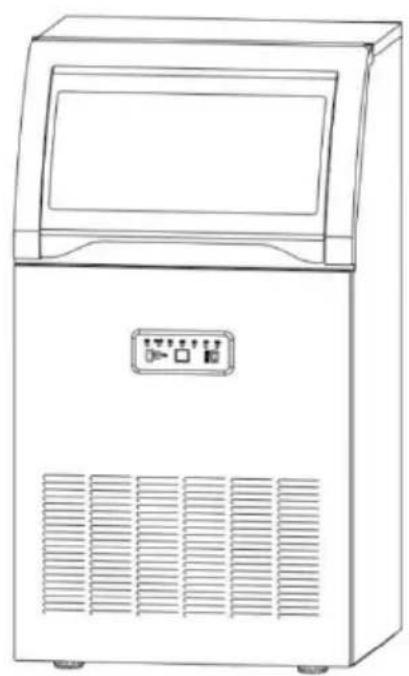

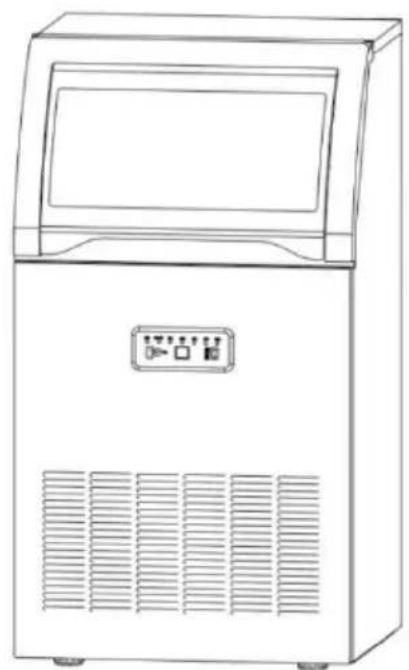

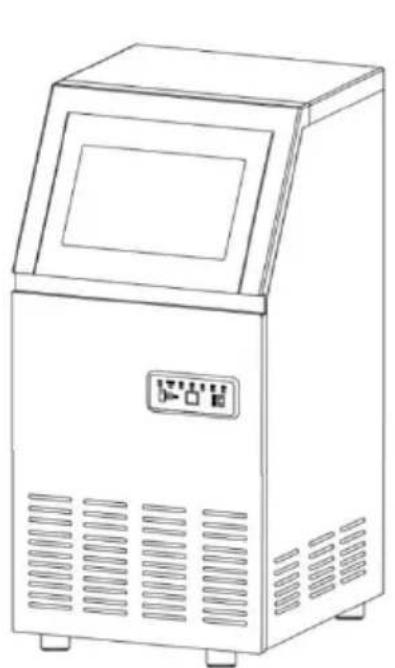

OPERATING PROCEDURES

UNPACKING YOUR ICE MAKER

1. Remove all exterior and interior packaging materials. Check whether the below accessories are included or not. If any parts are missing, contact our customer service. After you unpack the machine, we recommend you to leaving it for 24 hours before turning it on.
   2.Clean the interior with lukewarm water and a soft cloth or clean the using the Self-Clean function.
2. Find a location for your ice maker where it's protected from direct and other sources of heat (i.e. stove, furnace, radiator). Place the ice maker on a level surface. Make sure that there is at least 5 inches between the back and sides of your ice maker and the wall.
3. Allow one hour for the refrigerant to settle before plugging the unit

initial use.

5.The appliance must be positioned where the plug is accessible.

Package Contents

Ice maker machine x 1

Warm Tips: Check whether all below accessories are included.

Accessories list
NO	Description	Picture	Usage	QTY
1	Manual		Operation manual	1PC
2	Filter		Filter water	1PC
3	Drainage pipe		Drain	1PC
4	Ice spoon		Take ice cubes	1PC
5	nylon cable ties		Fix pipe if needed	2PCS
6	Jump ring		fasten the outlet and the drainage pipe together if needed	1PC
7	Seal ring	∞	Do put it in the fa of the intake pipe.T other one is spare	2PCS
8	Spare blue clip	∞	Spare blue clip if needed.	2PCS
9	Spare plug	∞	Spare plug which plug the tank if needed.	1PC

CONNECTING YOUR ICE MAKER WTTH OTHER PARTS

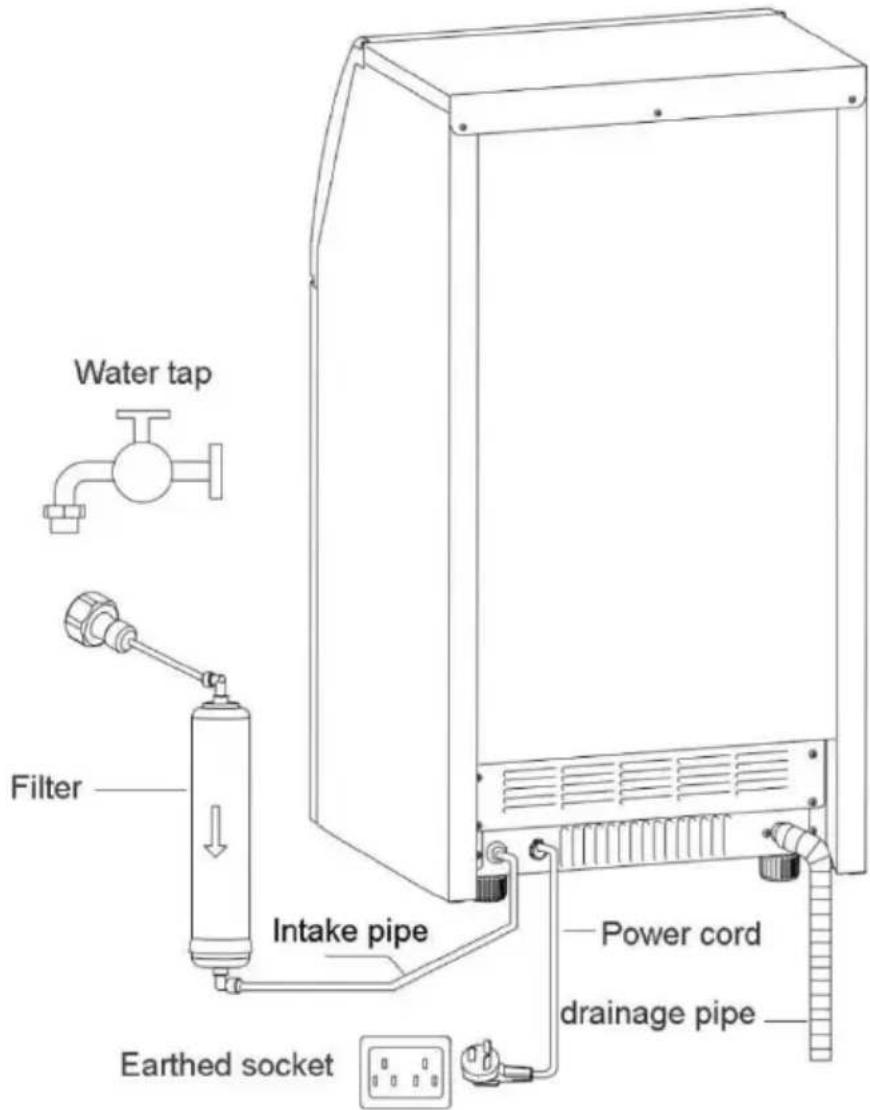

Please connect your ice maker with other parts by referring the diagr below.

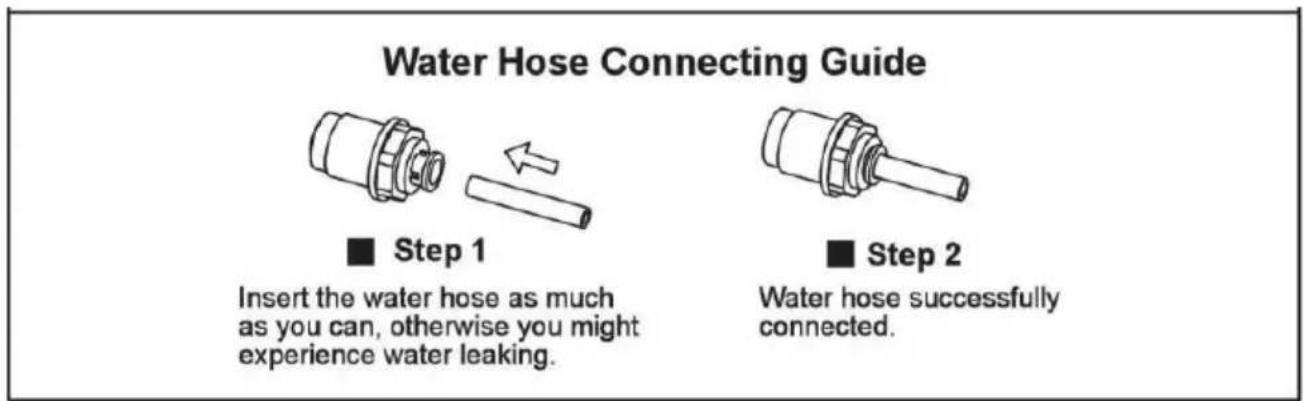

Connect drainage pipe and water intake pipe

Warning:1) The machine can only connect with drinking water sources, a must meet local drinking water standards

2) The water pressure must be in 0.1-0.4Mpa, if exceed 0.4Mpa, a press reducing valve must be connected.

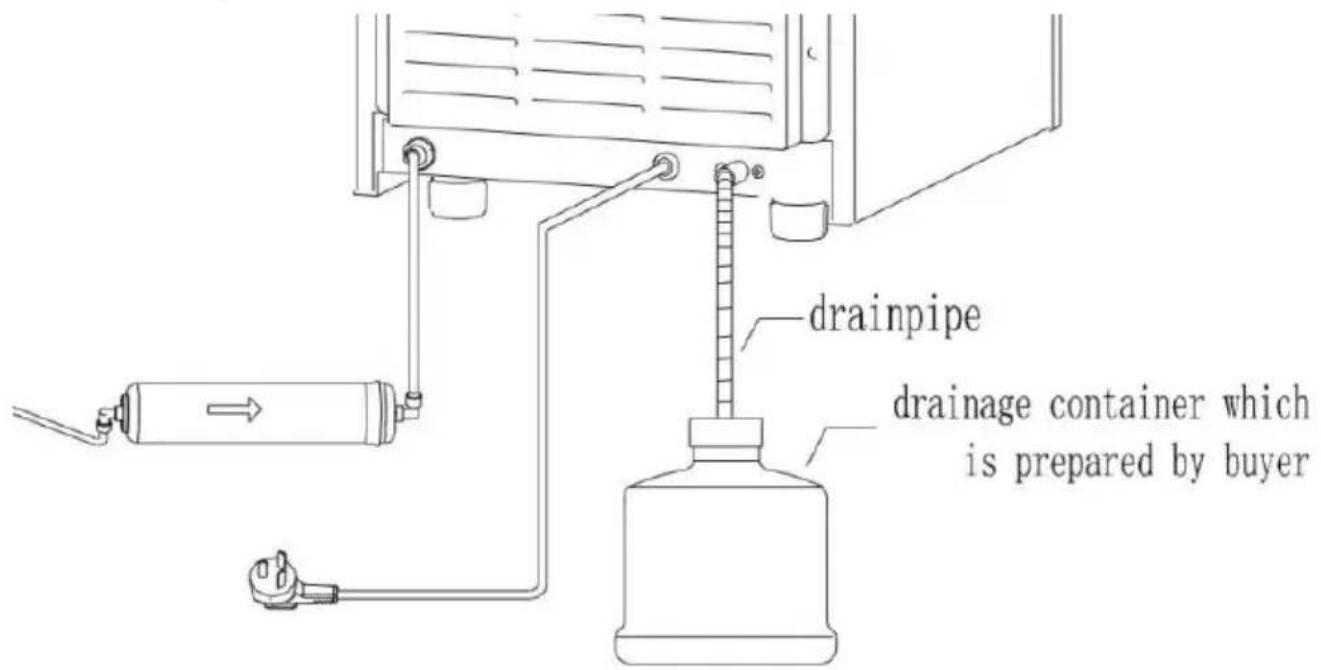

3)Drainage: The outlet of the drainage pipe must be lower than the on the machine

Drain.

Warning: Because the ice in the inner tank will melt, drain pipe must be connected before using, and insert the drain pipe into a container or the sewer.

Note: Connect one end of the drain pipe to the machine, and the c to a container or sewer. The other port of the drain pipe must be I the drain port of the machine.

USING BARRELED WATER AS WATER SOURCE

You can use barreled water as water source. Please remember to replenish water regularly. Besides, please rotate the blue control switch vertical and turn off the pipe water supply.

1.If you use water faucet as water source, please ensure that the water faucet is open for continuous water supply. If water runs out, the "ad water" indicator will light on.
2.If you use barreled water as water source. Please remember to rep water regularly or the "stoppage" indicator will light on.
3. When you use water faucet as water source, please rotate the blue control switch in the machine horizontal. On the other hand, if you u barreled water as water source, please rotate the blue control switch vertical. Please refer to the picture below.

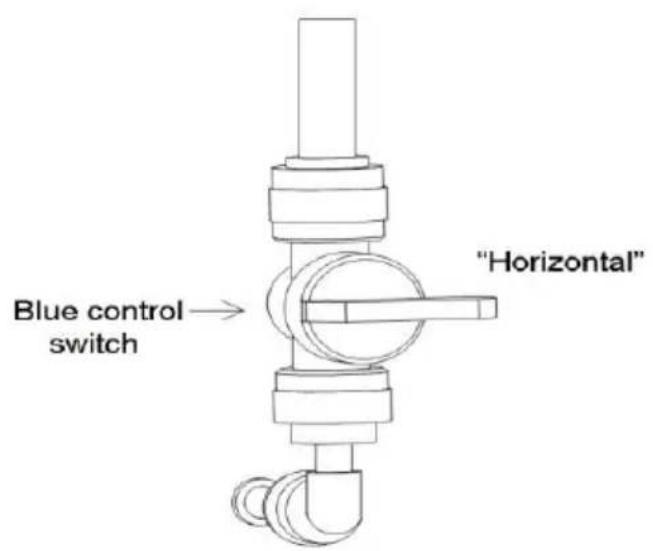

If use water faucet as water source, rotate the blue control switch horizontal.

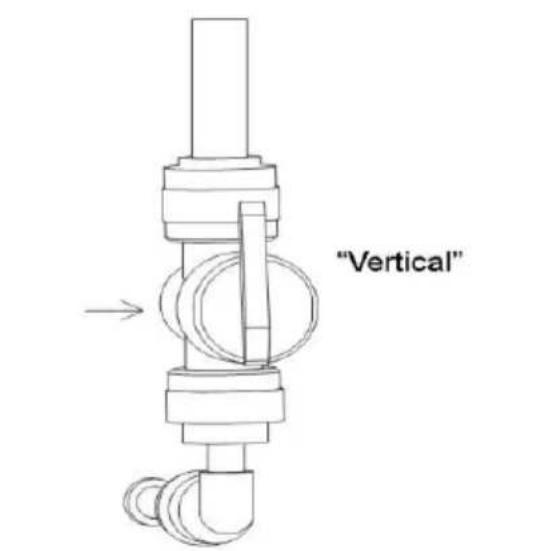

If use barreled water as water source, rotate the blue control switch vertical.

MACHINE OPERATIONS

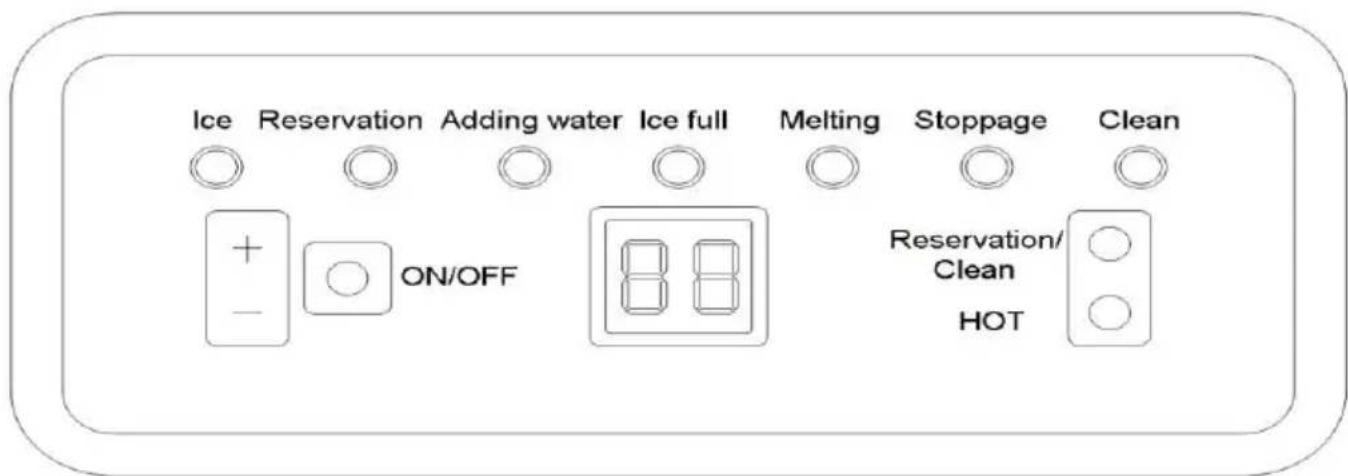

Operation Panel

Ice making operation:

1. Connect the machine to the power and press the “ON/OFF” button. "ice making" indicator will light on.

Through “+”/“-” to increase or decrease ice making time, which will be affected at the current cycle.

Press "+" button,if the screen display "1",means ice making time will added 1 min,max time can be added 8min. If press "-" button and c "-1",means ice making time will be decreased 1min,the max time is 5 min. That means the time can be adjusted from -5 to 8 min.

1. When the countdown of time is finished, the "melting" indicator will on. The ice cubes will come off the freezing panel later.

2. After the ice cubes come off. The machine will enter another loop making automatically.

Auto Turning On/Off:

1. When the machine is turned off while connected to the power, press "Reservation/Clean" button and the "+"/ "-" button to set the auto-turning-on time (inhours). The machine will automatically turns on after the countdo isfinished.

When the machine is at the middle of ice making, press the “Reservation/Clean” button and the “+”/“-” button to set the auto-turning-off time (in hours). Themachine will automatically turns off after the countdown

finished.

Self-cleaning:

1. When the machine is turned off while connected to the power, prepare "Reservation/Clean" button and hold it for a while. The machine will automatically enter self-clean program.

Notes:

1) If you change the countdown time during the middle of the ice map procedure, it will take effect at the next loop. You can long press the button during the ice making to unload the ice cubes ahead of time. 2) The surrounding environmental temperature will influence the time needed for ice making.

CLEANING & MAINTENANCE

Please thoroughly clean your ice maker before initial use.

Exterior: the outside of the ice maker should be cleaned regularly with mild detergent and warm water. Always use a soft cloth to avoidScr or damaging the housing.

INTERIOR: please use the following Self-Clean function:

1.Add water and vinegar or lemon juice mix (1:1 ratio)
2.Plug in unit,press and hold the CLEAN button for approximately 3 seconds,then release.The unit will automatically enter Self-clean program. This process takes about 5-6 minutes.When the Self-Clean program is finished,unit will automatically power off.
3. The fan blade will be rotating. This process rinses the inside parts 5 times.
4. After the Self-Clean program is completed, unplug the power cord and drain out the water by unplugging the drain cap on the side. Replace cap.
5.Add fresh water to the water reservoir, up to the water level mark.
6.Plug the unit and repeat the Self-Clean process by repeating steps. This will rinse out the vinegar/lemon residue.
7. After draining the water, replace and tighten drain cap.
8.Dry the interior and exterior with a clean,soft cloth.

NOTE: It is strongly recommended to clean the unit before initial use after the unit has not been in use for a long period of time.

NOTE

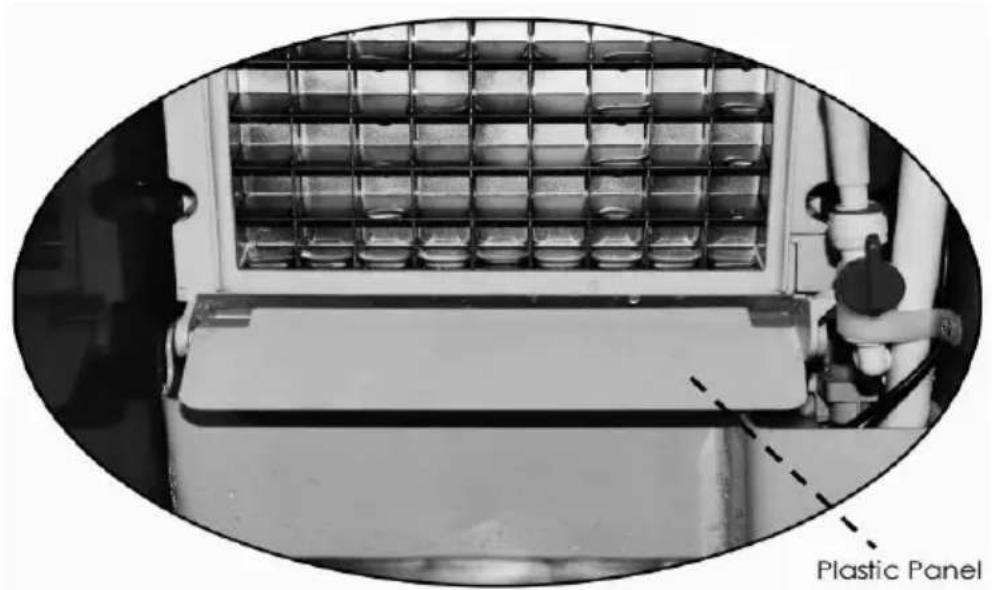

1. As the production of ice cubes increases, the plastic panel inside the machine (shown above) might be pressed down by the ice cubes. Whethhe plastic panel is pressed

down, the machine will stop producing ice cubes automatically and the "stoppage"

indicator will light on. Please clean out the ice cubes regularly for continuation of ice

making.

Common malfunction analysis

E1	No ice deflecto detected	The ice guide plate came off	Reinstall the ice guide
		Magnetic sensitive switch damaged	Replace the magnetic sensitive switch
		The ice guide plate not reset	Reset ice guide plate
E2	Ice making is normal	The fourth ice cycle stops	Replace the magnetic sensitivity switch
	There is no water in the water-box	The drain plug is no installed correctly	Install drain plug correctly
		External water supply	Check the water supply
	The water tank overflowed into the refrigerator	External water supply	The water valve above the does not rotate horizontally
		Use tap water as a source of water	The external water pressure is too high to cause the float valve to work, reduce the water pressure or change a new
	There is water the water box	There is no water, no does the shower pipe run	The pump is seriously blocked should be replaced or clean
			The shower pipe is blocked. Clean it up
	Just running water, not cooling or a little cold	There is thin ice on the ice mold	Increase manufacturing time by pressing the "+" button on the operating panel
		There is thick ice or ice mold	Reduce manufacturing time by pressing the "-" button on the operating panel
		Some water splashed into the refrigerator	Rotate and adjust the shower pipe
		The back of the water box is leaking into the	Adjust the installation position the water box
		refrigerator
	The water is n cold	The main board is n powering the compressor	Replace the mainboard
		Compressor failure	Replace compressor
		Compressor high temperature	Replace compressor
		Compressor working, not cooling	Refrigerant leak, need repair
E3	High temperature alarm	condensation temperature sensor is damage	Replacement
		The cooling fan is blocked by foreign matter	Remove the barricade
		Damage to cooling fa Replacement
E4	Abnormal condensation temperature sensor	Condensation temperature sensor short circuit or open circuit	Replacement
E5	Abnormal ambient temperature sensor	Ambient temperature sensor short circuit o open circuit	Replacement
E6	Lack of water	Interruption of externa water supplyWater intake solenoid valve damaged	Restore water supplyReplacement

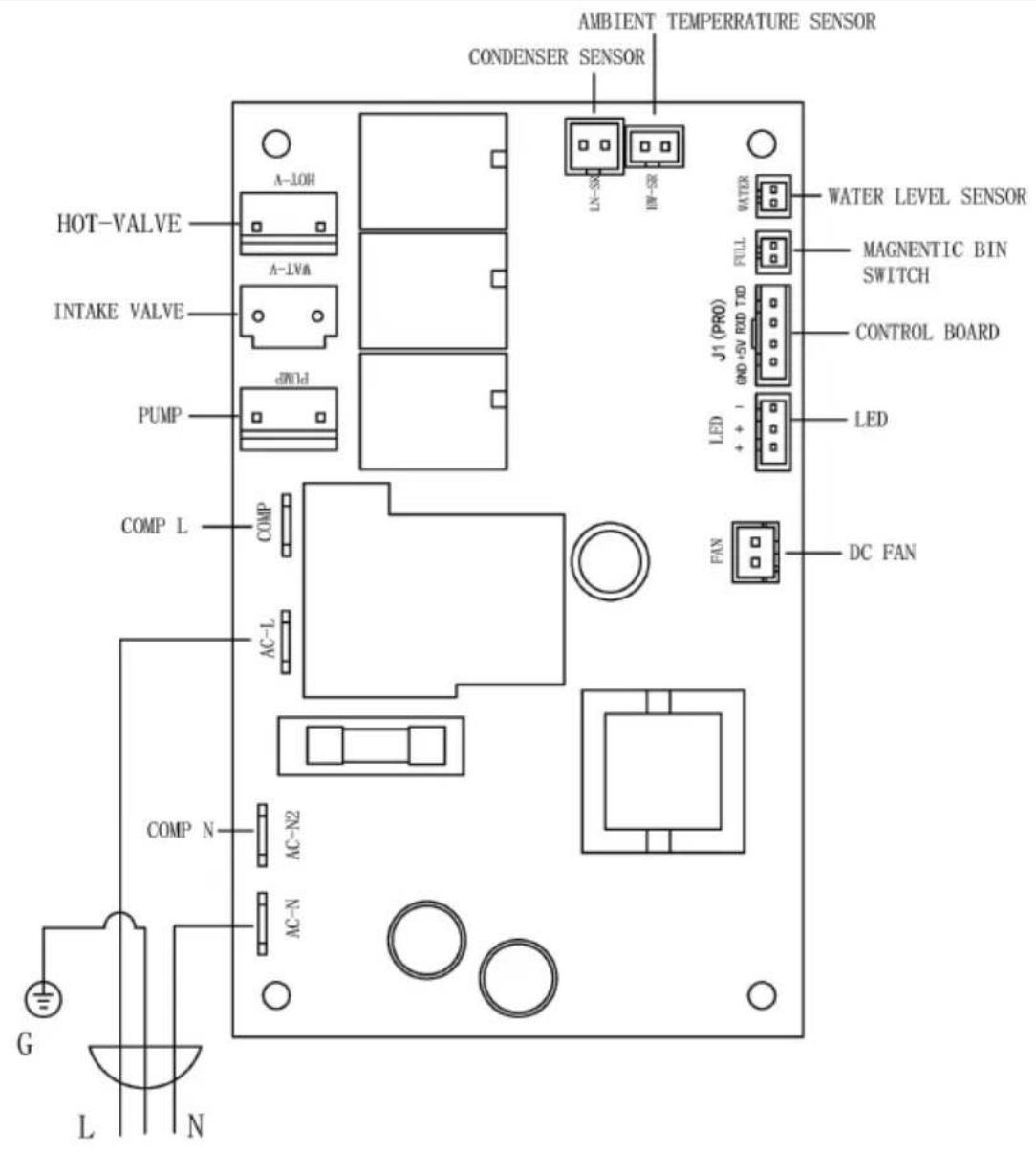

Circuit Diagram
