SD-1930 - Hand tool Vevor - Free user manual and instructions

Product Type	Hydraulic Pipe Crimping Tool
Brand	Vevor
Model	SD-1930
Cylinder Material	High-hardness aluminum (aerospace grade)
Approximate Dimensions	500 x 100 x 100 mm
Approximate Weight	5 kg
Power Source	Manual (lever-operated hydraulic pump)
Crimping Capacity	Copper ProPress tubes 1/2" to 1", PEX copper rings ASTM F1807 3/8" to 1", plastic tubes TH16-TH32, stainless steel tubes V12-V28
Die Types	Interchangeable, 4 combinations depending on kit
Intended Use	Crimping hydraulic and plumbing fittings
Safety Instructions	Wear safety glasses, do not use without dies, keep children away
Maintenance	Clean with a damp cloth, oil metal surfaces, store in a dry place
Spare Parts Available	Replacement dies available on request from manufacturer
Repairability	Maintenance only by qualified technician
Technical Support	www.vevor.com/support
Manufacturer	Shanghai Muxin Muye Co., Ltd., Shanghai, China
Importer (Australia)	SIHAO PTY LTD, NSW
Importer (United States)	Sanven Technology Ltd, CA

Frequently Asked Questions - SD-1930 Vevor

How to install the crimping dies?

Fully open the handles, press the latch to open the crimping head. Insert the upper die and lower die by pushing on the retaining clips until they snap into place. Make sure both halves are secured before using the tool. Never use the tool without dies.

What types of pipes can be crimped with this tool?

This tool can crimp ProPress copper tubes (1/2", 3/4", 1"), copper PEX rings ASTM F1807 (3/8" to 1"), plastic tubes (TH16 to TH32) and stainless steel tubes (V12 to V28). Choose the appropriate die set.

How to perform a correct crimp?

1. Fully insert the pipe into the fitting. 2. Place the connector in the crimping head. 3. Tighten the oil return screw to the right. 4. Operate the moving handle until the dies touch. 5. The crimp is complete when the handles are completely closed. Then loosen the oil return screw.

What are the important safety precautions?

Always wear safety glasses. Do not wear loose clothing or jewelry. Keep children and bystanders away. Do not use the tool without dies. Do not insert fingers into the die profile. Read all instructions carefully before use.

How to maintain the tool after use?

After each use, clean the external surfaces with a clean damp cloth to remove rust. Apply oil to metal surfaces and dies to prevent corrosion. Store the tool in a dry place. Remove the dies from the tool after work.

Where to find replacement dies?

Replacement dies can be ordered from the manufacturer or an authorized distributor. Contact customer service via www.vevor.com/support for references and availability.

Is the tool under warranty?

Yes, the tool is covered by a warranty. For details and registration of the electronic warranty certificate, visit www.vevor.com/support. Keep your proof of purchase.

What to do in case of hydraulic leak?

Stop using the tool immediately. A hydraulic leak can cause serious injury. Have the tool inspected and repaired by a qualified technician using only identical replacement parts.

Can you crimp stainless steel fittings?

Yes, with the appropriate die set (combination 4: V12, V15, V18, V22, V28). Make sure to select the correct die size for the stainless steel tube diameter. Refer to the manual for the correspondence table.

How to contact technical support?

For any technical questions or after-sales service requests, visit www.vevor.com/support. There you will find technical support, warranty certificate, and importer contact details for your country.

USER MANUAL SD-1930 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HYDRAULIC PIPE CRIMPER

MODEL: SD-1930

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to top brands, and do not necessarily mean to cover all categories of tools offered. We kindly remind you to verify carefully when placing an order with us that you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Hydraulic Pipe Crimper

Model: SD-1930

The size of pipe fittings varies in different regions, and the specifications of suitable fixtures vary. Please carefully check the required fixture specifications when purchasing.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Read this material before using this product. Failure to do so can result in serious injury. SAVE THIS MANUAL.

SAVE THIS MANUAL

Keep this manual for the safety warnings and precautions, assembly, operating, inspection, maintenance, and cleaning procedures. Write the month and year of purchase. Keep this manual and the receipt in a safe and dry place for future reference.

IMPORTANT SAFETY INFORMATION

In this manual, on the labeling, and all other information provided with this product:

This is the safety alert symbol. It is used to alert you to potential personal hazards. Obey all safety messages that follow this symbol to avoid possible injury or death.

DANGER

WARNING

CAUTION

DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION, used with the safety alert symbol, indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.

GENERAL SAFETY RULES

TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS IMPERATIVE TO READ CAREFULLY THE DIRECTIONS FOR USE AND TO FOLLOW THE INSTRUCTIONS IT CONTAINS. IF YOU DO NOT RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION MANUAL, THE WARRANTY WILL BE CANCELLED.

TO WORK IN SAFE CONDITIONS WITH THIS TOOLING, IT IS IMPERATIVE TO READ CAREFULLY THE DIRECTIONS FOR USE AND TO FOLLOW THE INSTRUCTIONS THEY CONTAIN. IF YOU DO NOT RESPECT THE INFORMATION WRITTEN IN THAT INSTRUCTION MANUAL, THE WARRANTY WILL BE CANCELLED.

1. Work area safety

a. Keep work area clean and well lit. Cluttered or dark areas invite accidents. b. Keep children and bystanders away while operating. Distractions will cause you to lose control.

2. Personal safety

a. Stay alert, watch what you are doing and use common sense when operating the tool. Do not use the tool while you are tired or under the influence of alcohol or medication. A moment of inattention while operating hydraulic tools can result in serious personal injury.

b. Use safety equipment. Always wear eye protection. Safety equipment such as dust masks, non-skid shoes, hard hats, or hearing protection used for appropriate conditions will reduce personal injuries.

c. Dress properly. Do not wear loose clothing or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.

d. Do not force the tool. Use the correct power tool for your application. The correct power tool will do the job better and safer at the rate for which it is designed.

e. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the manual pressing tool to operate it. This tool is dangerous in the hands of untrained users.

f. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts, and any other condition that may affect the manual pressing operation. If damaged, have the manual pressing tool repaired before use. Many accidents are caused by poorly maintained power tools.

g. Use the manual pressing tool, accessories, and tool bits, etc., in accordance with these instructions and in the manner intended for the particular type of tool, taking into account the working conditions and the work to be performed. Use of the hydraulic pressing tool for operations different from those intended could result in a hazardous situation.

3. Service

Have your manual pipe pressing tool serviced by a qualified service technician using only identical replacement parts. This will ensure that the safety of the manual pipe pressing tool kit is maintained.

SPECIFIC SAFETY RULES

1. Maintain labels and nameplates on the tool which carry important safety information. If unreadable or missing, contact the agent to replace.
2. This product is not a toy; keep it out of reach of children.
3. Do not slide your fingers in the dies profile.
4. Do not put your fingers in the head of the crimping tool when you slide inside it. Your fingers could be pinched very severely.
5. Do not use the tool without die.
6. Please keep the tool into tooling case after finish working and ensure the crimping die out of the tool.
7. The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible conditions and situations that may occur. It be understood by the operator that common sense and caution are factors w cannot be built into this product, but must be supplied by the operator.

UNDERSTAND YOUR TOOL

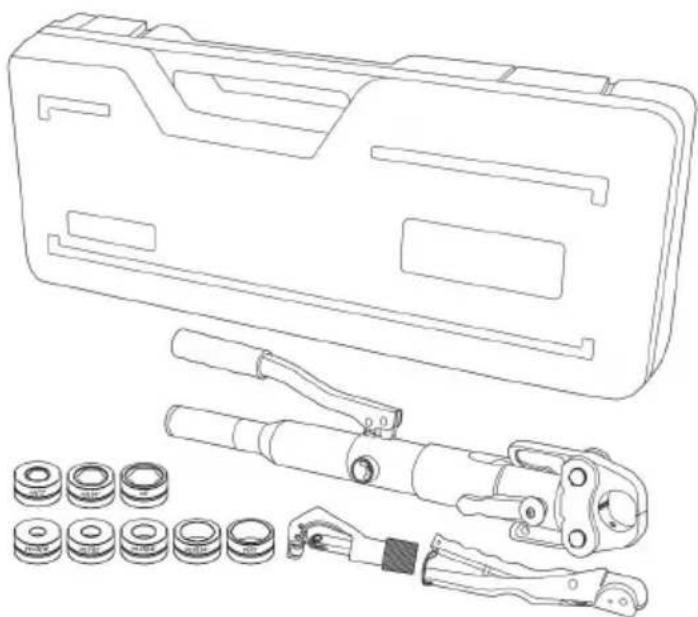

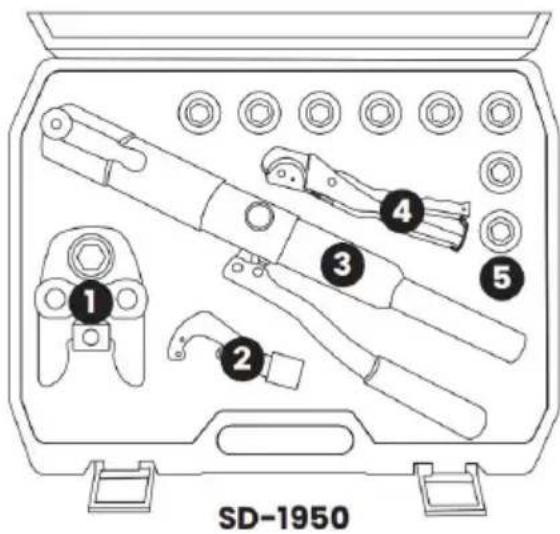

1	Crimping pipe clamp head
2	Pipe cutter
3	Integral pipe pressing tool
4	Scissors
5	Removable mold

INTRODUCTION

The SD series integral pressure pipe tool is a professional pressure pipe for copper pipes. Before using this tool, please carefully read the user manual and usage requirements.

Feature

This product is powerful and easy to carry. The cylinder adopts high hardness aviation industry aluminum profiles to solve long-term load with for customers. The crimping pliers are easy to replace and operate.

Operation

The product head is equipped with a set of molds that can be replaced as Before use, prepare the pipe to be crimped, insert the crimping pliers, tighter oil return switch to the right, and use the movable handle to crimp. When tl indenter is compressed, the crimping is successful. It's best to loosen the oil valve on the left side.

Operation

Combination	Crimping mold	Applicable scope
Combination 1	ProPress copper tube: 1/2 ", 3/4", ASTM F1807 Pex Copper Ring : 1/2", 5/8 ", 3/4", 1 "	Copper tube, ASTMF1807 PEX pipe
Combination 2	ProPress copper tube 1/2 ", 3/4",	Copper tube
Combination 3	TH16、TH20、TH26、TH32	Plastic pipes, PB pipes, and PEX pipe
Combination 4	V12、V15、V18、V22、 V28	Stainless steel pipe

INSTALLATION METHOD

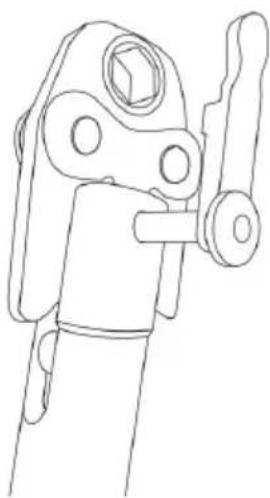

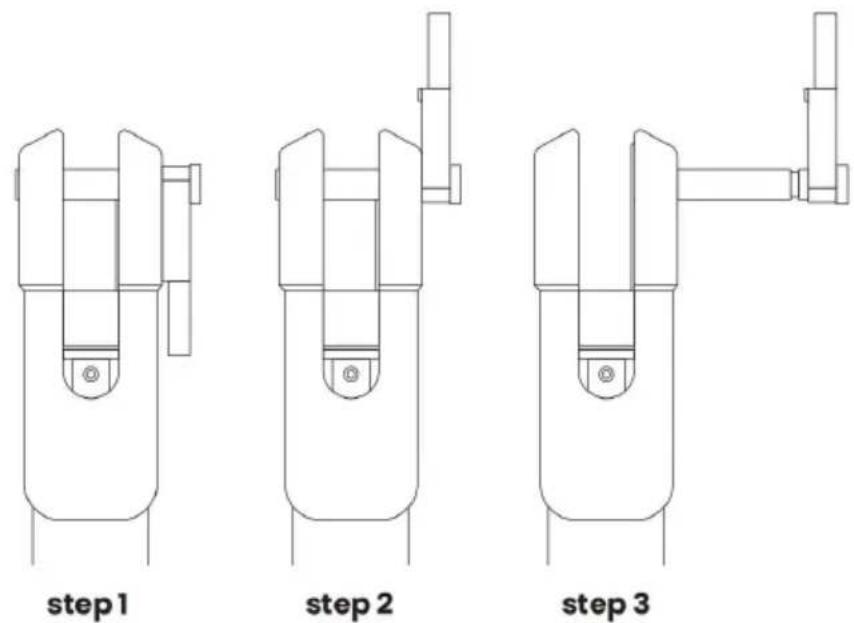

Step 1: Take out the integral pipe pressing tool.

Step 2: Pull the right latch upwards.

Step 3: Pull out the right bolt.

Step 4: Put the crimping tong head in the middle.

Step 5: Put the plug back.

Step 6: Return the latch to the correct position.

Step 4

Step 5

Step 6

▲CAUTION

Please do not knock any part of the tool; otherwise it is dangerous for the operator.

1. Select the appropriate die set. Ask an authorized facility or distributor to perform proper compression die set for crimping the fittings with pipe.

CAUTION

Don't operate the tool without dies.

1. Open the handles completely, press the latch to open the crimping head, the upper crimping die and the down crimping die by pressing the retaining clip to match the die holder when both die halves are in place.
2. Make sure both die halves are secured before operating the tool.
3. Fully insert the pipe into the fittings.
4. Place the connector in the crimping head. To lengthen the telescopic handle, adjust it to the suitable length and tighten the handles afterwards.
5. Close the handles. The connector is crimped when the dies touch together; crimping is completed when the handles are completely closed.
6. Open the handle completely and press the latch to open the head to remove the connector for the next cycle.

WARNING

Please remove the crimping die from the tool. Prolonged stress may damage the tool head.

The die type used is optional; choose the correct type to crimp different pipes. The size is marked on the surface of the die. If you require a special size or shape, please contact the distributor or manufacturer; they can custom-make dies according to detailed requirements.

MAINTENANCE AND SERVICING

Damaged equipment may cause serious personal injury. Do not use damaged equipment. If abnormal noise or vibration occurs, have the problem corrected before further use.

1. Before each use, inspect the general condition of the tool. Check for loose screws, misalignment or binding of moving parts, cracked or broken parts, or any other condition that may affect its safe operation.
2. After use, clean the external surfaces of the tool with a clean, moist cloth. Apply anti-rust oil to the metal surfaces of the tool and the dies to prevent rust. Store the tool in a dry environment.
3. Service to the tool should only be performed by a qualified service technician.

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia.

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730.
