RWS16000 - Water Softener Vevor - Free user manual and instructions

USER MANUAL RWS16000 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

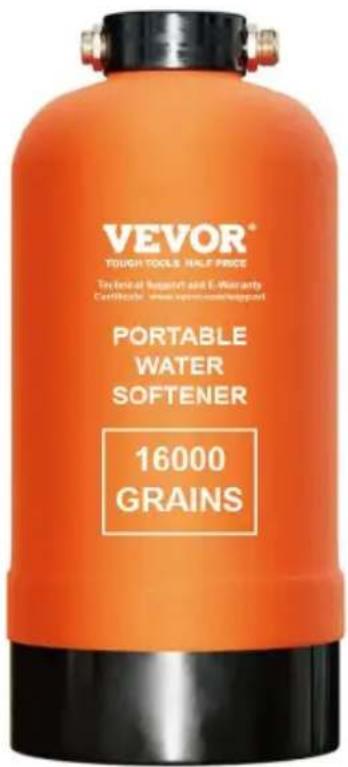

RV WATER SOFTENER

MODEL:RWS16000

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

RV WATER

SOFTENER

MODEL: RWS16000

VEVOR® TEUGH TOOLS HALF PRICE Technical Support and E-Warranty Certificate www.wertcience/support PORTABLE WATER SOFTENER 16000 GRAINS

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel f contact us: Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

● BASIC SAFETY RULES

• Read and understand all instructions. Failure to follow all instructions may result in serious injury or property damage.
• The warnings, cautions, and instructions in this manual cannot cover all possible conditions or situations that could occur. Exercise common sense is caution when using this tool.
• Always be aware of the environment and ensure that the tool is used in a and responsible manner.
• Do not allow persons to operate or assemble the product until they have r this manual and have developed a thorough understanding of how it works
• Do not modify this product in any way. Unauthorized modification may impact the function and/or safety and could affect the life of the product. There are specific applications for which the product was designed.
• Use the right tool for the job. DO NOT attempt to force small equipment 1 the work of larger industrial equipment.
• There are certain applications for which this equipment was designed. It will the job better and more safely at the capacity for which it was intended. NOT use this equipment for a purpose for which it was not intended.

● WORK AREA SAFETY

• Inspect the work area before each use. Keep the work area clean, dry, fresh clutter, and well-lit. Cluttered, wet, or dark work areas can result in injury. The product in confined work areas may put you dangerously close to other cutting tools and rotating parts.
• Do not use the product where there is a risk of causing a fire or an exp e.g., in the presence of flammable liquids, gases, or dust. The product can create sparks, which may ignite flammable liquids, gases, or dust.
• Do not allow the product to come into contact with an electrical source. This is not insulated, and contact will cause electrical shock.
• Keep children and bystanders away from the work area while operating the Do not allow children to handle the product.
• Be aware of all power lines, electrical circuits, water pipes, and other

mechanical hazards in your work area. Some of these hazards may be hi from your view and may cause personal injury and/or property damage.

● PERSONAL SAFETY

• Stay alert, watch what you are doing, and use common sense when operate the tool. Do not use the tool while you are tired or under the influence of alcohol, or medication. A moment of inattention while operating the tool may result in serious personal injury.
• Dress properly. Do not wear loose clothing, dangling objects, or jewelry. Keep your hair, clothing, and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts. Air vents on the tool often use moving parts and should be avoided.
• Wear the proper personal protective equipment when necessary. Use ANSI Z87.1 compliant safety goggles (not safety glasses) with side shields or, we needed, a face shield. Use a dust mask in dusty work conditions. Also, the non-skid safety shoes, hard hat gloves, dust collection systems, and hearing protection when appropriate. This applies to all persons in the work area.

• Use only on hard-level surfaces.
• No altercations shall be made to this product.
• Not for use by or around children.

SAVE THESE INSTRUCTIONS

Specifications

Adsorption Weight	16000 grain
Weight of Food Grade Res	10 kg
Maximum Pressure	150 psi (1.0Mpa)
Temperature	34-120°F (1-49°C)
MAX. Vacuum	5"Hg (127mmHg)

Product Composition

1pcs1m Hose	2pcsBrass HoseAdapter	1pcsNeopreneFabric ClothCover	1pcsPortableWaterSoftener	1pcsFiberCloth
4pcsSealing Ring	1pcsO-ring	1pcsBrass L Fittings	1pcsGarden HoseShut Off Valve
1pcsPTFE ThreadSeal Tape	1pcsDouble FemaleGarden HoseConnector	1pcsFemale GardenHose QuickConnector	1pcsGarden HoseY Splitter

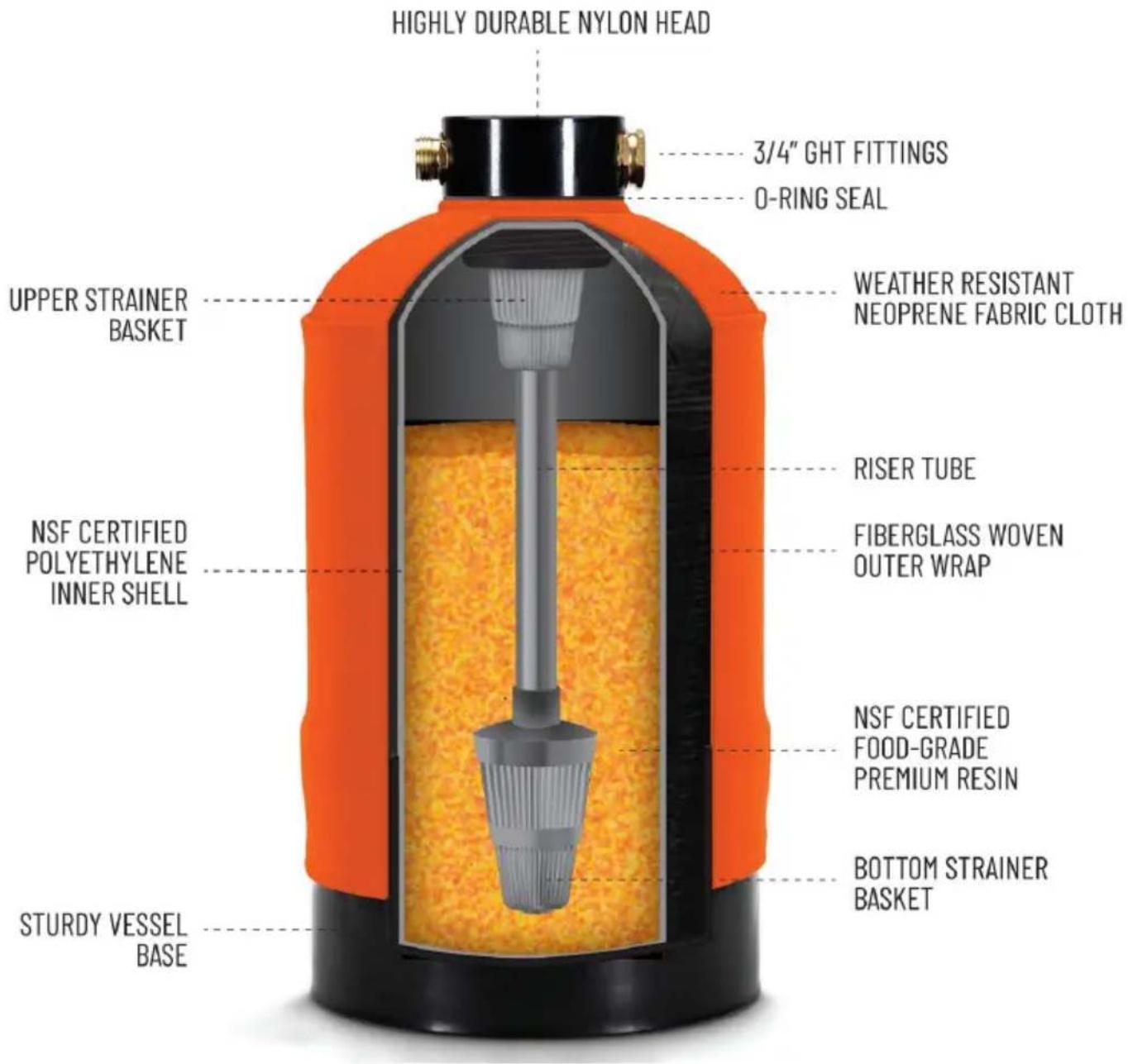

HIGHLY DURABLE NYLON HEAD 3/4" GHT FITTINGS O-RING SEAL UPPER STRAINER BASKET WEATHER RESISTANT NEOPRENE FABRIC CLOTH RISER TUBE FIBERGLASS WOVEN OUTER WRAP NSF CERTIFIED POLYETHYLENE INNER SHELL NSF CERTIFIED FOOD-GRADE PREMIUM RESIN BOTTOM STRAINER BASKET STURDY VESSEL BASE

Installation instructions

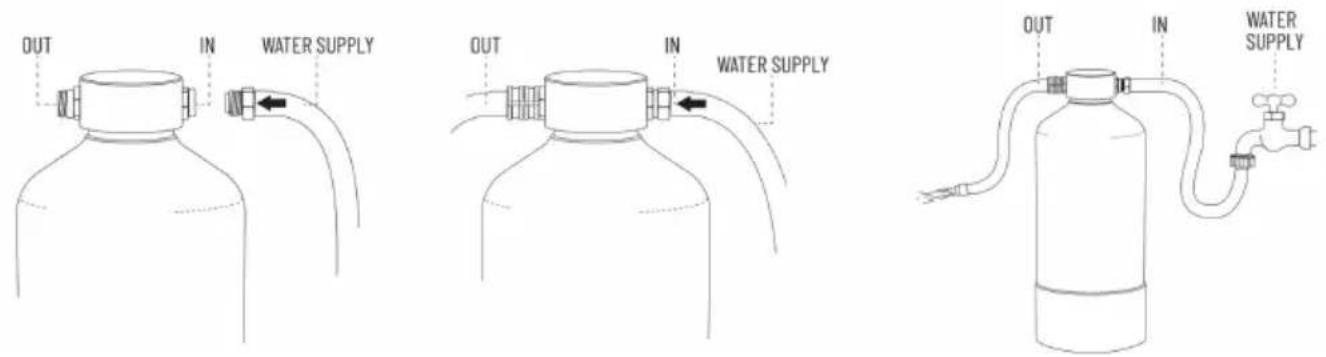

FLUSH

1. Connect the water source to the inlet po on the tank cap/head.

2. Connect a hose to outlet port on the tank cap/head.A double femal garden hose connector included if needed.

3. Turn the water on and flu the unit for 4 to 6 minutes. flushing, you might notice a discoloration in the water, this normal because the resin is and will release particles on initial flush.After 4 to 6 minut the water should beclear and ready for use.

SET UP

OUT IN WATER SUPPLY

TO RV / TRAILER / BOAT IN WATER SUPPLY

IN WATER SUPPLY TO RV / TRAILER / BOAT

1. Connect the water source to the inlet port on the ta cap/head.

2. Connect a hose to the out port on the tank cap/head.A double female garden hose connector is included if needed.

3. Connect the other en of the hose to the inlet of your RV/trailer/boat.

Note: Make sure that the unit is secure with a sturdy strap in your vehicle while traveling. Make sure that the unit is placed on a flat surface, uprig and level, and never install on its side.

BACKFLUSH

WATER SUPPLY OUT IN

Backflush the unit every 3 months for 3 to 5 minutes

① Connect the water source to the outlet port on the tank cap/head.
② Turn the water on with high flow for high pressure and faster washing.

WATER HARDNESS TEST

Use the water hardness test strip for the following:

① To check the water quality of the water source
② To check the quality of the water output from the portable RV

Water softener from time to time. If the water is hard, regeneration is neede

WATER HARDNESS TABLE

Classification Grain Per Gallon (GPG)		Parts Per Million (PPM)
Soft 0 to 3	0 to 60
Slightly Hard 3	to 7 61 to 120
Hard 7 to	11 121 to 180
Very Hard	>11	>181

REGENERATION

① Disconnect the hoses connected to the unit.
② Remove the cap/head.
③ Fill the tank with 52 oz (1471.6g) table salt.iv. Return the cap/head.
④ Reconnect the water source to the inlet port on the tank cap/head.

⑤ Flush the unit for 30 minutes by turning on the water slowly until The water is flowing 90^ to the ground or drain.

Note: The water contains a high amount of salt, DO NOT drain on grass/flowers/trees.

⑥ Increase the water flow for 10 minutes until the salt is fully dissolved.

⑦ The unit is ready for use if the saltwater is completely drained from the Note: If a back flush is needed at the time of the regeneration, make sure flush first before regeneration.

DRAINING

Turn the unit upside down and allow water to drain from both inlet and outlet DO NOT remove the cap/head while draining.

NOTE: If the temperature is below 0^ C, please drain the unit.

STORAGE

① Backflush the unit.
② Regenerate the unit.
③ Drain the unit. Make sure the unit is dry.iv. Store the unit away from di sunlight.

RE-USING AFTER STORAGE

① Backflush the unit.
② Regenerate the unit.
③ Sterilize the tank before use or every year.

TROUBLESHOOTING

There's a leak on the cap/head.	- Twist and tighten the cap/head properly.- Replace the o-ring.
There's a leak on the inlet/outlet.	-Make sure that the fittings are properly connected. Add a PTFE thread seal tape if needed.
Doesn't soften water.	-Check the quality of the water using the test strip. If water is hard, regeneration is needed.

FAQ

0: What kind of salt is to be used? A: Regular table salt.
0: Can this be used for spotless for car washes?	nAnse Yes, but you still need to dry your car with a cloth after washing.
