SF-SS-SKU6 - TV wall mount Vevor - Free user manual and instructions

Product Type	Solar Panel Mount (Mounting Structure)
Model	SF-SS-SKU6
Brand	Vevor
Main Material	Carbon Steel
Dimensions (L x W x H)	3000 x 1000 x 800 mm
Maximum Load Capacity	150 kg (330 lb)
Panel Compatibility	Solar panels (not included)
Number of Panels Supported	Multiple (multi-panel mounting)
Installation Type	On concrete pillar or wooden beam (fixation with expansion bolts or self-tapping screws)
Adjustable Tilt Angle	Yes, adjustable according to longitude/latitude
Required Tools (not included)	6 mm Allen key, power tool, socket wrench, chain, tape measure, adjustable wrench, highlighter pen
Safety	Wear goggles and gloves, do not exceed load, avoid dynamic overload, keep children away
Maintenance	Clean with a soft cloth, regularly check fasteners
Spare Parts	Parts listed in the manual (rails, pressure blocks, beams, connectors, etc.)
Repairability	Individual parts can be replaced
Warranty	Electronic warranty certificate available at www.vevor.com/support
Manual	96 pages, free download at notice-facile.com
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, Chine
Importers	Australia: SIHAO PTY LTD; United States: Sanven Technology Ltd; United Kingdom: represented

Frequently Asked Questions - SF-SS-SKU6 Vevor

Is this mount compatible with all solar panels?

This mount is designed to accommodate multiple solar panels, but panels are not included. The product dimensions are 3000 x 1000 x 800 mm, so you should check that your panels fit this structure. Refer to your panel dimensions and the manual for proper installation.

What is the maximum supported weight?

The maximum load capacity of the Vevor SF-SS-SKU6 mount is 150 kg (330 lb). Never exceed this limit, as it could lead to structural failure.

What tools are needed for assembly?

The required tools (not included) are: 6 mm Allen key, power tool, socket wrench, chain, tape measure, adjustable wrench, and highlighter pen. Follow the steps in the manual for safe assembly.

Can this mount be fixed to a wall?

This mount is mainly designed for ground installation on concrete pillars or wooden beams. It is not intended for typical wall mounting. Make sure to secure the structure to a solid base.

How to adjust the panel tilt?

Before installation, take into account the longitude, latitude, and region to determine the optimal angle. The structure allows tilt adjustment. Follow the instructions in the manual to adjust the angle.

Is the product covered by a warranty?

Yes, Vevor provides an electronic warranty. You can get technical support and the warranty certificate by visiting www.vevor.com/support.

Can I replace damaged parts?

Yes, the parts are listed in the manual (rails, pressure blocks, beams, etc.) and are individually replaceable. Contact Vevor support to get replacement parts.

How to clean and maintain the structure?

Clean regularly with a soft cloth. Periodically check the tightness of bolts and the condition of fasteners to ensure the safety and longevity of the mount.

Does assembly require special skills?

Assembly is accessible to an experienced DIYer. However, strictly follow the instructions in the manual, wear safety equipment, and do not assemble under the influence of substances. If in doubt, call a professional.

Where can I download the complete manual?

The complete 96-page manual is available free of charge at notice-facile.com for the Vevor SF-SS-SKU6 model. You can also download it in several languages from the site.

USER MANUAL SF-SS-SKU6 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Multi-Panels Mount

MODEL:SF-SS-SKU6; SF-SS-SKU7

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: SF-SS-SKU6; SF-SS-SKU7

Illustration of a solar panel array mounted on a support structure, with no visible text or symbols.

Note: This product only includes solar panel support, solar panels need to be purchased by yourself.

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully be operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or soft updates on our product.

Thank you very much for choosing this product.

Please read all of the instructions before using it. The information will help you achieve the best possible results.

Operation safety

WARNING:

Please read all instructions before using this product

It is the Owner's responsibility to ensure that all users of this product fully aware of all warnings and precautions.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Safety goggles and work gloves should be worn during assembly.
3. Do not assemble when tired or when under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities apply to a properly and completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. This product is not a toy. Do not allow children to play with or approach
8. Do not exceed the listed weight capacity. Tighten all knobs securely before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

Disclaimer & conditions of Use

Users of this Product must use this product at their own risk, and in no event the Seller, distributor or manufacturer be liable for indirect, incidental, derivative loss or damage or injury arising directly or indirectly from the use of this Product. For optimal safety and performance, all products must be properly installed and properly used. We do not accept responsibility for any improper use, alteration and installation.

Tools Needed (not included)

6mm hex key	Power tool	Socket wrench	String
Tape measure	Adjustable wrench	Marker pen

Product introduction

Model	SF-SS-SKU6	SF-SS-SKU7
Main Material	Carbon steel	Carbon steel

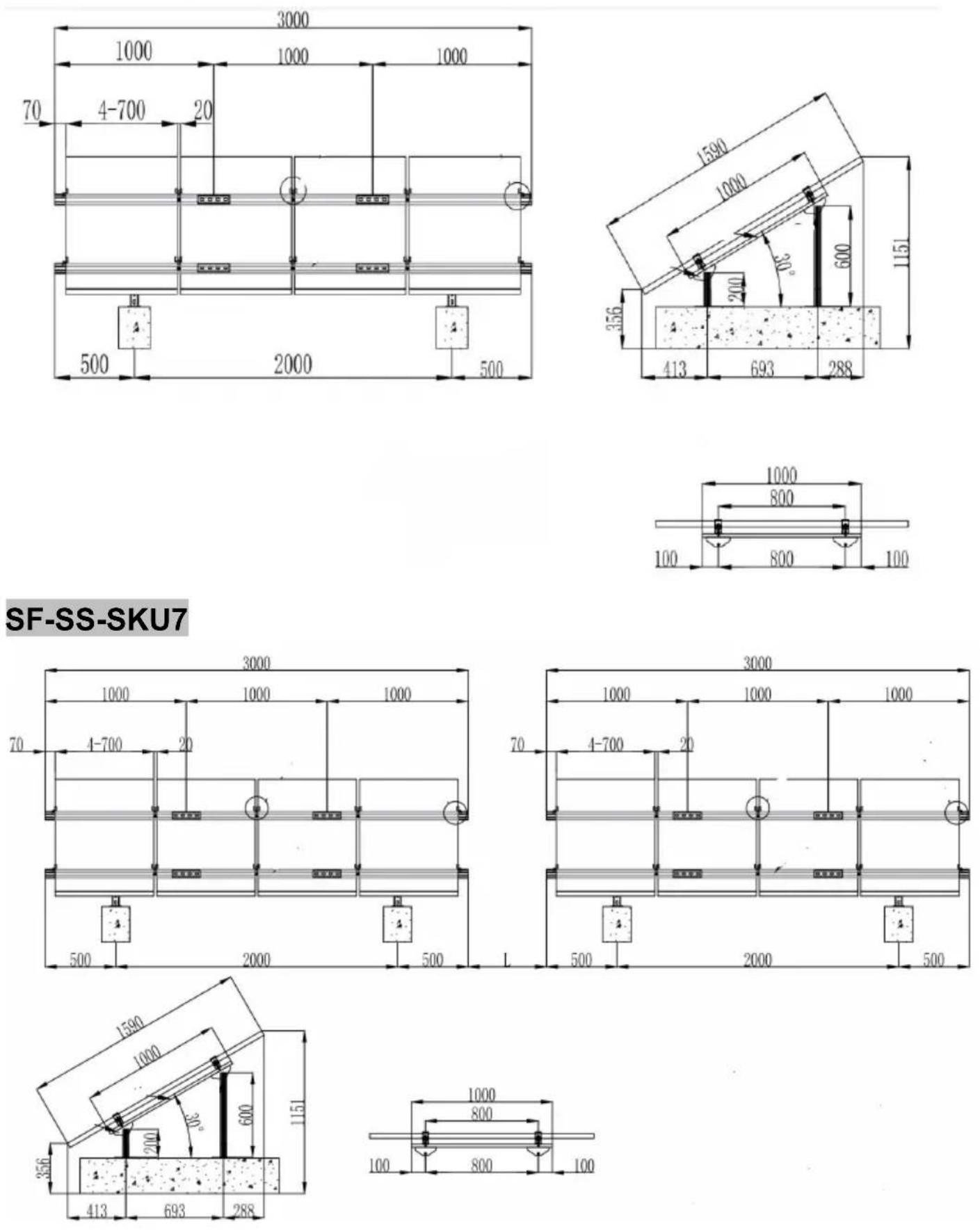

Product Size	3000x 1000x 800 mm	6000x 1000x 800 mm
Maximum Bearing Capacity	330 lbs(150kg)	330 lbs(150kg)

NOTE: Please select the appropriate solar panel according to the product size.

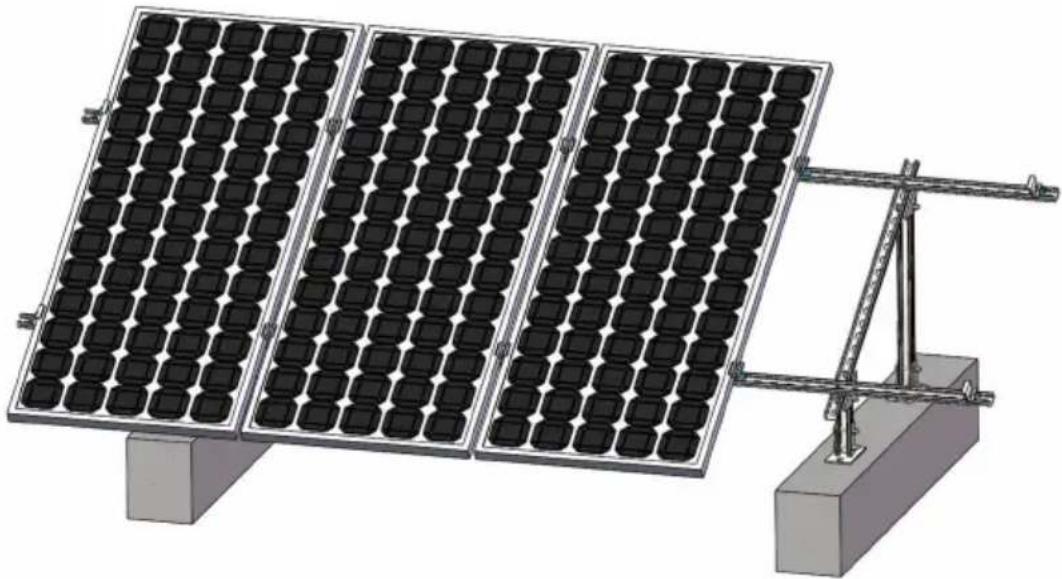

The following is the product size and assembly effect pictur (for reference only)

SF-SS-SKU6

Part List

A (Solar support track)	B (Side press block assembly)	C (Middle pressure block assembly)	D (Skew beam)	E (Track connector)
F (M10*70 bolt set)	G (Triangle connector)	H (Base)	I (Rear pillar)	J (Front pillar)
K (M10*25 bolt set)	L (M10*20 bolt set)

Note: Parts are constantly updated, please refer to the actual.

Assembly

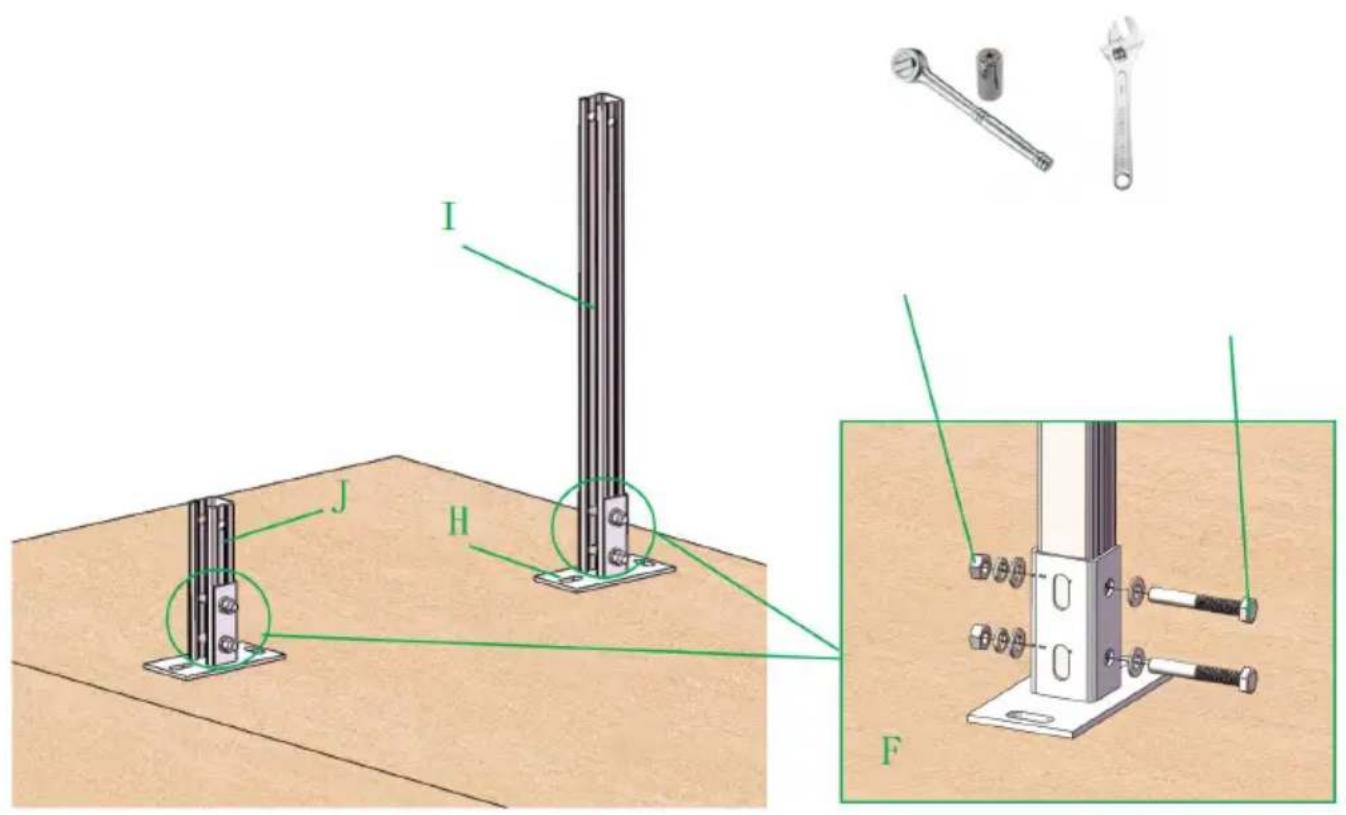

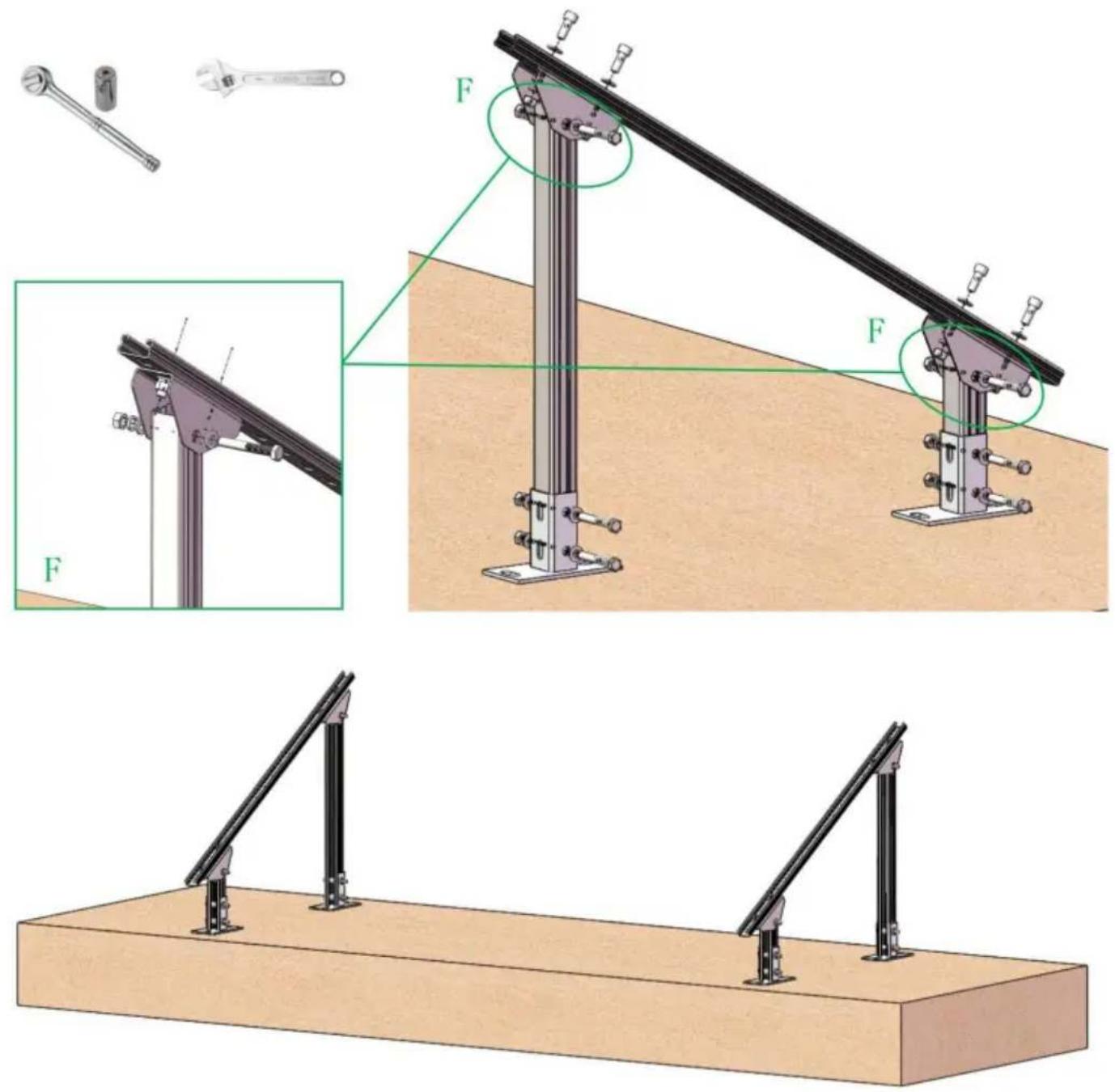

STEP 1 Install front column

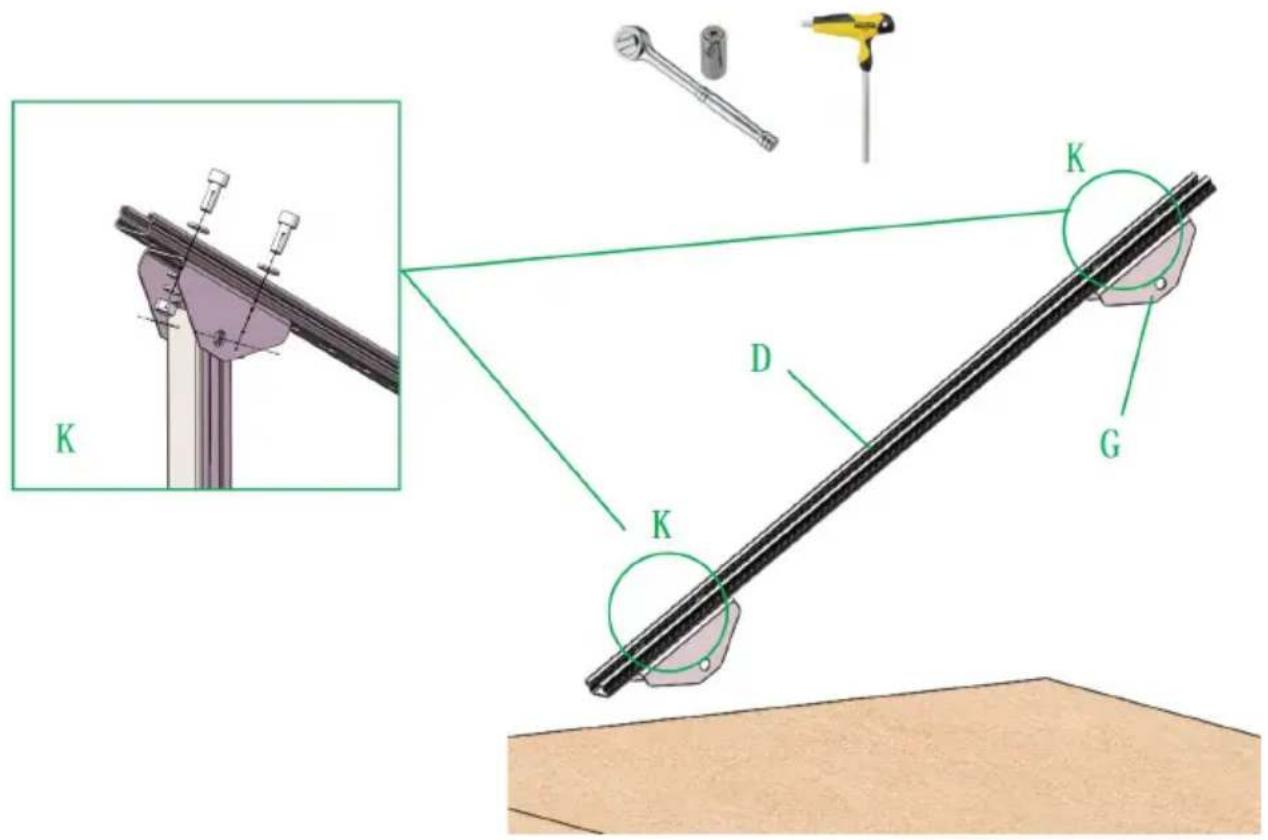

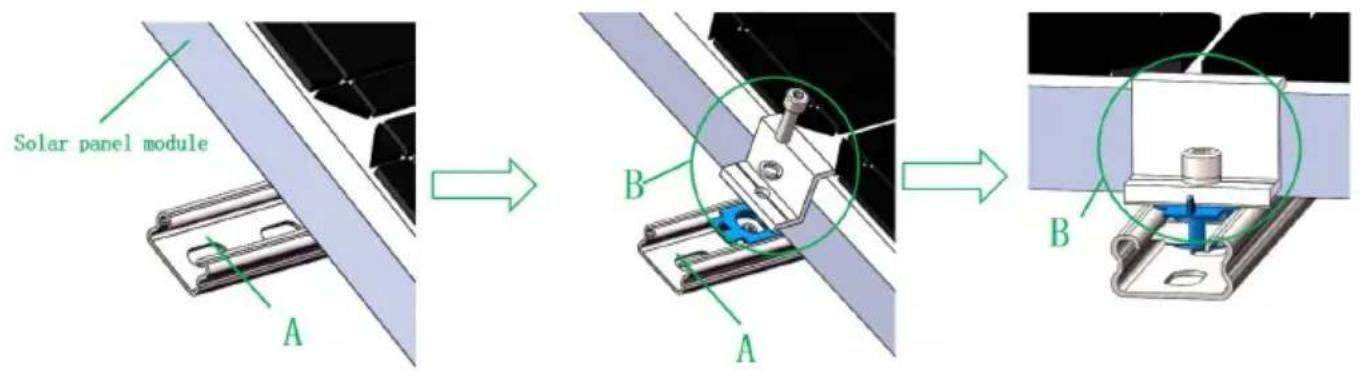

STEP 2 Inclined beam preinstalled

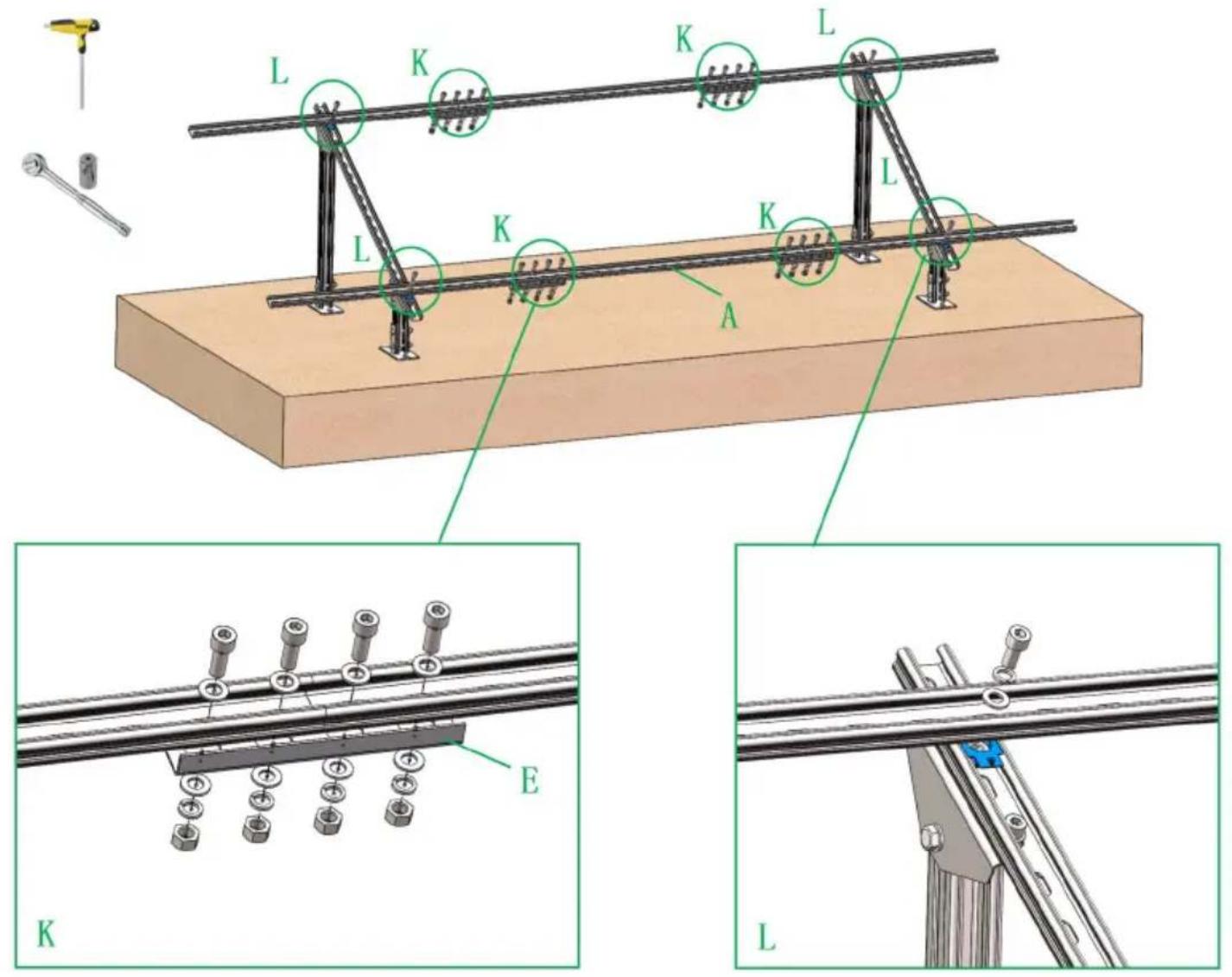

STEP 3 Side frame assembly

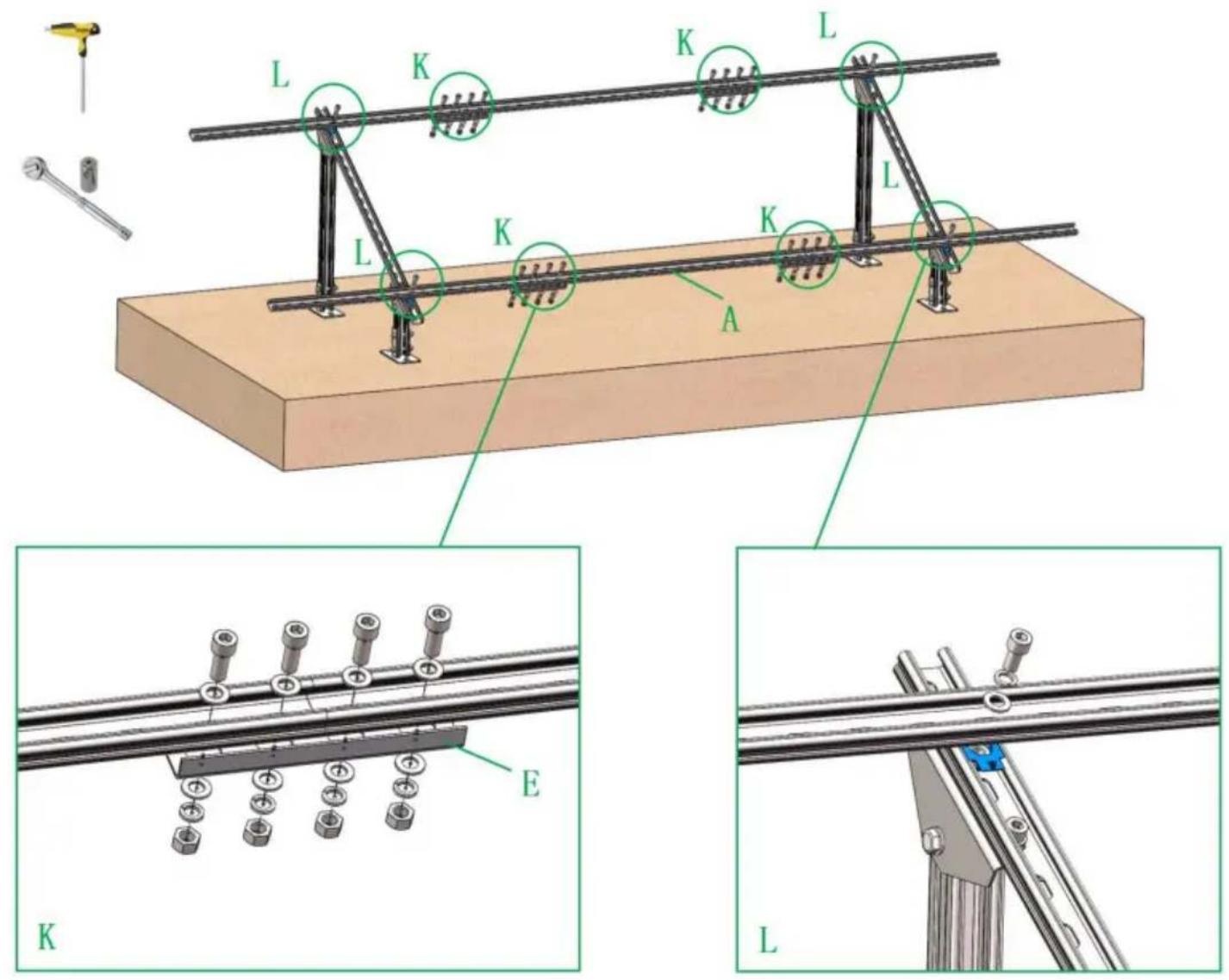

STEP 4 Track installation

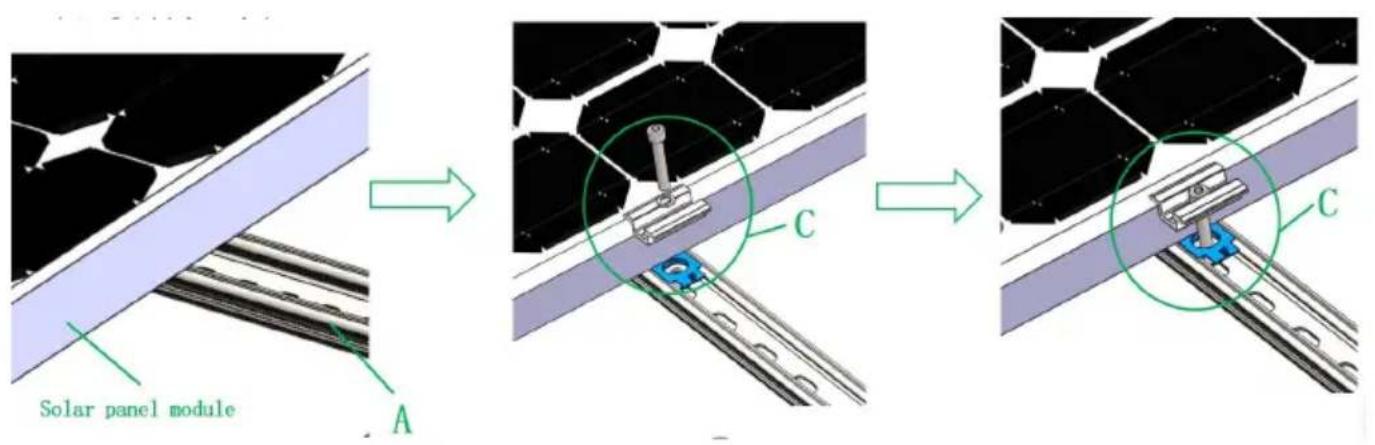

STEP5 Side and middle presses are installed

STEP 6

Installation complete

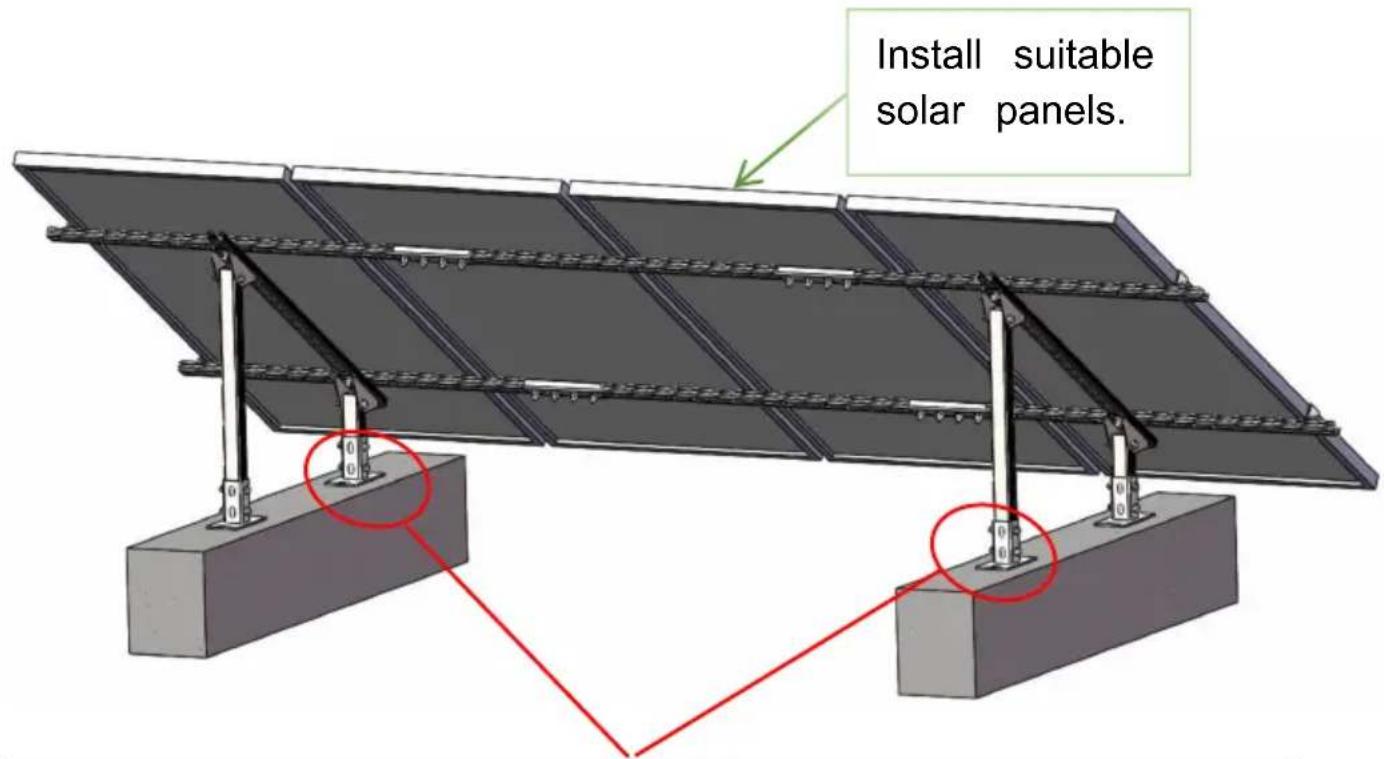

The pipeline is measured and drawn, concrete piers (wood be are placed at the planned location and secured to the concr (wood beams) using pre-installed frame expansion bolts (self-t nails). The effect after installation is shown in the figure abo

Note: Before installation, understand the longitude, latitude and region of the installation location, and adjust the required Angle and installa direction

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate

www.vevor.com/support
