USER MANUAL HM1904 Vevor

Affordable. Reliable. Home Improvement.

LEG PRESS MACHINE

MODEL:HM1904

COMPLETE INSTALLATION GUIDE:

QR code image containing encoded data, no visible human-readable text

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

LEG PRESS MACHINE

MODEL:HM1904

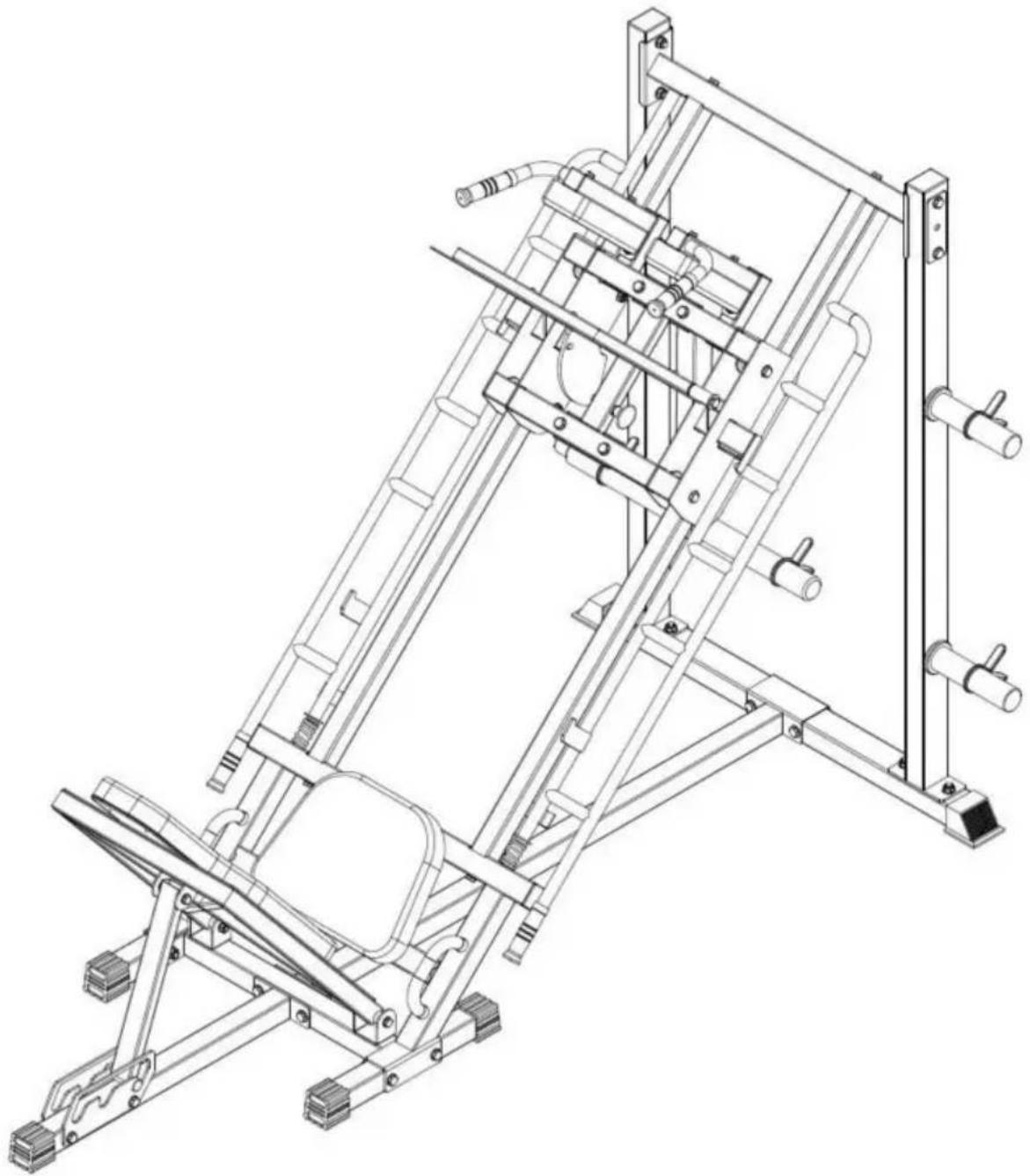

Technical line drawing of a mechanical lifting device with no visible text or symbols

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instructions manual carefully.
	At NO time should pets or children under the age of closer to the product than 3 m (10 feet). At NO tin children under the age of 12 use the product. Child the age of 12 should not use the product without a supervision.
Warning!	After installing the dumbbell, it is necessary to use the Weight Holder Clip to secure the dumbbell.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can opera machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safe rules in this page to ensure your safe use. This manual will outline safety wa and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do not let children and minors and pet get close to or touch the produce leave it unattended while in use.
2. Do not apply this unit to any other purposes than the indicated usage.
3. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
4. Pet urine and feces can damage the product, please keep away.
5. Before using this product, consult with your physician or therapist to discuss appropriate exercise program.
6. If you experience any pain or difficulty with this equipment, stop using immediately and consult your healthcare provider.

7. Always inspect the product for any damage before each use.

8. To prevent muscle fatigue or injury, do not use this exercise equipment for extended periods of time at once.

9. Improper use of this climbing rope and excessive or incorrect training can to serious injuries.
10. Before use, the product's feet must be leveled and the product must be on a level surface.
11. Keep your body balanced on the product and do not make large movement
12. If you suffer from heart disease, high blood pressure or any other disease condition, consult your physician or therapist before beginning any workout.
13. Perform two exercises slowly and in a controlled manner, If you feel diza short of breath, please stop and rest as needed. If the problem persists, do this equipment and consult your doctor.
14. Use this product only as intended and demonstrated in these instructions workout!
15. Please take warm-up exercise before using the equipment. Be aware of physical ability and condition. Do not overuse.
16. Use the equipment on a solid, flat level surface. Suggest adding cushioning pads around the product (cushioning pads need to be purchased by oneself).
17. Before exercise, please carefully examine the equipment make sure it is good condition. If any defect, adjust and repair it before use. Ensure to wea proper outfit while using this equipment to avoid any possible dangerous circumstances.
18. Do not stand on the product.
19. The exerciser is intended for home use only.
20. Keep the exerciser indoors, away from moisture and dust. Place on a level surface, it is recommended to add a person for supervision when using this product to prevent dangerous situations from occurring.
21. The maximum load-bearing capacity of the seat is 205Kg (450 LBS).
    The maximum weight for placing dumbbells on one side is 100KG (220LBS).
22. Wear appropriate clothes while exercising. Do not wear loose clothes that could become caught in the exerciser. In addition, wear athletic shoes for food protection while exercising.

23. Use the exerciser only as described in the manual.

24. It is recommended to use waist fitness protective equipment, hand fitness protective equipment, and leg protective equipment to protect your body.

25. If you feel pain or dizziness at any time while exercising, stop immediate begin cooling down.
26. Regularly lubricate the machine with lubricating oil.
27. WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do play with the product. Pets should stay away from the product.
28. WARNING: Not all exercises are suitable for everyone, To reduce the rise injury, consult with your physician before using this exercise equipment and beginning this or any other exercise program. This product is not intended to diagnose any medical condition, or to replace the advice or treatment recommended by your healthcare professional.
29. WARNING: PLEASE KEEP A SAFE DISTANCE OF ONE METER ALL AROUNDTHE EQUIPMENT DURING EXERCISE
30. WARNING: If there is a physical defects or movement disorders. Please consult the physician and trainer before exercise. Please read the manual car before use. We will not responsible for personal injury and damage to the equipment which is caused by improper use.
31. Do not use this product after taking drugs, drinking, eating, or in a bad state, etc.
32. Indoor use only! The product should not come into contact with water! Only one person can use!
33. Please keep your hands dry and wipe off sweat in a timely manner.
34. Do not use it if you are pregnant.
35. Please do not exercise half an hour before /after meals or 1 hour befo

INSTALLATION STEPS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of. If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil. When your product is heated for time, it may emit slight smoke or odor, which is normal for many products, a not affect the safety of your product.

ATTENTION! Ensure that the product is placed on a horizontal and sturdy pl ATTENTION! Before each use, the handle must be checked for looseness an handle and screws must be kept tight.

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh pad. sure to keep the product dry
2. Children are not allowed to wipe the product to avoid tipping and falling in
3. Check the screws regularly every months for loosening and tighten the screws.

PARTS LIST
A MAIN RACK	B.FRONT CONNECT1 PC	C.BACK BASE1 PC	D.FRAME	E.FRONT BASE1 PCS
F.SIDE BASE2 PCS	G.MAIN SUPPORT1 PC	H.LEFT HOLDER BAR1 PC	I.RIGHT HOLDER BAR1 PC	J.GUIDE ROD2 PCS
K.SPRING2 PCS	L.FOOT PEDAL FRAME1 PC	M.LONG PLATE SUPPORT1 PC	N.PLATE FRAME1 PC	O.LONG PLATE LOADING2 PCS
P.CIRCLIP6 PCS	Q.TOP BASE1 PC	R.SPLINT2 PCS	S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC
U.SHOULDER PAD2 PCS	V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEPC	X.ADJUSTMENT PLATE2 PCS	Y.PLATE ADAPTER4 PCS
Z.SHORT PLATE LOADING4 PCS	ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC
1.BOLT(M8*50)2 PCS	2.BOLT(M8*60)4 PCS	3.BOLT(M8*65)1 PC	4.BOLT(M8*75)2 PCS	5.BOLT(M10*25)8 PCS
6.BOLT(M12*45)4 PCS	7.BOLT(M12*60)4 PCS	8.BOLT(M12*70)4 PCS	9.BOLT(M12*75)12 PCS	10.BOLT(M12*80)3 PCS
11.BOLT(M12*95)2 PCS	12.WASHER(∅8)9 PCS	13.WASHER(∅10)[XZIX]8 PCS	14.WASHER(∅12)52 PCS	15.LOCK NUT(M12)27 PCS
16.WRENCH 14-171 PC	17.WRENCH 17-192 PCS	18.WRENCH1 PC
NOTE: The quantity of parts shown in the manual is the actu and the unused parts are spare parts.

NOTE: The quantity of parts shown in the manual is the actu and the unused parts are spare parts.

STEP1:
A MAIN RACK	B.FRONT CONNECT1 PC	C.BACK BASE1 PC	D.FRAME2 PCS	E.FRONT BASE1 PCS
8.BOLT(M12*70)[DKD71]2 PCS	9.BOLT(M12*75)2 PCS	11.BOLT(M12*95)2 PCS	14.WASHER(∅12)12 PCS	15.LOCK NUT(M12)[3XHS]8 PCS

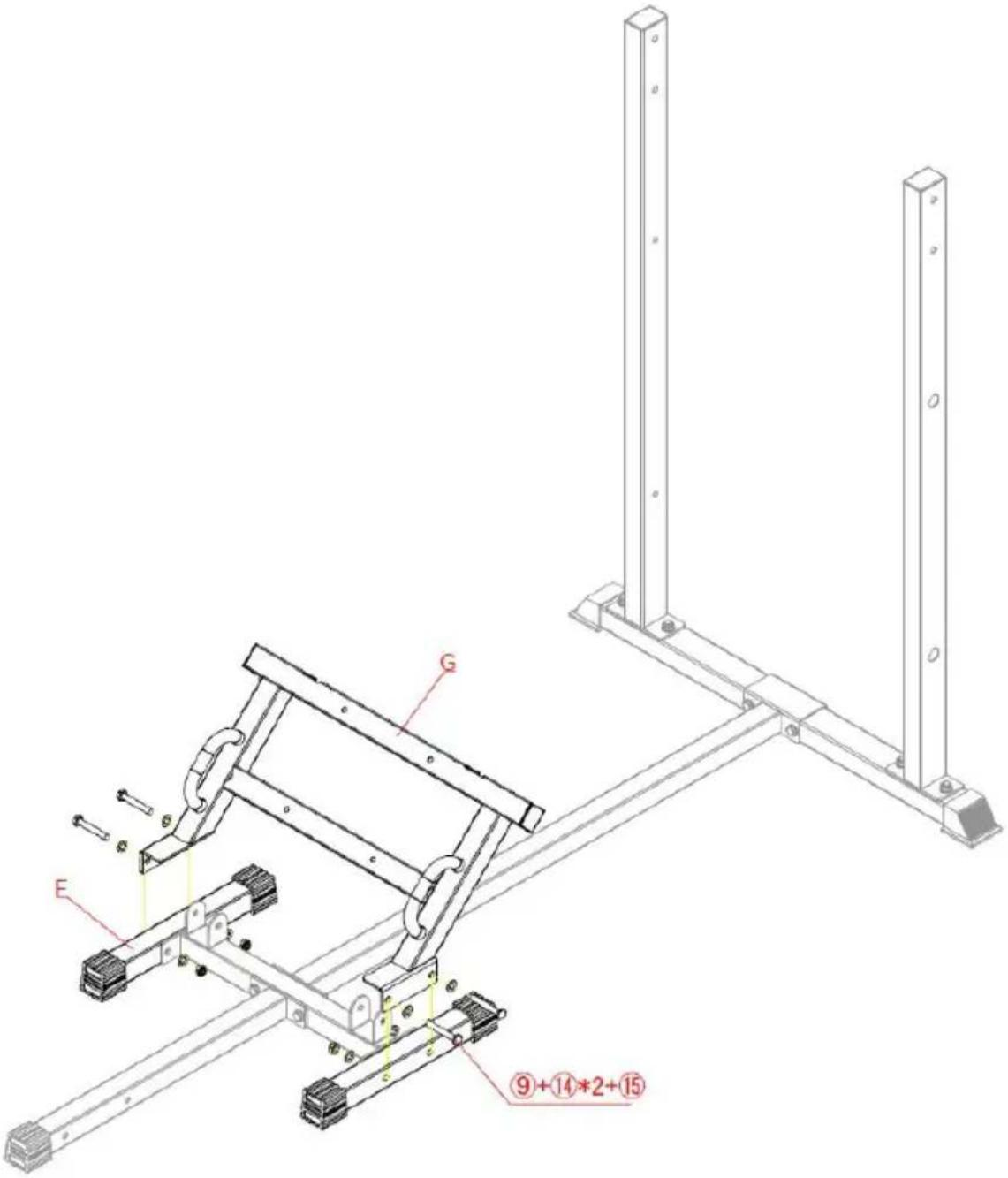

STEP2:
F.SIDE BASE2 PCS	G.MAIN SUPPORT4 PC	9.BOLT(M12*75)4 PCS	14.WASHER(∅12)[BT4X]8 PCS	15.LOCK NUT(M12)4 PCS
17.WRENCH 17-192 PCS

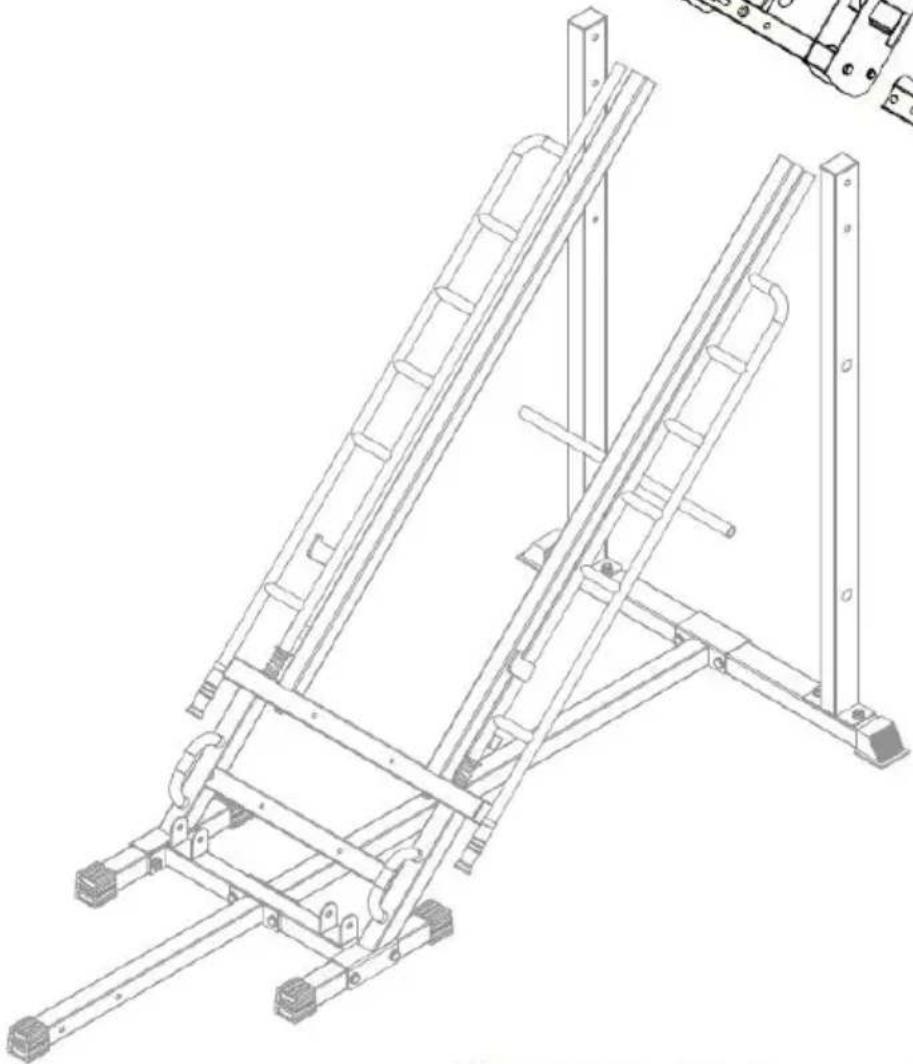

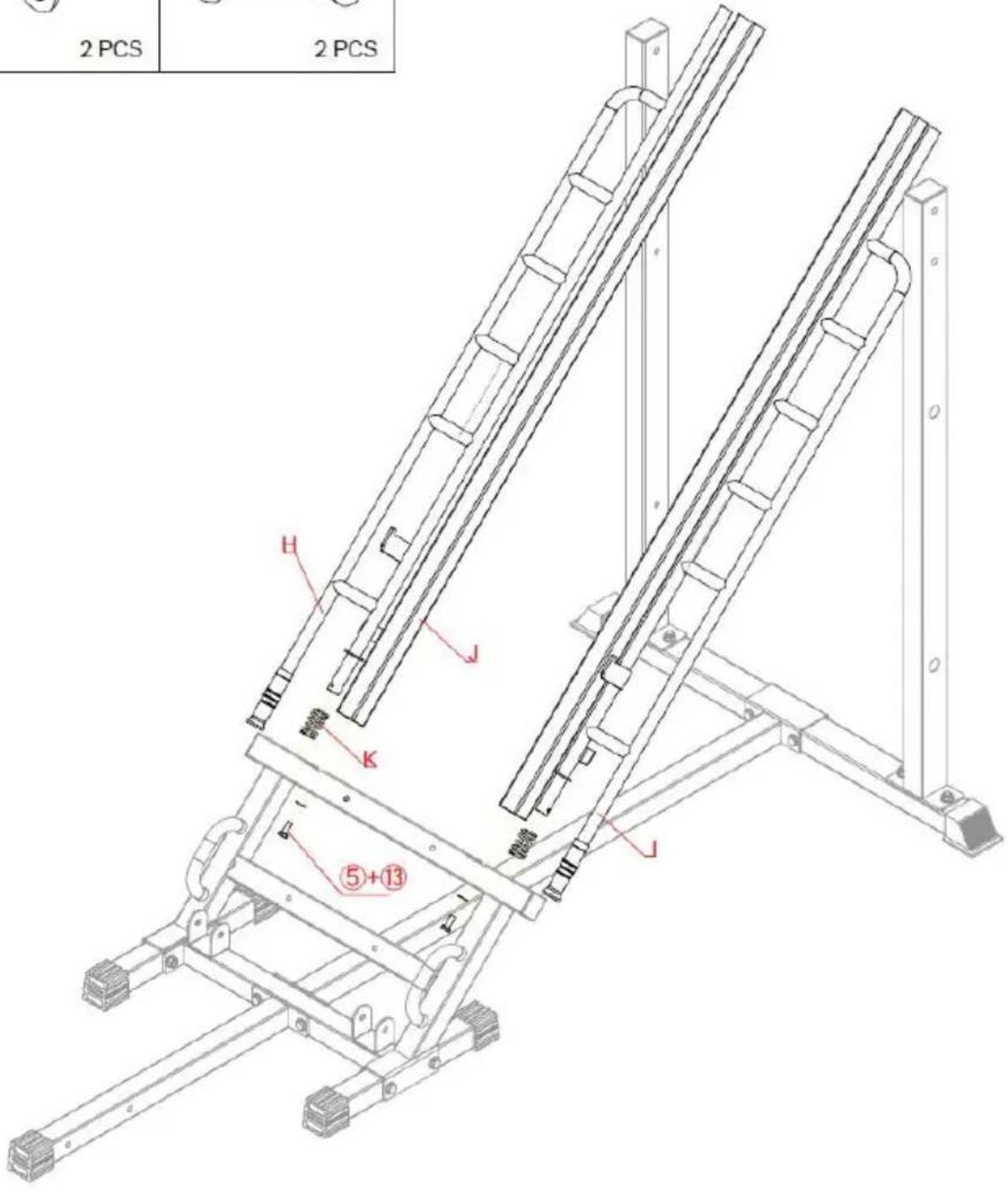

STEP3:
H.LEFT HOLDER BAR1 PC	I.RIGHT HOLDER BAR1 PC	J.GUIDE ROD2 PCS	K.SPRING2 PCS	5.BOLT(M10*25)2 PCS
13.WASHER(∅10)	17.WRENCH 17-19[ΔW771]
STEP4:
L.FOOT PEDAL FRAME1 PC	M.LONG PLATE SUPPORT1 PC	N.PLATE FRAME1 PC	O.LONG PLATE LOADING2 PCS	P.CIRCLIP2 PCS
3.BOLT(M8*65)1 PC	6.BOLT(M12*45)4 PCS	12.WASHER(∅8)1 PC	14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
GYT]When installing this step, one person is required to assist in lifting the H,L,J piece

When installing this step, one person is required to assist in lifting the H,L,J piece

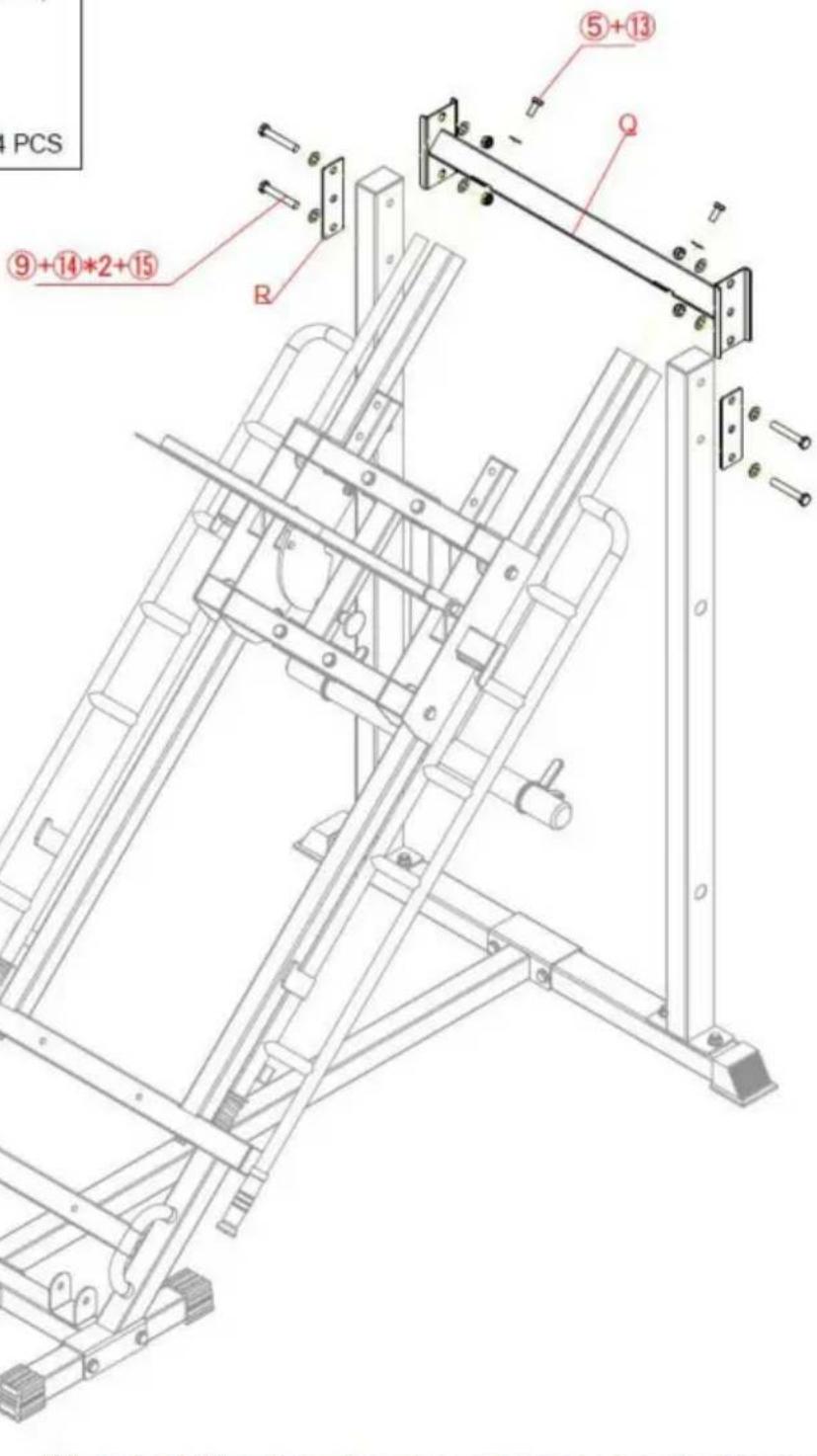

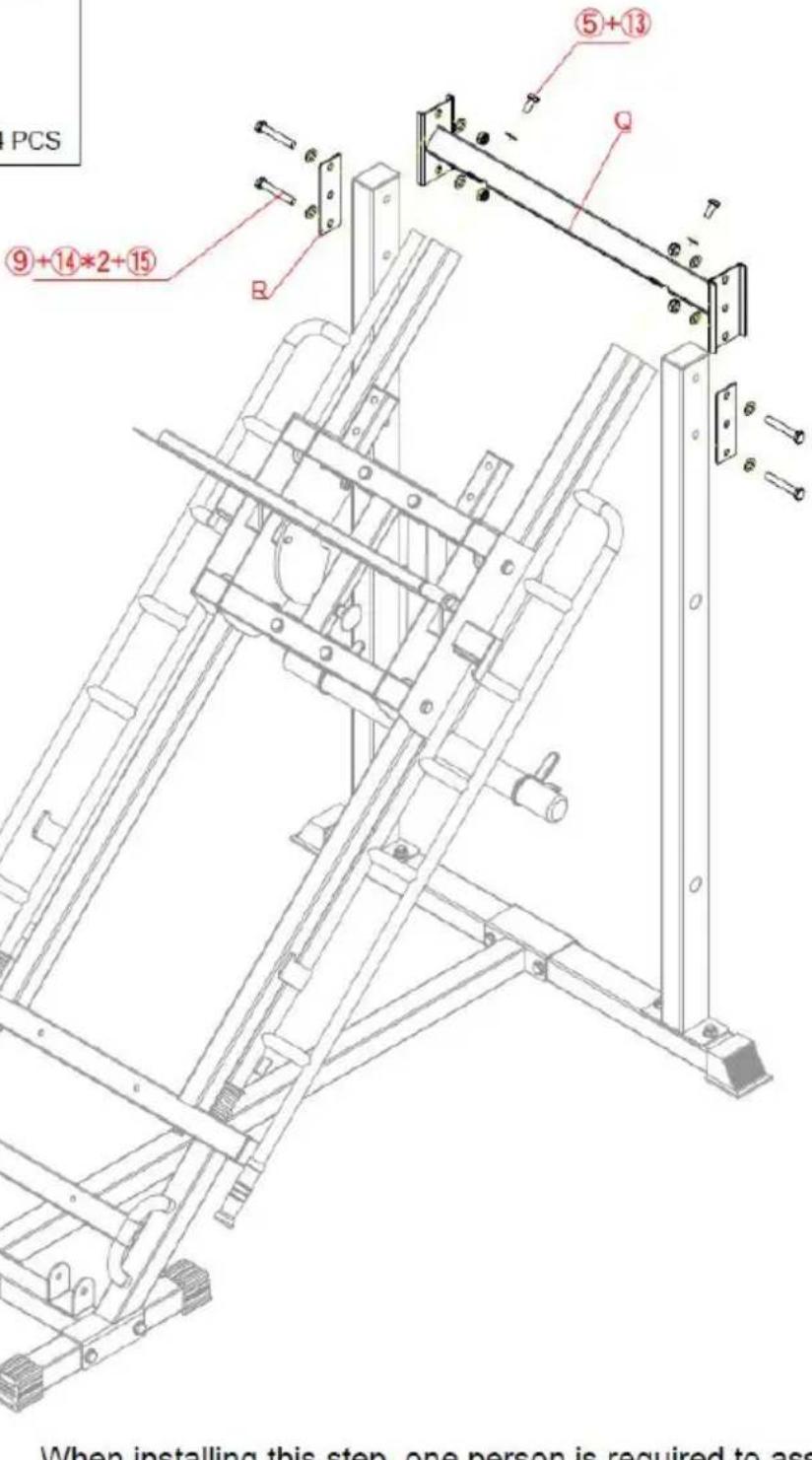

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS

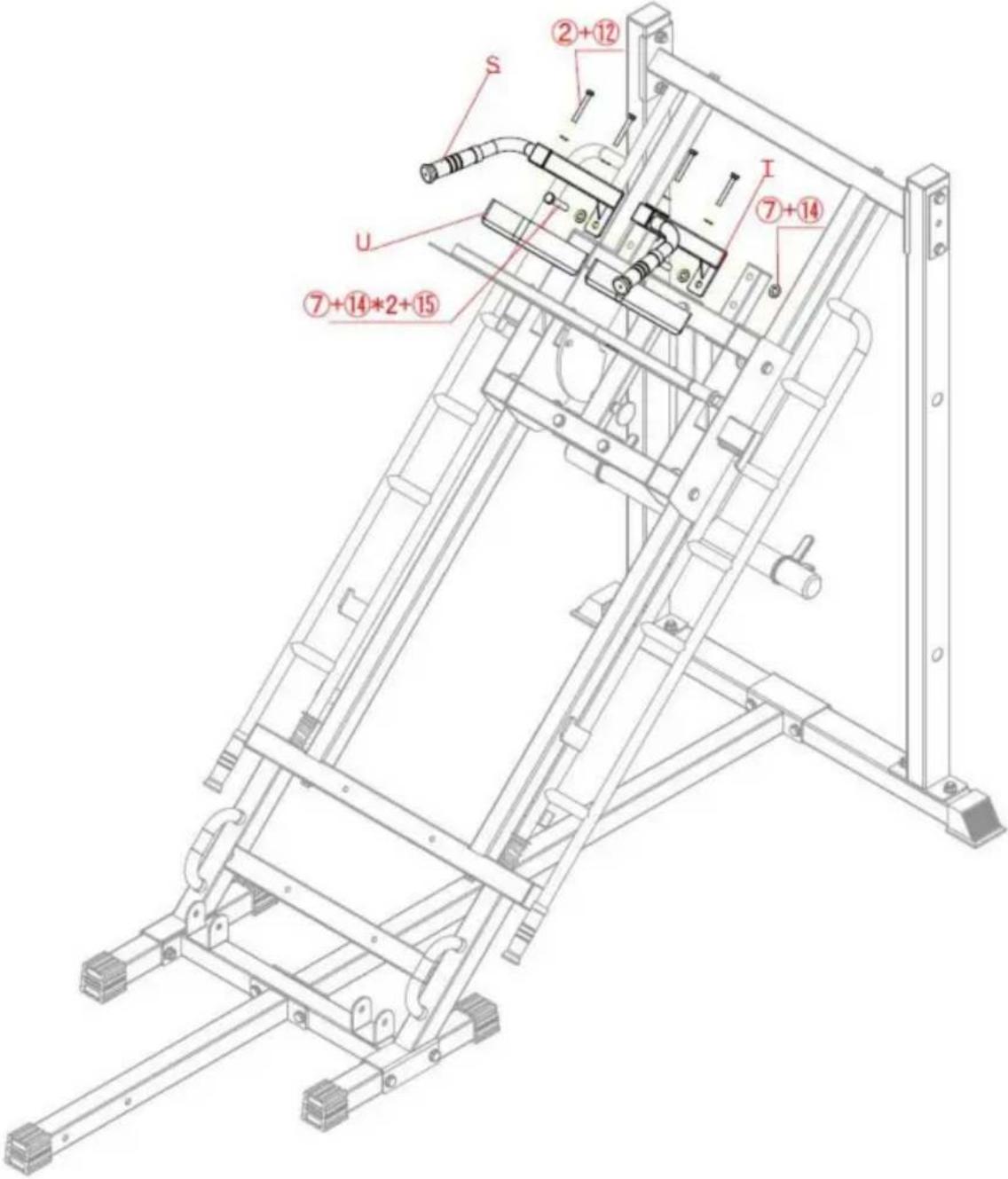

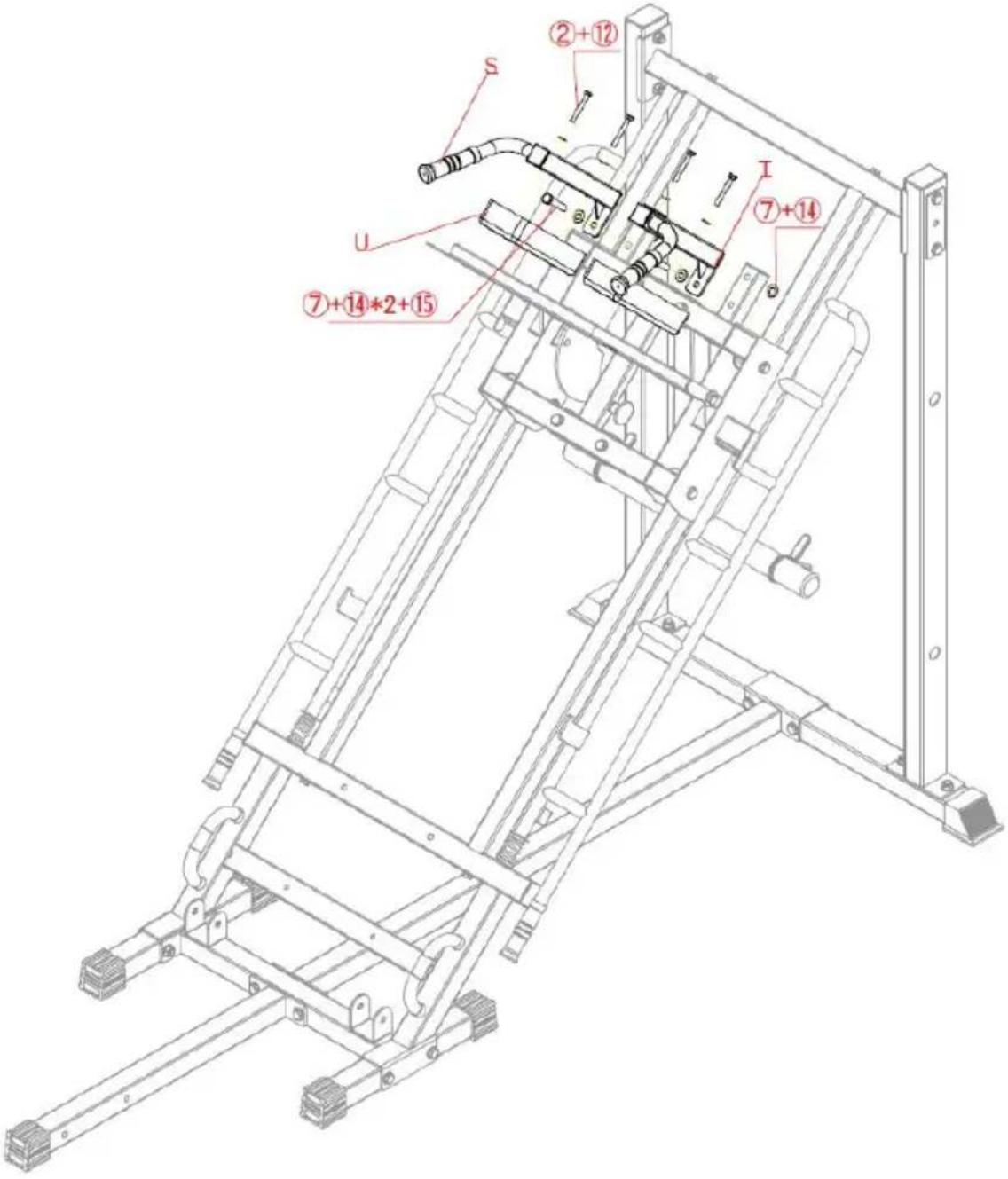

STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)[TDSC]6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS

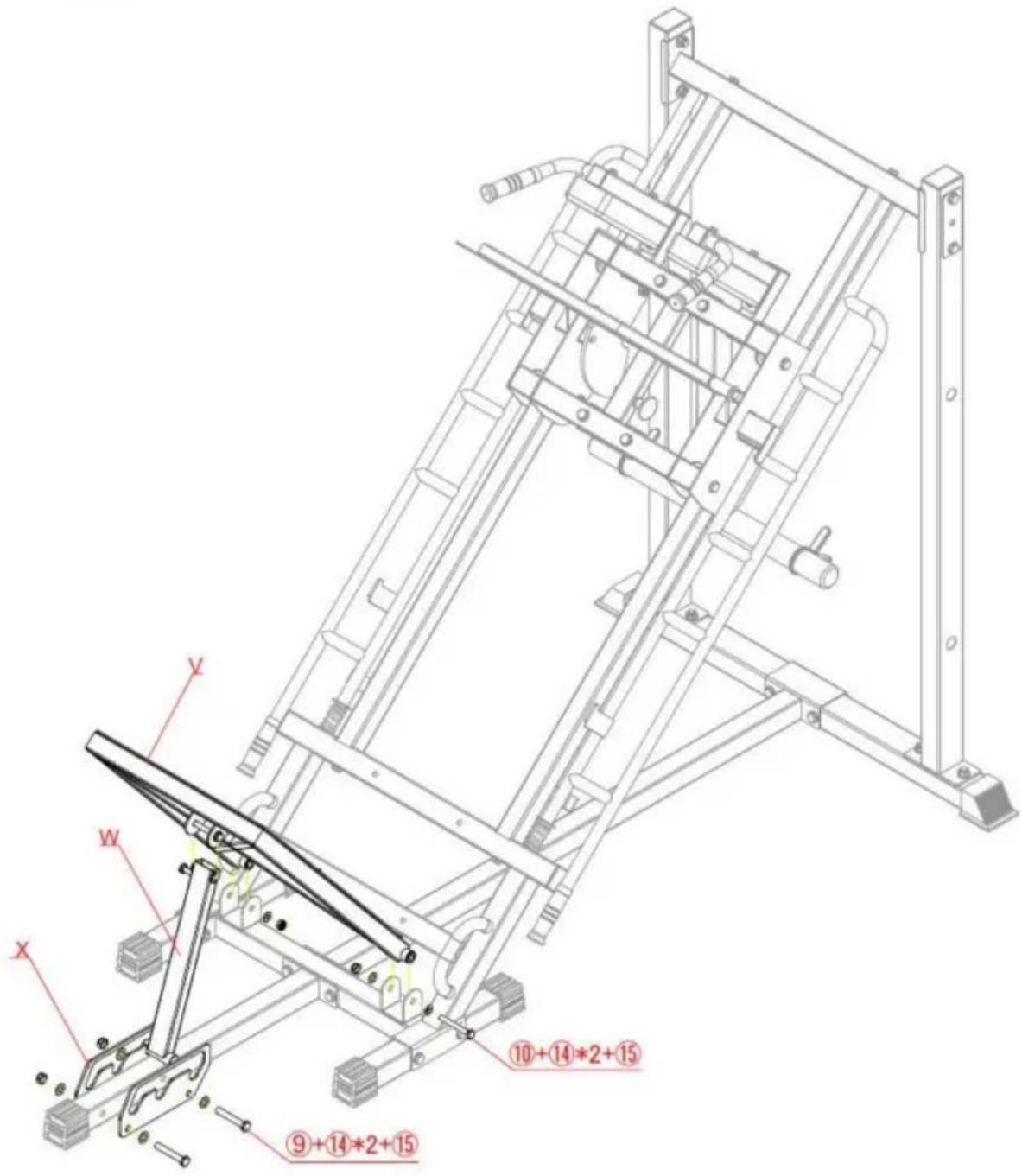

STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVE	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS

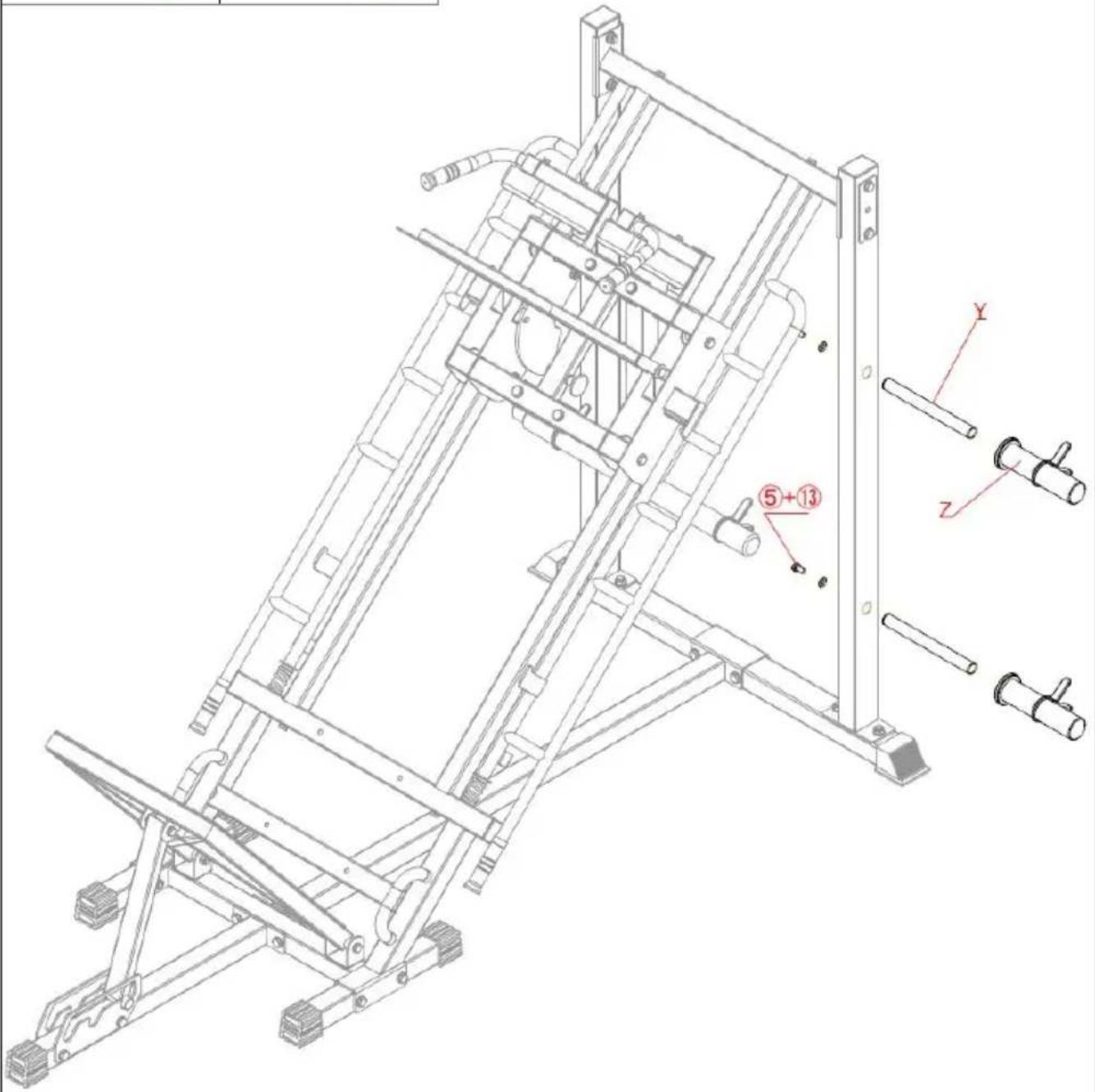

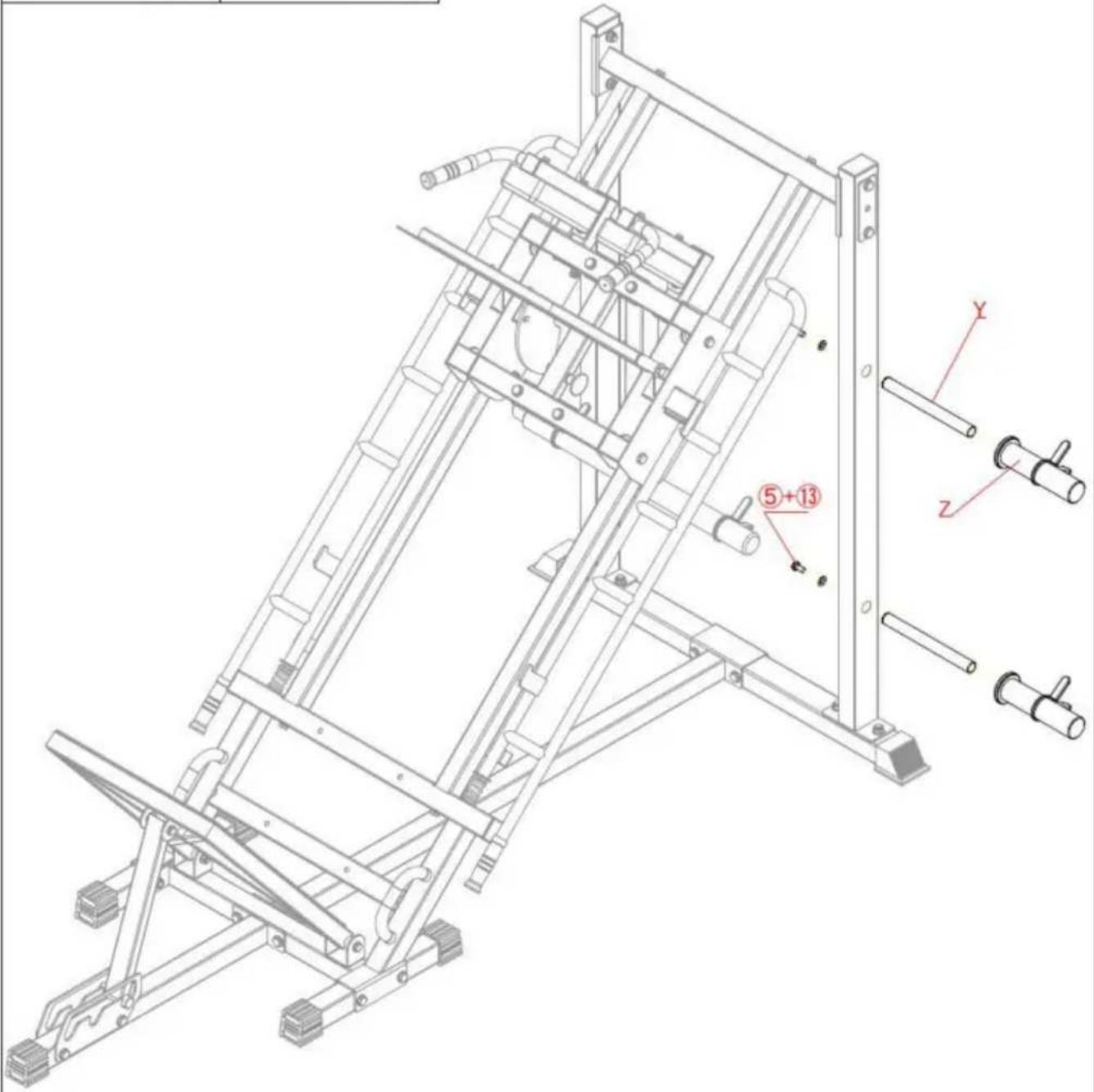

STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC

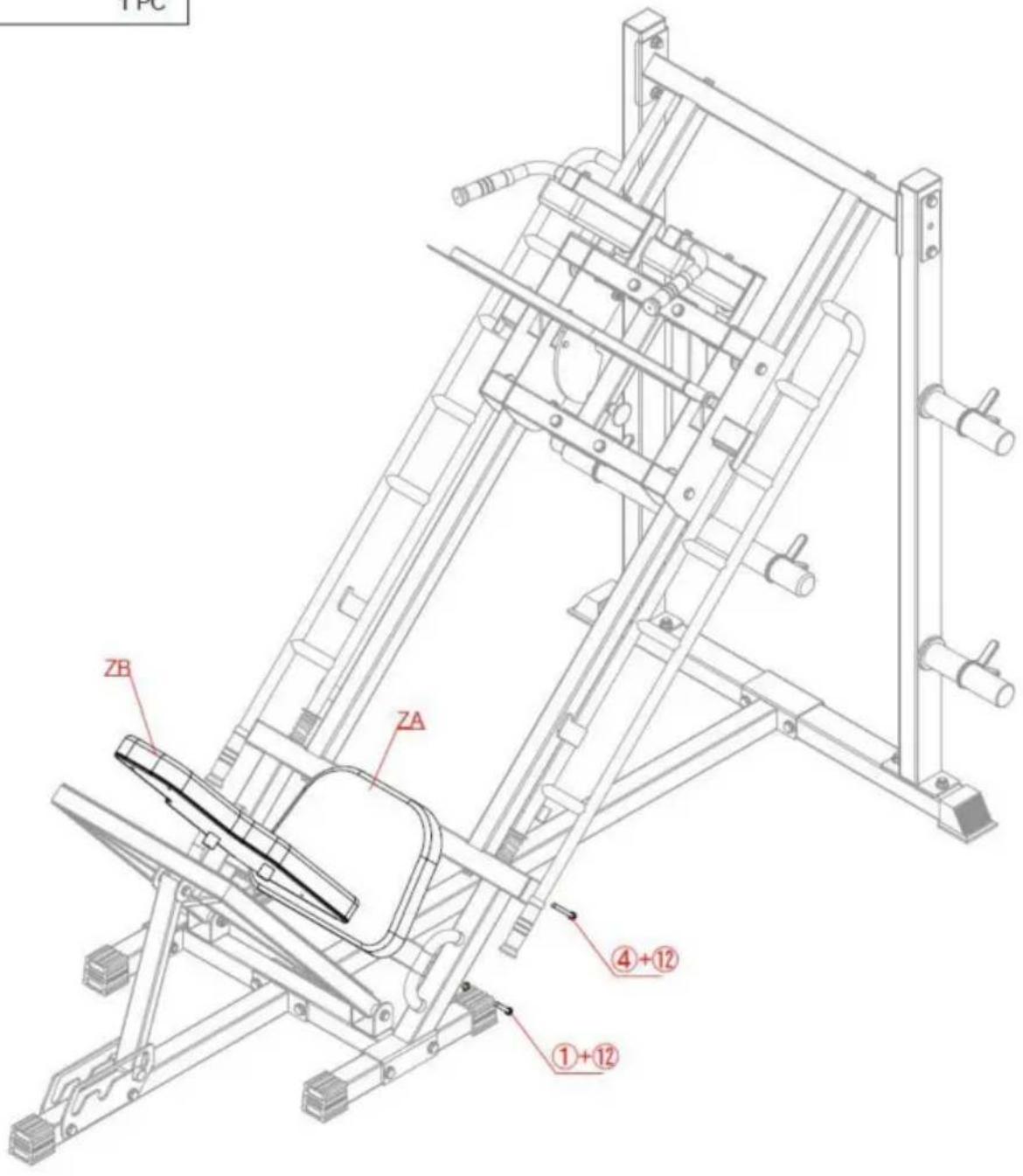

STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17

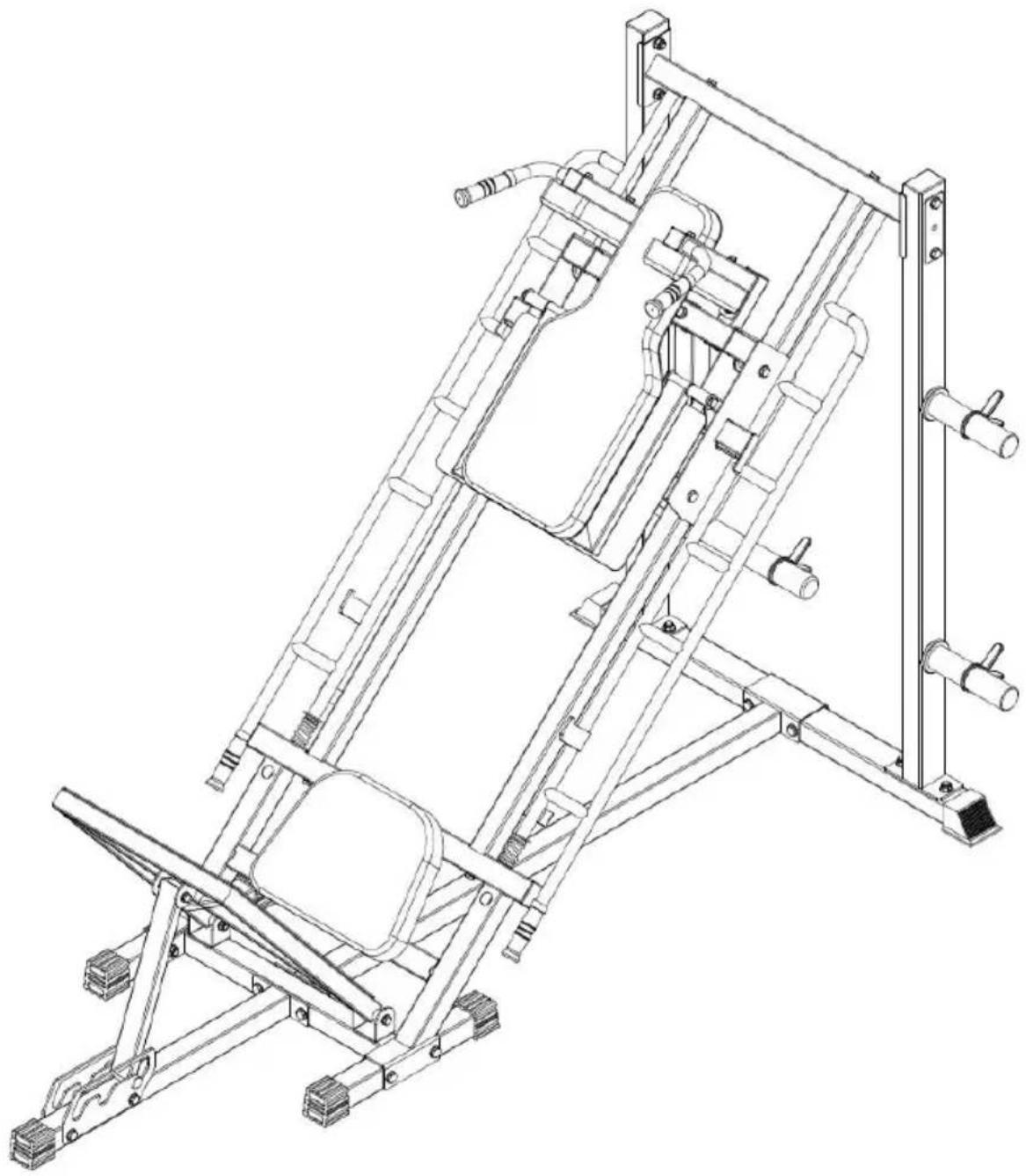

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Attention: The maximum weight for placing dumbbe on one side is 150KG (330LBS).

HACK SQUAT

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

Warning! After installing the dumbbell, it is necessary to use the Weight Holder Clip to secure the dumbbell

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Technical Support and E-Warranty Certificate www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

PRESSE À JAMBES

MODÈLE: HM1904

GUIDE D'INSTALLATION COMPLET :

QR code image containing encoded data, no visible human-readable text

Affordable. Reliable. Home Improvement.

PRESSE À JAMBES

MODÈLE: HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)[6WX8]8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS
When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17
HTZW

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX.

REPRÉSENTANT CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BEINPRESSMASCHINE

MODELL:HM1904

QR code image containing encoded data, no visible human-readable text

Affordable. Reliable. Home Improvement.

BEINPRESSMASCHINE

MODELL:HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

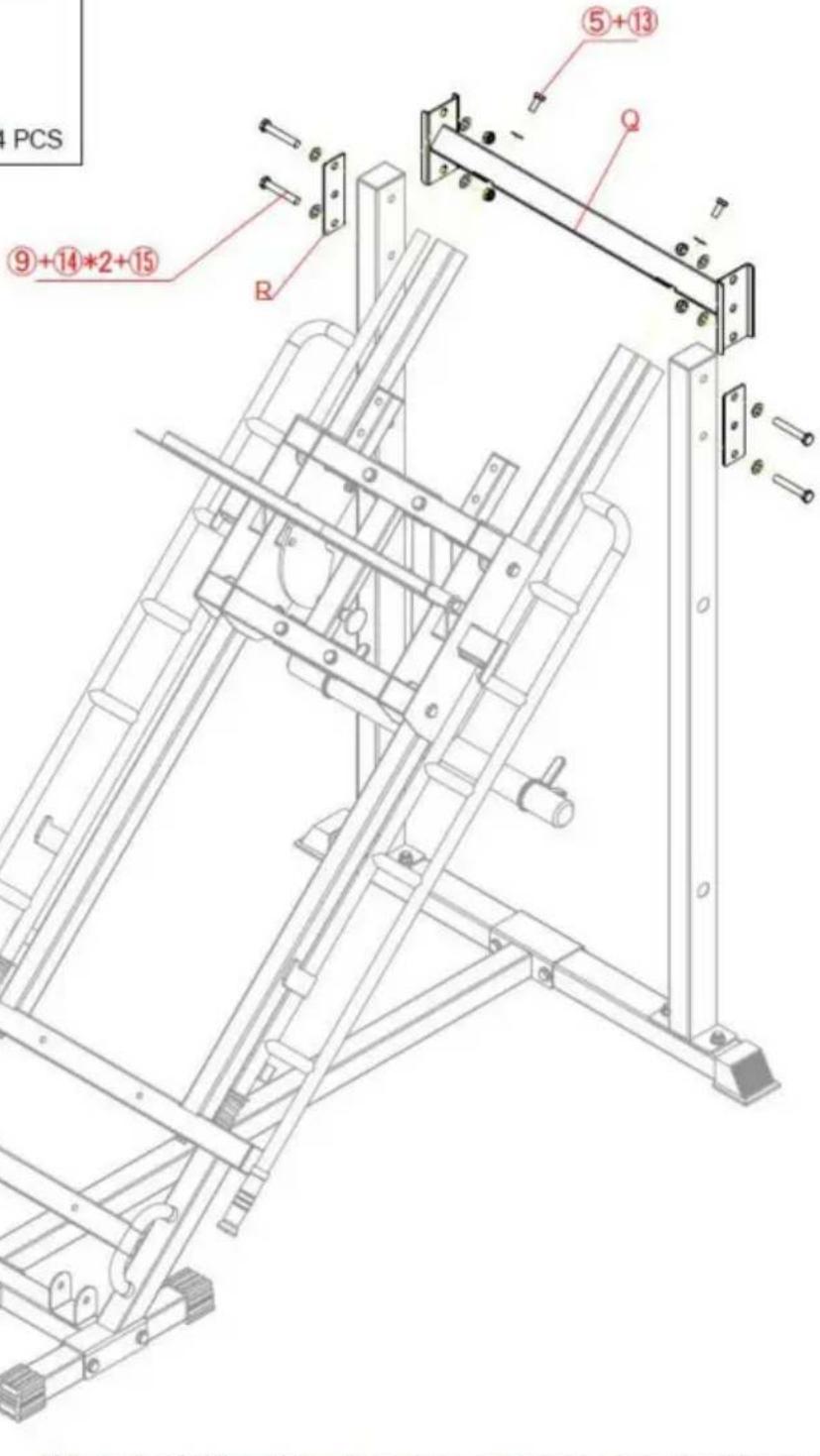

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS
When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)[ACT2]4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17
-YCWG]

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Büro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG-REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MACCHINA PRESSA PER GAMBE

MODELLO:HM1904

QR code image containing encoded data, no visible human-readable text

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MACCHINA PRESSA PER GAMBE

MODELLO:HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS
When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVE°C	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17
—

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

Australia

Rancho Cucamonga, CA 91730

REP. DEL

REGNO UNITO

YH CONSULTING LIMITED C/O YH Consulting Limited

Ufficio 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX.

REP.CE

E-CrossStu GmbH

Mainzer Landstr.69,

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MÁQUINA DE PRENSA DE PIERNAS

MODELO:HM1904

QR code image containing encoded data, no visible human-readable text

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MÁQUINA DE PRENSA DE PIERNAS

MODELO:HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

WRENCH 17-19
When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS
When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

YH CONSULTING LIMITED C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX.

REPRESENTANTE DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

MASZYNA DO PRASOWANIA NÓG

MODEL: HM1904

KOMPLETNY PRZEWODNIK INSTALACJI:

QR code image containing encoded data, no visible human-readable text

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

MASZYNA DO PRASOWANIA NÓG

MODEL: HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS		When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)[3WH]4 PCS
16.WRENCH 14-17

LEG PRESS

Technical line drawing of a mechanical lifting device with no visible text or symbols

Technical line drawing of a mechanical lifting device with no visible text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPREZENT KE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nad Menem.

Affordable. Reliable. Home Improvement.

BEENPRESSMACHINE

MODEL:HM1904

COMPLETE INSTALLATIEGIDS:

QR code image containing encoded data, no visible human-readable text

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BEENPRESSMACHINE

MODEL:HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)[Y3ZX]4
17.WRENCH 17-192 PCS
When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)4 PCS	14.WASHER(∅12)6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17

LEG PRESS

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

YH CONSULTING LIMITED C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines- upon-Thames, Surrey, TW18 4AX.

EG REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BENPRESSMASKIN

MODELL: HM1904

KOMPLETT INSTALLATIONSGUIDE:

QR code image containing encoded data, no visible human-readable text

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

BENPRESSMASKIN

MODELL: HM1904

Technical line drawing of a mechanical lifting device with no visible text or symbols

When installing this step, one person is required to assist in lifting the H,L,J piece

STEP5:
Q.TOP BASE1 PC	R.SPLINT2 PCS	5.BOLT(M10*25)2 PCS	9.BOLT(M12*75)4 PCS	13.WASHER(∅10)2 PCS
14.WASHER(∅12)8 PCS	15.LOCK NUT(M12)4
17.WRENCH 17-192 PCS
G5ZY]When installing this step, one person is required to assist in lifting the H,L,J piece
STEP6:
S.LEFT SHOULDER PAD1 PC	T.RIGHT SHOULDER PAD1 PC	U.SHOULDER PAD2 PCS	2.BOLT(M8*60)4 PCS	7.BOLT(M12*60)4 PCS
12.WASHER(∅8)[XYWZ]4 PCS	14.WASHER(∅12)[YY7D]6 PCS	15.LOCK NUT(M12)2 PCS	17.WRENCH 17-192 PCS
STEP7:
V.FOOTPLATE1 PC	W.ADJUSTMENT SLEEVEC	X.ADJUSTMENT PLATE2 PCS	9.BOLT(M12*75)2 PCS	10.BOLT(M12*80)3 PCS
14.WASHER(∅12)10 PCS	15.LOCK NUT(M12)5 PCS	17.WRENCH 17-192 PCS
STEP8:
Y.PLATE ADAPTER4 PCS	Z.SHORT PLATE LOADING4 PCS	P.CIRCLIP4 PCS	5.BOLT(M10*25)4 PCS	13.WASHER(∅10)4 PCS
17.WRENCH 17-192 PCS	18.WRENCH1 PC
STEP9:
ZA.SEAT CUSHION1 PC	ZB.BACK CUSHION1 PC	1.BOLT(M8*50)2 PCS	4.BOLT(M8*75)2 PCS	12.WASHER(∅8)4 PCS
16.WRENCH 14-17

LEG PRESS

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

Technical line drawing of a mechanical lifting frame assembly (no text or symbols)

YH CONSULTING LIMITED C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX.

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
