USER MANUAL K72 80 Vevor
Technical Support and E-Warranty Certificate www.vevor.com/support
LATHE CHUCK
MODEL: K72 80 K72 100 K72 125
K72 160 K72 200 K72 250
We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.
K72 80 K72 100 K72 125
K72 160 K72 200 K72 250
Have product questions? Need technical support? Please feel fr contact us:
Technical Support and E-Warranty Certificate www.vevor.com/support
This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.
SPECIFICATIONS

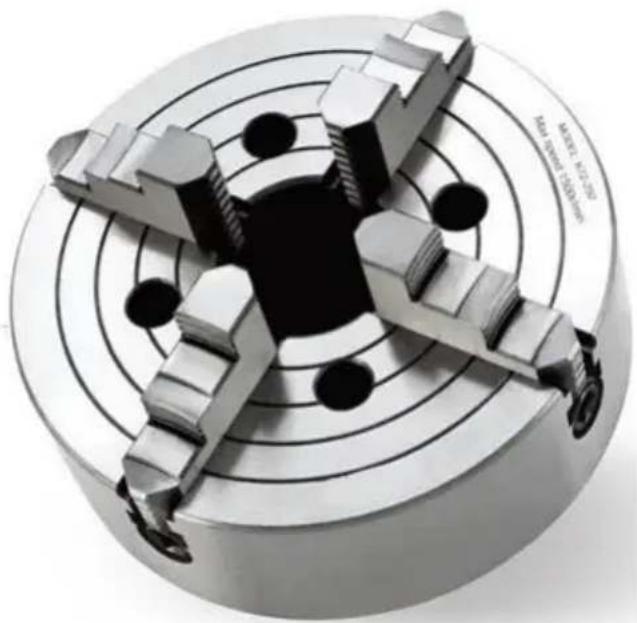

K72 independent four jaw chuck, each jaw can rotate independently, a the jaws can be turned forward or backward
Can process irregular products
Caution
a) Don't add tube on the wrench when clampworkpiece to avoid the ir torque exceed limit will break chuck.
b) Don't.clamp workpiece in the max clamping range if possible.
c) Don'g run at the max speed when approach to the max clamping
d) The chucks with "0" gear in clamping at last to ensure the accuracy
e) Don't exceed chuck max speed during operation.
Maintenance and inspection
1 Chucks should be maintained while the machine tools maintain.
2 Lubricate (at the grease cup) and clean(use the compressed air) the chucks every day, in order to maintain its accuracy and durability.
3 Wash and lubricate all the working surface of the chucks at least times every year. When the using frequency of the machine tool grow the special operation conditions, add the maintenance times of the chuck Troubleshooting
Troubleshooting and measurement see Table.5.
(Table 5)
| Problem | Cause | Countermeasures |
| Insufficient clamping | The elaaping are taper not conform dimension | Replace jaws |
| The axlal clamping Length short | Increase claping length | |
| The taper in workpiece | Process workpiece.surface | |
| The input torque small | Increase the input torque | |
| Over the clamping range | Replace chucks | |
| Lubrication is poor | More lubricate | |
| Poor accuracy | In using clamping are or working | Maintenance jaws and workpiececlean when working |
| When replace jaws,No.1,2,3 jaws wr | Mount the jaw in order | |
| Something wrong with the shor-tap chucks | Adjust the chucks mounting position | |
| Short-taper surface dirty when mour chucks | Maintain the short-taper clean | |
| Mbipiar acomer nt onform the nor dimension | Matched adapter conform to demand | |
| kapiar plats nith zhkn orsetion tolsrae too large | Matched adapter conform to demand | |
| Impurity things inthe top jawand b jaw | Keep top jaws and base jav mounting face clean when repl jaws | |
| The clamping arc taper not conf dimension | Replace jaws | |
| Cear shall not work | Impurity thing in the chucks | Clean and lubricate |
| Lubrication is poor | Lubricate |

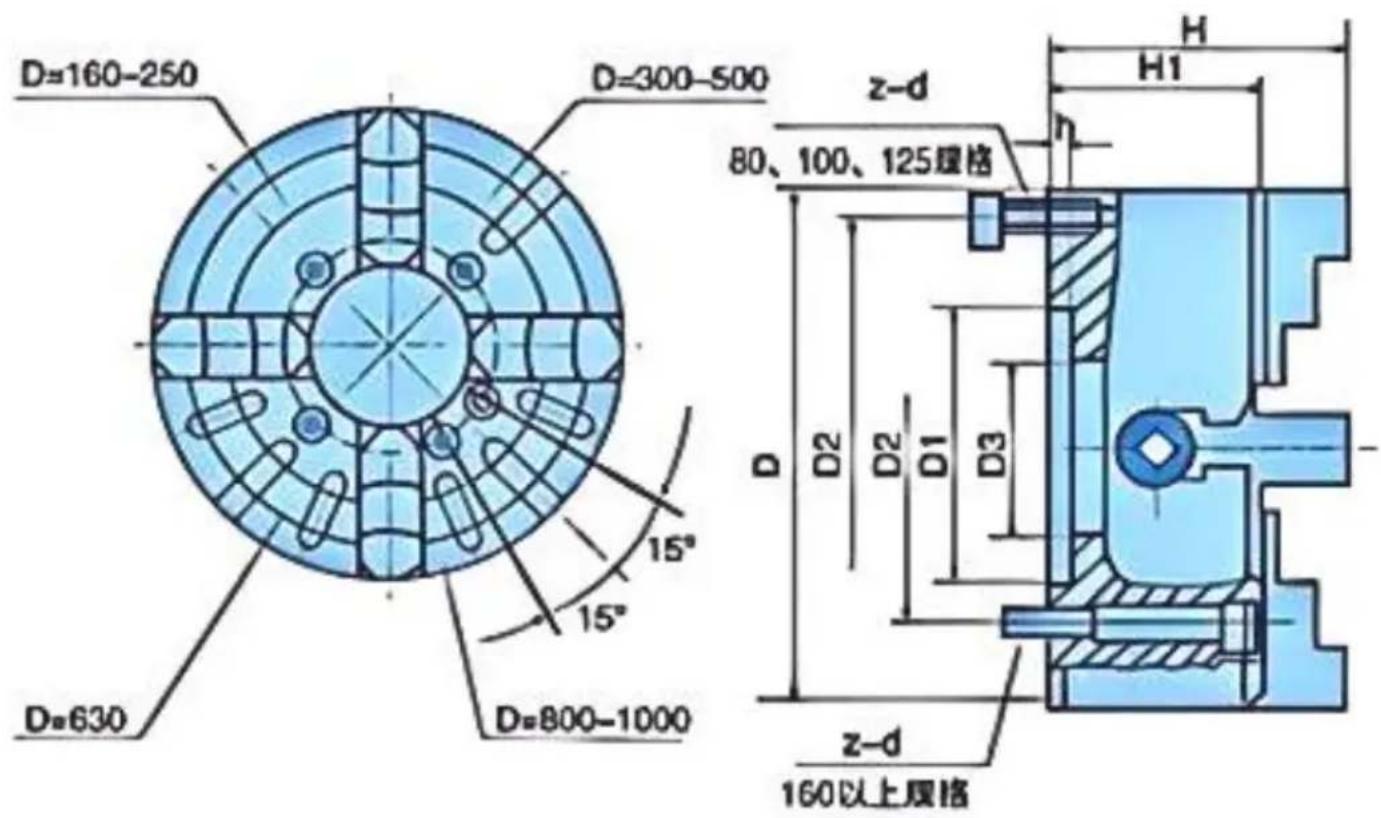

CLAMPING RANGE
| D Size | Internal jaws clamping range | External jaws clamping range |
| A-A1 | B-B1 | |
| 80 | 5-35 | 35-80 |
| 100 | 6-45 | 40-100 |
| 125 | 7-57 | 48-125 |
| 160 | 8-80 | 50-160 |
| 200 | 10-100 | 63-200 |
| 250 | 15-130 | 80-250 |
STANDARD ACCESSORIES
K72 80 K72 100 K72 125
K72 160 K72 200 K72 250
| PART NO. | DESCRIPTION | QTY |
| 1 | Key chuck | 1 |
| 2 | Screw | 3 |
