MM-GCJ-3LB - Kitchen accessory Vevor - Free user manual and instructions

Product Type	Manual Sausage Filler
Brand	Vevor
Model	MM-GCJ-3LB
Filling Capacity	Approximately 3 lb (1.36 kg)
Body Material	Stainless steel and plastic
Tube Material	Stainless steel
Dimensions (approx.)	30 x 20 x 20 cm
Net Weight	Approximately 2 kg
Color	Silver
Number of tubes included	4
Handle Type	Manual screw handle
Fixation Method	Table clamps (2 included)
Intended Use	Filling sausage casings
Cleaning Instructions	Clean with warm water and mild detergent; do not put in dishwasher
Safety Precautions	Do not use by children under 14; use on a stable surface
Included Accessories	Machine, handle, 2 table clamps, locking pin, 4 tubes
Technical Support	www.vevor.com/support
Warranty	Electronic warranty via Vevor website

Frequently Asked Questions - MM-GCJ-3LB Vevor

How to assemble the sausage filler?

Place the machine on the edge of the table, secure it with the table clamps by turning them counterclockwise. Screw the handle onto the handlebar, then choose the appropriate tube and attach it with the large screw. Slide the casing onto the tube and tie a knot.

How to attach the machine to the table?

Turn the table clamps counterclockwise under the machine base. Tighten them firmly against the tabletop. The clamp screws should be at the bottom.

How to choose the right tube?

Use the tube that best matches the casing diameter. The machine comes with 4 tubes of different sizes. The wide end of the tube should be placed against the machine outlet.

How to fill the cylinder?

Turn the handle clockwise to extend the plunger from the cylinder. Tilt the cylinder upward and pour in the filling. Push with your hand to remove air. Lower the cylinder and insert the locking pin into the hole under the cylinder.

How to start filling sausages?

Turn the handle counterclockwise to push the filling through the tube and into the casing. Hold the casing to guide the filling. After use, clean immediately.

What if the plunger is stuck?

Make sure the filling has no large chunks or bones. If stuck, turn the handle in reverse to retract the plunger, then remove the filling and clean the cylinder. Also check that the locking pin is removed before lifting the cylinder.

How to clean the machine after use?

Remove the cylinder by turning the handle clockwise to extend the plunger, then remove the locking pin. Tilt the cylinder backward and lift it out. Clean the cylinder and tubes with warm water, a sponge, and mild detergent. Wipe the body with a damp cloth.

Can I wash the parts in the dishwasher?

No, it is not recommended to put the parts in the dishwasher as it may damage the surfaces. Always hand wash with warm water and dry immediately to prevent rust.

How to prevent rust during storage?

If the machine is not used for an extended period, lightly rub the metal parts with a little cooking oil to protect them from corrosion. Store in a dry place.

Where to find spare parts?

Contact Vevor technical support at www.vevor.com/support to order spare parts such as the handle, clamps, tubes, or locking pin.

USER MANUAL MM-GCJ-3LB Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

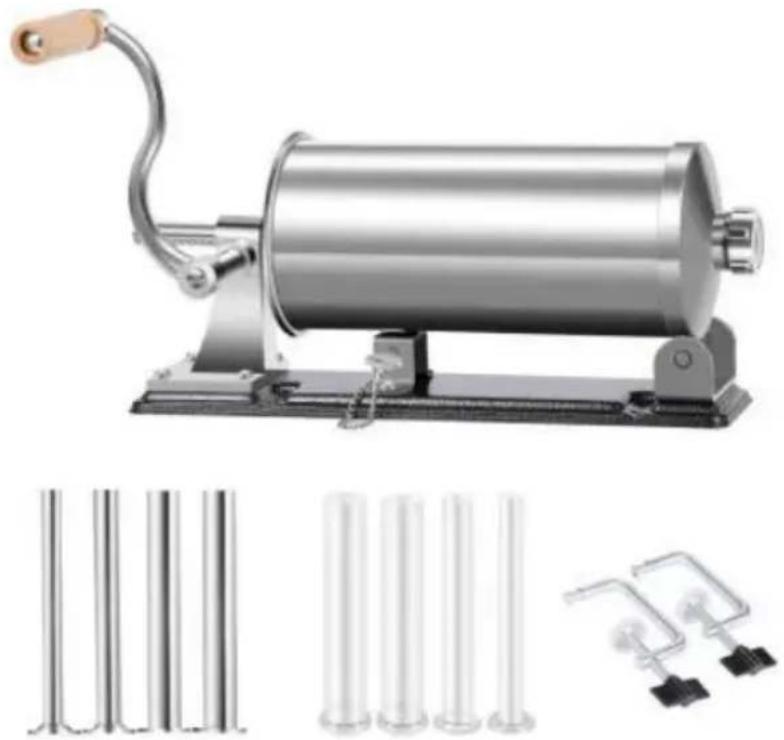

SAUSAGE STUFFER

MODEL:MM-GCJ-3LB

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

SAUSAGE STUFFER

MODEL:MM-GCJ-3LB

Illustration of a stainless steel manual presser with attached lever and multiple cylindrical test tubes below (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your use, there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

WARNING: Before operating this device, please read this instruction manual completely and keep it handy for future reference. Always follow basic safety precautions when using these devices. These include:

1. Do not allow children younger than 14 years old to use the machine. This product may only be used or maintained by children 14 years of age or old individuals with reduced physical, sensory, or mental capacities, or unskilled individuals with adequate adult supervision. Children must not play with the device.
2. For optimal operation and service life of the device, please follow the instructions.
3. Food acids will corrode the metal. Always clean this food preparation equipr immediately after every use. To maintain the appearance and increase the se life, clean it daily.
4. The use of accessories or modifications not provided by the manufacturer in cause hazards. This product must only be used for its intended purpose and manner indicated in the instructions. All other types of use shall be considered inappropriate and hazardous. The manufacturer shall not be responsible for any improper or incorrect use and installation damage.

Safety Instructions

1. Before first use of the sausage machine, read this instruction manually carefully and observe all instructions to avoid damage through improper use. Keep this instruction manual for future use.
2. Should the sausage machine be passed on to a third party, then instruction manual must be included.
3. This sausage machine is not intended to be used by persons (inc children) with reduced physical, sensory or mental capabilities or lack

experience and knowledge, unless they are supervised or have been instruction concerning use of the machine in a safe way.

1. Children shall not play with the sausage machine.Warning!
2. Warning! Packaging materials are not a toy! Do not allow children with packaging materials as they pose a choking hazard if swallowed!
3. Place the sausage machine on an even and stable surface able to the combined weight of the machine and its contents.
4. To ensure food safety, clean the sausage machine -especially the p that have contact with foodstuff - before and after each use as desc this manual.

Delivery contents

1x Sausage machine
1x Handle
2x Table clamps
1x Locking pin
4x Tubes

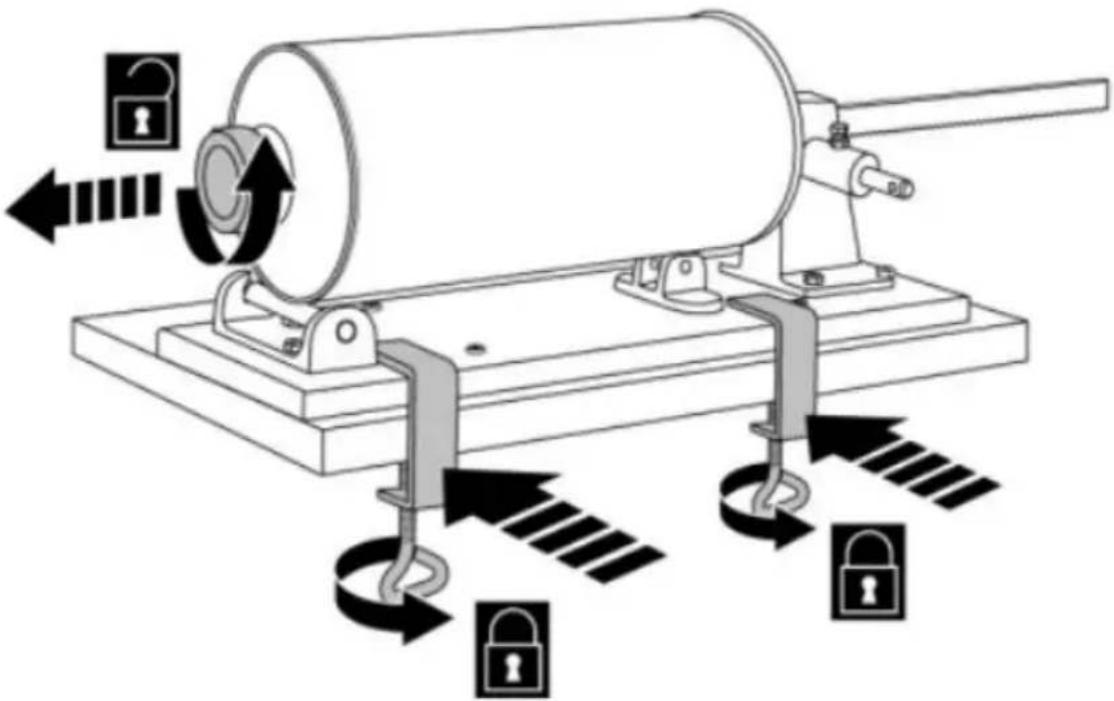

Installation

1. Place the sausage machine on the edge of at able. The filling of the cylinder should be on the right.
2. Attach the bottom of the sausage machine to the tabletop with the clamps by turning them anticlockwise. The screws of the clamps should at the bottom.
3. Unscrew the big screw on the outlet of the sausage machine by it anticlockwise.

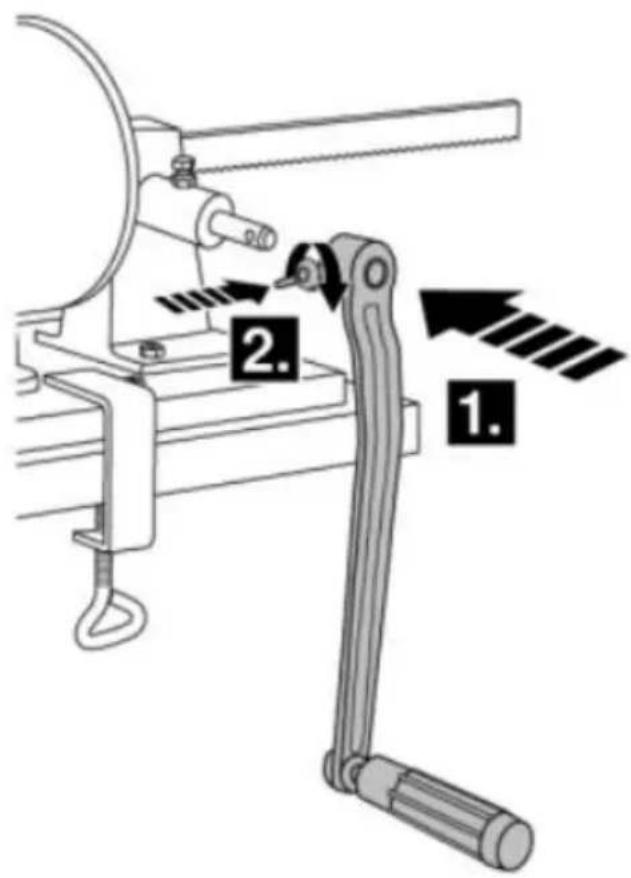

1. Attach the handle to the sausage machine by sliding its hole over handle bar. Tighten the screw of the handle so that it sits in the hole handle bar.

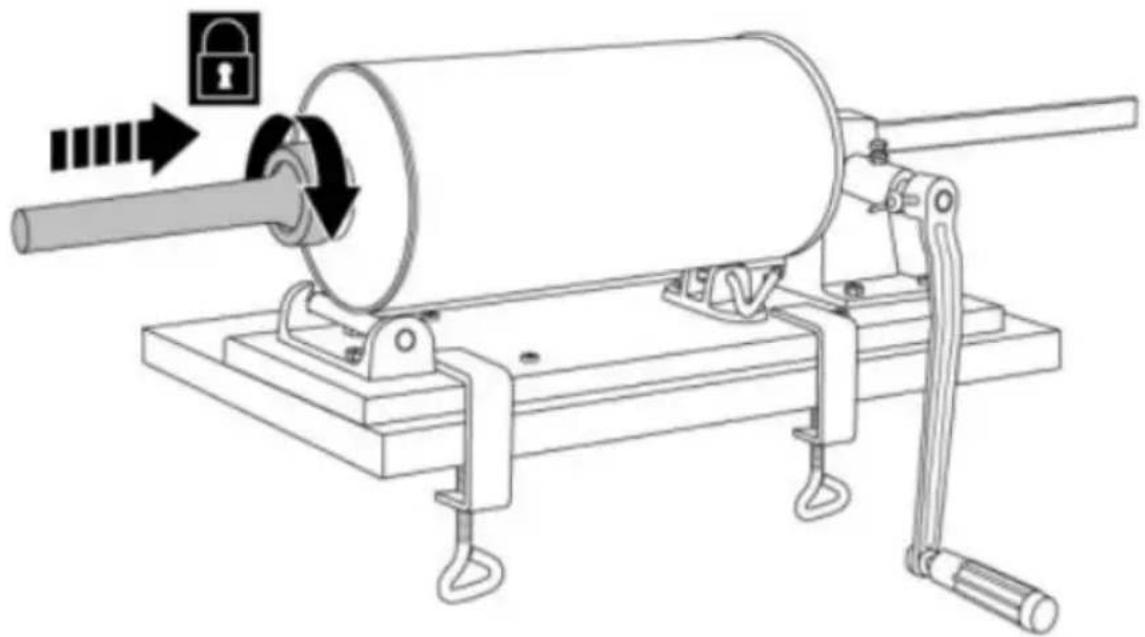

5.Hold the wide end of the desired tube against the outlet and the big screw over it. Turn it clockwise until the tube sits firmly outlet.

Technical line drawing of a mechanical device with a cylindrical shaft and lever, showing internal components and a lock icon (no text or symbols)

Use

1.Slide the sausage casing over the tube and make a knot at the e

1. Turn the handle clockwise to move the pusher out of the cylinder.

2. Tilt the cylinder up and fill in your sausage filling. Push the filling with hand to remove air.

3. Move the cylinder down again. Push the locking pin through the ho under the cylinder to lock itin place.

4. Turn the handle anticlockwise to push the filling through the tube at the sausage casing.

5. After use, clean the sausage machine immediately as described in t manual.

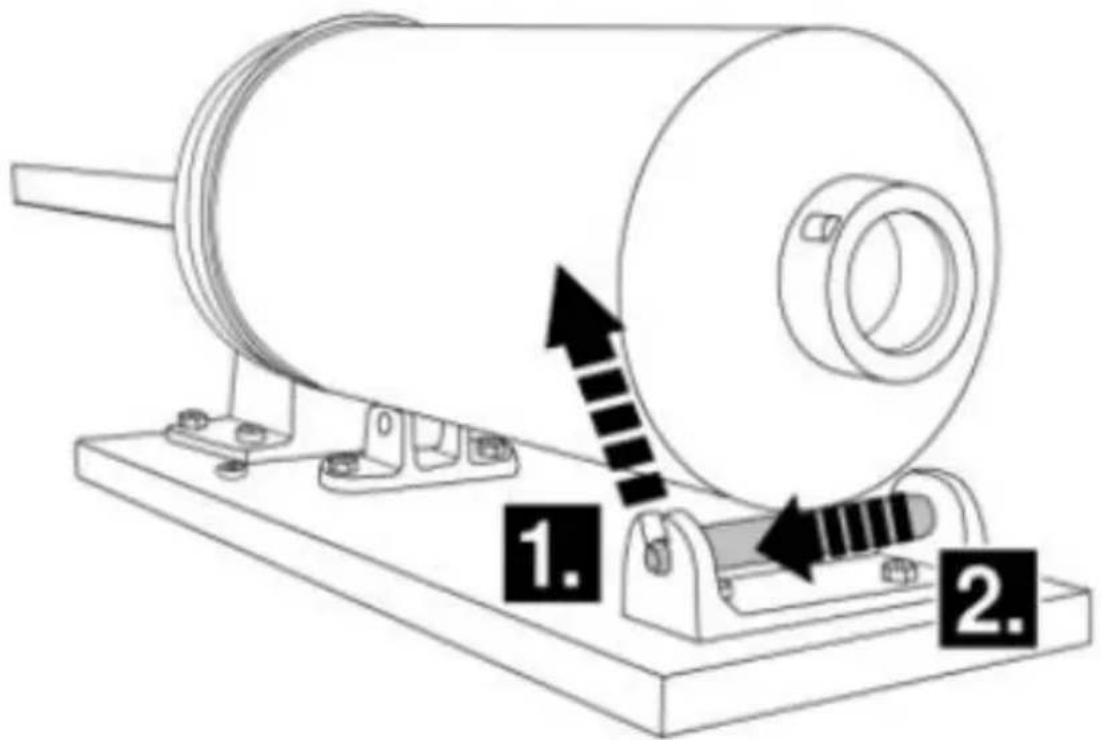

Cleaning and maintenance

1. To remove the cylinder for cleaning, first turn the handle clockwise move the pusher out of the cylinder. Remove the locking pin.

Then tilt the backside of the cylinder up, push it backward and pull

1. Clean the cylinder and tubes in warm water with a soft sponge and detergent.
2. Clean the body of the machine with a soft damp cloth or sponge detergent.
3. When the sausage machine is not used for a longer period of time, the parts with some cooking oil to avoid rust.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX
