Product Type	Suspended Pot Rack
Brand	Vevor
Model	BB-BGGJ02
Dimensions (L x D x H)	762 x 356 x 584 mm
Maximum Load Capacity	25 kg (55 lb)
Main Material	Iron (Metal)
Installation Type	Wall Mount (Wood or Masonry Wall)
Number of Hooks Included	12
Included Components	Frames, iron bars, M4*8 screws, M4*16 screws, M4*30 screws, plastic anchors, positioning card, hooks
Necessary Tools (Not Included)	Drill, pencil
Installation Modes	2 modes (depending on wall type)
Recommended Use	Suspended storage of pots and pans
Maintenance	Wipe with a damp cloth or glass cleaner
Safety Precautions	Do not exceed load, keep out of reach of children, check fasteners regularly
Technical Support	www.vevor.com/support
Warranty	Electronic warranty certificate available online

Frequently Asked Questions - BB-BGGJ02 Vevor

How to install the Vevor BB-BGGJ02 Pot Rack?

Follow the assembly instructions provided. Two installation modes are available depending on your wall type. Use the positioning card to drill holes, insert the plastic anchors, then fix the rack with the provided screws. Make sure to tighten all screws.

What is the maximum load capacity?

The maximum capacity is 55 lb (approximately 25 kg). Never exceed this load to avoid risk of falling.

Can this rack be installed on a drywall wall?

The manual indicates installation on wood wall or masonry wall (concrete, brick). For drywall, it is necessary to use suitable anchors not provided. Check the wall's solidity.

How to clean this pot rack?

Wipe the surface with a damp cloth (not wet) or a lint-free dry cloth. You can also use a glass cleaner or similar product.

What to do if parts are missing or damaged?

Contact technical support at www.vevor.com/support. The electronic warranty certificate is available online.

Is this product a toy?

No, it is not a toy. Do not let children play with or near it. Use it only for storing pots.

What tools are needed for assembly?

You will need a drill and a pencil. Screws and anchors are provided.

Can I use this rack on a shelf or table?

No, the rack is designed for wall installation only. Do not use it alone on the floor or on a desk.

How many hooks are included?

12 hooks are included with the rack.

How to check that the installation is secure?

Before applying load, tighten all knobs firmly and check that all screws are properly inserted. Regularly inspect the condition of the fasteners.

USER MANUAL BB-BGGJ02 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

HANGING POT RACK

USER MANUAL

BB-BGGJ02

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands

VEVOR®

TOUGH TOOLS, HALF PRICE

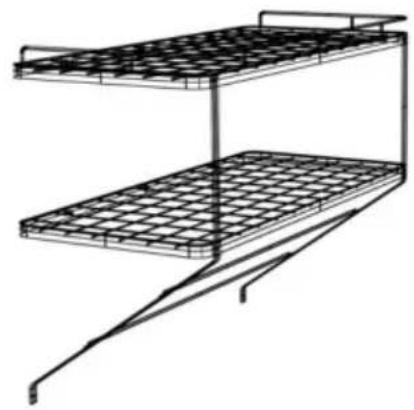

Hanging Pot Rack

Thanks for purchasing one of our products, please read carefully the assembl instructions before the installation.

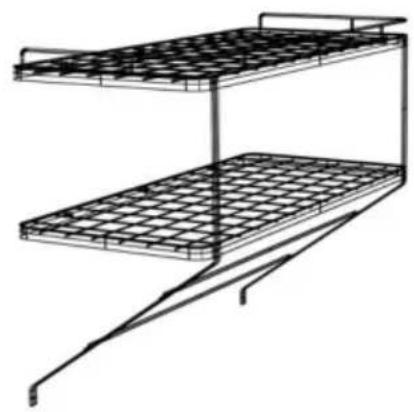

Line drawing of a two-tiered metal shelving unit (no text or symbols)

Line drawing of two stacked metal shelving units with grid patterns (no text or symbols)

Model: BB-BGGJ01

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

PRODUCT PARAMETERS

Model Product	Size (W*D*H)	Loading Capacity
BB-BGGJ02	30 x14x23 in(762x356x584mm) 55 lb (Max)

WARNING:

Keep this manual for the safety warnings and precautions. The manual offers important information on how to assemble, use and maintain this product. Failure to do so can result in serious injury

ASSEMBLY PRECAUTIONS

1. Assembly needs to follow these instructions. Incorrect assembly can a hazard.
2. Please handle metal edges carefully, Wear safety goggles and heavy-duty work gloves during assembly.
3. Do not assemble when tired or under the influence of alcohol, drug medication.
4. Weight capacity and other product capabilities apply to a properly completely assembled product only.
5. Keep the assembly area clean and well-lit.
6. Keep bystanders out of the area during assembly.
7. When installation, select a suitable and reliable wall installation, and choose the correct fastening parts to use.

USE PRECAUTIONS

WARNING: TO PREVENT SERIOUS INJURY AND DEATH FROM

TIPPING:

1. This product is not a toy. Do not allow children to play with or a this item.
2. Use as intended only. Do not sit or stand on the product.
3. Inspect before every use. Do not use it if parts are loose or dan
4. Products are installed on wooden walls or reinforced walls; Do not use it alone on the ground or on the desktop.
5. Do not exceed the listed weight capacity. Tighten all knobs secure before applying load. Be aware of dynamic loading! The sudden load movement may briefly create an excess load, causing product failure.

SAVE THESE INSTRUCTIONS

PARTS LIST

No. A B	C D E
Name	Base Frame Iron bar M4*8 ST4*16				For wooden
Parts
Quantiy	2 PCS	2 PCS	2PCS	8 PCS	8 PCS

No.	F	G	H	I
Name	M4*30(For wall)	Plastic plug(For wall)	positioning card	Hook
Parts
Quantiy	8 PCS	8 PCS	1 PCS	12PCS

ASSEMBLY STEPS

Installation Mode 1

STEP1

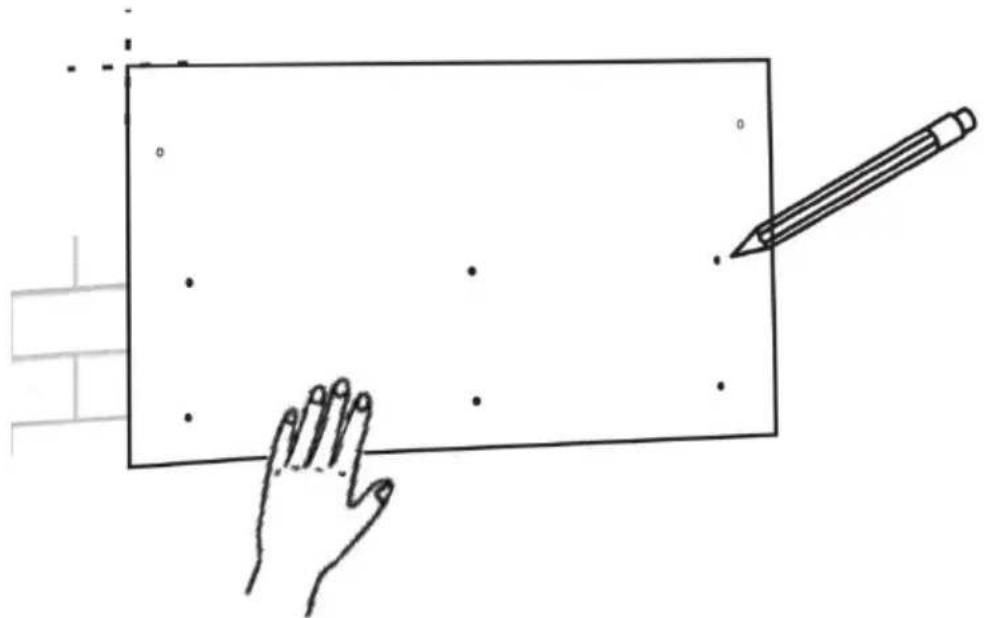

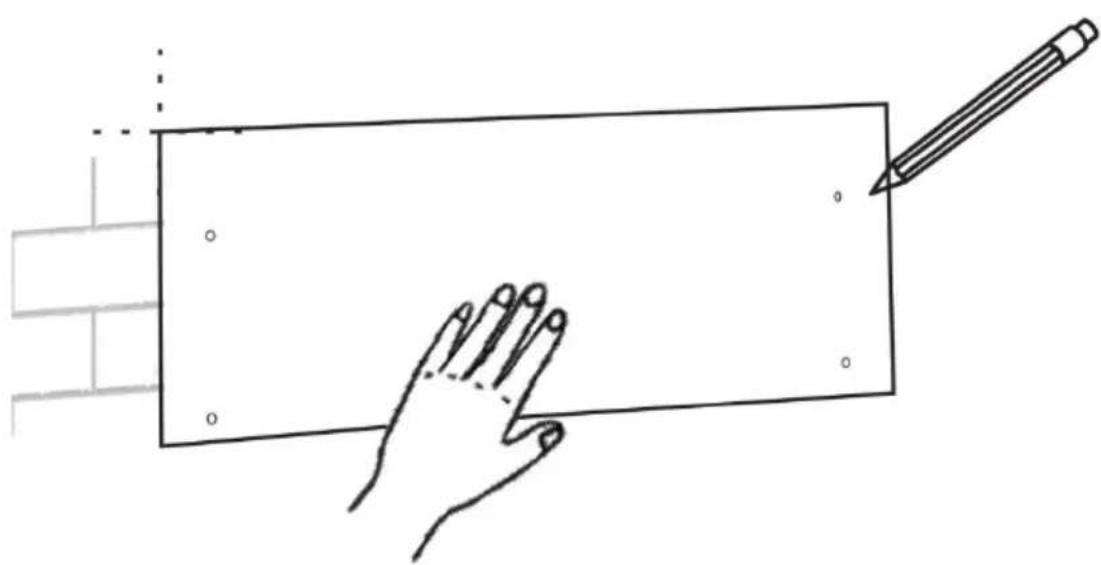

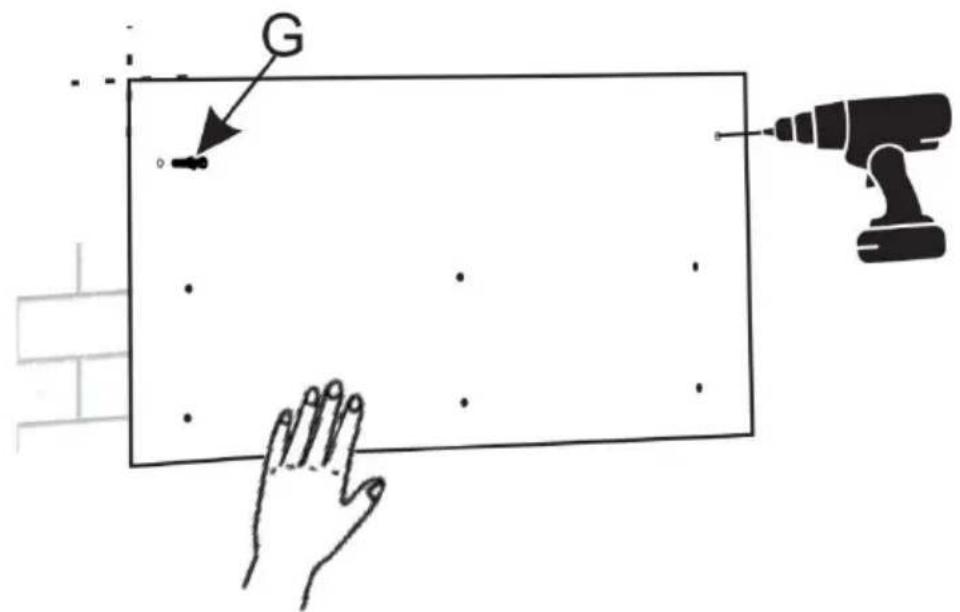

1. Put the positioning card (H) on the wall and punch holes then put the plastic plugs(G) into the holes.

(If install on wooden material, mark the punch position with pencil.)

Line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

STEP2

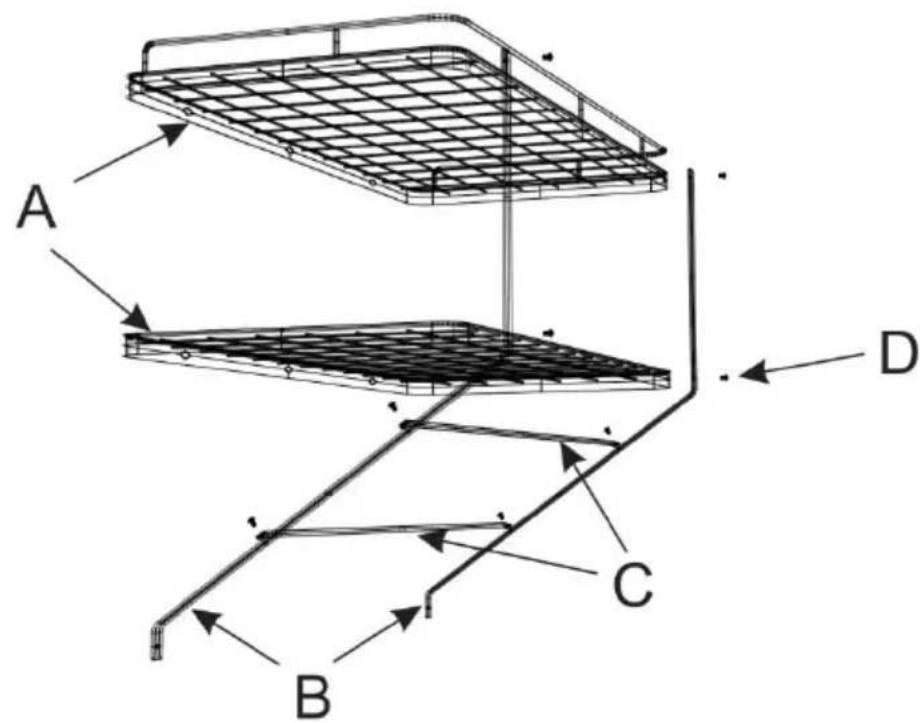

1. Assemble the frames(B) and ironbars (C) with M4*8 screws (D) onto the base (A).

STEP3

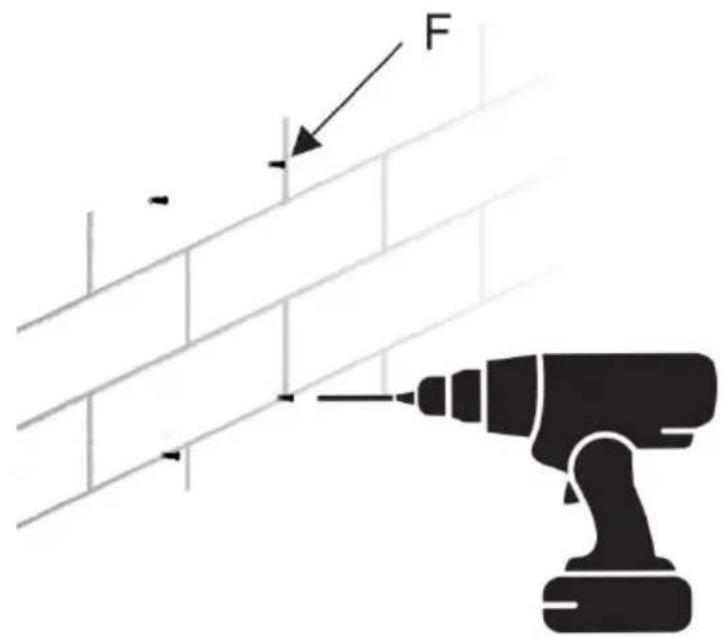

3.Punch the M4*30 screws(F) half into the wall.

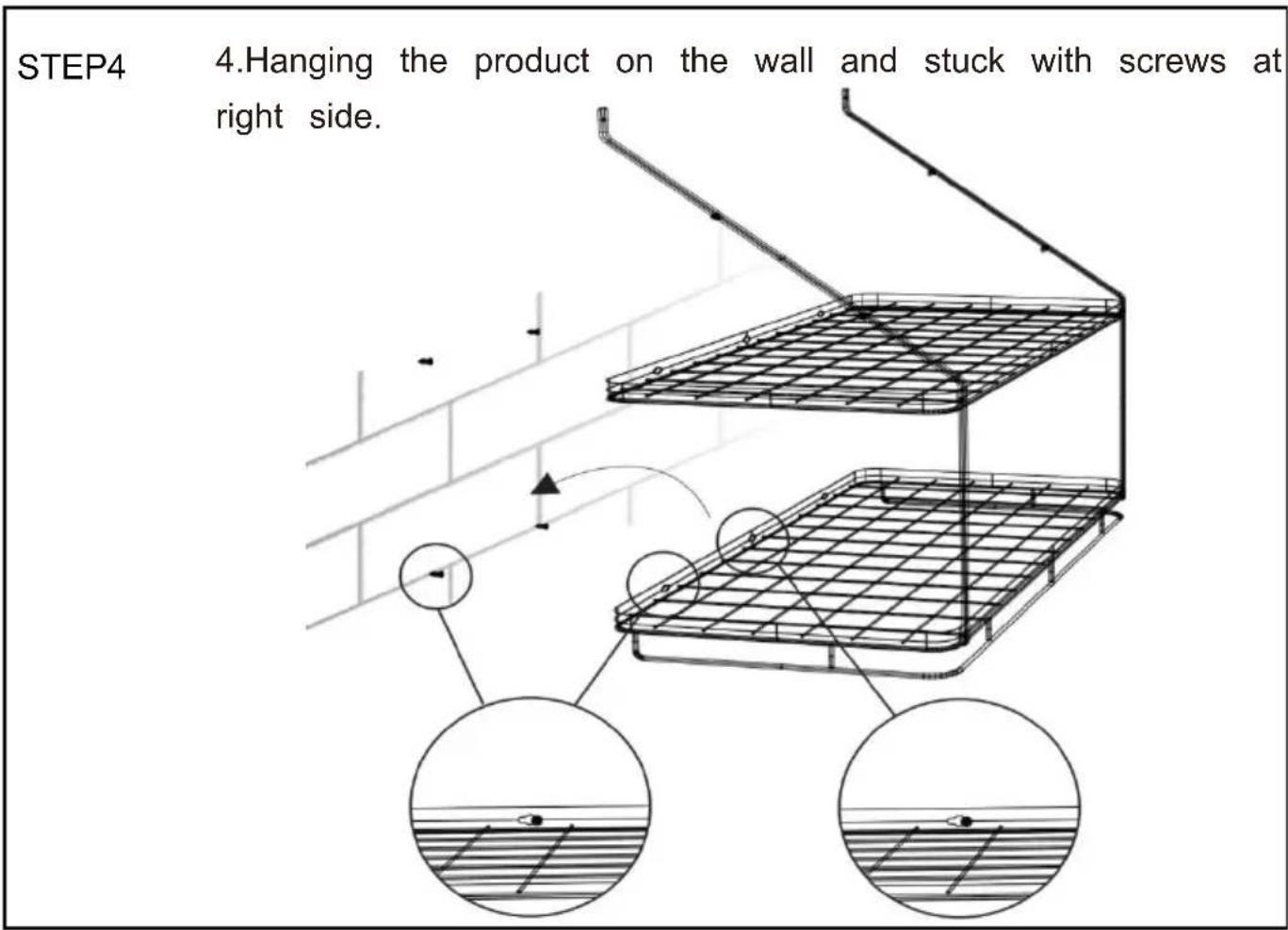

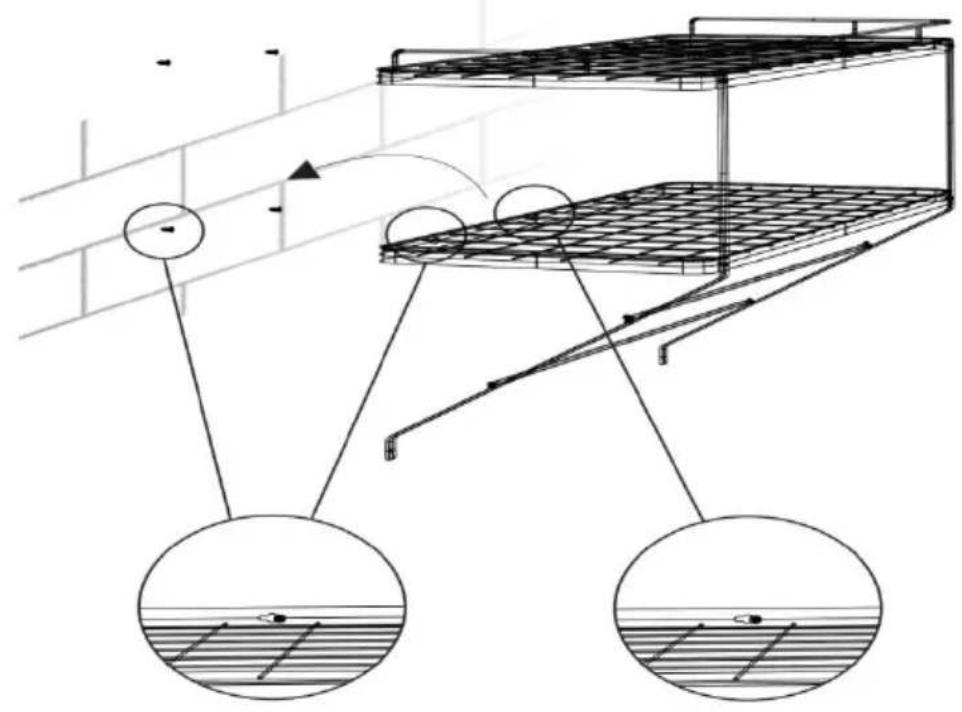

STEP4

1. Hanging the production the wall and stuck with screws at the right side.

Technical diagram of a filtration or filtration system with two circular insets showing internal components (no text or labels)

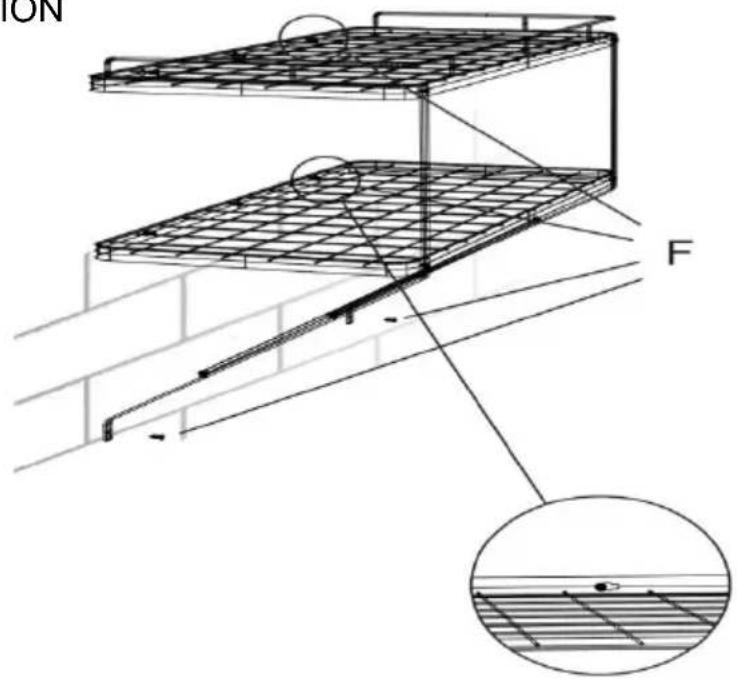

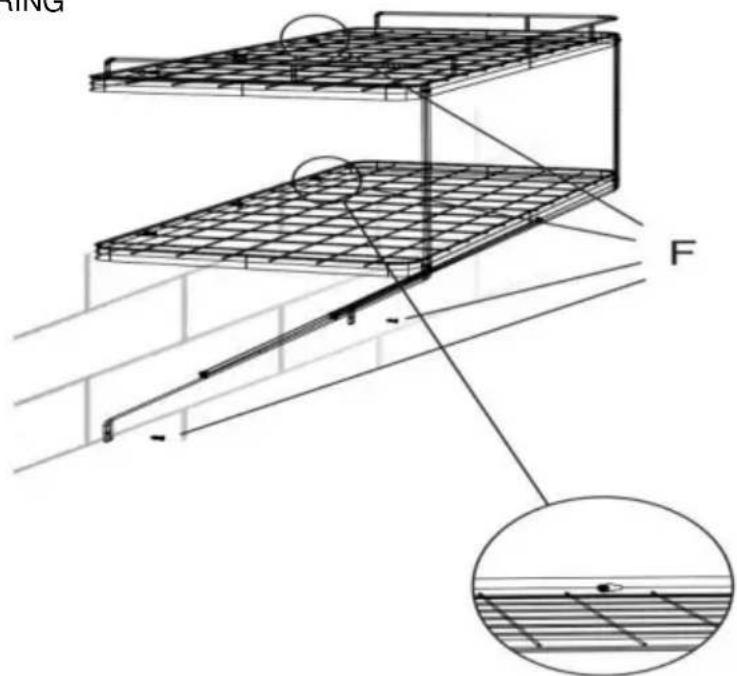

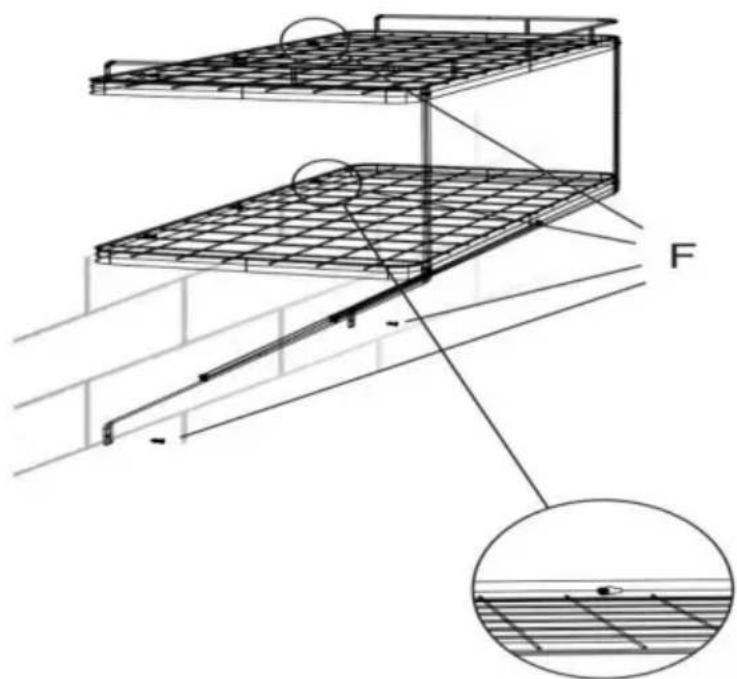

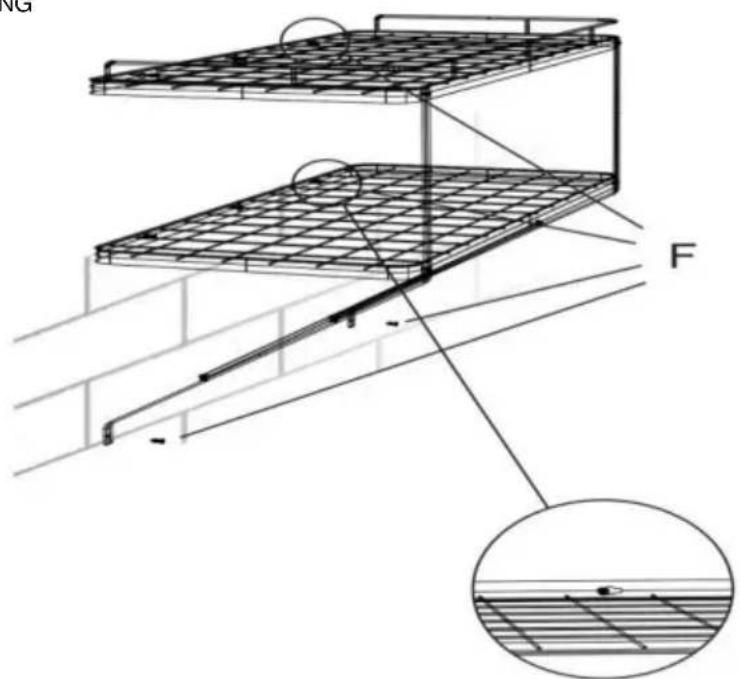

COMPLETION

1. Fix the product on the wall with M4*30 screws(F) and finish the installation.

Tips: If install on wooden wall, you just need to use M4*16 screws to install at step 3,4,5 and without plastic plug.

Installation Mode 2

STEP1

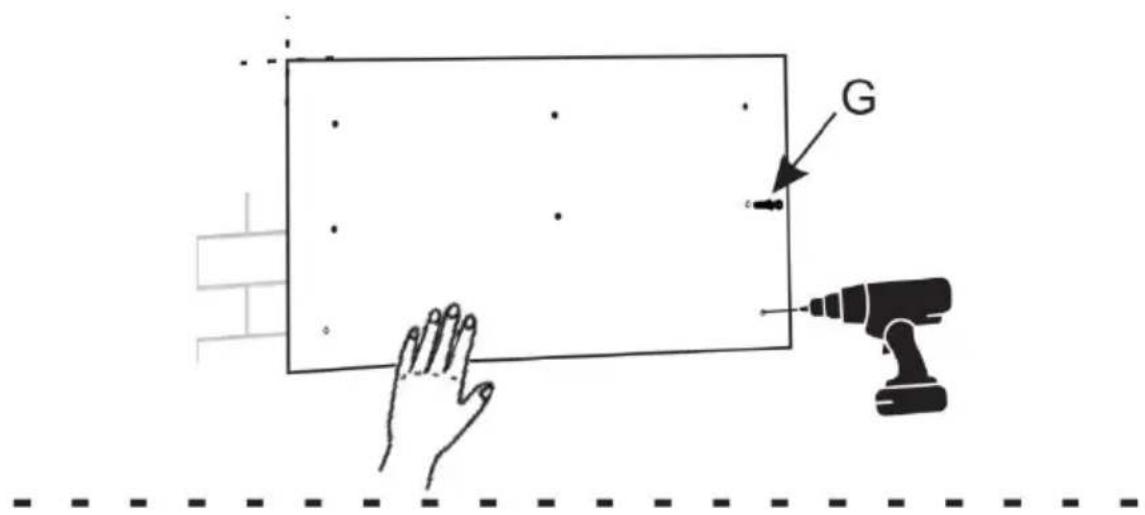

1. Put the positioning card (H) on the wall and punch holes then put the plastic plugs(G) into the holes.

(If install on wooden material, mark the punch position with pencil.)

Simple line drawing of a hand pointing at a blank rectangular board with a pencil, against a brick wall background (no text or symbols)

STEP2

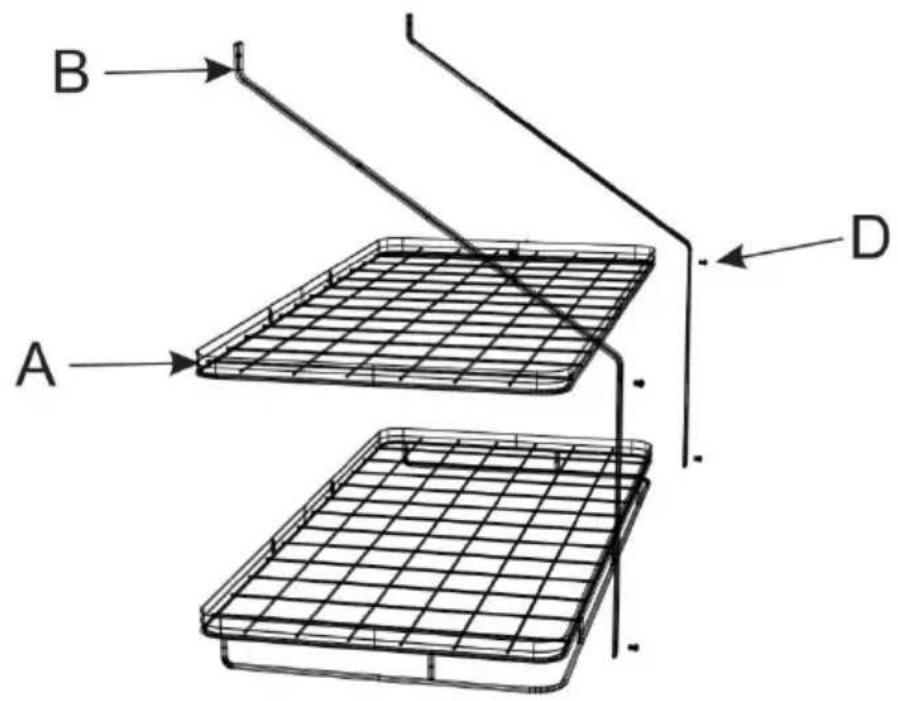

1. Assemble the frames(B) with M4*8 screws (D) onto the base (A).

STEP3

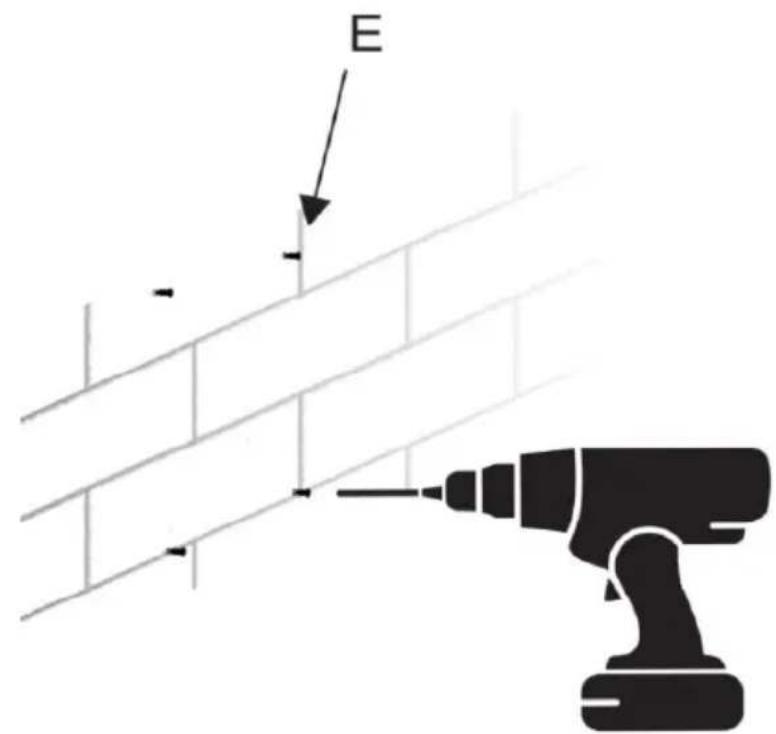

3.Punch the M4*16 screws(E) half into the wall.

Cleaning

-For cleaning, wipe the surface with a damp (not wet) cloth or w with a clean lint free cotton cloth.

-Window cleaning liquid or a similar cleaning liquid can be used clean the surface.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REPU

YH CONSULTING LIMITED.

K/O YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames,

Surrey, TW18 4AX

REPE

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

3D wireframe diagram of a two-tiered storage tray or rack system (no text or symbols)

Technical line drawing of two stacked metal shelving units with grid patterns (no text or symbols)

Modèle : BB-BGGJ01

BESOIN D'AIDE? CONTACTEZ-NOUS!

www.vevor.com/support

PARAMÈTRES DU PRODUIT

Simple line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

ÉTAPE 2

Technical diagram of a solar panel installation with two circular insets showing internal structure (no text or labels)

ACHÈVEMENT

Technical diagram of a roof structure with grid panels and an inset showing detailed cross-section (no text or symbols)

Simple line drawing of a hand pressing a rectangular block with a pencil, against a brick wall background (no text or symbols)

ÉTAPE 2

Technical diagram of a roof drainage system with grid layouts and structural supports (no text or labels)

Nettoyage

A/S YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Line drawing of two stacked metal shelving units with vertical supports (no text or symbols)

Technical line drawing of two stacked metal shelving units with grid patterns (no text or symbols)

Modell: BB-BGGJ01

Line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

SCHRITT2

Technical diagram of a solar panel installation with two circular insets showing internal structure (no text or labels)

FERTIGSTELLUNG

Technical diagram of a multi-level structure with grid patterns and an inset showing a magnified detail (no text or symbols)

Simple line drawing of a hand pressing a rectangular block with a pencil, against a brick wall background (no text or symbols)

SCHRITT2

Technical diagram of a metal grid structure with two circular insets showing internal components (no text or symbols)

SCHRITT5

Reinigung

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Line drawing of two stacked metal shelving units with vertical supports (no text or symbols)

Technical line drawing of two stacked metal shelving units with grating patterns (no text or symbols)

Modello: BB-BGGJ01

www.vevor.com/support

Line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

PASSO 2

Technical diagram of a solar panel installation with two circular insets showing structural details (no text or symbols present)

COMPLETAMENTO

Simple line drawing of a hand pressing a rectangular block with a pencil, against a brick wall background (no text or symbols)

PASSO 2

Technical diagram of a roof drainage system with grid layouts and structural supports (no text or labels)

Pulizia

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

CONSULENZA YH LIMITATA.

C/O YH Consulting Limited Ufficio 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

3D wireframe diagram of a two-tiered storage tray or rack structure (no text or symbols)

Technical line drawing of two stacked metal shelving units with grid patterns (no text or symbols)

Modelo: BB-BGGJ01

www.vevor.com/support

Simple line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

PASO 2

Technical diagram of a solar panel installation with two circular insets showing different components (no text or labels)

TERMINACIÓN

Simple line drawing of a hand pressing a rectangular block with a pencil, against a brick wall background (no text or symbols)

PASO 2

Limpieza

C/O YH Consulting Limited Oficina 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH

Mainzer Landstr.69, 60329

Fráncfort del Meno.

VEVOR®

TOUGH TOOLS, HALF PRICE

3D wireframe diagram of a two-tiered storage tray or rack system (no text or symbols)

Technical line drawing of two stacked metal shelving units with grid patterns (no text or symbols)

Model: BB-BGGJ01

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

www.vevor.com/support

Line drawing of a hand holding a rectangular object with a pencil, against a brick wall background (no text or symbols)

KROK 2

Technical diagram of a solar panel installation with two circular insets showing different components (no text or labels)

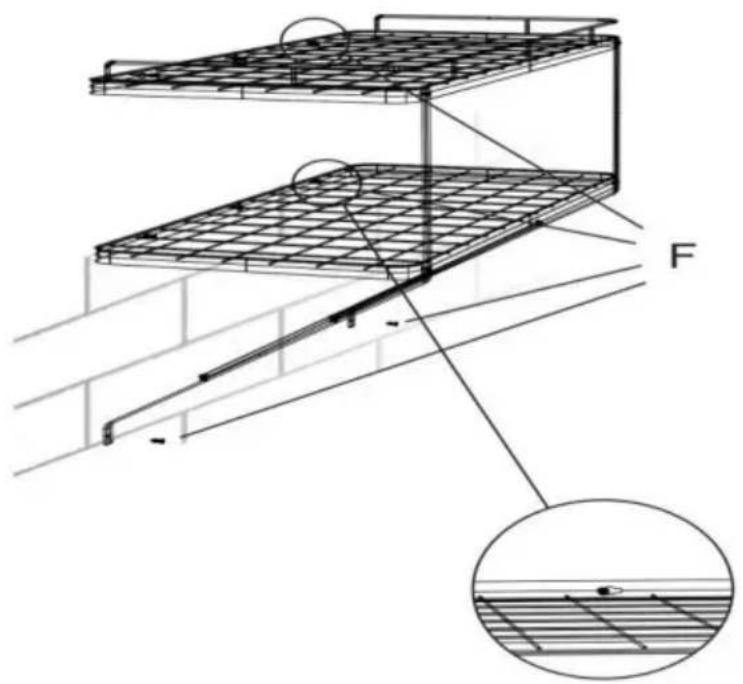

UKOŃCZENIE
