USER MANUAL MMS1 Vevor

Affordable. Reliable. Home Improvement.

Sheet Metal Plate Shear

MODEL:MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Sheet Metal Plate Sheet

MODEL: MMS1

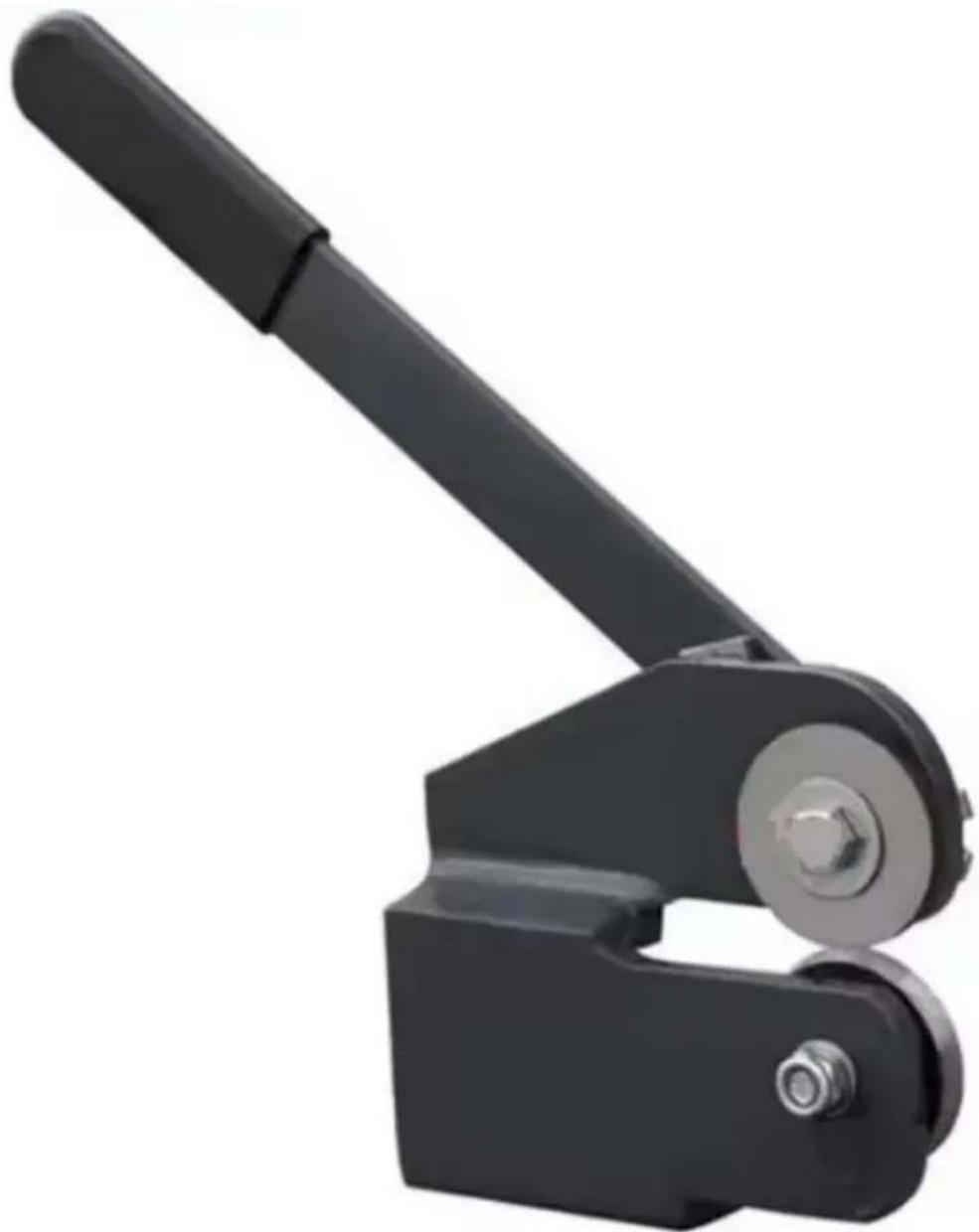

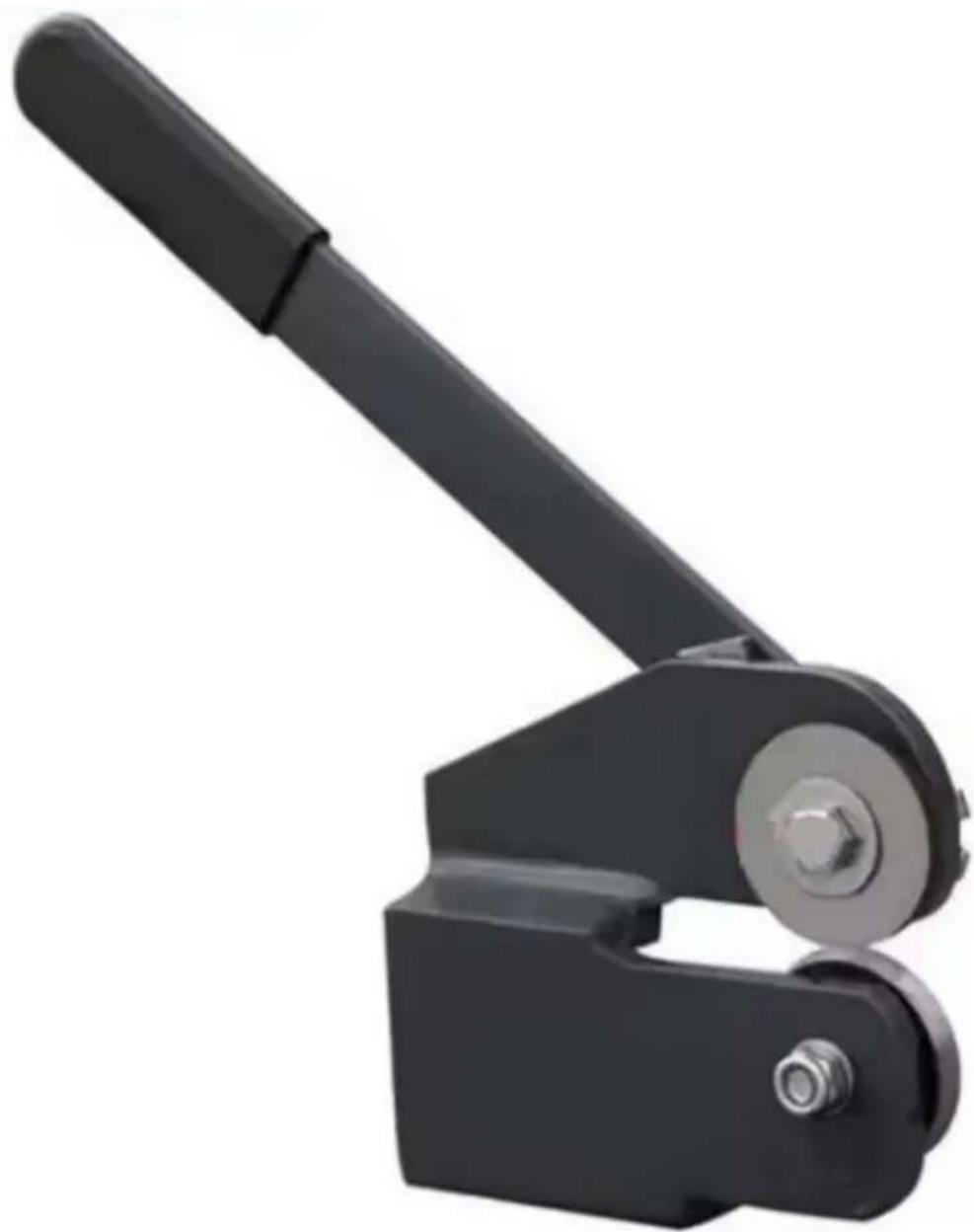

Black manual tool with handle and circular head (no text or symbols visible)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

Unpacking

The MINI ROTARY METAL SHEAR is shipped from the manufacturer carefully packed Carton box. Thoroughly inspect the product upon open the package. After unpacking the unit, carefully inspect for any damage may have occurred during transit Check for loose, missing, or damage parts. Shipping damage claims must be filed with the carrier and are responsibility of the user.

Specifications

The KAKA MINI ROTARY METAL SHEAR is the perfect addition to a fabricator's work bench. It is precision designed and manufactured to for quick and easy trimming of sheet metal pieces and the rotary de allows for both straight and curved cuts. Hardened, round, cutting dies produce clean, burr-free cuts in aluminum, steel and other mild metals

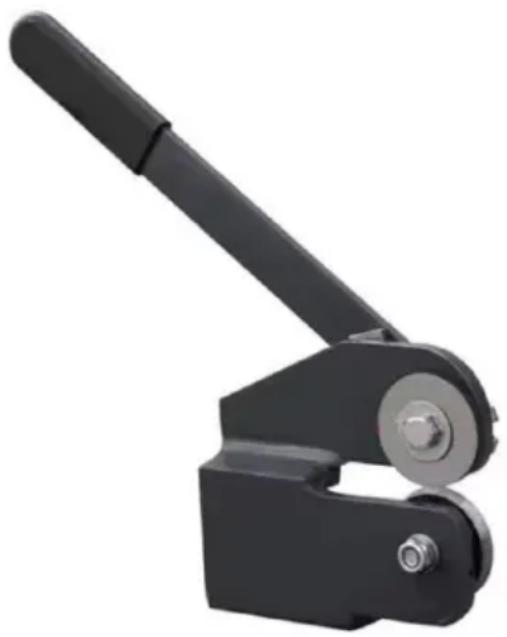

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Model......MMS1

Max. Capacity.....16 Ga. (1.5 mm)

Packing size.....12.8"×3.94"×5.5" (32.5×10×14 cm)

N.W./G.W....3.97/4.4 lbs (1.8/2.0 kg)

IMPORTANT

Blades are coated with a protectant. To ensure proper fit and operate remove coating. Coating is easily removed with mild solvents, such as mineral spirits, and a soft cloth. Avoid getting cleaning solutions on p any of the rubber or plastic parts. Solvents may deteriorate these fini Use soap and water on paint, plastic or rubber components. After cle cover all exposed surfaces with a light coating of oil.

WARNING : Never use highly volatile solvents. Non-flamm solvents are recommended to avoid possible fire hazards.

SAVE THESE INSTRUCTIONS

Thank you for purchasing our MMS-1 MINIROTARY METAL SHEAR machine. Before attempting to operate your new tool please read these instructions thoroughly. You will need these instructions for the safety warnings, precautions, assembly, operation, maintenance procedures, parts list and diagrams. Keep your invoice number with these instructi Write the invoice number on the inside of front cover. Keep the instr and invoice in a safe, dry place for future reference.

General Safety Information

CAUTION: Always follow proper operating procedures as in this manual even if you are familiar with use of this or s Remember that being careless for even a fraction of a secon result in severe personal injury.

SAFETY RULES

1. Wear proper apparel. Do not wear loose clothing, gloves, neckties, bracelets or other jewelry which may get caught in moving parts of machine.
2. Wear protective hair covering to contain long hair.

3. Wear safety shoes with non-slip soles.

4. Wear safety glasses complying with United States ANSI
   Z87.1.Everyday glasses have only impact resistant lenses. They are N safety glasses.

5. Be alert and think clearly. Never operate tools when tired, intoxication when taking medications that cause drowsiness.
6. Keep work area clean. Cluttered work areas invite accidents.
7. Work area should be properly lit.
8. Keep visitors at a safe distance from work area.
9. Keep children out of workplace. Make workshop childproof. Use padlocks to prevent any unintentional use of tools.
10. Assemble only according to these instructions. Improper assembly create hazards.
11. When tools are not in use, store them in a dry, secure place or reach of children. Inspect the tools prior to storage and before reuse.
12. Maintain product labels and nameplates. These carry important saf information.

WARNING

The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that occur. It must be understood by the operator that common secaution are factors that cannot be built into this product, but used by the operator.

KNOW HOW TO USE TOOL

1. Use right tool for job. Do not force tool or attachment to do a job which it was not designed.
2. Keep hands out of path of shear blades.
3. The Max. shearing thickness of this machine is 16 Ga. 1.5mm).

Exceeding capacity maybe dangerous to operator and damage may occur to the machine.

1. Bolt machine to floor or sturdy stand that is bolted to floor to prev sliding or tipping of machine.

WARNING

1. This tool has EXTREMELY SHARP cutting dies which can cause severe injury or loss of fingers! Keep fingers and hand from moving parts when operating.
2. Wear thick, well fitting work gloves to prevent cuts from h sharp metal.
3. Frequently inspect cutting dies. If cracks or chips develop, discontinue tool use immediately.
4. Always place the handle in the down position. The weight handle left in the up position can cause the upper die to su unexpectedly rotate with great force resulting in severe injury fingers.

Assembly

CAUTION

Always keep the handle in the lowest possible position when cutting. The weight of the handle can cause the upper die to and unexpectedly rotate.

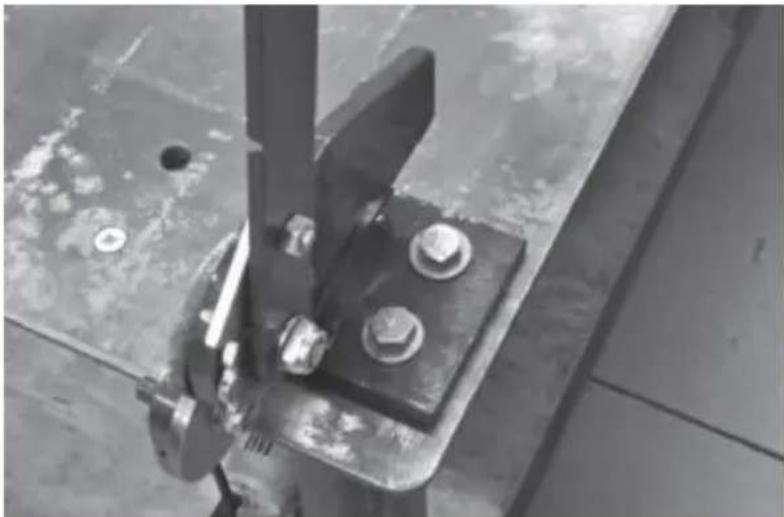

Place the Shear on a clean, level surface at a comfortable working I Mount securely to the work surface using 2 suitable lag screws or be included) through the two holes in the steel base #18 (Figure 1).

Close-up of a mechanical clamp or bracket with bolts and a screw, mounted on a metal surface (no visible text or symbols)

Figure 1

Cut Layout

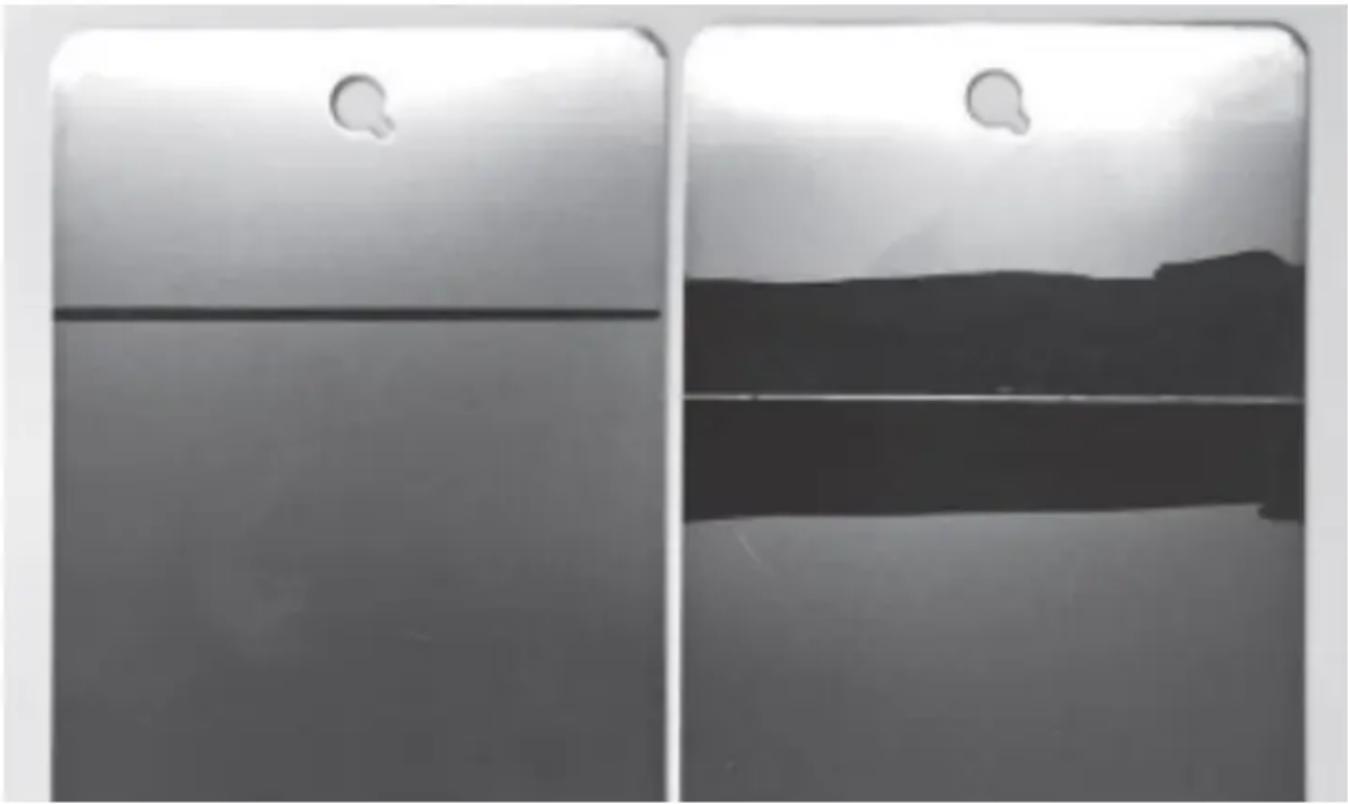

For best accuracy it is recommended that you coat the cut area with fluid or a marker and then scribe your cut line rather than using a (Figure 2). The width of the scribe line will be much smaller and will a precise guide when compared to the wide marker line.

Two metallic panels showing surface changes: one with a circular indentation, the other with a single circular indentation (no text or symbols)

Figure 2

Operation

CAUTION

The cutting dies are extremely sharp! Use extreme care when to avoid severe cuts or loss of fingers!

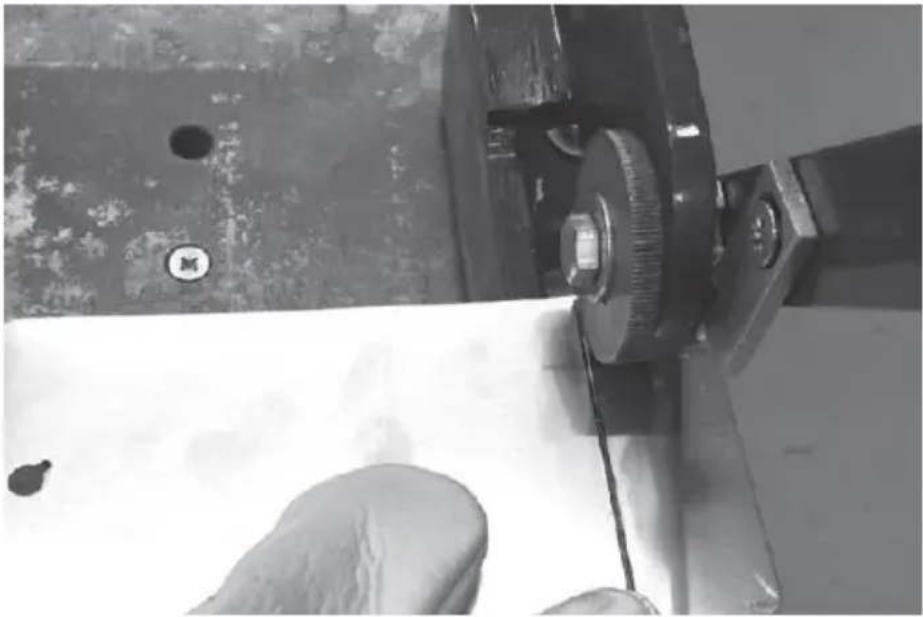

1. Apply moderate pressure to push the metal into the cutting dies #19 as you pull the handle #2 towards you (Figure 3).
2. To ratchet the handle simply rotate the handle #2 away from you. Gravity will reengage the pawl #3 on the upper cutting die #19 when pull it towards you to cut.
3. To make a curved cut, rotate the metal while it is fed into the c

Close-up of a mechanical assembly with a gear and workpiece, no visible text or symbols

Figure 3

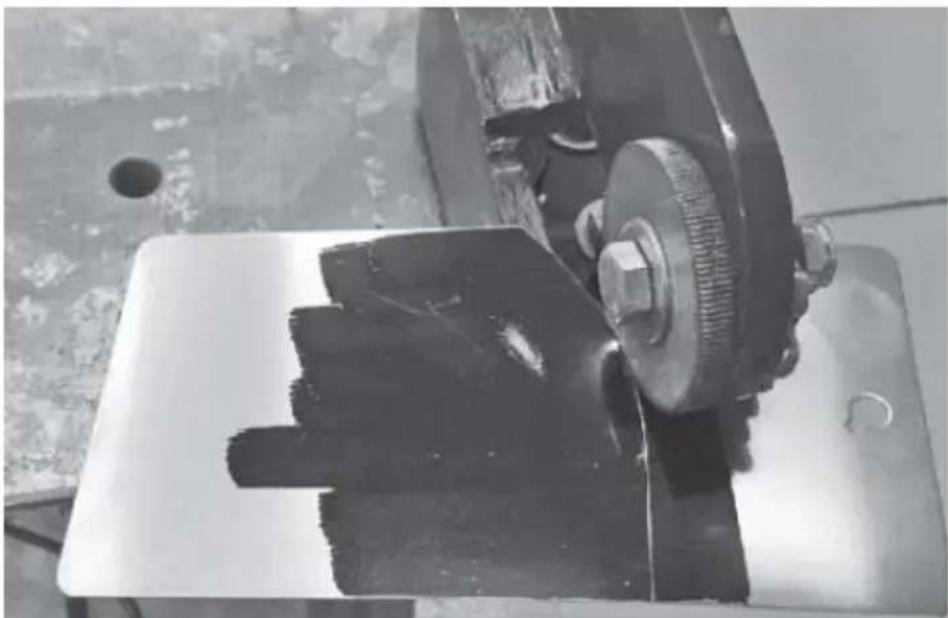

NOTE: The mini rotary metal shear creates its trim, the unwanted copper on the right. When cutting a curve make sure the unwanted portion right of the upper die (Figure 4).

Close-up of a mechanical device with a metallic gear and metal frame, no visible text or symbols

Figure 4

NOTE: The Cutting Dies have been adjusted by the factory for optim cutting performance. Do not attempt to adjust dies as improper overla, cause reduced performance and Cutting Die failure.

Maintenance

1. Lower the Handle to ensure that it cannot engage the Upper Cutt in storage.
2. Apply a thin film of light oil or rust-preventive coating to all bare areas.
3. Store in a clean, dust-free, dry, dampness free area preferably cowith plastic sheeting.
4. Maintenance should be performed before each use.
5. Check tightness of all hardware.
6. Check operation for binding. Lubricate Pivot Points and Dies period with a medium bodied lubricating oil.

Troubleshooting Chart

Symptom	Possible Cause(s)	Corrective Action
Machine will not Cut	1.Ratcheting Paw is not Engaging Upper Die	Ensure Pawl is engaged and turning the Upper Die as you pull the Ha towards you. If it does not, adjust screw tension on the Pawl so that can freely drop into the Upper Die
	2.Tool Body Has Flexed and Cutting Dies are on Top One Another	Remove the Nut and Bolt fastening the Upper Cutting Die.Remove Die and reinstall in the correct orientation. Cutting edges should be beside one another.
	3.Upper Die is Spinning Freely	Moderate pressure is required to fe the metal into the Dies.

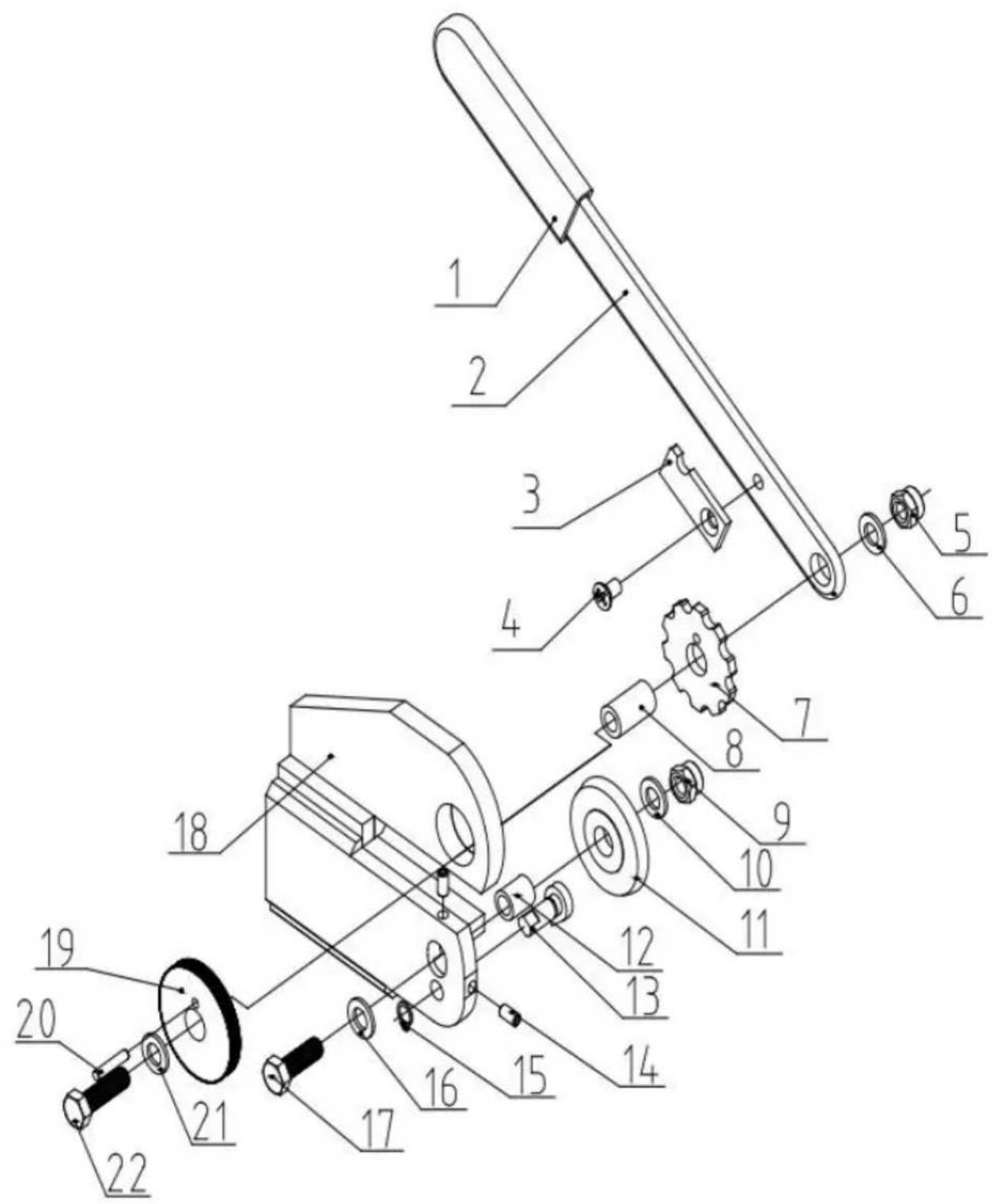

Drawing

Technical diagram of a mechanical assembly with numbered components for identification

Parts List

Ref.No	Description	QTY
1	Handle Grip	1
2	Handle	1
3	Pawl	1
4	Screw M6x10	1
5	Hex Nut M8	1
6	Flat Washer	1
7	Gear	1
8	Sleeve	1
9	Hex Nut M8	1
10	Flat Washer	1
11	Lower cutting dies	1
12	Sleeve	1
13	Cam	1
14	Holding Screw	2
15	Ring	1
16	Flat Washer	1
17	Hex Bolts M8x25	1
18	Base	1
19	Upper cutting dies	1
20	Rod Pin 4x20	1
21	Flat Washer	1
22	Hex Bolts M8x35	1

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A>

EC

REP

Affordable. Reliable. Home Improvement.

Cisaille à tôle

MODÈLE : MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Cisaille àtôle

MODÈLE : MMS1

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete floor (no text or symbols visible)

Figure 1

Two panels showing a metallic object with a circular indentation on top, and a dark liquid surface with a small droplet on the right panel (no text or symbols)

Figure 2

Opération

PRUDENCE

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Figure 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Figure 4

Technical diagram of a mechanical assembly with numbered components for identification

Liste despièces

Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. A/S YH Consulting Limited, bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

REPRÉSENTANT DE LA CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Blechschere

MODELL:MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Blechschere

MODELL: MMS1

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Modell.....MMS1 Max.

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Abbildung 1

Schnittlayout

Two panels showing a metallic object with a circular indentation on top, and a dark liquid surface with a small droplet on the right panel (no text or symbols)

Abbildung 2

Betrieb

VORSICHT

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Abbildung 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Abbildung 4

Technical diagram of a mechanical assembly with numbered components for identification

Teileliste

YH CONSULTING LIMITED. C/O YH Consulting Limited,

Büro 147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

EG-Vertreter

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

Cesoia per lamiere

MODELLO: MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Cesoia perlamiere

MODELLO: MMS1

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Modello....MMS1

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Figura 1

Layout ditaglio

Two panels showing a metallic object with a circular indentation on top, and a dark liquid surface with a small droplet on the right panel (no text or symbols)

Figura 2

Operazione

ATTENZIONE

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Figura 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Figura 4

Technical diagram of a mechanical assembly with numbered components for identification

Elenco delleparti

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122

YH CONSULTING LIMITED. C/O YH Consulting Limited

Ufficio 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Modelo......MMS1

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Figura 1

Diseño decorte

Two metallic panels showing surface changes: one with a circular indentation, the other with a curved indentation (no text or symbols)

Figura 2

Operación

PRECAUCIÓN

Close-up of a mechanical assembly with a metallic component and a tool, no visible text or symbols

Figura 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Figura 4

Technical diagram of a mechanical assembly with numbered components for identification

Lista depiezas

Ref.N.°	Descripción	CANTIDAD
1	Empuñadura	1
2	Manejar	1
3	Azul	1
4	Tornillo M6x10	1
5	Tuerca hexagonalM8	1
6	Arandela plana	1
7	Engranaje	1
8	Manga	1
9	Tuerca hexagonal M8	1
10	Arandela plana	1
11	Matrices de corte inferiores	1
12	Manga	1
13	Leva	1
14	Tornillo de sujeción	2
15	Anillo	1
16	Arandela plana	1
17	Pernos hexagonales M8x25	1
18	Base	1
19	Matrices de corte superiores	1
20	Pasador de varilla 4x20	1
21	Arandela plana	1
22	Pernos hexagonales M8x35	1

YH CONSULTING LIMITADA. A/C YH Consulting Limited

Oficina 147, Centurion House, London Road, Stainesupon-Thames, Surrey, TW18 4AX

Representante de la CE

E-CrossStu GmbH

Mainzer Landstr.69,

Affordable. Reliable. Home Improvement.

Nożyce doblachy

MODEL: MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Nożyce doblachy

MODEL: MMS1

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Model......MMS1 Maksymalna

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Rysunek 1

Układ cięcia

Two panels showing a metallic object with a circular indentation on top, and a dark liquid surface with a small droplet on the right panel (no text or symbols)

Rysunek 2

Działanie

OSTROŻNOŚĆ

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Rysunek 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Rysunek 4

Technical diagram of a mechanical assembly with numbered components for identification

Lista części

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro

147, Centurion House, London Road, Staines-upon-

Thames, Surrey, TW18 4AX

Przedstawiciel WE

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt nadMenem.

VEVOR

Affordable. Reliable. Home Improvement.

Affordable. Reliable. Home Improvement.

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Model.....MMS1 Max.

capaciteit.....16 Ga. (1,5 mm)

Verpakkingsgrootte.....32,5×10×14 cm (12,8"×3,94"×5,5")

NW/GW....3,97/4,4 lbs (1,8/2,0 kg)

BELANGRIJK

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Figuur 1

Snij-indeling

Two panels showing a metallic object with a circular indentation on top, and a dark liquid surface with a small droplet on the right panel (no text or symbols)

Figuur 2

Operatie

VOORZICHTIGHEID

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Figuur 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Figuur 4

Technical diagram of a mechanical assembly with numbered components for identification

Onderdelenlijst

Ref.nr.	Beschrijving	AANTAL
1	Handvatgreep	1
2	Hendel	1
3	Blauw	1
4	Schroef M6x10	1
5	Zeskantmoer M8	1
6	Platte ring	1
7	Versnelling	1
8	Mouw	1
9	Zeskantmoer M8	1
10	Platte ring	1
11	Onderste snijmessen	1
12	Mouw	1
13	Nok	1
14	Houdschroef	2
15	Ring	1
16	Platte ring	1
17	Zeskantbouten M8x25	1
18	Baseren	1
19	Bovenste snijmessen	1
20	Staafpen 4x20	1
21	Platte ring	1
22	Zeskantbouten M8x35	1

Fabrikant: Shanghaimuxinmuyeyouxiangongsi Adres:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 2000CN.

YH CONSULTING LIMITED. T.a.v. YH Consulting Limited

Kantoor 147, Centurion House, London Road, Staines-

upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt amMain.

VEVOR

Affordable. Reliable. Home Improvement.

Plåtsax

MODELL: MMS1

VEVOR

Affordable. Reliable. Home Improvement.

Plåtsax

MODELL: MMS1

Black mechanical tool with handle and circular head (no text or symbols visible)

Black mechanical tool with handle and mounting bracket (no text or symbols visible)

Modell......MMS1 Max.

kapacitet.....16 Ga. (1,5 mm)

Close-up of a metal bracket with bolts and a bolted joint, mounted on a concrete surface (no text or symbols visible)

Figur 1

Kliplayout

Two metallic panels showing surface changes: one with a circular indentation, the other with a curved indentation (no text or symbols)

Figur 2

Drift

FÖRSIKTIGHET

Close-up of a mechanical assembly with a hand holding a tool, no visible text or symbols

Figur 3

Close-up of a mechanical component with a metallic tool and gear assembly (no visible text or symbols)

Figur 4

Technical diagram of a mechanical assembly with numbered components for identification

Dellista

Ref.nr.	Beskrivning	ANTAL
1	Handtagsgrepp	1
2	Hantera	1
3	Blå	1
4	Skruv M6x10	1
5	Sexkantsmutter M8	1
6	Platt bricka	1
7	Redskap	1
8	Ärm	1
9	Sexkantsmutter M8	1
10	Platt bricka	1
11	Nedre skärformar	1
12	Ärm	1
13	Kam	1
14	Hållskruv	2
15	Ringa	1
16	Platt bricka	1
17	Sexkantsbultar M8x25	1
18	Bas	1
19	Övre skärformar	1
20	Stångstift 4x20	1
21	Platt bricka	1
22	Sexkantsbultar M8x35	1

Tillverkare: Shanghaimuxinmuyeyouxiangongsi Adress:

Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 2000CN.

Importerad till Australien: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australien

Importerad till USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Storbritanniens republikaner

YH CONSULTING LIMITED. C/O YH Consulting Limited

Kontor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EG-representant

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
