USER MANUAL LZX-16L Vevor

QR code image containing encoded data, no visible human-readable text

Installation video guide

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

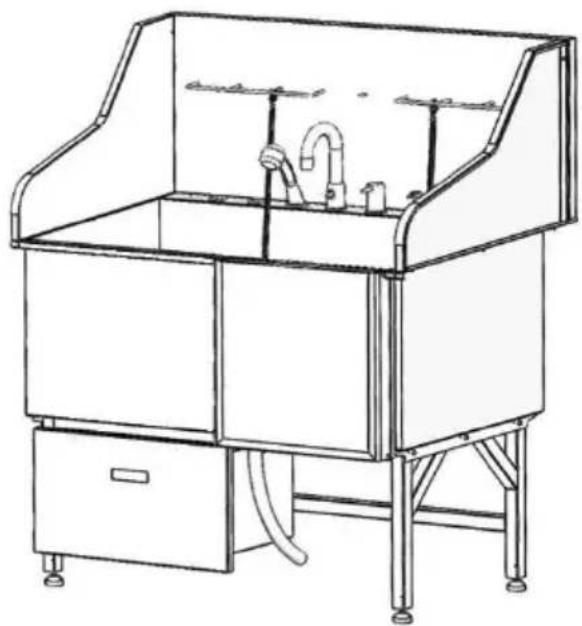

MODEL:LZX-16L \ LZX-16R

Technical line drawing of a mechanical device with pipes and control panels (no text or symbols)

Line drawing of a stainless steel mixing machine with control panel and piping (no text or symbols)

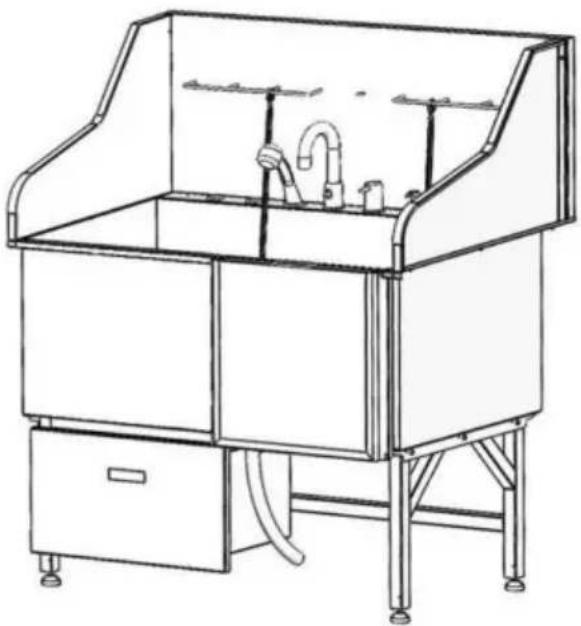

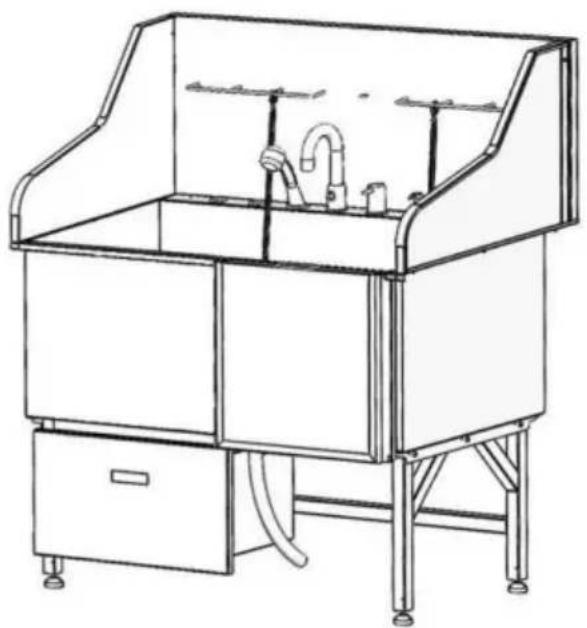

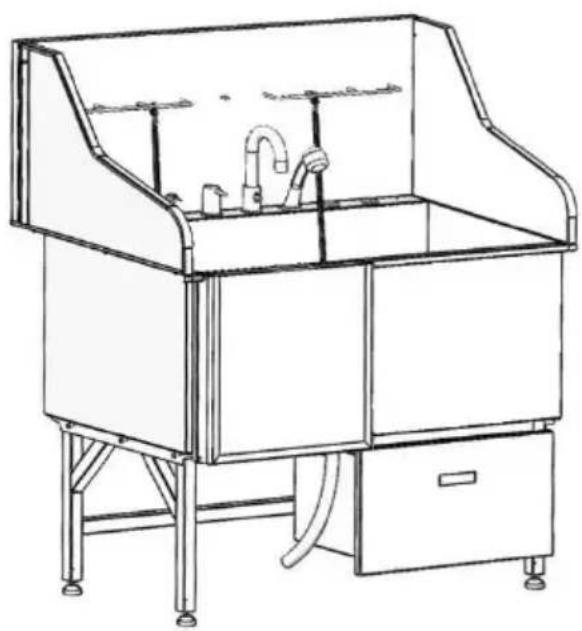

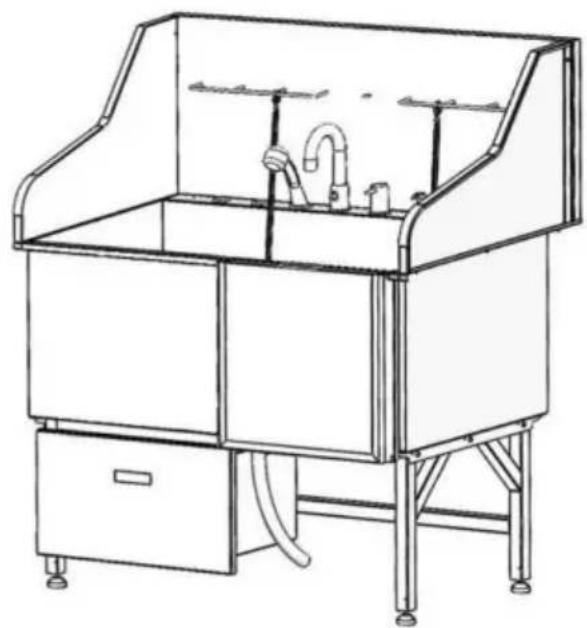

(LZX-16L) (LZX-16R)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.
• Please wipe the cylinder dry with a cloth after use to extend the life.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning!Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

Necessary safety equipment:

Gloves, goggles

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

1 pc		1 pc		1 pc		1 pc
1: Tub		2: Base		3: Left side pa		4: Right side panel
1 pc		1 set		1 set		2 pcs
5: Reverse side side panel		6: Take a show		7: Downcomer		8: Base
2 pcs		4pcs		2 pcs		2 pcs
9: Plastic Floor Grate		10:Adjustable Angle pad		11: Lifting rope		12: Adapter (in the 6: Tak a shower)
1 set		1 pc		1 pc		1 pc
13:Soap dispenser		14: Hanging ring		15: Hex key Allen wrench		16: Hex key Allen wrench
6 pcs		4 pcs		12+2pcs		8 pcs
17: Hexagon fla head screw M8* 16		18: Hexagon flat head screw M8*25		19: Hexagon flat round head screws M6* 16		20: M8 Hexagon nut
2 pcs		4 pcs		4 pcs		1 pc
21: M6*410mm Round steel		22: Half hole Shelf connection		23: Full hole Shelf connection		24: Wrench
1 pair	1 rol		1pc		1 pc		1 pc
25: Cotton gloves	26: Feed str		27: Pet com		28: Licking tray		29: Scouring pad

Installation steps

12 (12 x 4)

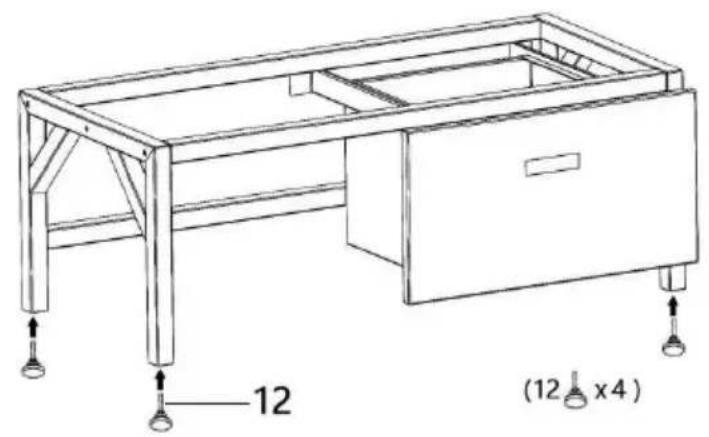

① Install the adjusting feet on the base bracket. Note: The depth of the movable foot is not less than 12mm, and the depth of the four movable foot screws should be consistent as far as possible. Tighten the spare nut during installation and adjust it later.

Technical line drawing of a mechanical device with an inset magnified detail showing a component labeled '17' (no text or symbols on the diagram itself)

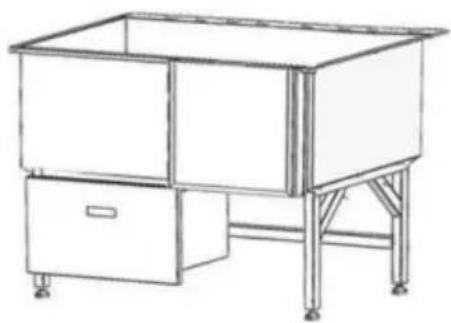

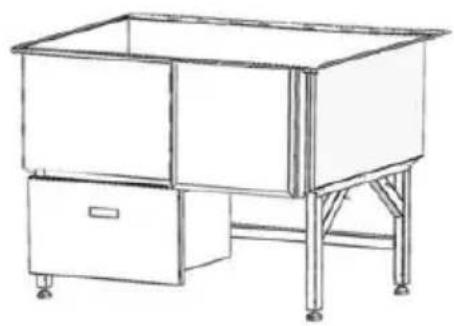

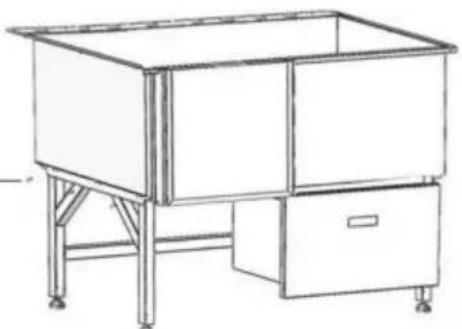

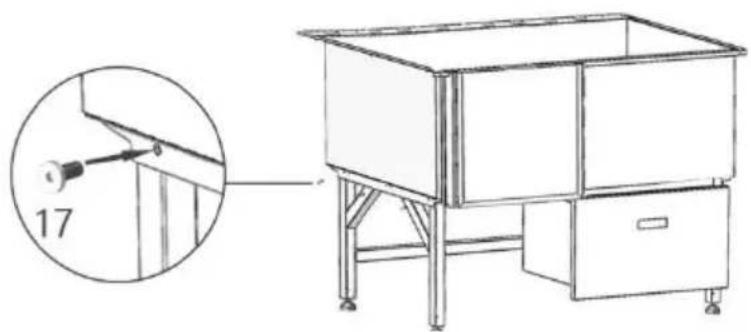

② Place the bathtub in the bottom bracket and secure the bottom brack and bathtub with screws and nuts.

Left Door Right Door

Line drawing of a simple rectangular metal cabinet with two doors and legs (no text or symbols)

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

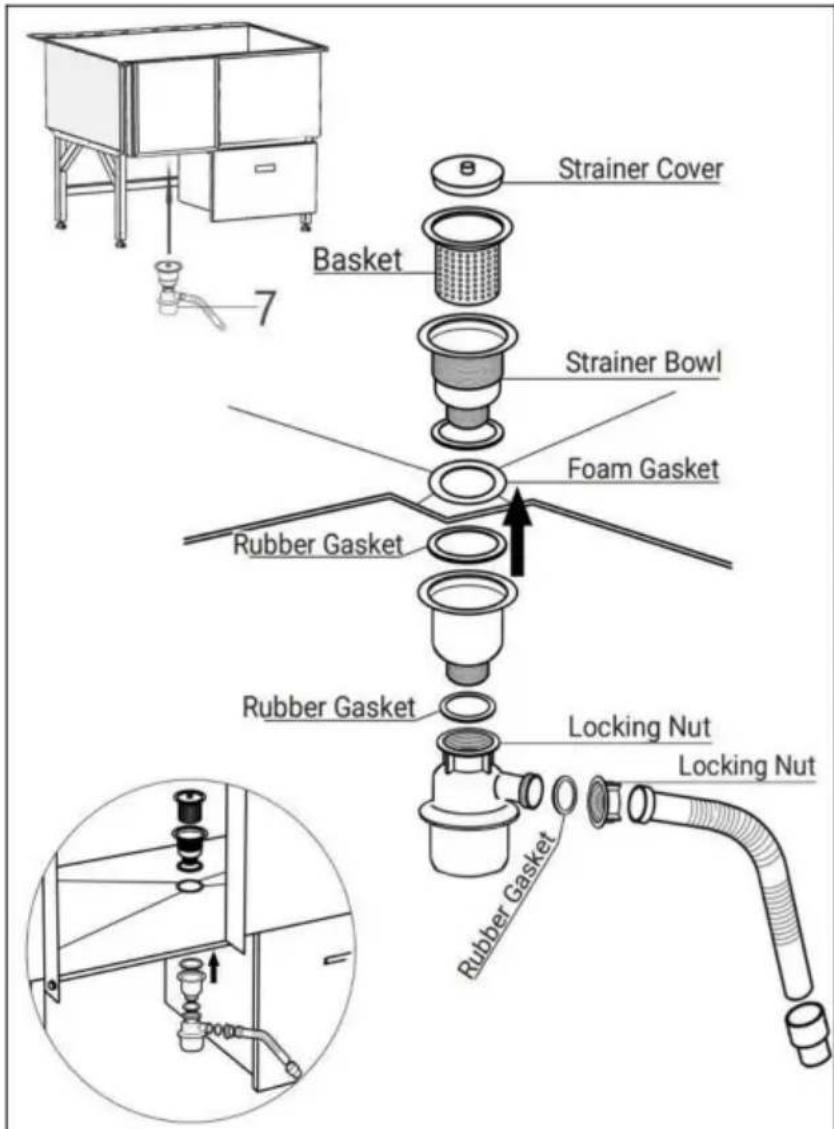

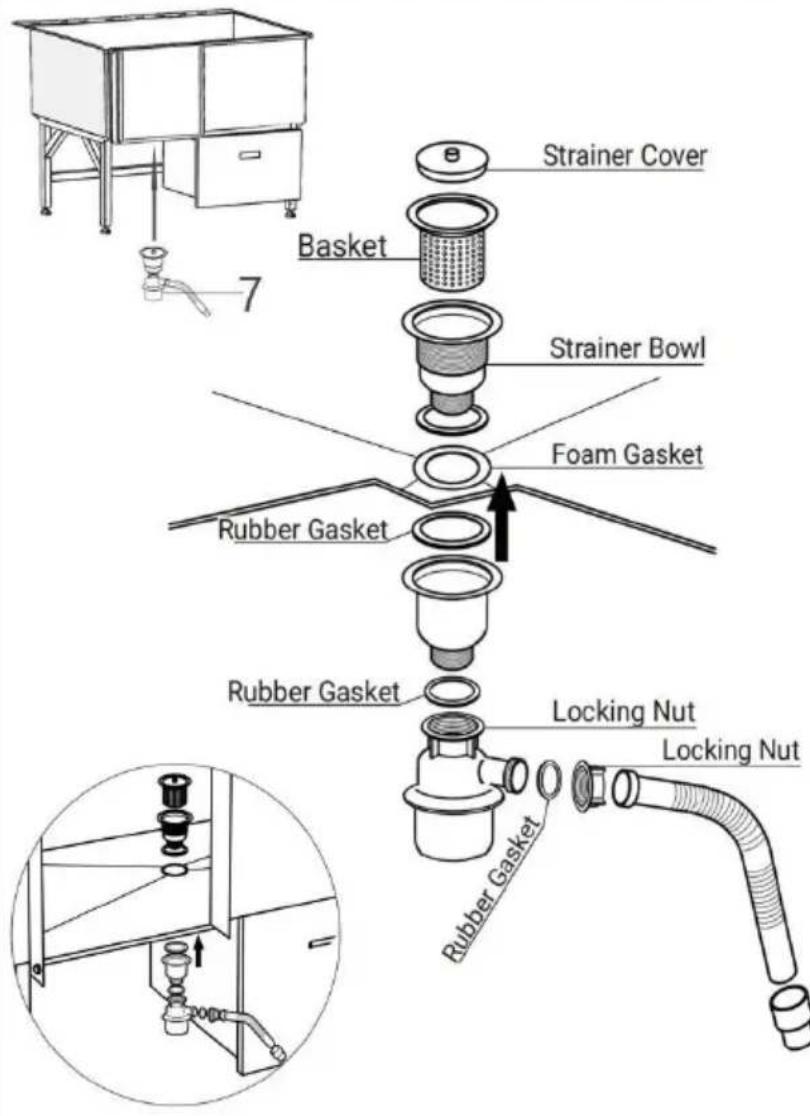

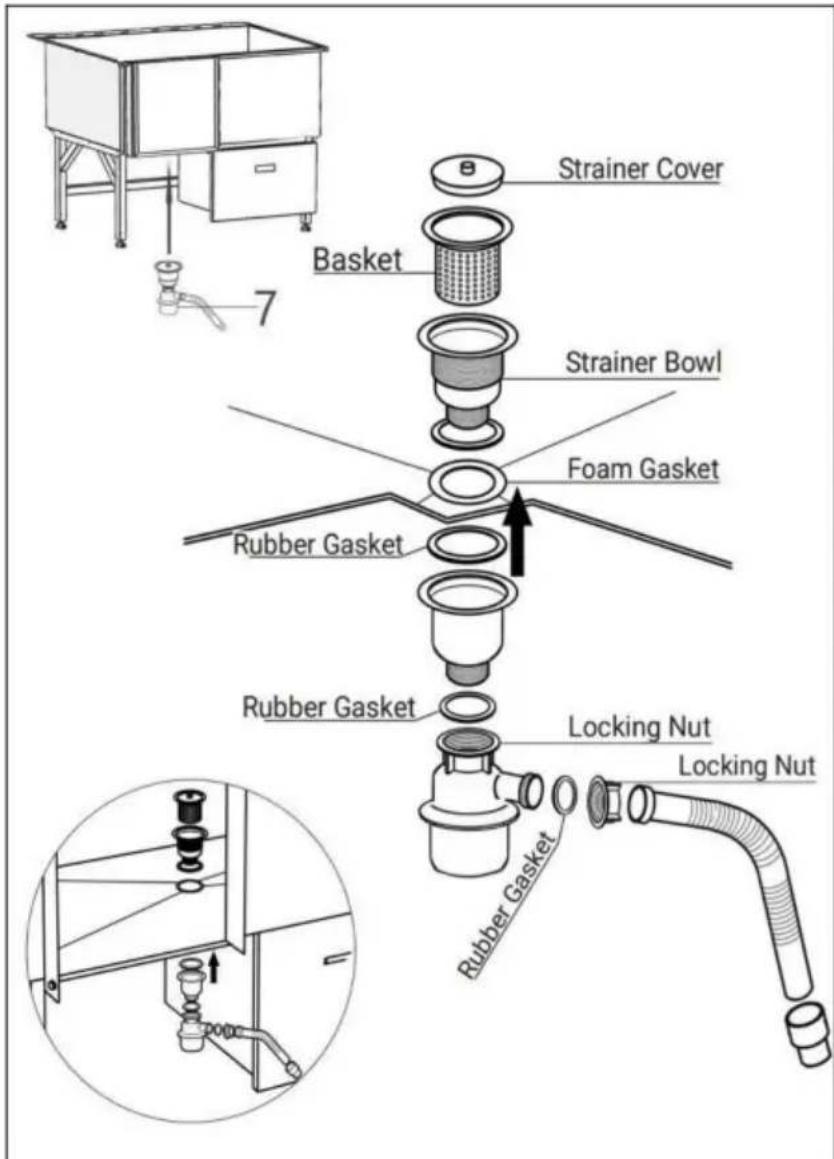

	4 Install the strainer,ensure that the sealing ring is free of dislocation and wrinkles.Caution:When installing please pay attention to whether the sealing ring placed correctly, avoid water leakage due to incorrect seal installation. And check whether the transparent cover of the drain is tightened.Note:Please refer to the instructions attached to the downpipe sleeve box for detailed installation instructions

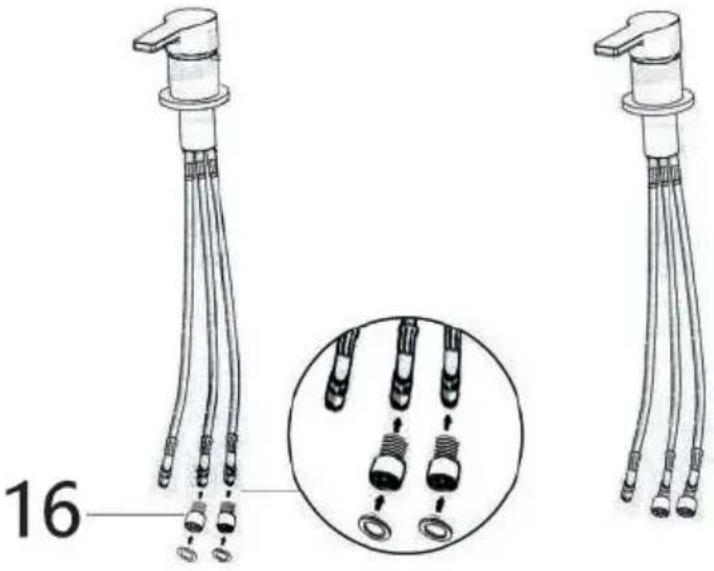

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)	5 Access adapterPut the rubber ring into the adapter, and connected the adapter to the cold water pipe and hot water pipe respectively.Caution:The normal size of the water inlet pipe NPT9/16. If you need to switch to G1/2, please install an adapter.Adapter in the 6: Take shower.

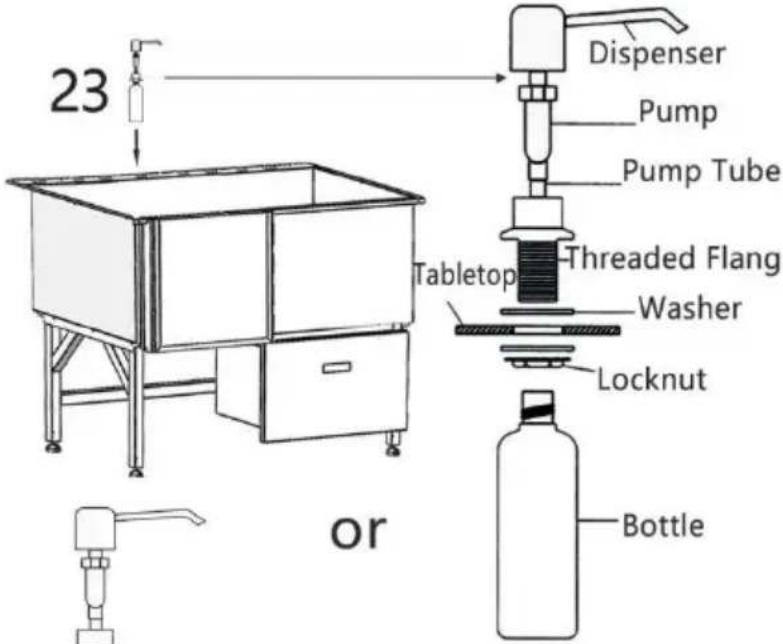

(Note: Please refer to the manual attached to the soap dispenser cartridge for detailed installation instructions.)	6Soap dispenser installation: Prepare the soap dispenser, insert the pump head into the sin mounting hole, align the fastener with the bottleneck and tighten it clockwise, take out the bottle and align the bot with the bottleneck and tighten it clockwise.Or:Put the suction pump head into the slot, fix t pump head, lift the pum head to connect the silicone tube, and put the gravity ball into the dishwashing liquid.

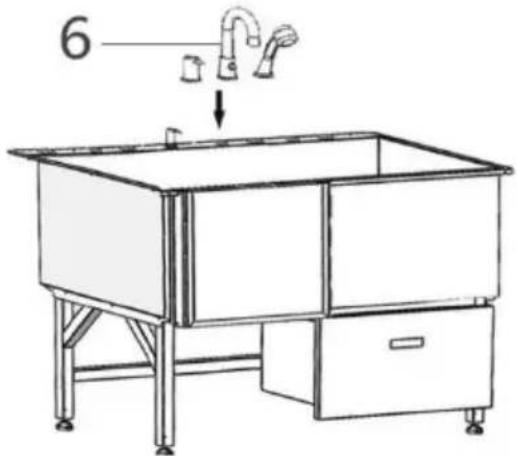

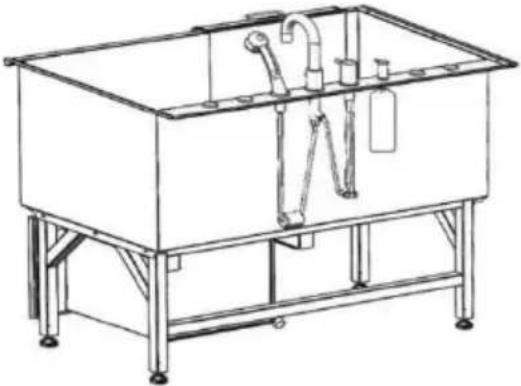

	7Install the shower to ensure that the seal ring free of dislocation and wrinkles.Note1: During installation please pay attention to whether the sealing ring placed correctly to avoid water leakage due to incorrect sealing installation. And check that the shower is tight.Note2: Please refer to instructions attached to the faucet sleeve box fo detailed installation instructions

24

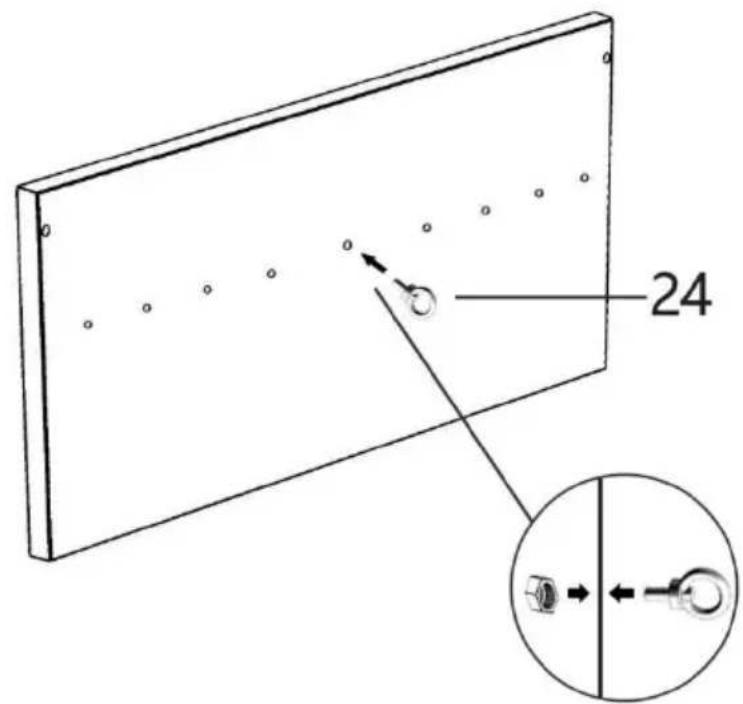

⑧Install the lifting ring: Install the ring in hole 5 of the tailgate.

(1)

27 26

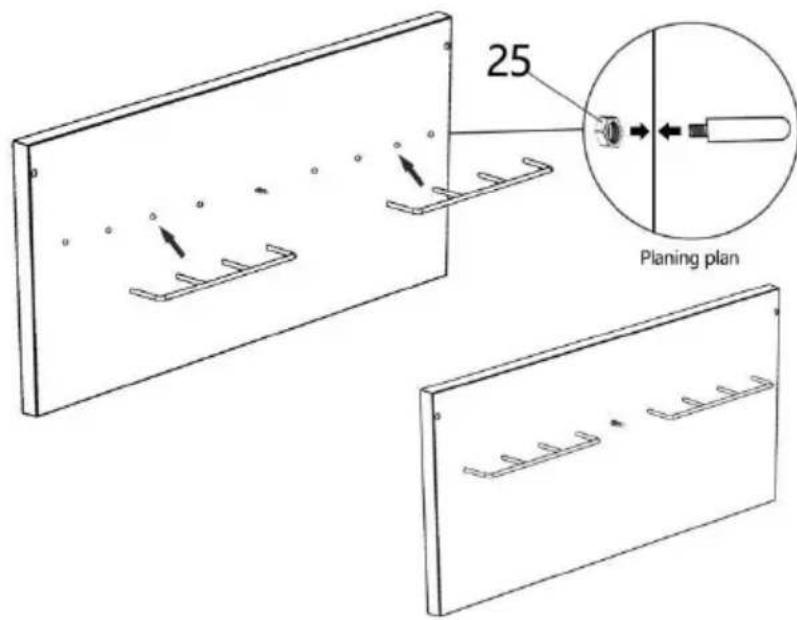

⑨Install the air drying rack connector:

(2)

28

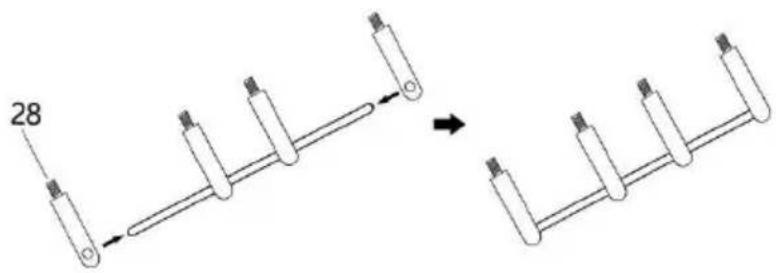

First, the two full-hole connectors are inserted into the round steel, and then the two half-hole connectors are placed at each end of the round steel

	10Air drying rackinstallation: First alignthe air drying rackconnector with the holethe rear baffle, then fixconnecting head on bothsides of the rear bafflewith nuts, and then fixmiddle connecting headon the rear baffle withnuts.

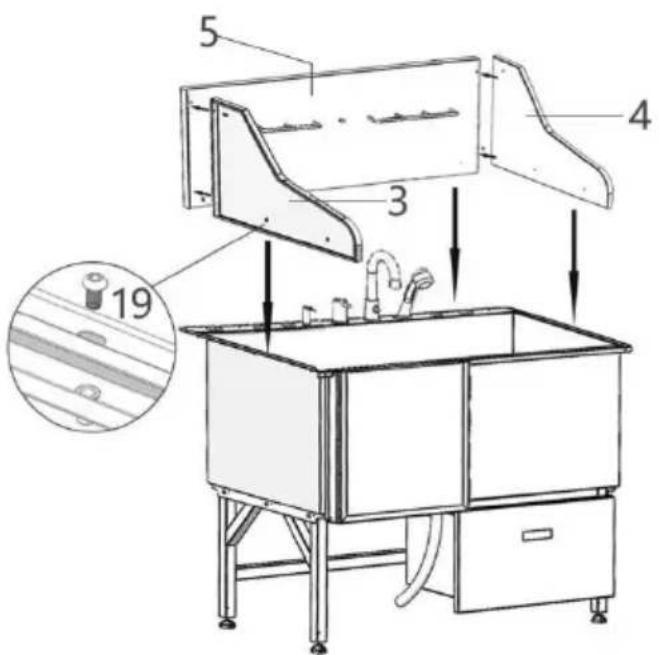

	11Screw the left andbaffles, then screw theback panels, and finallyscrew the left and rightbaffles and the backpanels.

©

Technical line drawing of a mechanical device with internal components and no visible text or symbols

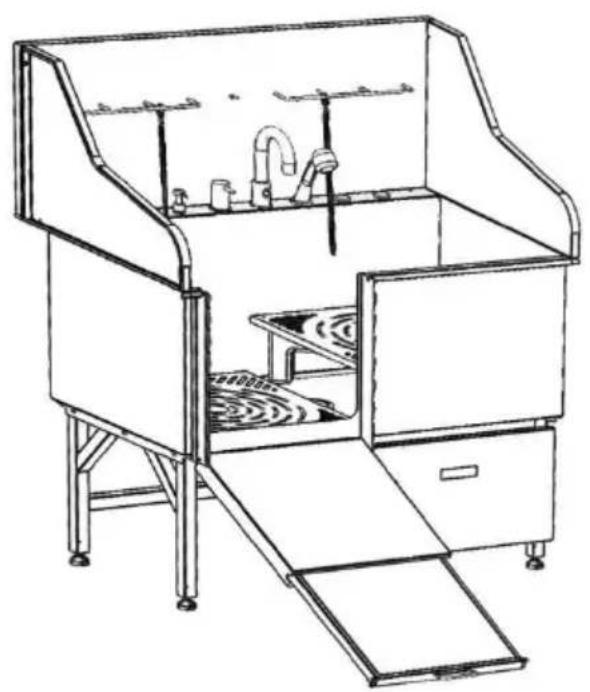

⑭ Put the filter board the tub.

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with no visible text or symbols

Left Door

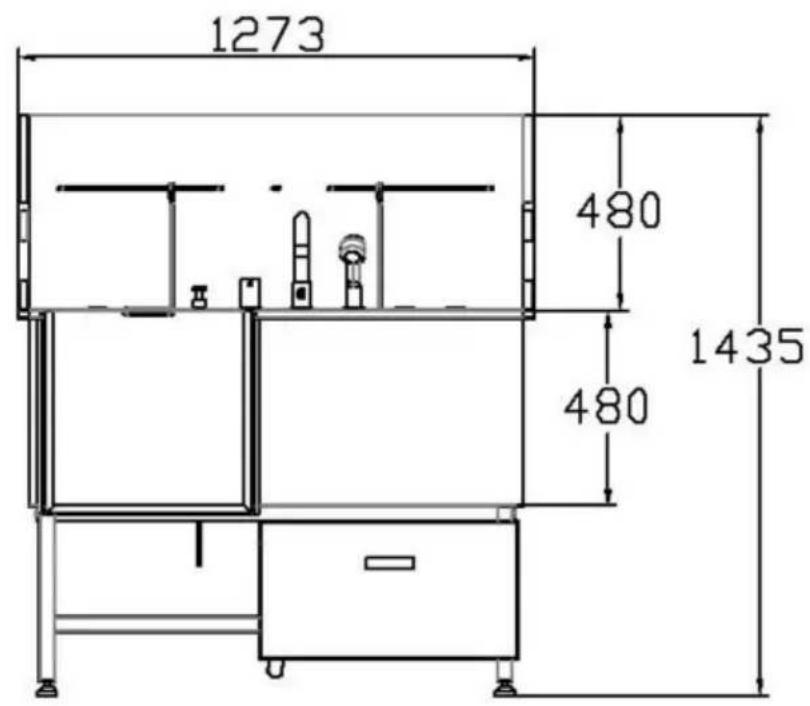

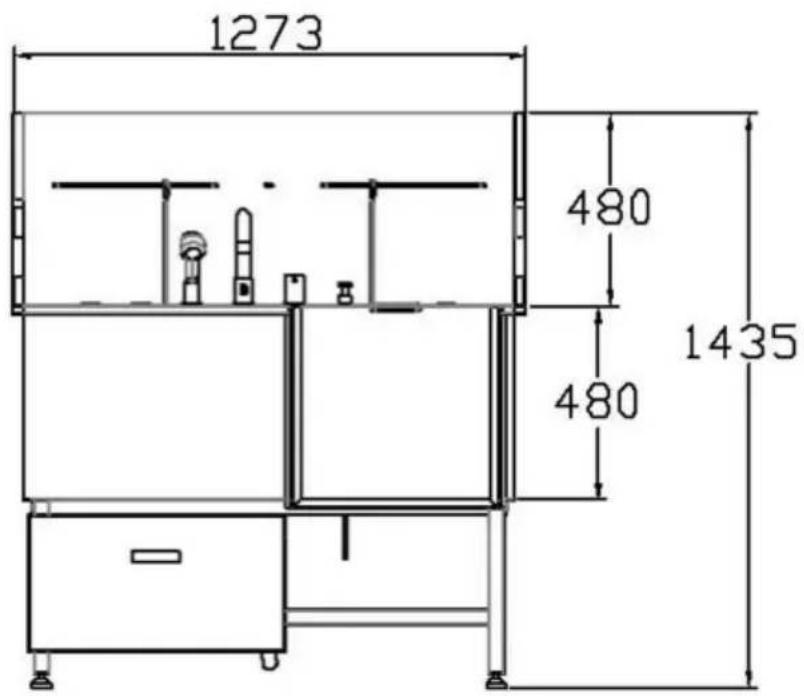

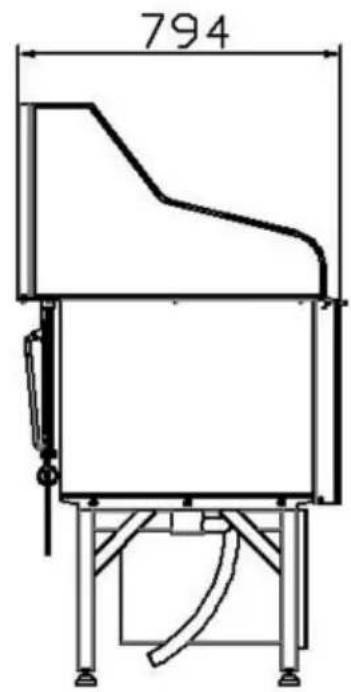

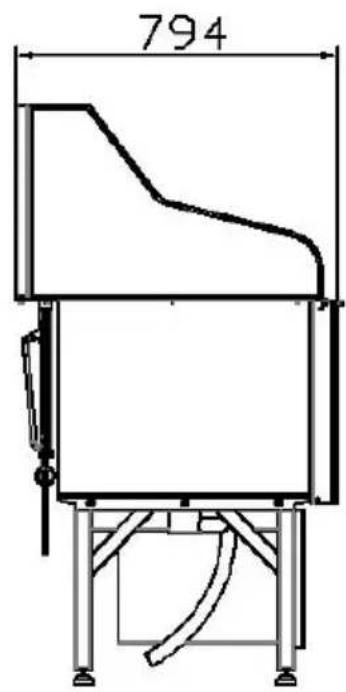

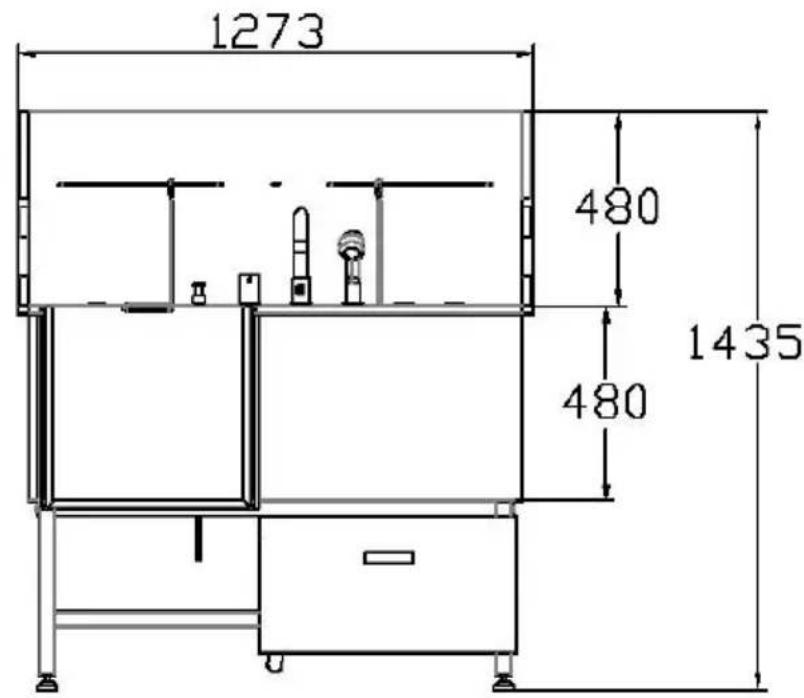

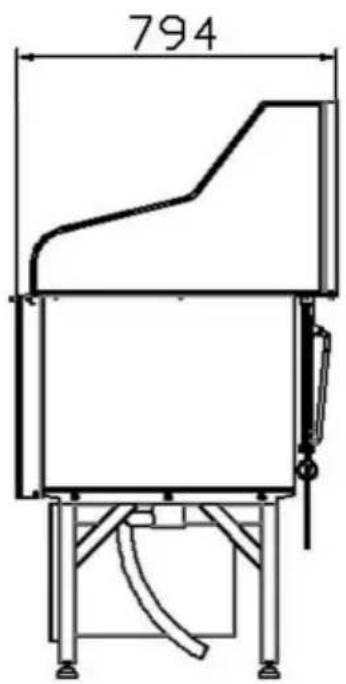

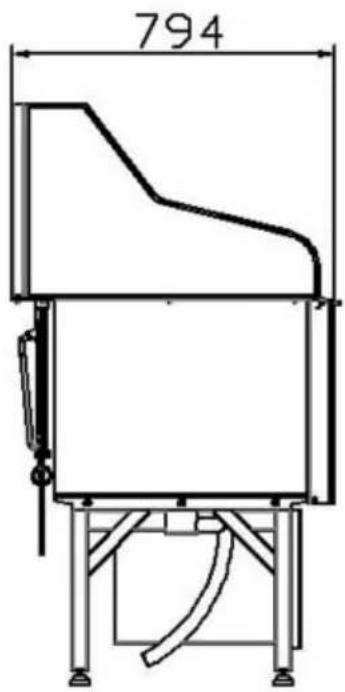

(Unit: mm)

1273 480 1435 480

794

Right Door

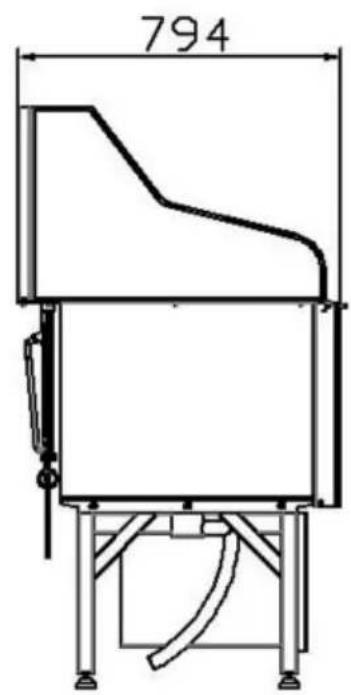

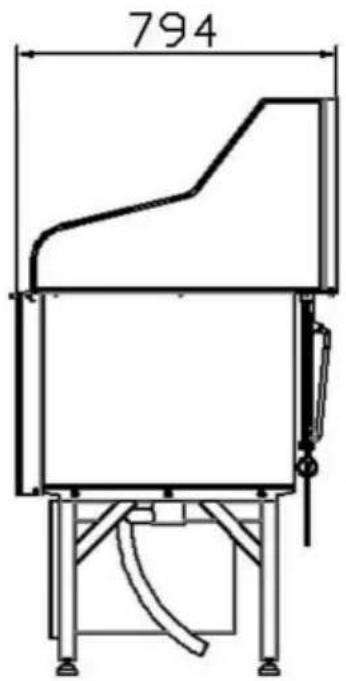

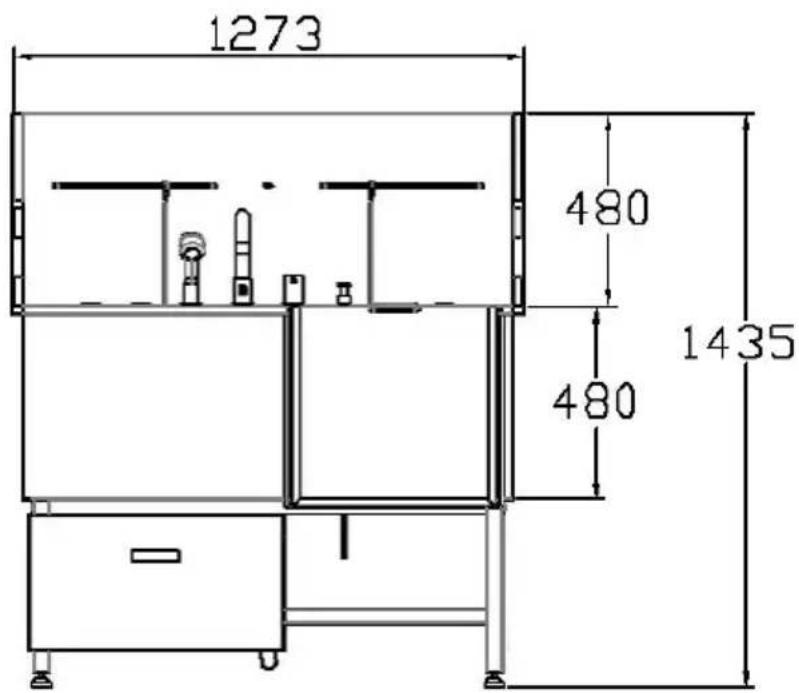

(Unit: mm)

1273 480 1435 480

794

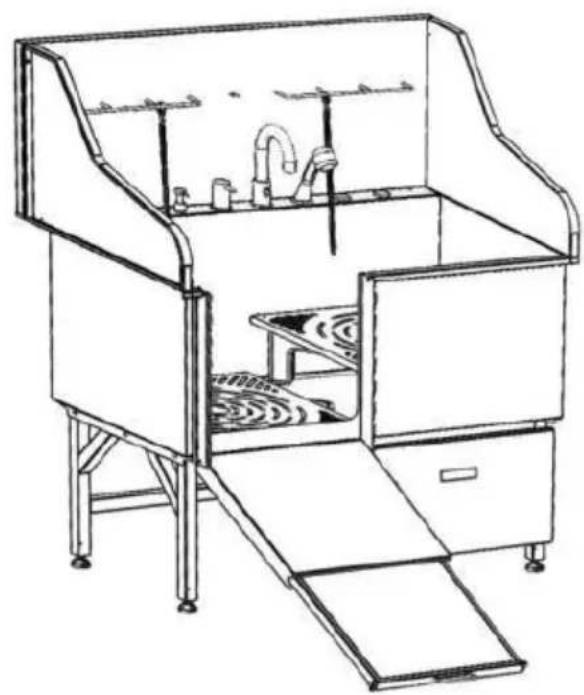

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch)

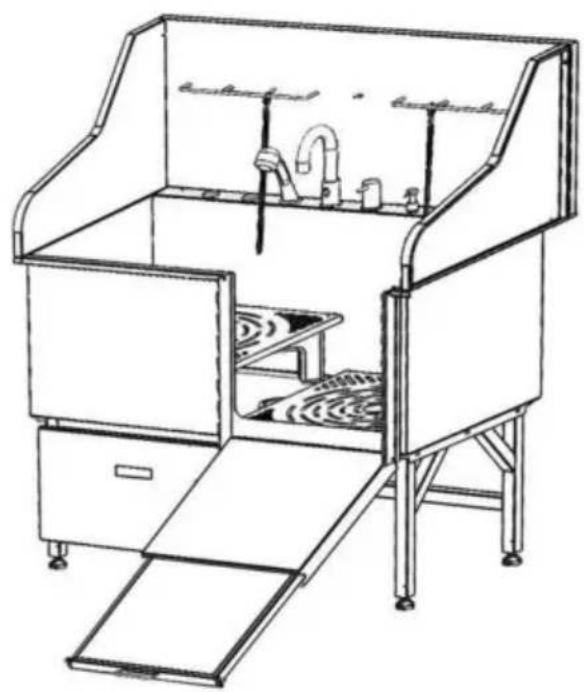

2. Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door.
3. Start to bath.
4. After the bath, let the water out of the tub and take the animal o
5. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogg
3. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage injury to yourself or your pet. Follow the instructions carefully and core customer service or a local contractor if any point is confusing, too close for you to do on your own, or requires special modification for your customers. Keep these instructions for future reference. Provide them to anyone will use this device and provide them with this device if it is ever sold to a third party.

- ONLY use this bathtub for its intended purpose, bathing medium-size pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity whose predisposition becomes violent upon contact with water, or who physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow the play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with nonidentical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness unavoidable, take precautions to prevent the pet from harming you,

themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg). Particularly for larger animals, be careful to prevent them from jumping moving in such a way that causes violent impacts as this might exceed capacity.

- DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected possible splashing during bathing. DO NOT use any chargers or exter cords closer than this distance without similar protection.

- Electrical devices such as electrical transformers, televisions, lights, an telephones should be at least 6'7" (2 m) away from this bathtub at . In particular, never bring a chargingcell phone near the bathtub and r allow any electrical device to be placed or used in such a way that fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that do its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water. - An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub. - Make sure your water supply for this bathtub is turned off during installation.

• NEVER allow the water level to rise above the level of your pet's during use.
• DO NOT set up or leave this bathtub in temperatures below 32^ . Do not turn on the shower if there is any possibility water in its line frozen.
• DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathingwater. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.
• DO NOT allow dirty and stagnant water to remain in this bathtub long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

• Adequate ventilation should be provided to safely deal with the expected heat and humidity.
• The water temperature should be close to your pet's body temperat. Water that is either too cold or too hot will cause discomfort, may in your pet's skin, and may even cause injury or illness.Before use, lear about the appropriate water temperatures for bathing your pet.For best results, set your water heater's maximum temperature accordingly if possible.If adding preheated water, make sure it is within the tempera range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

BAIGNOIRE DE TOILETTAGE POUR CHIENS

MODÈLE : LZX-16L \ LZX-16R

QR code image containing encoded data, no visible human-readable text

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16L)

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16R)

BESOIN D'AIDE ? CONTACTEZ-NOUS !

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base cabinet (no text or symbols)

Porte de droite

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

DIMENSIONS ET PARAMÈTRES

Porte de gauche

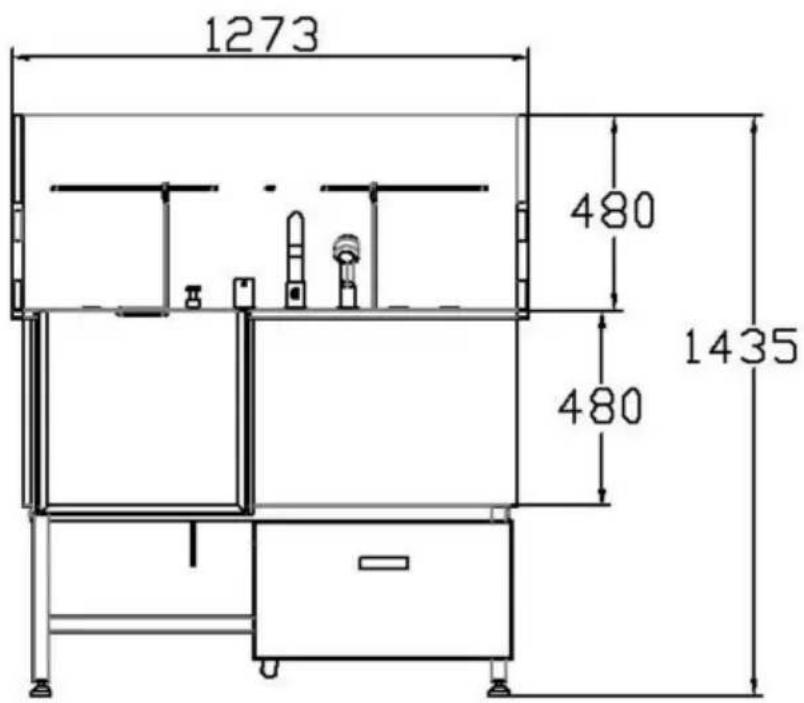

(Unit: mm)

1273 480 1435 480

794

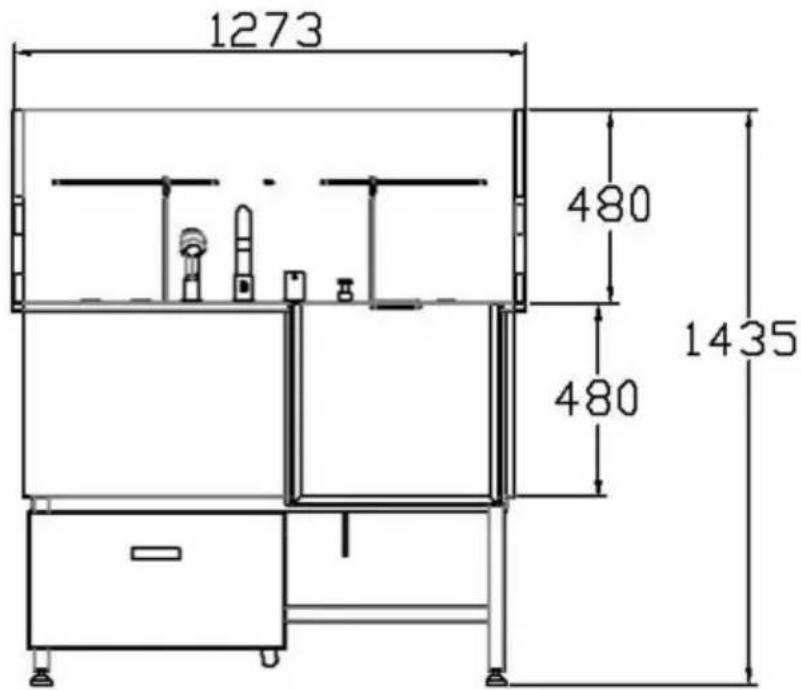

(Unit: mm)

Porte de droite

1273 480 1435 480

794

OPÉRATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CONSEILS D'ENTRETIEN

YH CONSULTING LIMITED. C/O YH Consulting Limited Bureau 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH Mainzer Landstr.69, 60329 Francfort-sur-le-Main.

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16L)

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16R)

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Simple line drawing of a mechanical component with a pin and label '17' (no text or symbols beyond the number)

Line drawing of a simple rectangular metal cabinet with a side drawer and support legs (no text or symbols)

Line drawing of a simple rectangular metal cabinet with a side drawer and base cabinet (no text or symbols)

Rechte Tür

Line drawing of a simple rectangular metal cabinet with a side drawer and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

PFLEGEHINWEISE

Place, Rancho Cucamonga, CA 91730

Britische Republik

EG-Vertreter

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

VASCA PER TOELETTATURA CANI

MODELLO: LZX-16L \ LZX-16R

QR code image containing encoded data, no visible human-readable text

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16L)

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16R)

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base cabinet (no text or symbols)

Porta destra

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

DIMENSIONI E PARAMETRI

Porta sinistra

(Unit: mm)

1273 480 1435 480

794

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

ISTRUZIONI PER LA CURA

Importato in AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD

Nuovo Galles del Sud 2122 Australia

Importato negli USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim

Luogo, Rancho Cucamonga, CA 91730

RAPPRESENTANZA DEL REGNO UNITO

YH CONSULTING LIMITED. C/O YH Consulting

Limited Ufficio 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

elettronica www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

BAÑERA DE PELUQUERÍA PARA PERROS

MODELO: LZX-16L \ LZX-16R

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical device with pipes and control panels (no text or symbols)

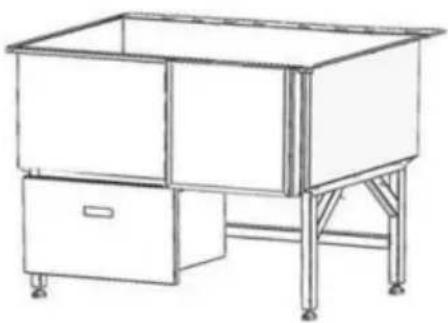

(LZX-16L)

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

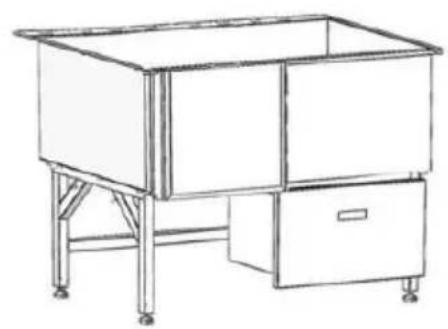

(LZX-16R)

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base (no text or symbols)

Puerta derecha

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

DIMENSIONES Y PARÁMETROS

Puerta izquierda

(Unit: mm)

1273 480 1435 480

794

Puerta derecha

(Unit: mm)

1273 480 1435 480

794

OPERACIÓN

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical device with pipes and control panels (no text or symbols)

Line drawing of a laboratory apparatus with control panel and tubing (no text or symbols)

(LZX-16R)(LZX-16L)

POTRZEBUJESZ POMOCY? SKONTAKTUJ SIĘ Z NAMI!

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base cabinet (no text or symbols)

Prawe drzwi

Line drawing of a simple rectangular metal cabinet with a side drawer and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

WYMIARY I PARAMETRY

Drzwi lewe
(Unit: mm)

1273 480 1435 480

794

(Unit: mm)

Prawe drzwi

1273 480 1435 480

794

DZIAŁANIE

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

YH CONSULTING LIMITED. C/O YH Consulting Limited Biuro 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

E-CrossStu GmbH Mainzer Landstr.69, 60329 Frankfurt nad Menem.

VEVOR®

TOUGH TOOLS, HALF PRICE

QR code image containing encoded data, no visible human-readable text

Technical line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16L)

Line drawing of a mechanical device with pipes and control panels (no text or symbols)

(LZX-16R)

HULP NODIG? NEEM CONTACT MET ONS OP!

Simple line drawing of a standing dog (no text or symbols)

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified view showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base cabinet (no text or symbols)

Rechter deur

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

AFMETINGEN EN PARAMETERS

Linker deur

(Unit: mm)

1273 480 1435 480

794

Rechter deur
(Unit: mm)

1273 480 1435 480

794

WERKING

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

ONDERHOUDSINSTRUCTIES

YH CONSULTING LIMITED. C/O YH Consulting Limited Kantoor 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

QR code image containing encoded data, no visible human-readable text

Installationsvideoguide

Line drawing of a laboratory apparatus with tubing and control panel (no text or symbols)

(LZX-16L)

Line drawing of a laboratory apparatus with tubing and control panel (no text or symbols)

(LZX-16R)

BEHÖVER HJÄLP? KONTAKTA OSS!

Simple line drawing of a standing dog (no text or symbols)

FÖRBEREDELSER INNAN INSTALLATION

12 (12 x 4)

Technical line drawing of a mechanical device with an inset magnified detail showing a component labeled '17' (no text or symbols on the diagram itself)

Line drawing of a simple rectangular metal cabinet with a side drawer and base (no text or symbols)

Höger dörr

Line drawing of a rectangular industrial machine with a cabinet and support legs (no text or symbols)

Strainer Cover Basket Strainer Bowl Foam Gasket Rubber Gasket Rubber Gasket Locking Nut Locking Nut Rubber Gasket

(Note: Please refer to the instructions attached to the faucet sleeve box for detailed installation instructions.)

Technical line drawing of a mechanical device with internal components and no visible text or symbols

Technical line drawing of a mechanical device with internal components and mounting base (no text or symbols)

Line drawing of a laboratory apparatus with open lid, side panels, and internal components (no text or symbols)

DIMENSIONER OCH PARAMETRAR

Vänster dörr

(Unit: mm)

1273 480 1435 480

794

Höger dörr
(Unit: mm)

1273 480 1435 480

794

DRIFT

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

SKÖTSELINSTRUKTIONER

Place, Rancho Cucamonga, CA 91730

UK

REP

EC

REP

YH CONSULTING LIMITED. C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

www.vevor.com/support
