KZ-S3 - Ultrasonic cleaner Vevor - Free user manual and instructions

Product Type	Ultrasonic Cleaner
Brand	Vevor
Model	KZ-S3
Tank Capacity	3 Liters
Ultrasonic Frequency	40 kHz
Ultrasonic Power	120 W
Heating Power	150 W
Cleaning Time Range	0 to 30 minutes
Temperature Range	0 to 80 °C
Display	Digital (temperature and time)
Tank and Housing Material	Stainless Steel
Product Dimensions (L x W x H)	265 x 165 x 225 mm
Net Weight	3.15 kg (approx)
Included Accessories	Stainless Steel Cleaning Basket
Power Supply	220 V AC (standard wall outlet)
Pause Function	Yes, with auto resume
Overheat Protection	Automatic shut-off in case of overheating
Recommended Use	Glasses, jewelry, office supplies, tableware
Maintenance	Clean the tank with a soft sponge; do not immerse the device
Warranty	Technical support via www.vevor.com/support

Frequently Asked Questions - KZ-S3 Vevor

What liquids can I use in the KZ-S3 ultrasonic cleaner?

It is recommended to use clean water or a specific ultrasonic cleaning solution. Never use flammable or corrosive liquids. The water level must not exceed the MAX mark and must have a minimum depth of 7 cm.

Can I clean all types of jewelry?

No, avoid cleaning soft gemstones (pearls, opals, emeralds, coral, ivory), wooden items, or jewelry with glued stones. Diamond rings may lose their stones. Consult the list of suitable items in the manual.

How to adjust time and temperature?

Briefly press the Time button to select the duration (0-30 min) and press Temp for temperature (0-80°C). Then press ON/OFF to start. You can pause by pressing ON/OFF again.

Can I use the cleaner without liquid?

No, never operate the device without liquid in the tank. This would damage the transducer. Make sure the minimum level is met (7 cm depth).

How to clean the tank after use?

Empty the dirty water, wipe the tank with a soft cloth and clean water. Use a non-abrasive sponge. Avoid getting water into the electrical connections. Dry with a dry cloth.

What to do if the cleaner stops during the cycle?

The device may automatically shut off in case of overheating. Let it cool for about 5 minutes before restarting. If the problem persists, unplug and contact technical support.

Can children use this device?

Children aged 8 and above can use it under supervision. Children must not play with the device. Cleaning and maintenance must not be carried out by children without supervision.

Can I use the basket for all items?

It is recommended to use the basket for small delicate items to avoid damage. Do not stack items and leave enough space between them for effective cleaning.

How to avoid splashes?

Keep the lid closed during use. This reduces splashes and liquid evaporation. Ensure the liquid level does not exceed the MAX mark.

Where can I find spare parts?

Contact Vevor customer service via www.vevor.com/support for spare parts or repairability information. Do not disassemble the device yourself.

USER MANUAL KZ-S3 Vevor

Technical Support and E-Warranty Certificate https://www.vevor.com/support

ULTRASONIC CLEANERS

USER MANUAL

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

We continue to be committed to providing you with tools at competitive prices. "Save Half", "Half Price", or any other similar expressions used by us only represent an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and do not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

WARNING:

Please read this manual carefully before using the product. Failure to do so may result in serious injury. SAVE THIS MANUAL

SAFETY PRECAUTIONS

When using electrical appliances, basic safety precautions should always be followed, including the following:

Read all instructions carefully.

Keep it away from children!

This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. To avoid electrical shock:

1) DO NOT run the cleaner continuously for more than one hour at a time, as doing so can damage the internal components. 2) DO NOT operate the unit without fluid in the tank. Always ensure fluid is no higher than the max mark, and always ensure there is a minimum depth of 7 cm. 3) DO NOT drop any item into the tank as this may damage the transducer. Always place items gently into the tank and use the basket whenever possible. 4) The more items that you place in your cleaning bath, the less efficient it will clean. It is not advised to overlap items. Always allow plenty of clear space between the items. 5) Keep the lid on during use. This will prevent splashes and re-evaporation of the fluid. 6) Never immerse the machine or power cord in water or other liquids. 7) DO NOT touch the power plug with wet hands, especially when inserting or removing the plug. 8) DO NOT touch the unit if the machine has fallen into water during

operation. Remove the power plug from the socket first.

9) DO NOT disassemble the machine, except by professionals.

10) UNPLUG the power source while filling or emptying the tank.

11) DO NOT spray water or liquid over the device and the control panel.

12) DO NOT operate the cleaner without proper grounding.

13) DO NOT place the device on a soft surface where the vents are blocked.

14) Upon completion of the cleaning cycle, turn the heater knob off and isolate the machine from the power source.

15) Take care when adding or removing items from the cleaning tank; fluid is likely to be hot and displaced fluid can damage the internal components. Any displaced fluid must be dried up immediately.

16) In the event of a malfunction or emergency, disconnect the power supply by

removing the power plug from the electrical outlet.

17) When heating is required, the water level should not be less than full.

18) If the supply cord is damaged, it must be replaced by a special assembly available from the manufacturer or its service agent.

19) The connector must be removed before the appliance is cleaned, and the appliance inlet must be dried before the appliance is used again.

20) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

USE PRECAUTIONS

TO PREVENT SERIOUS INJURY AND DEATH FROM TIPPING:

1. DO NOT SIT OR STAND ON THIS ITEM.
2. When the machine is used several times continuously, in order to prevent damage and failure of the parts caused by overheating, the machine will enter into a system of self-protection. It can be resumed after

minutes.

1. Do not get water directly from the tap. Flooding of the device and switches will lead to malfunction.
2. Do not add anti-toxic, sterilizing, or acidic solvents into the cleaning water.

- May cause deterioration of resin and damage to stainless steel.

1. Do not clean pearls and other articles with low surface hardness (Morse hardness less than 8).

- Can cause damage, discoloration, or loss of luster.

1. Do not wash rings, necklaces with gems and diamonds for a long time.
2. May cause gems/diamonds to fall off.
3. DO NOT use the same socket as TV, radio, and computer.
4. Can affect picture clarity or cause noise.
5. Prevent the device from falling and violent shaking - this can cause breakage, deformation, and malfunction.

TECHNICAL SPECIFICATIONS

Model	KZ-S30/JPS-100	KZ-S22/JPS-80	KZ-S15/JPS-60	KZ-S10/JPS-40
Product Dimensions (L*W*H)(mm)		530*330*2753	0*330*325 5 3	55*325*275 330*270
Packing Size (L*W*H) (mm)	635*405*380	425*380*32635	405*330 5 40	0*300*325
Net Weight (kg)	12 11.2/	10.35 7.6/8.4	6
Gross Weight (kg)	13.55	12.5	8.6/9.2	6.7
Capacity (L)	30	22	15 10
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	600	480	360	240
Heating power	600	600	450/400	300/400
(W)
Set time (min)	0-30
Set temperature(°C)	0-80

Model	KZ-S6/JPS-30	KZ-S3/JPS-20	KZ-S2/JPS-10	KZ-S013/JPS-08
Product Dimensions (L*W*H)(mm)	325*175*275	265*165*225	175*165*210	175*165*195
Packing Size (L*W*H) (mm)	395*225*325	310*210*280	22322302024260	0
Net Weight (kg)	4.6	3.15/2.95 2.	25	1.9
Gross Weight (kg)	5.15 2.13	53/3.4 2.5 5
Capacity (L)	6/6.5 3	2	1.3
Ultrasonic Frequency(KHz)	40
Ultrasonic power (W)	180	120	60	60
Heating power (W)	300	150	150	100
Set time (m)n	0-30
Set temperature (°C)	0-80

*Products such as specifications, appearance, and design are subject to modification without prior notice.

PACKAGE CONTENTS

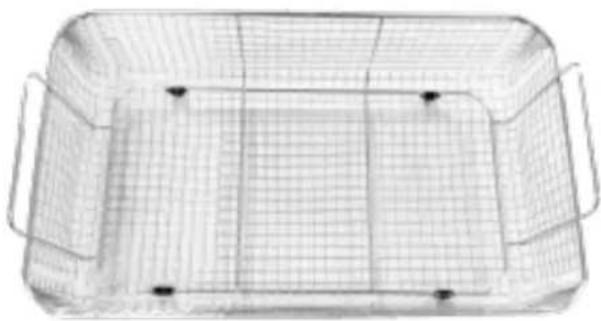

Cleaning basket (Except KZ-S013/JPS-08)

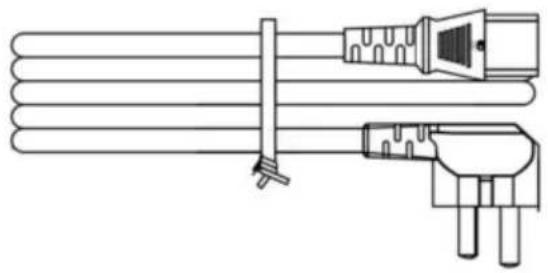

Power cord (The plug is for reference only, subject to the actual object.)

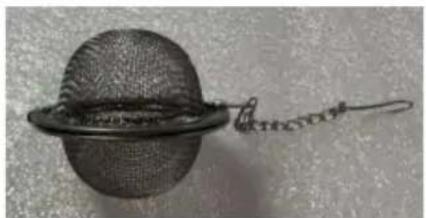

Small cleaning basket

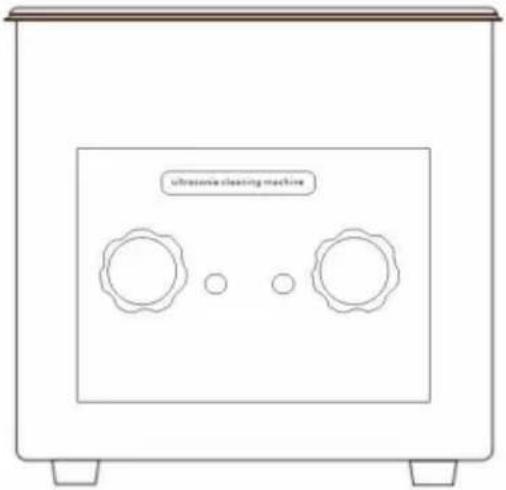

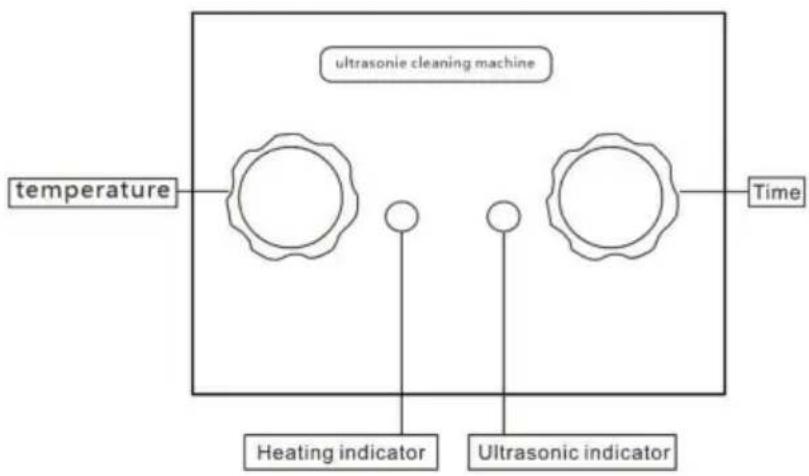

PRODUCT FUNCTIONS

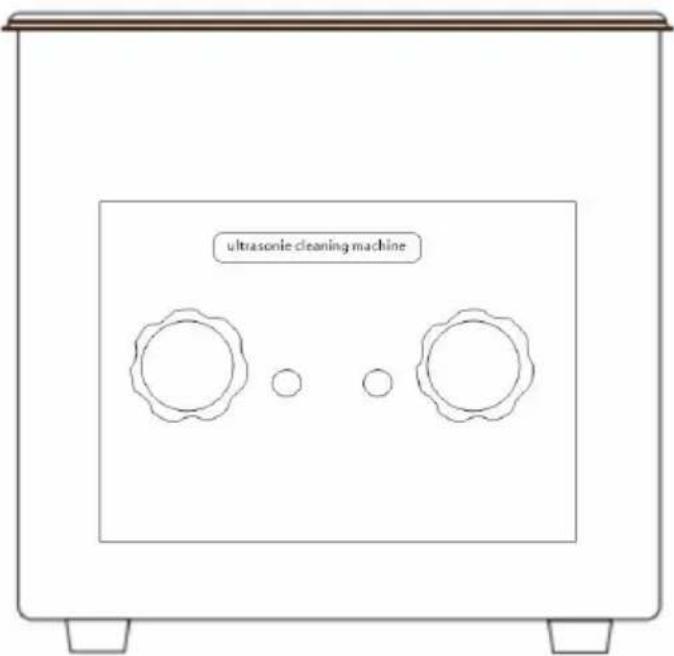

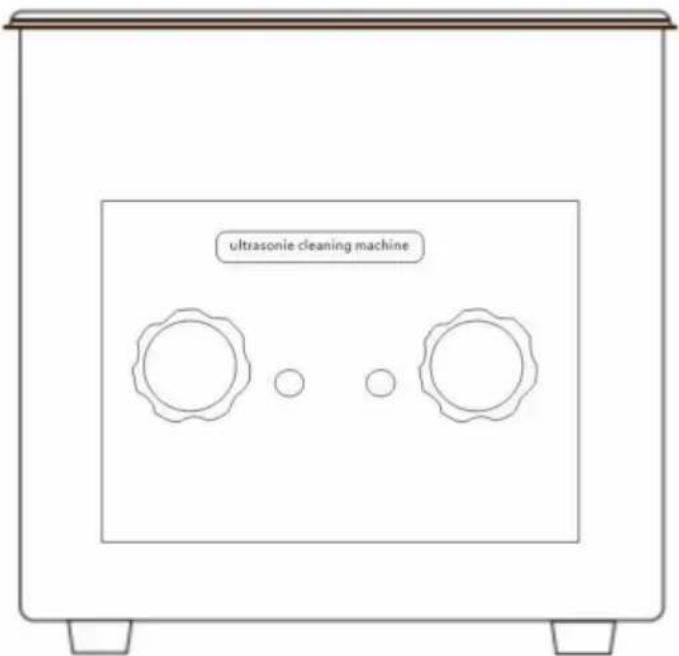

Digital Ultrasonic Cleaner

Features:

• Ultrasonic frequency of 40 kHz
• Digital display of temperature and time. Adjustable temperature from 0-80°C. Cleaning time individually adjustable from 0-30 min. All devices have a useful basket for cleaning parts.
• 6 liter and above size with 1/2" drainage. Material of tank and casing: Stainless steel.

ITEMS TYPE

Items can be cleaned
Type	Specific Items
Glasses	Spectacles (without UV film) tortoise shell frame
Office supplies Ruler, scissors, pen seal etc
Daily supplies Toothbrush. razor blade comb etc
Jewelry Rings, necklaces, earrings, etc
Tableware Metal tableware.ceramic tableware dentures. etc

Items not suitable for ultrasonic cleaning
	Specific ItemsType
Wooden articles	Turtle shell frame, pearl, birthstone opal, emerald coral, ivory, emerald, stone, Lacquer ware.
Gems with softer surfaces
Coating and finishing inferior products
Bonded gemstones
Items with scratches and cracks

It may not be possible to completely remove remaining dental stone, dental wax, wax yellow black spots, and smoking dental, etc.

Possible inability to clean fixed sedatives in dentures.

Discoloration and rust of metals and precious metals cannot be removed.

To clean bonding jewels, diamond necklaces, and rings may cause them to fall off.

OPERATIONS

1. Open the lid, add clean water, put what you need into the tank, ensure the clean water is no higher than the "M" mark. Do not operate the unit without water in the tank.
2. Plug the adapter into the socket of the machine.
3. Plug the adapter power into the power socket.
4. Short press the "Time" button to switch to the desired time, then short press the "ON/OFF" button to start the work.
5. If you want to pause the cleaning, you can short press the OFF button to pause, the countdown on the display is paused. Short press the power button again to continue working.
6. If you want to reselect the time, long press the "ON/OFF" button to return to the standby state, and press the "Time" button to set the time.
7. When the cleaning work is finished, please unplug the power, open the lid, take cleaned items from the tank, pour out dirty water, clean and wipe the tank.

Note: Pour water from the side.

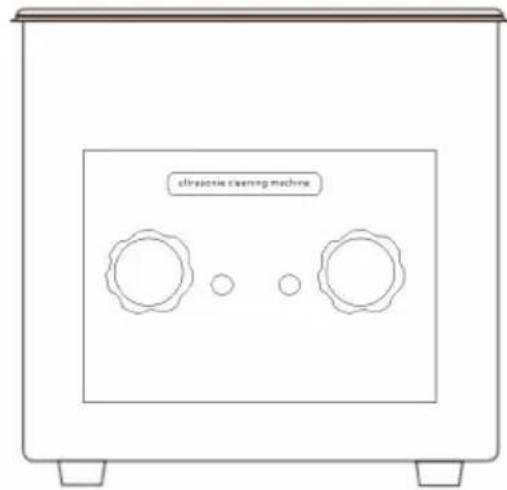

DAILY MAINTENANCE

1. Pour water into the tank with the measuring cup, up to half of the standard line. After washing with a soft sponge, rinse with clean water.
2. Be careful not to seep water into the power connection at the bottom of the cleaning tank.

1. After cleaning, please rinse items with clean water once again. Don't seep water into the power connection when cleaning.
2. When the stains are difficult to remove, please wet a cloth with water, then wipe them. Be careful not to seep water into the switch and power connection.
3. After wiping, dry the device with a dry cloth.

Disposal information:This product is subject to the provision of European Directi 2012/19/EC. The symbol showing a wheelie bin crossed thr indicates that the product requires separate refuse collection European Union. This applies to the product and all access marked with this symbol. Products marked as such may no discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

Manufacturer: Shanghai Muxin Muye Youxian Gongsi

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREET, EASTWOOD NSW 2122

Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

UK

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

Made In China

NO.	Name	Name	Le non	None
1	top cap	Oberkappe	capuchon supérieur	cappuccio superiore
2	ptee Tape	PTFE-Band	ruban PTFE	nastro PTFE
3	drain hose	Entwässerungsschlauch	Tuyau de vidange	tubo di scarico
4	Vater pipe joint	Vasserrohrverbindung	Joint de tuyau d'eau	giunzione del tubo dell'acqua
5	Stainless steel	Edelstahl	Acier inoxydable	acciaio inox
6	Vashing nesh basket	Waschgitterkorb	Panier à mailles de lavage	cesto a rete per lavaggio
7	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
8	Cylinder block	Zylinderblock	Bloc de cylindre	blocco cilindrico
9	Fover substrate	Leistungssubstrat	Substrat de puissance	sostrato di potenza
10	contro board	Steuerplatine	Carte de connande	scheda di controllo
11	casing	Cehäuse	Boltier	custodia
12	handle	Griff	Poignée	maniglia
13	svitch	Schalter	Interrupteur	interruttore
14	Safety seat	Sicherheitssitz	Siège de sécurité	seduta di sicurrezza
15	fuse	Sicherung	Fusible	fusibile
16	Fover cord	Netzkabel	Câble d'alimentation	cavo di alimentazione
17	base	Basis	Base	base
18	foot pad	Fußpolster	Tapis de pied	cuscinetto per i piedi
19	Screv	Schraube	Vis	vite

VEVOR®

TOUGH TOOLS, HALF PRICE

Ultrasonic Cleaners

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

NEED HELP? CONTACT US!

Cleaning basket (except KZ-S013/JPS-08) (The plug is for reference only, subject to the material object.)

PRODUCT FUNCTIONS

Digital Ultrasonic Cleaner

Information about

Power cord (The plug is for reference only, subject to the material object.)

Disposal note:

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

Power cord

(The plug is for reference only, subject to the material object.)

Information about

Power cord 3) The plug is for reference only, subject to the material object.)

MODEL NO.: KZ-S013, KZ-S2, KZ-S3, KZ-S6, KZ-S10, KZ-S15, KZ-S22, KZ-S30, JPS-08, JPS-10, JPS-20, JPS-30, JPS-40, JPS-60, JPS-80, JPS-100

NEED HELP? CONTACT US!

Power cord (The plug is for reference only, subject to the material object.)

NEED HELP? CONTACT US!

Power cord (The plug is for reference only, subject to the material object.)

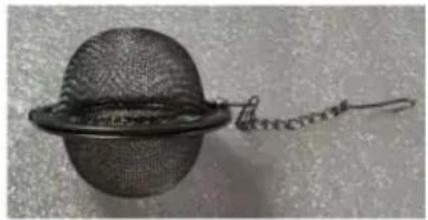

Small cleaning basket
