DOG GROOMING TUB

MODEL: K1E01017/K1E01018

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

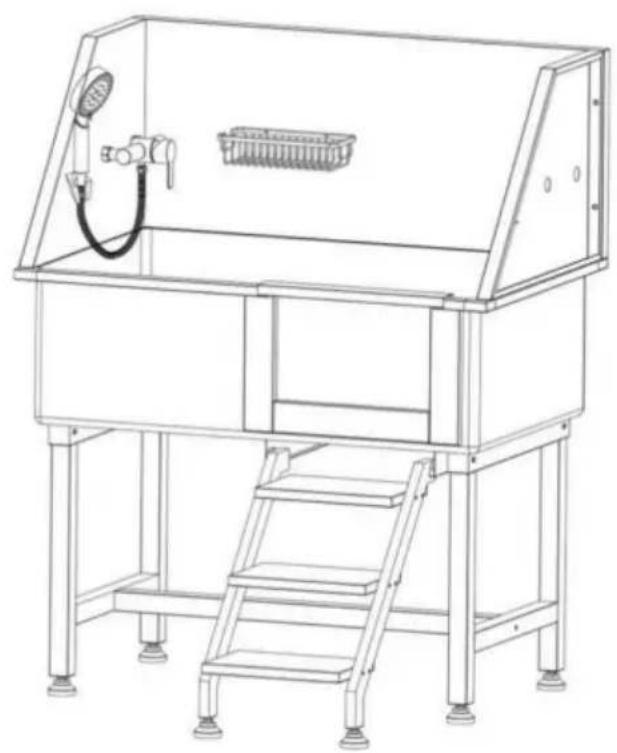

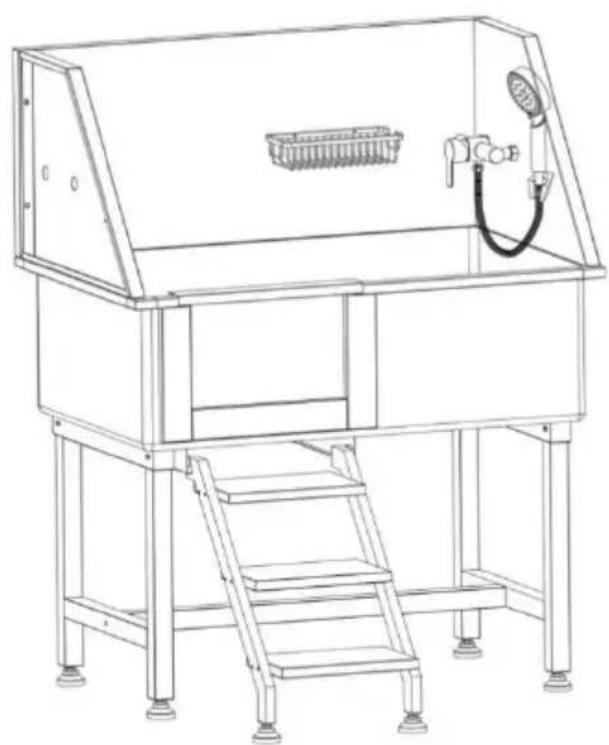

DOG GROOMING TUB

MODEL: K1E01017/K1E01018

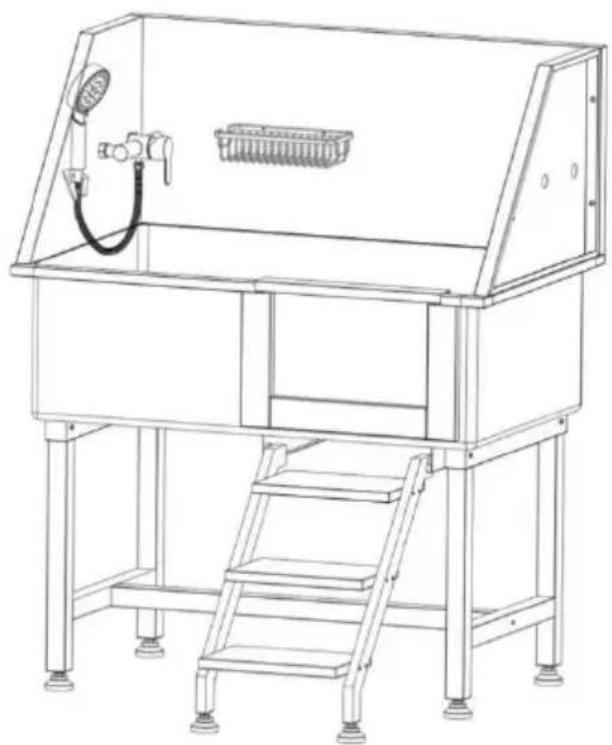

Line drawing of a laboratory apparatus with a ladder, vent, and control panel (no text or symbols)

Technical line drawing of a mechanical enclosure with ladder and control panel (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel from contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.

• Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

1. Necessary safety equipment:

Gloves,goggles

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

A*2	B*1	C*1	D*1
H rack	Tub	Right side panel	Left side panel
E*1	F*1	G*1	H*1
Door	Horizontal tube	Back panel	Faucet switch
J*1	K*1	L*1	M*2 (600mm)
Storage basket	Shower head	Shower hose	Inlet pipe
N*1	P*4 (M4*15mm)	Q*4 (M4)	R*2
Strainer	Screw	Flange nut	Nut
S*1	T*1	U*6	W*2
Shower bracket	Comb	Adjustable foot	Play ball
			###
Y*14(M6*15mm)	Z*12 (M6*35mm)	AA*4 (M8)	AC*6
Screw	Screw	Hex flange nut	Washer
AD*2	AE*1	AF*1	AG*1
Nut	Sealing tape	Gloves	Wrench
AH*3	AJ*2	AK*2	AL*6 (M8*50mm)
Stair board	Ladder rod	Washer	Screw

AM*1	AN*2
Water filter plate	Handle

Installation steps

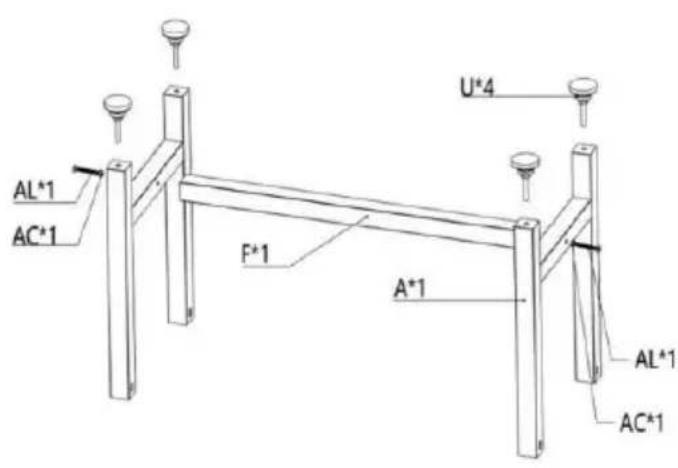

	1 Install the adjustable feet(U) to the H rack(A), and fix the horizontal tube(F) to the H radCaution:Ensure that the depth adjustable feet is not less than 12mm, and try to make the adjustable feet screw in the same depth. Please tighten the spare nut during the installation and adjust it later.

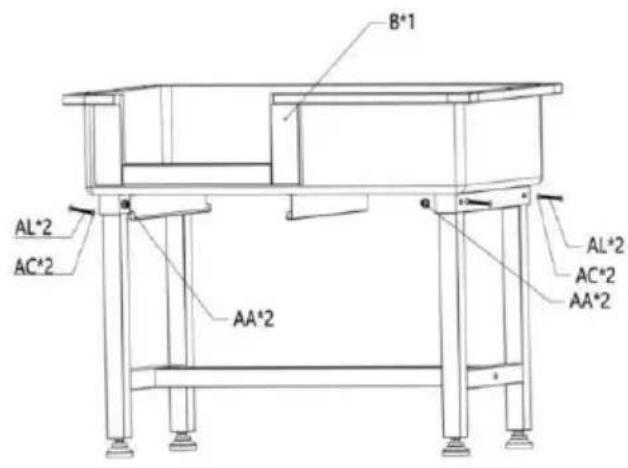

	2 Flip the bottom bracket ar use screw(AL), washer(AC) an flange nut(AA) to fix the bottom bracket and tub(B)
Left Door	Right Door

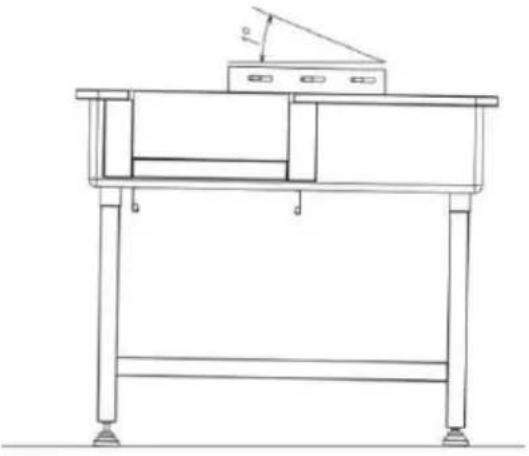

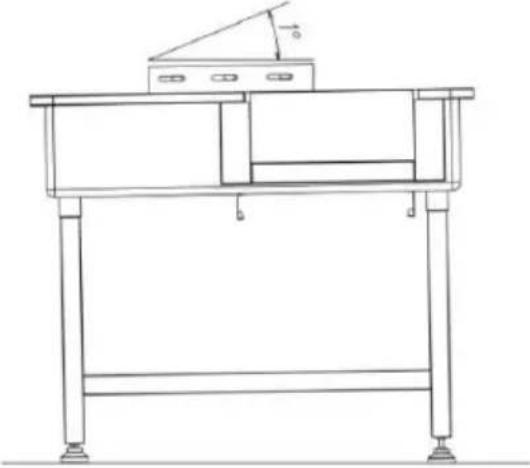

3 Adjust the height of the feet to make sure the height of v side is 1-2 degrees lower than the other side (use a spirit lev

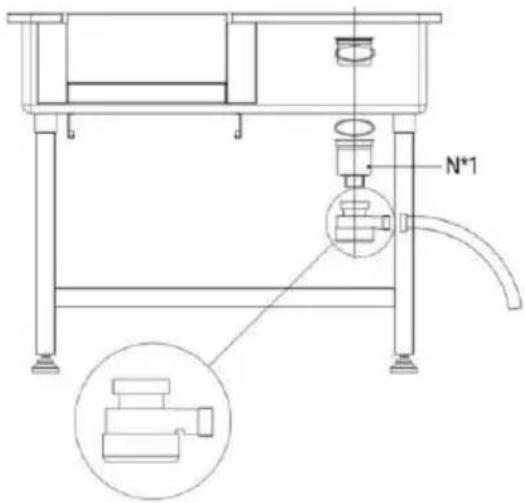

	4 Install the strainer(N),Ensure that the sealing ring is free o dislocation and wrinkles.Caution:When installing, pleas pay attention to whether the sealing ring is placed correctly,avoid water leakage due to incorrect seal installatio

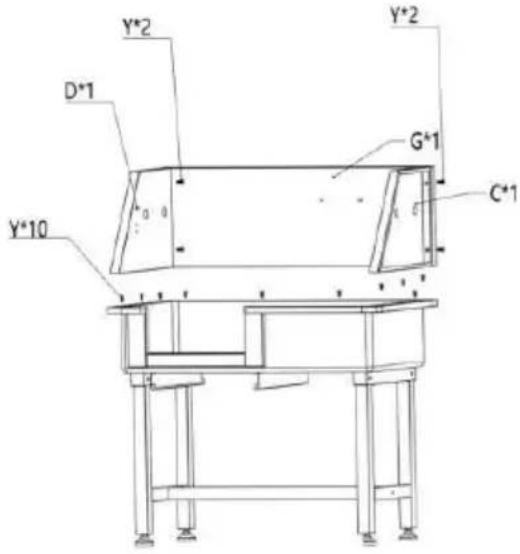

	5 Use screw(Y) to fix the left and right side board(D&C), the use screw(Y) to fix the back panel(G), last to use screw(Y) fix side board(D&C) and back board(G)

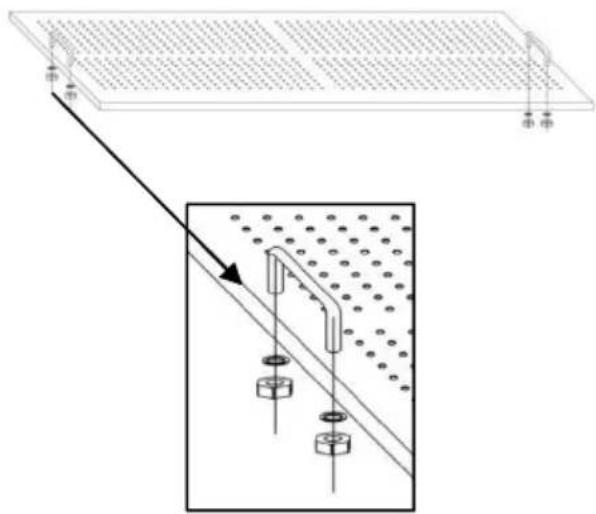

	6 Install the handle(AN) to water filter plate(AM)

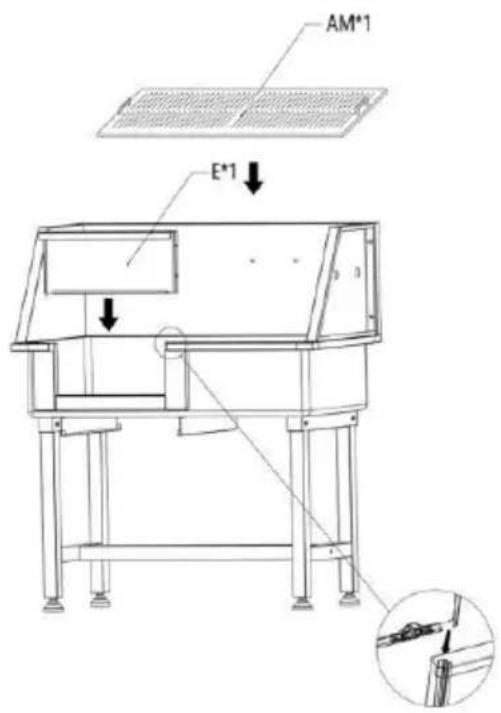

	7 Install door(E) and put the water filter plate to the tub(B)

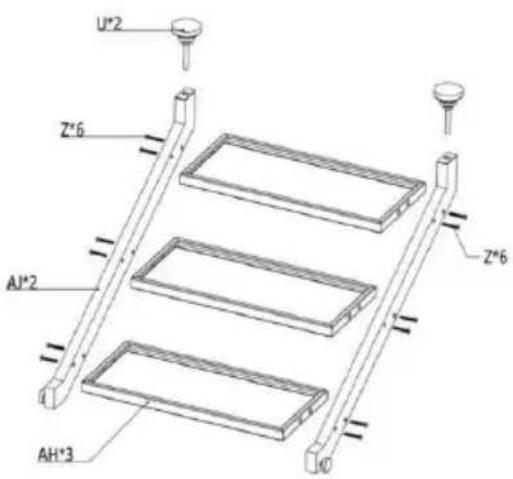

	8 Use screw(Z) to fix the stair board(AH) and ladder rod(AJ), the install the adjustable feet(U) on t bottom of the ladder rod(AH).Caution:Ensure that the depth adjustable feet is not less tha 12mm, and try to make the adjustable feet screw in the same depth. and tighten the spare nut during the installation

Technical line drawing of a mechanical device with stairs and a control panel (no text or symbols)

Q*2 P*2 J*1

P*2 Q*2

⑨ Install the stairs into the chassis rails

⑩ Use screw(P) and hex flang nut (Q) to install the storage basket(J) to the back panel(G)

⑪ Use screw(P) and hex flanut (Q) to install the shower bracket to the right side panel(

AG*1 R*2 H*1 AC*2 C H L*1 AD*2 M*2 K*1

⑪ Install hot and cold shower switch and water inlet.

Caution: Before you do this, make sure that your water source is on the left or rig side of the bathtub, and set the direction of installation of the tap switch.

Step1: Pass straight all-copper connector(AD) through side panel (1/2" end facing outside), screw nut R2 into the other end of the connector and use wrench(AG) screw down.

Step2: Align the faucet switch (H) with the connector (AD), then the two nuts on the switch (H), and note that the sealing ring nut is intact.

Step3: Connect the hose (M) at the water inlet end and the shower hose (L) at the faucet outlet. Also, when tightening the nut, pay atte whether the sealing ring inside the nut is intact.

Step4: The other end of the hose (M) is connected to the water source, pay attention to the hot and cold water mark on the faucet sv represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.

Caution: The inlet hose is only 600mm long, if you want to let please purchase it separately (Caliber:20mm)

Caution: Optional use of sealing tape(AE) when installing the nut can make the installation more sealed and help prevent water the joint.

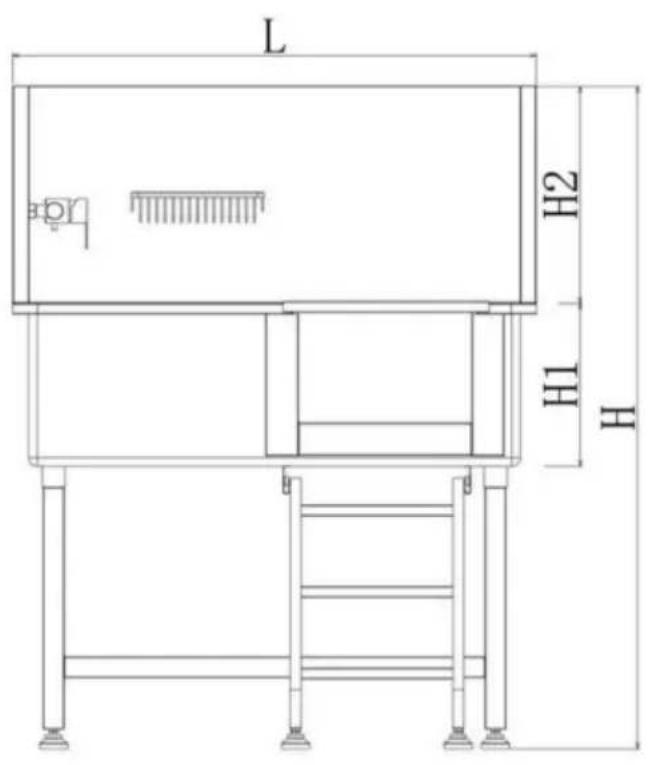

Left Door

L H2 H1 H

Technical line drawing of a mechanical device with base and top views, no text or symbols present

Right Door

L H2 H1 H

Technical line drawing of a mechanical device with mounting feet and a sloped top panel (no text or symbols)

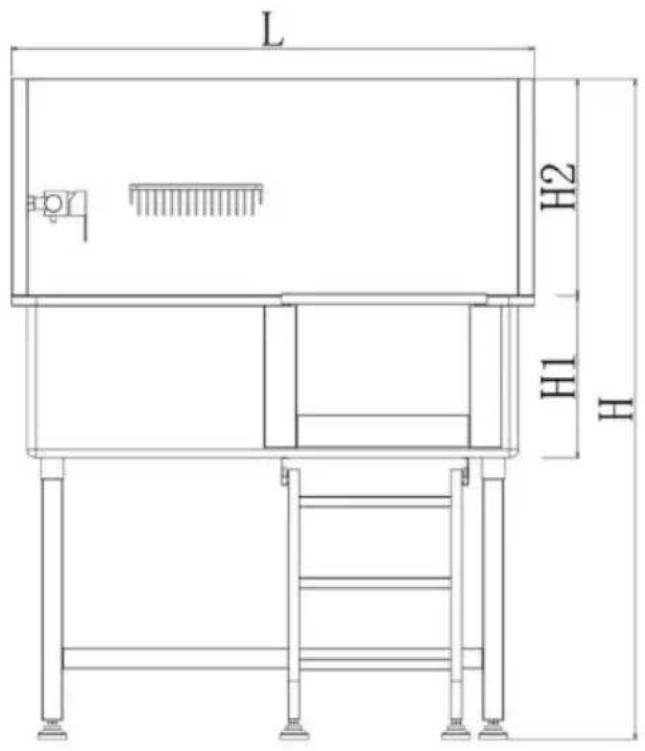

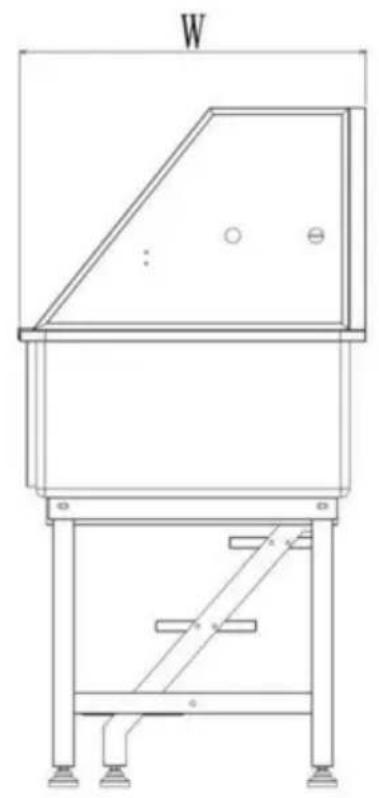

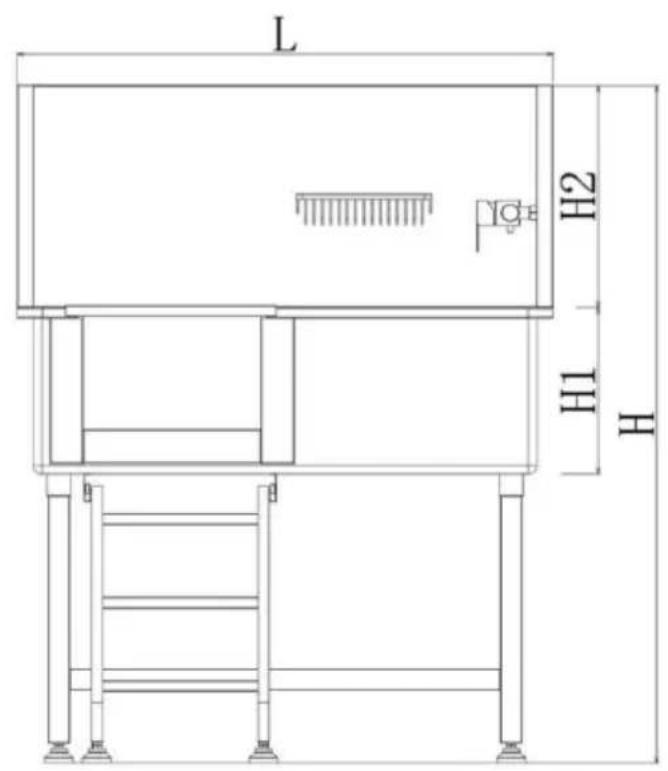

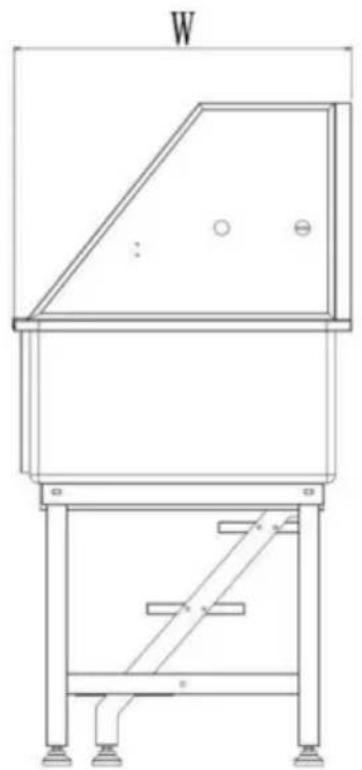

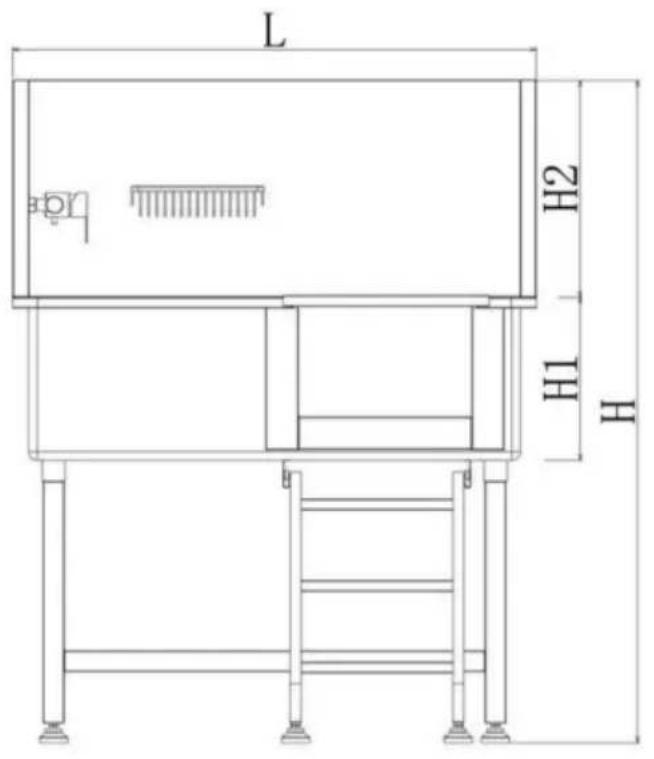

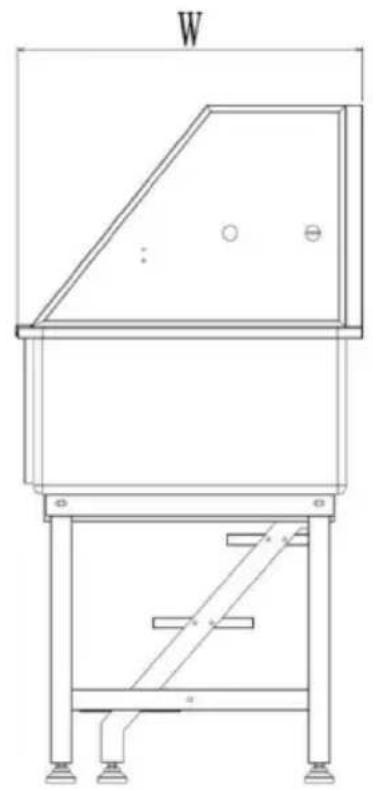

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K1E01017	965	1220	300	400	617	29.7
K1E01018	965	1220	300	400	617	29.7

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K1E01017	0.35	220	L×W×H:33×16×18
K1E01018	0.35	220	L×W×H:33×16×18

OPERATION

1. Make sure the water pipe connection is complete and the water is flowing normally. (Connect the hot and cold water pipes according to the hot and cold water signs of the faucet switch)

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the itself or hold the pet inside the tub by yourself, then close the d
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sponge using a mild cleaning agent.
2. Pay attention to regularly clean the hair of

the drain to avoid clogging.

1. Please clean the transparent cover of the drain regularly, After disassembly like a nut, it can be easily cleaned, and be careful not to leave the seal ring when installing it back.

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.
