MODEL: JX50

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

SAFETY INSTRUCTIONS

WARNING

1. Do not use the ratchet power puller when the vehicle is in gear "P" (parking brake) position. This may damage the vehicle's transmission
2. Before use, the cable should be straightened and not twisted to a breaking the rope.
3. Keep hands, clothing, hair, and jewelry clear of the cable/gear when using the ratchet power puller.
4. Do not wrap the cable around the load, and do not hook the loa onto the cable. This could damage the load and twist or fray the ca
5. Do not use the ratchet power puller if the cable is frayed, twisted damaged.
6. Do not allow anyone to stand near the cable/in the cable pulling line/behind the hand puller while it is on.
7. Never pass over the hand puller or steel cable during use.
8. Against the parameter table, do not overload fracture tension!
9. Never use other levers or tubes to put force on the tightener har
10. Subjecting the wire tightener to sudden shock-loading energy is prohibited.
11. It is prohibited to let the wire rope over/close to or around the sharp corner, which will cause the wire rope to be cut off.
12. The product is solely for pulling purposes on loads or pulling two cables together within the product's technical specs.
13. The product is not intended for hauling floating vessels, nor not professional and/or industrial applications.
14. Do not use the ratchet power puller for hoisting or lifting operations. This type of application, the hoist must comply with particular safety requirements.
15. The ratchet power puller in this operation manual is not intended transporting people.

MODEL AND PARAMETERS

Model	JX50
Capacity	5T
Rope Type	Wire Rope
Rope Diameter/Length	Φ6.5mm/3.5m
Description	3 Hooks&Double Gear
Double Rope Span	1.9m
Single Rope Span	3.2m
Breaking Tension	5.58T

STRUCTURE DIAGRAM

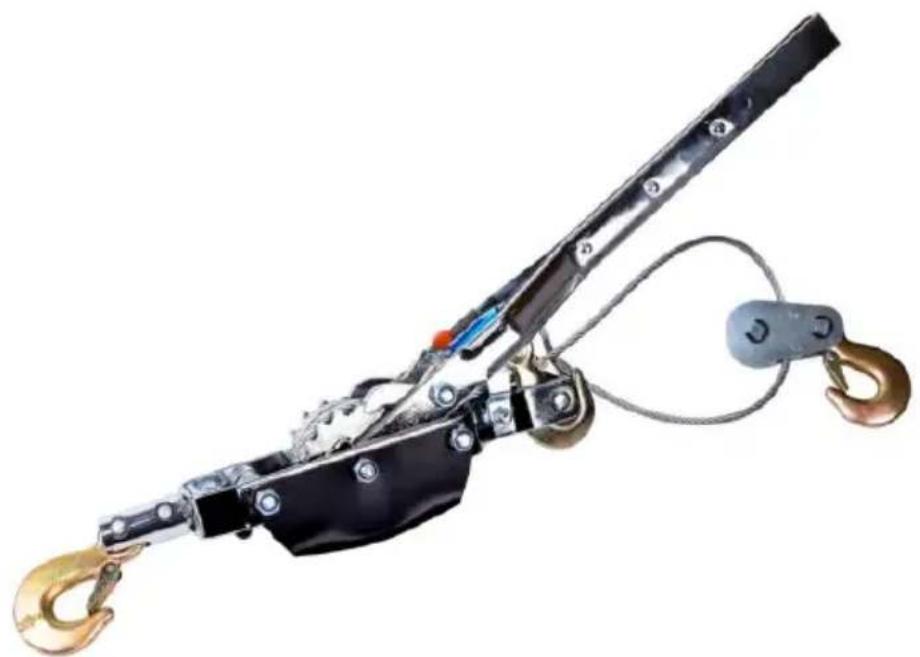

1. Handle 2.Pawl Spring Switch 3.Drive Pawl 4.Ratchet 5.Stop Pawl Trigger 6.Anchor Hook 7.Load Hook 8.Wire Rope 9.Guard

C

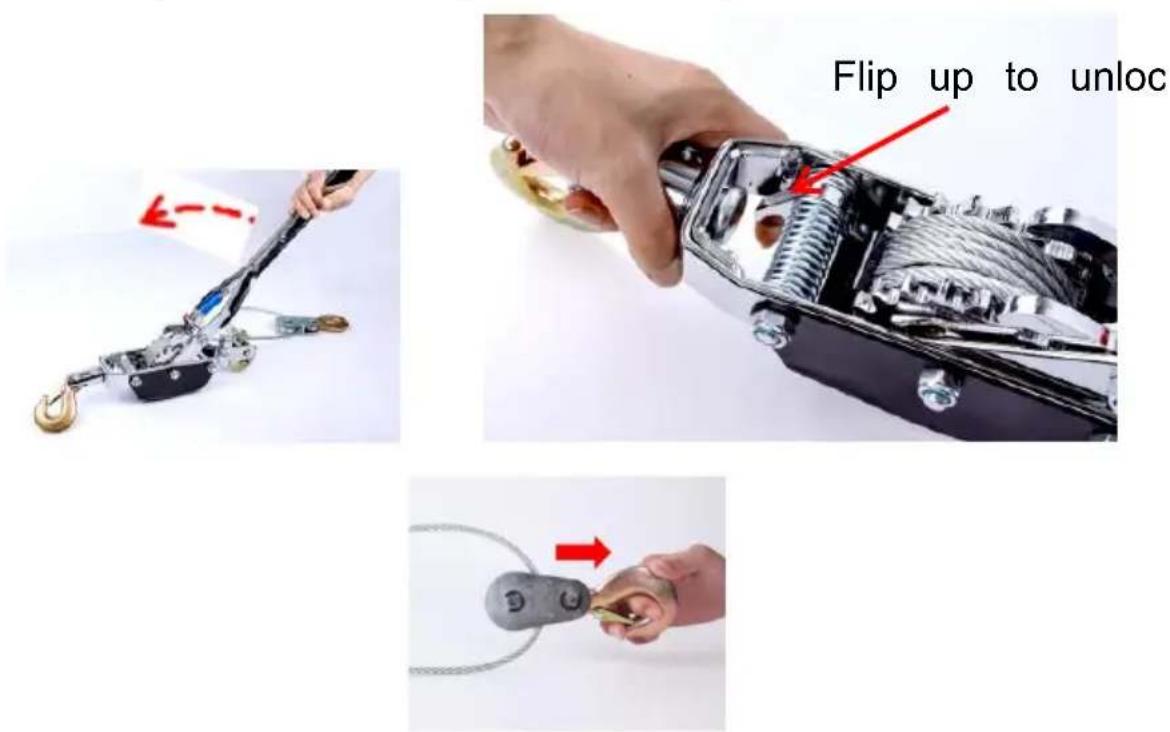

Step 2: Flip the handle to the opposite side, hold the triggers simultaneously, the wire rope can be pulled out.

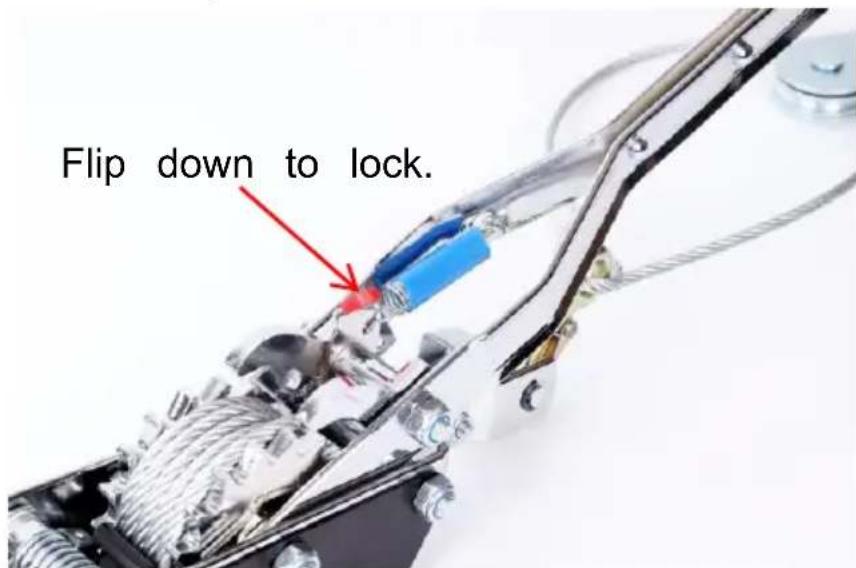

Step 3: Reset the handle, switch the pawl spring back to original position to lock the pawl.

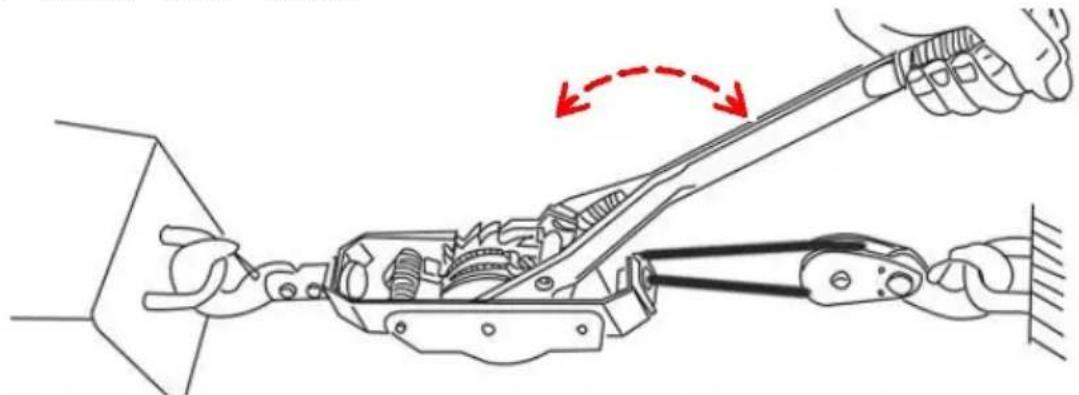

Step 4: The wire rope will be retracted when you push and pull handle back and forth.

Note: In case of stacking the wire rope on one side, you may use a finger to guide the rope while retracting.

MAINTENANCE

1. Lubricate the wire rope regularly and check for wear and broken
2. Be sure to wipe the product with a dry cloth after use in harsh environments, such as bad weather or by the sea.
3. Keep away from fire.
