USER MANUAL K2E01001 Vevor

Affordable. Reliable. Home Improvement.

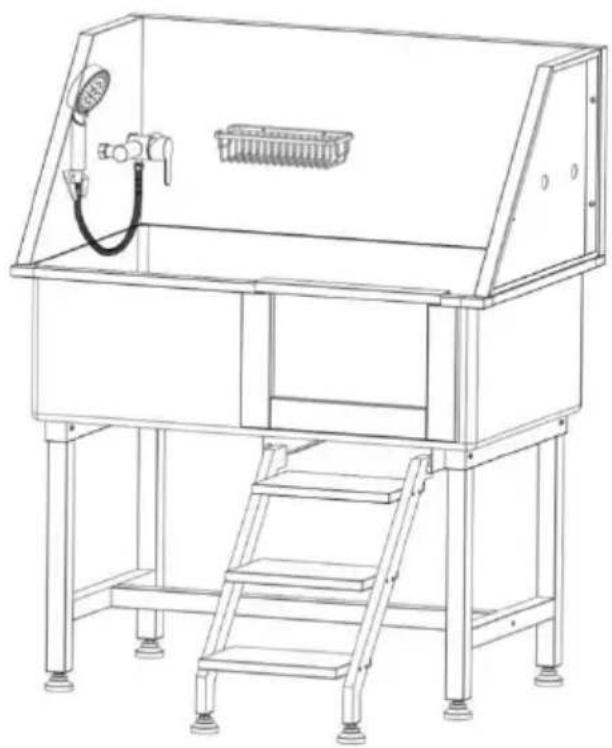

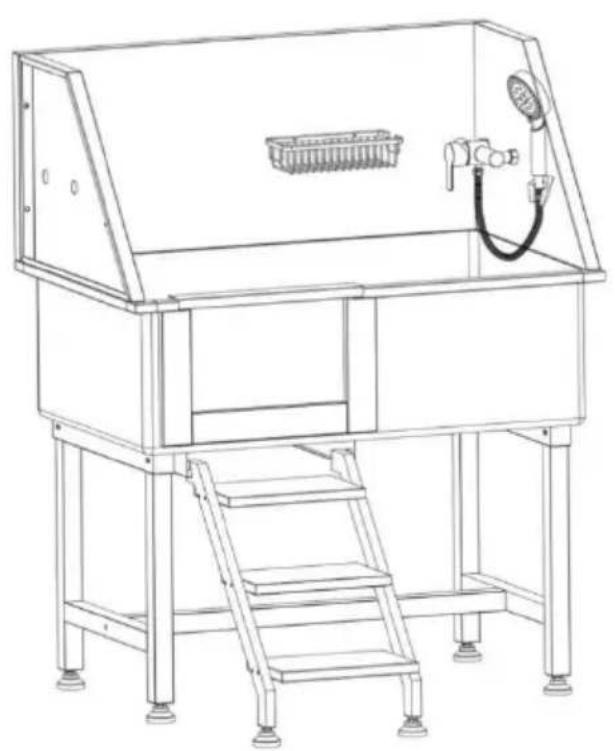

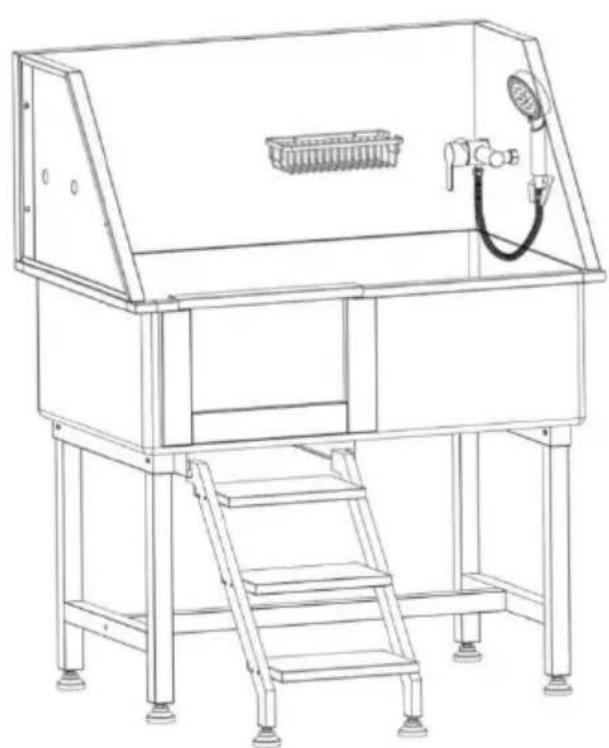

DOG GROOMING TUB

MODEL: K2E01001 / K2E01002

MODEL: K2E01001 / K2E01002

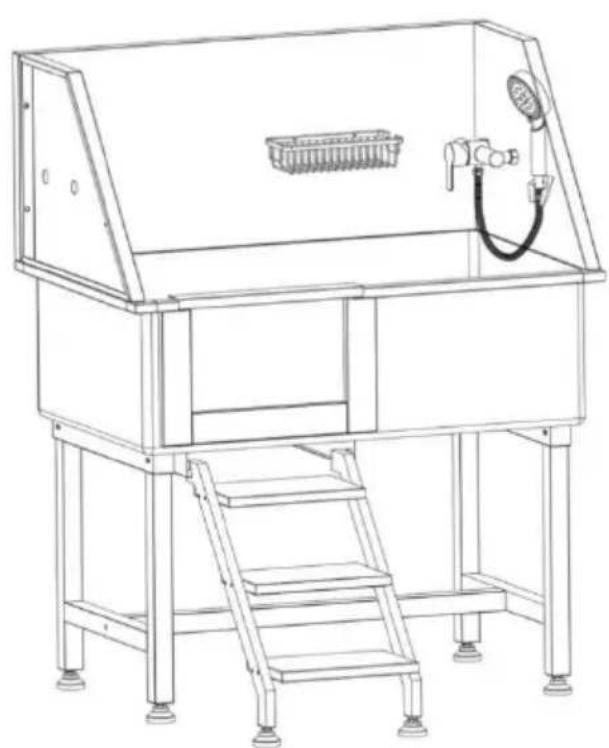

Line drawing of a laboratory apparatus with ladder, base platform, and control panel (no text or symbols)

Technical line drawing of a mechanical device with ladder, valve, and control panel (no text or symbols)

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read and understand this entire manual before operating or servicing this product. Failure to follow these warnings and instructions can cause personal injury or damage to valuable property.

• Avoid children using grooming tub. And this product is not a toy. allow children to play.
• Keep away from sharp points, blades and other items.

• Please wipe the cylinder dry with a cloth after use to extend the life.
  ● Assembly precautions

• Assemble only according to these instructions. Improper assembly c create hazards.

• Wear ANSI-approved safety goggles and heavy-duty work gloves du assembly.
• Keep assembly area clean and well-lit.
• Keep bystanders out of the area during assembly.
• Do not assemble when tired or when under the influence of alcohol drugs or medication.
• Product capabilities apply to properly and completely assembled pro only.
• For additional information regarding the parts listed in the following pages, please refer to the Assembly Diagram of this manual. Unwrap separate all parts in a clean work area. Please keep small spare pa of children's reach.

SAVE THESE INSTRUCTIONS

Simple line drawing of a standing dog (no text or symbols)

Warning!Products are only used for pet bathing.

PREPARATIONS BEFORE INSTALLATION

1. Recommended Tools:

Phillips screwdriver, M4 wrench, Spirit level,

2.Necessary safety equipment:

Gloves,goggles

Caution: Before installing the product, wear gloves and goggles to avoid possible physical damage during installation.

INSTRUCTIONS

Thank you very much for choosing this pet bathtub. Please read all instructions before using it. The information will help you achieve the possible results.

Parts List:

2 pcs	1 pc	1 pc	1 pc
1: H rack	2: Tub	3: Right side panel	4: Left side panel
1 pc	1 pc	1 pc	1 pc
5: Door(Already Installed to the tub)	6: Horizontal tube	7: Back panel	8: Faucet switch
1 pc	1 pc	1 pc	2 pcs(600mm)
9: Storage baske	10: Shower hea	11: Shower hos	12: Inlet pipe
13-1
1 pc	4 pcs(M4*16mm)	4 pcs (M4)	2 pcs
13: Strainer13-1: Drain Pipe13-2: Transparent Cove	14: Screw	15: Flange nut	16: Nut
1 pc	1 pc	6 pcs	2 pcs
17: Shower bracket	18: Comb	19: Adjustable foot	20: Play ball
			[424T]
14 pcs(M6*16mm)	12 pcs(M6*35mm)	4 pcs (M8)	6 pcs
21: Screw	22: Screw	23: Hex flange nut	24: Washer
3 pcs	2 pcs	1 pc	1 pair
25: Stair board	26: Nut	27: Sealing tape	28: Plastic Gloves
1 pc	2 pcs	2 pcs	6 pcs (M8*50mm)
29: Wrench	30-1: Left Ladder Rod30-2:Right Ladder Rod	31: Washer	32: Screw
1 pc	1 set	1 pair	1 pc
33: Plastic Floor Grate	34: Base34-1: Down Base34-2: Up Base34-3: Anti-slip Mat	35: Nylon Gloves	36: Wiper
4 pcs (M8*20mm)	2 pc	2 pcs	1 pc
37: Screw	38: Ring	39: Sling	40: Scouring pad
2 pcs	2 pcs(M8)
41: Adapter (G1/2 to NPT9/16)	42: Self-locking nuts

Installation steps

32 24 6 1 19 32 24

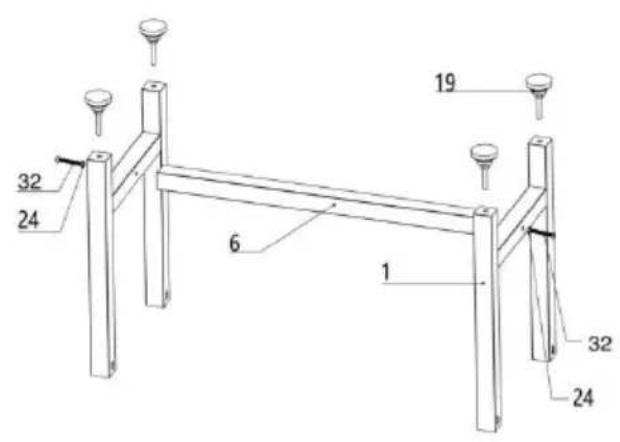

① Install the adjustable feet the H rack, and fix the horiz tube to the H rack

Caution: Ensure that the dept of adjustable feet is not less 12mm and try to make the f adjustable feet screw in the same depth. Please tighten th spare nut during the installation and adjust it later.

2 32 24 23 32 24 23

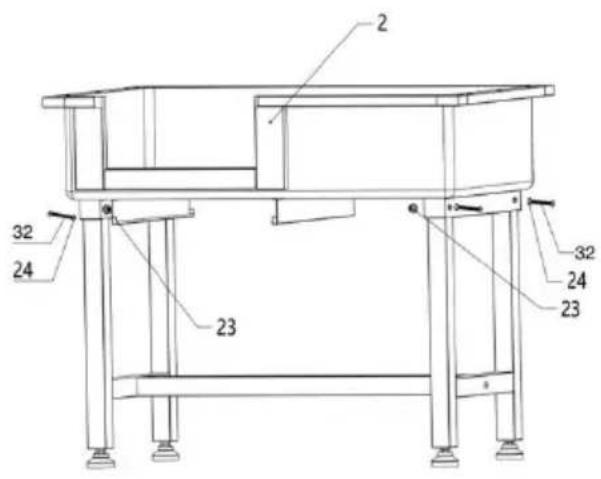

② Flip the bottom bracket and use screw, washer and flange to fix the bottom bracket and

Left Door

Technical line drawing of a simple mechanical setup with supports and a triangular component (no text or symbols)

Right Door

Line drawing of a simple mechanical device with supports and a triangular top (no text or symbols)

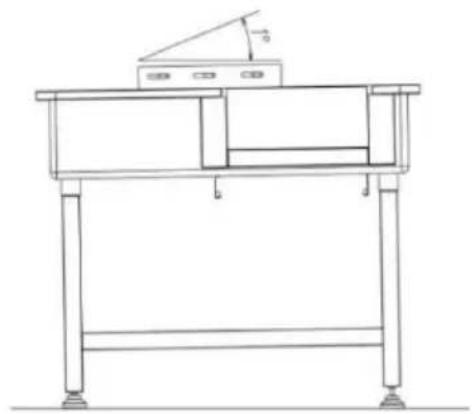

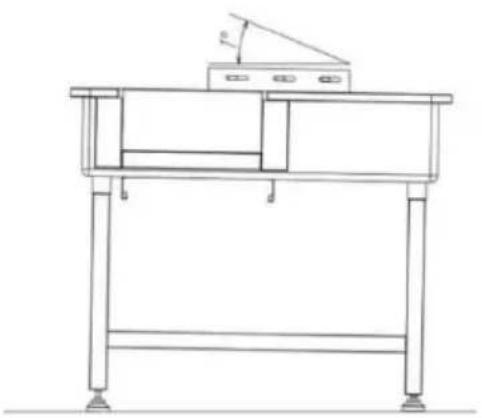

③ Adjust the height of the feet to make sure the height of v side is 1-2 degrees lower than the other side (use a spirit lev

Technical diagram of a mechanical device with labeled components and an inset view showing internal components.

Technical diagram of a mechanical setup with numbered components, likely an industrial machine or enclosure.

Technical diagram of a square electronic device with labeled components including fan, wheels, and mounting feet.

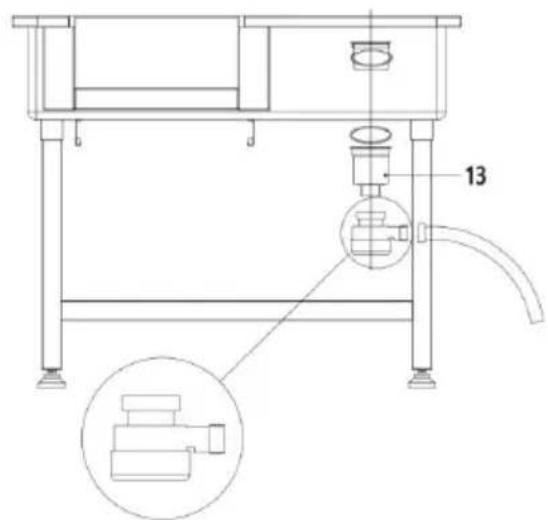

④ Install the strainer, ensure the sealing ring is free of dislocation and wrinkles. Caution: When installing, please pay attention to whether the sealing ring is placed correctly, avoid water leakage due to incorrect seal installation. And check whether the transparent cover of the drain tightened.

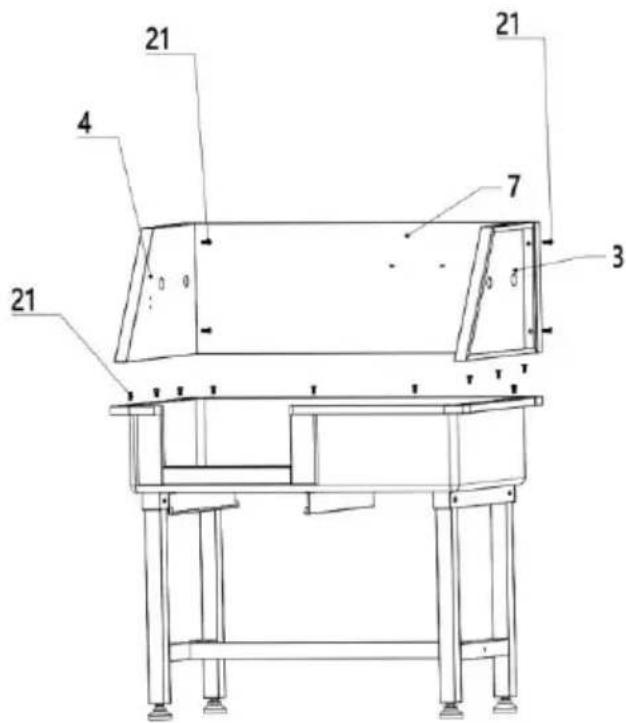

⑤ Use screw to fix the left right sideboard, then use screw to fix the back panel, last to screw to fix sideboard and ba board

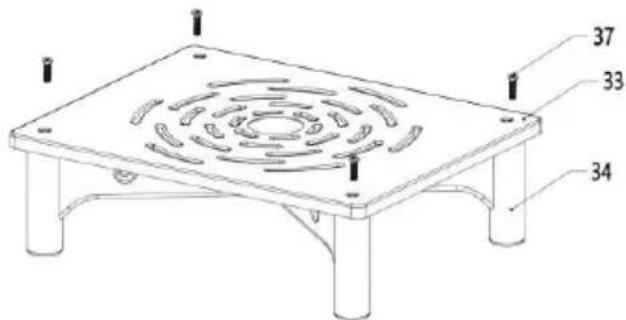

⑥ Install the handle to the filter plate

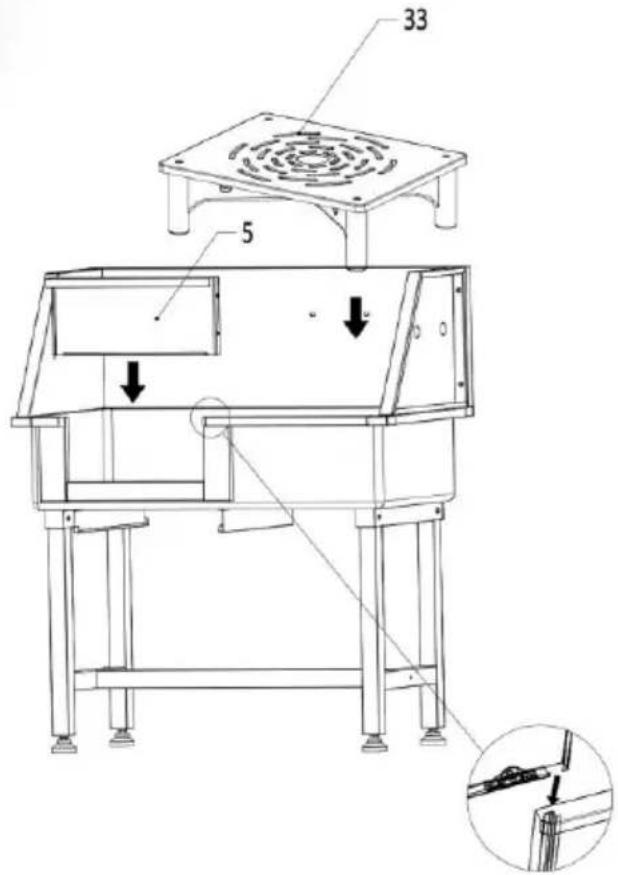

	7 Install door and put the wa filter plate to the tub

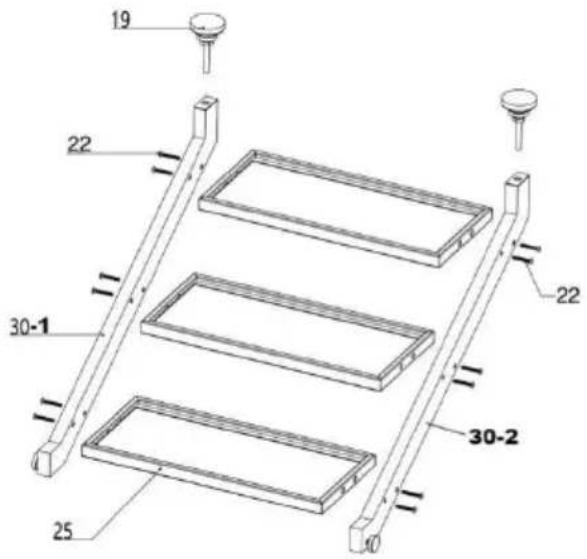

	8 Use screw to fix the stair b and ladder rod, then install the adjustable feet on the bottom of ladder rod.Caution: Ensure that the dept of adjustable feet is not less 12mm and try to make the t adjustable feet screw in the same depth. and tighten the spare nut during the installation

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

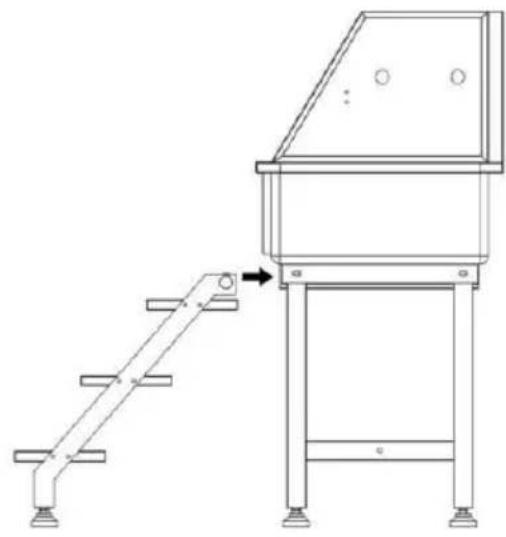

⑨ Install the stairs into the chassis rails

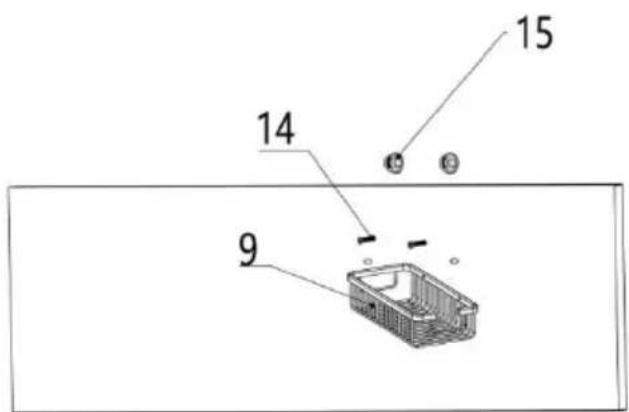

⑩ Use screw and hex flange to install the storage basket t the back panel

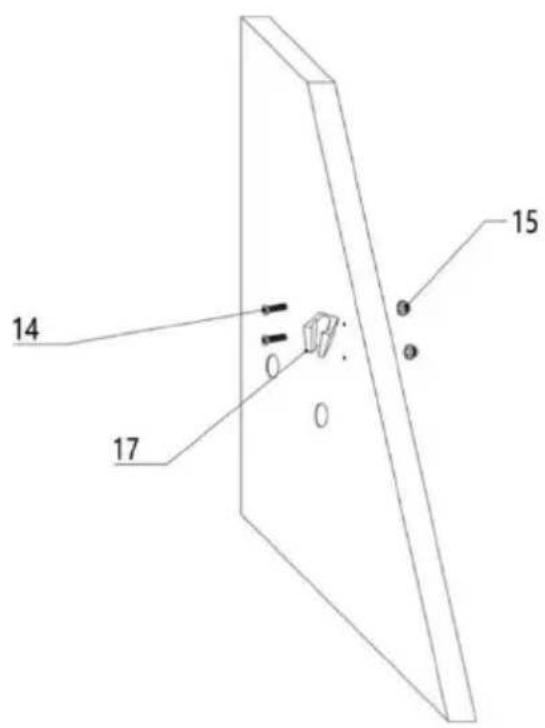

⑪ Use screw and hex flange to install the shower bracket to right-side panel

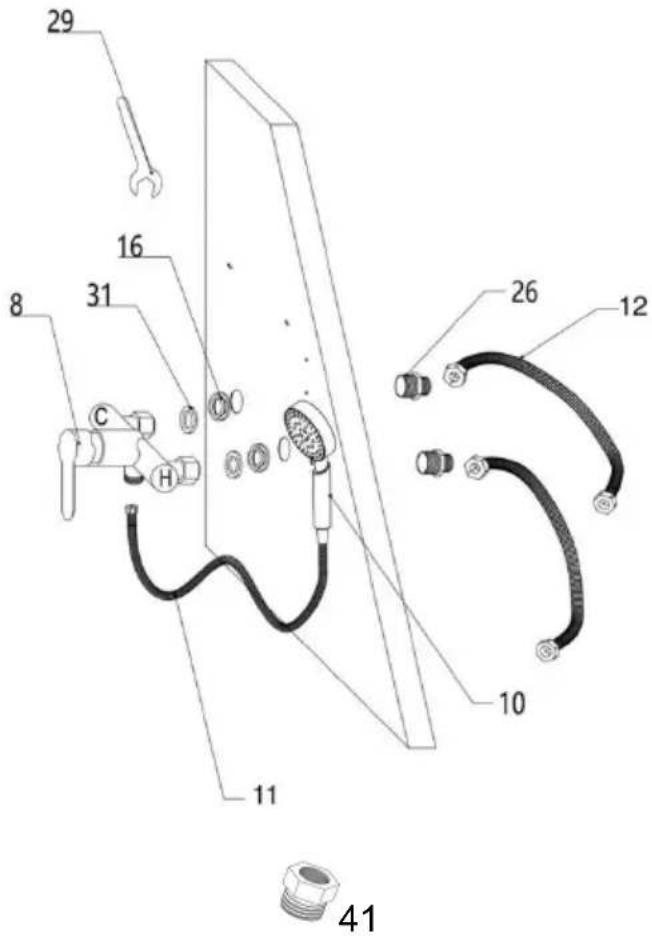

11 Install hot and cold show switch and water inlet.Caution: Before you do this, make sure that your water source is on the left or rig side of the bathtub, and set the direction of installation of the tap switch.Step1: Pass straight all-copper connector through side panel (1/2"end facing outside), screw nut into the other end of the connector and use wrench scr down.

Step2: Align the faucet switch with the connector, then tighten nuts on the switch and note that the sealing ring inside the nStep3: Connect the hose at the water inlet end and the shower hose at the faucet outlet. Also, when tightening the nut, pay attention to the sealing ring inside the nut is intact.Step4: The other end of the hose is connected to the water source, pay attention to the hot and cold water mark on the faucet switch, represents hot water, and connect the hose on this side to the source, while the other side is connected to the cold, also pay to whether the seal ring inside the hose end nut is intact.Caution: The inlet hose is only 600mm long, if you want to please purchase it separately (Caliber:20mm)Caution: Optional use of sealing tape when installing the nut. I make the installation more sealed and help prevent water leakajoint.Caution: Please determine whether to install adapter according to actual water pipe specifications.

Left Door

Right Door

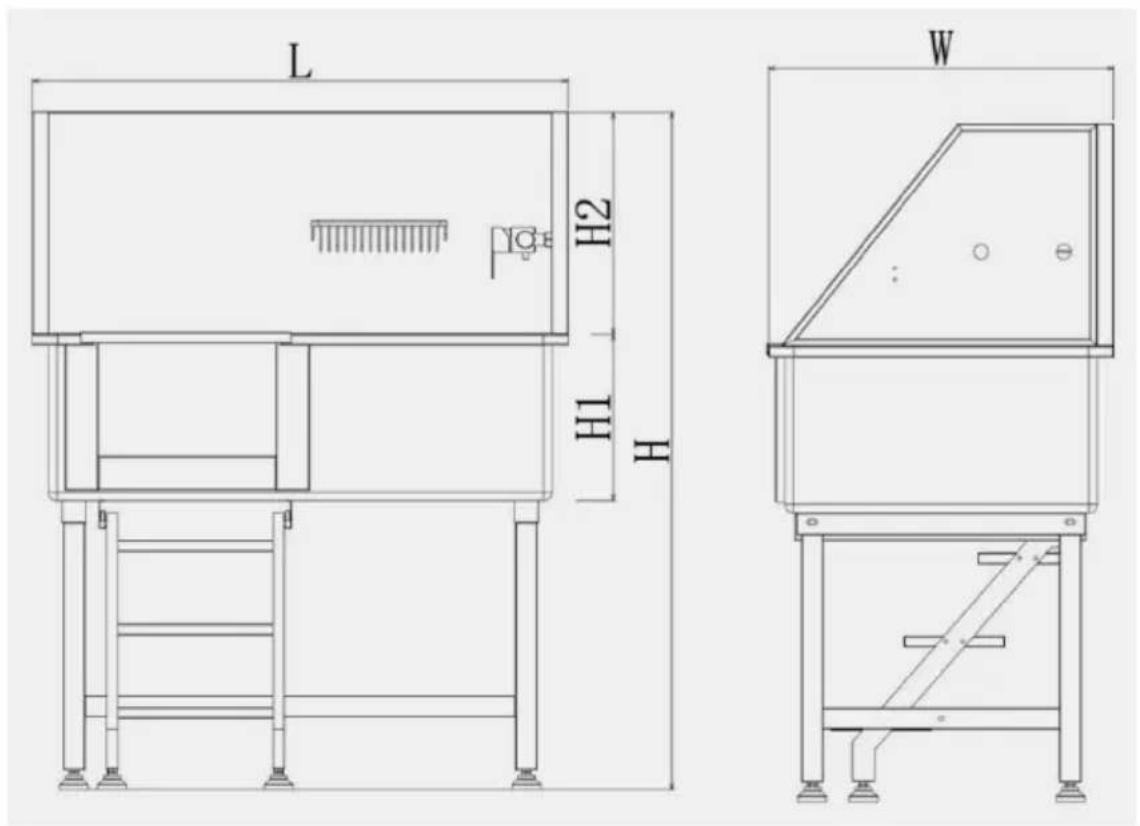

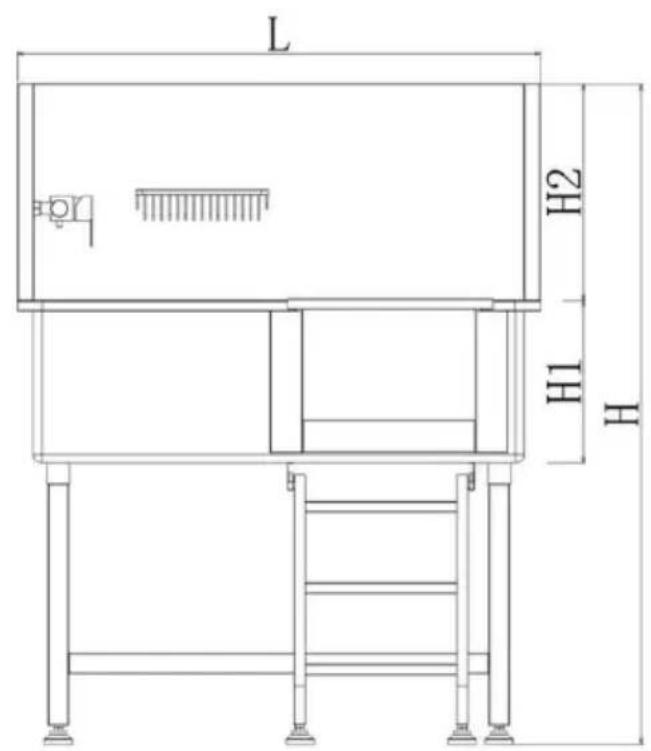

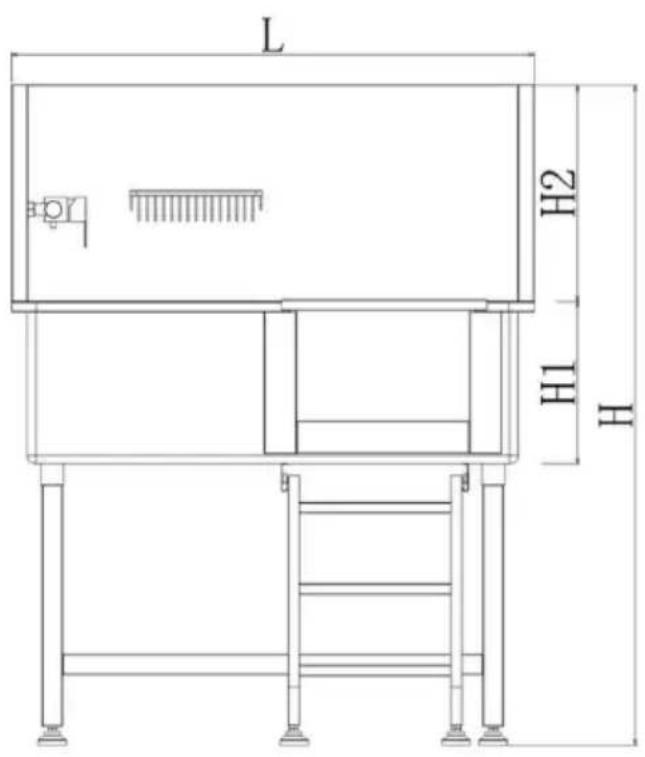

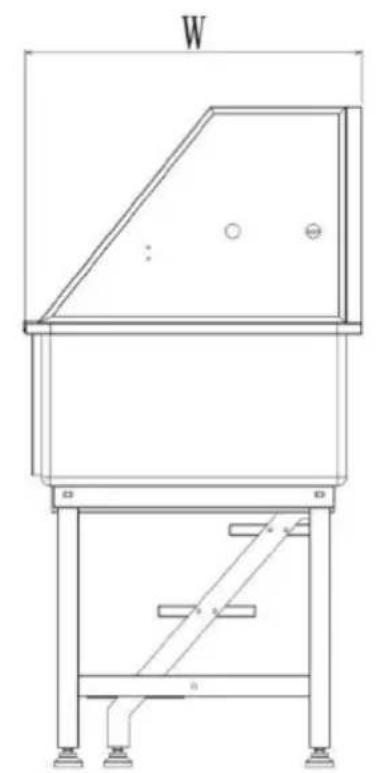

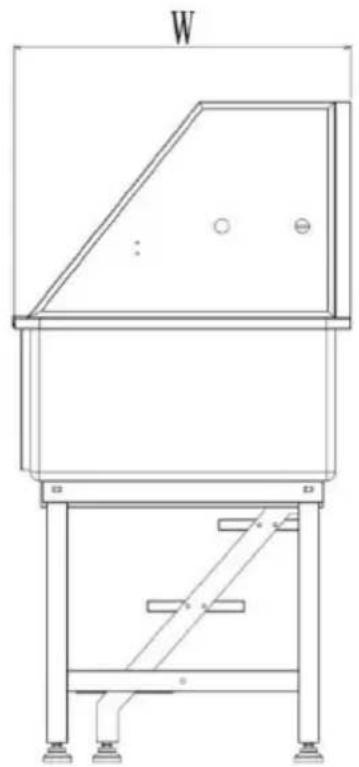

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Model#	L(mm)	H(mm)	H1(mm)	H2(mm)	W(mm)	N.W. (kg)
K2E01001	965	1220	300	400	617	29.7
K2E01002	965	1220	300	400	617	29.7

Model#	Volume (CBM)	Loading Capacity (lbs)	Recommended pet (in)
K2E01001	0.35	220	L×W×H:33×16×18
K2E01002	0.35	220	L×W×H:33×16×18

OPERATION

1. Make sure the water pipe connection is complete and the water is normally. (Connect the hot and cold water pipes according to the hot cold water signs of the faucet switch)

C H

"C": Cold water; "H": Hot water

1. Pull out the stairs and open the door, let the pet walk into the ba itself or hold the pet inside the tub by yourself, then close the door.
2. Start to bath.
3. After the bath, let the water out of the tub and take the animal o
4. Clean the tub with a cloth.

MAINTENANCE

1. In between use, the tub should be cleaned with a soft cloth or sp using a mild cleaning agent.
2. Pay attention to regularly clean the hair of the drain to avoid clogs
3. Please clean the transparent cover of the drain regularly, After

disassembly like a nut, it can be easily cleaned, and be careful not the seal ring when installing it back.

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Don't put the bathtub on an uneven surface.

Don't drop or mistreat the bathtub.

Don't overload the scale. This will permanently damage it!

COMMON MALFUNCTIONS

If the faucet leaks, please check whether the waterproof rubber plug installed. If it is damaged, it needs to be replaced in time.

Safety Information

Warning

General Safety Instructions

- Improper installation and/or operation may result in property damage injury to yourself or your pet. Follow the instructions carefully and core customer service or a local contractor if any point is confusing, too often for you to do on your own, or requires special modification for your customers. Keep these instructions for future reference. Provide them to anyone will use this device and provide them with this device if it is ever sold to a third party.

• ONLY use this bathtub for its intended purpose, bathing medium-size

pets such as cats and dogs.

- DO NOT use it with pets that exceed this product's weight capacity whose predisposition becomes violent upon contact with water, or who physiological features preclude safe regular bathing (e.g., chinchilla rat).

- NEVER use this bathtub for humans, especially children, or allow the play on or with it.

- DO NOT run or allow others to run in the area around this bathtub, allow children or pets to stay under the tub. Restrict access to the necessary.

- Ensure all components and fasteners are intact and securely tightened before use. Do not operate this bathtub if any part is damaged or signs of malfunction. Repair or replace problematic components before further use. NEVER replace any parts with nonidentical ones.

- Consult a veterinarian before use if your pet may have an illness or condition such as skin allergies that might be worsened by bathing. Only in compliance with the veterinarian's recommendations (e.g., using specially medicated shampoos).

- Be mindful of your pet's mood while using this bathtub. If unwillingness unavoidable, take precautions to prevent the pet from harming you, themselves, or others during bathing.

Provide a reward afterward.

- NEVER load this bathtub with more than 286 pounds (130 kg).

Particularly for larger animals, be careful to prevent them from jumping moving in such a way that causes violent impacts as this might exceed capacity.

• DO NOT leave this bathtub unattended during use.

Electrical Safety Instructions

- Ensure all electrical outlets and exposed electrical connections around are at least 10 feet (3 m) away from this bathtub or fully protected possible splashing during bathing. DO NOT use any chargers or exter cords closer than this distance without similar protection.

•Electrical devices such as electrical transformers, televisions, lights, an

telephones should be at least 6'7" (2 m) away from this bathtub at . In particular, never bring a chargingcell phone near the bathtub and r allow any electrical device to be placed or used in such a way that fall into the water under any circumstance.

- For extra safety, install this bathtub at least 6'7" (2 m) away from conductive metal surfaces to reduce the risk of electric shock from splashing water. Any metal surface closer this should be permanently bonded to a dedicated terminal box with a solid copper conductor at gauge (3.3 m) thick.

Water Safety Instructions

- ONLY install this bathtub on firm, level, and nonslip surfaces that do its weight while filled with your pet and water. The surfaces must be impervious to damage from moisture and the surrounding area must be able to handle the expected humidity created by the water.

- An adequate drainage system should be provided to safely deal with overflow and to permit easy emptying of this bathtub.

- Make sure your water supply for this bathtub is turned off during installation.

- NEVER allow the water level to rise above the level of your pet's during use.

- DO NOT set up or leave this bathtub in temperatures below 32^ . Do not turn on the shower if there is any possibility water in its line frozen.

- DO NOT add chemicals other than standard mild soaps and pet shampoos to the bathingwater. After use, only apply nontoxic cleaning agent to the bathtub's internal surface and rinse it away completely. For sterilization, only use pet-safe and nontoxic disinfectants.

- DO NOT allow dirty and stagnant water to remain in this bathtub long period. Drain, clean, and dry the tub completely after each use.

Heat Safety Instructions

- Adequate ventilation should be provided to safely deal with the expected

heat and humidity.

- The water temperature should be close to your pet's body temperat. Water that is either too cold or too hot will cause discomfort, may in your pet's skin, and may even cause injury or illness.Before use, learn about the appropriate water temperatures for bathing your pet.For best results, set your water heater's maximum temperature accordingly if possible.If adding preheated water, make sure it is within the tempera range appropriate for your pet before allowing your pet to enter.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

BAIGNOIRE DE TOILETTAGE POUR CHIEN

MODÈLE : K 2 E010 01 / K 2 E010 02

MODÈLE : K 2 E010 01 / K 2 E010 02

Line drawing of a laboratory apparatus with a ladder, vent, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and pressure gauge (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

DIMENSIONS AND PARAMETERS

Porte de gauche

Porte droite

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modèle#	L(mm)	Hmm)	H 1 ( mm)	H 2 (mm)	L (mm)	Poids net (kg)
K 2 E010 01	965	1220	3 00	4 00	617	29,7
K 2 E010 02	965	1220	3 00	4 00	617	29,7

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

Lieu, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HUNDEPFLEGEWANNE

MODELL: K 2 E010 01 / K 2 E010 02

MODELL: K 2 E010 01 / K 2 E010 02

Line drawing of a laboratory apparatus with a ladder, vent, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and pressure gauge (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Rechte Tür

Technical line drawing of a simple mechanical setup with supports and a triangular component (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset view showing a component with internal structure.

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

DIMENSIONS AND PARAMETERS

Linke Tür

Rechte Tür

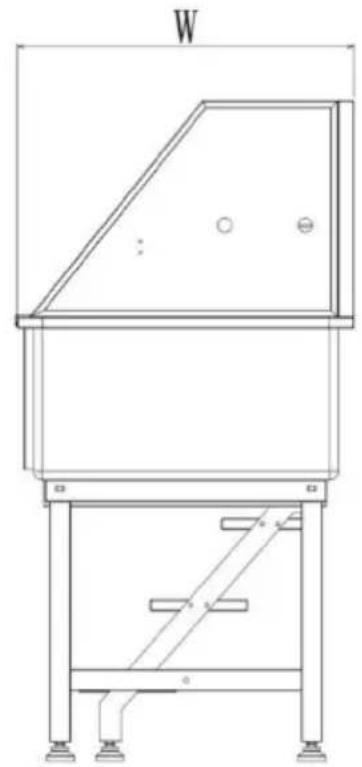

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modell#	L(mm)	Hmm)	H 1(mm)	H 2(mm)	B(mm)	Nettogewicht(kg)
K 2 E0101	965	1220	3 00	4 00	617	29,7
K 2 E0102	965	1220	3 00	4 00	617	29,7

Modell#	Volumen (CBM)	Ladekapazität ( Pfund )	Empfohlenes Haustier (In)
K 2 E010 0	0,35	220	L×B×H:33×16×18
K 2 E010 0	0,35	220	L×B×H:33×16×18

OPERATION

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

VASCA PER LA TOELETTATURA DEI CANI

MODELLO: K 2 E010 01 / K 2 E010 02

MODELLO: K 2 E010 01 / K 2 E010 02

Line drawing of a laboratory apparatus with a ladder, vent, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and pressure gauge (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

DIMENSIONS AND PARAMETERS

Porta sinistra

Porta destra

L H2 H1 H

Technical line drawing of a mechanical device with a top view and base structure (no text or symbols)

Modello#	L(mm)	Hmm)	Altezza 1 ( mm	Altezza 2(mm)	L(mm)	Peso netto (kg)
K 2 E010 01	965	1220	3 00	4 00	617	29.7
K 2 E010 02	965	1220	3 00	4 00	617	29.7

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

BAÑERA DE ASEO PARA PERROS

MODELO: K 2 E010 01 / K2E01002

MODELO: K 2 E010 01 / K2E01002

Line drawing of a laboratory apparatus with a ladder, control panel, and pressure gauge (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and piping (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical device with a lever and base platform (no text or symbols)

15 14 9

14 17 0 0 15

DIMENSIONS AND PARAMETERS

Puerta izquierda

Puerta derecha

L H2 H1 H

Technical line drawing of a mechanical device with no visible text or symbols

Modelo#	Longitud (mm)	Mmm)	Alto 1 ( mm)	Alto 2 (mm)	Ancho (mm)	NO (kg)
K2E01001	965	1220	3 00	4 00	617	29.7
K2E01002	965	1220	3 00	4 00	617	29.7

Modelo#	Volumen (CBM)	Capacidad de carga (libras)	Mascota recomendada (en)
K2E01001	0,35	220	Largo × Ancho × Alto: 33 × 16 ×
K2E01002	0,35	220	Largo × Ancho × Alto: 33 × 16 ×

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

WANNA DO PIELEGNACJI PSÓW

MODEL: K 2 E010 01 / K 2 E010 02

MODEL: K 2 E010 01 / K 2 E010 02

Line drawing of a laboratory apparatus with ladder, platform, and control panel (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and pressure gauge (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Prawe drzwi

Technical line drawing of a simple mechanical apparatus with supports and a triangular top (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset view showing a component with internal structure.

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

DIMENSIONS AND PARAMETERS

Lewe drzwi

Prawe drzwi

L H2 H1 H

Technical line drawing of a mechanical device with a sloped top and supporting legs (no text or symbols)

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HONDENTRIMBAK

MODEL: K 2 E010 01 / K 2 E010 02

MODEL: K 2 E010 01 / K 2 E010 02

Line drawing of a laboratory apparatus with a ladder, control panel, and pressure gauge (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and support structure (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Simple line drawing of a two-panel cabinet or enclosure structure (no text or symbols)

2 stuks

1 stuk

1 stuk

1 stuk

1: H-rek

2: Kuip

Technical line drawing of a simple mechanical setup with supports and a triangular component (no text or symbols)

Rechterdeur

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Technical diagram of a mechanical device with labeled components and an inset showing a component detail.

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

⑨ Installeer de trap in de chassisrails

DIMENSIONS AND PARAMETERS

Linkerdeur

Rechterdeur

L H2 H1 H

Technical line drawing of a mechanical device with a top view and base structure (no text or symbols)

Model#	Lengte (mm)	Hoogte (mm)	Hoogte 1 ( mm	Hoogte 2(mm)	Breedte (mm)	NW (kg)
K 2 E010 01	965	1220	300	400	617	29.7
K 2 E010 02	965	1220	300	400	617	29.7

Model#	Volume (CBM)	Laadvermogen (pond)	Aanbevolen huisdier (in)
K 2 E010 0	0,35	220	L×B×H: 33×16×18
K 2 E010 0	0,35	220	L×B×H: 33×16×18

OPERATION

"C": Koud water; "H": Warm water

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.

VEVOR

Affordable. Reliable. Home Improvement.

HUNDTRIMNINGSBADKAR

MODELL: K2 E010 01 / K2 E010 02

MODELL: K2 E010 01 / K2 E010 02

Line drawing of a laboratory apparatus with a ladder, control panel, and pressure gauge (no text or symbols)

Line drawing of a laboratory apparatus with a control panel, ladder, and pressure gauge (no text or symbols)

Simple line drawing of a standing dog (no text or symbols)

Technical line drawing of a mechanical setup with supports and a triangular component (no text or symbols)

Höger dörr

Technical line drawing of a piano stand with legs and a triangular top (no text or symbols)

Technical line drawing of a mechanical device with a lever and mounting base (no text or symbols)

15 14 9

14 17 0 0 15

⑨ Montera trappan i chassiräckena

DIMENSIONS AND PARAMETERS

Vänster dörr

Höger dörr

L H2 H1 H

Technical line drawing of a mechanical device with labeled dimension W (no text or symbols beyond basic geometry)

Modell#	L(mm)	H(mm)	H1 (mm)	H2 (mm)	B (mm)	NV (kg)
K2 E010 01	965	1220	3 00	4 00	617	29,7
K2 E010 02	965	1220	3 00	4 00	617	29,7

Modell#	Volym (CBM)	Lastkapacitet (Ibs)	Rekommenderat husdjur (i)
K2 E010 01	0,35	220	L×B×H: 33×16×18
K2 E010 02	0,35	220	L×B×H: 33×16×18

OPERATION

Pure mechanical diagram showing a piston-cylinder assembly with no text or symbols

CARE INSTRUCTIONS

YH CONSULTING LIMITED. C/O YH Consulting

Limited Office 147, Centurion House, London

Road, Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
