USER MANUAL LB100T Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ICE MACHNE

MODEL:LB100T/LB160T/LB200T/LB265T

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHNE

MODEL:LB100T/LB160T/LB200T/LB265T

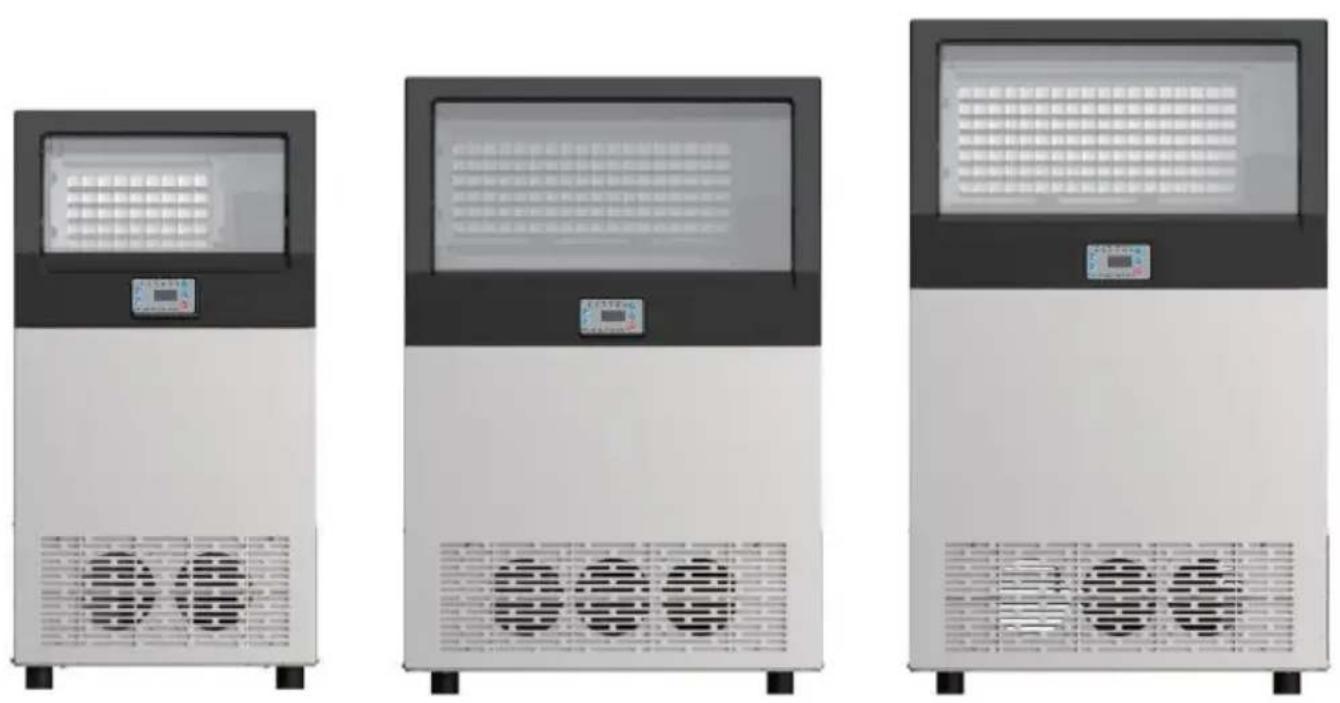

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

IMPORTANT SAFEGUARDS

WARNING: Read all safety warnings, instructions, illustrations and specifications provided with this electric appliance. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

	This is the safety alert symbol. This symbol alerts yo potential hazards that can kill or hurt you and others safety messages will follow the safety alert symbol ar word “WARNING” or “CAUTION”. These words are de as:
	Indicates a hazardous situation which, if not avoided, result in death or serious injury
	Indicates a hazardous situation which, if not avoided, result in minor or moderate injury.
	CORRECT DISPOSALThis product is subject to the provision of european 2012/19/EU. The symbol showing a wheelie bin cross through indicates that the product requires separate re collection in the European Union. This applies to the and all accessories marked with this symbol. Products marked as such may not be discarded with normal o waste, but must be taken to acollection point for rec electrical and electronic devices.

ICE CAN'T BE STORED IN THE ICE BIN DURING

NIGHT TIME, IT'S NOT FRIDGE, ICE WILL BE MELTED INTO WAT AND FLOW OUT OF THE MACHINE.

Warning sign depicting a flame symbol in a triangular hazard triangle

During using, service and disposal the appliance, please pay attention to symbol similar as left side, which is located on rear of appliance (rear panel or compressor) and with yellow or orange color. It's risk fire warning symbol. There are flammable materials in refrigerant pipes and compressor. Please be far away fire source during using service and disposal.

WARNING

To reduce the risk of fire, explosion, electric shock, exposure to UV radiation, or injury when using your ice maker, 1 these basic safety precautions:

- This product must be properly installed and located in accordance with the Installation instructions before it is used.

- When using electrical appliances, basic safety precautions should be followed to reduce the risk of fire, electric shock and injury to persons property. Read all instructions before using any appliance.

●High humidity environment will increase the risk of short circuit or el shock. If in doubt, please cut off the power supply of the ice maker

- Do not exceed power outlet ratings. It is recommended that the ice is connected to its own circuit. Use only standard electrical supply that properly grounded in accordance with the National Electric Code and codes and ordinances.

- If the ice maker is brought indoors from outdoors during the wintertime, give it a few hours to warm up to room temperature before plugging to power source.

- Do not store explosives, such as combustion-supporting sprays in the appliance.

●The machine is intended to be used in household and similar applica such as:

-kitchen areas in shops, offices and other working environments;

-farm houses

-by clients in hotels, motels and other residential type environments;

-Catering industry and similar non-retail industry.

- This appliance can be used by children aged from 8 years and above persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and undersheds the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervisi

- Avoid direct sunlight and make sure that The machine should be us the household and without obstacles surrounded, good ventilation place.There is must be 30cm at least between the four sides of the machine with the wall.

- Do not tip the machine over.

- We do not recommend the use of an extension cord, as it may over and become a risk of fire.

- Don't use any liquid other than water in the unit to make the ice.

- Do not store or use flammable vapors or liquids near this product.

- Do not allow children to climb, stand or hang on the ice maker. could seriously injure themselves.

- Do not use with water that is microbiologically unsafe or of unknown quality.

- To avoid risk of injury, place power cord in such a way it cannot on by children or cause a tripping hazard.

- Place power cord in such a way that it is not in contact with ho

- Do not operate if any component, including the cord or plug, is da

- Unplug the product before cleaning or repairing, and when not in (Note: If the machine needs repair, it is strongly recommended that it operated by professionals. Type Y attachment: If the supply cord is damaged, it must be replaced by the manufacturer, its service agent

similarly qualified persons in order to avoid a hazard.)

• Do not immerse any part of the product in water.
• Do not plug or unplug product with wet hands.
• Do not place the power cord on carpet or other heat sources
• Do not attempt to disassemble, repair, modify, or replace any part product.

- Use this product only for its intended purpose as described in this manual.

- If the power cord is damaged, it must be replaced by the manufa similar professionals in order to avoid danger.

- Do not use any accessories not recommended by the manufacturer

- The foaming materials inside is combustible which must be kept away from fire.

- It's forbidden to pull the cable to unplug the plug, pull the plug is

- Except for the method recommended by the manufacturer, no mechanical tools or other methods shall be used to accelerate the defrosting process. Do not damage the refrigeration circuit.

- There are high-pressure, flammable and explosive refrigerants in the compressor. Do not damage the refrigeration system. Care or repair is be carried out by professionals. Be especially careful when installing a transporting.

- There are heat insulation materials in the ice maker, which are combustible materials, and must be kept away from fire sources. Repa must be carried out by the manufacturer or professionals. Scrap must be disposed of by the designated recycling department.

SAVE THESE INSTRUCTIONS

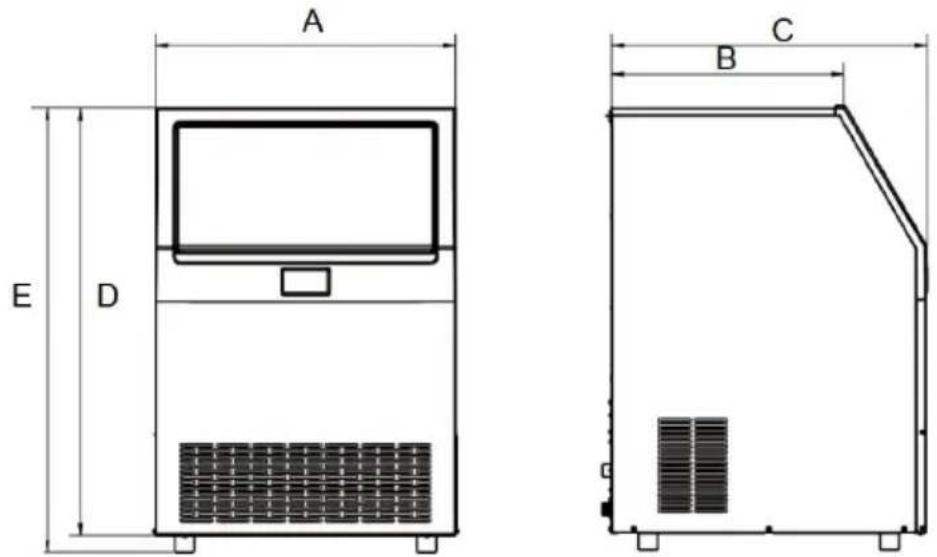

SIZE

Thank you very much for choosing this ICE machine. ICE machine a precision instruments that should always be handled with care. Please read all of the instructions before using it. The information will help you

achieve the best possible results.

	A	B	C	D	E
LB100T	445	275	400	815	850
LB160T	620	480	650	880	915
LB200T	620	480	650	880	915
LB265T	620	480	650	965	1000

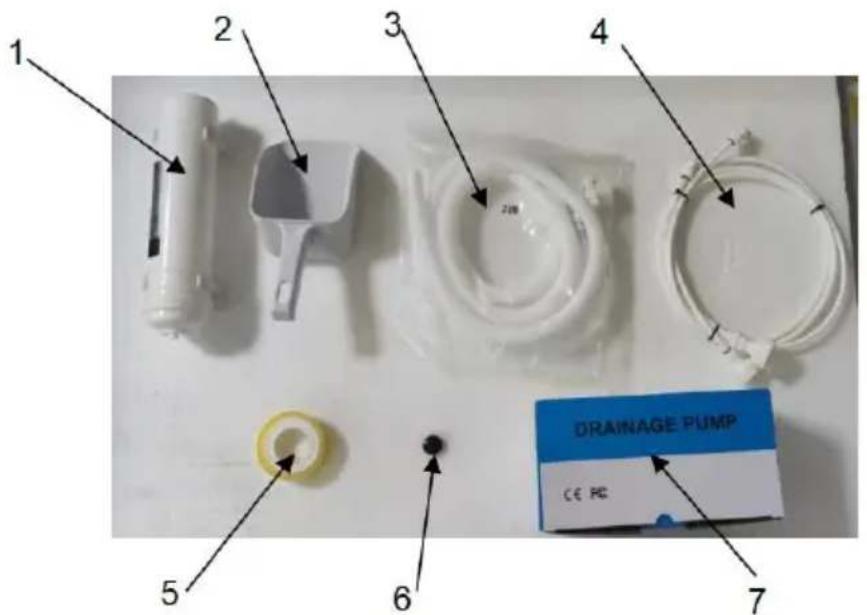

After sealing off, please contrast the packing list, check whether all rado files and enclosures are complete, whether the machine in intact.

1 2 3 4 5 6 DRAINAGE PUMP CE RC 7

NO	NAME	Function	Quantity
1	Water Filter	Filter Out Water Impurities	1
2	Ice Scoop	Shovel Ice (Plastic PP)	1
3	Ice Maker Drainage Pipe	Ice Maker Drainage Hose (2)	1
4	ice Maker Water Inlet Pipe	Connect to Ice Maker for Water Inlet	2
5	Sealing Tape	Against Leakage when Connecting Water Pipe	1
6	Sink plug	Block the sink	1
7	Drainage Pump	Help Ice Storage Bin Drain Water When in Elevated Terr	1

Some models do not include drainage pumps

BASIC STRUCTURE

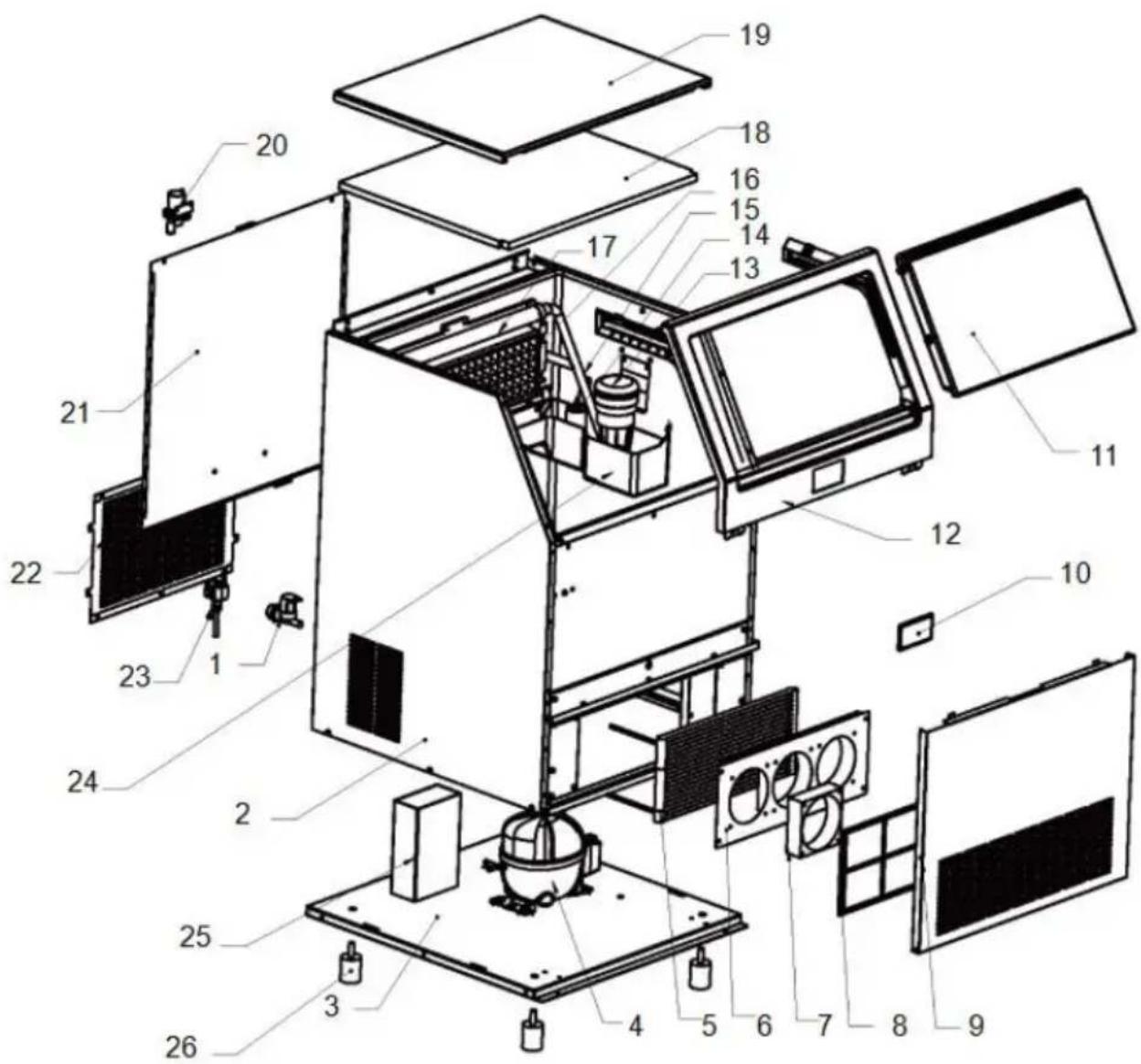

Exploded view diagram of a device with numbered components for identification

NO.	NAME	NO.	NAME
1	Water supply valve	14	Water level sensor
2	Cabinet components	15	Water pipe
3	Chassis	16	Evaporator
4	Compressor	17	Spray water pipe
5	Condenser	18	Lnsulation board
6	Fan bracket	19	Top panel
7	Fan	20	water supply valve
8	Filter screen	21	Real panel(above)
9	front panel	22	Real panel(below)
10	Control panel	23	Deicing solenoid valve
11	Door panel	24	Water tank
12	Door frame	25	Electrical box
13	Pump	26	Machine feet

NOTICE TO ALL USERS

1. Please use the standard pre-purified water filter and replace the file element regularly to ensure it's food hygienic and reduce the risk of caused by water scale;
2. For the first time of making ice, due to the high inlet water temperature normally it takes a little bit longer time to reduce the water temperature in the water tank. After one or two ice-making cycles, the temperature in water tank will drop to 1--3°C. Machine will enter normal ice making
3. At least every quarter (every month in areas with poor water quality necessary to descale the water circulation pipes and ice-making components of the machine to reduce risk of failures or less efficient ice-making caused by solenoid valves, water pumps, pipelines and evaporator. Generally the cleaning time can be 5-30 minutes, visually all the yellow scale has been removed on the surface of the ice evaporator, then it can stop. If conditions permit, you can use food-grade descaling agent or diluted citric acid with a concentration of 20% , pot

into the water tank and activate the cleaning mode for internal circular cleaning, supplemented with a brush to wipe the scale on surface; if are not available, you can also use undiluted white vinegar, pour into water tank and use the same cleaning mode, supplemented with a biwipe the scale on surface. Immediately after descaling, be sure to use clean water internal and external circulation to clean the entire tank, pipeline, water pump and evaporator at least 3 times (each time you to unscrew the drain cap to discharge the descaling agent) to ensure safety and prevent corrosion damage by residues

1. The ambient temperature has a great influence on the ice making and life cycle. Please use the equipment under ambient temperature of 15-35 °C, and ensure that the space surrounding and even space on top are more than 30cm, then the equipment can be well ventilated working;

2. Unplug the power supply at least quarterly, open the front panel a compressed air with a soft brush to remove the dust on the surface condenser, then the equipment can run normally and ice-making efficient is good;

3. Please ensure that the power supply voltage is stable and the so reliable ground for personal and equipment safety;

4. If main power is accessible inside the equipment. Non-professionals not allowed to do disassemble and repair works, Any maintenance involving the inside components of equipment must be performed when is completely powered off!

INSTALLPACKING LIST

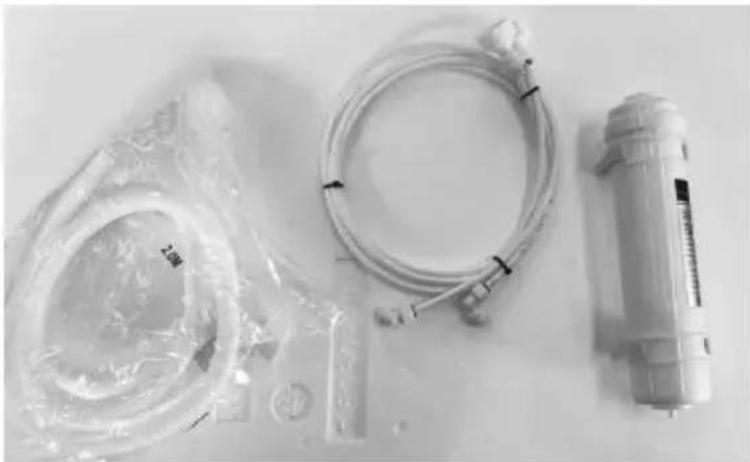

A. Take out the inlet pipe, filter, filter connecting pipe, and drainage accessories from the accessory box (corresponding to item numbers 1/3/4#).

Medical equipment including a plastic tube, coiled cable, and syringe on a plain surface (no text or symbols visible)

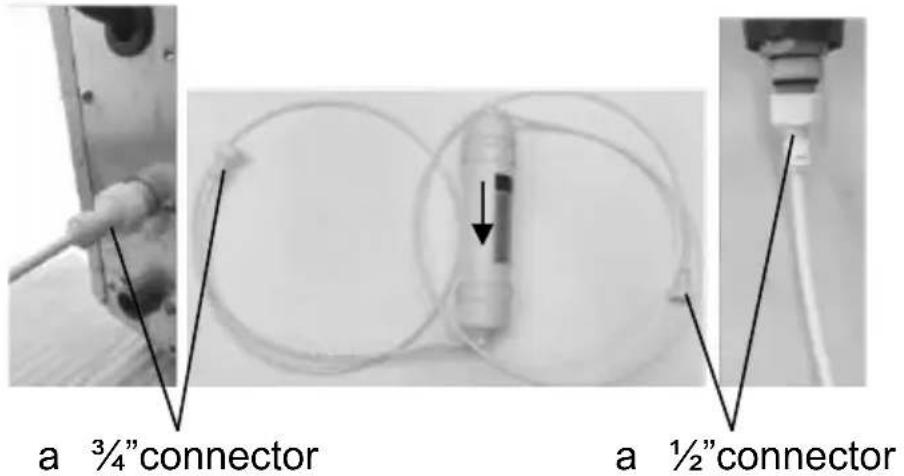

B. Install the filter element and water faucet: Use two 2-way PE pipes each end of the filter(pay attention to the direction of the arrow on 1 connector to connect the inlet pipe of the ice maker to the filter element use a 3/4 ”connector to connect the ice maker, and use a 1/2 ”connector connect the Drinking water connectiongend .

a 3/4" connector a 1/2" connector

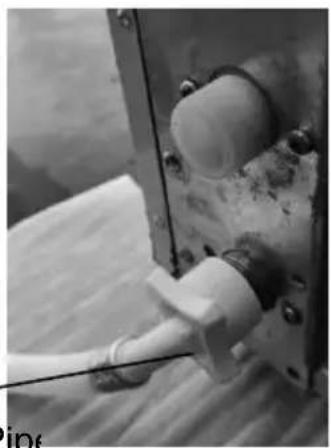

C. Take out the water inlet pipe, filter, and c in the accessory box (the water inlet route; the diagram -- from the faucet to the main water inlet pipe; the drain route -- from the outlet to the floor drain), and connect them positions shown in the figure respectively.

Close-up of a mechanical component with a pipe fitting and bolted joints (no visible text or symbols)

Ice Maker Drainage Pipe

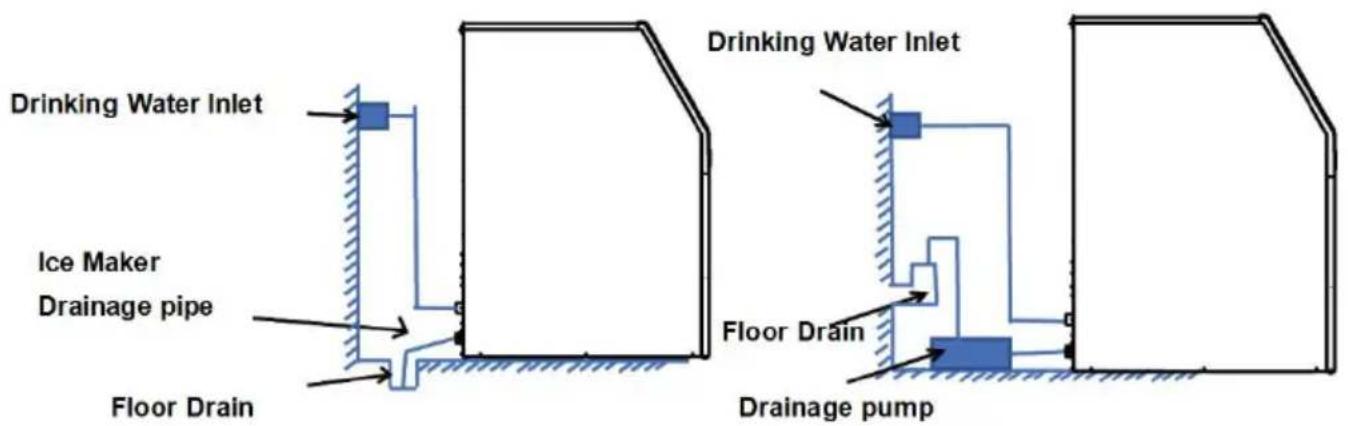

The Whole Machine Drainage Installation Notes:

1. Gravity Drainage: Combine the drainage pipes of the main unit and storage bin, and connect them to the floor drain together.

2. Electric Drainage: Connect the drainage pipes of the main unit and storage bin to the electric water pump. Please note that this pump is a separate power supply.

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

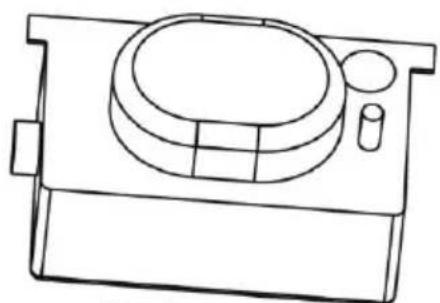

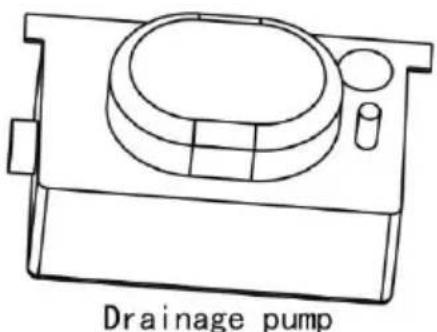

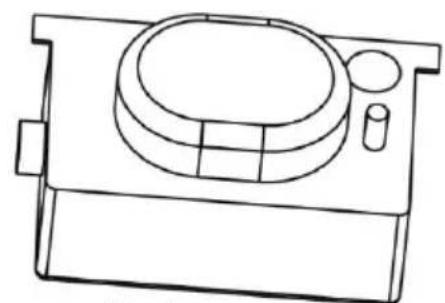

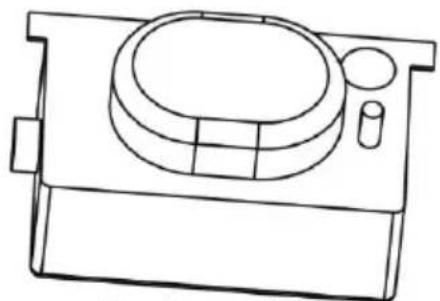

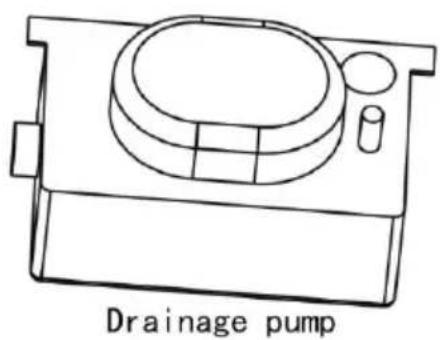

Drainage pump

Electric Drainage

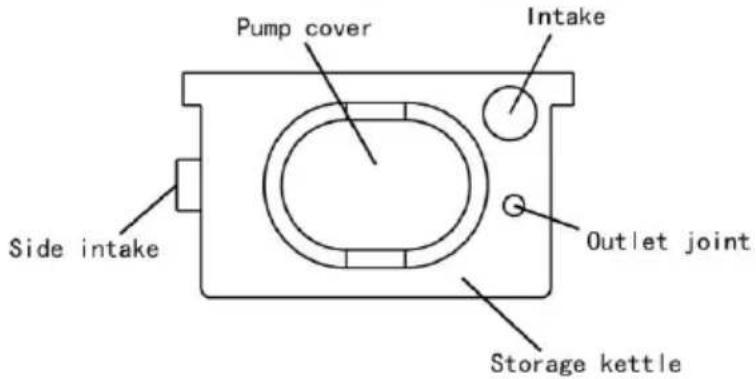

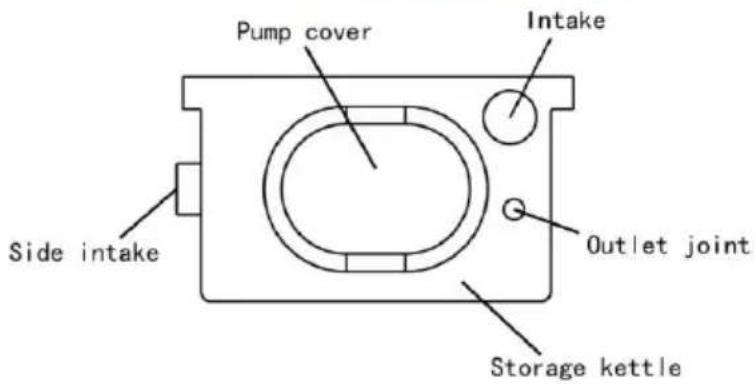

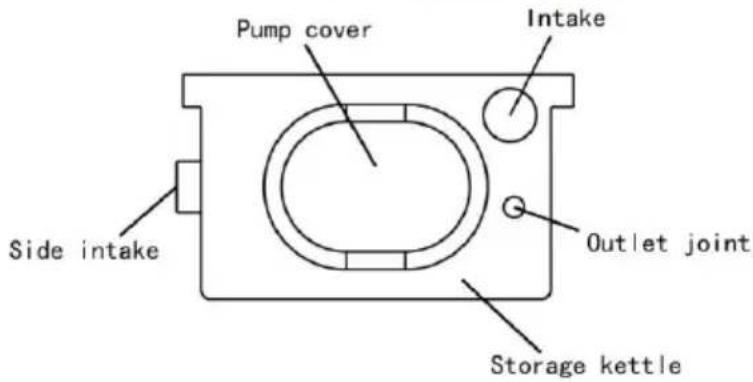

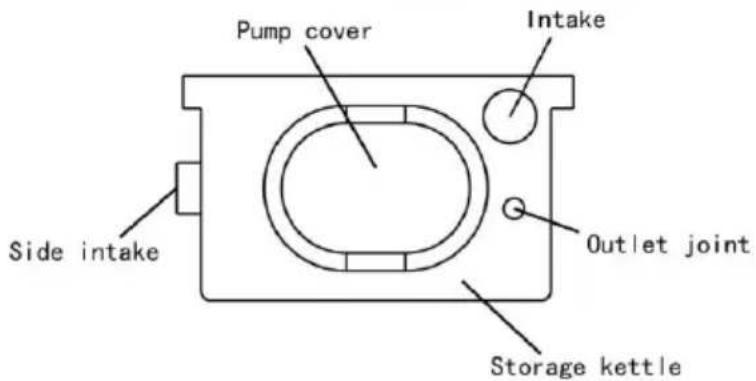

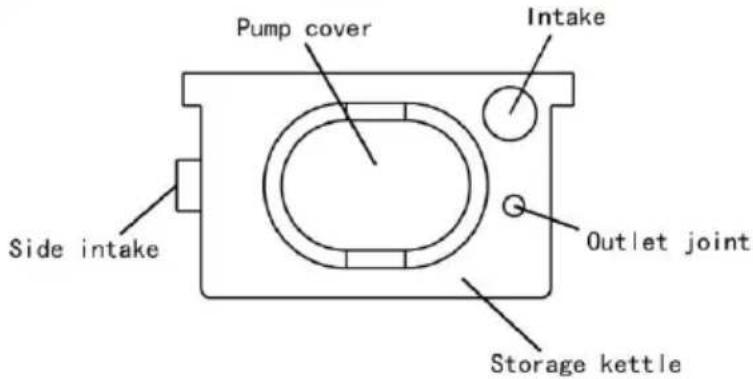

Pump cover Intake Side intake Outlet joint Storage kettle

Voltage	100-230V 50-60Hz
Maximum lift	2.0M-2.5M
Operation grade	Discontinuous
Storage tank capacity	1.2L
Applicable Power	15KW
Noise	20dnB(A)
Applicable ambient temperature	1°C-50°C
Power consumption	5W

Refer to the product manual for detailed information

Some models do not include drainage pumps

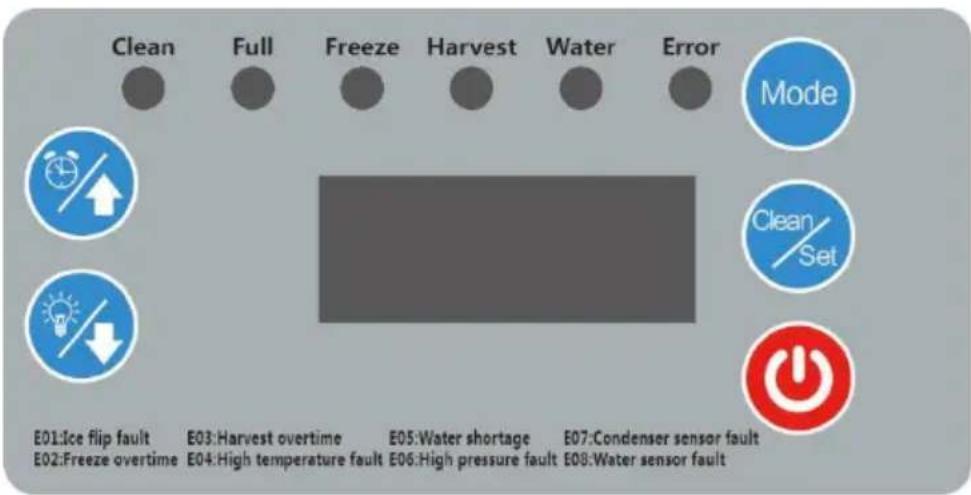

LCD FULL PAGE DISPLAY

Clean Full Freeze Harvest Water Error Mode Clean/Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

buttons on display board

on/off buttons

press 3 seconds to turn off the machine under turn on status

press on/off button to turn on the machine under turn off status

press the on/off button to exit setting under ice thickness setting and

water adjust status

mode button

switch the ice making program

clean/set button

press to clean status under machine turn off status

+/reservation button

press to ice thickness adjust under pressure equilibrium, making ice,

unload ice、ice full status

click to increase 1, long press the button to increase continuously un thickness adjust status

click to reservation time setting status under turn off status

-/light button

click to decrease 1, long press the button to decrease continuously unice thickness adjust status

8.fault codes

E-01.ice full button falut, skate board not back in position properly or button damage

E-02.making ice over time, can't detect ice thickness 5 times continuous

E-03.unload ice over time, can't detect ice full button action within 6min unload ice 3times continuously

E-04.high temperature fault, condensation temperature higher than setting temperature

E-05.lack of water

E-06.high pressure

E-07.condensation sensor fault

ICE THICKNESS SETTING TIME REFERENCE LIST

Note: The above data is for reference only. Different regions and different environments may have differences.

DAILY CLEANING AND MAINTENANCE

1. Clearance of side panels and inner container

A、Before cleaning and sanitizing the ice maker, cleaning up the ice

in the ice cabinet, also ensure the power source and water source has been cut off.

B、Cleaning the side panels and inner container with clean water (you join some neutral detergent in water), and then wipe up the machine soft towel.

Attention: Do not spray water to machi directly. Alkaline detergent, perfumed soap, lapp powder, boiling water, bananas oil, tolperison most of the other organic solvents can't be u clean the machine.

Simple line drawing of a 3D box with a heart symbol on the left face and a curved arrow inside (no text or symbols)

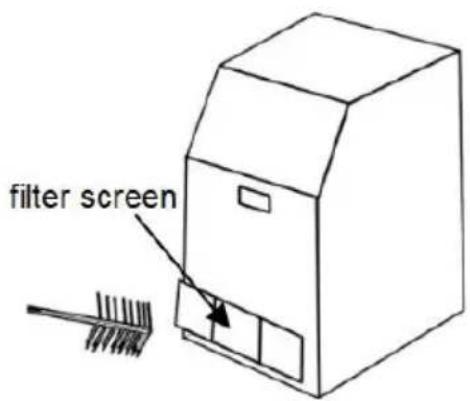

1. Dust removal of the filter screen

In order to use the machine well, please clean the dust that covered filter screen once every three months. Open the Ventilation fence in the machine, (grasp the frame of ventilation fence by hand, pull it out carefully), use dust collector or brush to clean the dust. The aculeate tools can't be used to clean condenser, so as not to damage the ra fins.

filter screen

1. Cleaning the spray water pipe

A、Cleaning the ice maker:

The spray water pipe must be cleaned once per half a year. When

clean it, firstly open the front cover, take out the spray pipe, and the off the scum till the every hole is unblocked. Reinstalled it after finish cleaning.

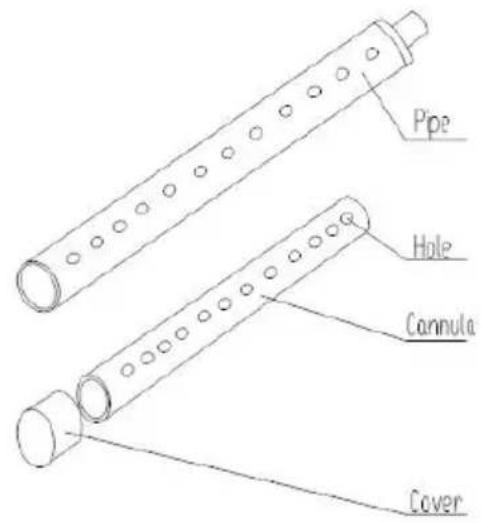

Pipe Hole Cannula Cover

C、After finishing washing, screw out the cap of the drain-valve and drain

out all the dirty water, then tighten the cap.

1. Automatically cleaning of the ice maker

Automatically cleaning of the ice maker: when the machine is making softly push the “clean” key on the electrical box which is on the rea the refrigeration system will stop work, and the machine turn into auto-wash process. The total wash processes is divided into three ste wash, potch and drain. It will cost bout 30 minutes. In order to impr cleaning effect, the user can add a little neutral detergent, after finish washing, the machine turns into ice-make condition automatically.

A、Usually, the machine is connected to the power source continually.

When you connect the machine to the power source firstly, there is process after the water in sink is full: water supply—water pump with water pump works and drain-valve opens—water supply—water pump works—water pump works and drain-valve opens—pressure balances. This process will cost about 5 minutes(once every 30 ice-m cycle). In addition, after every four ice-make cycles, there is a drain process, drain out the water in the sink.

B、After finishing washing, confirm the place of the float ball: If the float ball is on the bottom and the machine is on, this condition is normal, the program will turn into pressure balance process, the water level will be controlled automatically; If the float ball is on the upper position and machine stops, it means that there are some problems with the water sensor, water pump or drain valve.

Point: the water-filter core is consumable, it is not in the guarantee scope. If you need it, please contact with our marketing department and buy it 5. Please according to the following steps if you haven't used the ma for a long time.

A、Turn off the power switch, take out the plug of the machine, then the power supply and water supply.
B、Take out the ice block from the cabinet, wipe out the water on 1 of the cabinet.
C、Wipe out the water on the cabinet, and then open the door, make cabinet fully dried.

TROUBLE SHOOTING

Fault	Analysis	Solution
Do not make ice	The electric wire didn’t connell.	Check the wire.
	The retained board was pinn by ice block.	Take out the ice block as to let the retained board return to the orig situation.
	The connecting wire of compressor's starter is loose	Check and fasten it
	The starting capacitor of compressor is broken	replace it
	PC board is broken	replace it
	Water level sensor is broke	replace it
	water pump is broken	replace it
The sink is overflow.	water supply solenoid valve broken	replace it
	water level sensor is broken	replace it
No water flowing on to the ice model	water pump is broken	replace it
	PC board is broken	replace it
The ice block is thin	The surface of condenser is covered with dust.	clean it
	The ambient temperature is high	You should use the machine in allowable ambient temperature
	The refrigerant leak	check and recharge the refrigerant
	fan motor is broken	replace it
	spray tube is blocked	clean it
	The ice thickness sensor is close to the ice model.	Adjust the screw of sensor(turn right)
The ice can not drop off.	The ice thickness sensor is broken	replace it
	The solenoid valve is not op	check the electric wire is connected well or no Or replace the solenoid valve
	The ambient temperature is low	you should use machin in allowable ambient temperature

TECHNICAL PARAMETER AND WIRING DIAGRAM

A、Technology parameters are on the nameplate.
B、The electrical schematic diagram is on the inner side of the board

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

Made In China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHNE

MODÈLE : LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

GARANTIES IMPORTANTES

Warning sign depicting a flame symbol in a triangular hazard triangle

Exploded view diagram of a device with numbered components for identification

Medical equipment including a transparent plastic tube, coiled cable, and a syringe on a plain surface (no visible text or symbols)

Close-up of a white PVC pipe fitting attached to a metal panel, with no visible text or symbols.

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Technical line drawing of a mechanical component with no visible text or symbols

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Clean Full Freeze Harvest Water Error Mode Clean Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

Simple line drawing of a 3D box with a smiley face and curved arrow inside, no text or symbols present.

filter screen

www.vevor.com/support

Fabriqué en Chine

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHINE

MODELL: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning sign depicting a flame symbol in a triangular frame, indicating hazard or electrical hazard.

Exploded view diagram of a device with numbered components for identification

Medical equipment including a transparent plastic tube, coiled cable, and a syringe (no visible text or symbols)

Close-up of a pipe fitting attached to a metal bracket with bolts (no visible text or symbols)

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Technical line drawing of a mechanical component with no visible text or symbols

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Clean Full Freeze Harvest Water Error Mode Clean/Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

Simple line drawing of a 3D box with a smiling face and curved arrow inside, no text or symbols present.

filter screen

Pipe Hole Cannula Cover

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHNE

MODELLO: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

TUTELA IMPORTANTE

Warning sign depicting a flame symbol inside a triangle, indicating hazard or hazard status.

Exploded view diagram of a device with numbered components for identification

Medical equipment including a plastic tube, coiled cable, and syringe on a plain surface (no text or symbols visible)

Close-up of a pipe fitting attached to a metal bracket with bolts (no visible text or symbols)

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Technical line drawing of a mechanical component with no visible text or symbols

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Simple line drawing of a 3D box with a smiling face and curved lines inside, no text or symbols present.

filter screen

Pipe Hole Cannula Cover

www.vevor.com/support

Made in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHNE

MODELO: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning sign depicting a flame symbol in a triangular warning triangle

Exploded view diagram of a device with numbered components for identification

Medical equipment including a plastic tube, coiled cable, and syringe on a plain surface (no text or symbols visible)

a 3/4" connector a 1/2" connector

Close-up of a pipe fitting attached to a metal bracket with bolts (no visible text or symbols)

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Clean Full Freeze Harvest Water Error Mode Clean Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

Simple line drawing of a 3D box with a smiling face and curved lines inside, no text or symbols present.

filter screen

www.vevor.com/support

Hecho en china

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHINE

MODELU: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

WAŻNI OCHRONIARZE

Warning sign depicting a flame symbol in a triangular hazard triangle

Exploded view diagram of a device with numbered components for identification

Medical equipment including a syringe, coiled tubing, and plastic tubing with a label '2.5mm' (no readable text or symbols on main subject)

Close-up of a pipe fitting attached to a metal bracket (no visible text or symbols)

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Clean Full Freeze Harvest Water Error Mode Clean/Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

Simple line drawing of a 3D box with a smiling face and curved lines inside, no text or symbols present.

filter screen

Pipe Hole Cannula Cover

www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHINE

MODEL: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

BELANGRIJKE VEILIGHEIDSMAATREGELEN

WAARSCHUWING: Lees alle veiligheidswaarschuwingen,

Warning sign depicting a flame symbol inside a triangle, indicating hazard or hazard status.

Exploded view diagram of a device with numbered components for identification

Medical equipment including a plastic tube, coiled tubing, and a syringe on a plain surface (no text or symbols visible)

Close-up of a pipe fitting attached to a mechanical component (no visible text or symbols)

Ice Maker Drainage Pipe

Opmerkingen over de installatie van de hele machine-drainage:

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Clean Full Freeze Harvest Water Error Mode Clean/Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

www.vevor.com/support

Gemaakt in China

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offered are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ICE MACHINE

MODELL: LB100T/LB160T/LB200T/LB265T

LB100T LB160T/LB200T LB265T

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

VIKTIGA SÄKERHETSÅTGÄRDER

Warning sign depicting a flame symbol in a triangular hazard triangle

Exploded view diagram of a device with numbered components for identification

Medical equipment including a plastic tube, coiled tubing, and a syringe on a plain surface (no text or symbols visible)

Close-up of a pipe fitting attached to a metal frame, with no visible text or symbols

Ice Maker Drainage Pipe

Drinking Water Inlet Ice Maker Drainage pipe Floor Drain Drinking Water Inlet Floor Drain Drainage pump

Gravity Drainage

Technical line drawing of a mechanical component with a circular top and side holes (no text or symbols)

Drainage pump

Electric Drainage

Pump cover Intake Side intake Outlet joint Storage kettle

Spänning	100-230V 50-60Hz
Maximalt lyft	2,0M-2,5M
Driftsgrad	Diskontinuerlig
Lagringstankens kapacitet	1,2L
Tillämplig effekt	15KW
Ljud	20dnB(A)
Tillämplig omgivningstemperatur	1°C-50°C
Energiförbrukning	5W

Clean Full Freeze Harvest Water Error Mode Clean/Set E01:Ice flip fault E03:Harvest overtime E05:Water shortage E07:Condenser sensor fault E02:Freeze overtime E04:High temperature fault E06:High pressure fault E08:Water sensor fault

knappar på displayen

på/av-knappar

Simple line drawing of a 3D box with a smiling face and curved arrow inside (no text or symbols)

filter screen

Pipe Hole Cannula Cover

www.vevor.com/support

Tillverkad i Kina
