Automatic Microcomputer Cutting Machine MODEL: HZX-100, HZX-100D, HZX-200, HZX-300

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only repre- estimate of savings you might benefit from buying certain tools with us compared top brands and does not necessarily mean to cover all categories of tools offer are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

Automatic Microcomputer Cutting Machine

HZX-100, HZX-100D

HZX-200 HZX-300

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instruct manual carefully.

SAFETY WARNINGS AND PRECAUTIONS

Thank you for using this product. In order to make sure that you can operam machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and saf rules in this page to ensure your safe use. This manual will outline safety v and precautions, operating, maintenance. The warnings and instructions reviewe in this manual cannot cover all possible conditions and situations that may o Caution and common sense are not built into this product, since we believe the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Assemble needs to follow these instructions. Incorrect assembly can be a hazard.
2. Do not assemble when tired or when under the influence of alcohol, drug medication.
3. Weight and elastic and other product properties are only applicable to corr and completely assembled products.
4. Keep the assembly area clean and well-lit.
5. Keep bystanders out of the area during assembly.
6. This is a equipment, not a toy, it needs to be used under the guidance professional. Do not allow children and pets to play alone or approach this i
7. Use as intended only. Do not sit or stand on the product.
8. Inspect before every use. Do not use it if parts are loose or damaged.
9. Do not apply this unit to any other purposes than the indicated usage.
10. Do not use it for commercial purposes.
11. Do not clean it with any abrasive material.

12. Never leave it unattended while in use.

13. Pet urine and feces can damage the product, please keep away.

14. Do not place the product on or near hot air, electric burners or heaters.

WARNING:

The warnings, cautions and instructions discussed in this instructions or situation that could occur. It must be understood by the operator that common sense caution are factors which cannot be built into this product, but must be supported by the operator.

1. Keep work area clean. Cluttered area invite injuries.
2. Observe work area conditions. Do not use machines or power tools in da wet locations. Don't expose to rain. Keep work area well lighted. Do not use electrically powered tools in the presence of flammable gases or liquids.
3. Keep children away. Children must ever be allowed in the work area. Do them handle machines, tools, or extension cords.
4. Store idle equipment. When not in use, tools must be stored in a dry location to inhibit rust. Always lock up tools and keep them out of reach of children.
5. Do not force tool. It will do the job better and more safety at the rate it was intended. Do not use in appropriate attachments in an attempt to exceed tool capacity.
6. Use the right tool for the job. Do not attempt to force a small tool or a to do the work of a large industrial tool. Do not use a tool for a purpose was not intended.
7. Dress properly. Do not wear loose clothing of jewelry as they can be calm moving parts. Protective, electrically non-conductive clothes and non-skid footwear are recommended when working. Wear restrictive hair covering to cont long hair.
8. Use eye and ear protection. Always wear ISO approved impact safety goggles. Wear a full-face shield if you are producing metal filings or wood chips. Wear ISO approved dust mask or respirator when working around metal, and chemical dusts and mists.

9. Do not overreach. Keep proper footing and balance at all times. Do not over or across running machine.

10. Maintain tools with care. Keep tools sharp and clean for better and safe performance. Follow instructions for lubricating and changing accessories. The handles must be kept clean, dry, and free from oil and grease at all times.

11. Stay alert. Watch what you are doing;use common sense. Do not operate tool when you are tried.
12. Check for damaged parts. Before using any tool, any part that appears damaged should be carefully checked to determine that it will operate properly, perform its intended function. Check for alignment and binding of moving parts, broken parts or mounting fixtures; and any other condition that may affect proper operation. Any part that is damaged should be properly repaired or replaced qualified technician.
13. Guard against electric shock. Prevent body contact with grounded surfaces such as pipes, enclosures.
14. Replacement parts and accessories. When servicing, use only identical replacement parts. Use of any other parts will void the warranty. Only use accessories intended for use with this tool. Approved accessories are available from the distributor.
15. Do not operate tool if under the influence of alcohol or drugs. Read wallabels on prescriptions to determine if your judgment of reflexes are impaired taking drugs. If there is any doubt, do not operate the tool.
16. If the supply cord is damaged, it must be replaced by a special cord or assembly available from the manufacturer or its service agent.
17. This appliance can be used by children aged from 8 years and above as persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Model	Input	Power	Cut-off width	Cut-off length	cut - off thickness
HZX-100	120V 60Hz	118W	1~85mm	0.1~99999.9mm	3mm
HZX-100	220-240 V 50Hz	105W	1~85mm	0.1~99999.9mm	3mm
HZX-100D	120V 60Hz	143W	1~85mm	0.1~99999.9mm	3mm
HZX-100D	220-240 V 50Hz	136W	1~85mm	0.1~99999.9mm	3mm
HZX-200	120V 60Hz	152W	1~180mm	0.1~99999.9mm	0.1-0.6mm
HZX-200	220-240 V 50Hz	129W	1~180mm	0.1~99999.9mm	0.1-0.6mm
HZX-300	120V 60Hz	321W	1 ~ 280mm	0.1~99999.9mm	0.1-0.6mm
HZX-300	220-240 V 50Hz	272W	1 ~ 280mm	0.1~99999.9mm	0.1-0.6mm

FUNCTIONAL DESCRIPTION

The program cutter motor can be set as either ac motor or stepper motor. start cutting first or feeding first.

The machine has the function of preventing touch by mistake. It needs to press start button for three seconds to start.

The parameters are described below:

Cutting length: The length of the cutting material, ranging from 0.1mm-99999.9mm (99999.9mm).

Feeding speed: The feeding speed of stepping motor, the range is 0-999. (T value has no special meaning. The higher the value, the faster it will be.)

Inching speed: when there is no running, the speed of manual inching and discharging is 0-999.

Batch setting: this parameter is used in conjunction with batch delay. If the setting is 5 and the batch delay is set to 0, the machine will be shut down, finishing the 5 output. After manual starting, the machine will be shut down for the 5 output.

If the batch is set to 5 and the batch delay is set to 5 s, that is, the max start automatically after 5 pauses for 5S, do another 5 pauses, and then pass for this cycle. In the process of batch arrival and pause, the buzzer will sound drop interval, and the interface state will display the word "batch" to prompt customer to arrive in batches.

Output setting: set to 0: the machine will not automatically stop, set a num set to 100, that is, after the output of 100, the machine will automatically stop the buzzer will drop! When the drip interval rings, the interface state will display word "output", prompting the customer to reach the output. After the output reaches, the customer needs to press the stop key, the buzzer is not prompt. interface will display "standby", and the output is cleared before further start.

Number of cuts: The number of cuts, generally set to 1, do not change.

Cutting time: the working time of THE AC motor. If set to 3.0s, that is, 3S, motor will stop immediately when the cutter cutting sensor is encountered with 3S. If the cutter cutting sensor is not encountered within 3S, the AC motor w stop immediately.

Cutting interval: when the cutting frequency is greater than one change parameter, that is, after cutting a knife interval of a time and then cut a kn

Cutting speed: When the cutting motor is a stepping motor, the running speed the cutting motor during operation.

Cutter reset: when the cutter motor is stepper motor, when the manual cutter, speed of the stepper motor.

Delay before cutting: after sending the material, delay for a while, then carry on the cutting action.

Cycle interval: that is, after cutting a material, delay, then cut the next materia

Single cycle: set to 0:machine cycle operation.Set to 1:Cut one at a time.

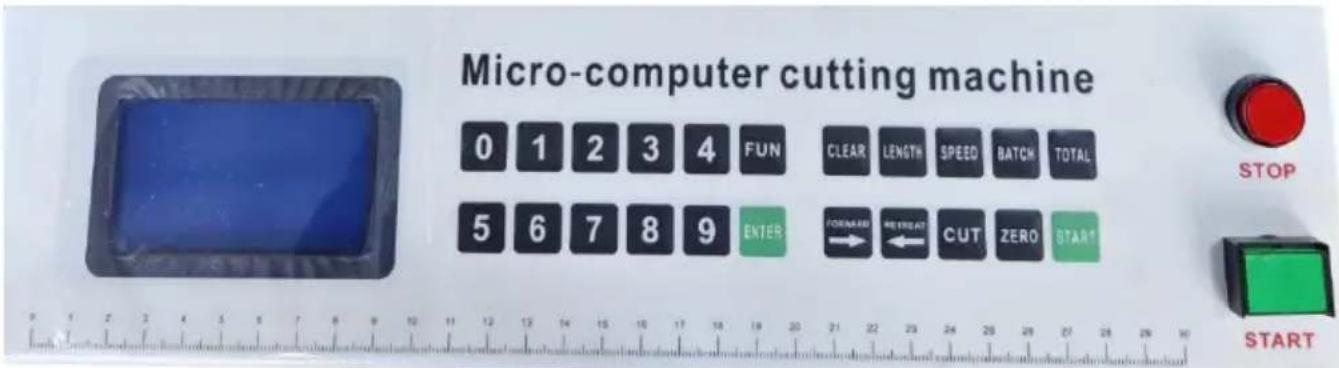

Parameter to restore the default factory value method:

Long press the function key.When the system password is entered as 1234,p the "Ok" key to restore the default factory value.

---

Description of internal parameters:

Enter the method: Long press the function key.When the system password is entered as 1111, press the "Ok" key to enter.

Wheel circumference 1: This value is the length of the material when the f wheel makes one turn. This parameter can be adjusted if the cut length is not timely. If the cut material is too long, the value can be increased; if the cut ma

too short, the value can be reduced.

(Wheel circumference correction method: the length is set at 100mm, the wheel circumference is set at 100, press the start key to cut the material measure length, the material length is the same length, the measured length is modified the wheel circumference parameter, and the total length of starting again is 100mm)

Drive subdivision 1: Dial code subdivision of the feeding stepper motor drive 1. Deceleration Setting (feeding stepping) is generally set to the same size. - larger the value is, the less obvious the stepping acceleration process is; the smaller the value is, the more obvious the stepping acceleration process is.

Cutter motor: Set as 0: Cutter motor is AC motor; Set as 1: AC motor is motor.

Drive subdivision ii: When the cutter motor is a stepping motor, the dial cc the cutter stepper motor driver is subdivided.

1. Setting of acceleration and deceleration : (cutting tool stepping) is generally to the same size. The larger the value is, the less obvious the stepping acceleration process is; the smaller the value is, the more obvious the steppi acceleration process is.

3.

Boot interface: Set to 0: Boot directly into the main interface; Set to 1: The of the company will be displayed before startup.

Chinese-english switch: Set to 0: Chinese; Set to 1: English.

Abnormal switch: when the cutting motor is ac, set to 0: no cutting inductance be reported during the cutting time. When set to 1: There is no abnormal c induction during the cutting time.

Cut and send order: set to 0: First send and then cut; Set to 1: Cut first deliver later.

(Matters needing attention):

1. Press the feed and return button to adjust the feeding speed during opera
2. When the output is displayed on the interface, press the stop button first, the prompt state, and then reset to start.
3. In the suspended state, press start, then the last walk that has not been completed, in the standby state, press start, and a new feeding cutter.
4. During the operation, press pause and then press start to continue. Press pause twice, then press start again for a new feed cutter.

System detection and troubleshooting

1. the cutter moves, the roller does not move, or the roller moves, the cutter not move, you need to pause, find the cutting button on the key board, enter whether the parameter is set wrong, the standard cutting number is 1, the cut time is 3.0, other need not set.
2. cutting knife, roller, press the pause, manual feed or return button, see the turn not turn, roller or not turn, you need to remove the operation panel on of the shell (four cross screws), check the black drive light, green light is no the red light is abnormal alarm, shut down the machine, connect the terminal the drive unplug again, wait for 3-5 minutes to restart the machine, or bright light, is broken, replace the new drive.
3. knife drop exception processing: method ①: long press the function key fc seconds password, the first line input 1234, press the confirm key, restore the factory Settings, press the clear key, to see whether the knife edge position

Method ②: if the method ① operation, the knife is not lifted, we need to adjust the lower left corner with white nut screws and the upper right corner with white screw, to the direction of the tight turn half, on the operation panel press cl single cut a knife, look knife have up, no lift to continue to tighten half the press the knife, and so on, if the screw is too tight knife, you need to bad bit, press the clear key single cut a knife, on the knife to the right high, th hexagon screw nut, the two sides add liquid lubricating oil to reduce friction.

Installation Instructions

Applicable models: HZX-100, HZX-100D, HZX-200

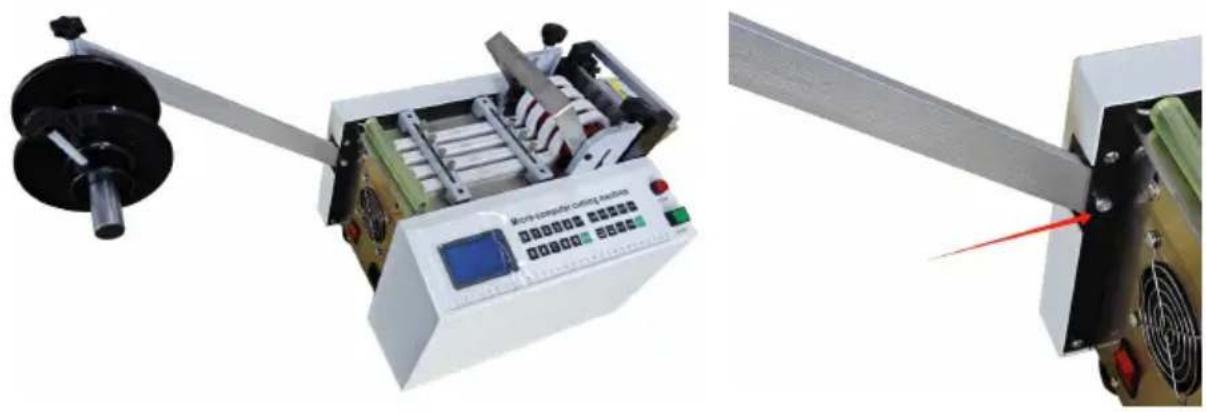

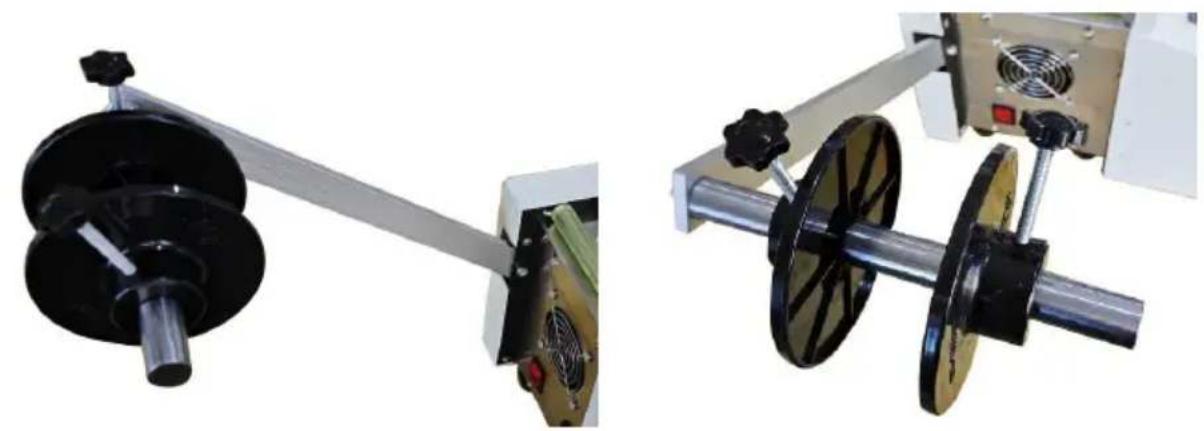

1. Install the material rack as shown in the diagram.

1. The correct way to place the material

Applicable models: HZX-300

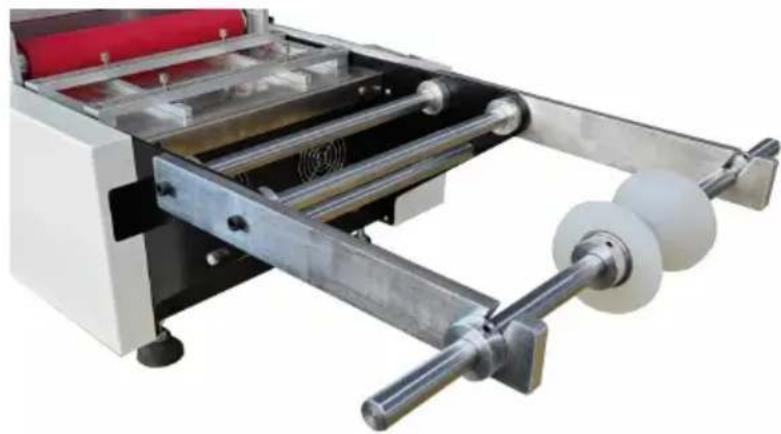

1.Install the left and right arms of the material rack as shown in the

2.Install the rotating shaft and fixing sleeve of the material rack as s the figure.

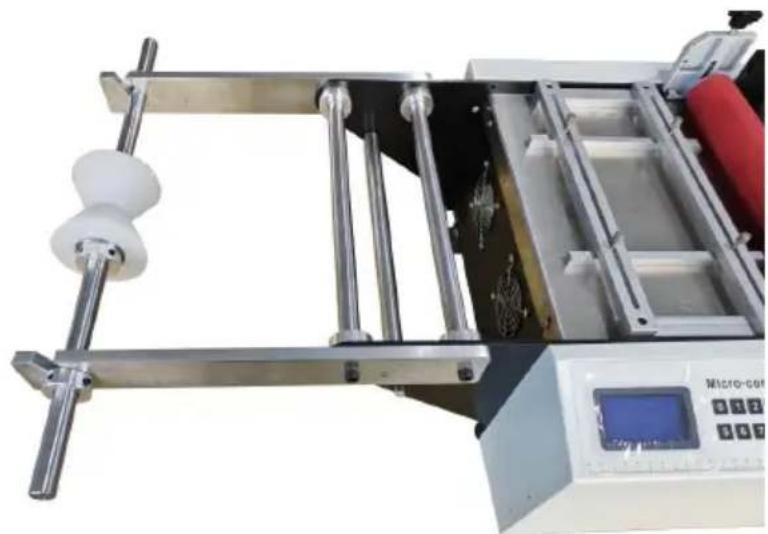

3.Install the rotating shaft of the material rack as shown in the figure
