ELECTRIC HIGH PRESSURE FUEL PUMPS INSTRUCTIONS

MODEL: HP128, HP121, HP156

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HIGH

PRESSURE FUEL PUMPS

Close-up of a metallic mechanical component with a coiled spring and protruding shaft (no visible text or symbols)

HP128

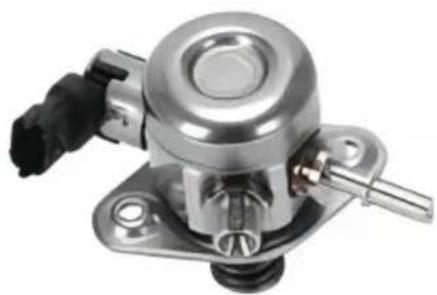

Close-up of a metallic automotive component with springs and housing (no visible text or symbols)

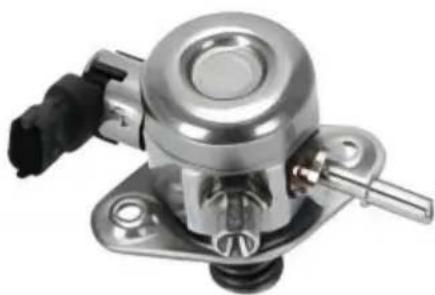

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156

(The picture is for reference only, please refer to the actual obje

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform your there are any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, user must rea instructions manual carefully.
	This product is of protection class III.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie crossed through indicates that the product requires separate refuse collection in the European Union. The applies to the product and all accessories marked v symbol. Products marked as such may not be disc with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

SAFETY INFORMATION

1. Repair procedures, tools, and parts to service motor vehicles, and the experience of the person performing the work make it impossible to describe all ways or conditions under which motor vehicles are or may be serviced, or to provide cautionary statements regarding hazards that may result.
2. Standard and accepted safety precautions and equipment should be used. when handling toxic or flammable materials. Safety goggles, other protection, and appropriate clothing (long-sleeve shirt, trousers and safety shoes) are required.
3. Make sure your work area is well ventilated and not exposed to heat, electricity, or open flames. No smoking! Clean up spills immediately and have a Class B or C fire extinguisher readily accessible. Consult appropriate repair manuals for any required special tools.
4. Not for use in marine or aircraft applications.

Model	HP128	HP121	HP156
Input	DC12V
Current(Max)	0.8A

INSTRUCTIONS

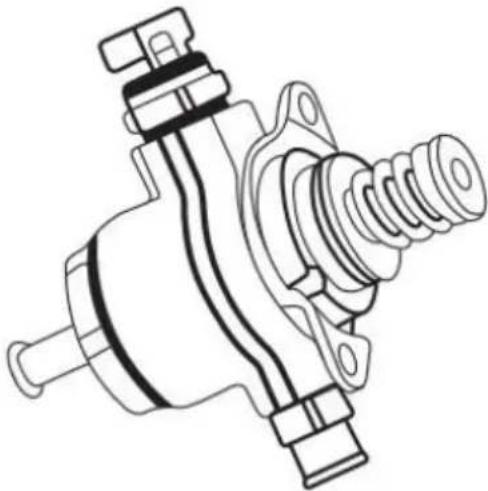

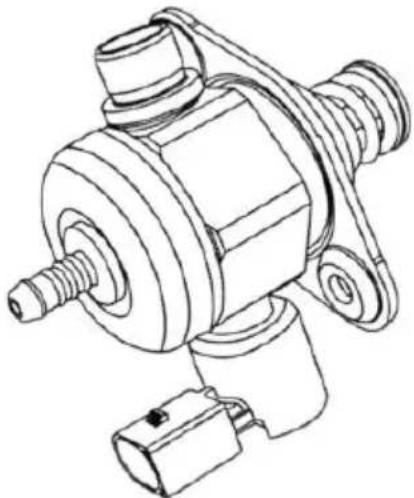

Installation step of High Pressure Fuel Pump

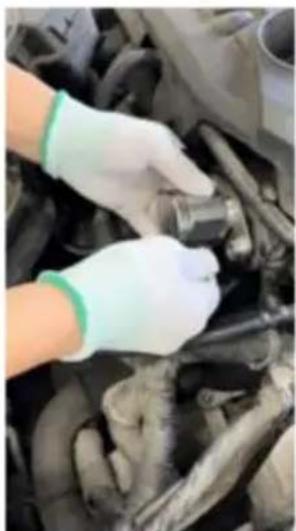

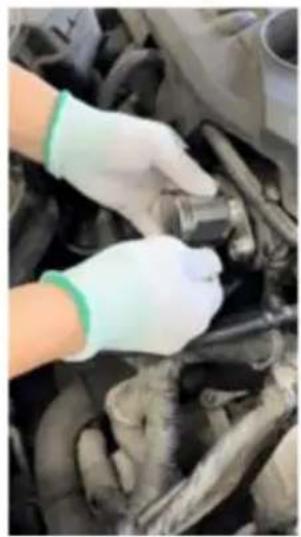

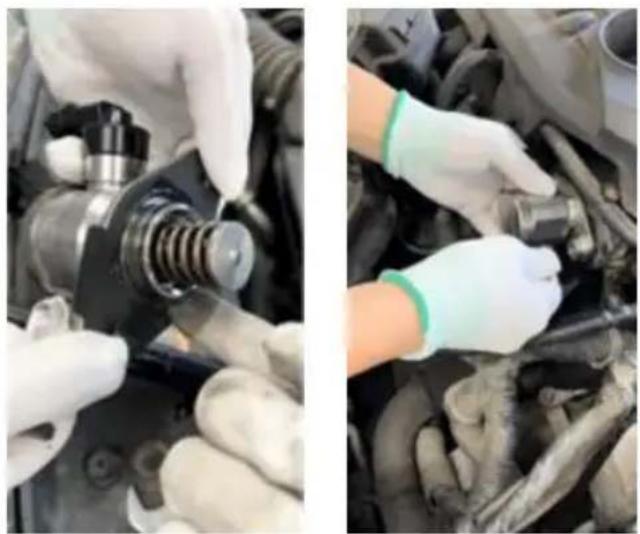

1. Detect high pressure pump O-ring, and use clean engine oil slightly wetting insert roller tappet into vacuum pump. Pay attention to align recess of roller tappet with groove on vacuum pump.

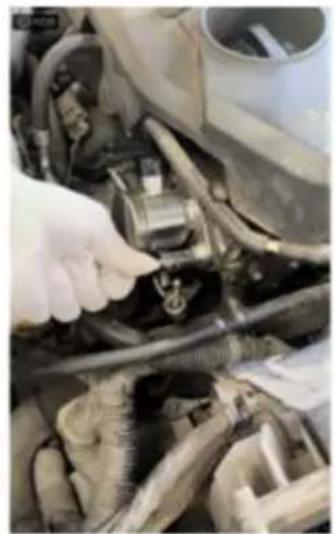

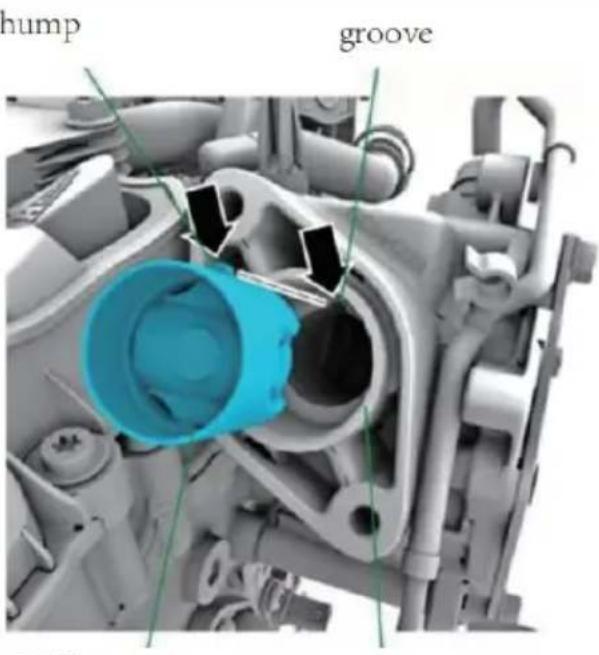

2. Rotate the crankshaft until the roller tappet is at its lowest point Insert the high pressure pump into the vacuum pump.

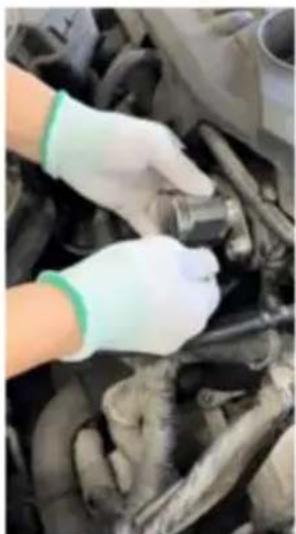

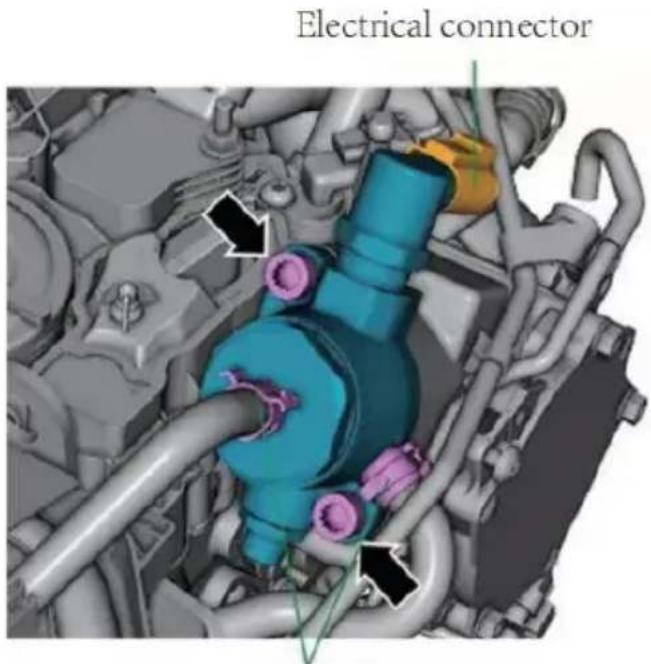

3. Cross tighten the fastening bolt by hand, and cross tighten the fastening bolt with the specified torque of 20N.m. Insert the fuel hose again and fix it with spring clamps Connect fuel pressure regulator

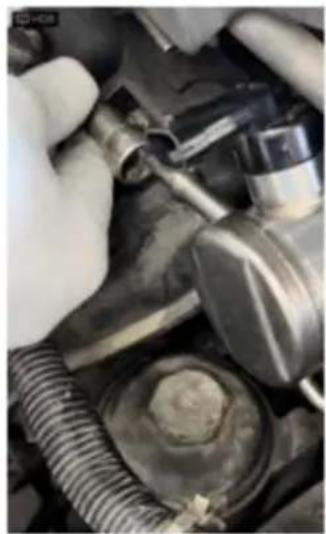

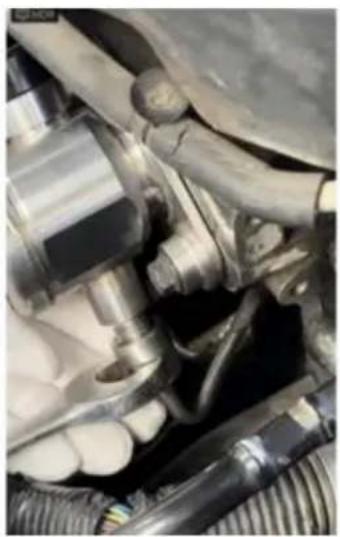

4. Use engine oil to infiltrate the ball head of the high pressure hose and install the high pressure hose Tighten the lock nut of the fuel distributor indicated by the arrow in the drawing with a wrench

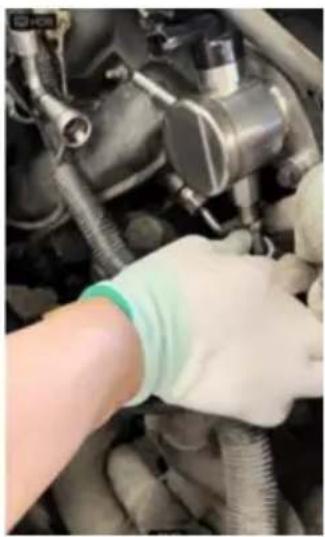

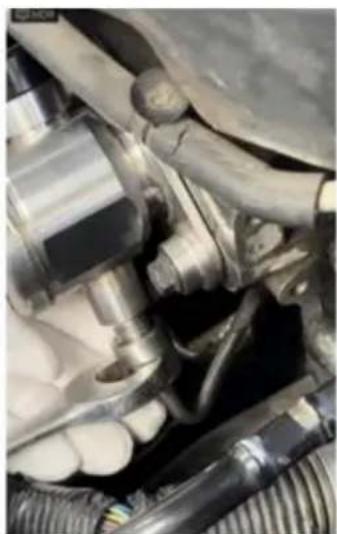

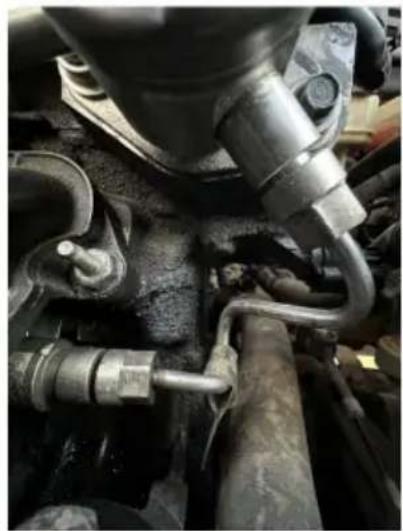

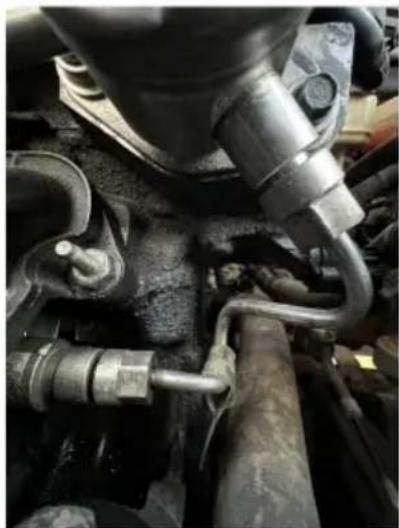

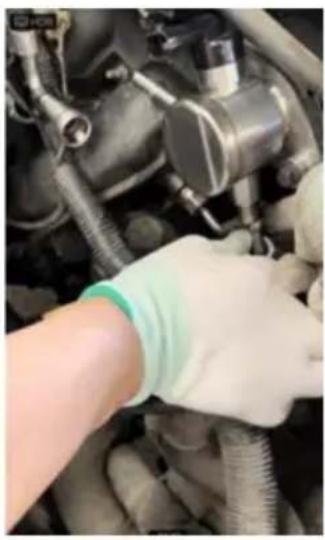

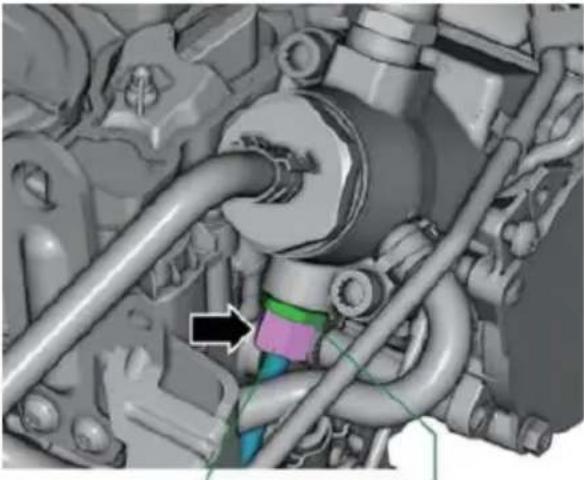

5. Fasten the high pressure pipe connector with a wrench and tighten the live joint nut of the high pressure tube with another wrench.

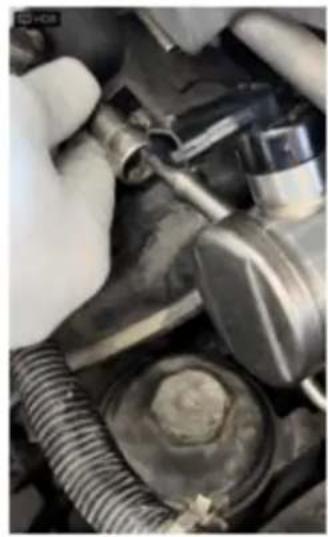

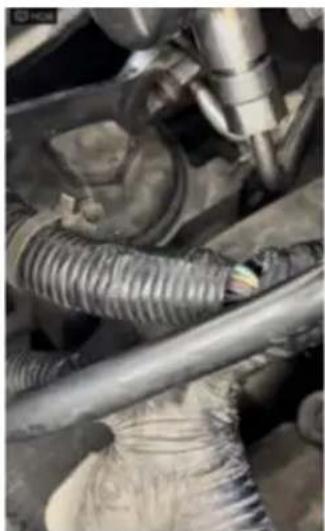

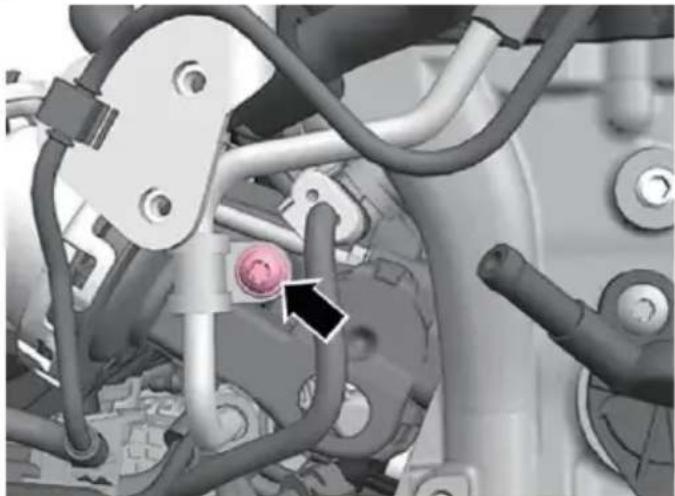

6. Install high pressure pipe clamps and use 5N.m torque to tighten clamps (You can skip this step for models without high-pressure pipe clips).

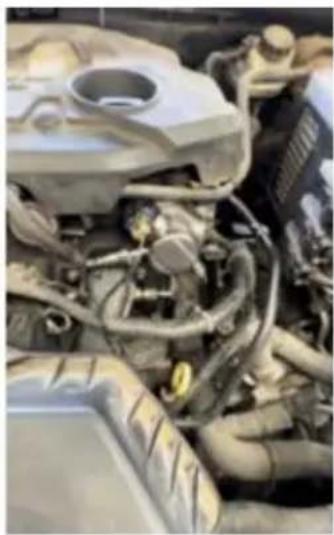

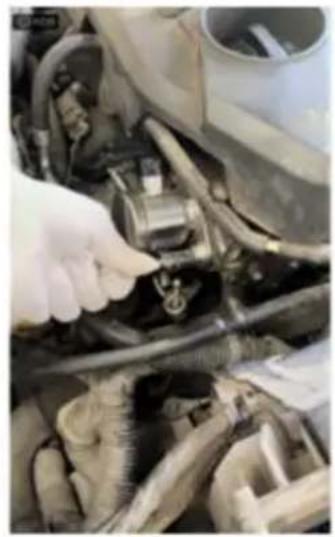

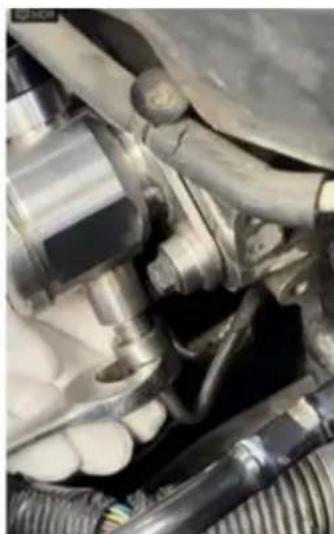

7. Start the engine after installation to observe whether there is oil leakage on each interface.

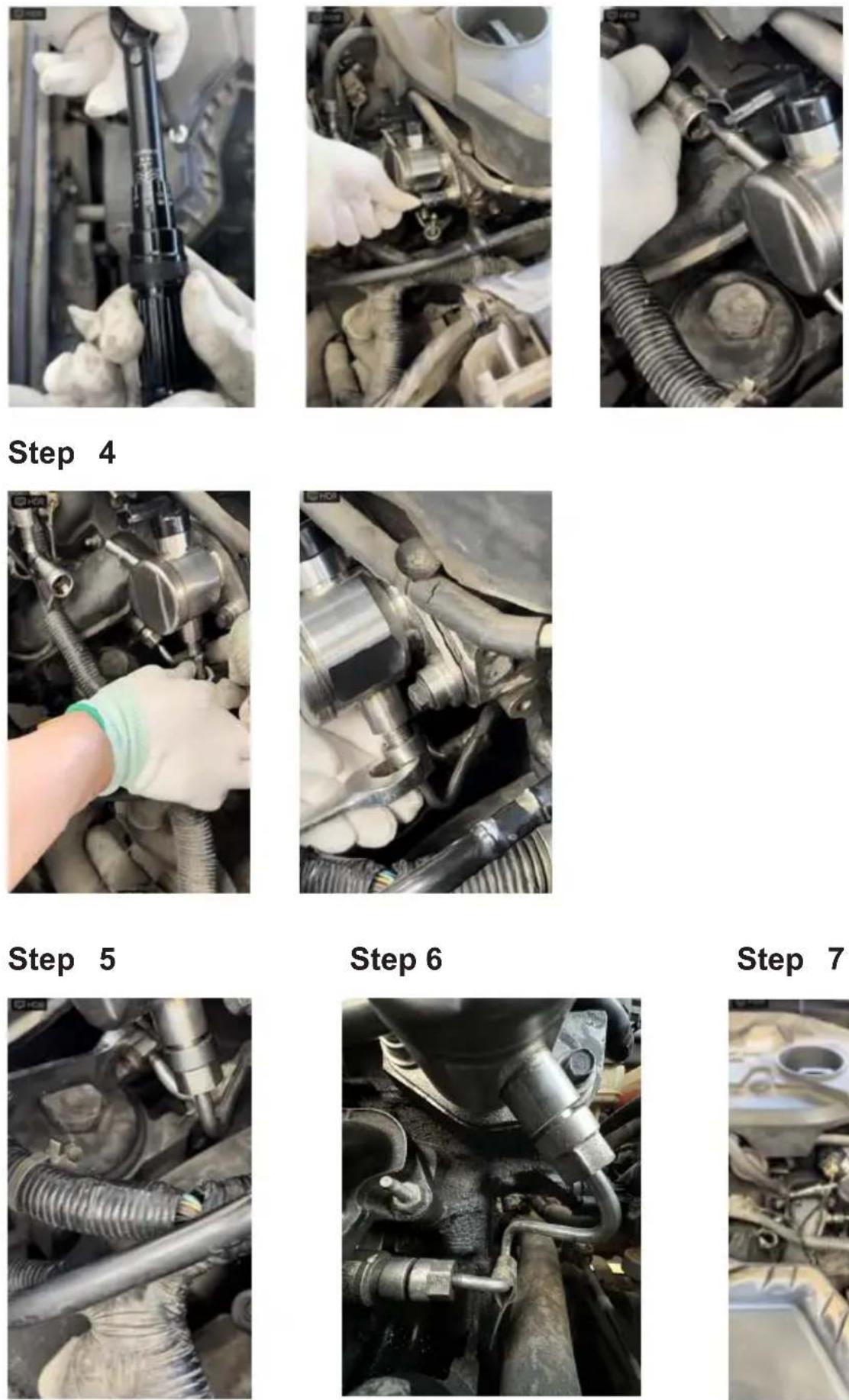

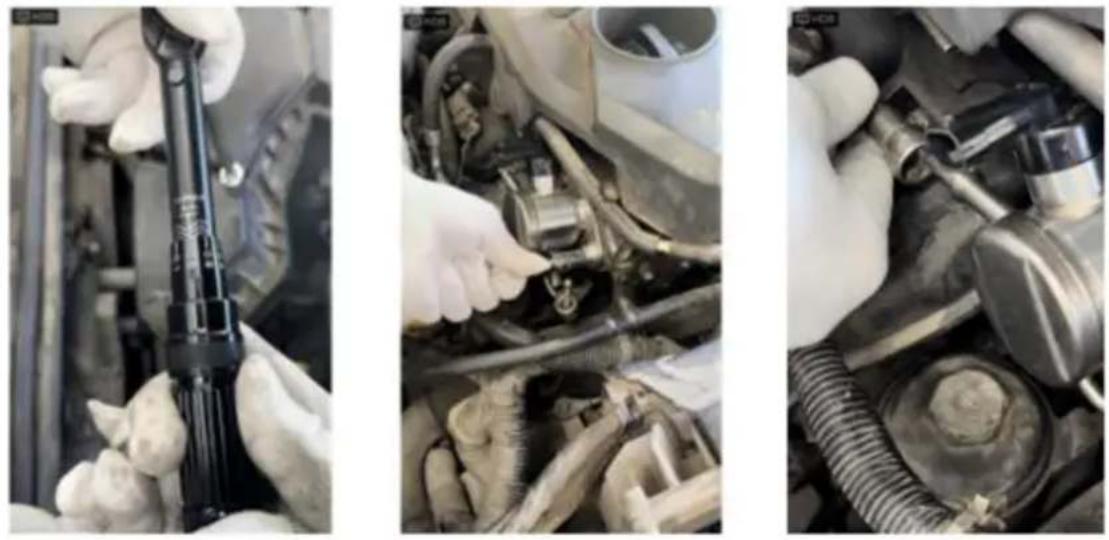

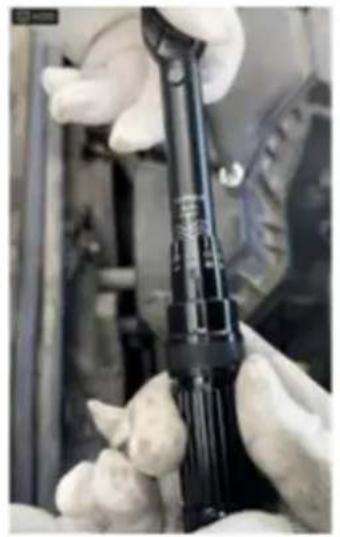

Step 1 Step 2

Step 3

Close-up of a car engine bay with visible hoses and components (no text or symbols)

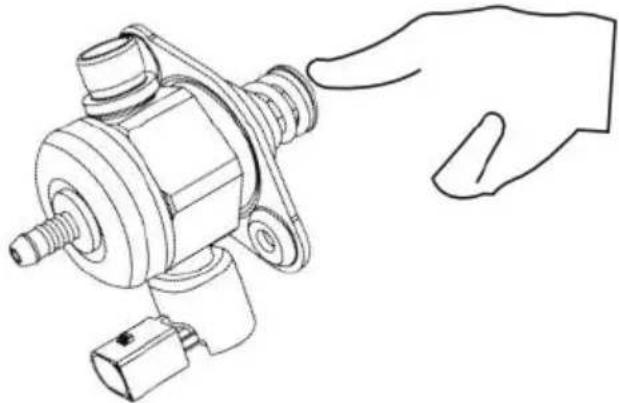

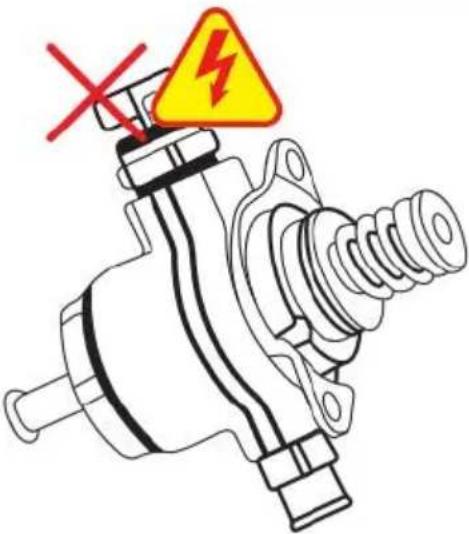

Do not hit the plug, do not grip stretch the spring part, which will cause irreparable damage	Do not open the solenoid valve not turn on the direct current
Do not open the solenoid valve, not turn on the direct current	Replace the copper connector after it has been installed and removed twiceunion nut High pressure pipe connector
Release the fuel pressure of the pressure system before removing high pressure oil pump	The torque to install the clamp bolts for the high-pressure pipe 5N.m
fuel hose	Stick tappet vacuum pump
Tighten the bolts to a torque of	When installing roller tappets, ensure that no debris enters th vacuum pump

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NS 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Pla Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Ma

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion H

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a metallic mechanical component with spring and nozzle (no visible text or symbols)

HP128

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with mounting flanges and a black connector (no visible text or symbols)

HP156

Close-up of gloved hands assembling a mechanical component with a threaded spring (no visible text or symbols)

Étape 2

Close-up of gloved hands inspecting engine components (no visible text or symbols)

Étape 3

Close-up of gloved hands holding a black mechanical component, no visible text or symbols

Close-up of a car engine bay with a hand adjusting the component (no visible text or symbols)

Close-up of hands adjusting a mechanical component with hoses and a bolt (no visible text or symbols)

Étape 4

Close-up of a gloved hand adjusting a mechanical engine component (no visible text or symbols)

Close-up of mechanical components including hoses and a valve assembly (no visible text or symbols)

Étape 5

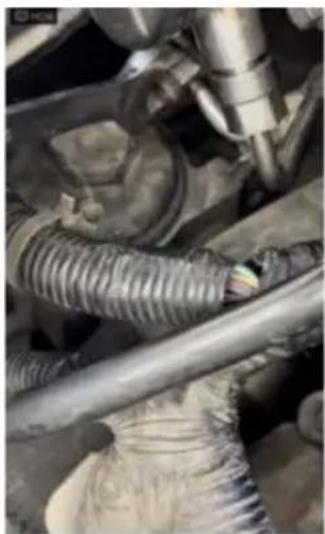

Close-up of automotive engine hoses and pipes (no visible text or symbols)
