USER MANUAL HS-228 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

Commercial Blender Operating Manual MODEL:HS-228-US/HS-228-EU

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL:HS-228-US/HS-228-EU

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must re instructions manual carefully.

Indoor Use Only

CORRECT DISPOSAL This product is subject to the provision of European D 2012/19/EC. The symbol showing a wheelie bin cros through indicates that the product requires separate recollection in the European Union. This applies to the and all accessories marked with this symbol. Products as such may not be discarded with normal domestic w must be taken to a collection point for recycling elec electronic devices

INSTRUCTIONS

Product in the long-term start-up operation or use in the presence of someone, such as long-term or personnel leave, out of the plug please up.

• There are still parts of the standby power on state, due to insulatio deterioration or leakage of electricity caused by fire.

Do not spray volatile oils,paints,or insecticides on products.

• Can cause electric shocks, fire accidents.

Be sure to pull off the plug when you are not in use for a long time. You are out of town.

• Some of them are still energized during standby and may cause fire accidents due to insulation cracking or leakage.
• Do not pull off the power cord when pulling off the plug. Always p the plug.

Please make sure to plug in the power cord before use.

• Make sure that the plug fits tightly with the socket.There must be loosening or incomplete insertion.

Do not trample on the power cord.

• Damage to the power cord or socket is the cause of leakage and the power cord is damaged, it must be replaced by the manufacturer his service office or a similarly qualified person to avoid danger.

Switch off the power when you are out or sleeping at night.

• The utility model can avoid fire accidents caused by wiring personalization and save electricity.

Do not allow products to be inhaled or put into combustible substance. And shall not be used where mechanical oil composition floats.

It can cause cracks, odors and fire accidents.

Do not use wet places such as bathrooms.

• Can cause poor insulation.Causing a leakage or malfunction.

Do not use damaged power cords or plugs.

• This is the cause of electric shock short circuit and fire.

Do not use multiple power cord sockets.

• Do not overheat or cause fire hazards by using extension cord so sharing power sockets with other electrical appliances.

Do not unplug the power cord with a wet hand.

• Do not risk electric shock by unplugging the plug with a wet hand the power supply needs to be unplugged.

• The contents of the cup should not be too full. Do not exceed two the capacity of the cup.

• Please close the lid of the cup when using.

• Before starting.make sure the cup is on the base.

It is completely fixed on.

• Because of the high horsepower, please hold the cup slightly when it starts to use it.

• Be sure to cover the cup when using the stirring bar while the m runs.

• Whether the cup is placed on the table or not.

• Do not use your hand to fetch food from that cup because the b

sharp and easy to cut.

• To pour food out, remove the cup from the frame.
• Be careful to touch the switch before and after start-up.
• Utensils cannot be immersed in water.

Care should be taken when handling cutting blades especially when removing blad from containment cups, emptying containment cups, and during cleaning.

SAFETY MATTERS

Remember to pull off the plug when not in use.

Do not lift the lid of the cup until the stirring knife has completely s pedrotating.

Be sure to separate the frame from the cup when cleaning and make it to pull off the plug first.

Do not immerse the motor base in water or put it in the dishwasher cleaning.

Keep a proper distance to prevent the child from improper movement causing danger when the child is not allowed to be nearby during the start-up.

If the power cord is damaged, it must be replaced

by a professional in the manufacturer's maintenance department or similar department in order to avoid danger.

SAVE THESEINSTRUCTIONS

TECHNICAL PAPAMETER

Model
HS-228-US		HS-228-EU
Rated Voltage	120V~	Rated Voltage	220-240V~
Rated Frequency	60Hz	Rated Frequency	50-60Hz
Rated Power	1400W	Rated Power	1600W
Max Power	2200W	Max Power	2200W
Rated Capacity	3.0L	Rated Capacity	3.0L
Rotational Speed	26000RPM ±15%	Rotational Speed	26000RPM ±15%

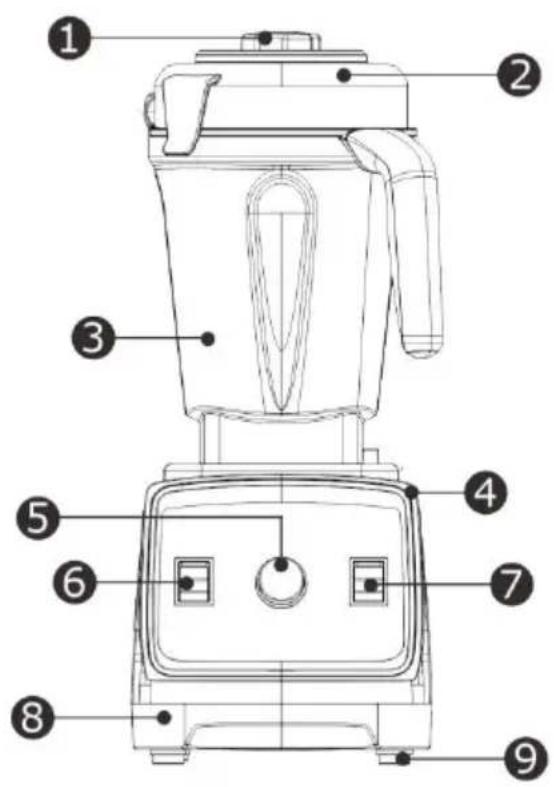

MAJOR COMPONENT NAME

Steam cap

Cup cap

3 Mixing cup

4 Cup mat

Speed contrd knob

6 Start switch

Pulse switch

8 Base bottom

9 Rubberfeet

• The apparatus is intended to be used for domestic and similar

applications such as:

• kitchen employees in shops, offices and other work environments;
  farms;
• by clients of hotels,motels and other residential-type environments;
• Bed and Breakfast type environments.
• Do not put metal objects, such as knives, forks, spoons, etc., into the cu
• When cleaning,do not clean the knife directly by hand.If you use c tools,please pay attention to safety.

FUNCTION INTRODUCTION

Start Switch

The switch is preset to "OFF "before delivery.

In standby state, turn the switch to "ON"position and start the product. In working state, turn the switch to "OFF"position to stop the product.

Pulse Switch

The switch is preset to "OFF" before delivery.

Turn the switch to the "ON"position to run the product at full speed. If you release the switch,it will automatically return to the "OFF"positio

Low/High Speed Switch

The switch is preset to "Low Speed"before delivery.

Turn the switch to the "Low Speed"position to run the product at low.
Turn the switch to the "High Speed"position to run the product at high speed

Crushed Ice Operation instructions. Use approximately 30-35 grams of Place dry ice into a dry container and blend Start the blending process pulsing for 5 seconds, then pause for 2 seconds, and repeat this cycle method yields the best crushed ice effect.

CLEANING AND MAINTENANCE METHODS

• Always pull off the plug when cleaning and maintaining.
• Carefully scrub the cup body and lid with a sponge or cloth and
• Do not put your hand into the cup for cleaning.
• Wipe the rotating shaft and motor base with a dry cloth (remember not rinse with water).
• When it is not easy to wipe, wipe it with neutral lotion, and then dry cloth until it is clean.
• Use a cleaning cloth or cleaning brush to easily clean the mixing (remember not to be immersed in water for cleaning);
• The product is made of non-toxic food-grade materials, which are easy clean and ensure food safety.

FAULT ANALYSIS

Fault Phenomenon	Cause Analysis	Exclusion Methods
Indicator light is not on	1.The power cord is plugged in. 2.The stirring cup and the main engine are assembled properly.	1.Checked the power cord to make sure itis plugged in. 2.Makesure that the mixing cup and the main machine installed properly.
Indicator Light on Product Inoperative	1.Long working hours, motoroverheat protection. 2.The machine itself is out of order.	1.Wait an hour before reus or check whether the prote at the bottom of the mach disconnected.If so,press the protector button to restore machine to work. 2.S end to after-sales service department.

Note:

Above are common trouble analysis and troubleshooting methods. For other troubles, please contact our customer service department, or godirectly to our designated repair point for repair. Do not dismantle and repair yourself.

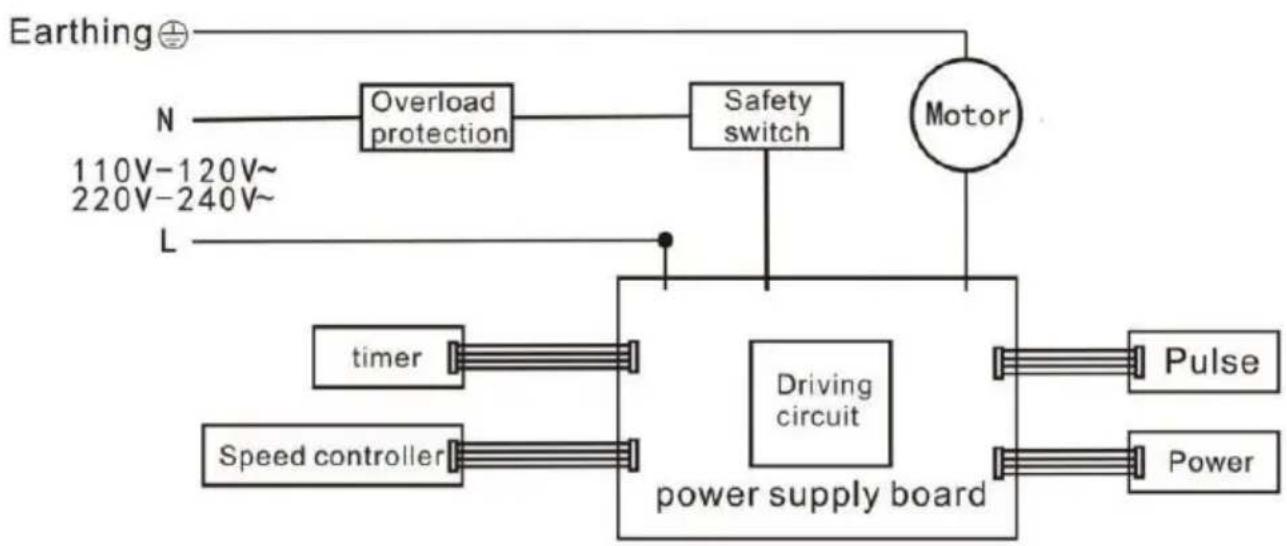

CIRCUIT DIAGRAM
