HS-6 - Slicer Vevor - Free user manual and instructions

Brand	Vevor
Model	HS-6
Product Type	Hand shear (bench shear)
Blade length	155 mm (6 inches)
Max sheet thickness	6 mm (0.24 inch)
Mild steel capacity	6.35 mm (1/4 inch)
Round bar capacity	Up to 11 mm (7/16 inch)
Base dimensions	Not specified
Weight	Approximately 25 kg (estimated)
Power	Manual (no electrical power)
Main functions	Shearing sheets, flat bars, round bars, and mild steel profiles
Safety	Wear protective equipment (safety glasses, shoes, suitable gloves), keep hands away from blades, secure machine to floor
Maintenance	Regularly lubricate blades, clean residues, have blades sharpened by a professional
Cleaning	Use a mild solvent (mineral spirits) to remove protective coating, water and soap for painted parts
Spare parts	Complete list in manual (ref. 1 to 22): upper blade, lower blade, handle, springs, etc.
Repairability	Individually replaceable parts, blades can be sharpened
Warranty	Not specified
Country of origin	China (Shanghai)

Frequently Asked Questions - HS-6 Vevor

What is the maximum cutting capacity of the Vevor HS-6?

The maximum capacity is 6.35 mm (1/4 inch) in mild steel for sheets, and up to 11 mm (7/16 inch) in diameter for round bars.

How to install the Vevor HS-6?

The machine must be bolted securely to the floor or a stable workbench using the four mounting holes. Ensure the area is clear and well-lit.

How to adjust the hold-down plate?

Loosen the screw of the hold-down plate (part no. 1), place the workpiece between the blades, then tighten to hold the workpiece horizontally.

What regular maintenance is required?

Lubricate blades and metal surfaces with light oil after each use. Clean residues and rust. Have blades sharpened by a professional if necessary.

Can I cut stainless or hardened steel?

No, the shear is designed only for mild steel. Attempting to cut stainless or hardened steel may damage the blades.

How to clean the shear after use?

Use a soft cloth dampened with mineral spirits to remove the protective coating. For painted parts, use water and soap. Avoid volatile solvents.

What to do if the shear does not cut?

Check that the workpiece does not exceed capacity, that blades are parallel and tight, and that blades are not dull. If dull, have them sharpened.

Where can I find spare parts?

The detailed parts list (ref. 1 to 22) is in the manual. Contact the manufacturer or authorized dealer to order.

How to use the shear for round bars?

Place the bar in the holes provided on the upper blade and die. Position it at the desired location, then pull the handle sharply.

What are the essential safety instructions?

Wear safety glasses, suitable gloves, and non-slip shoes. Keep hands away from blades. Do not wear loose clothing. Secure the machine to the floor.

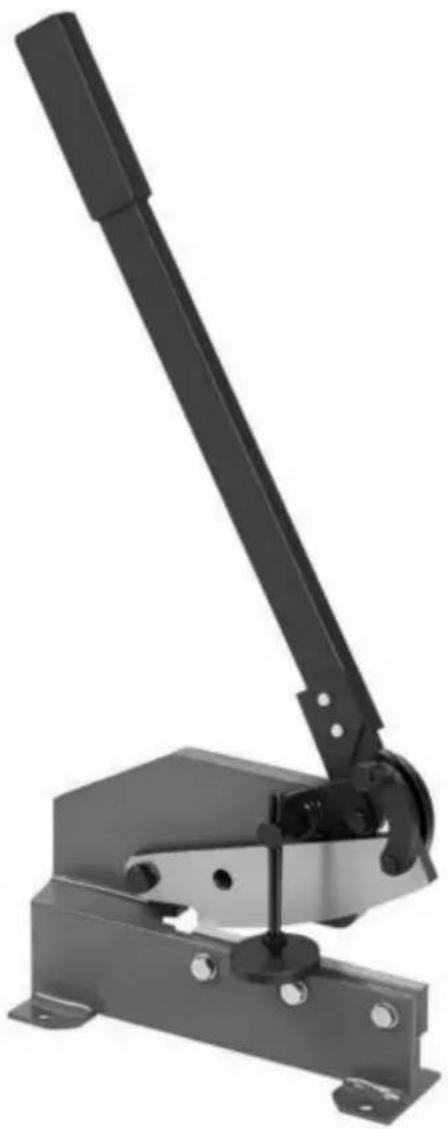

USER MANUAL HS-6 Vevor

Sheet Metal Plate Shear

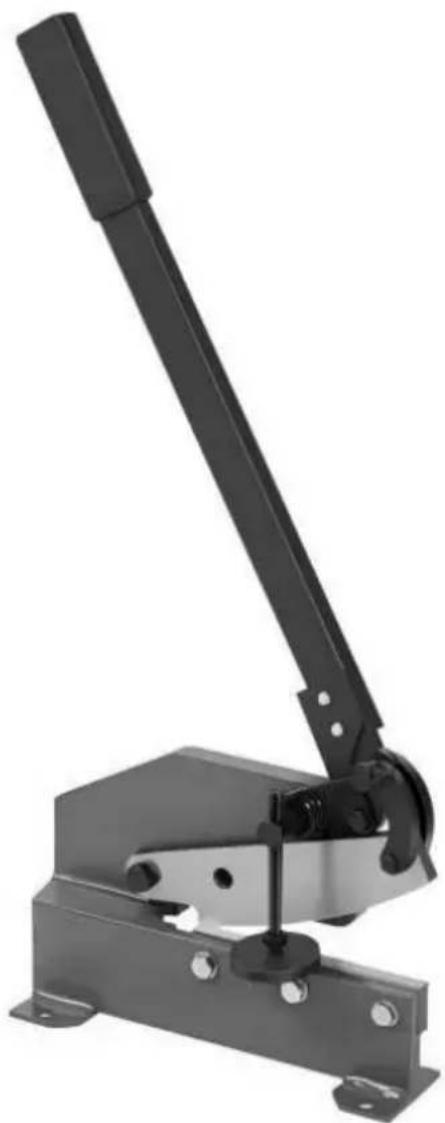

MODEL: HS-6

VEVOR

Sheet Metal Plate Shear

MODEL: HS-6

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning: To reduce the risk of injury, the user must read the instruction manual carefully.

UNPACKING

The Hand Shear is shipped from the manufacturer in a carefully packed carton box. Thoroughly inspect the product upon opening the package. After unpacking the unit, carefully inspect for any damage that may have occurred during transit. Check for loose, missing, or damaged parts. Shipping damage claims must be filed with the carrier and are the responsibility of the user.

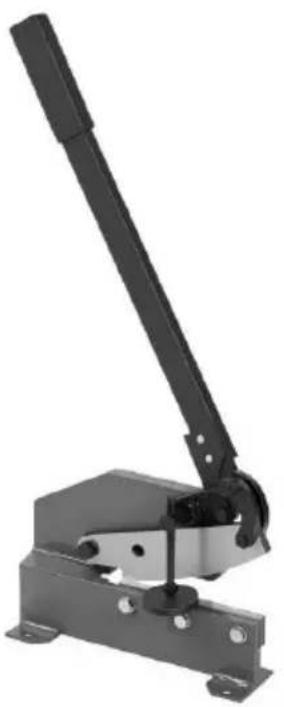

SPECIFICATIONS

Model: HS-6

Blade length: 6" (155 mm)

Sheet steel: 0.24" (6 mm)

Flat steel: 2.76" x 0.24" (70 x 6 mm)

Round steel: 0.43" (11 mm)

Standard accessories

PART NO.	DESCRIPTION	QTY
1	Handle	1
2	Screw	2
3	Washer	2

IMPORTANT

Blades are coated with a protectant. To ensure proper fit and operation, remove the coating. Coating is easily removed with mild solvents, such as mineral spirits, and a soft cloth. Avoid getting cleaning solutions on any of the rubber or plastic parts. Solvents may deteriorate these finishes. Use soap and water on paint, plastic, or rubber components. After cleaning, cover all exposed surfaces with a light coating of oil.

WARNING: Never use highly volatile solvents. Non-flammable

solvents are recommended to avoid possible fire hazards.

SAVE THESE INSTRUCTIONS

Thank you for purchasing our HS series Hand Shear. Before attempting to operate your new tool, please read these instructions thoroughly. You need these instructions for the safety warnings, precautions, assembly, operation, maintenance procedures, parts list, and diagrams. Keep your invoice number with these instructions. Write the invoice number on the inside of the front cover. Keep the instructions and invoice in a safe, dry place for future reference.

General Safety Information

CAUTION: Always follow proper operating procedures as described in this manual, even if you are familiar with the use of this or similar tools. Remember that being careless for even a fraction of a second can result in severe personal injury.

SAFETY RULES

1. Wear proper apparel. Do not wear loose clothing, gloves, neckties, bracelets, or other jewelry which may get caught in moving parts of the machine.
2. Wear protective hair covering to contain long hair.
3. Wear safety shoes with non-slip soles.
4. Wear safety glasses complying with United States ANSI Z87.1. Everyday glasses have only impact resistant lenses. They are NOT safety glasses.
5. Be alert and think clearly. Never operate tools when tired, intoxicated, or when taking medications that cause drowsiness.
6. Keep work area clean. Cluttered work areas invite accidents.
7. Work area should be properly lit.
8. Keep visitors at a safe distance from work area.
9. Keep children out of workplace. Make workshop childproof. Use padlocks to prevent any unintentional use of tools.
10. Assemble only according to these instructions. Improper assembly creates hazards.
11. When tools are not in use, store them in a dry, secure place out of reach of children. Inspect the tools prior to storage and before reuse.
12. Maintain product labels and nameplates. These carry important safety information.

WARNING

The warnings, cautions, and instructions discussed in this instruction manual cannot cover all possible conditions or situations that occur. It must be understood by the operator that common sense and caution are factors that cannot be built into this product, but must be used by the operator.

KNOW HOW TO USE TOOL

1. Use right tool for job. Do not force tool or attachment to do a job for which it was not designed.
2. Keep hands out of path of shear blades.
3. The maximum capacity of this machine is 1/4" mild steel or equivalent. Exceeding capacity may be dangerous to operator and damage may be to the machine.
4. Bolt machine to floor or sturdy stand that is bolted to floor to prevent sliding or tipping of machine.

IMPORTANT

DO NOT attempt to shear hardened or stainless steel blocks You will damage or break your shear blades!

ASSEMBLY

MOUNT HANDLE

Remove two hex head bolts #15 from pivot arm #12. Mount handle into groove on pivot arm. Secure handle with hex head bolts. Tighten securely.

MOUNT HOLD-DOWN PLATE

Insert threaded rod of hold-down plate #1 through hole in support block #4.

INSTALLATION

Machine should be installed on a level surface, with proper lighting. Machine can be floor mounted, stand-mounted or bench-mounted. Be sure to provide clearance for handlebar rotation. Use four mounting holes of base to bolt machine securely to floor, bench or stand (fasteners not included). Area around machine should be clear of scraps, oil or dirt. A suitable non-skid material to floor.

OPERATION

Rotating handle #13 operates the shear. Be sure to keep hands clear of shear when rotating handle. The maximum capacity of the machine is mild steel.

SHEARING PLATE AND FLAT BARS

1. Adjust hold-down plate #1 so that the workpiece can lie horizontally between the shear blades. Place the workpiece between blades #7 and #20 and underneath the hold-down plate. Adjust the hold-down plate to be positioned at the top surface of the workpiece, with the workpiece held horizontally. Secure the hold-down plate in position by tightening it.
2. Support the workpiece between the blades and underneath the hold-down plate at the position where the cut is desired. Pull handles #13 forward with both hands until the blade cuts through the workpiece.

CAUTION

Do not reach behind the shear to grasp the falling piece.

Shearing thicker material is done by “snapping” the crank handles so that the upper blade impacts the workpiece. The upper blade is mounted at an angle so that the workpiece can be sheared in small increments. To minimize distortion, approximately 5/8” of the workpiece should be sheared with each impact.

SHEARING ROUND BARS

Round bars up to 7/16" diameter can be cut with shear HS-5 / 6. Round bars up to 1/2" diameter can be cut with shear HS-8 / 10 / 12. Place the bar through the holes in the face of the upper blade #7 and die #10. Position the bar as desired and pull handle #13 forward until the bar is cut.

SHEAR BLADES

Always keep shear blades lubricated and clean of any dirt or rust. Any particles on the blades will drastically reduce the life of the blades. These blades should be sharpened according to industry standards by a competent grinding service only.

NOTE

If the material seems too thick or too hard, do not force it. Instead, use a metal-cutting bandsaw to cut the workpiece.

MAINTENANCE

1. Consult the manual for specific maintaining and adjusting procedures.
2. Keep the tool lubricated and clean for safest operation. All exposed metal surfaces should be coated with light oil to prevent rusting.
3. Remove adjusting tools. Form the habit of checking to see that adjusting tools are removed before using the machine.
4. Keep all parts in working order. Check to determine that the guard and other parts will operate properly and perform their intended function.
5. Check for damaged parts. Check for alignment of moving parts, bit breakage, and mounting or any other condition that may affect tool operation.
6. Check the handle and base mounting bolts to ensure they are tight.
7. A guard or other damaged part should be properly repaired or replaced. Do not perform makeshift repairs. (Use parts list provided to order replacement parts.)

TROUBLESHOOTING CHART

Symptom	Possible Cause(s)	Corrective Action
Machine will not shear	1. Workpiece material to thick	1. Do not exceed machine capacity of 1/4 "mild steel
	2. Blades too far apart not parallel	2. Make sure hold-down plate#1 a tight and hold lower blade secur
	3. Dull blades	3. Have blades sharpened by a qualified grinding service

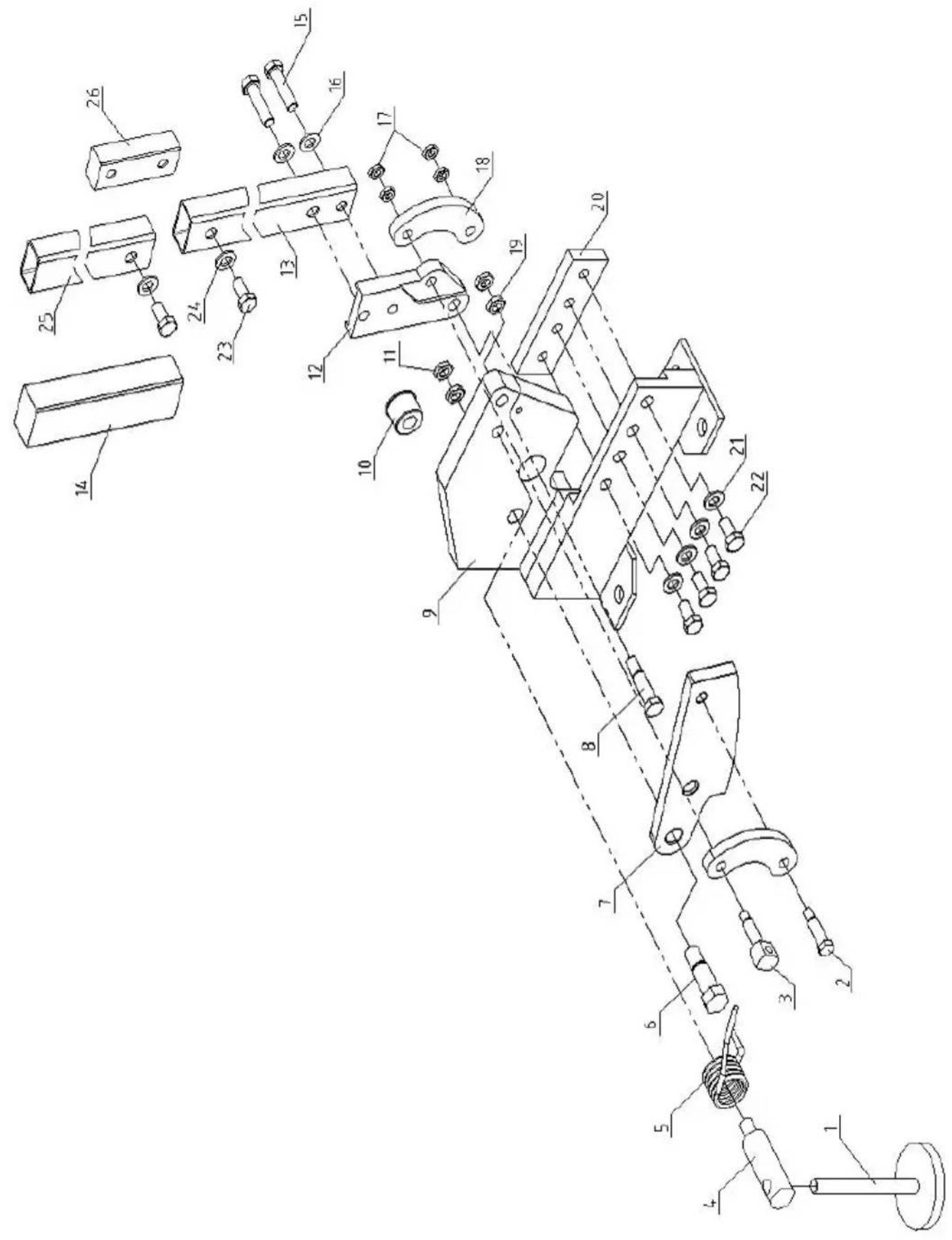

Drawing (HS-6)

Parts List (HS-6)

Ref.No.	Description	QTY.
1	Hold down Plate	1
2	Screw M8x40	1
3	Bolt M8x40	1
4	Support Block	1
5	Spring	1
6	Bolt M14x50	1
7	Upper blade	1
8	Bolt M10x50	1
9	Base	1
10	Die	1
11	Nut M14	2
12	Pivot arm	1
13	Handle	1
14	Sleeve	1
15	Bolt M10x40	2
16	Washer	2
17	Nut M8	2
18	Right Link	2
19	Nut M10	2
20	Lower blade	1
21	Washer	3
22	Screw M10x22	3
