USER MANUAL HP156 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC HIGH PRESSURE FUEL PUMPS INSTRUCTIONS

MODEL: HP128, HP121, HP156

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HIGH

PRESSURE FUEL PUMPS

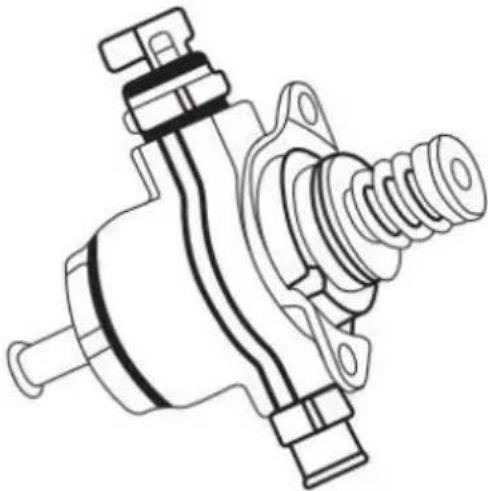

Close-up of a metallic mechanical component with a spring and nozzle (no visible text or symbols)

HP128

Close-up of a metallic automotive component with springs and housing (no visible text or symbols)

HP121

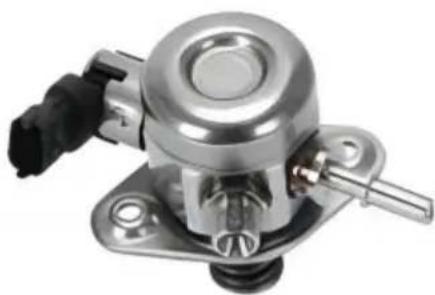

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156

(The picture is for reference only, please refer to the actual object)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction. Please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of the user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you of any technology or software updates on our product.

Symbol	Symbol Description
	Warning-To reduce the risk of injury, user must rea instructions manual carefully.
	This product is of protection class III.
	This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie crossed through indicates that the product requires separate refuse collection in the European Union. The applies to the product and all accessories marked v symbol. Products marked as such may not be disc with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

SAFETY INFORMATION

Repair procedures, tools, and parts to service motor vehicles, and the experience of the person performing the work make it impossible to describe all ways or conditions under which motor vehicles are or may be serviced, or to provide cautionary statements regarding hazards that may result.
Standard and accepted safety precautions and equipment should be used when handling toxic or flammable materials. Safety goggles, other protection, and appropriate clothing (long-sleeve shirt, trousers, and safety shoes) are required.
Make sure your work area is well ventilated and not exposed to heat, electricity, or open flames. No smoking! Clean up spills immediately and have a Class B or C fire extinguisher readily accessible. Consult appropriate repair manuals for any required special tools.
Not for use in marine or aircraft applications.

Model	HP128	HP121	HP156
Input	DC12V
Current(Max)	0.8A

INSTRUCTIONS

Installation steps for the High Pressure Fuel Pump

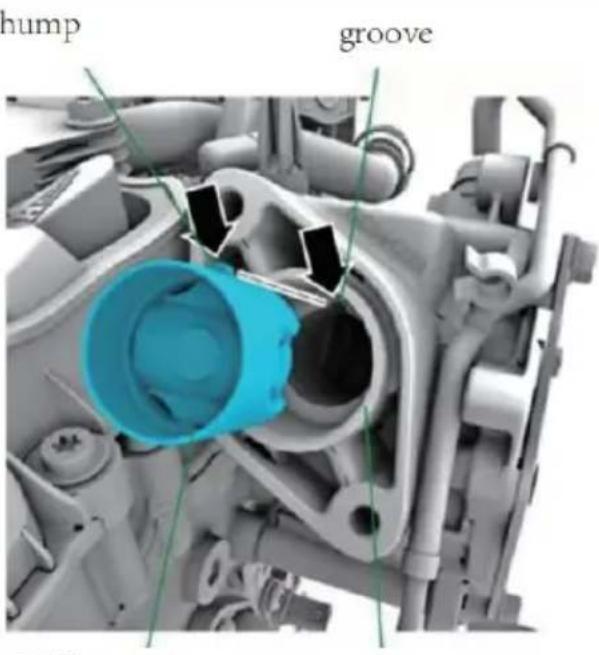

Detect the high pressure pump O-ring, and use clean engine oil to slightly wet the insert roller tappet into the vacuum pump. Pay attention to align the recess of the roller tappet with the groove on the vacuum pump.
Rotate the crankshaft until the roller tappet is at its lowest point. Insert the high pressure pump into the vacuum pump.

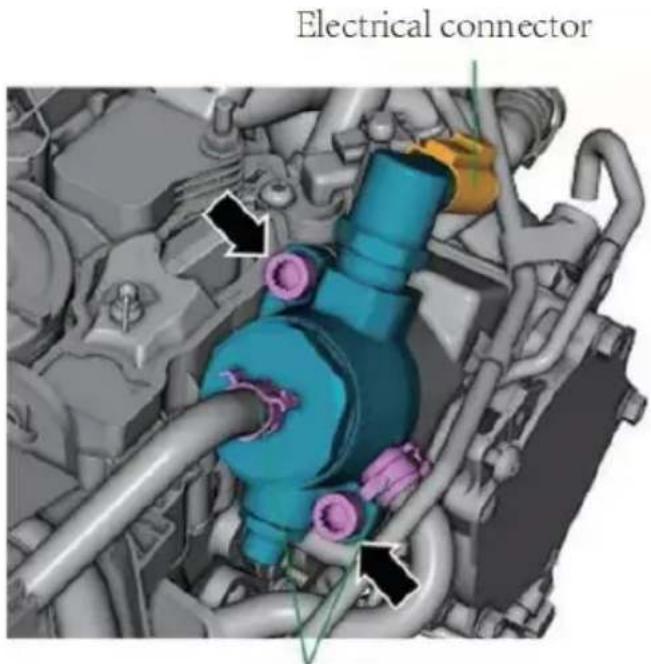

Cross tighten the fastening bolt by hand, and cross tighten the fastening bolt with the specified torque of 20 N·m. Insert the fuel hose again and fix it with spring clamps. Connect the fuel pressure regulator.

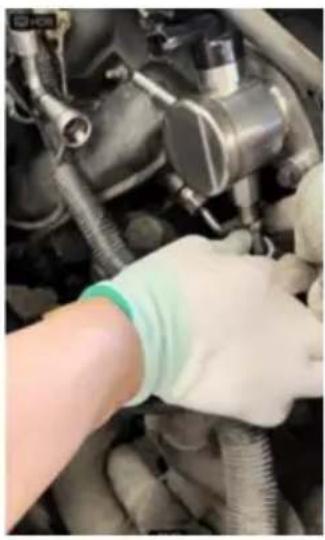

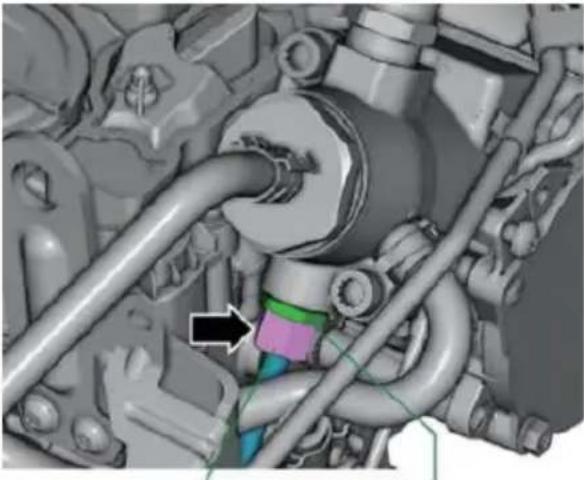

Use engine oil to infiltrate the ball head of the high pressure hose and install the high pressure hose. Tighten the lock nut of the fuel distributor indicated by the arrow in the drawing with a wrench.

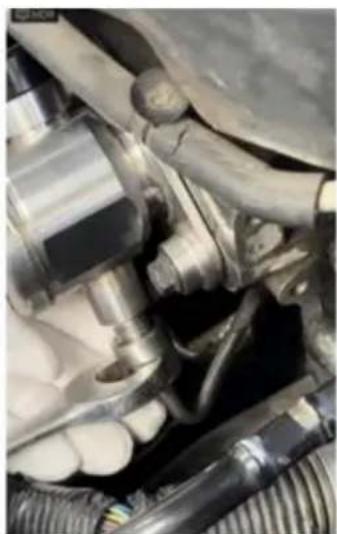

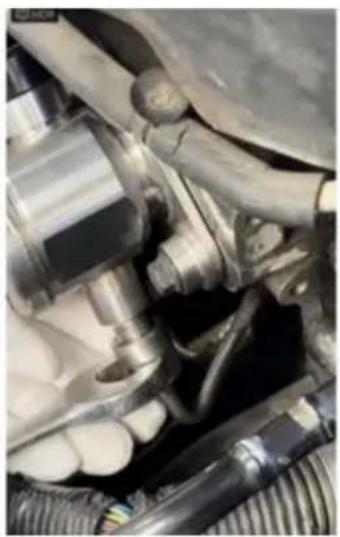

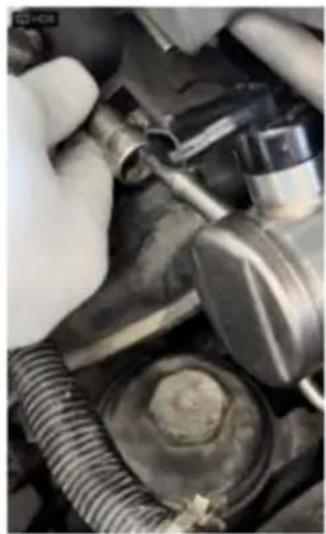

Fasten the high pressure pipe connector with a wrench and tighten the live joint nut of the high pressure tube with another wrench.

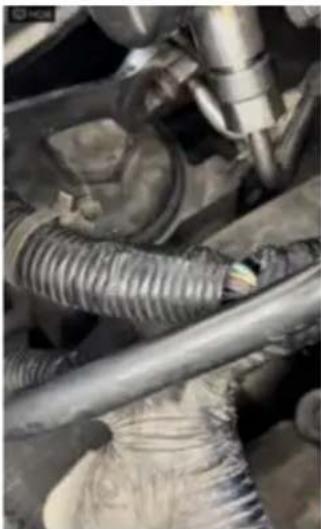

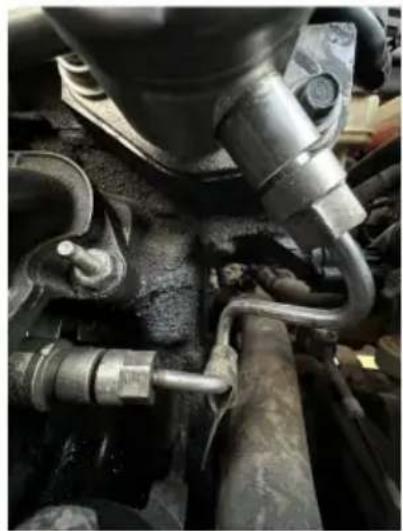

Install high pressure pipe clamps and use 5 N·m torque to tighten clamps (you can skip this step for models without high-pressure pipe clips).

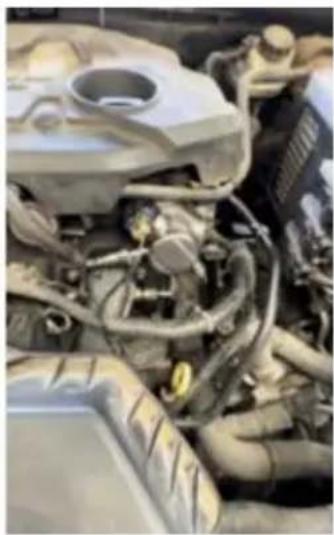

Start the engine after installation to observe whether there is oil leakage on each interface.

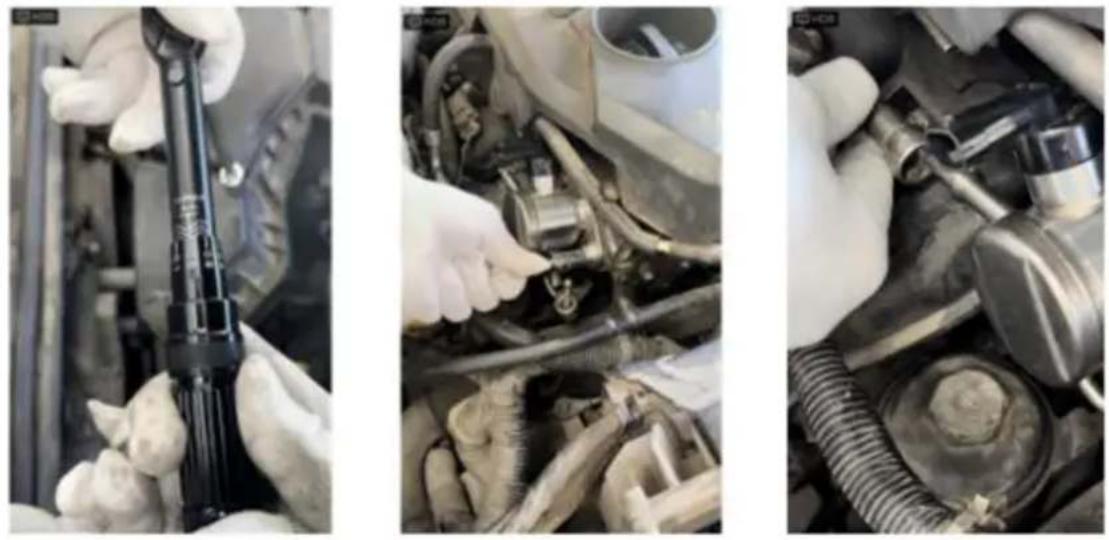

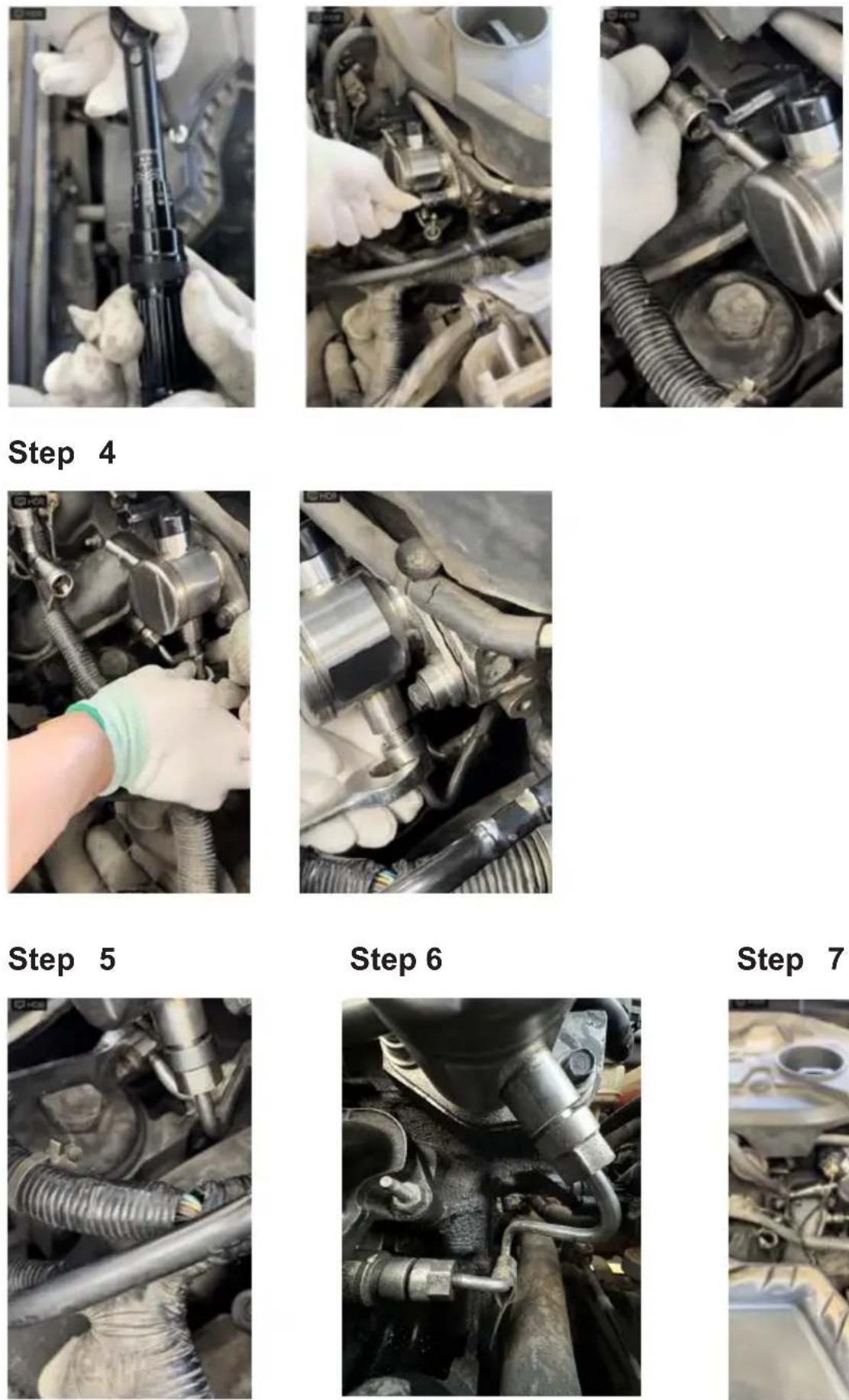

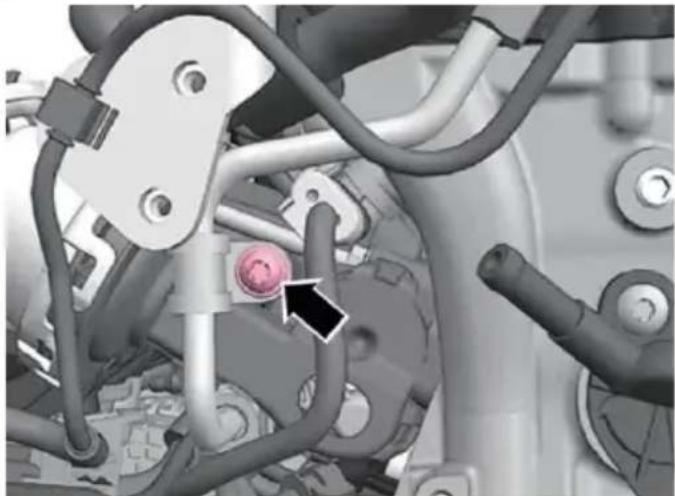

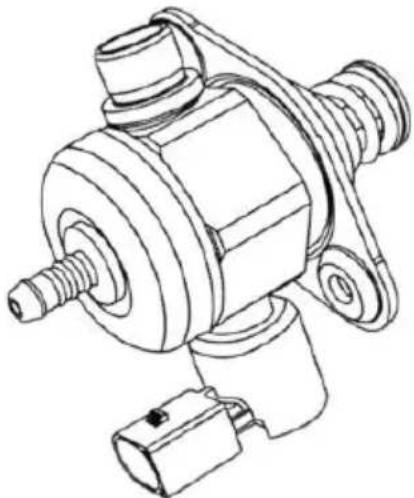

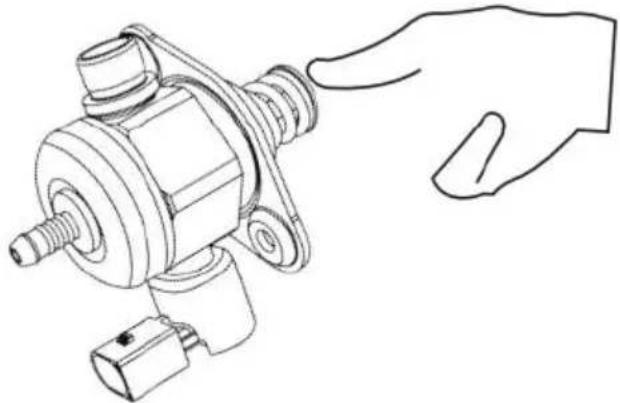

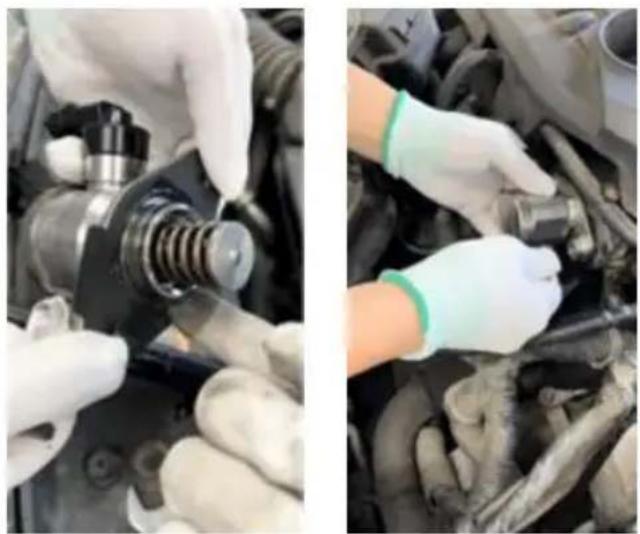

Step 1 Step 2 Vevor HP156 - Installation steps for the High Pressure Fuel Pump - 1

Step 3 Vevor HP156 - Installation steps for the High Pressure Fuel Pump - 2

Close-up of a car engine bay with visible hoses and components (no text or symbols)

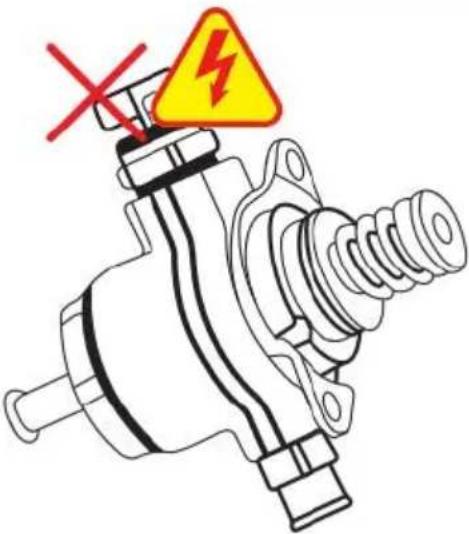

Do not hit the plug, do not grip stretch the spring part, which will cause irreparable damage	Do not open the solenoid valve not turn on the direct current

Do not open the solenoid valve, not turn on the direct current	Replace the copper connector after it has been installed and removed twiceunion nut High pressure pipe connector
Release the fuel pressure of the pressure system before removing high pressure oil pump	The torque to install the clamp bolts for the high-pressure pipe 5N.m
fuel hose	Stick tappet vacuum pump
Tighten the bolts to a torque of	When installing roller tappets, ensure that no debris enters th vacuum pump

Manufacturer: Shanghai Muxin Wood Industry Co., Ltd.

Address: Room 1602A-1609, No. 11, Lane 803, Shuangcheng Road, Baoshan District, Shanghai 200000, China.

Imported to Australia: SIHAO PTY LTD, 1 ROKEVA STREET, EASTWOOD NSW 2122, Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

REP

E-CrossStu GmbH

Mainzer Landstr. 69, 60329 Frankfurt am Main

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited, Office 147, Centurion House

London Road, Staines-upon-Thames, Surrey, TW18 4

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HP128

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156

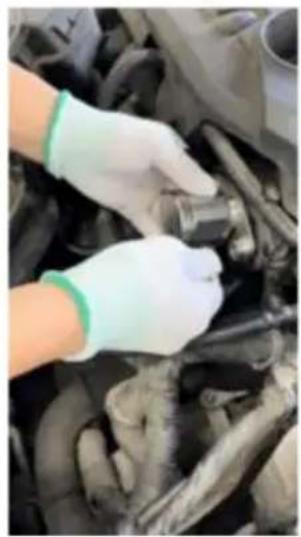

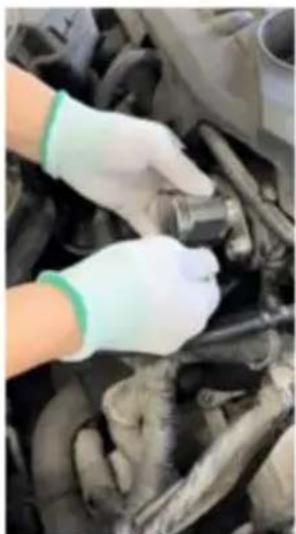

Step 2 Close-up of gloved hands inspecting engine components (no visible text or symbols)

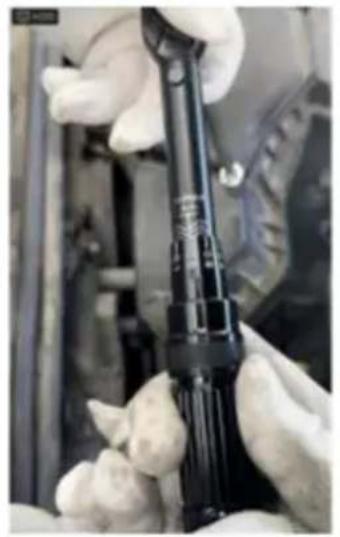

Step 3 Close-up of gloved hands holding a black mechanical component, no visible text or symbols

Close-up of a car engine bay with a hand adjusting the component (no visible text or symbols)

Close-up of hands adjusting a mechanical component with hoses and a bolt (no visible text or symbols)

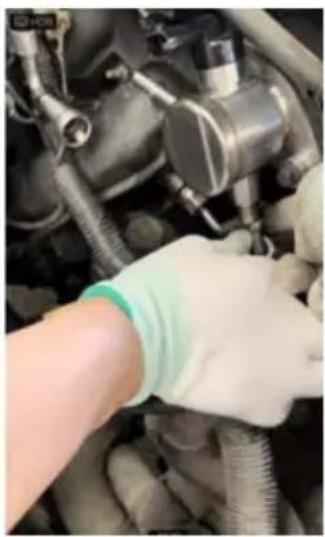

Step 4 Close-up of a gloved hand adjusting a mechanical engine component (no visible text or symbols)

Close-up of mechanical components including hoses and a valve assembly (no visible text or symbols)

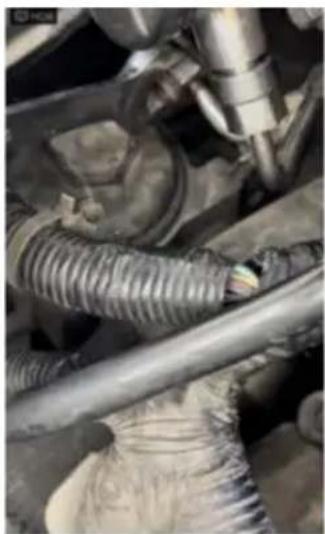

Step 5 Close-up of automotive engine hoses and pipes (no visible text or symbols)

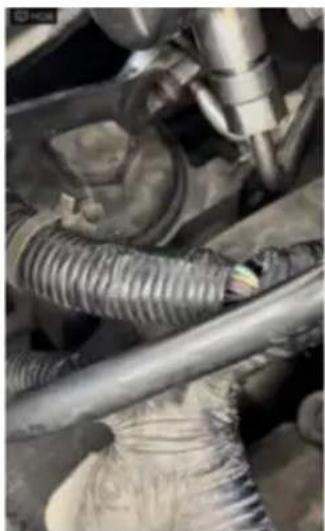

Step 6 Close-up of an automotive engine component with hoses and valves.

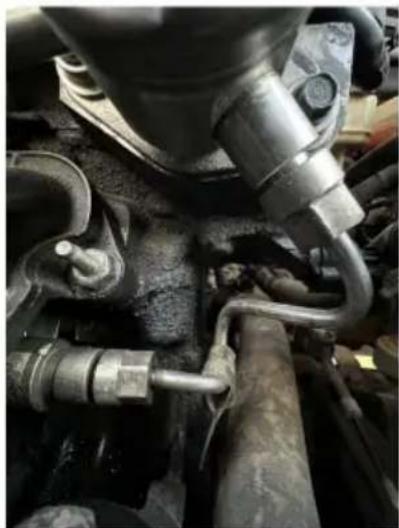

Step 7 Close-up of an internal combustion engine bay with visible hoses and components.

C/O YH Consulting Limited Bureau 147, Centurion House,

London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

VEVOR®

TOUGH TOOLS, HALF PRICE

ELECTRIC HIGH-PRESSURE FUEL PUMP INSTRUCTIONS

MODEL: HP128, HP121, HP156

HP128

Close-up of a metallic automotive component.

HP121

Close-up of a metallic mechanical component with a black connector and mounting base.

HP156

Step 2 Close-up of gloved hands inspecting engine components.

Step 3 Close-up of gloved hands holding a black mechanical component.

Close-up of a car engine bay with a hand adjusting the component.

Close-up of hands adjusting a mechanical component with hoses and a bolt.

Step 4 Close-up of a gloved hand adjusting a mechanical engine component.

Close-up of mechanical components including hoses and a valve assembly.

Step 5 Close-up of automotive engine hoses and pipes.

Step 6 Close-up of an automotive engine component with hoses and valves.

Step 7 Close-up of a car engine bay with visible hoses and components.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

electronics www.vevor.com/support

ELECTRIC HIGH PRESSURE

INSTRUCTIONS FOR FUEL PUMPS

MODEL: HP128, HP121, HP156

HP128

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156

Step 2 Close-up of gloved hands inspecting engine components (no visible text or symbols)

Step 3 Close-up of gloved hands holding a black mechanical component, no visible text or symbols

Close-up of a car engine bay with a hand adjusting the component (no visible text or symbols)

Close-up of hands adjusting a mechanical component with hoses and a bolt (no visible text or symbols)

Step 4 Close-up of a gloved hand adjusting a mechanical engine component (no visible text or symbols)

Close-up of mechanical components including hoses and a valve assembly (no visible text or symbols)

Step 6

Close-up of automotive engine hoses and pipes (no visible text or symbols)

Close-up of an automotive engine component with hoses and valves (no visible text or symbols)

Step 7 Step 5 Close-up of an internal combustion engine bay with visible hoses and components (no text or symbols)

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

HP128

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156

Step 2 Close-up of gloved hands inspecting engine components (no visible text or symbols)

Step 3 Close-up of gloved hands holding a black mechanical component, no visible text or symbols

Close-up of a car engine bay with a hand adjusting the component (no visible text or symbols)

Close-up of a mechanical assembly with gloved hands and hoses (no visible text or symbols)

Step 4 Close-up of a gloved hand adjusting a mechanical engine component (no visible text or symbols)

Close-up of mechanical components including hoses and a valve assembly (no visible text or symbols)

Step 5 Close-up of mechanical hoses and tubing in a vehicle (no visible text or symbols)

Step 6 Close-up of an automotive engine component with hoses and valves (no visible text or symbols)

Step 7 Close-up of a car engine bay with visible hoses and components (no text or symbols)

Imported to Australia: SIHAO PTY LTD, 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Vevor HP156 - TOUGH TOOLS, HALF PRICE - 12

E-CrossStu GmbH

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156HP128

Step 2 Close-up of gloved hands inspecting engine components (no visible text or symbols)

Step 3 Vevor HP156 - TOUGH TOOLS, HALF PRICE - 4

Step 4 Close-up of a person in white gloves working on an engine component (no visible text or symbols)

Close-up of mechanical components including hoses and springs, no visible text or symbols

Step 6

Close-up of automotive hoses and pipes in a vehicle (no visible text or symbols)

Close-up of an automotive engine component with hoses and valves (no visible text or symbols)

Step 7Step 5 Close-up of a car engine bay with visible hoses and components (no text or symbols)

Imported into AUS: SIHAO PTY LTD, 1 ROKEVA STREET EASTWOOD NSW 2122 Australia

Imported into USA: Sanven Technology Ltd., Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

Przedstaw ciel UE

REP WIELKIEJ BRYTANII

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

Close-up of a metallic automotive component with no visible text or symbols

HP121

Close-up of a metallic mechanical component with a black connector and mounting base (no visible text or symbols)

HP156HP128

NEED HELP? CONTACT US!

Step 2 Close-up of gloved hands inspecting engine components (no visible text or symbols)

Step 3 Vevor HP156 - NEED HELP? CONTACT US! - 2

Step 4 Close-up of a gloved hand adjusting a mechanical engine component (no visible text or symbols)

Close-up of mechanical components including hoses and valves (no visible text or symbols)

Step 5 Step 7 Close-up of automotive hoses and pipes in a vehicle (no visible text or symbols)

Step 6 Close-up of an automotive engine component with hoses and valves.

Close-up of a car engine bay with visible hoses and components.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical support and e-warranty certificate www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

ELECTRIC HIGH PRESSURE

FUEL PUMP INSTRUCTIONS

MODEL: HP128, HP121, HP156

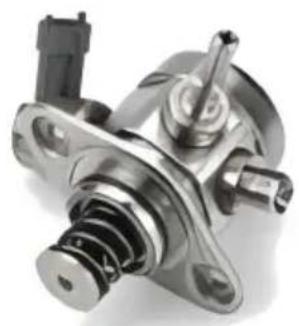

HP128

Close-up of a metallic automotive component.

HP121

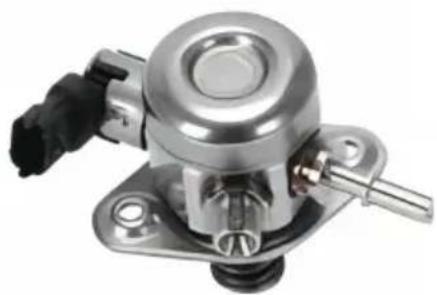

Close-up of a metallic mechanical component with a black connector and mounting base.

HP156

Step 2 Close-up of gloved hands inspecting engine components.

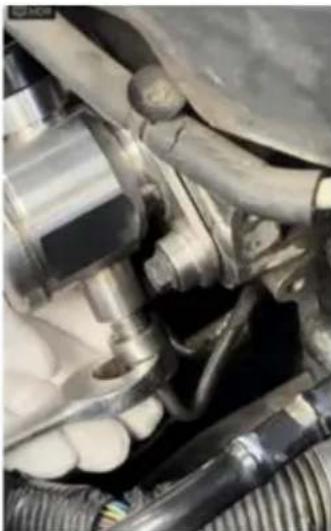

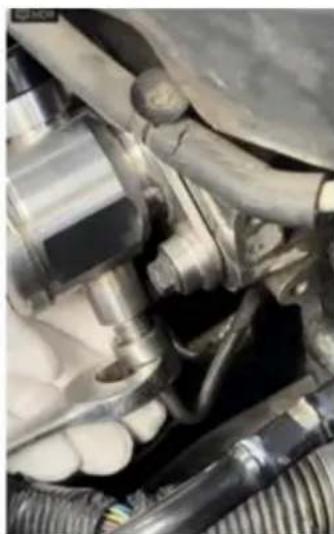

Step 3 Close-up of gloved hands holding a black mechanical component.

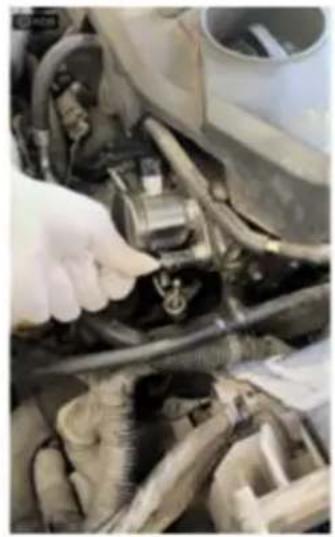

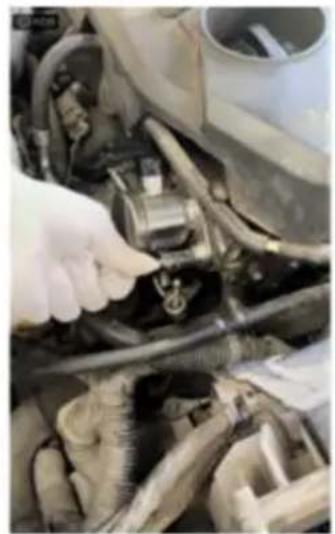

Close-up of a car engine bay with a hand adjusting the component.

Close-up of hands adjusting a mechanical component with hoses and a bolt.

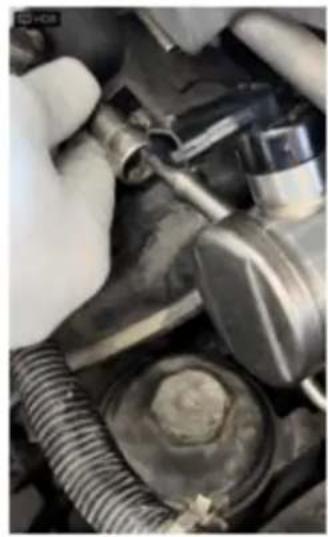

Step 4 Close-up of a gloved hand adjusting a mechanical engine component.

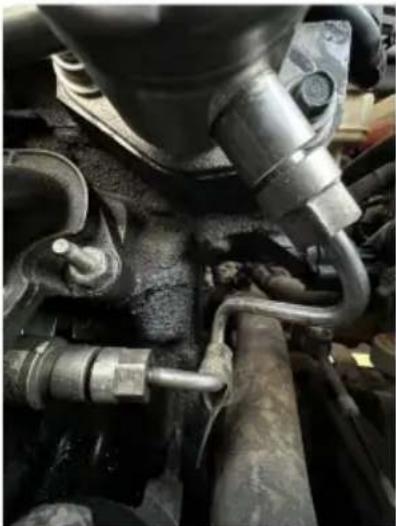

Close-up of mechanical components including hoses and a car head.

Step 5 Step 7 Close-up of mechanical hoses and tubing in a vehicle.

Step 6 Close-up of an automotive engine component with hoses and valves.

Close-up of a car engine bay with visible hoses and components.

C/O YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

Table of contents Click a title to access it

ELECTRIC HIGH PRESSURE FUEL PUMPS INSTRUCTIONS
VEVOR®
NEED HELP? CONTACT US
SAFETY INFORMATION
INSTRUCTIONS
INSTALLATION STEPS FOR THE HIGH PRESSURE FUEL PUMP
TOUGH TOOLS, HALF PRICE
ELECTRIC HIGH-PRESSURE FUEL PUMP INSTRUCTIONS
ELECTRIC HIGH PRESSURE
INSTRUCTIONS FOR FUEL PUMPS
FUEL PUMP INSTRUCTIONS

Manual assistant

Waiting for your message

Product information

Brand : Vevor

Model : HP156

Category : Pumps
