USER MANUAL FF-930EQ Vevor

Affordable. Reliable. Home Improvement.

METAL FUEL CADDY

MODEL:FF-930EQ

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR

Affordable. Reliable. Home Improvement.

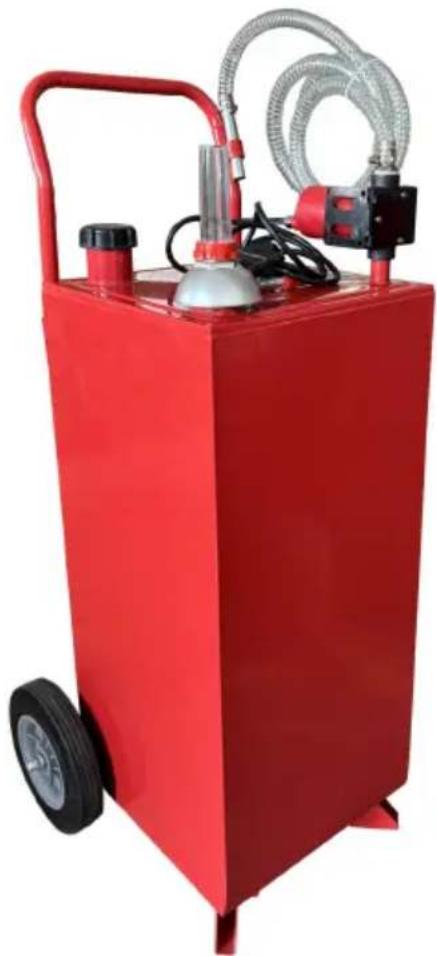

METAL FUEL CADDY

MODEL:FF-930EQ

This is the original instruction, please read all manual instructions care before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product received. Please forgive us that we won't inform you again if there are technology or software updates on our product.

WARNING

1. Read carefully and understand all ASSEMBLY AND OPERATION INSTRUCTIONS before operating.
2. Failure to follow the safety rules and other basic safety precautions result in serious personal injury.

GENERAL SAFETY RULES

When using this product, basic precautions should always be followed, including the following;

• This product is not intended for use by persons (including children) reduced physical, sensory or mental capabilities, or lack of experier and knowledge, unless they have been given supervision or instruct concerning using the product by a person responsible for their safe
• Do not use this product for anything other than intended use.
  · Wear proper protection equipment when installing or using this produ
• Ensure all fittings and threaded connections are tightened and leak-free before operating.

A DANGER!

Fuels are extremely flammable. Keep away from heat sparks, and open flame.

• Do not use electronics or mobile communications devices such as mobile phones when pumping flammable liquids.
• Attach ground wire and bond containers that are being pumped from and into. Ground all containers to a known ground source to dissi static electricity before pumping liquids.
• Fuel vapors can explode. Harmful or fatal if swallowed. Avoid breath in fuel vapors.

• Do not smoke near or while using the fuel caddy.

• This product is intended for fuel transfer only and is not intended to be used to transport fuel in any vehicle or trailer.

• Do not modify this product.

A WARNING! CAUTION! ATTENTION!

• Do not use this product for prop-longed fuel storage.
• Use a caddy for one type of fuel only to avoid possible damage.
• Monitor flow rate and fill level to prevent overflows and spills.
• Always empty the pump and hose after using the caddy. Lift the ho and turn the handle to the opposite direction to empty all remaining liquid back into the caddy.
• Caution when filling the caddy through the fill tube. Monitor closely prevent overflows or spills.

Never use the fuel caddy near open flames or heat sources

Disposal information: This product is subject to the provision of European Directive 2012/ 19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

FC

This device complies with Part 15 of the FCC Rules. Operation subject to the following two conditions:(1)This device may not cause harmful interference, and (2)this device must accept any interference received, including interference that may cause undesired operation.

SAVE THESE INSTRUCTIONS

MODEL AND PARAMETERS

Model	FF-930EQ
Capacity	30 Gallons
Fuel Type	Gasoline, Diesel
Pump	Electric pump,DC12V,100W/10A
Max. Flow	32 L/min (8.4GPM)
Hose	Φ19(Inside Diameter)xL300cm
Wheel	10"(Back)
Material	Steel
Color	Red

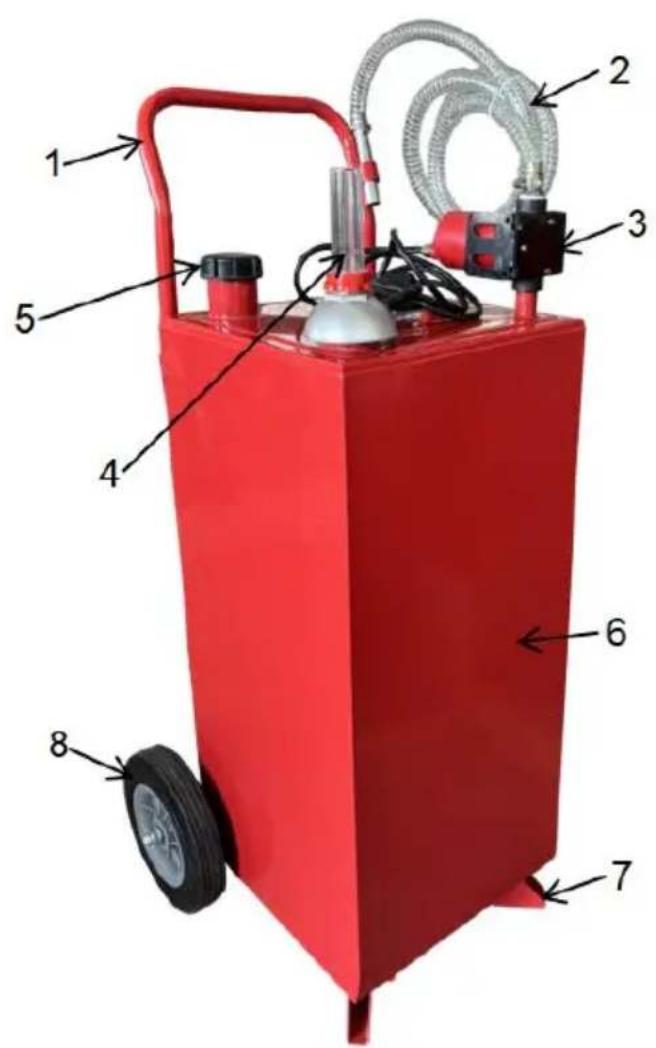

STRUCTURE DIAGRAM

1. Handle
2. Hose
3. Pump
4. Oil gauge
5. Fuel inlet Cap
6. Fuel Tank
7. Supporting Foot
8. Fixed Wheel

COMPONENTS

No.	Picture	Name and Qty	No.	Picture	Name and Qty
1		Fuel Tank(x1)	11		Raw Tape(x1)
2		Handle (x1)	12		Hose Clamp (x2)
3		Wheel (x2)	13		Wheel shaft (x1)
4		Oil Hose (x1)	14		Oil Gauge Fixing Nut (x1)
5		Outlet pipe(x1)	15		Oil gauge (x1)
6		Electric pump (with ground lead) (x1)	16		Hose Fitting(x1)
7		Supporting Foot (x2)	17		Flat Gasket(x4)
8		Nut M8 (x8)	18		Acorn Nut M12(x2)
9		Bolt M8*16 (x2)	19	/	User Manual(x1)
10		Bolt M8*40 (x2)

ASSEMBLY

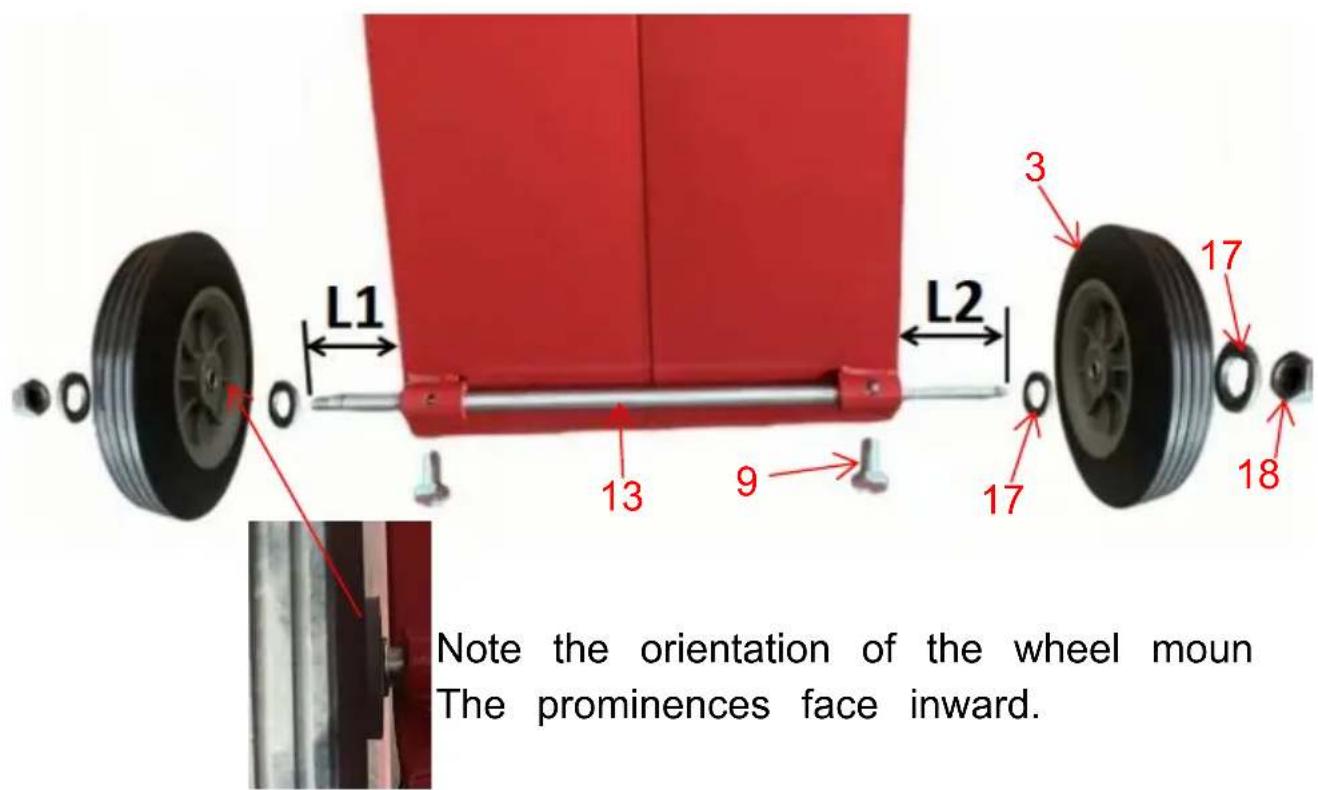

Step1: Install the fixed wheels. Screw the wheel shafts(13) into the full tank, ensure that the dimensions of both ends (L1 and L2) are the same. Fasten the wheel shaft with bolts(9).

Put the gasket(17) + wheel(3) + gasket(17)+ nut(18) in turn and lock

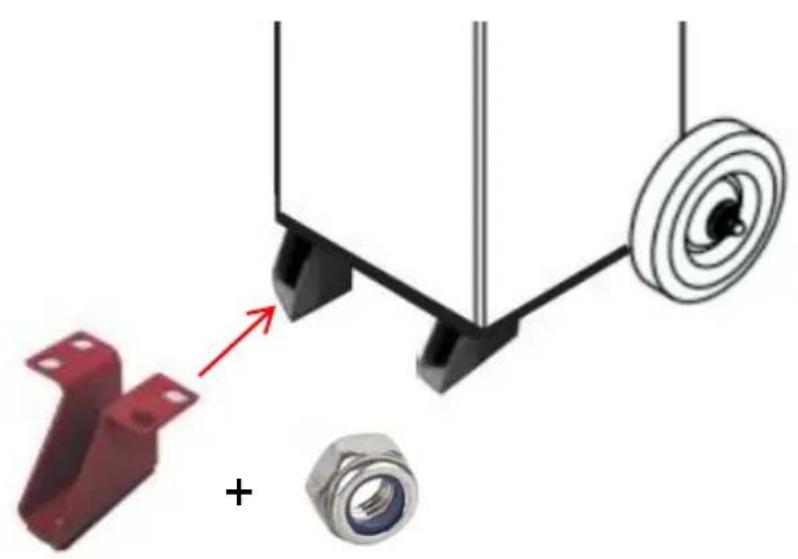

Step2: Install the front supporting foot(7) and screw the nuts(8).

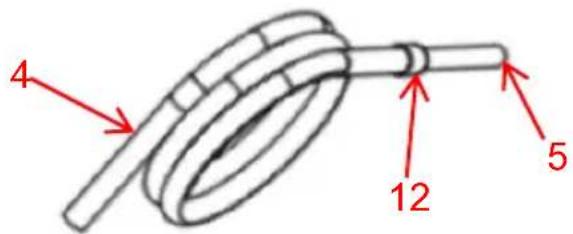

Step3: Install the outlet pipe(5) at one end of the oil hose and lock it with a hose clamp (12).

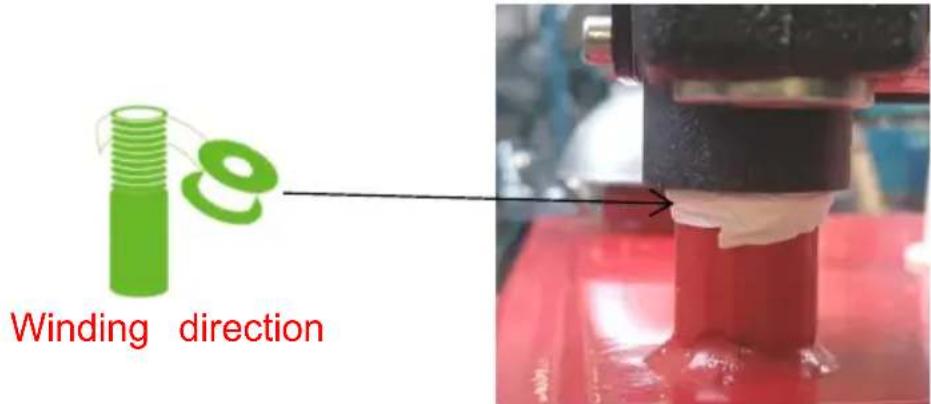

Step4: Wrap not less than 5 circles of raw tape(11) on the outlet, then screw the pump(6) on the outlet.

NOTE: If the position of the pump is not where you want it to increasing the number of winding laps of waterproof tape.

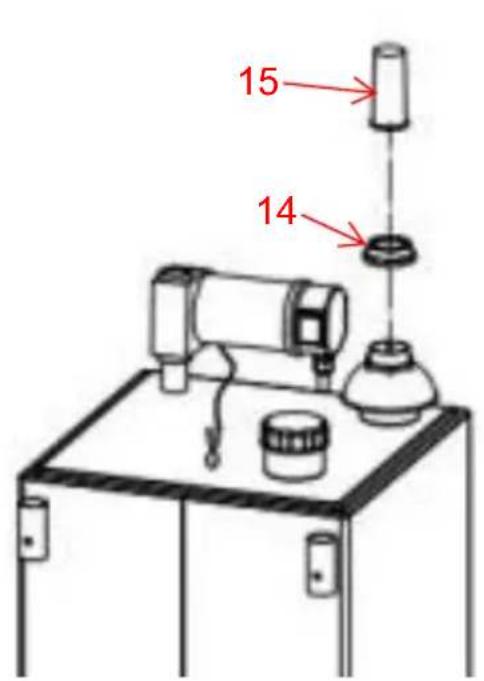

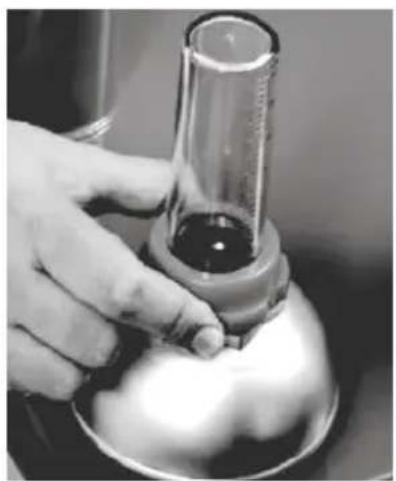

Step5: Lock the oil gauge(15) on the pump with the oil gauge fixing (14).

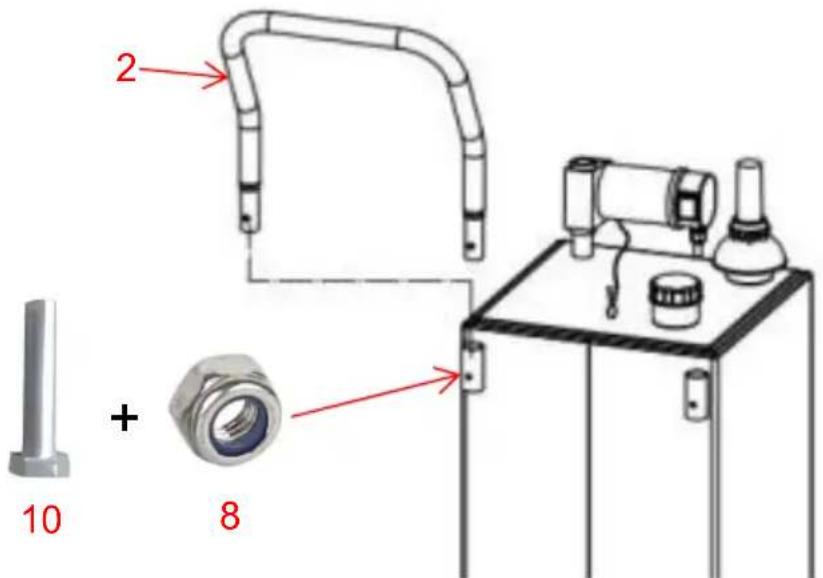

Step6: Insert the handle(2) into the tank at the appropriate position and lock with bolts M8*40(10) and nuts M8(8).

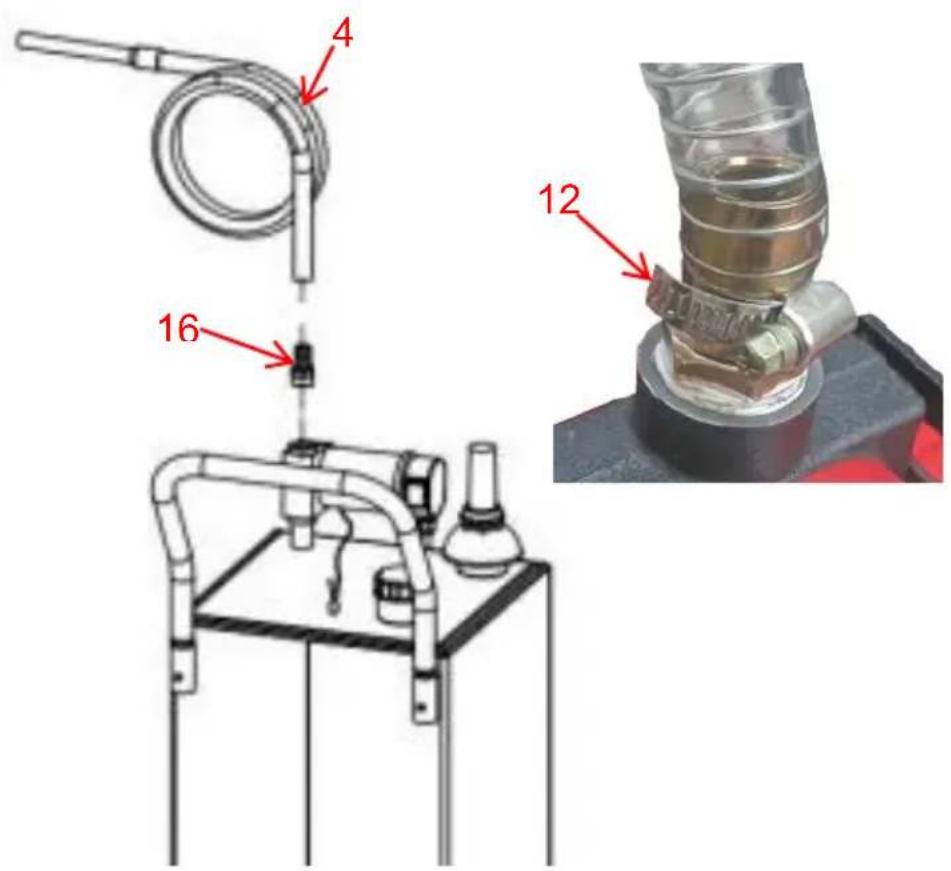

Step7: Wrap not less than 5 circles of raw tape on the hose fitting(screw it to the pump outlet; then attach the oil hose (4) to the hose fitting(16) and lock it with a hose clamp (12).

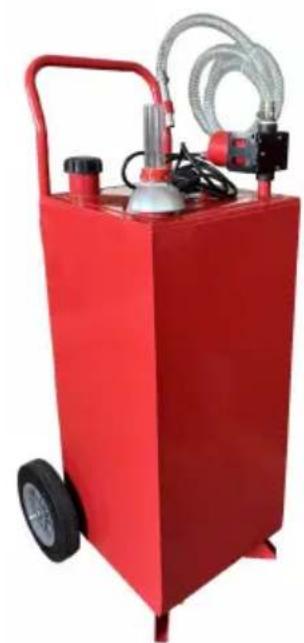

Step 8. The product is assembled and ready for use.

HOW TO USE

Before Start to USEAWARNING

1. Attach ground wire and bond containers that are being pumped from and into. Ground all containers to a known ground source to dissipate static electricity before pumping liquids. Dissipate any static electricity if your body by touching a metal surface away from the product.

2. Always wear the necessary protection materials when transporting gasoline!

! Do not transfer fuel while the vehicle or the vehicle's heater is ON (cause a fire).

! Do not leave the pump unattended (it may cause an oversupply of fire, or any accident).

! Do not run the pump 'dry' or let the pump idle without transferring cause product failure.)

! Make sure to use the pump on an even surface (If the tank falls during the liquid supply, the liquid will leak and may cause a fire or accident.)

! Make sure the pump is tightly secured to the tank before turning on.

HOW TO USE:

Refueling operation:

1. Open the tank cap, and put the oil into the caddy through the o. For the first time usage, please eliminate air while noticing the meas. shws.
2. Please do not add the oil beyond the capacity. When the red point reaches the capacity, do not add oil anymore.
3. After filling the tank, tighten the cap and keep the tank upright.

Pumping operation:

1. Ground the grounding wire of the fuel tank.
2. Ensure that the power supply is DC12V; Connect the red line of pump to the positive pole and the black line to the negative pole.

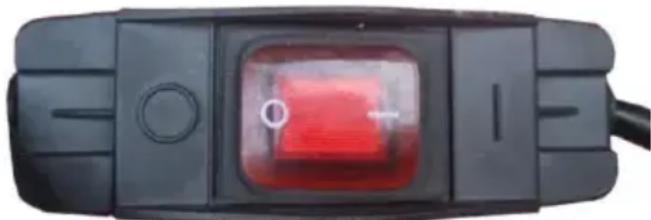

3. Press the switch to pump oil.

Warning:

1. The pump should run no more than 30minutes. Do not leave the oil empty for more than 1 minute to avoid damage to the oil pump.
2. Without a Built-in Auto-Stop System, be cautious when filling the can through the fill tube, and Monitor closely to prevent overflows or spills

MAINTENANCE

1. This machine is suitable for gasoline, and diesel. But it is not suited for water, or other corrosive solvents.
2. For different types of oil, it is recommended to clean the tank best storing another type of oil.
3. If this product is not used for a long time, it is recommended to and store it in a cool and dry environment.

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

YH CONSULTING LIMITED. C/O YH Consultin Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey, TW18 4A
