Product type	Electric tailgate lift
Brand	Vevor
Model	D5801 (compatible with D1206, D3304, D3305, D4806, D2002, YQ53203, D1304, D5102, D5104)
Rated voltage	12 V DC
Operating voltage	9 V DC – 16 V DC
Operating current	≤ 8 A
Stall current	≤ 25 A
Opening/closing time	17 to 20 seconds
Operating temperature	-30 °C to +80 °C
Internal structure	Motor, threaded rod, outer tube, coil spring
Waterproof connector	Yes
Main functions	Electric opening and closing of the tailgate
Installation method	By a qualified professional
Module reset	Via diagnostic tool (Autel, Launch) or close button
Troubleshooting	Intermittent error codes can be cleared; permanent codes require lift cylinder replacement
Maintenance and cleaning	Clean connectors, check wire insulation, avoid shocks
Safety	Disconnect battery before installation, avoid short circuits, do not disassemble the product
Spare parts and repairability	Complete electric lift cylinder (strut) replaceable by a professional
Technical support and warranty	www.vevor.com/support
Manufacturer	Shanghaimuxinmuyeyouxiangongsi, Shanghai, China

Frequently Asked Questions - D5801 Vevor

What is the operating voltage of the Vevor D5801 tailgate lift?

The rated voltage is 12 V DC, with an operating range of 9 to 16 V DC.

How to properly install the tailgate lift?

Installation must be performed by a qualified professional. Remove the interior panel, disconnect the old lift cylinder, install the new one following the original wiring diagram, then clear error codes with a diagnostic tool.

What to do if the error code is permanent?

A permanent error code indicates an electrical fault in the lift cylinder; it must be replaced.

How to reset the control module?

Use a diagnostic tool like Autel or Launch, or press the close button after manually closing the tailgate.

What safety precautions should be taken during installation?

Turn off the engine, remove metal objects, route wiring away from moving parts, and ensure good insulation to avoid short circuits.

How to maintain the tailgate lift?

Regularly clean the connectors and check wire insulation. Avoid shocks and overloads.

Is the lift compatible with all vehicles?

The D5801 model is designed to be compatible with several vehicles, notably the Porsche Panamera. Check compatibility with your model in the list of compatible models.

What is the lifespan of the electric lift cylinder?

The lifespan depends on usage and conditions. Under normal use, it is designed to last several years. Contact support for more information.

Where can I find technical support and warranty?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate.

Can I replace the lift cylinder myself?

It is strongly recommended to call a qualified professional to avoid damaging the vehicle or causing injury.

USER MANUAL D5801 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

ELECTRIC REAR HATCH LIFT

MODEL:D1206/D3304/D3305/D4806/D2002/YQ53203/D1304/D5102/D5801/D5104

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

Black cylindrical mechanical component with coiled cable and small square end (no text or symbols visible)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate

www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you and there are any technology or software updates on our product.

1. Product Working principle and structure introduction:

Working principle:

The Power liftgate is an electric drive device that converts the rotational motion of the motor into the linear reciprocating motion of the push rod. The strut motor controlled by the tailgate ECU controller module to achieve the up and down extension and retraction of the electric strut, thereby completing the lifting and lowering action of the tailgate

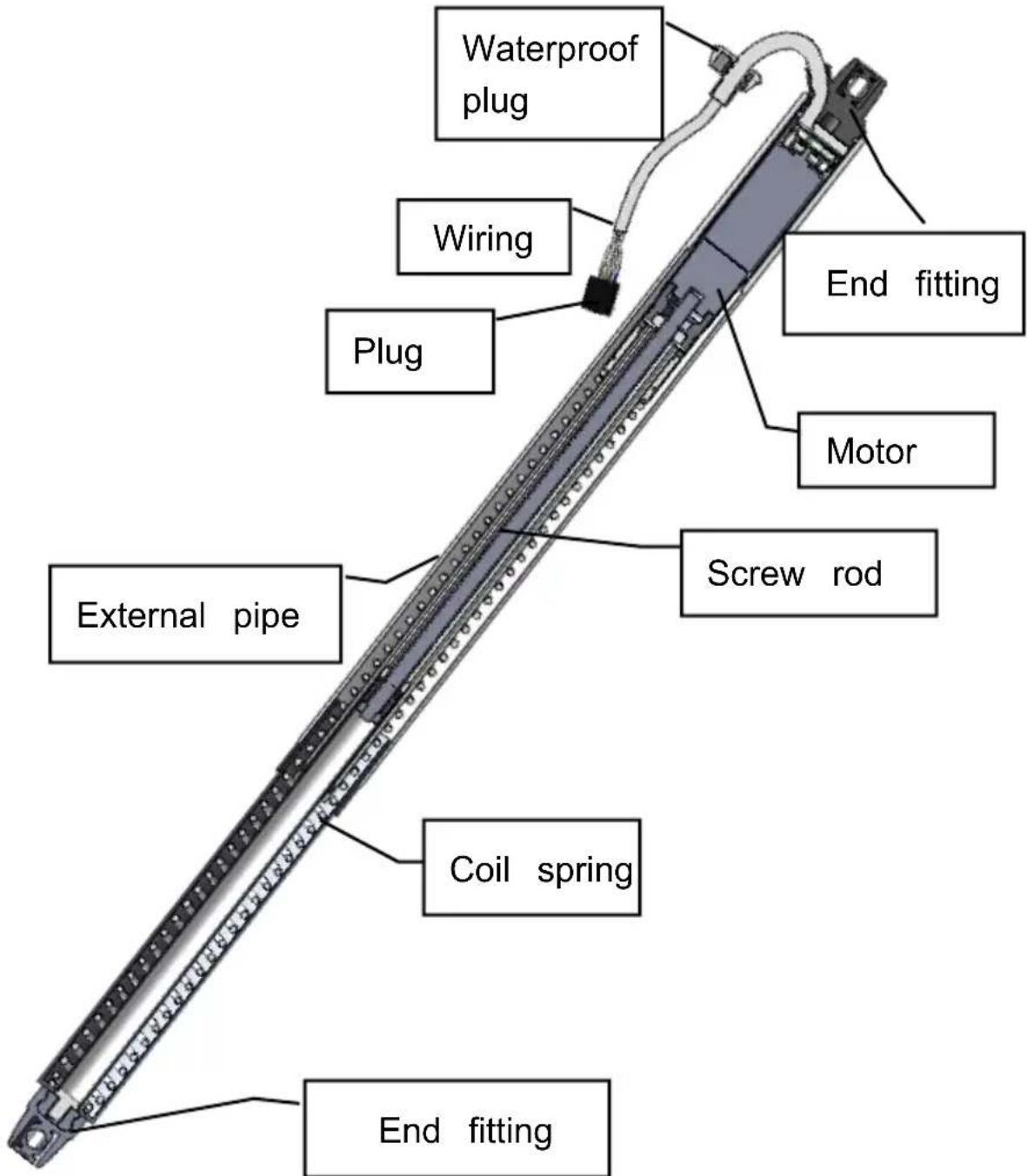

2. Internal structure and appearance:

Rated voltage: DC12V Operating voltage: DC9V-DC16V

Working current: ≤8A Stall current: ≤25A

Openning hours: 5s-8s Closing hours: 5s-8s

Operating temperature: -30^ +80^

3. Power liftgate installation steps (Porsche Panamera for example)

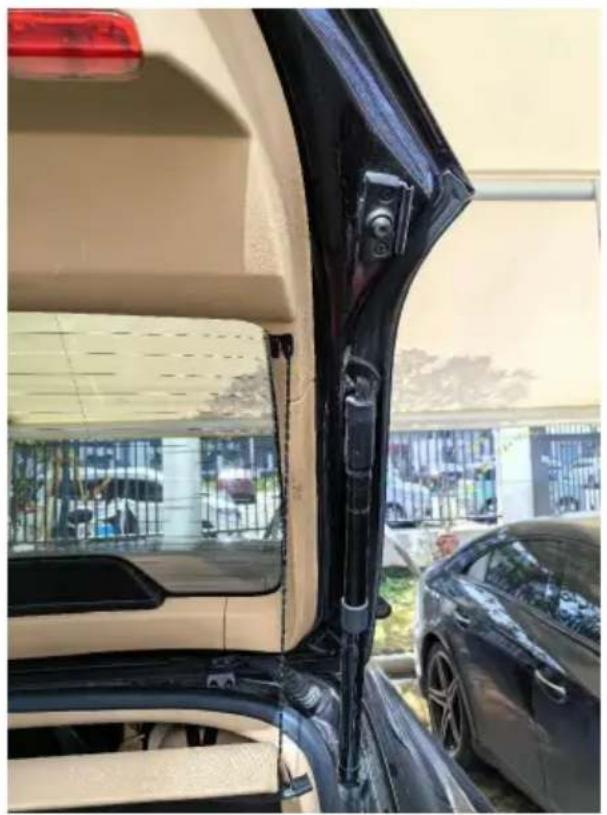

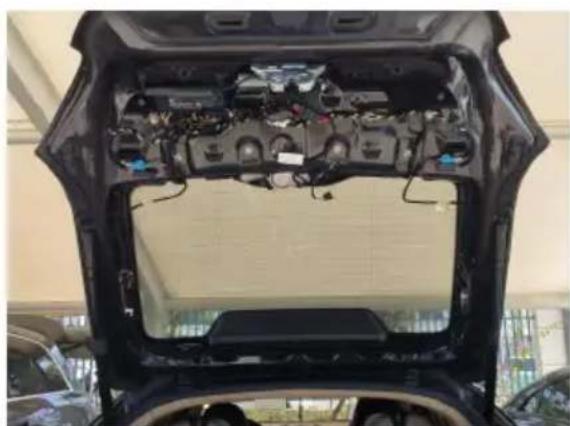

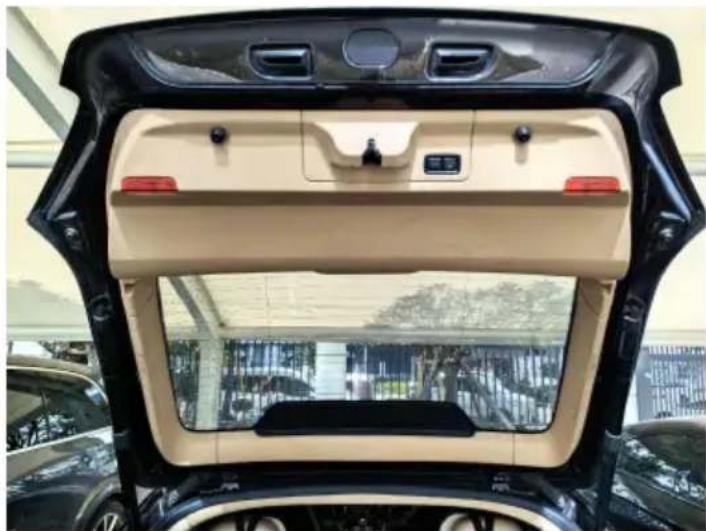

3.1 Remove the interior panel of the vehicle's tailgate.

Back view of a car's rear open cab showing the roof, dashboard, and side-mounted sensors (no visible text or symbols)

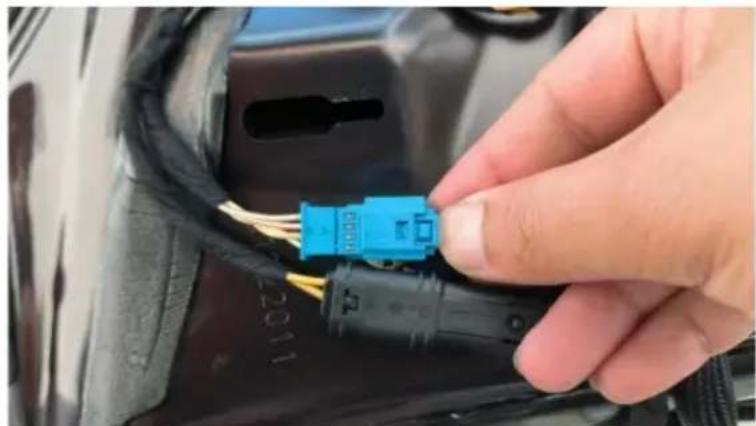

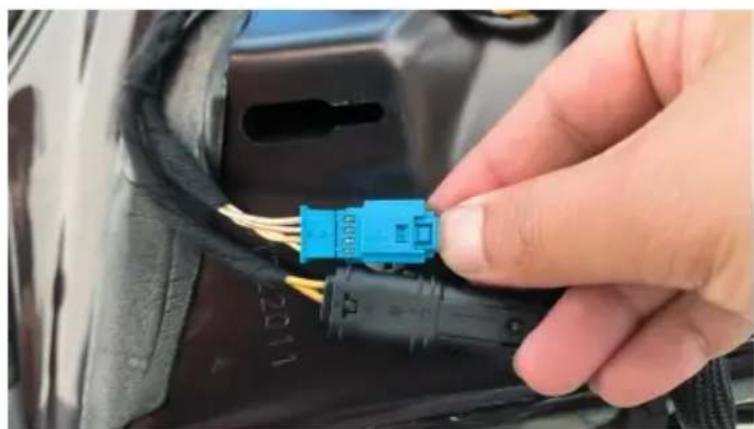

3.2 Then, disconnect the power tailgate plug from the vehicle's connection po

Top-down view of a car's front hood showing internal components and wiring (no visible text or symbols)

Close-up of a hand inserting a blue and black automotive connector into a car body (no visible text or symbols)

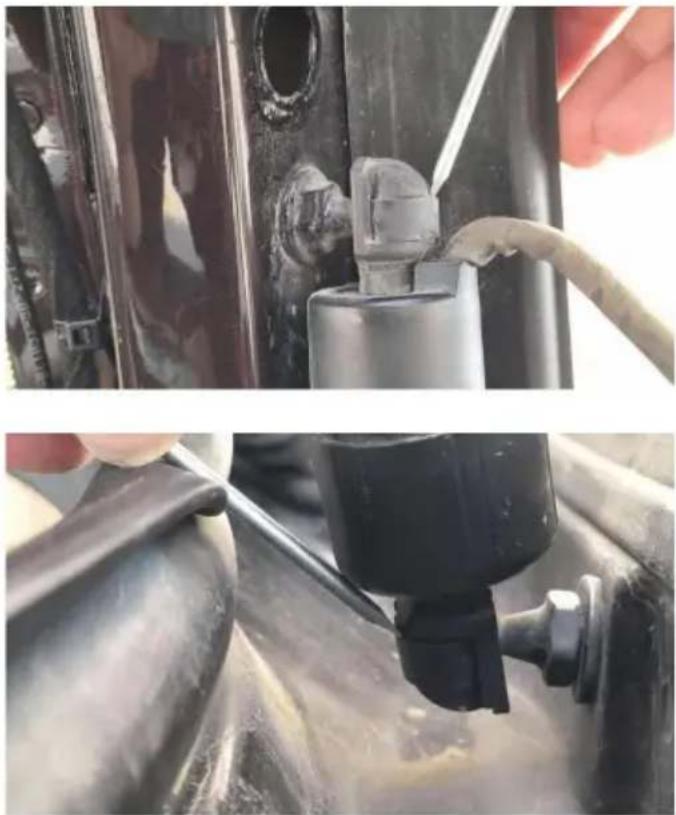

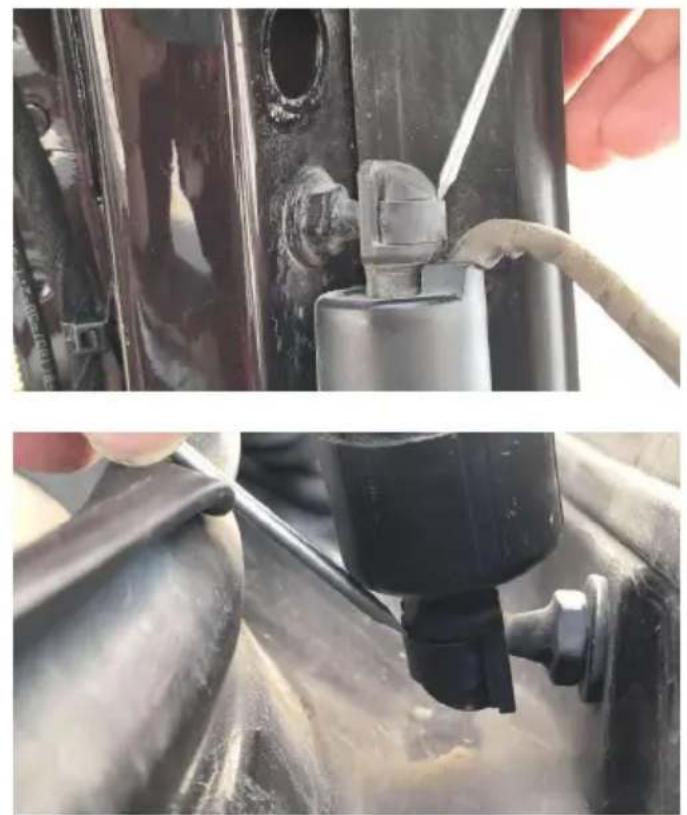

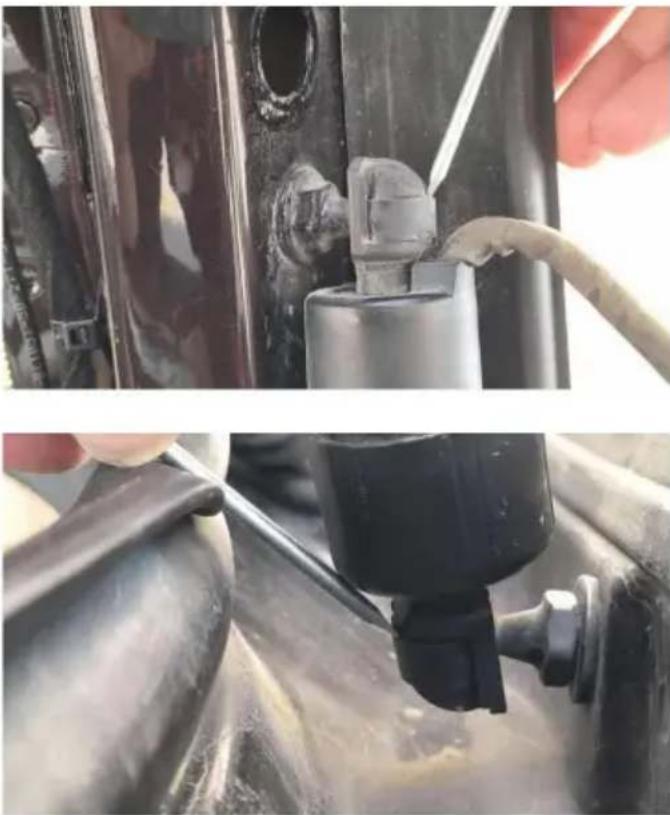

3.3 Using flat-head screwdriver to remove the clips from the old tailgate, then install the new one. Same method for both sides.

Interior view of a car showing the door, seat, and exterior view with parked cars and a fence in the background (no visible text or symbols)

Two-panel photo showing a hand using a tool to adjust or install a mechanical component, with no visible text or symbols.

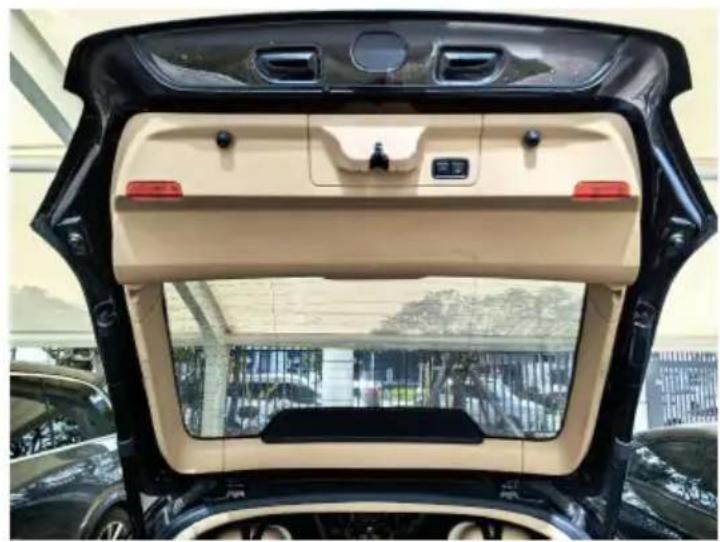

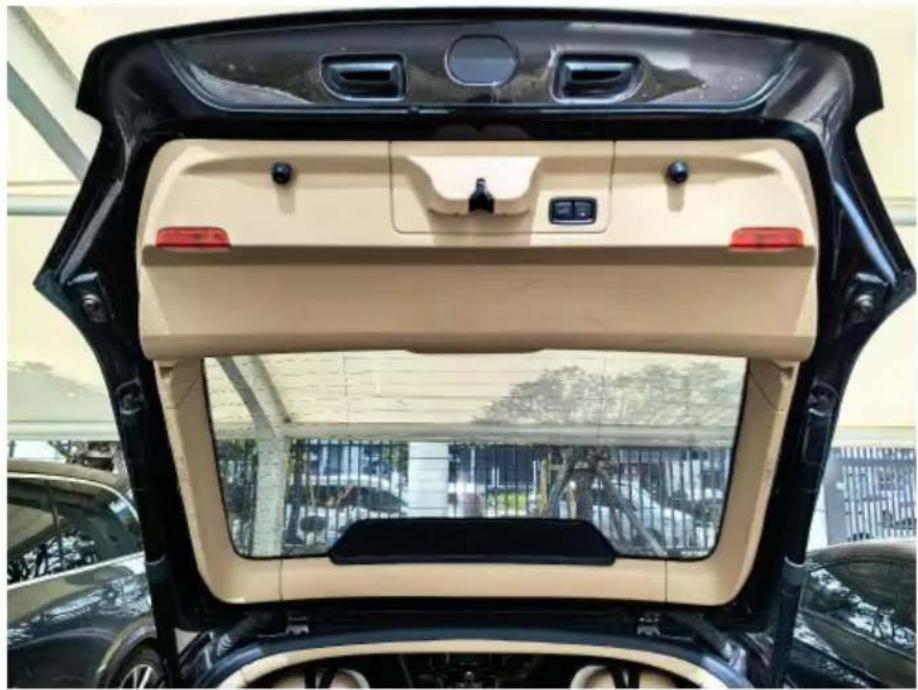

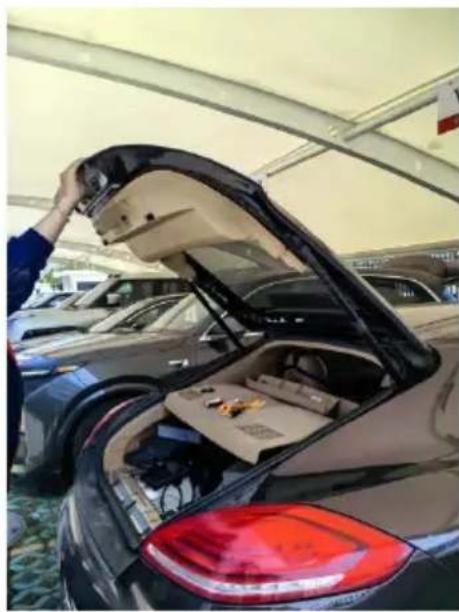

3.4 After installing the new tailgate, reinstall the original panel.

Back view of a black car trunk with beige interior and red control buttons, viewed from above (no visible text or symbols)

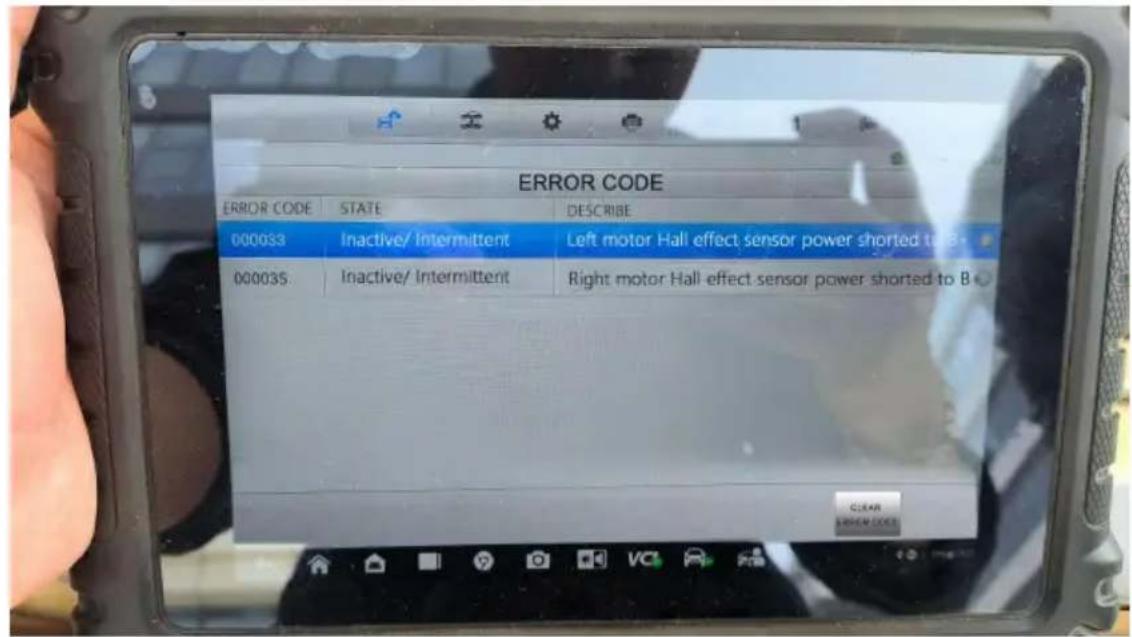

3.5 Use diagnostic tools to connect to the car and clear error codes caused replacement of the power tailgate.

3.6 After clearing the error codes, you can activate the power tailgate closing using the following methods:

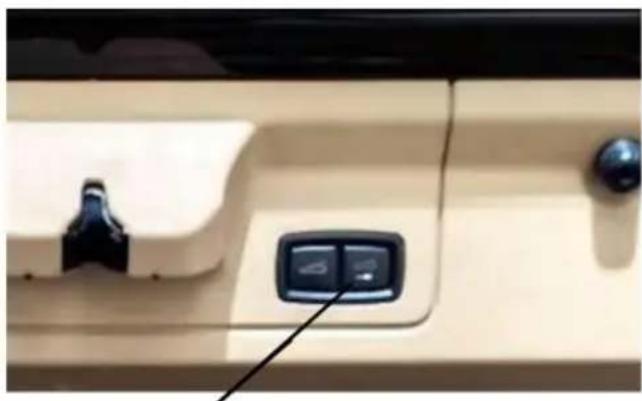

3.6.1 Press the tailgate close button directly.

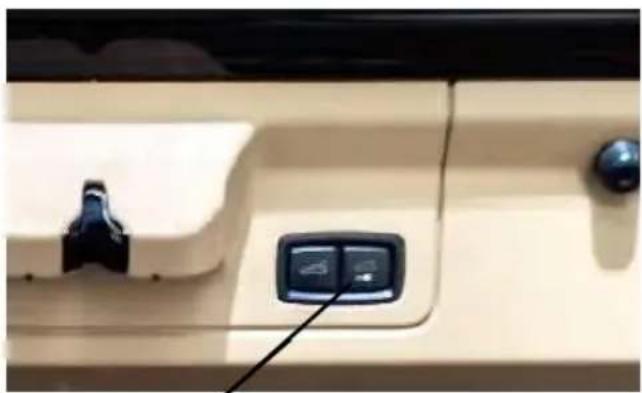

3.6.2 Manually close the tailgate and then press the tailgate open button.

Back view of a car showing the rear open trunk and side rear seats, with no visible text or symbols.

Close-up of a car's side panel showing two buttons and a connector (no text or symbols visible)

3.6.3 Reset the control module by using diagnostic tools like Autel or Launch then press the tailgate close button.

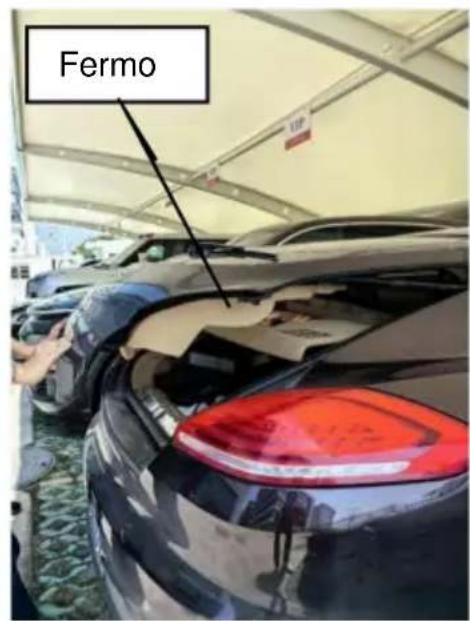

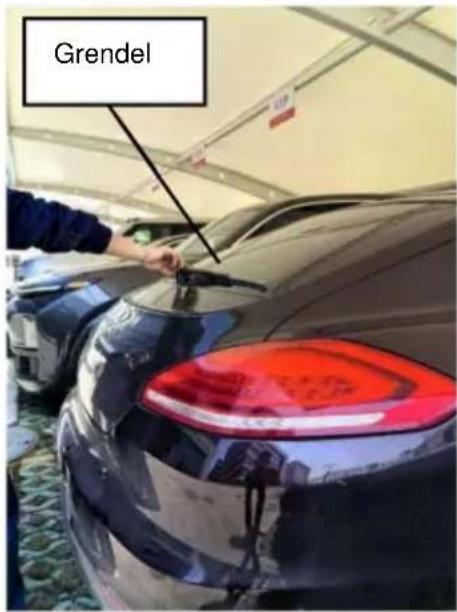

3.7 Manually close the tailgate by holding it with both hands and lowering it slowly until the lock engages with the latch.

Interior view of a car storage lot with open trunk and rear livery (no visible text or symbols)

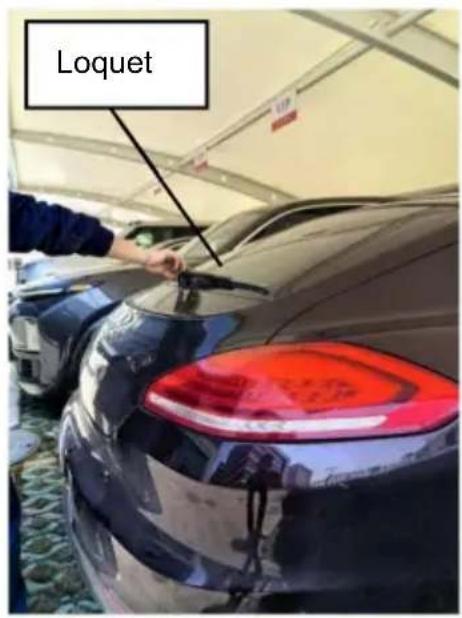

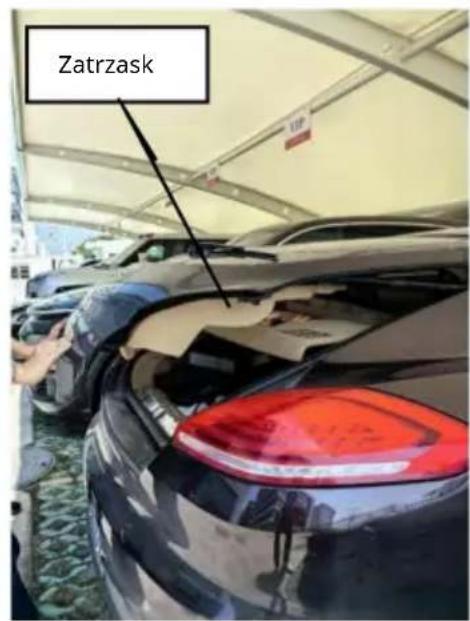

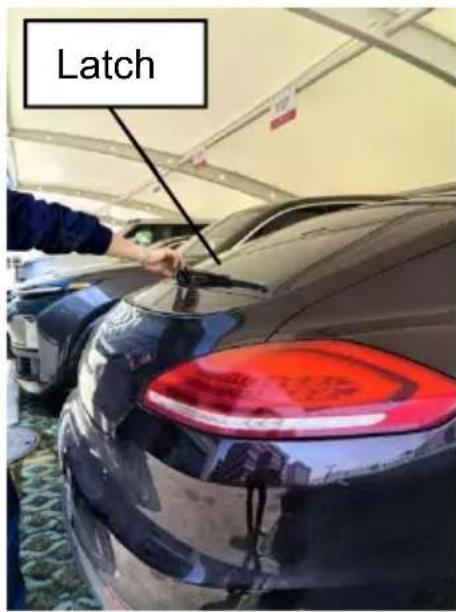

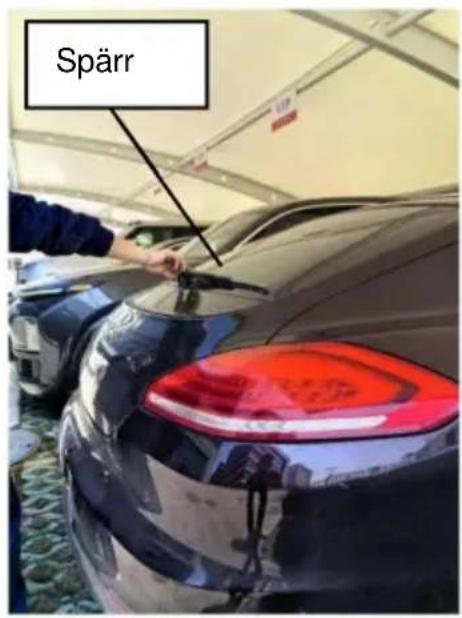

Manual closing operation example

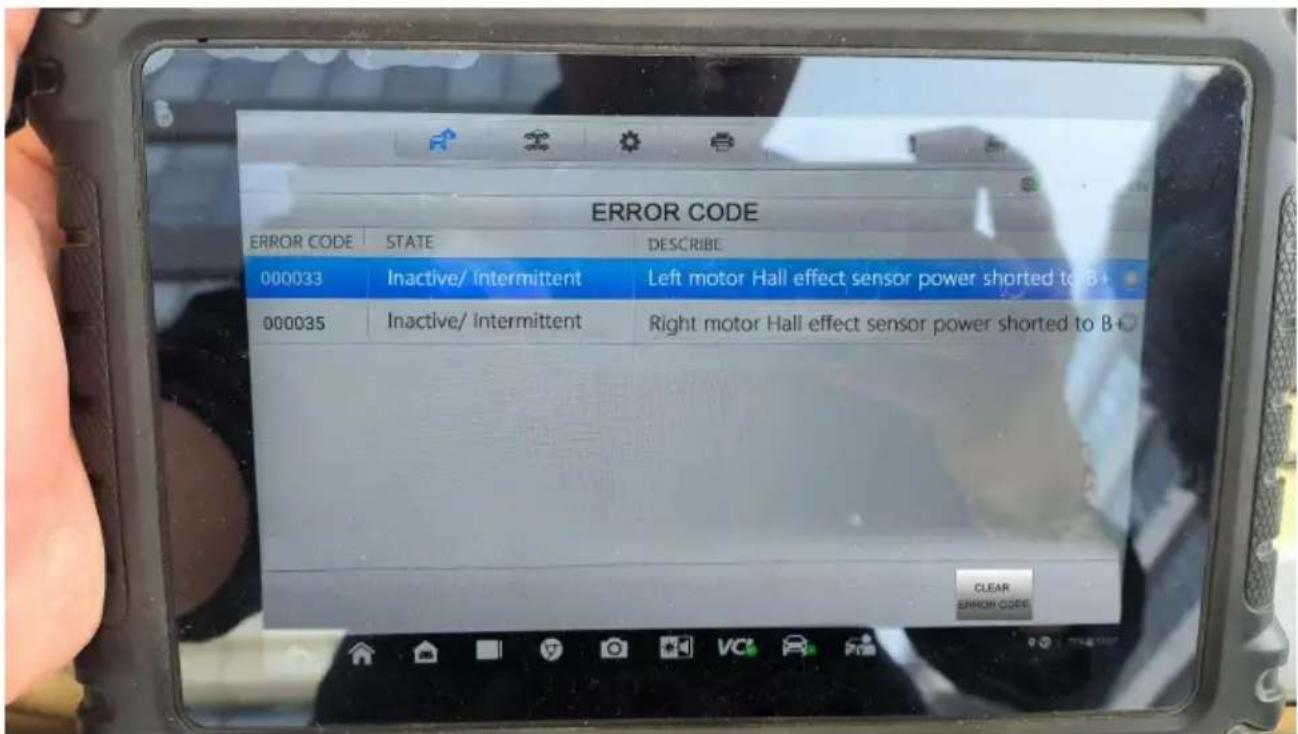

3.8 Troubleshooting: If the error code status is inactive or intermittent, it can cleared by using the diagnostic tool

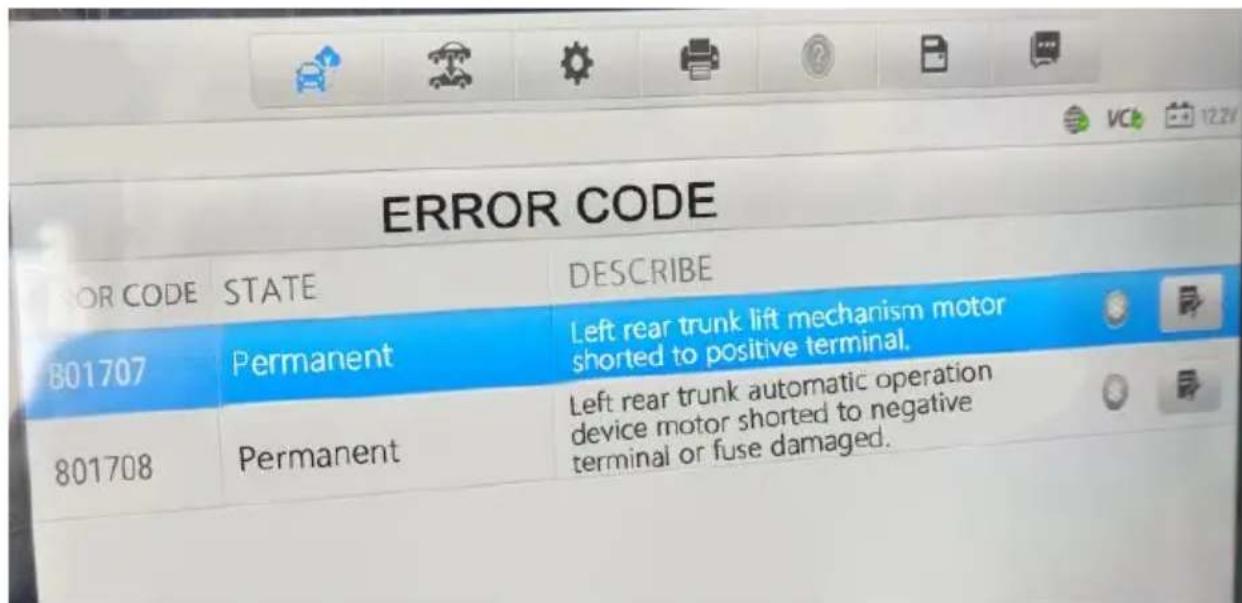

Permanent error code indicates an electrical fault in the tailgate; tailga replacement is required.

4. Precautions for Installing the Power Tailgate Strut

- To ensure the safety and proper functioning of our products, installation should be performed by qualified professionals. Do not disassemble the product, and avoid forcibly pushing or pulling the tailgate to prevent vehicle damage or sa incidents;

- Before installing the product, check the dashboard display functions, ensure button operations are normal, and inspect for any scratches on the interior air exterior surfaces. Report any issues to the customer immediately.

- Check if the power tailgate strut operates correctly and if the indicator light are functioning properly.

● Turn off the engine and prepare the necessary tools;

- For Installers: Remove any metal objects and other hard materials from the vehicle to prevent damage or scratches during installation.

- Carefully remove and store car parts to avoid scratching the dashboard. Cl up any wire fragments promptly and ensure connectors are well-insulated to prevent short circuits.

- Route the wiring according to the original vehicle layout. Secure each wire harness to avoid interference with moving parts such as the steering column, accelerator, and brake pedals

• Connect each wire harness following the original factory wiring scheme, paying attention to the grounding wire.
• Do not replace wires or components while powered.
  ● After installation, manually close the tailgate to allow the system to initialize
• Ensure the tailgate is secured during the installation process to prevent it falling and causing injury.

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia
