DCFD40A - Pump Vevor - Free user manual and instructions

Product Type	DC Fuel Transfer Pump
Model	DCFD40A
Supply Voltage	12 V DC
Power	1/7 HP (approx. 106 W)
Max Flow Rate	5 GPM (approx. 19 L/min)
Max Discharge Head	30 ft (9.1 m)
Max Suction Lift	7 ft (2.1 m)
Operating Temperature	-25 °C to 50 °C
Duty Cycle	30 minutes on, 30 minutes off (at room temperature)
Compatible Fluids	Gasoline (up to E15), diesel (up to B20), kerosene
Main Material	Steel and fuel-resistant plastic
Included Accessories	Inlet hose, outlet hose, hose clamps (x2), filter, sealing tape, manual oil gun
Main Functions	Fuel transfer with forward/stop/reverse (double-direction switch)
Safety	Static grounding, spark protection, automatic shutoff in storage position
Maintenance and Cleaning	Regularly clean the filter and strainer; check wear of vanes and rotor
Spare Parts and Repairability	Contact VEVOR support for spare parts and repairs
Warranty	Refer to the electronic warranty certificate at www.vevor.com/support

Frequently Asked Questions - DCFD40A Vevor

What types of fuel can I use with this pump?

This pump is designed for transferring low-viscosity petroleum fuels: gasoline (blends up to E15), diesel (up to B20), and kerosene. Do not use non-compatible fluids.

How do I connect the pump to a 12V battery?

Connect the red wire to the positive (+) terminal of the battery and the black wire to the negative (-) terminal. Ensure the switch is in the OFF position before connecting. Use the provided alligator clips.

What should I do if the pump does not prime?

Check the suction line for leaks or blockages. Inspect the bypass valve: it should move freely. Clean the filter and ensure the vanes are not sticking. If the problem persists, contact technical support.

What is the recommended duty cycle?

The pump can run continuously for a maximum of 30 minutes at room temperature. After that, it must be stopped for 30 minutes to cool down. Do not exceed this cycle to avoid overheating.

How do I maintain the pump?

Regularly clean the filter and suction strainer. Check the wear of vanes and rotor. Replace worn parts. Ensure all electrical connections are clean and tight.

Can I use the pump to transfer water?

No, this pump is specifically designed for petroleum fuels. Using it with water or other non-recommended liquids may damage the pump and void the warranty.

How do I reverse the flow direction?

Use the double-direction switch: position 'I' for forward, 'O' for stop, and '=' for reverse. The flow direction follows the arrow on the pump in forward mode.

What should I do if the motor overheats?

Immediately stop the pump and let it cool down. Check that the suction strainer is not clogged. Ensure the suction hose is not restricted. If the problem persists, contact support.

What safety precautions should I take?

Use protective equipment (goggles, gloves). Avoid ignition sources (hot engines, cigarettes). Static ground the pump. Do not pump into an aircraft. Work in a well-ventilated area.

Where can I find spare parts or assistance?

Visit www.vevor.com/support for technical assistance and the electronic warranty certificate. Contact VEVOR customer service for spare parts.

USER MANUAL DCFD40A Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

DC FUEL TRANSFER PUMP

MODEL: DCEX40 / DCEX40A

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to cover all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually saving half in comparison with the top major brands.

VEVOR®

TOUGH TOOLS, HALF PRICE

DC FUEL TRANSFER

PUMP

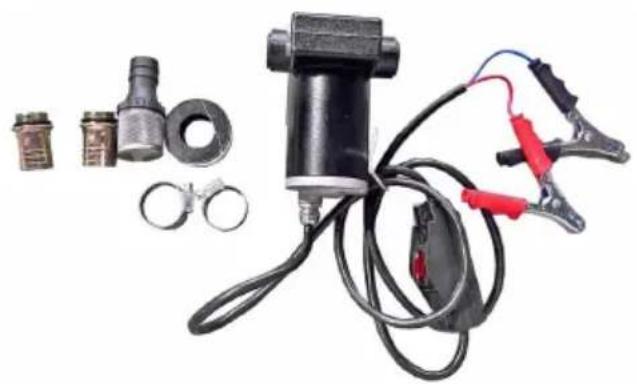

Collection of industrial tools including a hydraulic cylinder, clamps, and clamp (no visible text or labels)

MODEL: DCEX40

Two types of electrical connectors and cables, one blue with coiled cable and the other black with clamping device (no text or symbols visible)

MODEL: DCEX40A

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of our user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you again if there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed through indicates that the product requires separate refuse collection in the European Union. This applies to the product and all accessories marked with this symbol. Products marked as such may not be discarded with normal domestic waste, but must be taken to a collection point for recycling electrical and electronic devices

ACCESSORY

MODEL: DCEX40 MODEL: DCEX40A
NO.	Description	Qty	Picture	NO.	Description	Qty	Picture
1	Connector	2		1	Outlet Hose	1
2	Clamp 2			2	Inlet Hose	1
3	Thread tape	1		3	Manual oil gun	1
4	Filter	1		4	Thread tape	1

MAIN SPECIFICATIONS

Model DCEX40 DCEX40A
Voltage	DC12V DC12V
Power	1/7 HP 1/7 HP
Max Flow	5 GPM 5 GPM
Max lift	30 FT 30 FT
Max Suction lift	7 FT 7 FT
Applicable temperature	-25~50°C -25~50°C
Working hours	Work for 30 minutes, stop for 30 minutes (at room temperature).

GENERAL SAFETY RULES

ATTENTION: Please save these instructions for future reference.

Read carefully before attempting to assemble, install, operate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage. Please refer to pump body for information regarding this product and other important information.

Usage Requirements:

This pump is designed, tested and approved for use with thin viscosity petroleum fuels such as gasoline blends(up to E15), diesel fuel blends (up to B20) and kerosene.

Please take all due precautions when handling these flammable liquids Do not use this pump for transferring any fluids other than those for which

it was designed. To do so may damage the pump components

GENERAL SAFETYINSTRUCTIONS

IMPORTANT: It is your responsibility to:

• Know and follow applicable national state and local safety codes pertaining to installing and operating electrical equipment for use with flammable liquids
• Know and follow all safety precautions when handling petroleum fuels
• Ensure that all equipment operators have access to adequate
  instructions concerning safe operating and maintenance procedures Observe all safety precautions concerning safe handling of petroleum fuels

! DANGER

To prevent physical injury or property damage, observe precautions against fire or explosion when dispensing fuel.

Do not operate the pump in the presence of any source of ignition including running or hot engines, lighted tobacco products, gas or electric heaters, or any type of electronic device. A spark can ignite fuel vapors.

WARNING

Avoid prolonged skin contact with petroleum fuels. Use protective goggles, gloves and aprons in case of splashing or spills.

Change saturated clothing and wash skin promptly with soap and water.

WARNING

Any components such as hose, nozzle, or meter added to your pump must be statically grounded and approved for use with petroleum fuels.

WARNING

This product shall not be used for pumping fuel or other liquids into aircraft.

Environment Condition

Temperature -25°C ~ +50°C
Relative Humidity 30% ~ 90%
Atmospheric Pressure 86Kpa ~ 106Kpa

INSTALLATION & WIRING

1. Before electrical installation, ensure all parts are well installed, connected, grounded and well sealed.
2. Place the switch into the OFF position to prevent accidental spillage once power is engaged to the motor.
3. Pass the electrical wires to the power source and make sure the alligator clips are correctly connect to the negative (-) or positive (+) poles on the power source.
4. Open the fueling nozzle to fuel equipment.
5. When fueling is complete, return the nozzle to its storage position and turn off the Pump.

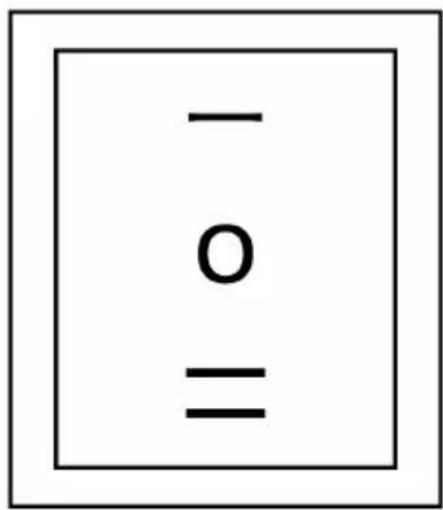

Double way switch

The switch futures double way function:

"I": pump ON and flow move by the arrow direction.

“O”: pump OFF.

“=”: pump ON and run reversely

COMMON TROUBLESHOOTING

Symptom	Cause	Cure
Pump won't prime	Suction line problem	Check for leaks or restrictions in suction line
	Bypass valve open	Remove and inspect valve; must move freely and be free of debris
	Vanes sticking	Check vanes and rotor slots for nicks, burrs, and wear
	Excessive rotor or vane wear	Inspect rotor and vanes for excessive wear or damage; replace if necessary
	System blockages	Check filter and bypass valve for debris; remove nozzle and test flow with pump ON
Low capacity	Excessive dirt in screen	Remove and clean screen
	Suction line problems	Check for leaks or restrictions in suction line
	Bypass valve sticking	Remove and inspect valve; must move freely and be free of debris
	Outlet blocked	Check pump outlet hose, nozzle, and filter for blockage
	Vanes sticking	Check vanes and rotor slots for wear; replace if necessary
	Excessive rotor or vane wear	Inspect rotor and vanes for excessive wear or damage; replace if necessary
	Hose or nozzle damage	Replace hose or nozzle
	Plugged filter	Replace filter
	Low fluid level	Fill tank
Motor overheats	Clogged screen	clean screen
	Restricted suction pipe	Remove and clean pipe
	Motor failure	Contact your local supplier for repair or replace
	Pump rotor lock-up	Clean and check pump rotor and vanes

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Collection of industrial electrical components including a hydraulic cylinder, clamp, and clamps (no visible text or labels)

Coiled black and blue electrical test probes with clamps, no visible text or symbols

MODÈLE : DCEX40AMODÈLE : DCEX40

BESOIN D'AIDE? CONTACTEZ-NOUS!

Collection of industrial equipment including a hydraulic cylinder, clamps, and clamp (no visible text or symbols)

Coiled black and blue electrical test probes with clamps, no visible text or symbols

MODELL: DCEX40AMODELL: DCE>

Collection of industrial equipment including a hydraulic cylinder, flanges, and clamp tools (no visible text or labels)

Coiled black and blue electrical cables with clamps, no visible text or symbols

MODELLO: DCEX40AMODELLO: DCEX

Collection of industrial equipment including a hydraulic cylinder, clamps, and clamp (no visible text or symbols)

Coiled black and blue electrical test probes with clamps, no visible text or symbols

MODELO: DCEX40AMODELO: DCEX

Collection of industrial equipment including a hydraulic cylinder, clamps, and clamp (no visible text or symbols)

Coiled black and blue electrical test probes with clamps, no visible text or symbols

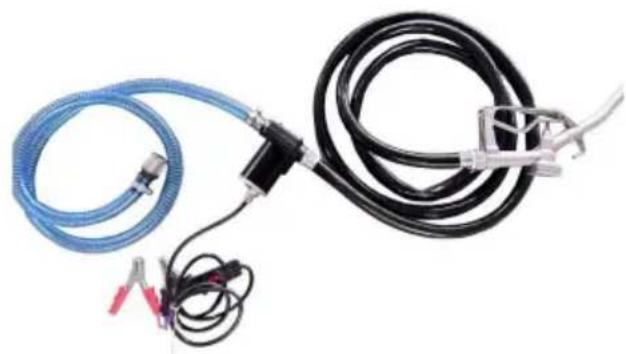

MODEL: DCEX40AMODEL: DCEX40
