USER MANUAL B10B Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

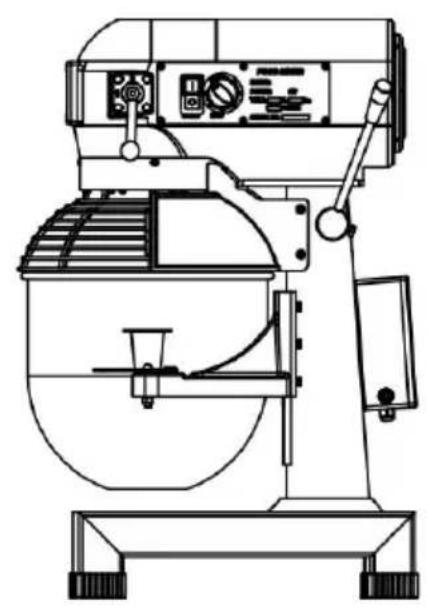

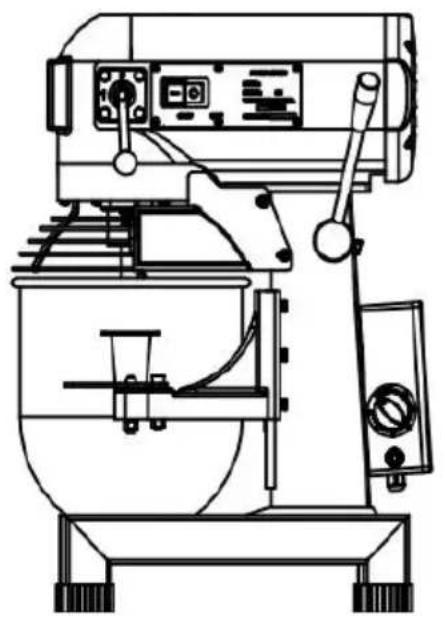

BLENDER

MODEL: B10B B15B B20B B30B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

Warning-To reduce the risk of injury, user must read instructions manual carefully.

CORRECT DISPOSAL This product is subject to the provision of European Directive 2012/19/EC. The symbol showing a wheelie bin crossed throu indicates that the product requires separate refuse collection i European Union. This applies to the product and all accesso marked with this symbol. Products marked as such may not discarded with normal domestic waste, but must be taken to collection point for recycling electrical and electronic devices

TECHNICAL SPECIFICATIONS

Mode I	Bowl Volume (L)	Voltage (V)	Rated Frequency (Hz)	Power (kW)	Mixing Speed (r/min)	Size(mm)
B10B	10	120	60	0.55	135/220/40 9	467×406× 614
B10B	10	220-24 0	50/60	0.55	113/184/34 1	467×406× 614
B15B	15	120	60	0.55	135/220/40 9	467×406× 685
B15B	10	220-24 0	50/60	0.55	113/184/34 1	467×406× 685
B20B	20	120	60	1.1	130/193/458	533×462×780
B20B	20	220-240	50/60	1.1	108/161/382	533×462×780
B30B	30	120	60	1.1	130/193/458	548×462×855
B30B	30	220-240	50/60	1.1	108/161/382	548×462×855

IMPORTANT SAFEGUARDS

WARNING :

Read all safety warnings, instructions, illustrations and specifications provided with this electrical appliances. Failure to follow all instructions listed below may result in electric shock, fire and/or serious injury.

1. There shouldn't be anything else on the counter.
2. There is no abnormal phenomenon after the power is switched or
3. It must be placed on the horizontal plane in order to avoid danger to shaking back and forth during use.
4. Because of the chain saw rotates at high speed, it is also necessary to develop the habit of turning off the switch when the operation is suspended. Do not plug the power cord into the socket when not in the Please unplug the power cord after use and before cleaning or maintenance.

5. If iron nails or other metal items are included in the cut items, cause jagged crack or damage. So, please pay attention to the cut surface during operation to ensure the safety of work.

6. Please unplug the power of the machine before cleaning, assembling disassembling.

7. Do not place the product in the reach of children. Children should supervised to ensure that they do not play with the appliance.

8. This appliance can be used by children aged from 8 years and all and persons with reduced physical, sensory or mental capabilities or of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and under the hazards involved. Children shall not play with the appliance. Clear and user maintenance shall not be made by children without supervis

9.Don't unplug the machine before it stops operation.

10.If the supply cord is damaged, it must be replaced by the manufits service agent or similarly qualified persons in order to avoid a ha

1. Electric Shock Danger! Non-professional personnel are forbidden to repair the products, otherwise it may result in electrical shock. When failures happen, it should be repaired by a qualified maintenance personnel.

12.WARNING! It is strictly prohibited to put the main body into the clean. Only can be scrubbed with wet towel. The machine must be cool before cleaning.

1. Please check that the specified supply voltage in the product is consistent with the supply voltage(AC only).

2. Avoid power cords damage. Do not squeeze, bend or friction it, away from heat sources and open fires. Power cord do not touch the blade.

15.Power cord should be laid fiat. Do not pull the power cord and the product fall down, which may cause damage.

1. Do not use the product on wet ground. Do not touch the produc power cord plug with wet hands.

2. Do not disassemble the product at will. Do not let something enter into the product, which may cause damage.

18.Only accessories provided by the seller or manufacturer can be u for the product. We will not be responsible for any failure caused by use of accessories from other manufacturers, which are not covered

warranty.

1. Do not use the product on uneven, damp, not heat-resistant surfaces to avoid damage or failure.

2. Do not place the product directly on the fire or near the source otherwise the product will be damaged or even result in danger.

3. When the plug is plugged into the socket, it must be plugged to otherwise it will cause the components overheating and burning due to poor contact.

4. Do not leave the product to work with no one watching. If the is overheating, please stop working immediately and unplug the powe

5. Once part of the product is on fire, do not directly use water to extinguish the fire. Use a wet cloth to cover the fire site.
6. Please store the plastic bags and not allow children to play with to prevent a risk of suffocation.
   25.It is prohibited to put the main body of the machine and the pot into any liquid.
7. DO NOT open the case door and the hands are strictly forbidden touching the saw blade while the machine is operating.

SAVE THESE INSTRUCTIONS

FCC INFORMATION

CAUTION: Changes or modifications not expressly approved by the p responsible for compliance could void the user's authority to operate equipment!

This device complies with Part 15 of the FCC Rules. Operation is set to the following two conditions:

1) This product may cause harmful interference.
2) This product must accept any interference received, including interference that may cause undesired operation.

WARNING: Changes or modifications to this product not expressly approved by the party.responsible for compliance could void the user'.

authority to operate the product.

Note: This product has been tested and found to comply with the law in a Class B digital device pursuant to Part 15 of the FCC Rules, The limits are designed to provide reasonable protection against harmful interference in a residential installation.

This product generates, uses and can radiate radio frequency energy, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If product does cause harmful interference to radio or television reception, which can be determined by turning the product off and on, the user is encouraged to try to correct the interference by one or more following measures.

• Reorient or relocate the receiving antenna.
• Increase the distance between the product and receiver.
• Connect the product to an outlet on a circuit different from that to the receiver is connected.
  · Consult the dealer or an experienced radio/TV technician for assist

OPERATION AND NOTES

Before use, check that power supply corresponds to that required in the

machine. Check that the extern earthing wire is reliably connected.

The machine which 3 phase motor must be checked that the mac rotates in the direction indicated by the rotation mark .If the rotation direction is wrong, change the two of the three livewires each other. For test of machine, mixing tools should never be installed otherwise they would fall out in case of wrong rotation direction and cause damage machine parts.

SELECT SPEED AND AGITATOR

Dough arm: It is frequently used for heavy bread dough, the weigl

flour indicated by the mark, the weight of water is 47% 50% of the fill flour, and preferable to be used at low speed.

Beater: It is commonly used for thin batters, cakes and mashing potatoes, like stuffing, and preferable to be used at middle speed.
★Wire whip: It is best for whipping cream and beating eggs, and preferable to be used at high speed.
Important notice: Stop the machine to change speed, don't mix dough at middle or high speed.

BOWL LIFT

★When mixing, rotate the hand wheel to raise the bowl until you feel touch the stop, this also makes the bowl more accessible for filling.
★After mixing, rotate the hand wheel to lower the bowl. It is necessary to lower the bowl to change agitators, avail to remove the bowl or agi
Note: When assembling an agitator the bowl must be in the down position, Slip the agitator up on the shaft and turn until the driving the shaft reaches the L-shaped slot in the agitator shank, avoid the agitator to be fallen down in running.

MAINTENANCE

After use each time, an carefully the bowl agitators etc, make sure to keep the machine clear.
★Lubricate the bowl slide ways occasionally by applying a small amount of oil or grease with the tip of linger.

TROUBLE SHOOTING

Trouble	Probable cause	Remedy
The mixing shaft don't rotates after switch on	Electric connectors are loose	Check he electric circuit tighten those loose connectors
Oil leakage	Oil seals are worn out	Replace those oil seals
The raising handle is too tight	Guide ways are corroded	Clean and oil the guide ways
	The lead screw, bevel ge and hand wheel shaft etc dry	Oil them
Temperature rise of motor is too high, below speed	Lack of voltage	Check the supply voltag
	Over load	Less load
	The working speed selecte is too high or agitator is suitable	Select a suitable speed and agitator
The noise of the gearbox serious, its temperature is too high	Lubrication is insufficient	Add or replace the oil
The agitator knocks with the bowl	The agitator or the bowl deformed	Repair or replace deformed part

Manufacturer: Shanghaiuxinmuyeyouxianggsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69, 60329 Frankfurt am Main.

UK

REP

YH CONSULTING LIMITED.

C/0 YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surre TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

Technical Support and E-Warranty Certificate

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

C

C/0 YH Consulting Limited Office 147, Centurion

House, London Road, Staines-upon-Thames, Surre TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

C

VEVOR

TOUGH TOOLS, HALF PRICE

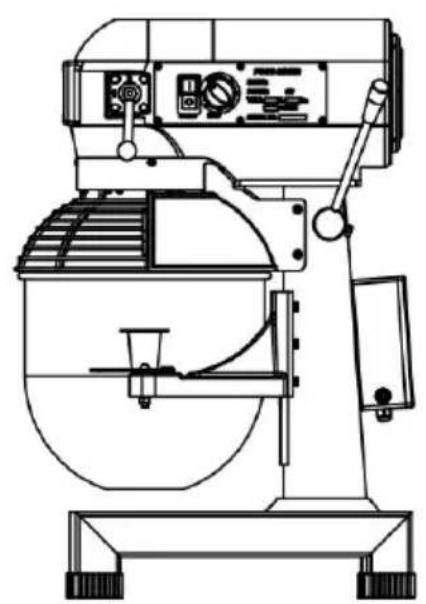

BLENDER

MODELL: B10B B15B B20B B30B

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel fr contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instruction carefully before operating. VEVOR reserves a clear interpretation user manual. The appearance of the product shall be subject to product you received. Please forgive us that we won't inform you there are any technology or software updates on our product.

YH CONSULTING LIMITED.
C/0 YH Consulting Limited Office 147, Centurion House, London Road, Staines-upon-Thames, Surrey TW18 4AX

VEVOR®

TOUGH TOOLS, HALF PRICE

www.vevor.com/support

VEVOR®

TOUGH TOOLS, HALF PRICE

Technique Assistance et certificat de garantie electronique www.vevor.com/support

BATTEUR SUR SOCLE COMMERCIAL

MODELE: B10B B15B B20B B30B

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represent the estimate of savings you might benefit from buying certain tools with us compared to top brands and does not necessarily mean to cover all categories of tools offered. Are kindly reminded to verify carefully when you are placing an order with us actually saving half in comparison with the top major brands.

VEVOR

TOUGH TOOLS, HALF PRICE

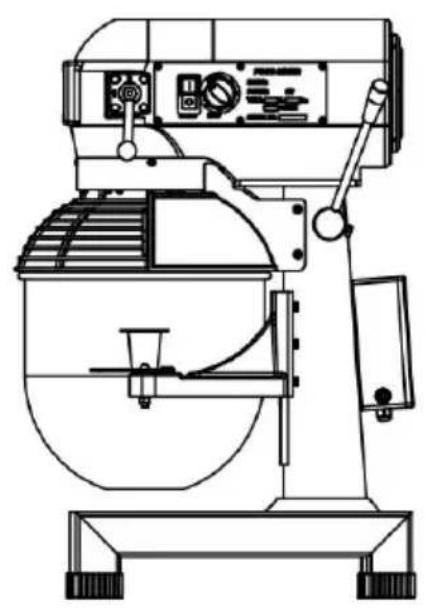

BLENDER
