BN1903 - Fitness Equipment Vevor - Free user manual and instructions

Product Type	Chest Press (Fitness Equipment)
Brand	Vevor
Model	BN1903
Maximum Load Capacity (Seat)	205 kg (450 lbs)
Maximum Weight per Side (Dumbbells)	100 kg (220 lbs)
Usage	Domestic, indoor only
Main Material	Steel
Main Functions	Bench press exercises (chest, shoulders, triceps)
Safety	Use the weight support clip; maintain a safety distance of 1 m around; supervision required for children under 12
Maintenance	Wipe with a soft dry cloth; lubricate regularly with oil; check screw tightness every month
Spare Parts	Complete list of parts in the manual (e.g., bolts, washers, handles, pulleys, etc.)
Repairability	User repairable according to instructions; contact Vevor support if needed
Warranty	Electronic warranty certificate available at www.vevor.com/support

Frequently Asked Questions - BN1903 Vevor

What is the maximum weight the seat can support?

The seat can support up to 205 kg (450 lbs).

What is the maximum weight per side for dumbbells?

The maximum weight for dumbbells on one side is 100 kg (220 lbs).

How to safely secure the dumbbells?

After installing the dumbbell, you must use the provided weight support clip to secure it.

Can I use this device if I have health issues?

Consult your doctor or therapist first to discuss a suitable exercise program, especially if you have heart disease, high blood pressure, or other conditions.

Can children use this chest press?

No, children under 12 should not use the device. Children over 12 must be supervised by an adult. Keep pets and children at least 3 meters away.

How to maintain the machine?

Wipe regularly with a soft dry cloth. Lubricate moving parts with oil. Check screw tightness every month.

Can I use the machine outdoors?

No, use is intended only indoors. Avoid contact with water and humidity.

What to do if I feel pain during exercise?

Stop the exercise immediately and rest. If pain persists, consult a healthcare professional.

Where to find spare parts?

The manual contains a list of parts. You can contact Vevor support at www.vevor.com/support to order parts.

Is it necessary to warm up before using the machine?

Yes, it is recommended to do warm-up exercises before each session to avoid injuries.

USER MANUAL BN1903 Vevor

Technical Support and E-Warranty Certificate www.vevor.com/support

CHEST PRESS MACHINE

MODEL: BN1903

COMPLETE INSTALLATION GUIDE:

QR code image containing encoded data, no visible human-readable text

We continue to be committed to provide you tools with competitive price. "Save Half", "Half Price" or any other similar expressions used by us only represents an estimate of savings you might benefit from buying certain tools with us compared to the major top brands and does not necessarily mean to co all categories of tools offered by us. You are kindly reminded to verify carefully when you are placing an order with us if you are actually Saving Half in comparison with the top major brands.

MODEL: BN1903

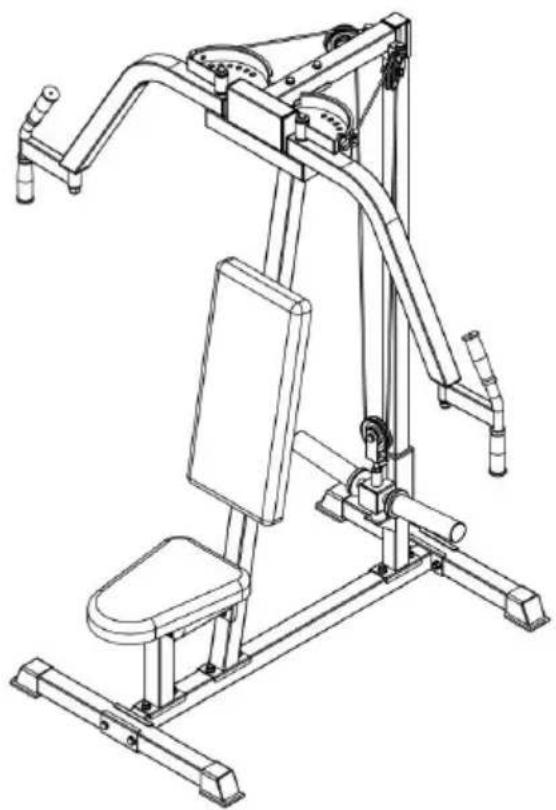

Line drawing of a gym machine with adjustable arm and seat (no text or symbols)

NEED HELP? CONTACT US!

Have product questions? Need technical support? Please feel free to contact us:

Technical Support and E-Warranty Certificate www.vevor.com/support

This is the original instruction, please read all manual instructions carefully before operating. VEVOR reserves a clear interpretation of o user manual. The appearance of the product shall be subject to the product you received. Please forgive us that we won't inform you ag there are any technology or software updates on our product.

	Warning-To reduce the risk of injury, user must read instru manual carefully.
	At NO time should pets or children under the age of 12 to the product than 3 m (10 feet). At NO time should ch under the age of 12 use the product. Children over the a should not use the product without adult supervision.
Warning!	After installing the dumbbell, it is necessary to use the W Holder Clip to secure the dumbbell.

IMPORTANT SAFEGUARDS

Thank you for using this product. In order to make sure that you can opera machine correctly, read this instruction carefully before operation and keep it properly for future reference. Please be sure to read the precautions and safe rules in this page to ensure your safe use. This manual will outline safety wall and precautions, operating, maintenance and cleaning. The warnings and instructions reviewed in this manual cannot cover all possible conditions and situations that may occur. Caution and common sense are not built into this product, since we believe that the uses will comply with these codes.

Please read ALL the instructions before using your machine.

1. Do not let children and minors and pet get close to or touch the produce leave it unattended while in use.
2. Do not apply this unit to any other purposes than the indicated usage.
3. DO NOT CLEAN IT WITH ANY ABRASIVE MATERIAL.
4. Pet urine and feces can damage the product, please keep away.
5. Before using this product, consult with your physician or therapist to discuss appropriate exercise program.
6. If you experience any pain or difficulty with this equipment, stop using immediately and consult your healthcare provider.
7. Always inspect the product for any damage before each use.

8. To prevent muscle fatigue or injury, do not use this exercise equipment for extended periods of time at once.

9. Improper use of this climbing rope and excessive or incorrect training can to serious injuries.

10. Before use, the product's feet must be leveled and the product must be on a level surface.
11. Keep your body balanced on the product and do not make large movement
12. If you suffer from heart disease, high blood pressure or any other disease condition, consult your physician or therapist before beginning any workout.
13. Perform two exercises slowly and in a controlled manner, If you feel dizz short of breath, please stop and rest as needed. If the problem persists, do this equipment and consult your doctor.
14. Use this product only as intended and demonstrated in these instructions workout!
15. Please take warm-up exercise before using the equipment. Be aware of physical ability and condition. Do not overuse.
16. Use the equipment on a solid, flat level surface. Suggest adding cushioning pads around the product (cushioning pads need to be purchased by oneself).
17. Before exercise, please carefully examine the equipment make sure it is good condition. If any defect, adjust and repair it before use. Ensure to wea proper outfit while using this equipment to avoid any possible dangerous circumstances.
18. Do not stand on the product.
19. The exerciser is intended for home use only.
20. Keep the exerciser indoors, away from moisture and dust. Place on a level surface, it is recommended to add a person for supervision when using this product to prevent dangerous situations from occurring.
21. The maximum load-bearing capacity of the seat is 205Kg (450 LBS). The maximum weight for placing dumbbells on one side is 100KG (220LBS).
22. Wear appropriate clothes while exercising. Do not wear loose clothes that could become caught in the exerciser. In addition, wear athletic shoes for food protection while exercising.
23. Use the exerciser only as described in the manual.

24. It is recommended to use waist fitness protective equipment, hand fitness protective equipment, and leg protective equipment to protect your body.

25. If you feel pain or dizziness at any time while exercising, stop immediate begin cooling down.

26. Regularly lubricate the machine with lubricating oil.
27. WARNING: This appliance is not intended for use by young or infirm persons unless supervised by a responsible person to ensure that they can use the appliance safely. Young children should be supervised to ensure that they do play with the product. Pets should stay away from the product.
28. WARNING: Not all exercises are suitable for everyone, To reduce the rise injury, consult with your physician before using this exercise equipment and beginning this or any other exercise program. This product is not intended to diagnose any medical condition, or to replace the advice or treatment recommended by your healthcare professional.
29. WARNING: PLEASE KEEP A SAFE DISTANCE OF ONE METER ALL AROUNDTHE EQUIPMENT DURING EXERCISE
30. WARNING: If there is a physical defects or movement disorders. Please consult the physician and trainer before exercise. Please read the manual car before use. We will not responsible for personal injury and damage to the equipment which is caused by improper use.
31. Do not use this product after taking drugs, drinking, eating, or in a bad state, etc.
32. Indoor use only! The product should not come into contact with water! Only one person can use!
33. Please keep your hands dry and wipe off sweat in a timely manner.
34. Do not use it if you are pregnant.
35. Please do not exercise half an hour before /after meals or 1 hourbefore

INSTALLATION STEPS

Before using the appliance for the first time, peel off any promotional material packaging materials, and check that the cooking plates are clean and free of. If necessary, wipe them over with a damp cloth. Spread over with an absorb kitchen towel and wipe off any excess oil. When your product is heated for time, it may emit slight smoke or odor, which is normal for many products, a not affect the safety of your product.

ATTENTION! Ensure that the product is placed on a horizontal and sturd

platform, or secured to the wall with screws.

ATTENTION! Before each use, the handle must be checked for looseness and the handle and screws must be kept tight.

PARTS LIST

A.Base pipe1 PC	B.Bottom splint2 PCS	C.Footing tube2 PCS	D.Indight1 PC	E.Indight
F.Load pulley block1 PC	G.Sleeve2 PCS	H.Top beam1 PC	I.Top splint[ceTW]1 PC	JA.Regulating part(JA)1 PC
JB.regulating part(JB)1 PC	KA.Pushing arm(KA)1 PC	KB.Pushing arm(KB)1 PC	L.Handle2 PCS	M.Seat tube1 PC
N.Seat board1 PC	O.Pulley3 PCS	P.Cable1 PC	Q.Back cushion1 PC	R.Seat cushion1 PC
S.WEIGHT HOLDER CLIPØ502 PCS	T.Buffer pad2 PCS

1.Bolt(M10*70)8 PCS	2.Bolt(M10*65)6 PCS	3.Bolt(M10*65)2 PCS	4.Bolt(M10*20)2 PCS	5.Bolt(M10*45)3 PCS
6.Bolt(M8*70)2 PCS	7.Bolt(M8*25)3 PCS	8.Washerø1030 PCS	9.Lock nut M1017 PCS	10.Big washerø10-302 PCS
11.Lock nut M162 PCS	12.Washerø162 PCS	13.Washerø85 PCS	14.Tool(14-17)2 PCS	15.Tool(22-24)2 PCS

NOTE: The quantity of parts shown in the manual is the actual usage of unused parts are spare parts.

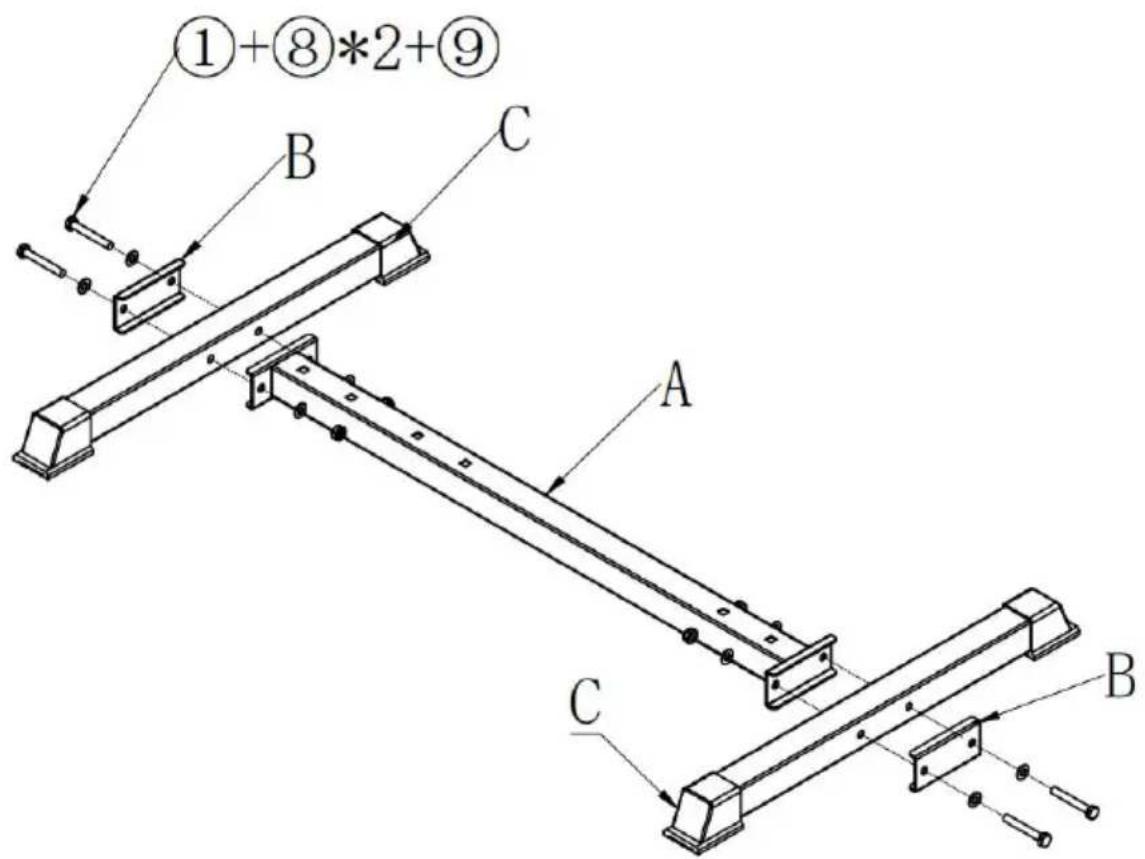

STEP1:

A.Base pipe1 PC	B.Bottom splint2 PCS	C.Footing tube2 PCS	1.Bolt(M10*70)4 PCS	2.Washer ø108 PCS
9.Lock nut M104 PCS	10.Tool(14-17)2 PCS

①+⑧*2+⑨ B C A C B

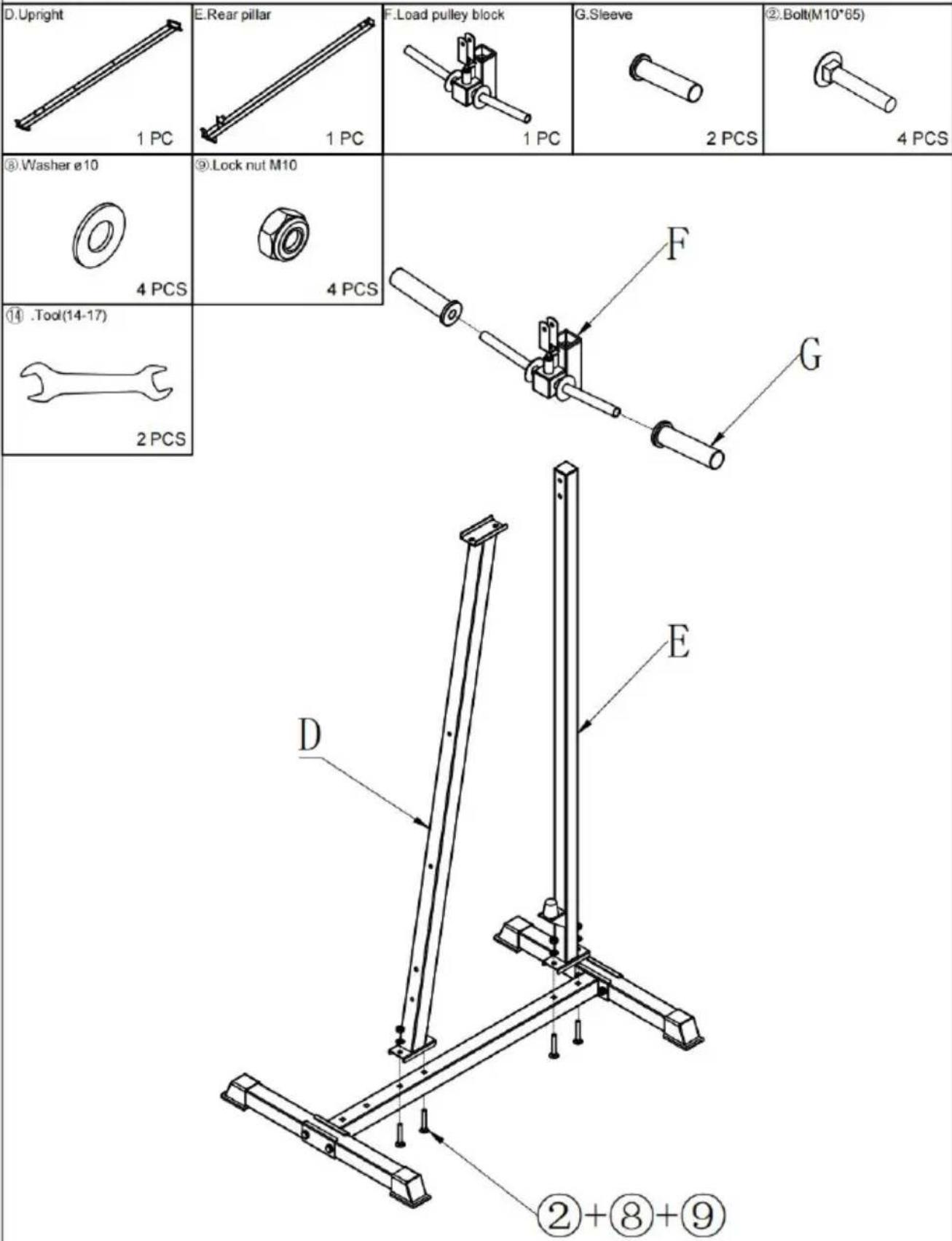

STEP2:

D.Upright 1 PC E.Rear pillar 1 PC F.Load pulley block 1 PC G.Sleeve 2 PCS ②.Bolt(M10*65) 4 PCS ⑧.Washer ø10 4 PCS ⑨.Lock nut M10 4 PCS Tool(14-17) 2 PCS ⑭. ⑫ D E ②+⑧+⑨

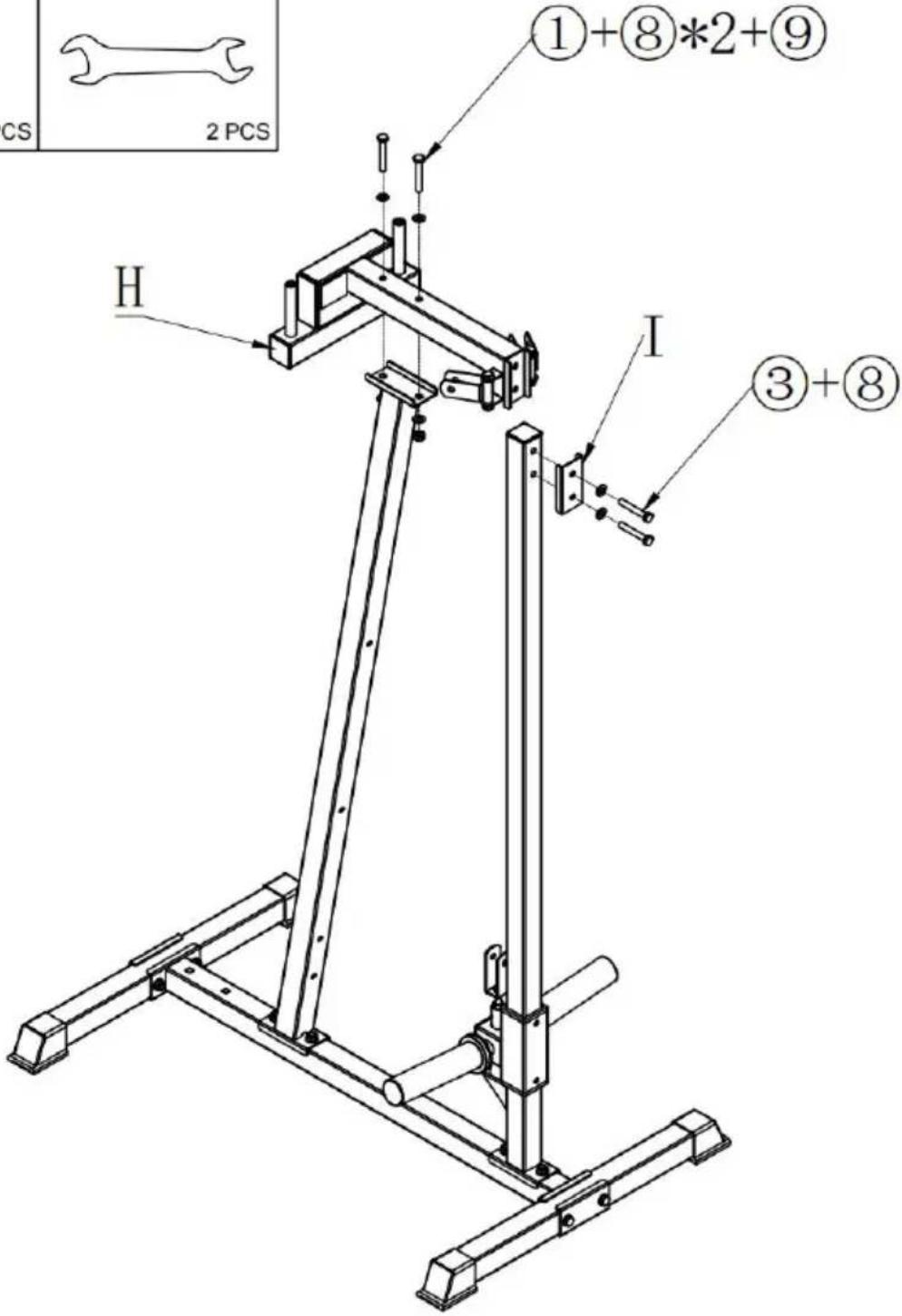

STEP3:
H.Top beam1 PC	I.Top splint1 PC	3.Bolt(M10*65)2 PCS	8.Washerø106 PCS	9.Lock nut M102 PCS
1.Bolt(M10*70)2 P	14.Tool(14-17)

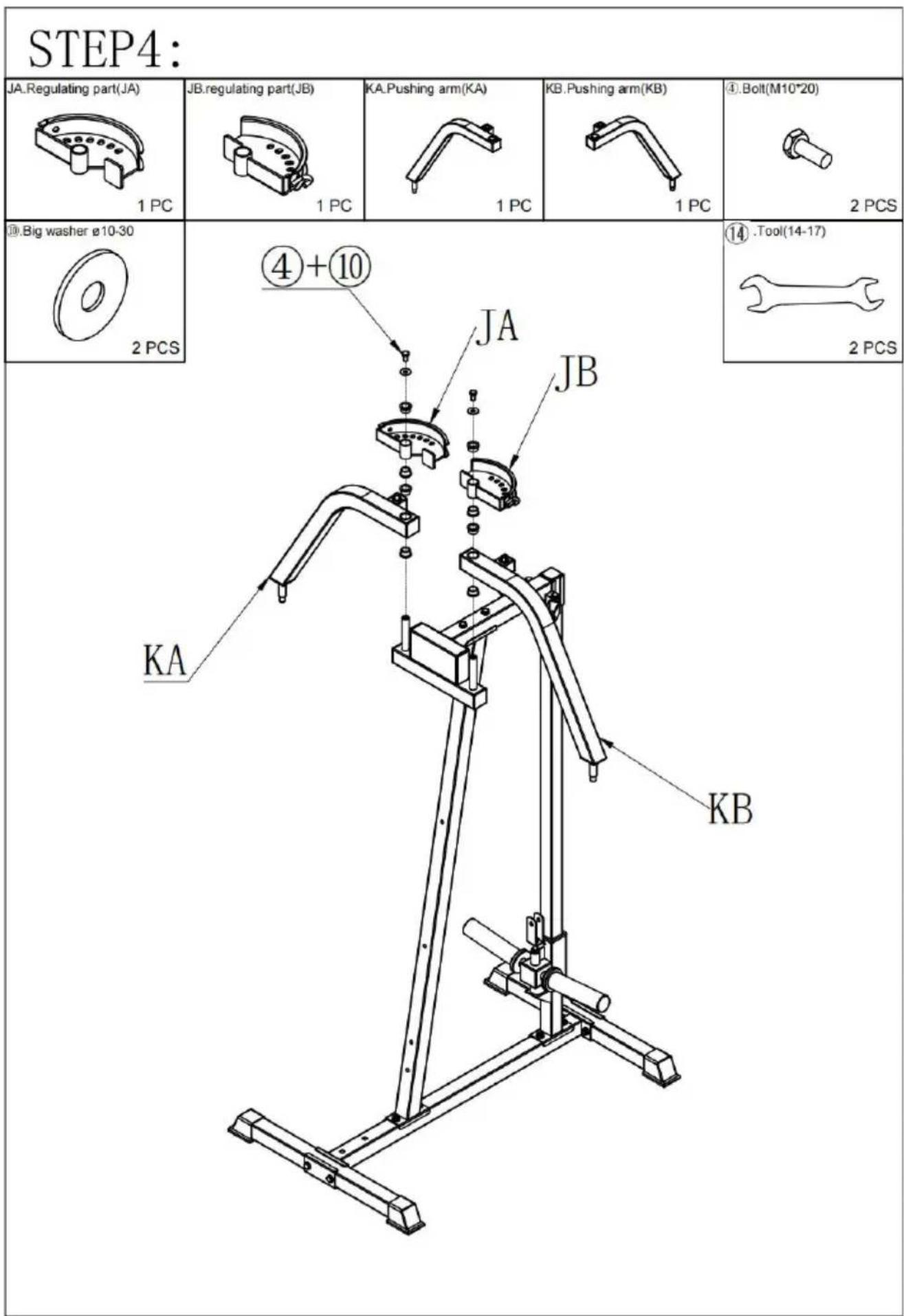

STEP4: JA.Regulating part(JA) 1 PC JB.regulating part(JB) 1 PC KA.Pushing arm(KA) 1 PC KB.Pushing arm(KB) 1 PC ④.Bolt(M10*20) 2 PCS ⑩.Big washer ø10-30 2 PCS ④+⑩ KA JB KB ⑭.Tool(14-17) 2 PCS

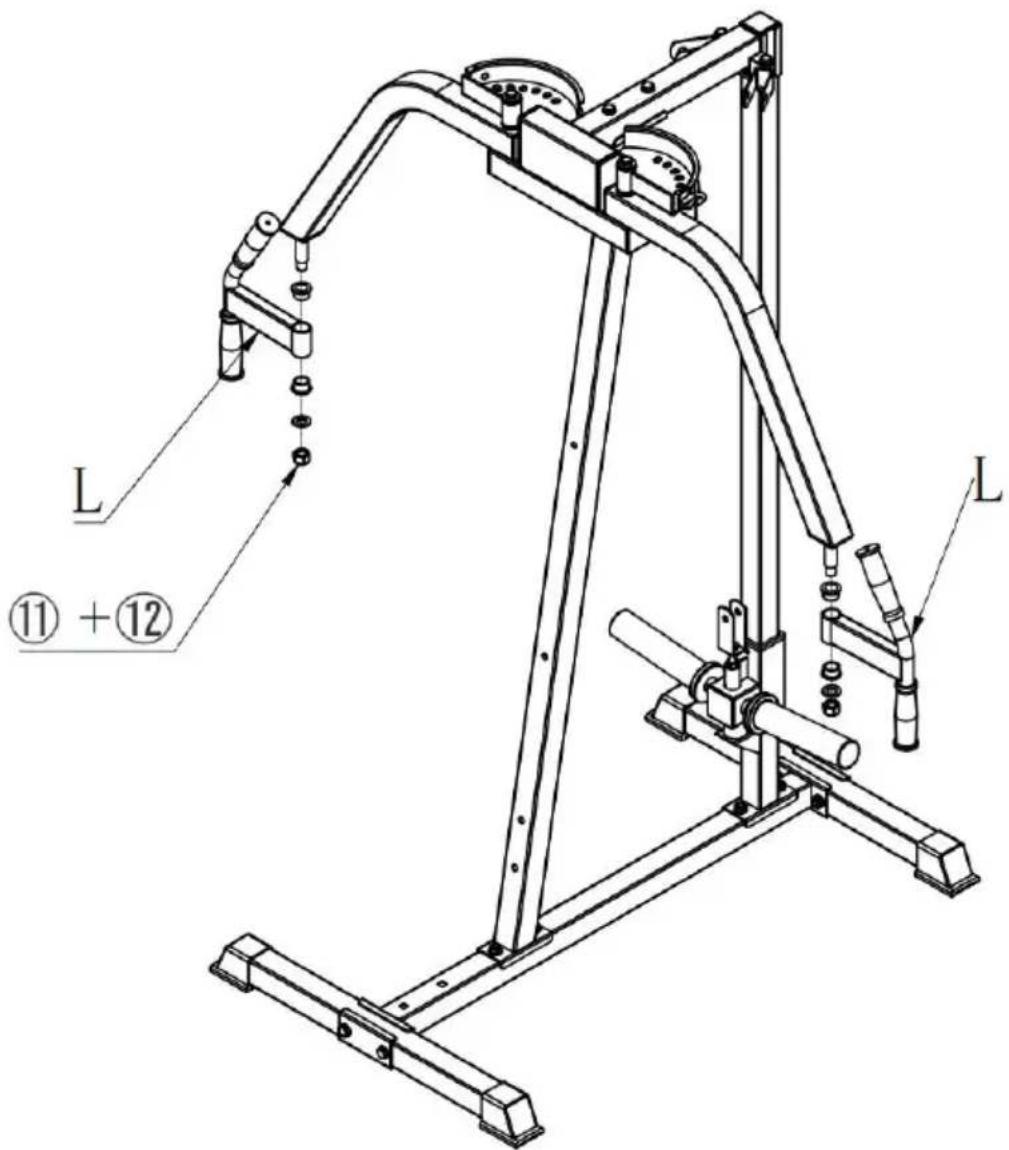

STEP5:

L.Handle

⑪. Lock nut M16

2 PCS

12 .Washer ∅16

⑮. Tool(22-24)

2 PCS

2 PCS

L ⑪ +⑫ L

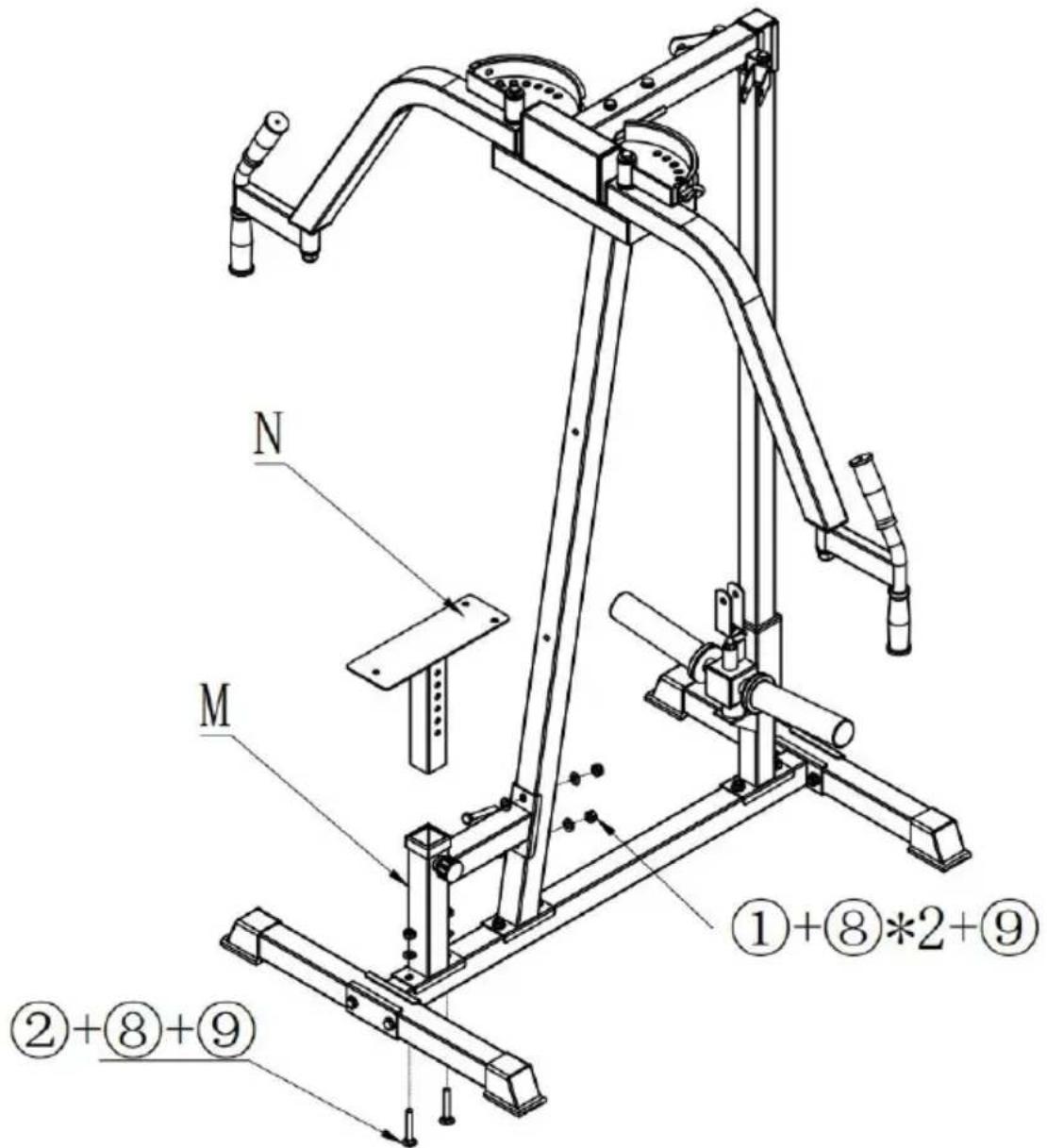

STEP6:

M.Seat tube1 PC	N.Seat board1 PC	2.Bolt(M10*65)2 PCS	1.Bolt(M10*70)2 PCS	8.Washer ø106 PCS
9.Lock nut M104 PCS	14.Tool(14-17)2 PCS

N M ①+⑧*2+⑨ ②+⑧+⑨

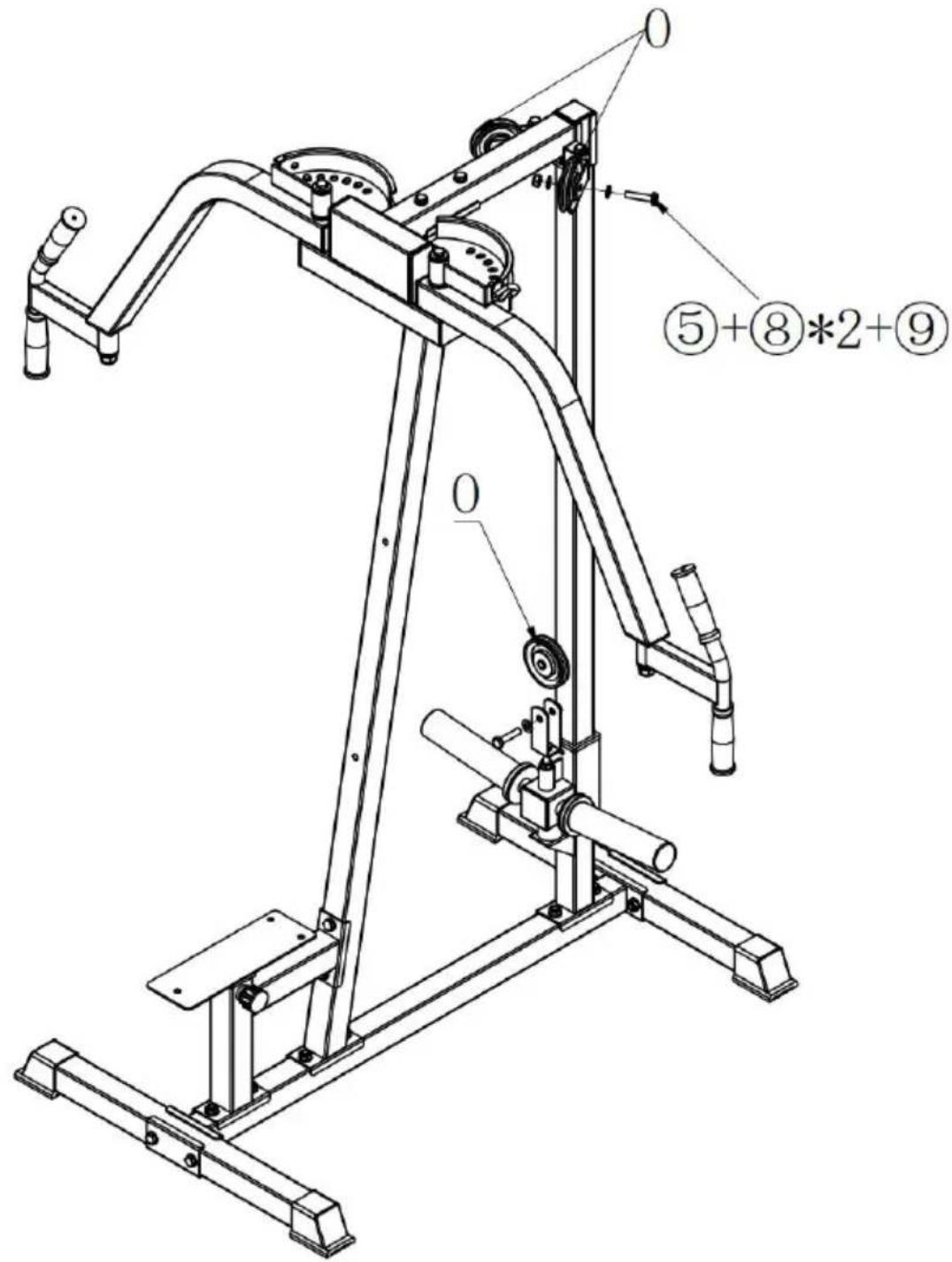

STEP7:

O.Pulley

3 PCS

⑯.Bolt(M10*45)

3 PCS

⑧.Washer 010

6 PCS

⑨. Lock nut M10

3 PCS

⑭. Tool(14-17)

2 PCS

⑤+⑧*2+⑨ 0

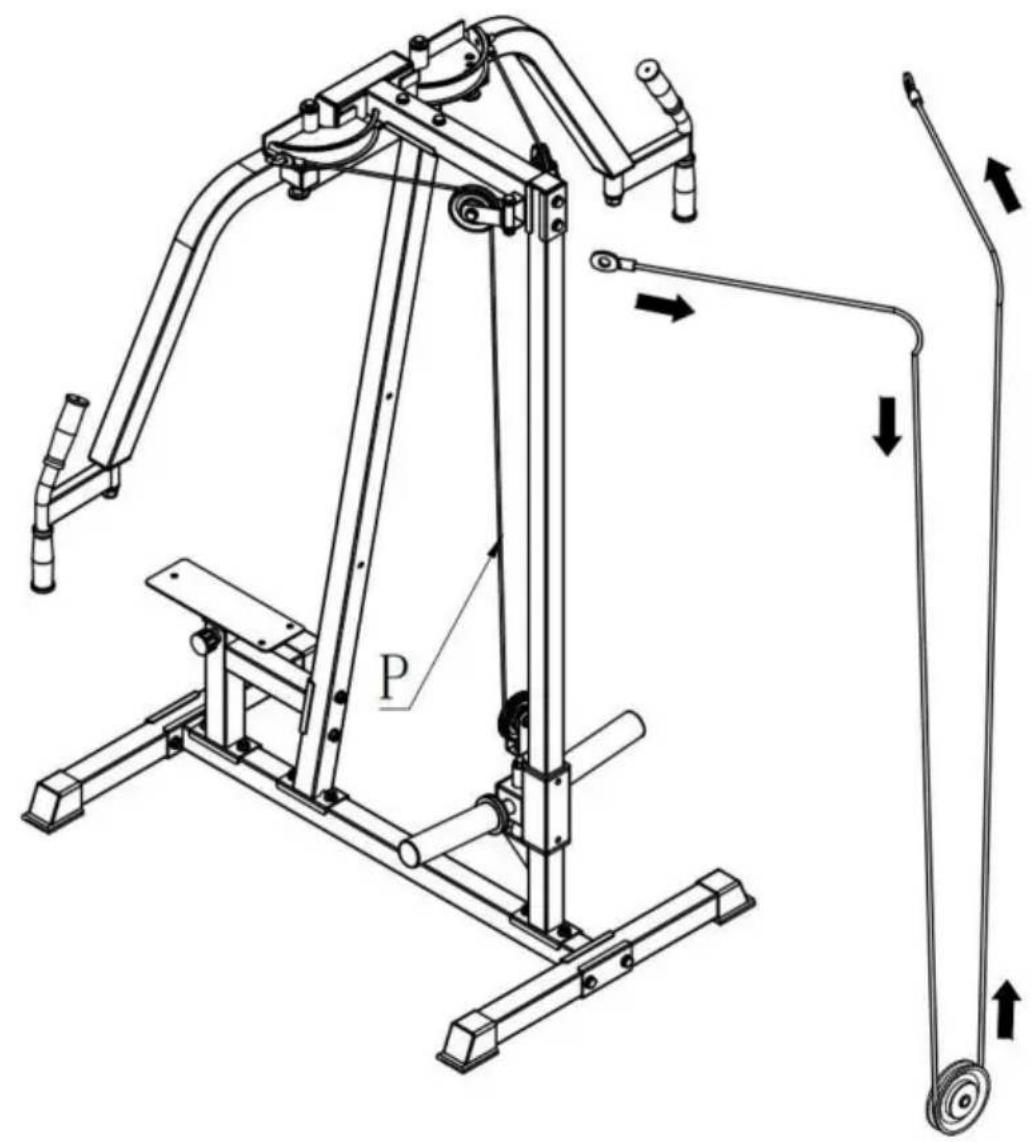

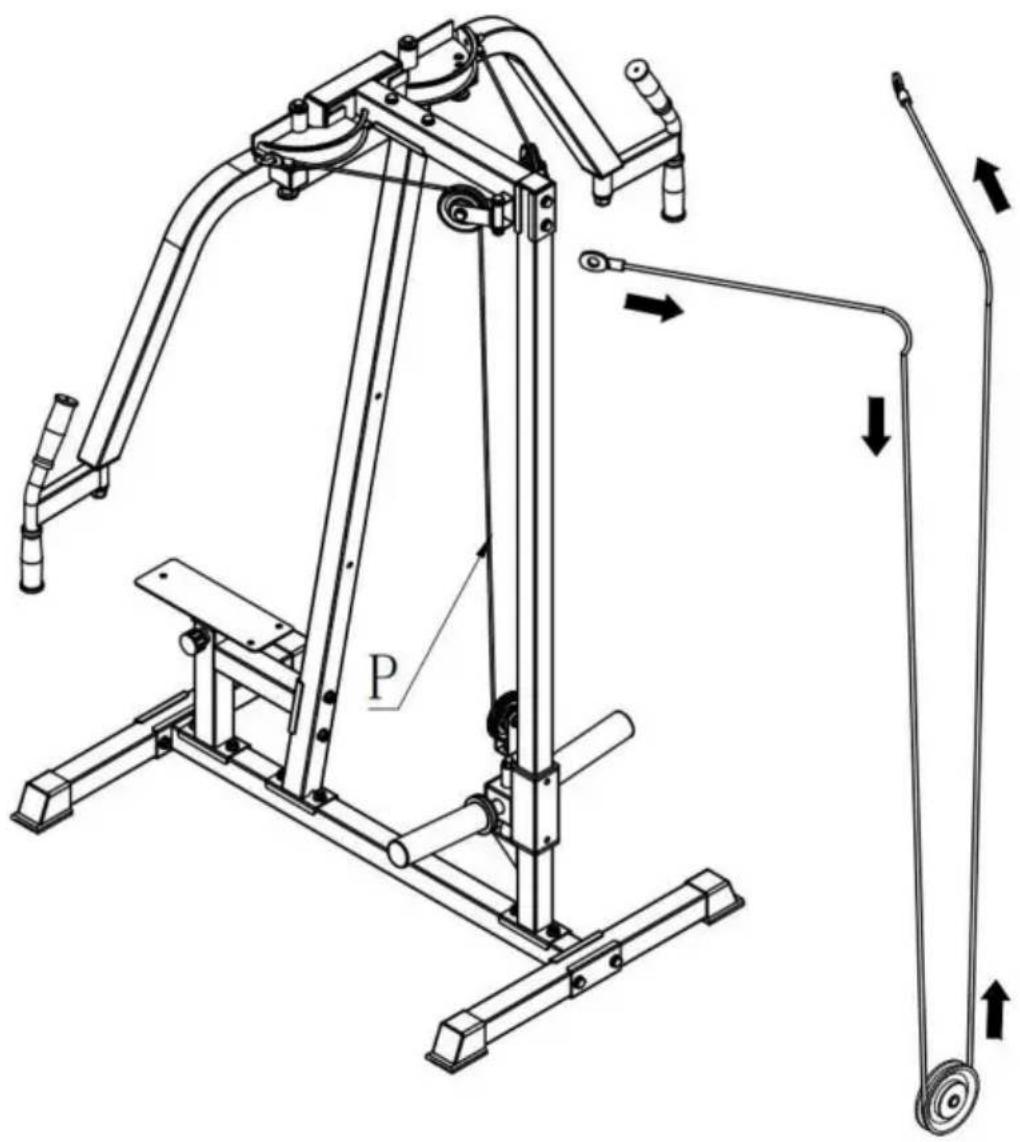

STEP8:

Simple line drawing of a cable with two connectors and a 1 PC label (no text or symbols on the diagram itself)

Technical diagram of a mechanical exercise machine with labeled components and directional arrows indicating motion or movement.

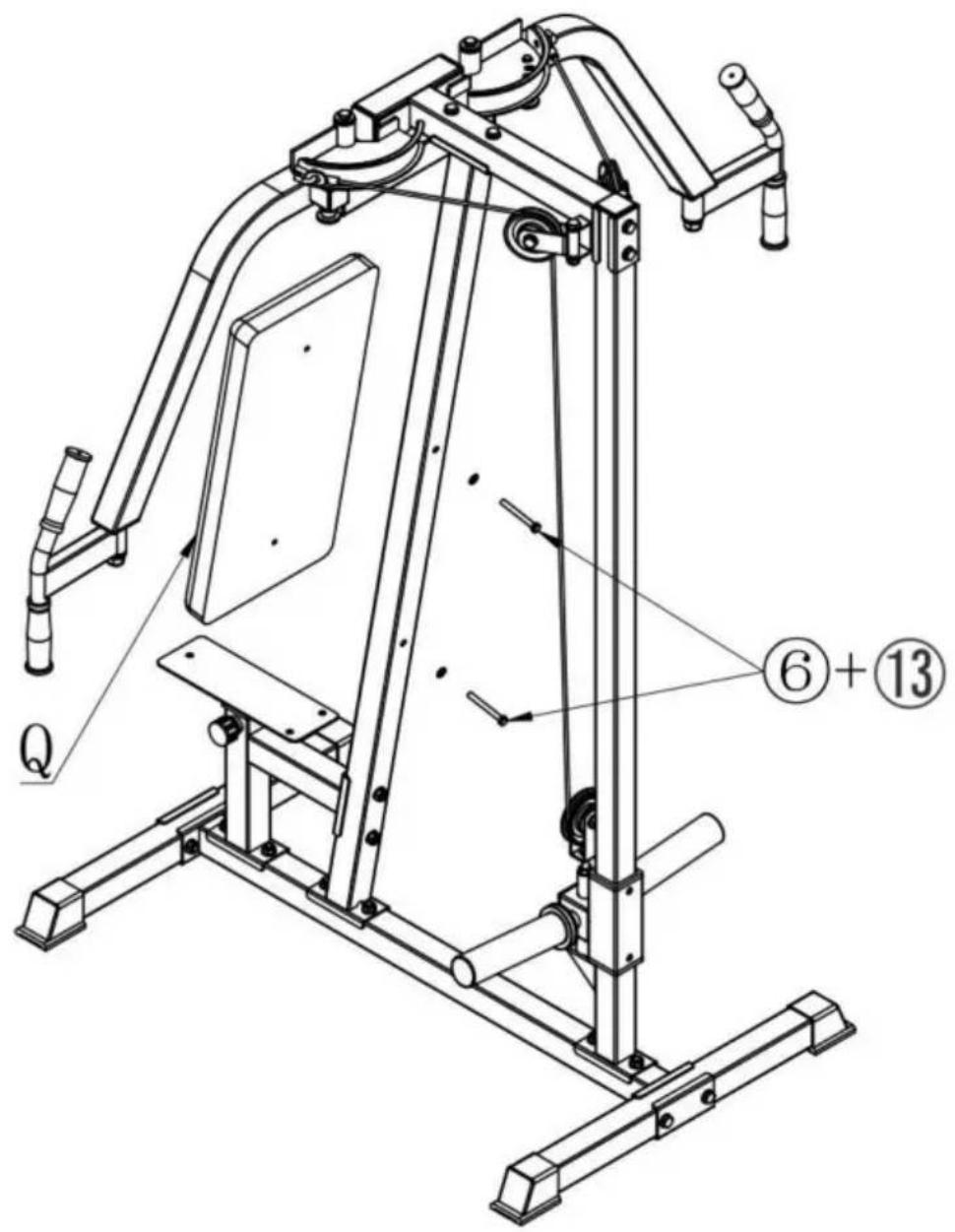

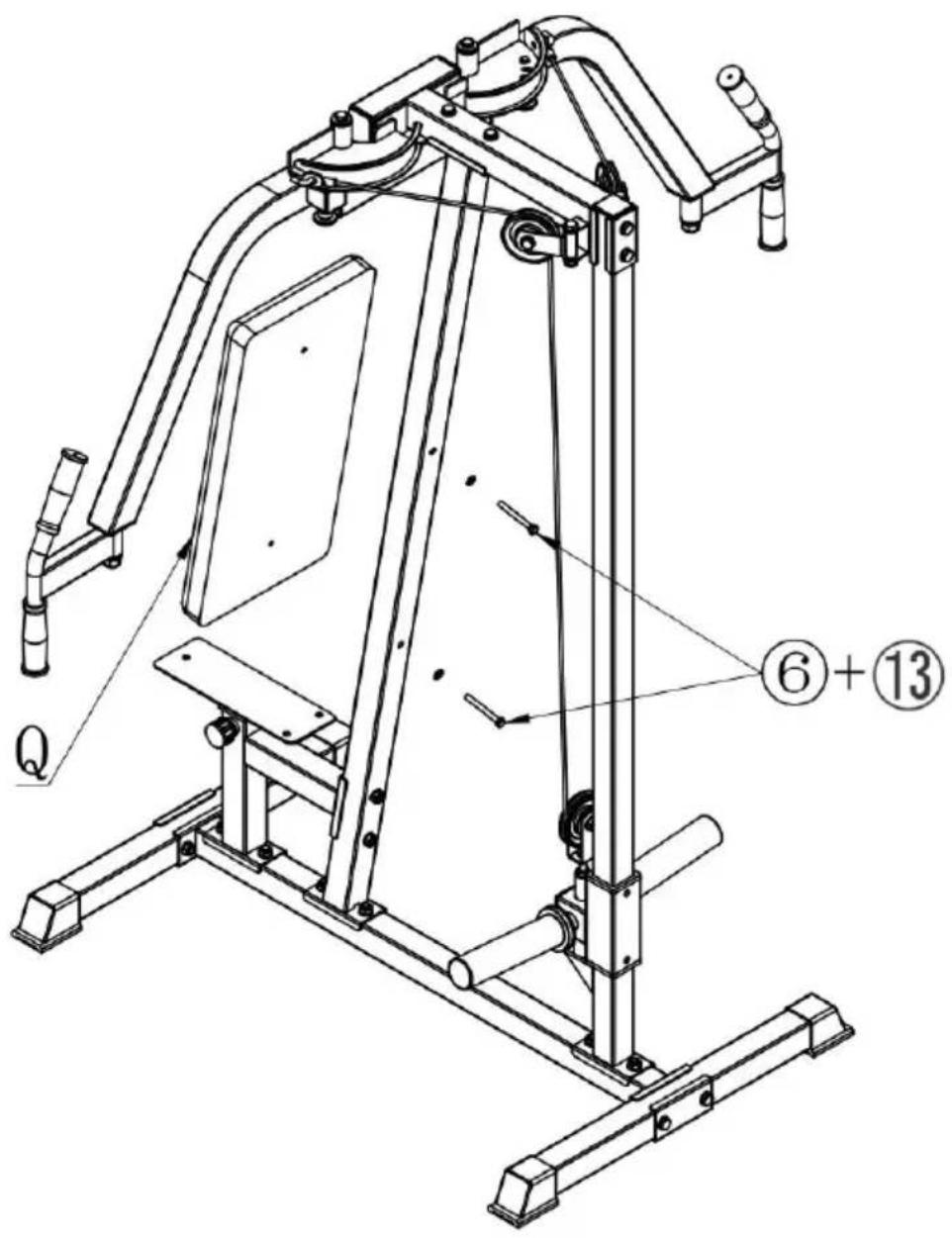

STEP9:

Q.Back cushion

⑥.Boll(M8*70)

2 PCS

⑬ .Washer 08

2 PCS

⑭. Tool(14-17)

2 PCS

Q ⑥+⑬

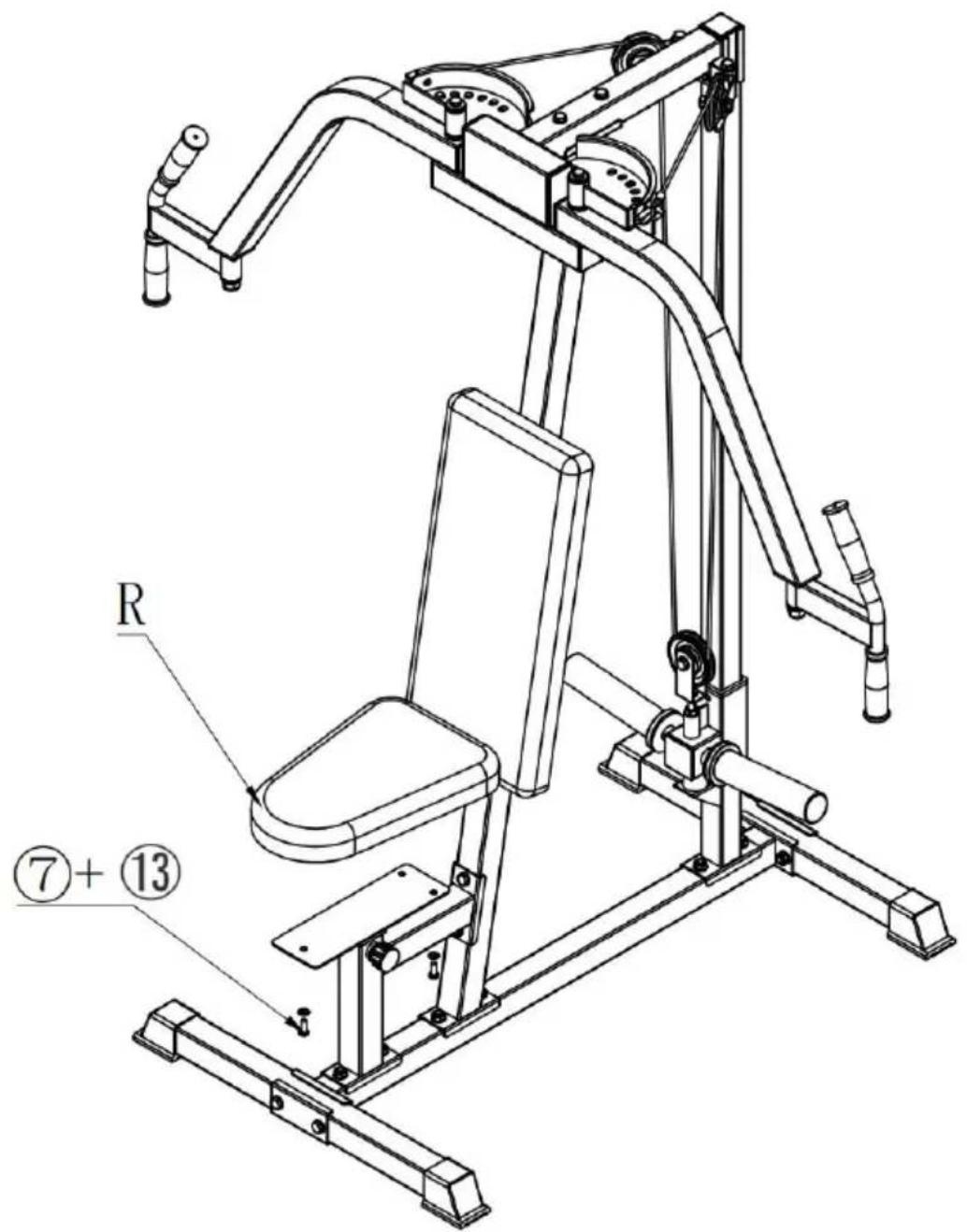

STEP10:

R.Seat cushion

1 PC
⑦.Bolt(M8*25)

3 PCS

⑬. Washer ∅8

3 PCS

⑭. Tool(14-17)

2 PCS

Attention: The maximum weight for placing dumbbells one side is 100KG (220LBS).

R ⑦+⑬

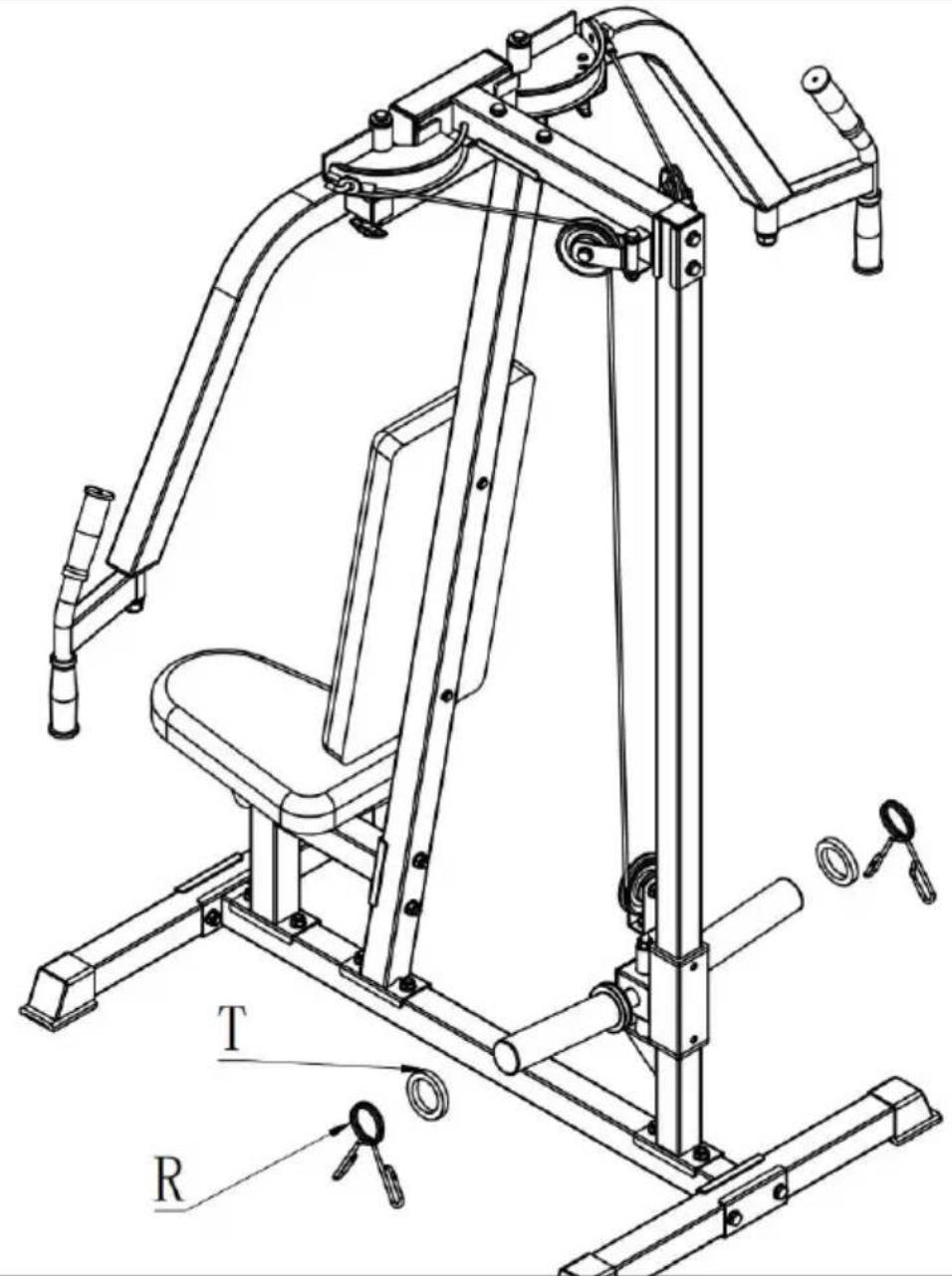

STEP11:

S.WEIGHT HOLDER CLIP Ø50 2 PCS

T.Buffer pad 2 PCS

Warning: The number of dumbbells placed should not too many to avoid falling beyond the dumbbell bracket

T R

Warning! After installing the dumbbell, it is necessary to use the Weight Holder Clip to secure the dumbbell

CLEANING AND STORAGE

1. Wipe with a soft, dry cloth. Never use an abrasive cleanser or harsh packet to keep the product dry
2. Children are not allowed to wipe the product to avoid tipping and falling
3. Check the screws regularly every months for loosening and tighten the sci

Manufacturer: Shanghaimuxinmuyeyouxiangongsi

Address: Shuangchenglu 803nong11hao1602A-1609shi, baoshanqu, shanghai 200000 CN.

Imported to AUS: SIHAO PTY LTD. 1 ROKEVA STREETEASTWOOD NSW 2122 Australia

Imported to USA: Sanven Technology Ltd. Suite 250, 9166 Anaheim Place, Rancho Cucamonga, CA 91730

UK

REP

YH CONSULTING LIMITED.

C/O YH Consulting Limited Office 147,

Centurion House, London Road,

Staines-upon-Thames, Surrey, TW18 4AX

EC

REP

E-CrossStu GmbH

Mainzer Landstr.69,

60329 Frankfurt am Main.
